CONTROL PARTS
BUILT−IN MICROWAVE
For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0
(BLACK) (WHITE) (BISCUIT) (STAINLESS)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8205303 Installation
Instructions
8205301 Use & Care Guide
8205305 Cook Guide Label
8205302 Guide−Quick
Reference
8205304 Tech Sheet
2 Panel, Control
8205725 Black
8205723 White
8205726 Biscuit
8205724 Stainless
11−07 Litho in U.S.A. (dmm)
Illus. Part
No. No. DESCRIPTION
3 Switch, Membrane
8205667 Black
8205666 White
8205668 Biscuit
4 8205663 Board, Display
5 8205722 Support, Control
Panel
6 8205662 Board, Selector
7 8205665 Board, Interface
8 8205739 Holder, Control
Board
9 8205657 Holder, Display
Board
1
Illus. Part
No. No. DESCRIPTION
10 Ring, Knob
8205727 Black
8205728 White
8205729 Biscuit
11 Knob
8205730 Black
8205731 White
8205732 Biscuit
Part No. 8205649 Rev. A
CABINET PARTS
For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0
(BLACK) (WHITE) (BISCUIT) (STAINLESS)
Illus. Part
No. No. DESCRIPTION
1 Trim, Side
8205715 RH Black
8205718 RH White
8205717 RH Biscuit
8205716 RH Stainless
8205712 LH Black
8205711 LH White
8205714 LH Biscuit
8205713 LH Stainless
Illus. Part
No. No. DESCRIPTION
2 8205720 Trim, Bottom
3 8205707 Support, Bottom
4 8205708 Bracket, Bottom
2
Illus. Part
No. No. DESCRIPTION
5 Chassis, Side
8205674 Left
8205680 Right
6 8205709 Top Plate
7 8205710 Back, Cover
8205649
DOOR PARTS
For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0
(BLACK) (WHITE) (BISCUIT) (STAINLESS)
Illus. Part
No. No. DESCRIPTION
1 Door Assembly
8205737 Black
8205736 White
8205738 Biscuit
8205735 Stainless
8205649
Illus. Part
No. No. DESCRIPTION
2 8205733 Hinge Assembly (2)
3 8205687 Sliding Arm Assy
4 8205683 Switch Holder (2)
5 4375346 Switch (3)
6 8205684 Push−Rod (2)
3
Illus. Part
No. No. DESCRIPTION
7 8205685 Spring Cam
8 8205689 Spring
9 8205688 Lift Arm
10 8205686 Support
11 8205704 Spring, Torsion
12 8205789 Gasket
TOP VENTING PARTS
For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0
(BLACK) (WHITE) (BISCUIT) (STAINLESS)
Illus. Part
No. No. DESCRIPTION
1 8205706 Air Duct
2 8205740 Air Guide
3 8205692 Transformer, Lamp
4 8205721 Motor, Fan Assy
5 8205664 Control,
Electronic
6 8205669 Holder, Control
7 8205705 Top Chassis
8 8205719 Vent, Control
Panel
9 4357202 Screw
4
8205649
OVEN INTERIOR PARTS
For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0
(BLACK) (WHITE) (BISCUIT) (STAINLESS)
Illus. Part
No. No. DESCRIPTION
1 4375321 Fuse
2 8205670 Fuse Holder
3 8205650 Magnetron
4 8205651 Screw
5 8205652 Thermostat
6 8205654 Thermostat
7 8205653 Mains Filter
8 8205655 Turntable Motor
9 8205656 Screw
8205649
Illus. Part
No. No. DESCRIPTION
10 8205659 Thermostat, Cavity
11 8205660 Power cord
12 8205679 Spring,
Lamp Holder
13 8205658 Socket, Lamp
14 4375348 Lamp
15 4375320 Reflector
16 4375318 Lens, Lamp
17 8205671 Transformer
18 8205672 Screw
5
Illus. Part
No. No. DESCRIPTION
19 8205673 Reducer, Humidity
20 4375349 H.V. Diode
21 8205661 H.V. Capacitor
22 8205690 Sensor, Humidity
23 8205675 Cover, Inlet
24 8205676 Turntable, Glass
25 8205678 Ring, Turntable
26 8205677 Driver, Turntable
27 8205682 Shaft, Turntable
28 8205681 Holder, Motor
29 4375202 Screw
30 8205788 Holder, Capacitor

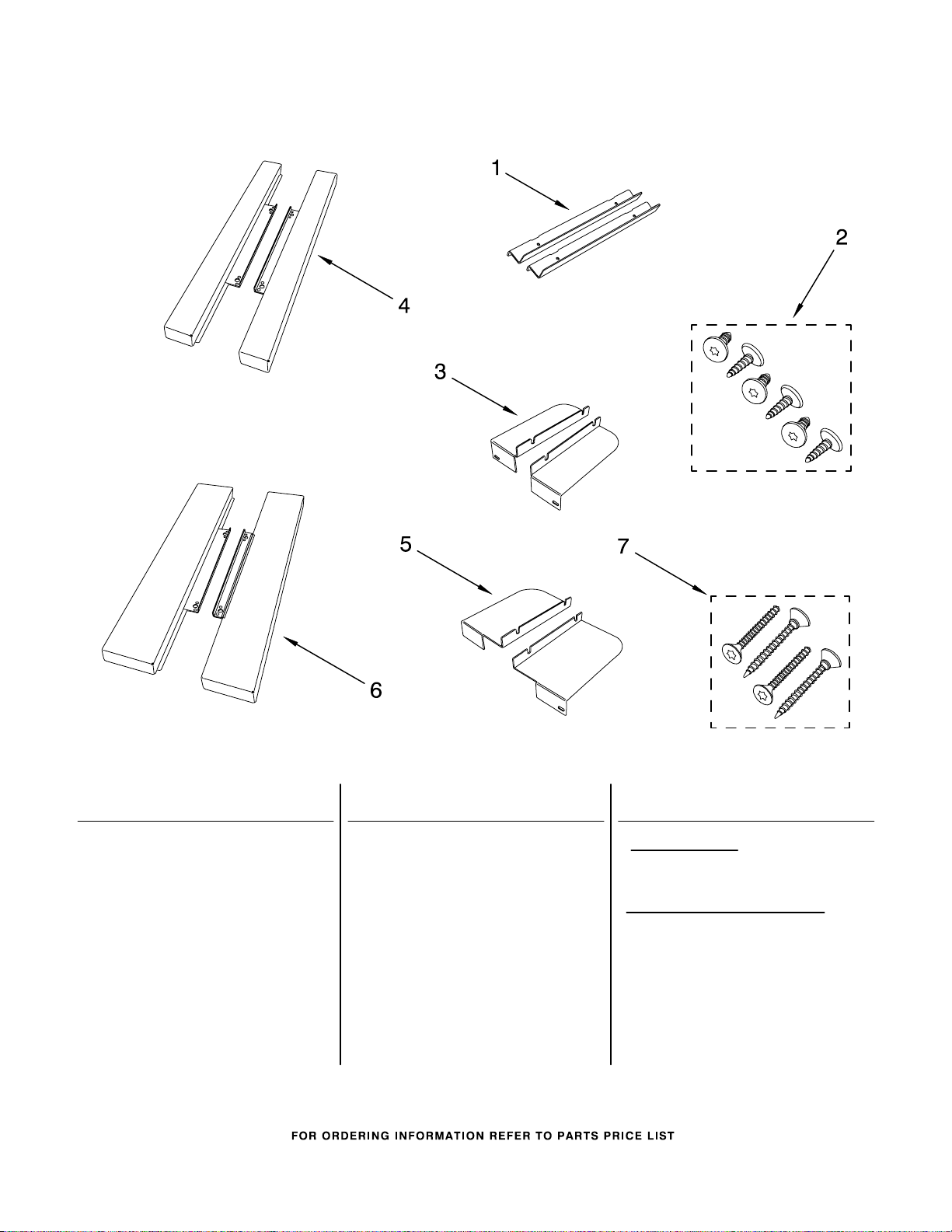

INSTALLATION PARTS
For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0
(BLACK) (WHITE) (BISCUIT) (STAINLESS)
Illus. Part
No. No. DESCRIPTION
1 8205754 Z−Bracket
2 8205755 6 pk. screws
3 Narrow Bracket
8205756 27" Left
8205757 27" Right
4 Narrow Trim
8205758 27" White
8205759 27" Black
8205760 27" Biscuit
8205761 27" Stainless
Illus. Part
No. No. DESCRIPTION
5 Wide Bracket
8205762 30" Left
8205763 30" Right
6 Wide Trim
8205764 30" White
8205765 30" Black
8205766 30" Biscuit
8205767 30" Stainless
7 4 pk. screws
8205768 White
8205769 Black
8205770 Biscuit
8205771 Stainless
6
Illus. Part
No. No. DESCRIPTION
Miscellaneous
8205734 Mounting Kit
WIRING HARNESS PARTS
8205748 Harness, Main
8205749 Harness, Sensor
8205750 Harness, Lamp
8205751 Harness, Fan &
Turntable Motor
8205752 Cable, UI Board
Selector Board
8205753 Cable, UI Board
To Elec. Control
8205649
