CABINET PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
36" BOTTOM MOUNT
BUILT IN REFRIGERATOR
9−05 Litho In U.S.A. (mek)
1
Part No. 8199106
CABINET PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2309067 Use & Care Guide
2307361 Energy Label
2306322 Service & Wiring
Sheet
2302865 Main Control
Service Sheet
628370 Modular Icemaker
Service Sheet
2266812 Installation
Instructions
2 Cabinet (Not A
Serviceable Part)
3 2005004 Grommet, Crossover
Tube
4 1112023 Roller, Front &
Rear (4)
5 Support, Leveler
Assembly
2004506 Refrigerator Side
2004505 Freezer Side
6 2005006 Grommet, Wiring
7 2005007 Grommet,
Flexible
8 489399 Screw
Illus. Part
No. No. DESCRIPTION
9 2006442 Mounting Bracket,
Grill
10 2005921 Screw
11 1112849 Cap, Grommet
12 2004514 Clamp
13 2204516 Tube, Drain
Condensate
14 2207470 Shim−Hinge, Door
15 2209090 Clamp, Filter
Housing
16 2208136 Clamp, Tube
17 2001295 Screw, Door Stop
18 2257644 Hinge, Door
Refrigerator Top
19 2005783 Cam−Closer,
Door
20 1157158 Screw
21 2006617 Bracket, Support
Door
22 2002903 Bushing
23 2209022 Housing, Water
Filter
24 2004517 Spring, Door
Closure
25 486194 Screw
Illus. Part
No. No. DESCRIPTION
26 2255709 Filter, Water
27 2266880 Bushing−Arm,
Extension
28 2307806 Gap, Cover
(Bottom)
29 2005101 Hinge, Bottom
Refrigerator
30 489464 Screw, 8−18 x 1/2
31 489282 Screw
32 2209024B Skirt, Grille−
Bottom
33 2006346 Washer
34 2215889B Grille Base,
Front
36 2215612 Cover, Air Duct
37 1113122 Grommet, Wiring
38 2266881 Arm, Extension
39 2221096 Bracket, Switch
40 2215938 Cover, Switch
42 2186494B Cap, Water Filter
43 8533913 Screw (4)
44 487415 Screw, 8−18 x 3/8
45 1118894 Switch, Rocker Arm
46 9791833 Clip
49 2221070 Clamp, Tube
2
8199106
CABINET AND BREAKER TRIM PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
8199106
Illus. Part
No. No. DESCRIPTION
1 Cabinet Trim,
Right Side
2257688X Etched Aluminum
3 1163283 Screw
4 2254724 Cabinet, Trim
(Bottom)
5 486194 Screw
6 2257366 Cabinet Trim, Top
7 Breaker Trim
(Not Serviced)
8 2005782 Cover, Hinge
9 2005925 Seal−Trim,Side
10 Cabinet Trim,
Left Side
2257689X Etched Aluminum
11 489464 Screw, 8−18 x 1/2
3
TOP GRILLE AND UNIT COVER PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2259425X Etched Aluminum
2 2259320 Cover, Unit
4 2256466 Back Panel
Illus. Part
No. No. DESCRIPTION
5 2302974 Front,
Unit Cover
6 487415 Screw
7 2187423 Wire Assembly
9 489348 Clamp
11 2259438X Grille−Trim,
Bottom
4
Illus. Part
No. No. DESCRIPTION
12 1161548 Nut
13 2259440X Grille−Trim, Top
14 2259420X Grille−Trim,
Right Side
15 2003347 Screw 8−32 x 7/16
16 2259421X Grille−Trim,
Left Side
8199106
LINER PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
8199106
5
LINER PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
Illus. Part
No. No. DESCRIPTION
1 Liner,
Refrigerator
(Not Servicable)
2 Liner,Freezer
(Not Servicable)
3 2215610 Cover, Heat
Exchanger
4 2215827 Diffuser Cap,
Left Side
5 2005931 Diffuser Cap,
Right Side
6 2171846 Release Valve
7 487539 Screw, 8−15 x 1/2
8 486194 Screw
9 2223986 Motor, Grommet
10 2006148 Wiring Channel,
Freezer Rear
11 2215844 Foam, Fan Shroud
12 2215910 Grommet, Flexible
13 2215606 Shroud, Evaporator
Fan
14 2169142 Blade, Fan
15 2259385 Motor, Fan
Illus. Part
No. No. DESCRIPTION
16 2223733 Retainer,
Fan Motor
17 2221296 Air Baffle
Assembly
18 2215503 Bracket
19 8201595 Wiring Channel
20 2187621 Wiring Harness,
Freezer
(Includes Item 55)
21 2306391 Cover, Evaporator
Assembly
22 1116793 Cover, Thermistor
23 2188820 Thermistor
24 2209208 Drain Tube,
Condensate
25 2215530 Insulation, Baffle
26 2215531 Cover, Air
Diffuser
27 2306386 Heater−Tube,
Drain
28 2204538 Insulation, Tube
Drain
29 2204537 Cover, Tube
Drain
30 486194 Screw
31 2215835 Housing, Switch
Illus. Part
No. No. DESCRIPTION
32 1157158 Screw, 8−18 x 3/8
33 2302715 Shield, Light
35 2209204 Clip, Thermistor
37 2302774 Control Panel
38 2257521 Overlay, Control
Panel
39 2302913 Circuit Board
(User Interface)
40 2303938 Insert,
Control Box
(User Interface)
41 489464 Screw
42 2162085 Socket, Light
43 2257556 Light Bulb
44 2187424 Harness, Control
Box
45 8201534 Cover, Wiring
Freezer Light
46 1115375 Clip, Wiring
47 1115373 Switch, Rocker
48 2005792 Wiring Cover,
Icemaker
49 2187378 Defrost Bi−Metal
50 2215829 Diffuser Assembly
51 2221121 Support,
Control Box
52 489006 Screw
6
8199106
REFRIGERATOR SHELF PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
8199106
7
REFRIGERATOR SHELF PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
Illus. Part
No. No. DESCRIPTION
1 Slide, Freezer
Basket
2257355 Right Side
2257356 Left Side
2 2006475 Screw, 8−15 x 1.00
3 2302788 Support, Crisper
Cover
4 Spacer, Crisper
2256443 Right Side
2256442 Left Side
5 2179404 Rack, Wine
6 2221071 Egg Bin
7 Bracket, Freezer
Basket
2257327 Right Side
2257326 Left Side
8 8533928 Screw
12 2257562 Trim−Glass,
Side
13 2256474 Divider,
Crisper Pan
14 8533929 Screw
15 Slide, Crisper
2256440 Left Side
2256441 Right Side
18 2258973 Shelf (4)
19 2257563 Trim−Glass,
Side
21 2302839 Deli Shelf Assy.
29 2256375 Cripser Pan
Assembly
(Includes #30)
30 2256374 Front,
Crisper Pan
33 2257548 Front,
Deli Pan
37 2302837 Crisper Shelf
Assembly
38 2257564 Trim−Glass,
Rear
39 Trim−Glass, Front
(Not Serviceable)
43 Slide, Deli
2257544 Left Side
2257545 Right Side
44 Spacer, Deli
2257531 Left Side
2257532 Right Side
47 2257535 Deli Pan
Assembly
(Includes #33)
48 2005410 Ladder, Shelf (4)
49 2006475 Screw,
8
8199106
FREEZER DOOR AND BASKET PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
8199106
9
FREEZER DOOR AND BASKET PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
Illus. Part
No. No. DESCRIPTION
1 2300085 Freezer Door
Panel (Includes
Item 9)
2 2204525 Divider, Basket
3 2207429 Clamp, Divider
4 2207415 Nut, Crimp
5 3190699 Screw
6 2258903 Trim−Door, Corner
7 2258901X Trim−Door, Side
8 2258902X Trim−Door,
Top & Bottom
9 2300185 Door Gasket,
Magnetic
10 2259363X Cover−Screw,
Top & Bottom
12 2204542 Roller
13 2259364X Cover−Screw, Side
14 Screw, 8−15 x 1/2
8281250 Stainless Steel
15 2257426 Bracket Assembly,
Freezer Basket
17 2257442 Basket, Upper
18 2174124 Pan, Ice Cube
19 2207454 Nut, Hex
20 2207471 Bushing
21 3400507 Screw
22 2257331 Basket, Freezer
Lower
10
8199106
REFRIGERATOR DOOR PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
8199106
11
REFRIGERATOR DOOR PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
Illus. Part
No. No. DESCRIPTION
1 2300083 Refrigerator
Door (Includes
Item 9)
2 2259362X Cover−Screw,
Handle Side
3 2266912 Hinge Assembly,
Top
4 2256381 Spacer−Hinge,
Top
5 489282 Screw, 10−32 x 3/4
6 2302928 Hinge Assembly,
Bottom
7 2258908X Trim−Door, Handle
Side
8 2257692X Trim−Door, Hinge
Side
9 2300184 Door Gasket,
Magnetic
11 2259361X Cover−Screw,
Hinge Side
12 2005982 Gasket (2)
13 2257647 Spacer−Hinge,
Bottom
14 2258900X Trim−Door, Bottom
15 Screw, 8−15 x 1/2
8281250 Stainless Steel
16 2258903 Trim−Door, Corner
17 2257699X Trim−Door, Top
18 2005482 Tube, Door
Shelf
19 2005417 Shelf, Door (2)
20 489276 Screw, 8−18 x 3/4
21 2005542 End Cap, Left
22 2005541 End Cap, Right
23 2006152 Tube, Door
Shelf (Gallon)
24 2259360X Cover−Screw, Top
26 2005983 Door, Utility
Bin (2)
(Includes Item 12)
27 2006154 Door Shelf,
Gallon
28 2165792 Butter Tray
12
8199106
UPPER UNIT PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
8199106
13
UPPER UNIT PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
Illus. Part
No. No. DESCRIPTION
1 2306957 Inverter Box
2 489373 Screw, Compressor
Mounting (4)
3 2302967 Compressor
(Includes Items
6, 9 & 21)
(Also Order
876765 Tube Kit)
4 2257354 Housing, Control
Board
5 2215641 Bracket, Fan Motor
6 1100826 Grommet, Mounting
7 2266803 Shroud, Condenser
(Right)
8 2302969 Bracket, Switch
9 2215676 Terminal Cover
10 2302973 Shroud, Condenser
(Left)
11 2303934 Control Board
12 2203075 Spacer (5)
13 2256328 Bracket, Inverter
Box
15 1157158 Screw
16 2259307 Condenser
17 943447 Grommet (4)
Illus. Part
No. No. DESCRIPTION
18 2187629 Wire, Jumper
19 488208 Screw
20 2155774 Wire Tie
21 2252363 Drier
22 487522 Screw
23 2206036 Motor, Fan
24 2190685 Blade, Fan
25 2003169 Orifice, Fan
27 8281160 Screw
29 486692 Speed Nut
30 2307907 Grommet, Edge
31 2259302 Tube, Transition
(Condenser/Drier)
32 2000645 Sleeve,
Condenser
34 2194319 Process, Tube
35 486194 Screw
36 2209495 Cover, Fan
37 2259092 Cover, Condenser
39 2259197 Service Cord
41 549193 Clamp, Cord
42 2266802 Switch, Power
Disconnect
43 487294 Screw, Ground
45 2187624 Wiring Harness,
Unit Compartment
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.75 oz.
(R−134A)
14
8199106
LOWER UNIT AND TUBE PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
8199016
15
8199106
LOWER UNIT AND TUBE PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
Illus. Part
No. No. DESCRIPTION
1 2259472 Tube, Transition
(Condenser)
2 2259304 Tube, Transition
(Drier/Restrictor)
3 486194 Screw
6 2259303 Suction Tube
7 2207486 Heater, Defrost
(Rear)
9 2259329 Heater, Drain Pan
10 2209450 Hanger, Heater
11 2005908 Shield, Drain Pan
12 2204543 Support, Heater
13 2259474 Tube, Discharge
16 2306095 Evaporator
17 2207485 Heater, Defrost
(Front)
18 2204510 Clamp, Heater (2)
22 2215691 Clip, Heat
Exchanger
25 2001264 Drain Pan
26 Bracket, Drain Pan
1113206 Left
1113207 Right
27 513942 Dampener
28 2215648 Damper, Heater
16
8199106

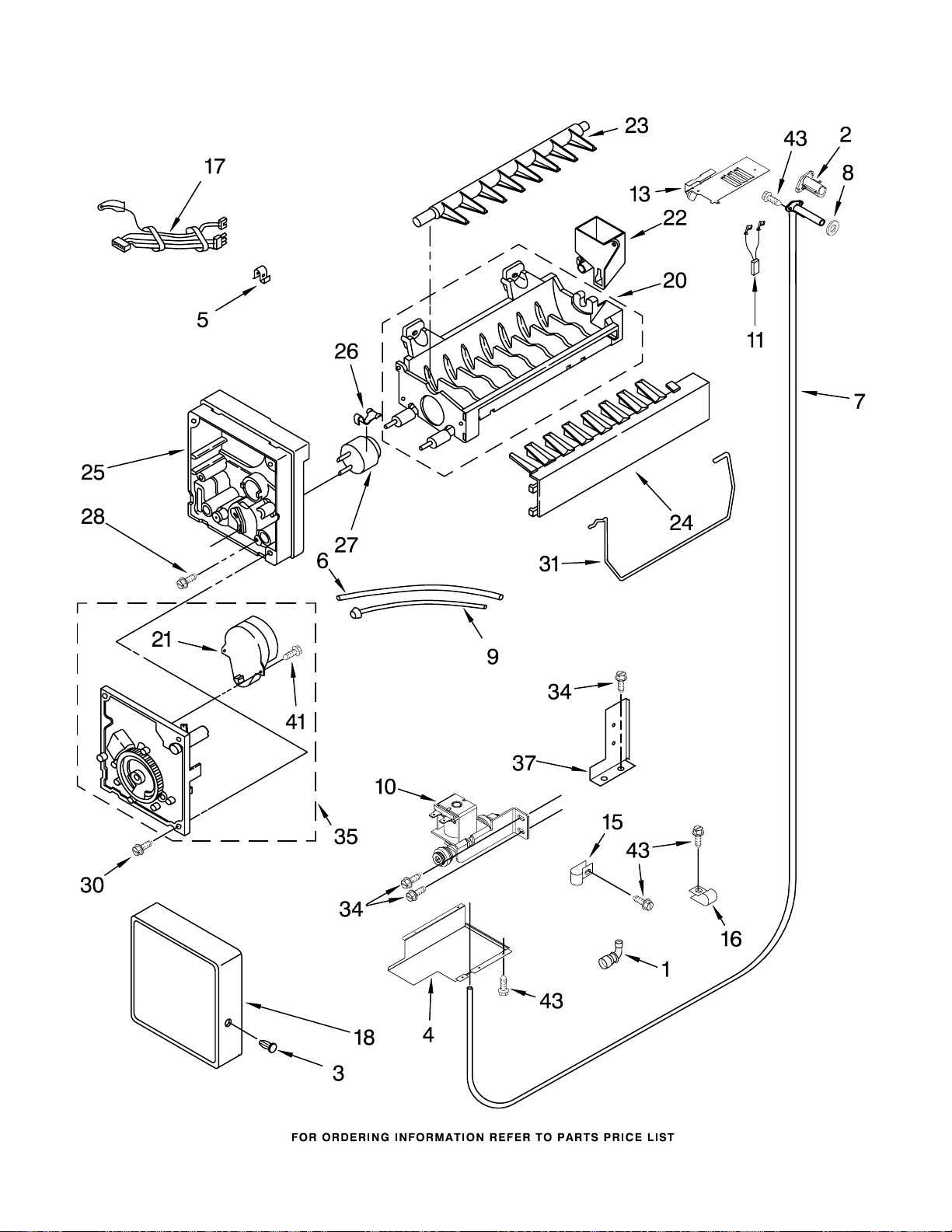

ICEMAKER PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
8199106
17
ICEMAKER PARTS
For Model: KBLO36FMX01
(Etched Aluminum)
Illus. Part
No. No. DESCRIPTION
1 2204597 Tube, Valve
2 2221240 Heater, Fill Tube
3 489115 Fastener, Snap−In
4 2300104 Cover, Bottom
Electrical
5 628379 Clip, Fuse
6 2214613 Tube, Filter Inlet
7 2221140 Water Inlet
Tube Assembly
8 1106508 Seal Gasket
9 2302719 Tube, Filter
Outlet
10 2188787 Valve, Solenoid
11 2187683 Jumper, Heater
Fill Tube
13 2221231 Heat Shield
15 489348 Clamp, Nylon
Valve
16 488946 Clamp Tube
17 2187715 Wire Harness,
Icemaker
18 2257538 Cover
20 628228 Mold & Heater
(Also Order
542638 Silicone
Grease)
21 627811 Motor
22 628356 Cup−Water Fill
23 627843 Ejector
24 2182124 Ice Striper
25 2195914 Support
26 627796 Retainer
Thermostat (2)
27 627985 Thermostat
(Also Order
542639 Cement
Alumilastic)
28 8533917 Screw
30 489276 Screw
31 2221172 Shut Off Arm
34 489464 Screw
35 626653 Module Assembly
(Includes Items
21 & 41)
37 2306151 Water Valve
Mounting Bracket
41 489136 Screw (2)
43 486194 Screw
100 2266838 Complete Icemaker
Assembly
18
8199106
Loading...
