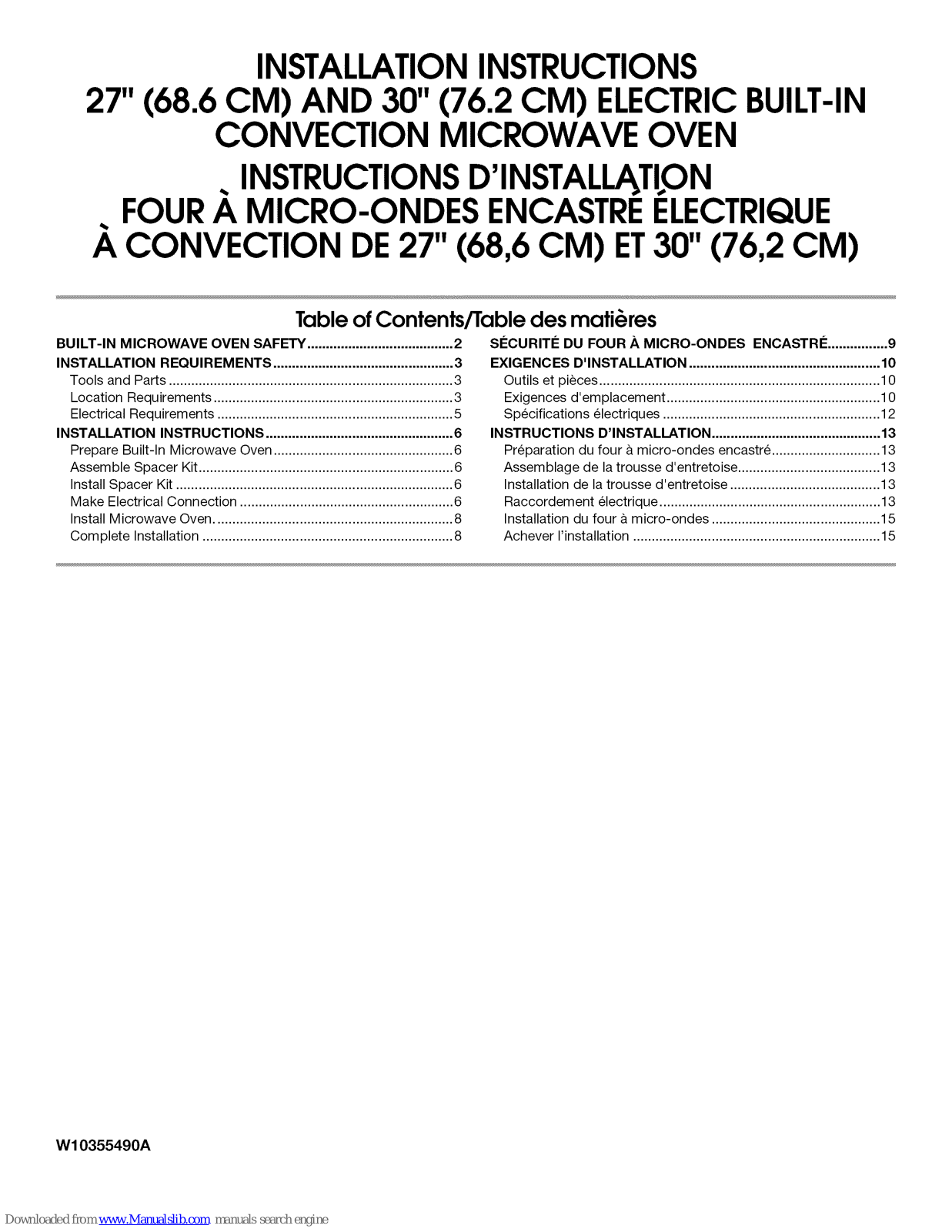

KitchenAid KBHS109SSS06, GCI3061XB00 Installation Instructions Manual

INSTALLATIONINSTRUCTIONS
27" (68.6 CM) AND 30" (76.2 CM) ELECTRICBUILT-IN
CONVECTION MICROWAVE OVEN
. INSTRUCTIONSD'INSTALLA.TI.ON
FOURA MICRO-ONDES ENCASTREELECTRIQUE
A CONVECTION DE27" (68,6 CM) ET30" (76,2 CM)
Table of Contents/Table des mati_res
BUILT-IN MICROWAVE OVEN SAFETY ....................................... 2
INSTALLATION REQUIREMENTS ................................................ 3

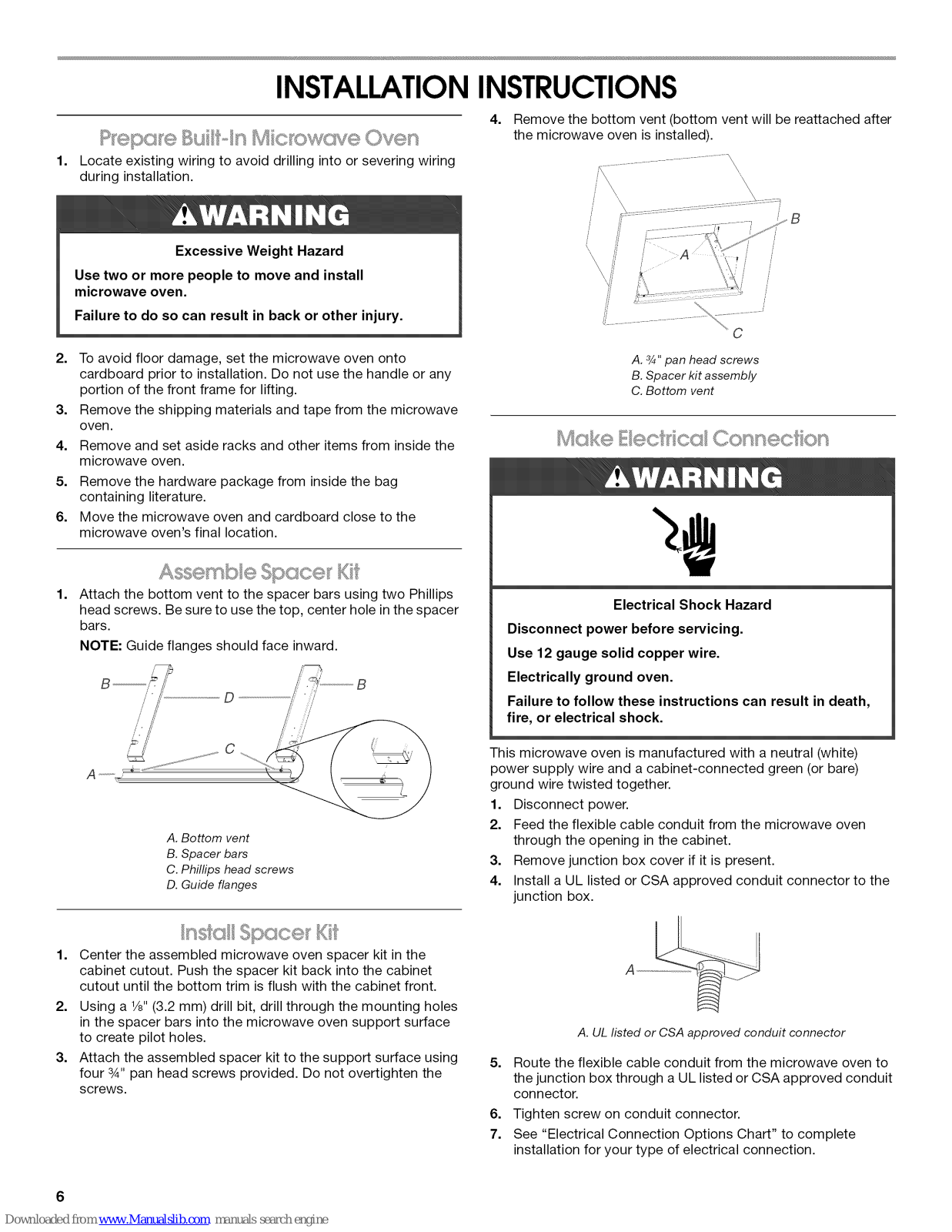

INSTALLATION INSTRUCTIONS .................................................. 6

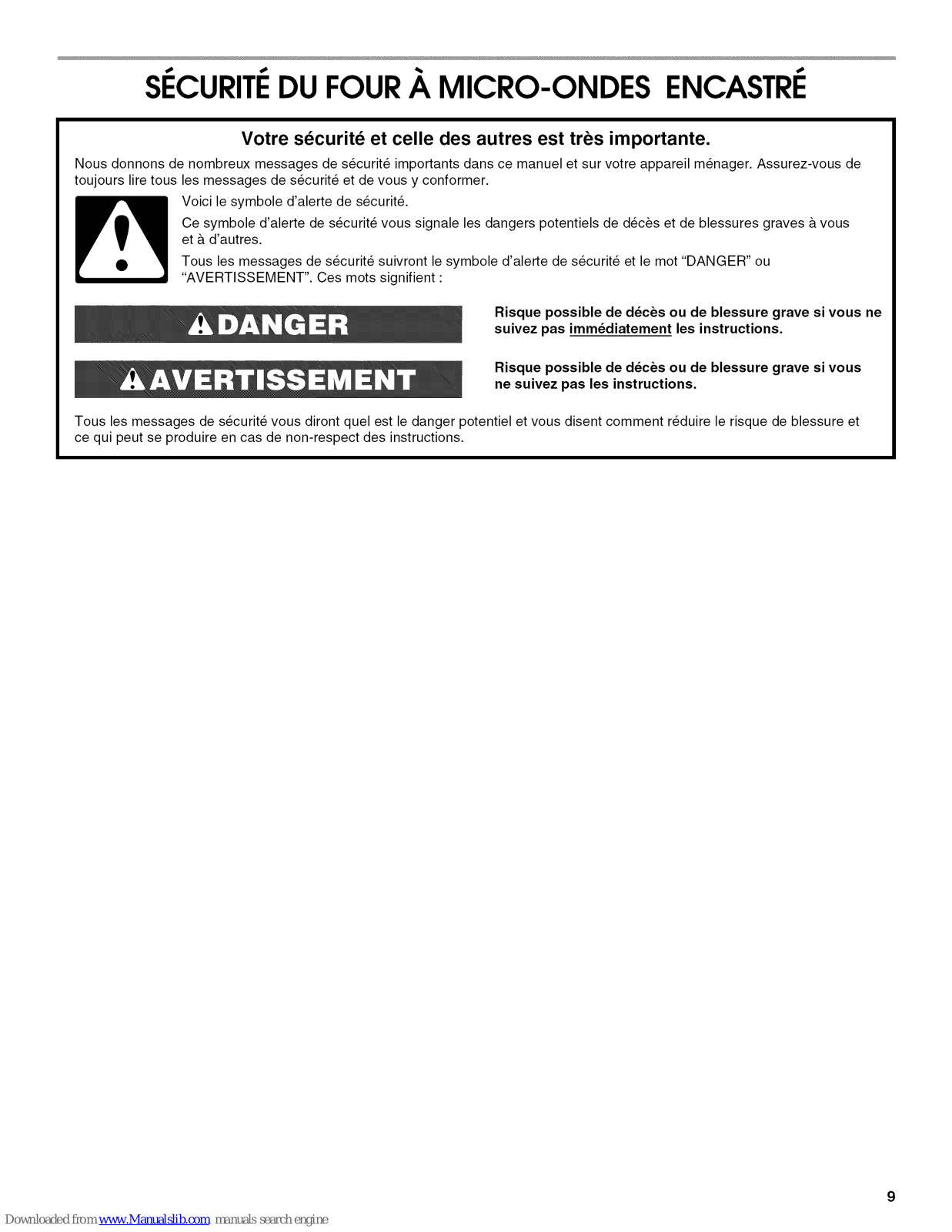

SleCURITle DU FOUR .&,MICRO-ONDES ENCASTRle ................ 9

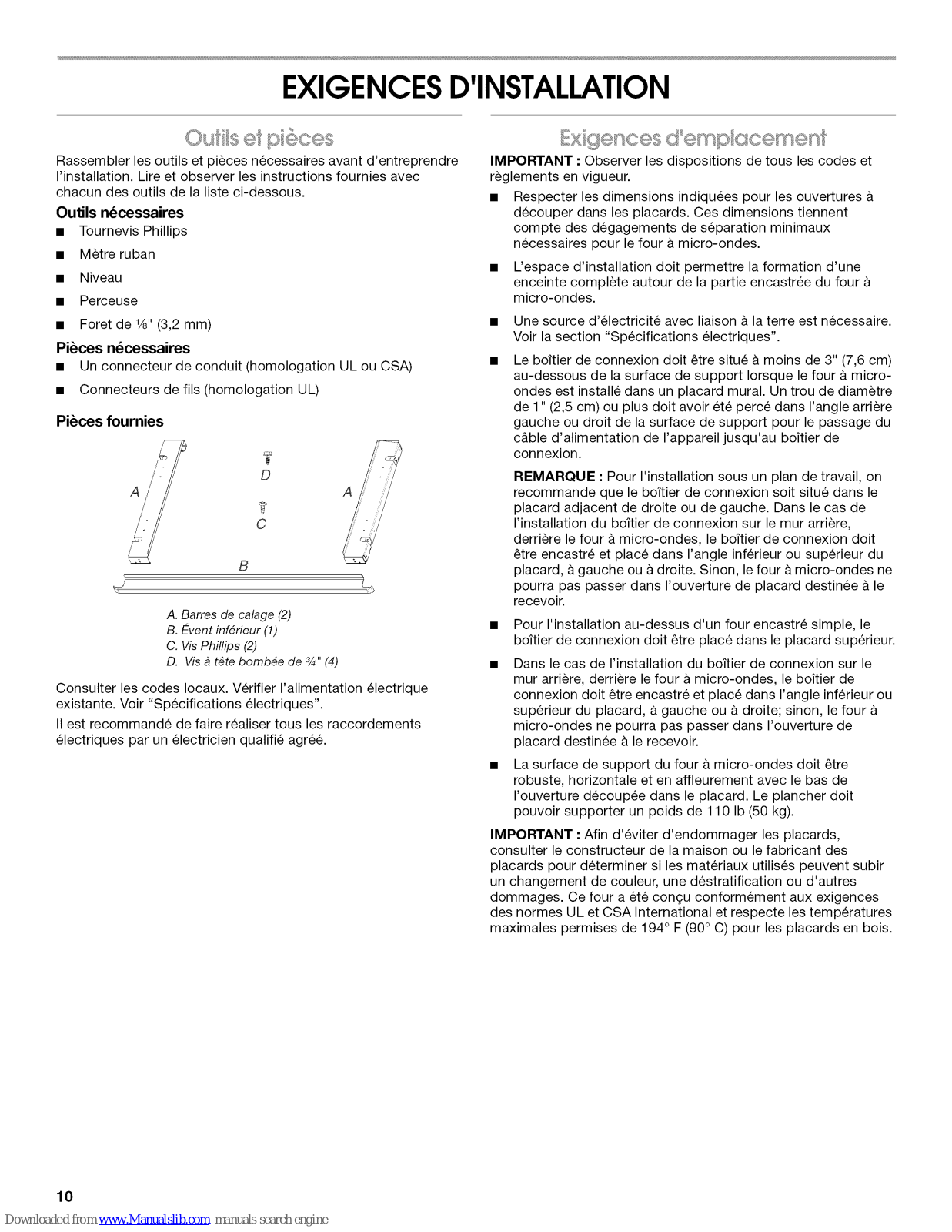

EXIGENCES D'INSTALLATION ................................................... 10
Outils et pieces ........................................................................... 10
Exigences d'emplacement ......................................................... 10

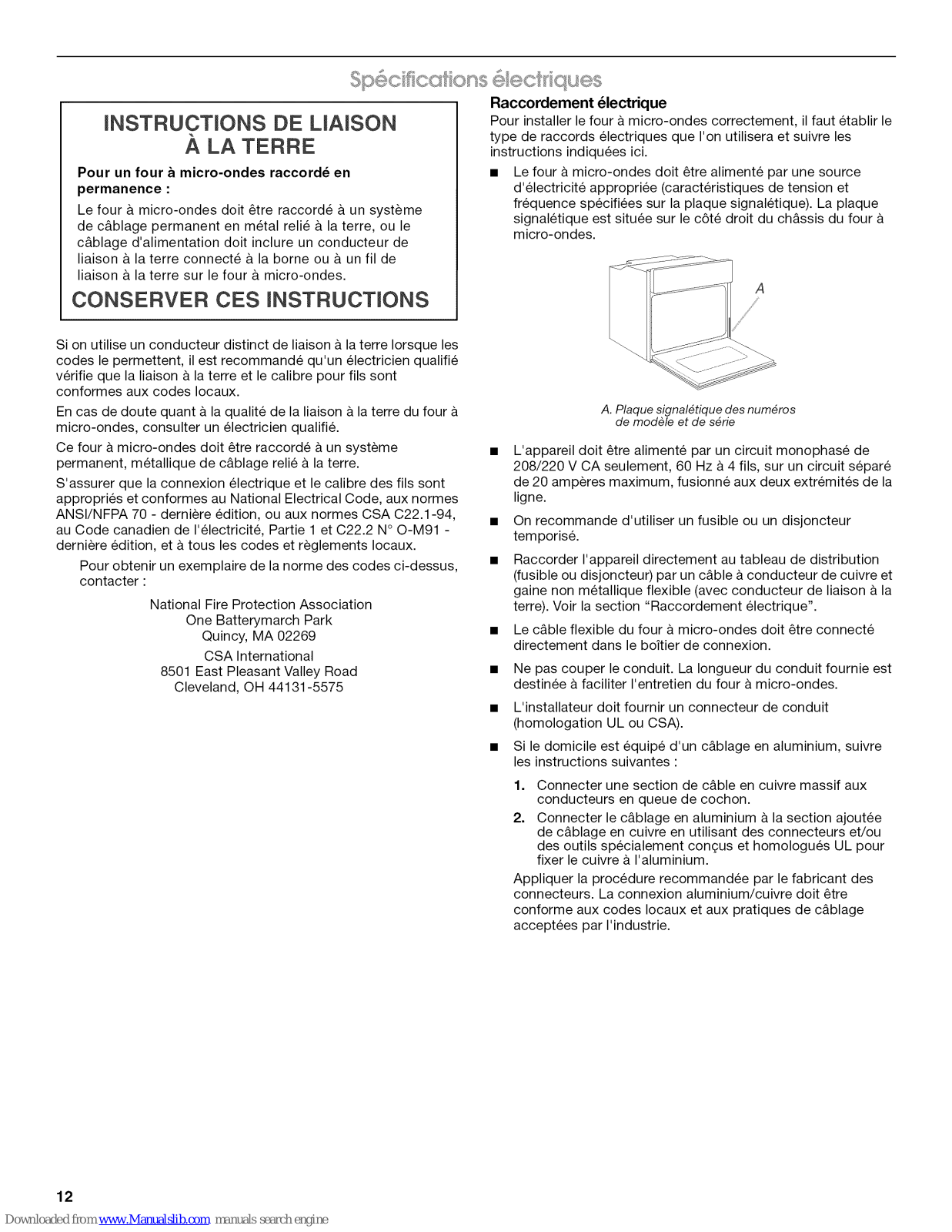

Specifications electriques .......................................................... 12

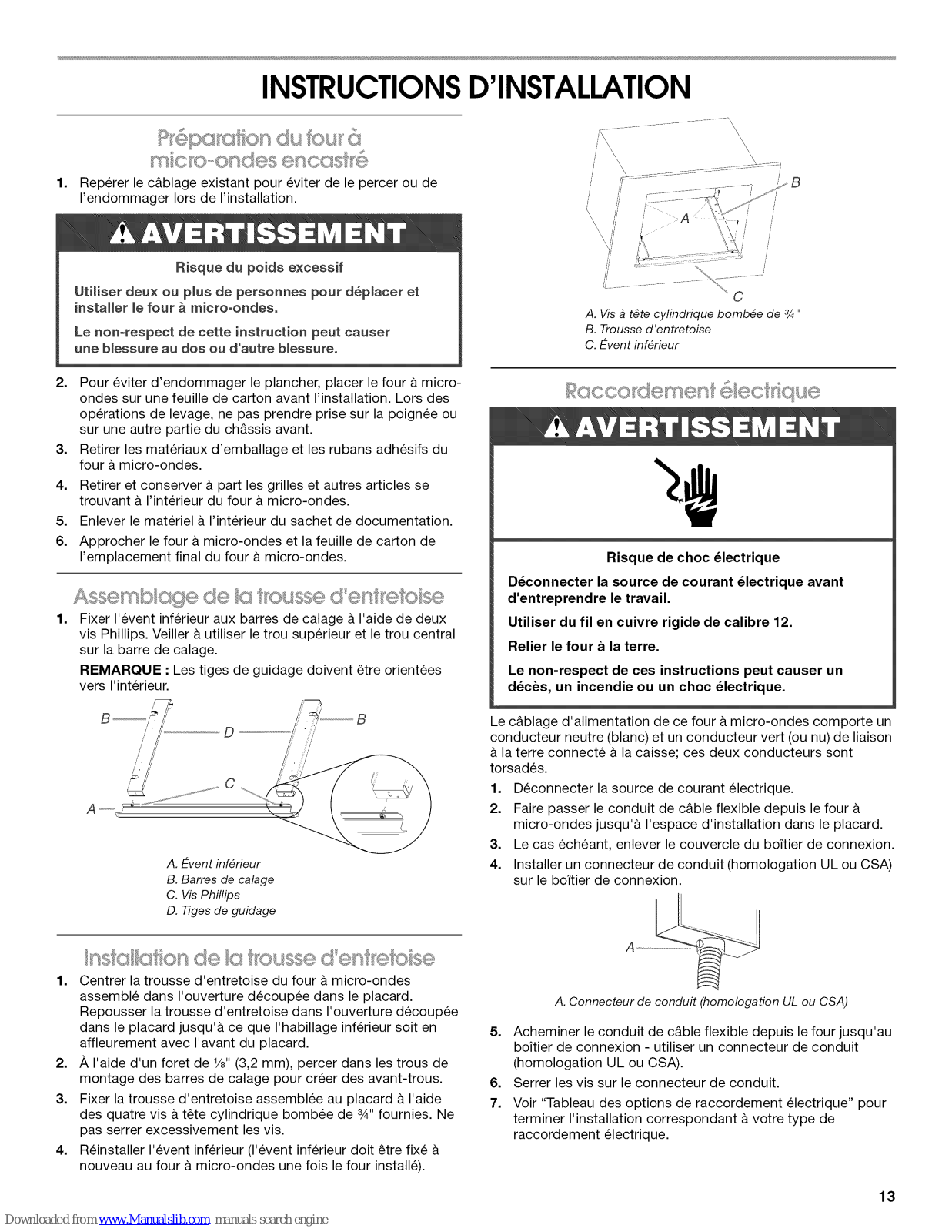

INSTRUCTIONS D'INSTALLATION ............................................. 13
Preparation du four & micro-ondes encastre ............................. 13
Assemblage de la trousse d'entretoise ...................................... 13
Installation de la trousse d'entretoise ........................................ 13

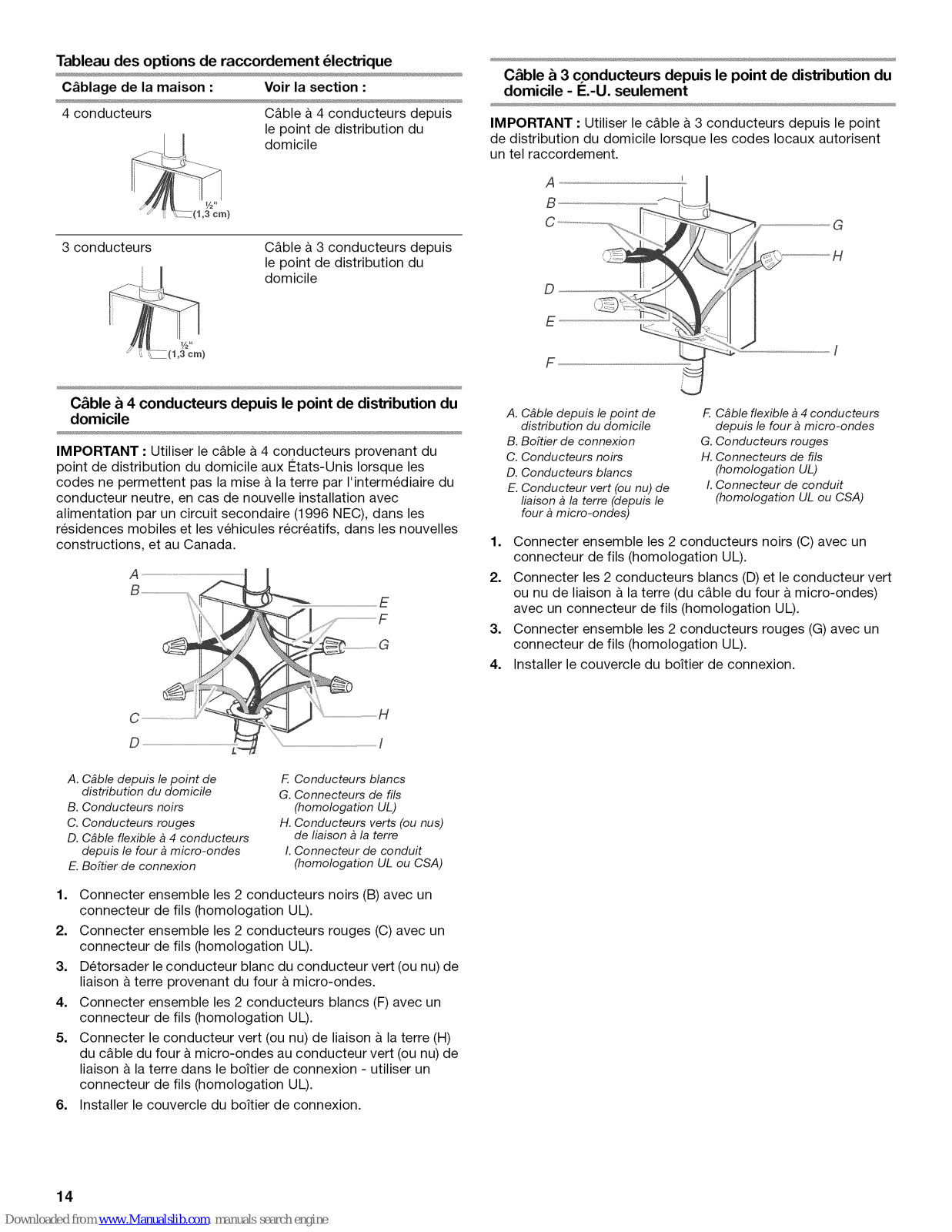

Raccordement electrique ........................................................... 13

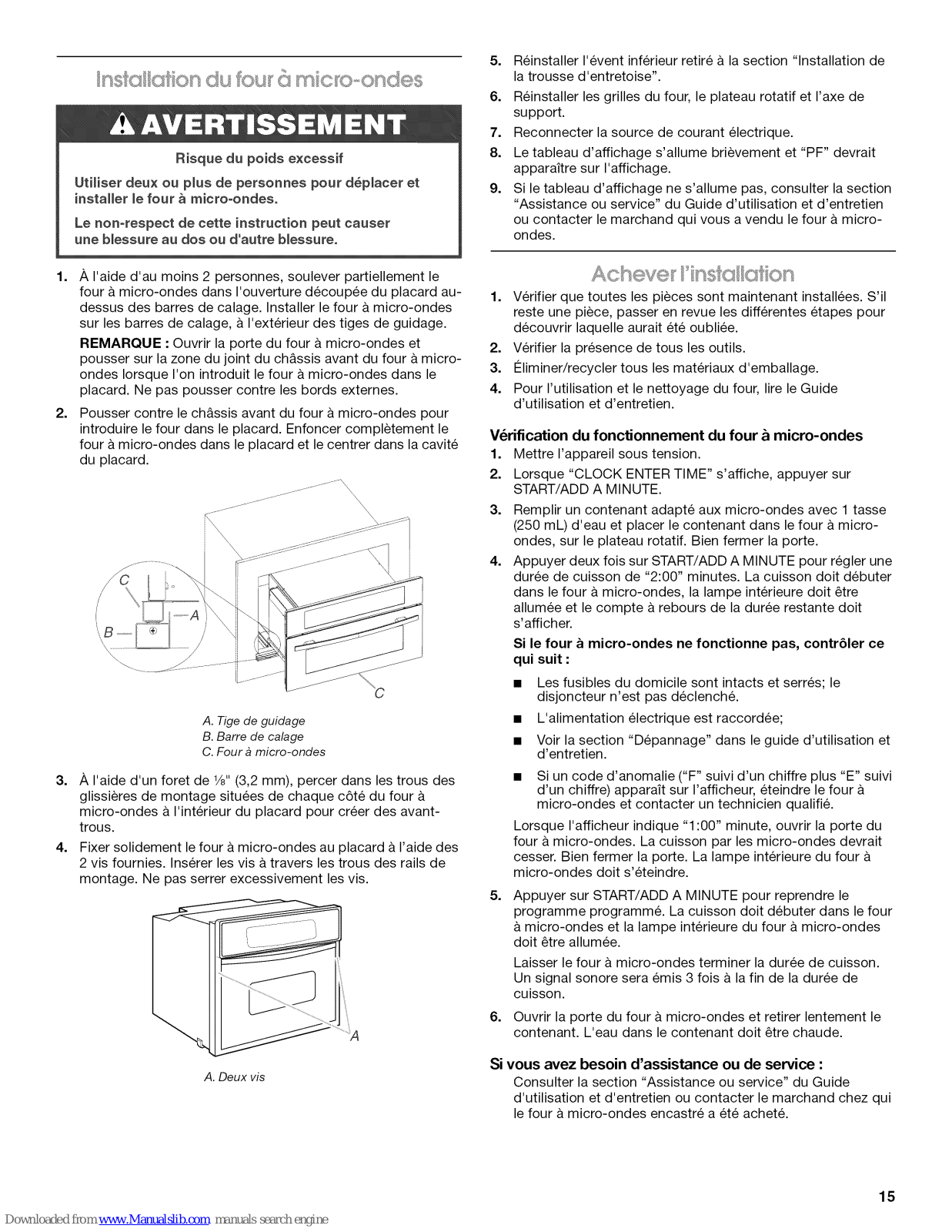

Installation du four a micro-ondes ............................................. 15
Achever I'installation .................................................................. 15
W10355490A

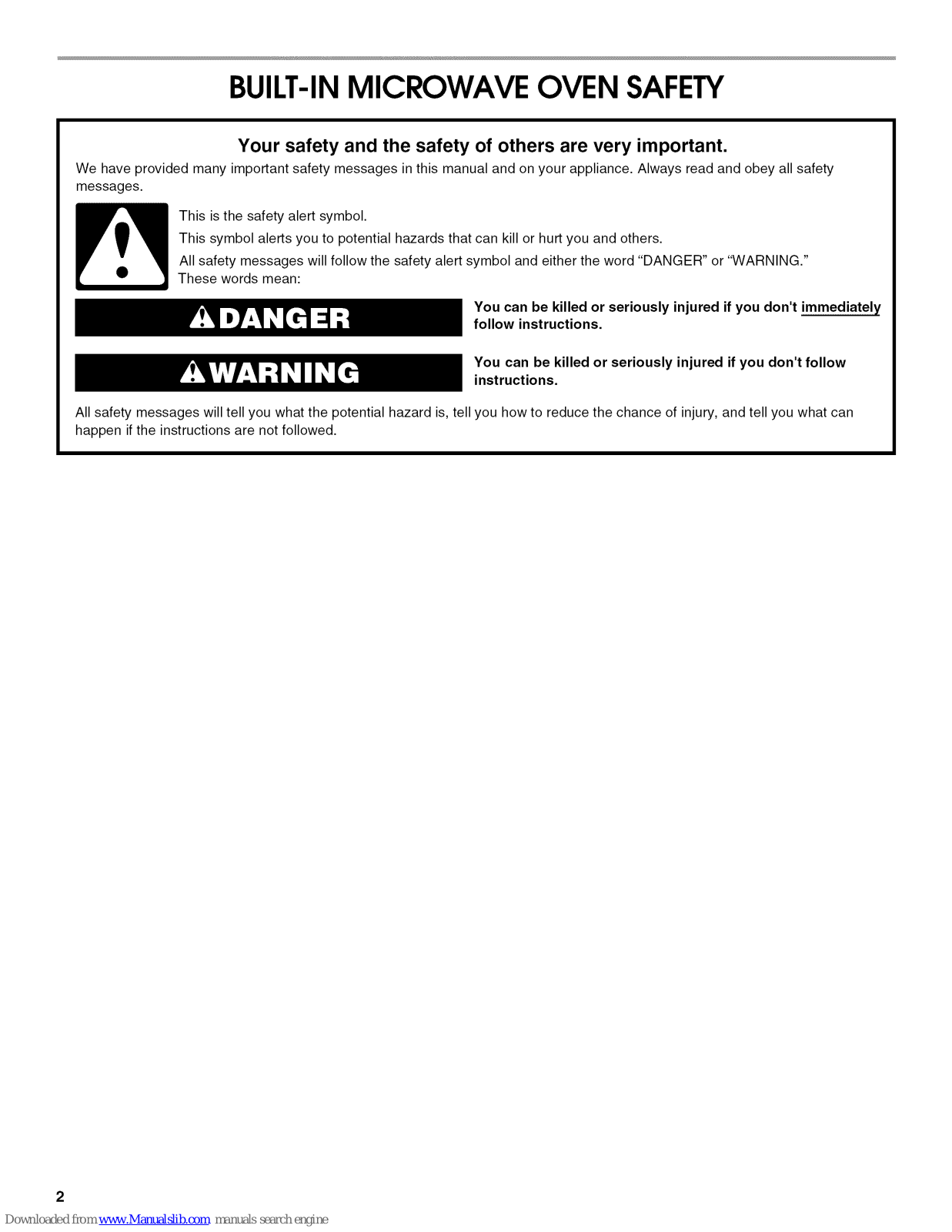

BUILT-INMICROWAVE OVEN SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen ifthe instructions are not followed.
2

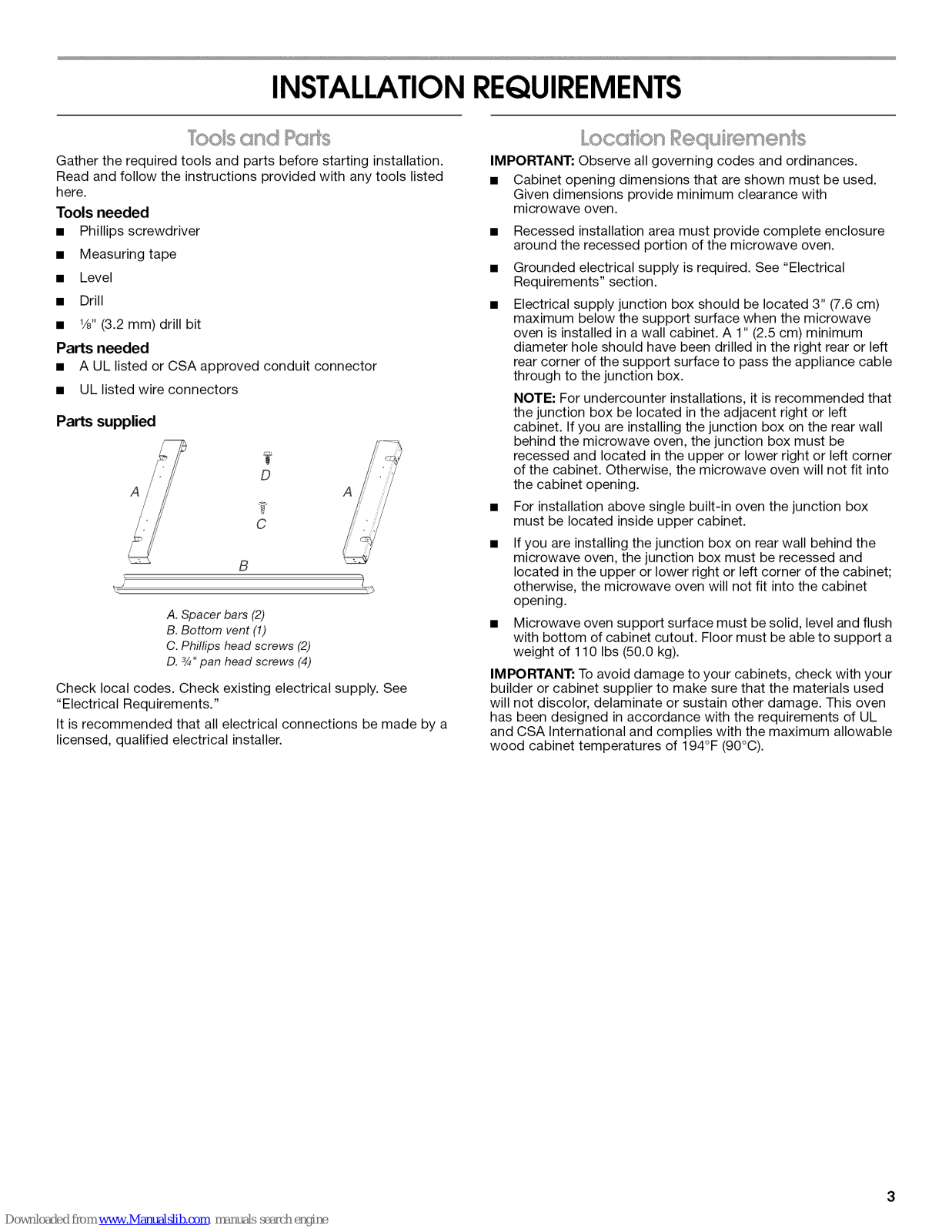

INSTALLATIONREQUIREMENTS
t'oos
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed
here.
Tools needed
• Phillips screwdriver
• Measuring tape
• Level
• Drill
• V8"(3.2 mm) drill bit
Parts needed
• A UL listed or CSA approved conduit connector
• UL listed wire connectors
Parts supplied
?
D
?
C
B
)
A. Spacer bars (2) B. Bottom vent (1) C. Phillips head screws (2) D. %" pan head screws (4)
Check local codes. Check existing electrical supply. See "Electrical Requirements."
IMPORTANT: Observe all governing codes and ordinances.
• Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance with
microwave oven. Recessed installation area must provide complete enclosure
around the recessed portion of the microwave oven. Grounded electrical supply is required. See "Electrical
Requirements" section. Electrical supply junction box should be located 3" (7.6 cm)
maximum below the support surface when the microwave oven is installed in a wall cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the right rear or left
rear corner of the support surface to pass the appliance cable through to the junction box.
NOTE: For undercounter installations, it is recommended that the junction box be located in the adjacent right or left
cabinet. If you are installing the junction box on the rear wall behind the microwave oven, the junction box must be recessed and located in the upper or lower right or left corner of the cabinet. Otherwise, the microwave oven will not fit into
the cabinet opening. For installation above single built-in oven the junction box
must be located inside upper cabinet. If you are installing the junction box on rear wall behind the
microwave oven, the junction box must be recessed and located in the upper or lower right or left corner of the cabinet; otherwise, the microwave oven will not fit into the cabinet opening.
Microwave oven support surface must be solid, level and flush with bottom of cabinet cutout. Floor must be able to support a weight of 110 Ibs (50.0 kg).
IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has been designed in accordance with the requirements of UL
and CSA International and complies with the maximum allowable wood cabinet temperatures of 194°F (90°C).

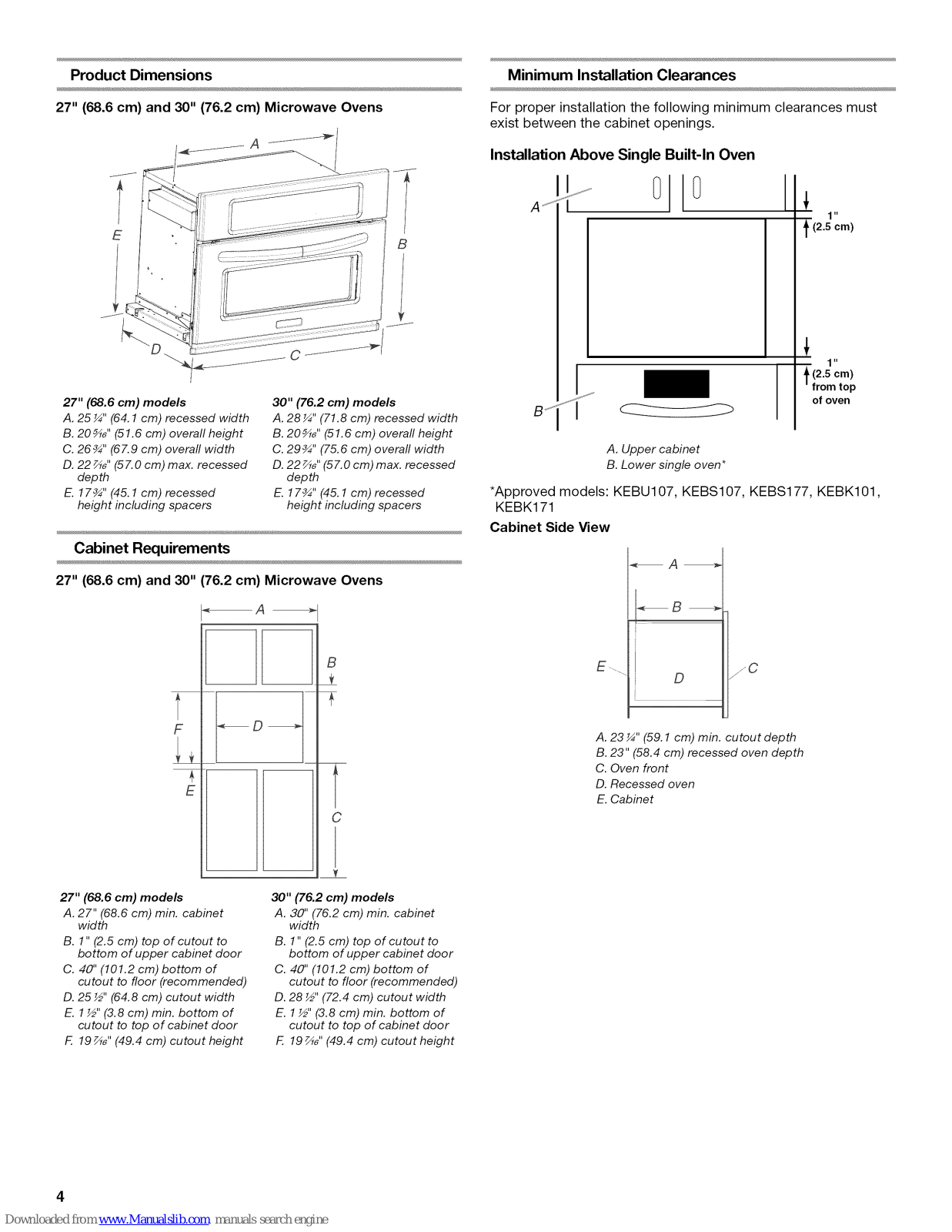

Product Dimensions
Minimum Installation Clearances
27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens
27" (68.6 cm) models A. 25 ¼" (64.1 cm) recessed width B. 20_" (51.6 cm) overall height C. 26¾" (67.9 cm) overafl width D. 22 _" (57.0 cm) max. recessed
depth
E. 17¾" (45.1 cm) recessed
height including spacers
30" (76.2 cm) models A. 28¼" (71.8 cm) recessed width B. 20_" (51.6 cm) overafl height C. 29_" (75.6 cm) overafl width D. 22 _" (57.0 cm) max. recessed
depth
E. 17_" (45.1 cm) recessed
height including spacers
Cabinet Requirements
27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens
For proper installation the following minimum clearances must exist between the cabinet openings.
Installation Above Single Built-In Oven
!,j,yj,
A. Upper cabinet B. Lower single oven*
*Approved models: KEBU107, KEBS107, KEBS177, KEBK101,
KEBK171
Cabinet Side View
_A_
t
1 "
t(2.5 cm)
of oven
_A_
F
E
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 40" (101.2 cm) bottom of
cutout to floor (recommended)
D. 25½" (64.8 cm) cutout width
E. 1½" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 19_" (49.4 cm) cutout height
_D_
B
C
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 40" (101.2 cm) bottom of
cutout to floor (recommended)
D. 28 ½" (72.4 cm) cutout width
E. 1 ½" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 19 _" (49.4 cm) cutout height
i
E. M ._/C
A. 23 ¼" (59.1 cm) min. cutout depth B. 23" (58.4 cm) recessed oven depth
C. Oven front D. Recessed oven
E.Cabinet

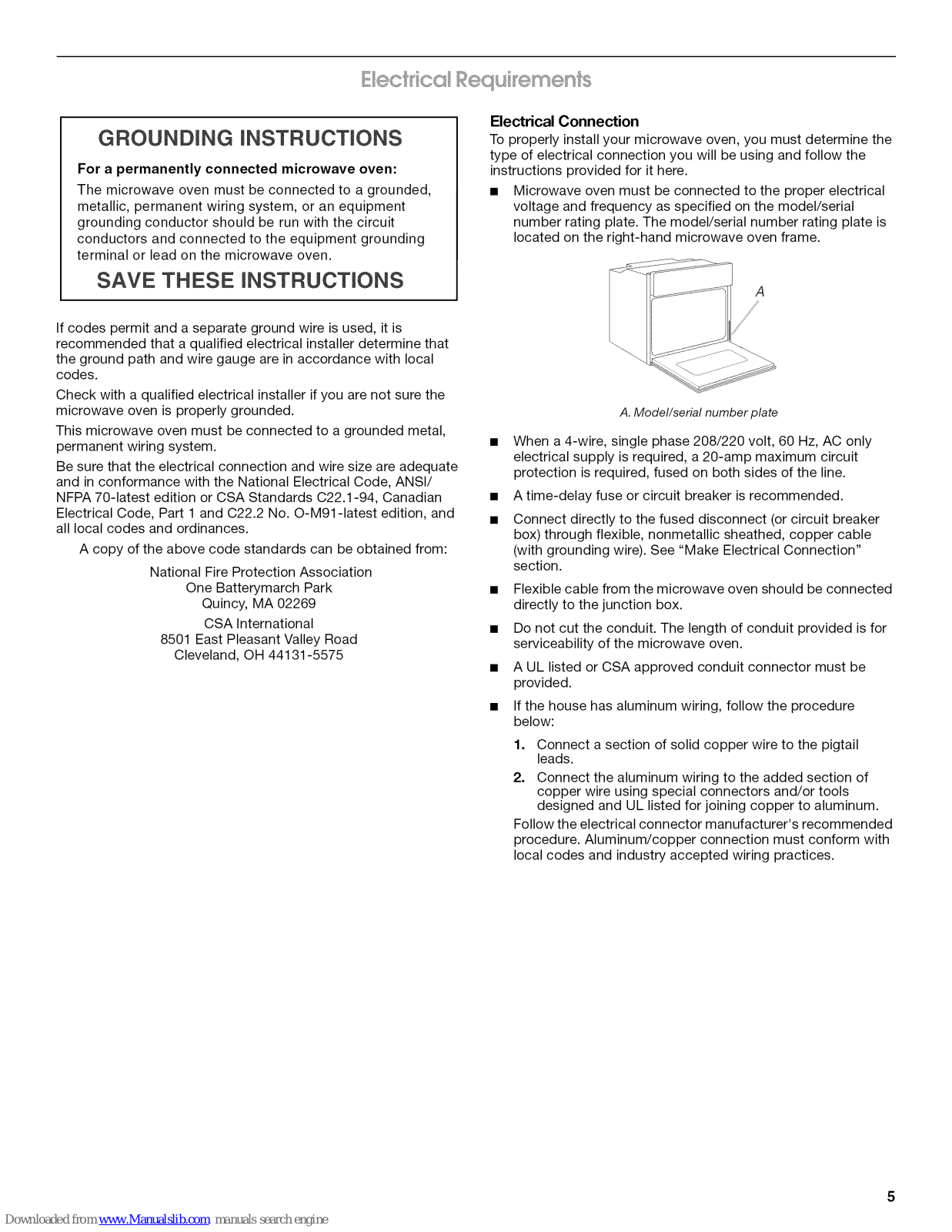

GROUNDING (NSTRUCT(ONS
For a permanently connected microwave oven:
The microwave oven must be connected to a grounded,
metallic, permanent wiring system, or an equipment grounding conductor should be run with the circuit
conductors and connected to the equipment grounding terminal or lead on the microwave oven.
SAVE THESE (NSTRUCT(ONS
If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path and wire gauge are in accordance with local
codes. Check with a qualified electrical installer if you are not sure the
microwave oven is properly grounded. This microwave oven must be connected to a grounded metal,
permanent wiring system. Be sure that the electrical connection and wire size are adequate
and in conformance with the National Electrical Code, ANSI/ NFPA 70-latest edition or CSA Standards C22.1-94, Canadian
Electrical Code, Part 1 and C22.2 No. O-M91-1atest edition, and all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575

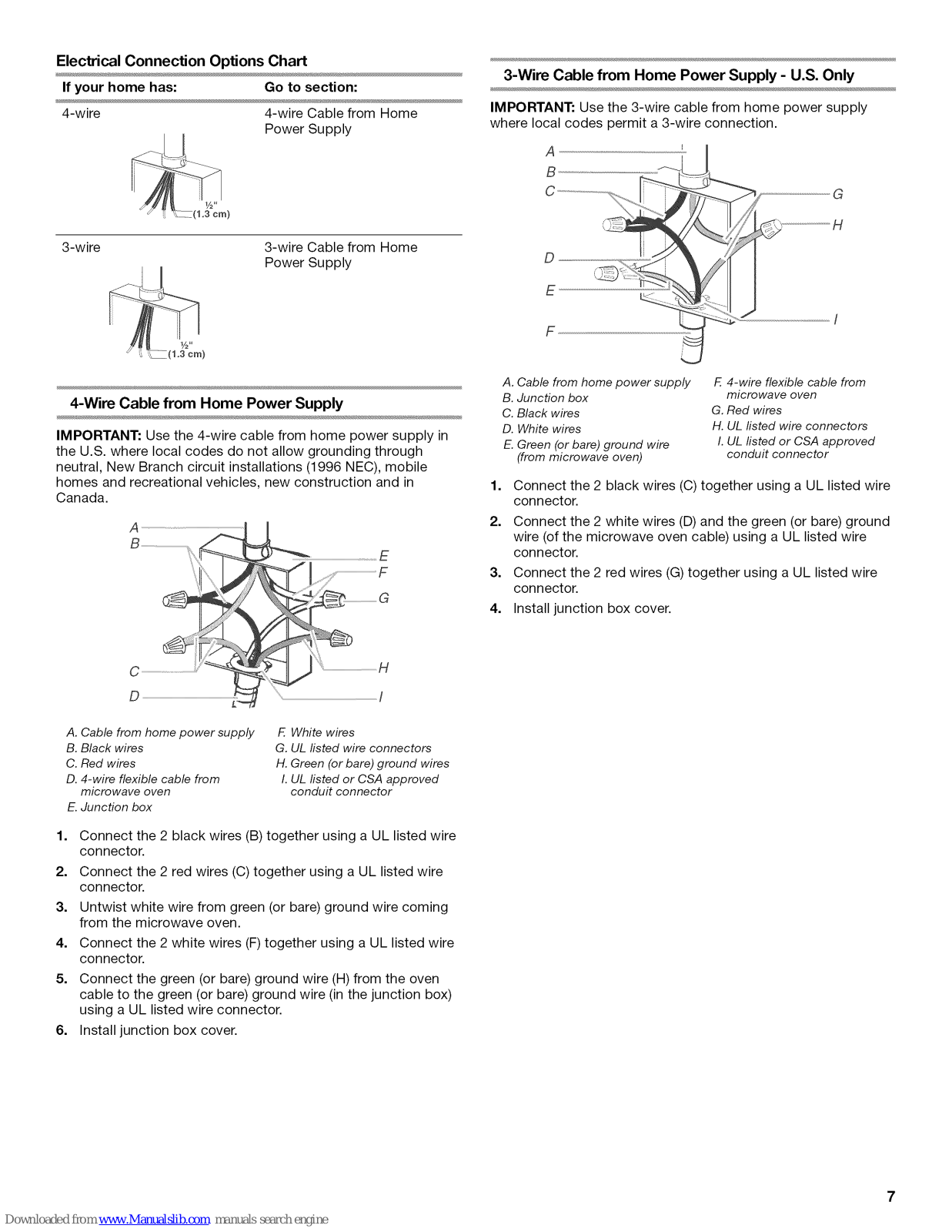

Electrical Connection To properly install your microwave oven, you must determine the
type of electrical connection you will be using and follow the instructions provided for it here.
• Microwave oven must be connected to the proper electrical voltage and frequency as specified on the model/serial number rating plate. The model/serial number rating plate is located on the right-hand microwave oven frame.
A. Model/serial number plate
• When a 4-wire, single phase 208/220 volt, 60 Hz, AC only electrical supply is required, a 20-amp maximum circuit protection is required, fused on both sides of the line.
• A time-delay fuse or circuit breaker is recommended.
• Connect directly to the fused disconnect (or circuit breaker box) through flexible, nonmetallic sheathed, copper cable (with grounding wire). See "Make Electrical Connection"
section.
• Flexible cable from the microwave oven should be connected directly to the junction box.
• Do not cut the conduit. The length of conduit provided is for serviceability of the microwave oven.
• A UL listed or CSA approved conduit connector must be provided.
• If the house has aluminum wiring, follow the procedure below:
1. Connect a section of solid copper wire to the pigtail
leads.
2. Connect the aluminum wiring to the added section of
copper wire using special connectors and/or tools
designed and UL listed for joining copper to aluminum. Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with
local codes and industry accepted wiring practices.
