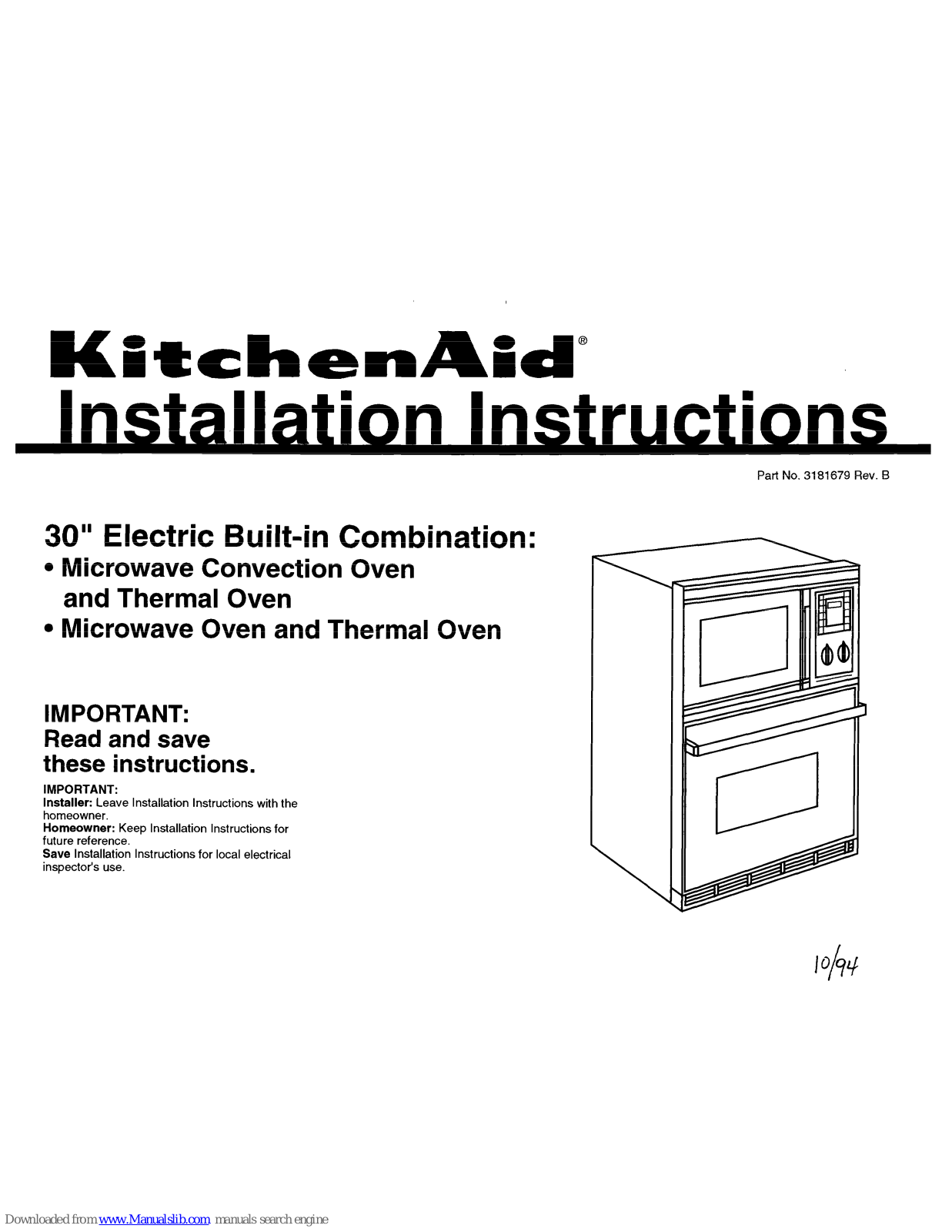

KitchenAid Combi Microwave &Thermal Oven, 30” Electric Built-in Combination Installation Instructions Manual

30” Electric Built-in Combination:

l

Microwave Convection Oven

and Thermal Oven

l

Microwave Oven and Thermal Oven

IMPORTANT:
Read and save

these instructions.

IMPORTANT:
Installer:

Leave Installation Instructions with the

homeowner.

Homeowner:

Keep Installation Instructions for

future reference.

Save

Installation Instructions for local electrical

inspector’s use.

Pat-t No. 3181679 Rev. B

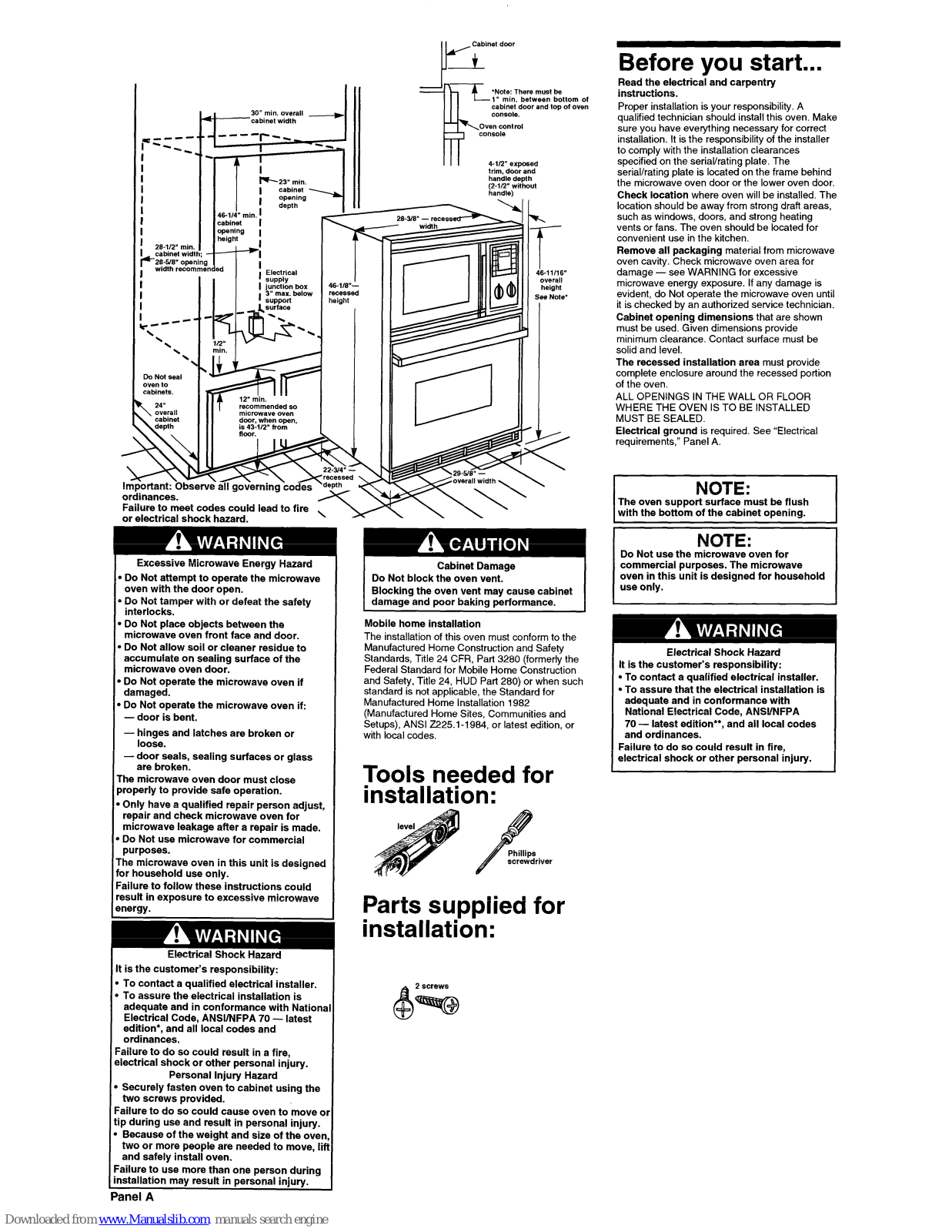

Cabinet door

*Note: There must be
1” min. between bottom of
cabinet door and top of oven
console.

Oven control

Before you start...

Read the electrical and carpentry
instructions.

Proper installation is your responsibility. A
qualified technician should install this oven. Make
sure you have everything necessary for correct
installation. It is the responsibility of the installer
to comply with the installation clearances
specified on the serial/rating plate. The
serial/rating plate is located on the frame behind

the microwave oven door or the lower oven door.

Check location

where oven will be installed. The
location should be away from strong draft areas,
such as windows, doors, and strong heating
vents or fans. The oven should be located for
convenient use in the kitchen.

Remove all packaging

material from microwave
oven cavity. Check microwave oven area for
damage - see WARNING for excessive
microwave energy exposure. If any damage is
evident, do Not operate the microwave oven until
it is checked by an authorized service technician.

Cabinet opening dimensions

that are shown
must be used. Given dimensions provide
minimum clearance. Contact surface must be
solid and level.

The recessed installation area

must provide

complete enclosure around the recessed portion

of the oven.
ALL OPENINGS IN THE WALL OR FLOOR
WHERE THE OVEN IS TO BE INSTALLED

MUST BE SEALED.

Electrical ground

is required. See “Electrical

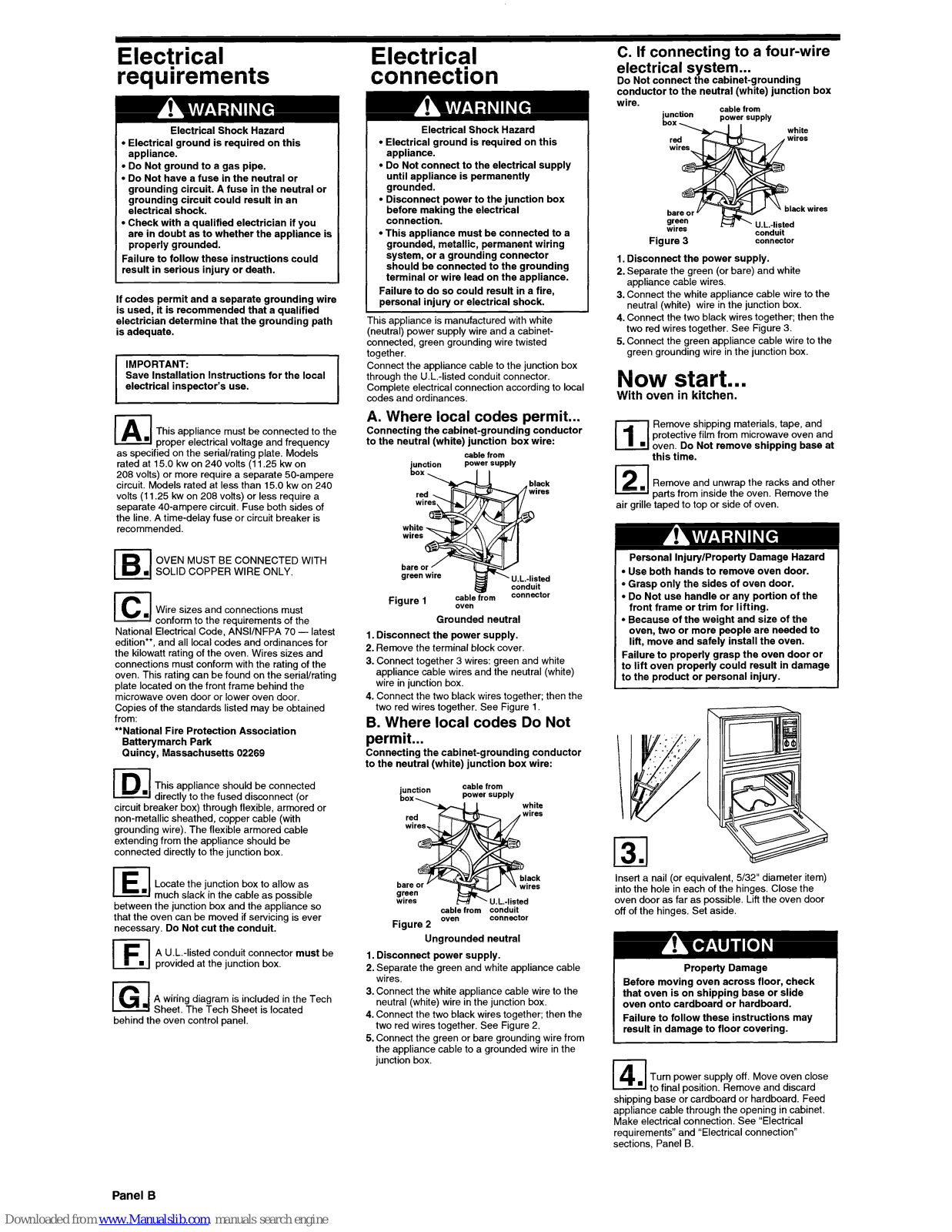

requirements,” Panel A.

<mm--

l

--

-w

I
I

i
I
I

I

26-112” min
cabinet wid

F26-Ye” ope

I

wtdth recor

ning

a

nmen e

Do Not seal
oven to
cabinets.

i 24”

m

4-W” exposed
trim, door and
handle depth
it;-evithout

i

opening
depth

46-l/4” min.
cabinet

f

46-1 Ill 6”

overall

height

See Note’

46-l/6”­height

I

recommended so
microwave oven
door, when open,
is 43-112” from

\ overall

lbserve al governingcod&

I

The oven support surface must be flush
with the bottom of the cabinet opening.

I

Failure to meet codes could lead to fire
or electrical shock hazard.

,

I

I

NOTE:

Do Not use the microwave oven for
commercial purposes. The microwave
oven in this unit is designed for household
use only.

Electrical Shock Hazard

It is the customer’s responsibility:

l

To contact a qualified electrical installer.

l

To assure that the electrical installation is
adequate and in conformance with
National Electrical Code, ANWNFPA
70- latest edition**,

and all local codes

and ordinances.
Failure to do so could result in fire! .
electrical shock or other personal Injury.

Excessive Microwave Energy Hazard

l

Do Not attempt to operate the microwave
oven with the door open.

l

Do Not tamper with or defeat the safety
interlocks.

l

Do Not place objects between the
microwave oven front face and door.

. Do Not allow soil or cleaner residue to

accumulate on sealing surface of the
microwave oven door.

l

Do Not operate the microwave oven if

damaged.

B Do Not operate the microwave oven if:

- door is bent.

- hinges and latches are broken or
loose.

- door seals, sealing surfaces or glass
are broken.

The microwave oven door must close
properly to provide safe operation.

) Only have a qualified repair person adjust,

repair and check microwave oven for
microwave leakage after a repair is made.

1 Do Not use microwave for commercial

purposes.
The microwave oven in this unit is designed
‘or household use only.

-ailure to follow these instructions could
SeesuIt in exposure to excessive microwave
energy.

1 Do Not block ?KEFge

Blockmg the oven vent may cause cabinet

.

damage and poor baking performance.

Mobile home installation

The installation of this oven must conform to the
Manufactured Home Construction and Safety
Standards, Title 24 CFR, Part 3280 (formerly the

Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD Part 280) or when such
standard is not applicable, the Standard for

Manufactured Home Installation

1982

(Manufactured Home Sites, Communities and
Setups), ANSI 2225.1-l 984, or latest edition, or
with local codes.

Tools needed for

installation:

Parts supplied for
installation:

Electrical Shock Hazard

t is the customer’s responsibility:

To contact a qualified electrical installer.
To assure the electrical installation is
adequate and in conformance with Nationa

Electrical Code, ANSVNFPA 70 - latest
edition*, and all local codes and
ordinances.

:ailure to do so could result in a fire,
rlectrical shock or other personal injury.

Personal Injury Hazard
Securely fasten oven to cabinet using the
two screws provided.

:ailure to do so could cause oven to move OI
ip during use and result in personal injury.

Because of the weight and size of the oven,
two or more people are needed to move, lifl
and safely install oven.

:ailure to use more than one person during
nstallation may result in personal injury.

Panel A

b

2

screws

+=-
