Kitchenaid 860-0003c Owner's Manual
FREESTANDING OUTDOOR ISLAND GRILL
Installation Instructions and Use & Care Guide
For questions about features, operation/performance, parts, accessories or service, call: 1-877-373-2301
or visit our website at www.Kitchenaidgrills.com
Languages spoken: English, French, Spanish 8 a.m.-5 p.m., PST. Monday-Friday.
PIED EXTÉRIEUR ISLAND GRILL
Instructions d’installation et Guide d’utilisation et d’entretien
Pour des questions à propos des caractéristiques, du fonctionnement/rendement, des pièces, des accessoires ou du service,
composer le: 1-877-373-2301
ou visiter notre site web www.Kitchenaidgrills.com
Langues parlées: anglais, français, espagnol entre 8 h et 17 h, HNP, du lundi au vendredi.
ASADOR AL AIRE LIBRE DE ISLA
Instrucciones de instalación y Manual de uso y cuidado
Para consultas respecto a características, funcionamiento, rendimiento, piezas, accesorios o servicio técnico, llame al: 1-877-373-2301
o visite nuestro sitio de internet en www.Kitchenaidgrills.com
Lenguages ablados: Ingles, Frances y Espanol de 8 a.m.-5 p.m., PST. Lunes-Viernes.
Table of Contents / Table des matières / Índice................................................................................. 2
19000736A0
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
IMPORTANT, CONSERVER POUR RÉFÉRENCE FUTURE: LIRE ATTENTIVEMENT.
IMPORTANTE, CONSERVAR PARA FUTURAS REFERENCIAS: LEA CUIDADOSAMENTE.
860-0003C (LP) 870-0003C (NG)
ITM. / ART. 1900645
FOR OUTDOOR USE ONLY. NOT FOR COMMERCIAL USE.
POUR USAGE EXTÉRIEUR SEULEMENT. À USAGE NON COMMERCIAL.
PARA EXTERIOR SÓLAMENTE. NO PARA USO COMERCIAL.
TABLE OF CONTENTS
OUTDOOR GRILL SAFETY…………………………..…………3
PACKAGE PARTS LIST….......................................................5
ASSEMBLY INSTRUCTIONS .…………………....……….……7
INSTALLATION REQUIREMENTS…………………………....20
Location requirements…………………………………...………20
Product Dimensions…………………………………..……….…21
Gas Supply Requirements………………………………………22
Gas Connection Requirements………………………..……..…22
Make Gas Connection ……………………………..……………24
GAS CONVERSION……………………………….............…...25
Tools and Parts for Gas Conversion …………………......…...25
Conversion from LP Gas to Natural Gas……….………......….25
Make Gas Connection……………………..............……………26
Checking and Adjusting Burners………………….………….…31
OUTDOOR GRILL USE …………………….…….……………32
Using Your Outdoor Grill ……………………….…………….…32
Using Your Rotisserie Burner………………......………………34
Using Your Sear Burner…………………………………………35
Using Your Side Burner………………………….………………36
TIPS FOR OUTDOOR GRILLING ……………..……………...37
Cooking Methods ………………….…………………………….37
Rotisserie Cooking Tips …………………………………………38
Grilling Chart ………………………….………………...…….….39
OUTDOOR GRILL CARE ………………………………...……41
Replacing the Igniter Battery …….……………………..……....41
General Cleaning ……………………………………….….....…41
TROUBLESHOOTING ...........................................................53
ASSISTANCE …………………………………………….…..…43
Accessories………………………………………………...……..43
WARRANTY ……………………………………….…………….44
REPLACEMENT PARTS………………………………...……102
2
TABLE DES MATIÈRES
SÉCURITÉ DU GRIL D'EXTÉRIEUR …………..…….…….…46
LISTE DES PIÈCES DE L’EMBALLAGE................................5
CONSIGNES POUR L’ASSEMBLAGE……………….......……7
EXIGENCES D’INSTALLATION …………………..…….....…48
Exigences d'emplacement ………………………...……………48
Dimensions du produit ……………………………………...…..49
Spécifications de l'alimentation en gaz ……………………..…50
Exigences concernant le raccordement au gaz….……………51
Raccordement au gaz……………………………………………52
CONVERSIONS POUR CHANGEMENT DE GAZ ……...…..53
Outils et pièces pour conversion de gaz ………….…..……....53
Conversion de propane à gaz naturel ……………….…...…...53
Raccordement au gaz …………………………............…....….54
Contrôle et réglage des brûleurs ………………………….…...59
UTILISATION DU GRIL D’EXTÉRIEUR …….………..……...60
Utilisation du gril d’extérieur ………………….……......……….60
Utilisation du brûleur de tournebroche…………………………62
Utilisation de votre brûleur de flambage ….…….……..……....63
Utilisation de votre brûleur laterial…….………….…….……....64
CONSEILS POUR L'UTILISATION DU GRIL
D’EXTÉRIEUR …………………………..………......…...……..65
Méthodes de cuisson …………………..……….…...……….…65
Tableau de cuisson au gril …………………………..……....….67
ENTRETIEN DU GRIL D’EXTÉRIEUR …………..…………...69
Remplacement de la pile de l’allumeur ………..…...………….69
Conseils de cuisson à l’aide du tournebroche ………………..69
Nettoage général ………………………………...……….….….69
DÉPANNAGE..........................................................................71
ASSISTANCE………………………………….…..………….…71
GARANTIE………….………………………..……..……...…….72
PIÈCES DE RECHANGE …………………..………………...102
ÍNDICE
SEGURIDAD DEL ASADOR PARA EXTERIORES…...........74
LISTA DE CONTENIDO DEL PAQUETE……………….....…..5
INSTRUCCIONE DE MONTAJE…………………..…..………..7
REQUISITOS DE INSTALACIÓN…………..………………....76
Requisitos de ubicación …………………………….….…….....76
Medidas del producto …………………………….……………..77
Requisitos del suministro de gas ………………………...........78
Requisitos para la conexión de gas …………………..……….79
Conexión del suministro de gas ………………………………..80
CONVERSIONES DE GAS …………………………......….….81
Herramientas y piezas para la conversión de gas .............….81
Conversión de gas LP a gas natural …………………..………81
Revise y regule los quemadores ……………………….....…...87
USO DEL ASADOR PARA EXTERIORES …………………..88
Cómo usar el asador para exteriores …………………......…..88
Uso del quemador delrostizador..............................................90
Uso del quemador para dorar .......... ….……....….……….…...91
Uso del quemador latéral.........................................................92
CONSEJOS PARA ASAR AL AIRE LIBRE ……………..…..93
Métodos de cocción ………………………………………...…...93
Consejos para la cocción con el rostizador .........................…94
Cuadro para asar ………………………………………….....….95
CUIDADO DEL ASADOR PARA EXTERIORES ……...…….97
Cómo reemplazar la batería del encendedor …………....……97
Limpieza general …………………………………………..…….97
SOLUCIÓN DE PROBLEMAS...............................................99
ASISTENCIA…………………………………………..……..…..99
GARANTÍA …………………………………………..……......100
PIEZAS DE REPUESTO ……………………………..........…102
3
OUTDOOR GRILL SAFETY
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
IMPORTANT: This grill is manufactured for outdoor use only. For grills that are to be used at elevations above 2,000 ft (609.6 m)
orifice conversion is required. See “Gas Supply Requirements” section. It is the responsibility of the installer to comply with the
minimum installation clearances specified on the model/serial rating plate. The model/serial rating plate for freestanding models can
be found on the left-hand cabinet door.
In the State of Massachusetts, the following installation instructions apply:
◼ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by
the State of Massachusetts.
◼ If using a ball valve, it shall be a T-handle type.
◼ A flexible gas connector, when used, must not exceed 91.44 cm / 3 feet.
CALIFORNIA RESIDENTS ONLY - WARNING:
This product and the fuels used to operate this product (liquid propane), and the products of
combustion of such fuels, can expose you to chemicals including benzene, which is known
to the State of California to cause cancer and reproductive harm.
For more information, go to: www.P65Warnings.ca.gov.
WARNING: To reduce the risk of fire, electrical shock,
Injury to persons, or damage when using the outdoor cooking
gas appliance, follow basic precautions, including the following:
◼ Do not install portable or built-in outdoor cooking gas
appliances in or on a recreational vehicle, portable trailer,
boat or in any other moving installation.
◼ Always maintain minimum clearances from combustible
construction, see “ Location Requirements” section.
◼ The outdoor cooking gas appliance shall not be located
under overhead unprotected combustible construction.
◼ This outdoor cooking gas appliance shall be used only
outdoors and shall not be used in a building, garage, or
any other enclosed area.
◼ Keep any electrical supply cord and fuel supply hose away
from any heated surfaces.
◼ Keep outdoor cooking gas appliance area clear and free
from combustible material, gasoline and other flammable
vapors and liquids.
◼ Do not obstruct the flow of combustion and ventilation air.
Keep the ventilation openings of the cylinder enclosure
free and clear from debris.
◼ Open the cabinet door and inspect the gas cylinder supply
hose before each use of the outdoor cooking gas
appliance. If the hose shows excessive abrasion or wear,
or is cut, it MUST be replaced before using the outdoor
cooking gas appliance. Contact your dealer and use only
replacement hoses specified for use with the outdoor
cooking gas appliance.
◼ Visually check the burner
flames. They should be blue.
Slight yellow tipping is normal
for LP gas. The flames should
be approximately 2.54 cm / 1 in high.
◼ Check and clean burner/venturi tube for insects and insect
nest. A clogged tube can lead to fire under the outdoor
cooking gas appliance.
IMPORTANT SAFETY INSTRUCTIONS
◼ The LP gas supply cylinder to be used must be:
- constructed and marked in accordance with the
Specification for LP Gas cylinders of the U.S.
Department of Transportation (DOT) or the National
Standard of Canada, CAN/CSA-b339, Cylinders,
Spheres, and Tubes for Transportation of Dangerous
Goods; and Commission.
- provided with a listed overfilling prevention device.
- provided with a cylinder connection device compatible
with the connection for outdoor cooking gas appliances.
◼ Always check connections for leaks each time you connect
and disconnect the LP gas supply cylinder. See
“Installation Instructions” section.
◼ When the outdoor cooking gas appliance is not in use, the
gas must be turned off at the supply cylinder.
◼ Storage of an outdoor cooking gas appliance indoors is
permissible only if the cylinder is disconnected and
removed from the outdoor cooking gas appliance.
◼ Cylinders must be stored outdoors and out of the reach of
children and must not be stored in a building, garage, or
any other enclosed area.
◼ The pressure regulator and hose assembly supplied with
the outdoor cooking gas appliance must be used. A
replacement pressure regulator and hose assembly
specific to your model is available from your outdoor
cooking gas appliance dealer.
◼ Gas cylinder must include a collar to protect the cylinder
valve.
◼ For appliances designed to use a CGA791 connection:
Place a dust cap on cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on
the cylinder valve outlet that is provided with the cylinder
valve. Other types of caps or plugs may result in leakage
of propane.
If the following information is not followed exactly, a fire causing
death or serious injury may occur.
◼ Do not store a spare LP gas cylinder under or near this
outdoor cooking gas appliance.
◼ Never fill the cylinder beyond 80 percent full.
SAVE THESE INSTRUCTIONS
4
2.54 cm
/ 1 in
5
7
9
1
3
Package Parts List
Liste des pièces de l'emballage
Lista de contenido del paquete
6
8
10
2
4
5
x2 x2
x2
x3
x5
x6
11
13
12
14
6
x2x2
Package Parts List
Liste des pièces de l'emballage
Lista de contenido del paquete
Hardware Package List
Liste des vis de l'emballage
Lista de tornillos del paquete
Tools Needed / Outillage Requis / Herramientas necesarias
ASSEMBLY INSTRUCTIONS/CONSIGNES POUR L’ASSEMBLAGE/INSTRUCCIONES DE ENSAMBLAJE
Some parts come
with screws preinstalled.
Loosen and tighten
for final assembly.
Truss Head Screw 1/4-20 x 1/2”
Vis cruciforme 1/4-20 x 1/2”
Tornillo de cabeza ovalada 1/4-20 x 1/2”
A
x16
Truss Head Screw 5/32-32 x 15/16”
Vis cruciforme 5/32-32 x 15/16”
Tornillo de cabeza ovalada 5/32-32 x 15/16”
B
x4
7
Truss Head Screw 5/32-32 x 3/8”
Vis cruciforme 5/32-32 x 3/8”
Tornillo de cabeza ovalada 5/32-32 x 3/8”
C
x2
Algunas partes
vienen con los
tornillos pre
instalados.
Afloje y apriete para
el ensamble final.
Certaines pièces
sont livrées avec les
vis pré-installées.
Desserrez et
resserrez pour
l'assemblage final.
1.
2.
8
3.
4.
9
5.
6.
10
7.
8.
11
9.
10.
12
11.
12.
13
13.
14.
14
15.
16.
15
17.
18.
16
19.
20.
17
21.
22.
18
23.
19
INSTALLATION REQUIREMENTS
Location Requirements
Select a location that provides minimum exposure to wind and
traffic paths. The location should be away from strong draft
areas.
Do not obstruct flow of combustion and ventilation air.
Clearance to combustible construction for grill:
◼ A minimum of 91.44 cm / 36 in must be maintained
between the front of the grill hood, sides and back of the
grill and any combustible construction.
◼ A 91.44 cm / 36 in minimum clearance must also be
maintained below the cooking surface, and the grill shall
not be used under overhead combustible construction.
Rotisserie (accessory is not included)*
If you equip your grill with a rotisserie, a 15.24 cm / 6 in
minimum clearance is needed for the rotisserie motor.
A grounded, 3-prong outlet located to the left of the grill is
required.
*See “Assistance” section to order.
20
122.4 cm / 48.1 in
90.2 cm / 35.5 in
INSTALLATION REQUIREMENTS
Production Dimensions
The model/serial number rating plate is located on the inside of
the left cabinet door. See the following illustration.
A
A. Model/serial number plate
21
Observe all governing codes and ordinances.
IMPORTANT: This installation must conform with all local
codes and ordinances. In the absence of local codes,
installation must conform with either the National Fuel Gas
Code, ANSI Z223.1/NFPA54, Natural Gas and Propane
Installation Code, CSA B149.1, Propane Storage And Handling
Code, B149.2, or the Standard for Recreational Vehicles, ANSI
A119.2/NFPA 1192 and CSA Z240 RV Series Recreational
Vehicle Code as applicable.
IMPORTANT: Grill must be connected to a regulated gas
supply. Refer to the model/serial rating plate for information on
the type of gas that can be used. If this information does not
agree with the type of gas available, check with your local gas
supplier.
Gas Conversion:
No attempt shall be made to convert the grill from the gas
specified on the model/serial rating plate for use with a different
gas type without consulting the serving gas supplier. The
conversion kit supplied with grill must be used. See “Gas
Conversions” section for instructions.
Gas Pressure Regulator
The gas pressure regulator supplied with this grill must be used.
The inlet (supply) pressure to the regulator should be as follows
for proper operation:
LP Gas:
Operating pressure: 11" WCP
Inlet (supply) pressure: 11" to 14" WCP
Natural Gas:
Operating pressure: 4" WCP
Inlet (supply) pressure: 7" to 14" WCP maximum.
Contact local gas supplier if you are not sure about the inlet
(supply) pressure.
Gas Supply Requirements
Burner Requirements for High Altitude
Input ratings shown on the model/serial rating plate are for
elevations up to 609.6 m / 2,000 ft.
For elevations above 609.6 m / 2,000 ft, ratings are reduced at
a rate of 4% for each 304.8 m / 1,000 ft above sea level. Orifice
conversion is required. See “Assistance” section to order.
Gas Supply Line Pressure Testing
Testing above 3.5 kPa/ 1/2 psi. or 14" WCP (gauge):
The grill and its individual shutoff valve must be disconnected
from the gas supply piping system during any pressure testing
of that system at test pressures greater than 3.5 kPa / 1/2 psi.
Testing below 3.5 kPa/ 1/2 psi. or 14" WCP (gauge) or
lower:
The grill must be isolated from the gas supply piping system by
closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal
to or less than 3.5 kPa / 1/2 psi.
Gas Connection Requirements
9.07 kg (20lb) LP Gas Fuel Tank
This grill is equipped for use with a 9.07 kg (20lb) LP gas fuel
tank (fuel tank not supplied). A gas pressure regulator/hose
assembly is supplied.
Any brand of 9.07 kg (20lb) LP gas fuel tank is acceptable for
use with the grill, provided that it is compatible with the grill’s
retention means (tank tray included).
It is also design-certified by CSA International for local LP gas
supply or for Natural gas with appropriate conversion.
A. Gas pressure regulator/hose assembly
A
A. Tank tray locking bracket
A
The 9.07 kg (20lb) LP gas fuel tank must be mounted and
secured.
Door Style Tank Tray
1. Open cabinet door.
2. Slide the tank tray locking bracket counterclockwise 90º
and pull out the tray
22
Natural Gas Conversion
Conversion must be made by a qualified gas technician. The
qualified Natural gas technician shall provide the Natural gas
supply to the selected grill location in accordance with the
National Fuel Gas Code ANSI Z223.1/NFPA 54 - latest edition,
and local codes. For conversion to Natural gas, the Natural Gas
Conversion Kit supplied with the grill (on some models) or the
Natural Gas Conversion Kit Part Number 710-0003 must be
used. See “Assistance” section for information on ordering.
IMPORTANT: The gas installation must conform with local
codes, or in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 - latest edition.
Follow instructions for converting to Natural gas in the “Gas
Conversions” section of this manual or the instructions supplied
with Natural Gas Conversion Kit Part Number 710-0003.
The gas supply line shall be equipped with an approved shutoff
valve. This valve should be located in the same area as the grill
and should be in a location that allows ease of opening and
closing. Do not block access to the shutoff valve. The valve is
for turning on or shutting off gas to the grill.
A. Gas supply line
B. Shutoff valve “open” position
C. To grill
A
B
C
A. Locking screw
B. Bottom collar
C. Mounting hole
5. Slide the drawer with the 9.07 kg (20lb) LP gas fuel tank
back into the cabinet. Turn the tank tray locking bracket
clockwise 90ºto tighten.
A
A. Tank tray locking bracket
3. Place the 9.07 kg (20lb) LP gas fuel tank bottom collar into
the mounting hole in the tank tray.
4. Tighten the locking screw against the bottom collar of the
9.07 kg (20lb) LP gas fuel tank to secure.
23
NOTE: If grill is to be converted to Natural gas, follow
instructions in the “Gas Conversions” section.
9.07 kg (20lb) LP Gas Fuel Tank
LP Gas:
IMPORTANT: A 9.07 kg (20lb) LP gas fuel tank must be
purchased separately.
IMPORTANT: The gas pressure regulator/hose assembly
supplied with the grill must be used. Replacement gas pressure
regulator/hose assembly specific to your model is available
from your outdoor grill dealer.
To Connect the 9.07 kg (20lb) LP Gas Fuel Tank:
1. Check that the 9.07 kg (20lb) LP gas fuel tank is in the
“OFF” position. If not, turn the valve clockwise until it
stops.
2. Check that the 9.07 kg (20lb) LP gas fuel tank valve has
the proper type-1 external male thread connections per
ANSI Z21.81.
3. Check that the burner control knobs are in the “OFF”
position.
4. Remove any debris and inspect the valve connections,
port, and gas pressure regulator/hose assembly for
damage.
NOTE: Always keep the LP cylinder at 90°(upright) orientation
to provide vapor withdrawal.
Make Gas Connection
5. Using your hand, turn the gas pressure regulator/hose
assembly clockwise to connect to the 9.07 kg (20lb) LP
gas fuel tank as shown.
Hand tighten only. Use of a wrench could damage the
quick coupling nut.
A. Gas pressure regulator/hose assembly
B. 9.07 kg (20lb) LP gas fuel tank
A
B
A. Gas pressure regulator/hose assembly
B. 9.07 kg (20lb) LP gas fuel tank
A. Gas pressure regulator/hose assembly
B. 9.07 kg (20lb) LP gas fuel tank
Make sure that the cylinder valve connection device
properly mates with the connection device attached to the
inlet of the pressure regulator.
6. Open the tank valve fully by turning the valve
counterclockwise. Wait a few minutes for gas to move
through the gas line.
7. Before lighting the grill, test all connections by brushing on
an approved noncorrosive leak-detection solution. Bubbles
will show a leak.
8. If a leak is found, turn the tank valve off and do not use the
grill. Contact a qualified gas technician to make repairs.
9. Go to “Check and Adjust the Burners” section.
To Disconnect the 9.07 kg (20lb) LP Gas Fuel Tank:
1. Check that the burner control knobs are in the “OFF”
position and the grill is cool.
2. Check that the 9.07 kg (20lb) LP gas fuel tank is in the
“OFF” position. If not, turn the valve clockwise until it
stops.
3. Using your hand, turn the gas pressure regulator/hose
assembly counterclockwise to disconnect to the 9.07 kg
(20lb) LP gas fuel tank as shown.
4. Hand loosen only. Use of a wrench could damage the
quick coupling nut.
5. Place dust cap on cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on
the valve outlet that is provided with the cylinder valve.
Other types of caps or plugs may result in leakage of
propane.
24
Conversion from LP Gas to
Natural Gas
Installation of the regulator
1. Turn off the main gas supply valve.
2. Disconnect 9.07 kg (20lb) LP gas fuel tank (if present).
3. Turn off all burner control valves.
4. Remove the 9.07 kg (20lb) LP gas fuel tank (if present)
from the grill cart.
5. Use an adjustable wrench to remove the LP regulator from
the manifold.
6. Use an adjustable wrench to install the Natural gas
regulator hose to the manifold and secure. Attach the
Natural gas regulator to the side panel inside the grill cart
with the two screws that are preassembled on the
regulator.
GAS CONVERSIONS
Tools and Parts for Gas Conversion
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
Parts supplied
◼ Natural gas orifices
Parts needed
◼ Natural gas conversion kit Part Number 710-0003. See
“Assistance” section to order. The conversion kit includes:
◼ Natural gas regulator 4" W.C. (marked “Natural Gas
Regulator”)
◼ 3.0 m / 10 ft Natural gas hose with quick connector
◼ 150 mm / 5.9 in Natural gas regulator hose
◼ 6 mm nut driver
◼ 6 mm wrench
◼ Hex key
IMPORTANT: Gas conversions must be done by a qualified
installer. Before proceeding with conversion, shut off the gas
supply to the grill.
6mm
25
3. Remove the burner from the grill by lifting the burner out.
4. Use a 6 mm socket and wrench or 6 mm nut driver to
remove the LP brass orifice from the end of gas valve. The
main burner NG orifice is located behind the LP orifice, so
no additional orifice needs to be installed.
IMPORTANT: Check that the LP orifice is properly
removed inside of the burner opening.
5. Reinsert the burner and reattach using the cotter clip and
screws previously removed. Repeat the procedure for
each main burner.
6. Position the igniters so they are 3.2 mm / 1/8 in away from
each burner.

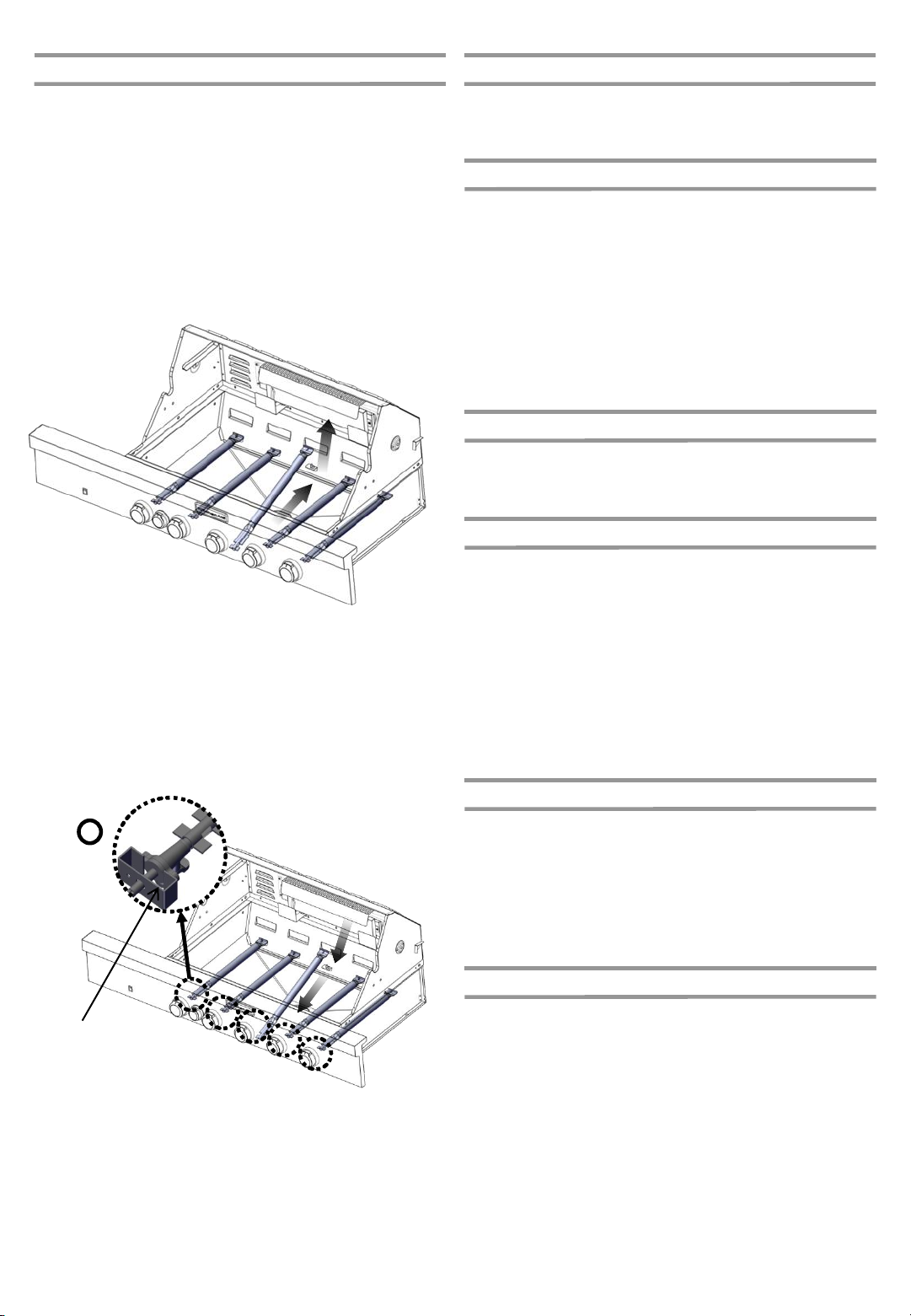

Change Grill Main Burner Valve Orifices
1. Remove the grates and flame tamers.
2. Remove the 2 screws and cotter clip that hold the burner in
place. Set the screw and clip aside.
A
A. Main burner orifice
Make Gas Connection
1. A combination of pipe fittings must be used to connect the
grill to the existing gas line.
◼ The 3.0 m / 10 ft PVC flexible gas supply hose design
certified by CSA must be used.
◼ Pipe-joint compounds suitable for use with Natural
gas must be used. Do not use Teflon®+ tape.
◼ There must be a certified manual shut-off valve in the
gas supply line near the grill for easy access.
2. Connect the brass connector on one end of the 3.0 m / 10
ft PVC flexible gas supply hose to the Natural gas pressure
regulator.
3. Connect the quick connector on the other end of the 3.0 m
/ 10 ft PVC flexible gas supply hose to the rigid Natural gas
supply pipe.
26
† ®TEFLON is a registered trademark of Chemours.
Change The Rotisserie Burner Orifice
1. Use a screwdriver to remove the two screws from the
rotisserie burner heat shield. Remove the heat shield.
2. Remove the six screws on the rotisserie burner rear cover.
3. Remove the rotisserie burner rear cover.
4. Remove the two screws on the igniter bracket and
remove the bracket.
27
5. Use an adjustable wrench to remove the brass elbow.
6. Use a 6 mm socket wrench or 6 mm nut driver to remove
the orifice. Replace with the corresponding natural gas
orifice.
IMPORTANT: Check that the NG orifice is properly
installed inside the valve.
7. Reinstall the rotisserie burner brass elbow by using a
wrench.
8. Reinstall the igniter bracket and tighten the screws.
Change The Sear Burner Orifice
1. Disconnect the quick connector.
2. Set the lock bar in unlock position.
3. Use a screwdriver to remove screw from the igniter pin
and two screws on the rear of the searing burner.
4. Lift the burner starting from the back, as shown.
9. Reinstall the rotisserie burner rear cover.
10. Reinstall the six screws onto the rotisserie burner rear
cover.
11. Reinstall the rotisserie burner heat shield.
12. Tighten the two screws.
28
Change the Side Burner Orifice
1. Remove the two screws from the bracket and remove the
bracket.
2. Use a 6 mm socket wrench or 6 mm nut driver to remove
the orifice and replace with the natural gas orifice.
IMPORTANT: Check that the NG orifice is properly
installed inside of the valve.
3. Reinstall the two screws and the bracket.
5. Use a 6 mm socket wrench or 6 mm nut driver to remove
the orifice and replace with the natural gas orifice.
IMPORTANT: Check that the NG orifice is properly
installed inside of the valve.
6. Reinstall the sear burner. Make sure the sear burner tube
is inserted into the gas valve,as shown.
7. Reinstall the two screws to the rear of the searing burner.
Reinstall the igniter pin.
29
4. Set the lock bar in the lock position.
5. Reconnect the quick connector.

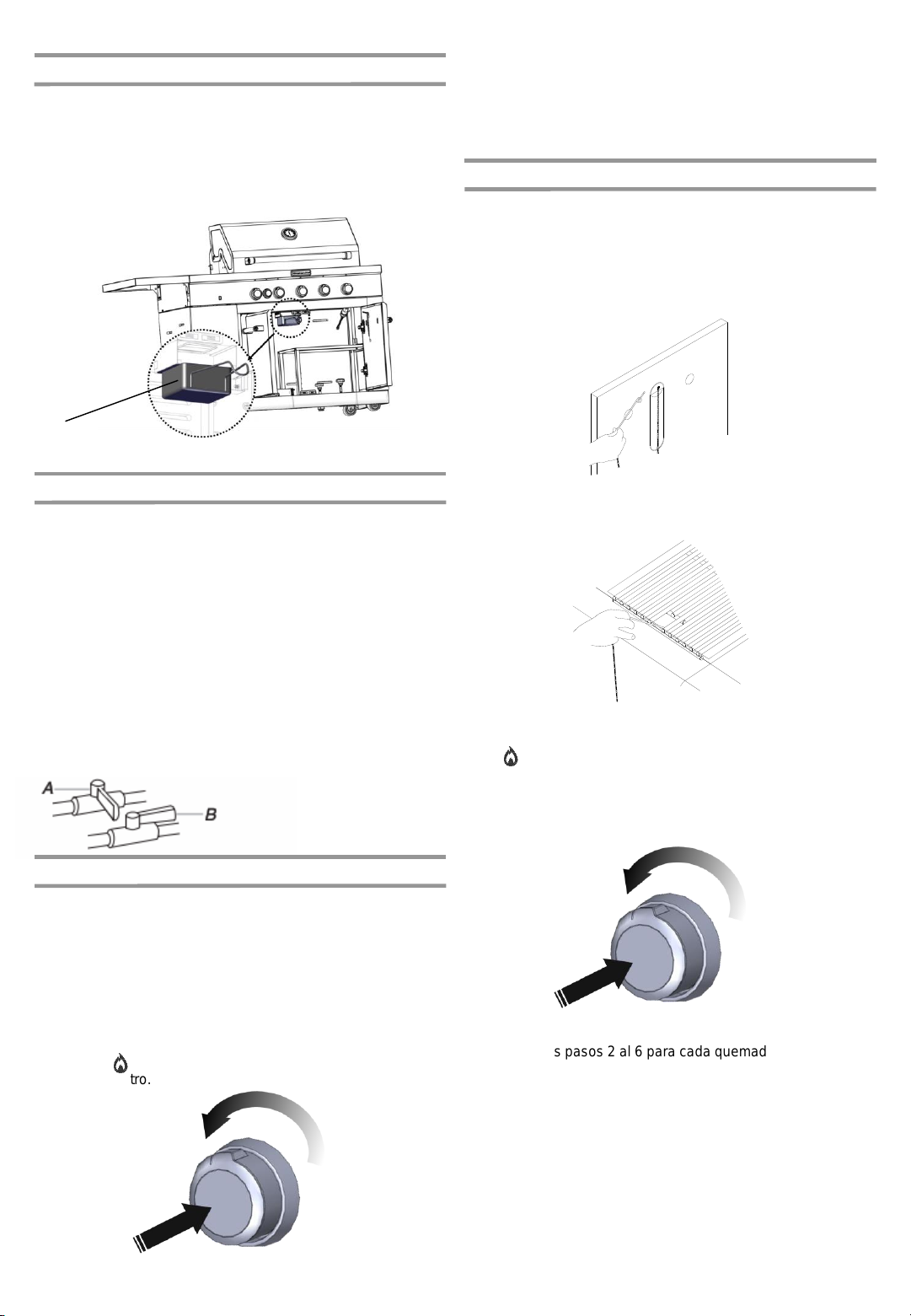

6. Open the manual shutoff valve in the gas supply. The
valve is open when the handle is parallel to the gas pipe.
7. Test all connections using an approved noncorrosive leakdetection solution. Bubbles will show a leak. Correct any
leak found
A. Closed valve
B. Open valve
30
Record Conversion
The LP appliance nameplate is located inside the grill cabinet
on the left-hand side. Once converted, place the NG appliance
nameplate over the current LP appliance nameplate.
In the last page of the Use and Care Guide, write “Converted to
Natural Gas”. Also record the conversion date and the
technician/company that performed the conversion.
Adjust High Flame Setting Screw
When converting from LP to Natural gas, you will need to
adjust the high flame setting screw for ideal burner flame
height.
1. Remove each control knob for the main burners and sear
burner
2. Use a flat-blade screwdriver to turn the high flame
setscrew counterclockwise approximate 90º.
3. Check that burner operates at the new high flame setting.
It may be necessary to adjust the screw setting slightly
more to get the ideal burner flame height.
4. Place the burner control knobs back to their original
positions.
Loading...
