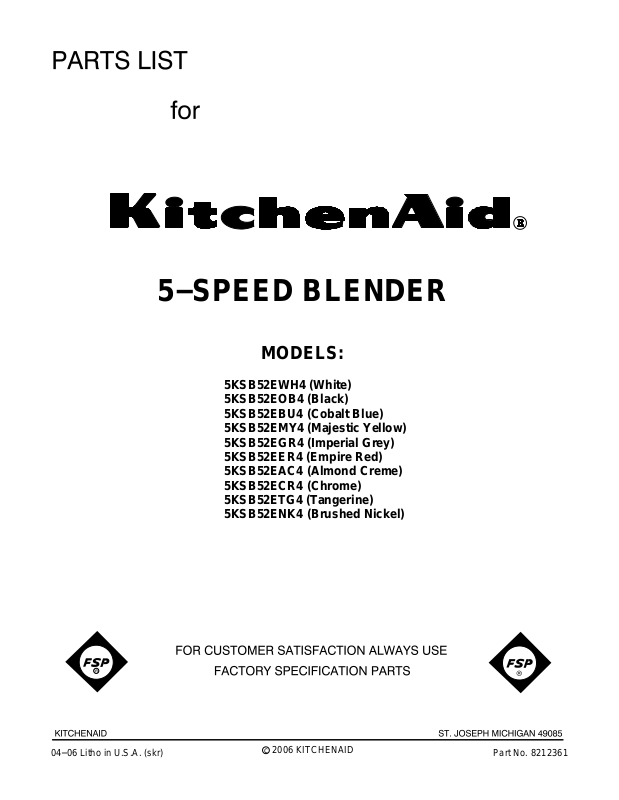

5−SPEED BLENDER
MODELS:
5KSB52EWH4 (White)
5KSB52EOB4 (Black)
5KSB52EBU4 (Cobalt Blue)
5KSB52EMY4 (Majestic Yellow)
5KSB52EGR4 (Imperial Grey)
5KSB52EER4 (Empire Red)
5KSB52EAC4 (Almond Creme)
5KSB52ECR4 (Chrome)
5KSB52ETG4 (Tangerine)
5KSB52ENK4 (Brushed Nickel)
04−06 Litho in U.S.A. (skr)
c
2006 KITCHENAID
Part No. 8212361
Page 2
UNIT PARTS
For Variations Of Model: 5KSB52E_ _4
8212361
2
Page 3
UNIT PARTS
For Variations Of Model: 5KSB52E_ _4
Illus. Part
No. No. DESCRIPTION
1 Literature
9709310 Use & Care Guide
8212361 Repair Parts List
2 9704296 Overlay, Switch
3 Housing, Upper
9706989 White
9706993 Onyx Black
9706991 Cobalt Blue
9706994 Majestic Yellow
9706996 Imperial Grey
9706995 Empire Red
9706990 Almond Creme
9706900 Chrome
9707544 Tangerine
9706901 Brushed Nickel
4 9704299 EMI Filter
W10068250
5
6 9706613 Board, Control
7 3184398 Seal, Motor
8 9706760 Motor
9 3400062 Screw
10 9701904 O−Ring
12 9704230 Coupling, Drive
13 Base
9706718 White
9706722 Onyx Black
9706720 Cobalt Blue
9706723 Majestic Yellow
9706722 Imperial Grey
9706724 Empire Red
9706719 Almond Creme
9706722 Chrome
9707547 Tangerine
14 9704295 Band, Trim
16 3184608 Screw
17 115792 Foot, Rubber
18 Power Cord
9707864 White
9707865 Black
Screw
3
8212361
Page 4

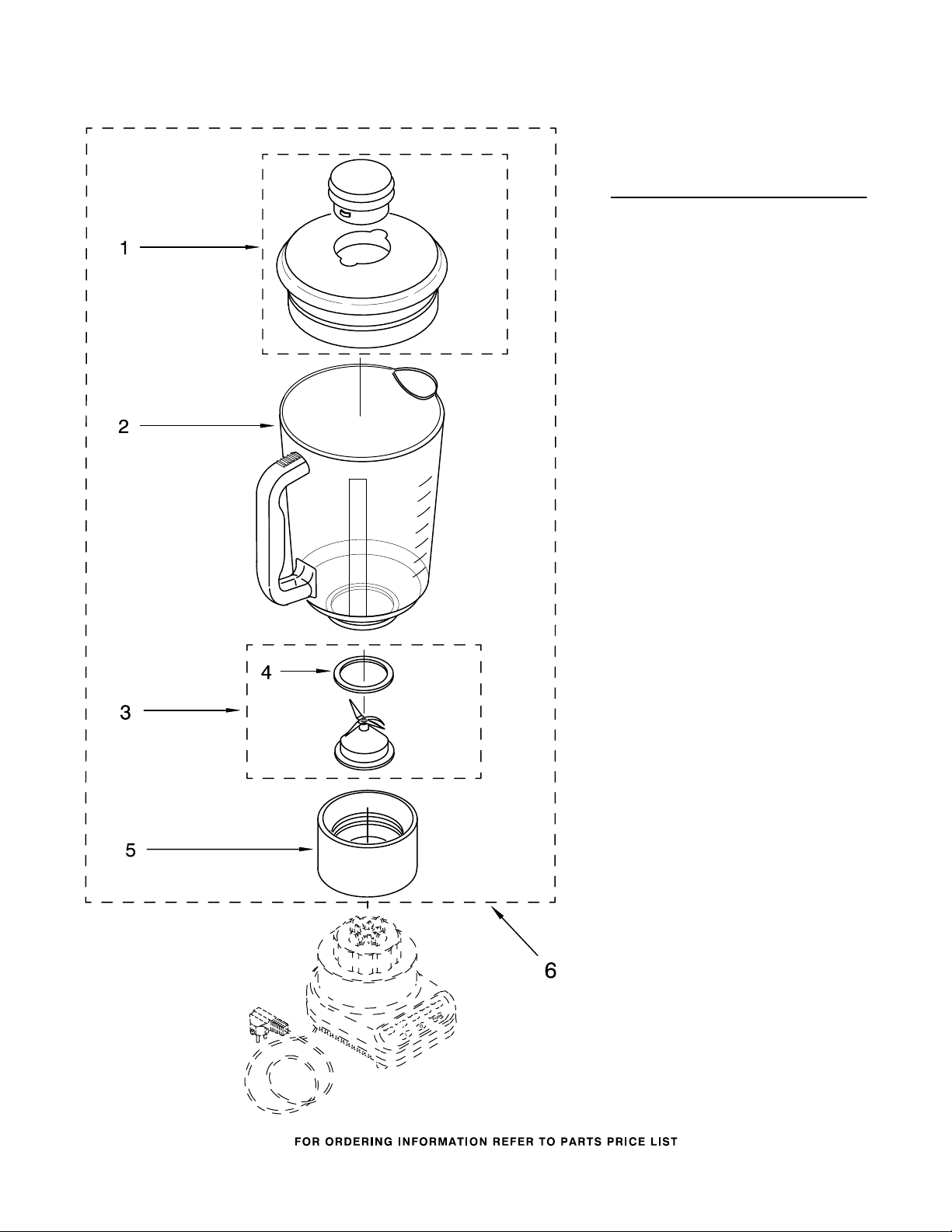

ATTACHMENT PARTS
For Variations Of Model: 5KSB52E_ _4
Illus. Part
No. No. DESCRIPTION
1 Lid And Cap
2 Jar
3 9707580 Dome & Blade Assy
4 9701859 Seal, Insert
5 Collar
6 Upper Assembly,
9707909 White
9707911 Onyx Black
9707913 Cobalt Blue
9707915 Majestic Yellow
9707912 Empire Red
9707910 Almond Creme
9707916 Tangerine
9704200 Clear Glass
9704251 White
9704253 Onyx Black
9704255 Cobalt Blue
9704257 Majestic Yellow
9704254 Empire Red
9704252 Almond Creme
9707551 Tangerine
Complete
9707581 White
9707587 Onyx Black
9707584 Cobalt Blue
9707586 Majestic Yellow
9707583 Empire Red
9707582 Almond Creme
9707947 Tangerine
8212361
4
