STR250R01C Operating Manual

2011. 6.

Kisan Telecom

2 / 56

Content

1. Introduction....................................................................................................................................................................5

1.1. General Introduction.....................................................................................................................................5

2. System Network Configuration............................................................................................................................5

2.1. Network configuration.................................................................................................................................5

3. System Specifications ................................................................................................................................................6

3.1. General Specifications..................................................................................................................................6

3.2. System specifications....................................................................................................................................7

3.2.1. Frequency allocation........................................................................................................................7

3.2.2. System Specifications......................................................................................................................7

4. Mechanical Specifications .......................................................................................................................................9

4.1. STR250R01C RHU ...........................................................................................................................................9

4.1.1. Mechanical Design............................................................................................................................9

4.1.2. Dimension..........................................................................................................................................

4.1.3. Mechanical Specification............................................................................................................

4.1.4. Description of STR250R01C RHU...........................................................................................

4.1.5. Port Configuration.........................................................................................................................

4.1.8. Module Composition of RHU...................................................................................................

4.1.9. Function of Modules ....................................................................................................................

4.2. STR250R01C RU............................................................................................................................................

4.2.1. Mechanical Design.........................................................................................................................

4.2.3. Mechanical Specification............................................................................................................

4.2.4. Description of STR250R01C RU..............................................................................................

4.2.5. Port Configuration.........................................................................................................................

4.2.6. Module Composition of RU......................................................................................................

4.2.7. Function of Modules ....................................................................................................................

5. Block Diagram............................................................................................................................................................

6. Administration Program (RptMan-STR250D01C) ....................................................................................

6.1. System Requirement..................................................................................................................................

6.2. Bluetooth interface .....................................................................................................................................

6.3. Main Window.................................................................................................................................................

6.4. Status Display................................................................................................................................................

6.5. Control Policy.................................................................................................................................................

6.6. Menu ..................................................................................................................................................................

3 / 56

6.7. Toolbar...............................................................................................................................................................

6.8. Program operation......................................................................................................................................

6.8.1. Initiating communication...........................................................................................................

6.8.2. Disconnect..........................................................................................................................................

6.8.3. STR250R01C Brief System Status (Block Diagram View)...........................................37

6.8.4. STR250R01C RHU Status Window.........................................................................................

6.8.5. STR250R01C RU Status Window............................................................................................

6.8.6. Firmware download ......................................................................................................................

6.9. Additional features .....................................................................................................................................

6.9.1. ASD (Auto Shutdown) Function .............................................................................................

6.9.2. ALC (Auto Level Control) Function........................................................................................

6.9.3. Center Channel Selection...........................................................................................................

Appendix A Factory setting value for each equipment .................................................................................

Appendix B Cellular CDMA Frequency Map ........................................................................................................

Appendix C PCS CDMA Frequency Map ................................................................................................................

4 / 56

IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

5 / 56

1. Introduction

1.1. General Introduction

As an equipment to clear RF shadows inevitably generated between the adjacent cells of CDMA, STR250R01C supports CDMA and effectively repeats the signals between mobile terminals in weak coverage area and BTS. This equipment is Dual Band Optical DAS that support 850MHz and 1900MHz bands simultaneously, and it is designed to support CDMA for each band. This equipment provides the effective and flexible solution to service providers to improve quality of service for their subscribers.

The main objectives of STR250R01C are as follows:

- Expansion of coverage

- Enhancement of service quality in areas such as tunnels or in-building

- Improvement in signal strength at places where the signal level is less than desired.

- Support dual bands of 850MHz and 1900MHz.

- Support single mode of CDMA for each band.

- RU power consumption and RU size optimization by built-in Crest Factor Reduction

(CFR) technology for the CDMA signal.

2. System Network Configuration

2.1. Network configuration

STR250R01C repeater is equipment to clear RF shadows, to fill coverage gaps existing among the adjacent cells and to enhance the quality of service by extending coverage of CDMA.

The following network configuration is for a case where the 1 RHU is connected with 1 RU by optical cables. The coverage antennas are connected to RU, and the link antennas are connected to RHU. The following network configuration is for a case where the RHU co-located with BTS (CDMA) is connected with 6 RU’s by optical cables. The coverage antennas are connected to each RU.

 System configuration

 RHU Capacity: 1 Optical Branch/DOU (1 Optical Branch/RHU)  System Connection: Optical cable between RHU and RU  Optic Wavelength: 1310nm for FWD, 1550nm for RVS

 Max

loss of optic cable (between RHU and RU): 2 ~ 10dBo

 2 coverage ANT ports on RU. (Separate Ant. Ports for 850MHz and 1900MHz)  2 link ANT ports on RHU. (Separate Ant. Ports for 850MHz and 1900MHz)

[Network Configuration of Dual Band Optical DAS]

3. System Specifications

3.1. General Specifications

Item RHU RU

Enclosure Type Cabinet Cabinet

W  H  D 471.7(H) X 263.4(W) X 304.8(D)mm 471.7(H) X 263.4(W) X 304.8(D)mmDimension

(mm)

Weight

26.5 Kg 26.5 Kg

Power Supply 110-120Vac (Tolerance ±10%), 60Hz

110-120Vac (Tolerance ±10%),

60Hz

Power Connector MS Connecter MS Connecter

RF In/Out Port N Type Female, bottom side N Type Female, bottom side

Optic Connector Type FC, bottom side FC, bottom side

Optic Wavelength FWD: 1310nm / RVS: 1550nm

Operating Temperature -5℃ ~ 50℃ -5℃ ~ 50℃

 Environmental requirement

The repeater RHU & RU shall be operated in the temperature range of -5¡É ~ +50¡É.

6 / 56

3.2. System specifications

3.2.1. Frequency allocation

 1900MHz Band

 850MHz Band

3.2.2. System Specifications

7 / 56

Item Specification Remarks

Tx Frequency Range

Contiguous 25MHz Bandwidth in 1930 ~ 1990MHz Contiguous 25MHz Bandwidth of 869 ~ 894MHz

Rx Frequency Range

Contiguous 25MHz Bandwidth in 1850 ~ 1910MHz Contiguous 25MHz Bandwidth in 824 ~ 849MHz

Frequency Stability 0.02PPM

No of Carriers

Supported

20CH(PCS) and 17 CH(Cellular) CDMA Carriers

System Delay DL: 10usec max. UL: 5usec max.

Tx-Rx Isolation 110dB min. @Between RU Tx Output and RHU Rx Output

Impedance 50 Ohm

Pass-Band Ripple 3dB max. 25MHz BW

8 / 56

FWD Input Power -55 dBm/total Each Band

FWD Output Power

40dBm /total for 1900MHz RU ANT Port 40dBm /total for 850MHz RU ANT Port

RVS Input Power -68 dBm/total max. at RU each ANT Port

RVS Output Power 27dBm/total max. at RHU each Rx ANT Port

System Gain FWD: 95dB max. RVS: 95dB max.

FWD Spurious Comply to 3GPP2, FCC regulation

RVS Noise Figure 10dB max. @ 95dB Gain Max. Gain

Gain Control Range FWD: 20dB by 1dB Step RVS: 20dB by 1dB Step RU OLC Gain

VSWR 1.5 : 1 max. @ All input/output ports

Optical Wavelength FWD: 1310nm RVS: 1550nm

RF I/O Connector RHU: N-type Female RU: N-type Female

4. Mechanical Specifications

4.1. STR250R01C RHU

4.1.1. Mechanical Design

RF SIDE

PSU SIDE

9 / 56

10 /

4.1

.2. Dimension

 RHU System picture and Size  471.7(H) X 263.4(W) X 304.8(D) mm

[Side] [Inner Side] [Front/Rear Side]

4.1.3. Mechanical Specification

No Item Description

1 Dimension & Weight

1. Dimension: 471.7(H) X 263.4(W) X 304.8(D) mm

(plinth included)

2. Weight: 26.5 Kg

2 Method of Cooling Natural convection (Heat-sink) 3 Door Locking Type 10 on each side using bolt lock

4 Optic Connector

1. Position: Cabinet inside

2. Connector type: FC/TBD * Optic cable tray is provided inside of cabinet.

5 ANT PORT

1. located at the bottom side of cabinet

2. Connector Type: N Type Female

6 Power Input

1. Power: 110-120Vac, 60Hz

2. Position: bottom side of cabinet

3. Connector: MS connecter

7 Ground TBD 8 Waterproof condition TBD

9 Misc. Features

1. Easy to maintain

2. Pole mountable (i.e., telegraph pole)

3. Torque hinge used

11 / 56

4.1

.4. Description of STR250R01C RHU

[Forward Path] The signal from CDMA BTS is fed to the RF link antenna port of RHU. First, RHU Filter rejects the unwanted signal. Then LNA and Up-down converter make gain for transmitting. Combiner combines the signal with the modem signal (360MHz). The combined signal gets transmitted to RU via optical cable.

[Reverse Path] The CDMA RVS signal input from RU through the optic module is separated into RF and modem signal, and then RF RVS module performs optic AGC and RVS HPA makes large signal level for transmitting. Finally RHU Filter rejects the unwanted signal and RHU link antenna outputs RVS RF signal. The RF signal then is fed to the BTS.

4.1.5. Port Configuration

12 /

No Item Description

1 AC INLET 110V AC Power Cable Connection Port / MS Connector 2 1900MHz ANT Port 1900MHz Band ANT RF Cable Connection Port / N-type Connector 3 850MHz ANT Port 850MHz Band ANT RF Cable Connection Port / N-type Connector 4 Optical Cable INLET Optic cable connection Inlet 5 Goretex

4.1

.8. Module Composition of RHU

 Module operational voltage table

No Module Voltage Used Remarks

1 3-Way Combiner

2 RHU FWD Band Selector for 1900MHz (RHFBS) 5.5Vdc /6.5Vdc

3 RHU FWD Channel Selector for 850MHz (RHFCHS) 5.5Vdc /6.5Vdc

4 Doner Optical Transceiver Unit (DOU) 6.5Vdc

5 RF Modem (FSK Modem) 9Vdc

6 RHU RVS COM for Signal combing (RRCOM)

7 RHU RVS Band Selector for 1900MHz (RHRBS) 6.5Vdc

8 RHU RVS Band Selector for 850MHz (RHRCHS) 6.5Vdc

9 RX HPA for 1900MHz 29Vdc

10 RX HPA for 850MHz 29Vdc

11 FE-Duplexer(Front-End Filter Unit) for 1900MHz

12 FE-Duplexer(Front-End Filter Unit) for 850MHz

13 PSU (AC-DC) AC 110V INPUT

14 NMS Controller 9Vdc

15 Interface Board Ass’y 5.5Vdc /6.5Vdc /9Vdc

13 /

4.1

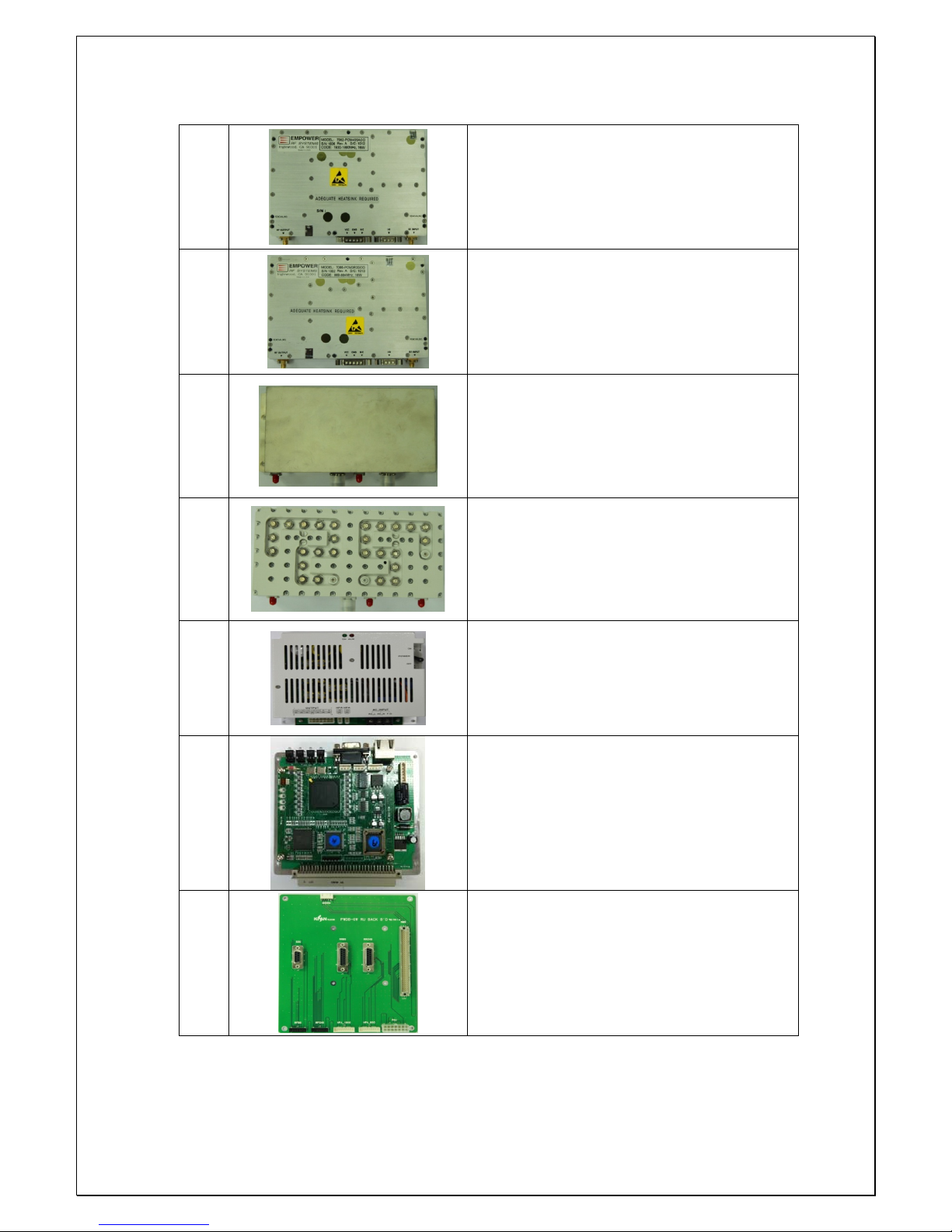

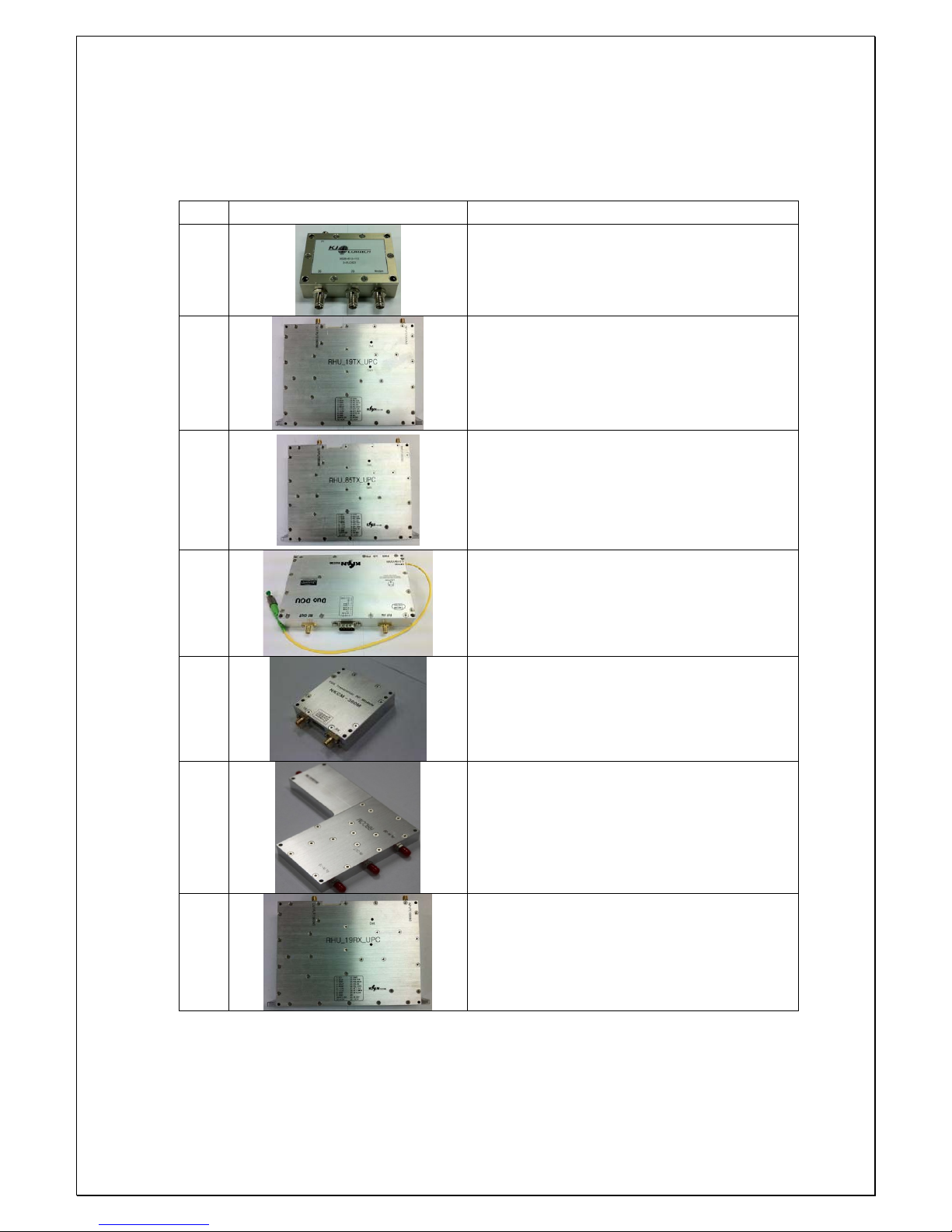

.9. Function of Modules

14 / 56

No Module Description

[3-Way Combiner] Combine signals into RF and modem signals and sends to DOU.

[RHFBS] Controls the gain of 1900MHz FWD path, filters FWD band, and performs the ALC function. Output of the module is sent to 3-Way Combiner.

[RHFCHS] Controls the gain of 850MHz FWD path, filters FWD band, and performs the ALC function. Output of the module is sent to 3-Way Combiner.

[DOU] Performs E/O (or O/E) conversion for FWD and RVS signals. Wavelength: RX 1550[nm], TX 1310[nm]

[FSK Modem] Data modem for RU and RHU communication RU → RHU frequency: 340MHz RHU → RU frequency: 360MHz

[RRCOM] Divide RVS 850MHz, 1900MHz and Modem signals

[RHRBS] Amplifies RVS 1900MHz signal, filters for the desirable band and controls the RVS path gain of RHU.

15 / 56

[RHRCHS] Amplifies RVS 850MHz signal, filters for the desirable band and controls the RVS path gain of RHU.

[RX HPA 1900] 27dBm High power amplifier that amplifies the RHU 1900MHz signal by linearizer and sends to RHU ANT through the 1900MHz FE-Duplexer.

[RX HPA 850] 27dBm High power amplifier that amplifies the RHU 850MHz signal by linearizer and sends to RHU ANT through the 1900MHz FE-Duplexer.

[Duplexer 1900] Front end duplexer that passes through 1900MHz desired FWD and RVS frequency bands.

[Duplexer 850] Front end duplexer that passes through 850MHz desired FWD and RVS frequency bands.

[PSU] Converts AC 110V to DC 29V/9V/6.5V/5.5V, and distributes the necessary power to each modules.

[NMS Controller] Monitors the status of modules in RHU and controls the configurable parameters of the RHU modules.

16 / 56

[Interface BD] Provides operating voltage and monitors/controls signal to modules connected to interface B’D. Also provides a connection port to communicate with NMS B’D.

 P

ower Distribution Diagram

17 /

4.2. STR250R01C RU

4.2.1. Mechanical Design

18 /

19 /

4.2

.2. Dimension

 RU System picture and Size  471.7(H) X 263.4(W) X 304.8(D) mm

[Side] [Inner Side] [Front/Rear Side]

4.2.3. Mechanical Specification

No Item Description

1 Dimension & Weight

3. Dimension: 471.7(H) X 263.4(W) X 304.8(D) mm

(plinth included)

4. Weight: 26.5 Kg

2 Method of Cooling Natural convection (Heat-sink) 3 Door Locking Type 10 on each side using bolt lock

4 Optic Connector

3. Position: Cabinet inside

4. Connector type: FC/TBD * Optic cable tray is provided inside of cabinet.

5 ANT PORT

3. located at the bottom side of cabinet

4. Connector Type: N Type Female

6 Power Input

4. Power: 110-120Vac, 60Hz

5. Position: bottom side of cabinet

6. Connector: MS connecter

7 Ground TBD 8 Waterproof condition TBD

9 Misc. Features

4. Easy to maintain

5. Pole mountable (i.e., telegraph pole)

6. Torque hinge used

20 / 56

21 / 56

4.2.4. Description of STR250R01C RU

[Forward path] The RF and modem combined signals sent from the optic module of RHU is first divided into RF and modem signals at Divider in RU, then the 1900MHz Tx RF signal is amplified and filtered at the RFBS module, 850MHz Tx RF signal is amplified and filtered at the RFCHS module. The modem signal is conveyed to CPU of NMS controller through FSK modem. CDMA signal is reduced by the Crest Factor passing through the CFR FPGA digital board inside RFBS and RFCHS. This technology enables reduction of PAPR for CDMA signal increasing HPA efficiency. A higher efficiency HPA allows using a smaller enclosure with lower power consumption while decreasing OPEX for the service provider. The CDMA RF signals from the RFBS module is linearly amplified up to high power level on HPA, passed through the Front-End Filter Unit, and finally transmitted through an antenna.

[Reverse Path] CDMA Rx signals incoming from 1900MHz or 850MHz antenna are first passed by the Front-End Filter Unit, amplified by a low noise and high gain amplifier, filtered in RRBS(for 1900MHz band) or RRCHS(for 850MHz band), and combined with modem signal at combiner(RRCOM). The combined signal is then transmitted to RHU through the optic module.

4.2

.5. Port Configuration

No Item Description

1 AC INLET 110V AC Power Cable Connection Port 2 1900MHz ANT Port 1900MHz Band ANT RF Cable Connection Port 3 850MHz ANT Port 850MHz Band ANT RF Cable Connection Port

4 1900MHz Monitor Port

Monitor port coupled by -40dB relative to the output power of the 1900MHz ANT Port (Inside)

5 850MHz Monitor Port

Monitor port coupled by -40dB relative to the output power of the 850MHz ANT Port (Inside)

6 Optical Cable INLET Optic cable connection Inlet

22 /

4.2

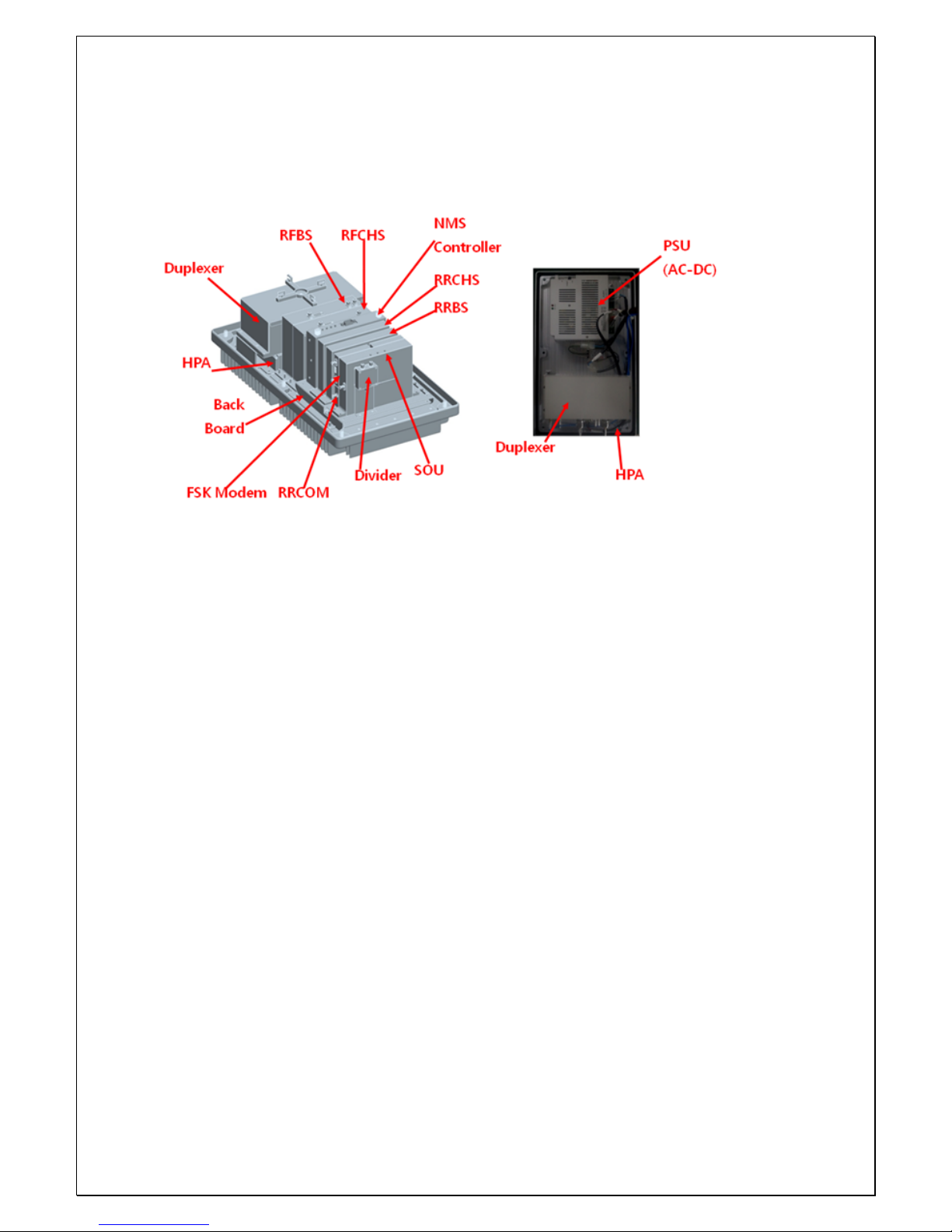

.6. Module Composition of RU

(1900)

(850)

23 / 56

24 / 56

 Module operational voltage table

No Module Voltage Used Remarks

1 Divider

2 RF FWD Band Selector for 1900MHz (RFBS) 5.5Vdc /6.5Vdc

3 RF FWD Channel Selector for 850MHz (RFCHS) 5.5Vdc /6.5Vdc

4 Slave Optical Transceiver Unit (SOU) 6.5Vdc

5 RF Modem (FSK Modem) 9Vdc

6 RU RVS COM for Signal combing (RRCOM)

7 RU RVS Band Selector for 1900MHz (RRBS) 6.5Vdc

8 RU RVS Band Selector for 850MHz (RRCHS) 6.5Vdc

9 HPA for 1900MHz 29Vdc

10 HPA for 850MHz 29Vdc

11 FE-Duplexer(Front-End Filter Unit) for 1900MHz

12 FE-Duplexer(Front-End Filter Unit) for 850MHz

13 PSU (AC-DC) AC 110V INPUT

14 NMS Controller 9Vdc

15 Back Board Ass’y 5.5Vdc /6.5Vdc /9Vdc

4.2

.7. Function of Modules

25 / 56

No Module Description

[Divider] Divides signals into RF and modem signals and sends to RFBS/RFCHS and FSK modem.

[RFBS] Controls the gain of 1900MHz FWD path, filters FWD band, controls the crest factor of 1900MHz FWD signal, and performs the ALC function. Output of the module is sent to 1900MHz HPA.

[RFCHS] Controls the gain of 850MHz FWD path, filters FWD band, controls the crest factor of 850MHz FWD signal, and performs the ALC function. Output of the module is sent to 850MHz HPA.

[SOU] Performs E/O (or O/E) conversion for FWD and RVS signals. Wavelength: TX 1550[nm], RX 1310[nm]

[FSK Modem] Data modem for RU and RHU communication RU → RHU frequency: 340MHz RHU → RU frequency: 360MHz

[RRCOM] Combines RVS 850MHz, 1900MHz and Modem signals, and provides the combined signal to optical module in order to perform E/O conversion.

[RRBS] Amplifies RVS 1900MHz signal by low noise high gain, filters for the desirable band and controls the RVS path gain of RU.

[RRCHS] Amplifies RVS 850MHz signal by low noise high gain, filters for the desirable band and controls the RVS path gain of RU.

26 / 56

[1900MHz HPA] 16Watt(42dBm) High power amplifier that amplifies the RU 1900MHz signal by linearizer and sends to RU ANT through the 1900MHz FEDuplexer.

[850MHz HPA] 16Watt(42dBm) High power amplifier that amplifies the RU 850MHz signal by linearizer and sends to RU ANT through the 850MHz FEDuplexer.

[1900MHz FE-Duplexer] Front end duplexer that passes through 1900MHz desired FWD and RVS frequency bands.

[850MHz FE-Duplexer] Front end duplexer that passes through 850MHz desired FWD and RVS frequency bands.

[PSU] Converts AC 110V to DC 29V/9V/6.5V/5.5V, and distributes the necessary power to each modules.

[NMS Controller] Monitors the status of modules in RU and controls the configurable parameters of the RU modules.

[Interface BD] Provides operating voltage and monitors/controls signal to modules connected to interface B’D. Also provides a connection port to communicate with NMS B’D.

 P

ower Distribution Diagram

27 /

5. Block Diagram

28 / 56

FSK

Modem

DOU

Controller

RS-232

Remote Unit [RU]

SOU

DNC

UPC

FWD IN

FWD LO

1900MHz RVS OUT

824~849MHz

1850~1910MHz

ADC DAC

1900MHz HPA

APD

Board

850MHz / 1900MHz

CFR + Filtering

f(n

FPG

850MHz

FWD OUT

DNC

UPC

FWD IN

FWD LO

ADC DAC

CFR + Filtering

f(n T

)

FPG

360MHz

850MHz HPA

APD

Board

850MHz

RVS OUT

WDM

Coupler

ATT

LNA

AGC PLL

836.5MHz

ATT

824~849MHz

INPUT Detect

OUTPUT

Detect

LNA

AGC PLL 1880MHz

ATT

1850~1910MHz

INPUT Detect

OUTPUT

Detect

340MHz

RFCHS [850MHz]

RFBS [1900MHz]

RFE- DUP

[850MHz]

RFE-DUP

[1900MHz]

DIVIDER

RRBS [1900MHz]

RRCHS [850MHz]

Service ANT

[850MHz]

Service ANT

[1900MHz]

RRCOM

LNA

ATT

BPF

INPUT

DETECT

DNC

UPC

ADCDAC

f(n

Filtering

TS)

FPG

ATT

DOU

WDM Coupler

FSK

Modem

Controller

RS-232

360MHz 340MHz

UPC

ADC

DAC

f(n

Filtering

)

FPGA

DNC

ATT

850MHz DL

850MHz PA

850MHz UL

RF Head Unit [RHU]

Link ANT [850MHz]

Link ANT

[1900MHz]

RHFE- DUP

[850MHz]

RHFE- DUP

[1900MHz]

RHFCHS [850MHz]

LNA

ATT

BPF

INPUT

DETECT

UPC

ADC

DAC

f(n

Filtering

)

FPGA

DNC

ATT

RHFBS [1900MHz]

1900MHz DL

RHRCHS [850MHz]

DNC

UPC

ATT

ADCDAC

f(n

Filtering

)

FPG

3-Way

RRCOM

1900MHz UL

RHRBS [1900MHz]

1900MHz PA

6. Administration Program (RptMan-STR250D01C)

Administration program (RptMan-STR250D01C) is a management program for STR250D01C

and provides status monitoring and controlling functions to users.

6.1. System Requirement

 System: Desktop or laptop PC

(highly recommended that PC supports Bluetooth interface.)

 OS: Windows XP or later version. GUI developed under XP.  Resolution: 1024  768 or more  Connection Cable: 9 pin serial cable (cross type)

6.2. Bluetooth interface

The Bluetooth to RS232 convertor is installed in enclosure. Before use local GUI, the virtual

COM port must be available. Here is an example to activate virtual COM port under XP

professional. Some procedures described here may be different to other OS such as Windows

 Check the Bluetooth can be supported by your PC or laptop.

If it supported, you may be able to see an icon on Taskbar as below.

 Turn on your Bluetooth.  Click the right button of mouse on the Bluetooth icon.  Select menu “Add Bluetooth Device”

29 /

 When

Bluetooth Configuration Wizard appeared, click “Next” button.

 When finding remote Bluetooth devices is finished, select the device name installed in

RHU. If you can see device name started with “SD1000”, that may be correct. If you can

see multiple devices, you have to know which is correct to connect.

After selection, press “Next” button.

 Type security code and press “start pairing” button. Default security code is “1234”

30 /

 Select and check the ser

vice named “Generic Serial”, then press “Configure” button.

 Keep in your mind the device and COM port name. Press “OK” button.

 Press “Next” button

31 /

 Finish

the creating the new virtual COM port to connect to RHU.

 A new connection is created and connected to r RHU”. emote “

 Disconnect the connection to make it free. Lo UI will use this freed serial port. cal G

 When the local GUI started, you ca a connection and communicate with



n establish

“RHU” via it.

32 / 56

.3. Main Window

33 / 56

ection S Description

Displays the name of management program(GUI), i.e. RptMan-

of equipment currently connected to the program (RHU

STR250R01C.

Displays the type

Window Title

or RU).

Presents working menu for operator .

an activate the tool bar menus.

It is associated with tool icons, which c

Menu Bar

Presents icons (button type) for frequently used commands.

as to the status of repeater.

Toolbar

User-friendly icons are used.

Icons are activated or disabled

Work Space

with a block

windows or dialogs.

Status information and control functions are provided

diagram view of RHU and RU.

Provides the working space for

.4. Status Display

34 / 56

s displayed by LED’s and values.

arm:

Status of repeater i

 LED

 Al

/ blinking indicates ALARM, indicates NORMAL

 On/Off:

ON, OFF

Exception) for HPA,

is ON, is OFF

Value

ts are not displayed.



 Uni  V

alue displayed in box ( )

Contr

hape of mouse cursor is changed to



 The s on controllable items.

Control Policy

an change one item at a time.

o popup control dialog.

 The texts o

f controllable LED or values are displayed in BOLD font.

6.5.

 Basically, user c  Click a controllable item (LED, text, or button) t

 Once a control dialog popped up, it stays there for repeated control until user closes the

6.6. Menu

window

Menu Sub Menu Function

Conne Establishes connection be UI) and repeater ct tween PC(G

Disconnect Disconnects connection between PC(GUI) and repeater

File

Exit Finishes admin program.

Power Table able. (ADMINISTRATORS ONLY) Presents RF/Optic power t

TC Table Presents temperature compensation table

Action

mpression le of repeater) for Image Co Compress the firmware file (executable fi

download

Showing a control range

Item Name

Target E q u i p m en t.

(RHU or RU)

35 / 56

RHU image download compressed firmware file to RHU equipment Downloads

RU image download Downloads compressed firmware file to RU equipment

Factory Setting Restores all parameter values to initial factory settings

System action Not available

Gain Setting

Tx: change system gain to setup remote output to pre-

x total gain from RU to RHU

defined level (about 30 dBm).

Rx: set ATT to have 40dB of R

including optical loss.

Polling period riod between PC and repeater Controls the polling pe

Block window Presents system window including RHU and RU

RHU Window Presents RHU status window in work space

View

ndow RU Remote Wi Presents RU status window in work space

Cascade

Tile Horizon

f repeater status Cascade or tile horizon arrangement o

windows in work space

Arrange icons any window is opened Arrange all icons under m

Close all Close all window

Window

Packet Debug

window in workspace displaying packets Presents debug

between repeater and GUI program

Help

About GUI program, RptMan Displays the version information of

(Repeater Manager)

oolbar 6.7. T

ITEM ICON Function

Establishes RS-232C conne repeater, then GUI starts ction to the

Communication

Establishme

communicate and status of repeater are polled and

displayed.

Communication

Disconnection

s communication with connected repeater. Repeater Disconnect

status is not updated.

Polling

Stop/Resume

Toggle to pause or resume status polling.

Power Table

Presents RF/Optic power table

T/C table

Presents temperature compensation table

Debug Packet

epeater like protocol Displays packet data between GUI and r

analyzer and it may help debugging of software

Compression of

image file

Compresses image file of repeater

Gain Setting

TX: set ATT to have 35dBm of output at the RU ANT Port

t Tx/Rx gain setting

RX: set ATT to have 40dB gain of Rx path

 Tx/Rx Gain setting function carry ou

including optical loss compensation automatically.

36 / 56

RHU Download

Download RHU firmware files to RHU equipment.

RU Download

Download RU firmware files to RU equipment.

RHU Factory

g Settin

Initialize RHU parameters to factory setting values.

RU Factory

ing Sett

Restores RU parameters back to original factory setting values.

Help

Shows version information

rogram operation

tion

6.8. P

6.8.1. Initiating communica

Function Establishing communication between GUI and repeater

Method

Click button in toolbar of GUI program

Serial Combo box to set the com port (COM1, COM2, …)

UDP

When RHU connected to Ethernet, GUI n communicate

nnection, you have to specify IP address of

RHU via UDP.

To establish co

target RHU.

OK Button munication between GUI and repeater, then

can see the

Initiates com

closes this popup window(“Open Connection”)

When communication port is established, you

communication status by blinking icons.

(right-bottom of the main window)

Description

Cancel Button w Cancels and closes the popup windo

.8.2. Disconnect

Disconnecting GUI from repeater

Function

Method

button in toolbar of GUI program Click

Description mm r becomes disconnected. The co unication between GUI and repeate

6.8.3. STR250R01C Brief System Status (Block Diagram View)

(1) Node Tree: This window displays the tree configuration of RUs connected with RHU

w VzW RHU Double click to open the RHU status windo

Nose Tree

AL-1 VzW RUDU Double click to open the RU status window.

on shows a status of repeater node as follows: Ic

 : not installed  : normal  : critical alarm(s) was(were) happened  : link fail : communication between RHU and RU is not stable,  : RU was installed, but type o

f RU cannot be recognized

) Brief System Status Window

ortant status items of RHU and RU on one window.

37 /

This window shows some

imp

38 /

Device Category Item

 IN PWR : Tx Inpu r

r limit value and

limit value and

t Powe

 IN UPR : Tx Input uppe

alarm represented by LED.

 IN LWR : Tx Input lower

alarm represented by LED.

 AT T

WR : detected LD power and LD bias

: LD power lower limit value and

detected PD power and PD fail

value and

 LD P

alarm.

 LD LWR

alarm LED

 PD PWR :

alarm detected by optic module.

 PD LWR : PD power lower limit

alarm LED

RHU

 detected Rx input power. It

: Rx input power upper limit value

cted Rx output power.

IN PWR :

shows almost “LOW”, because Rx traffic is

rare.

 IN UPR

and alarm LED.

 OUT PWR : dete

LED shows the enable status of Rx HPA.

 OUT UPR : Rx output upper limit value a

alarm LED.

 AT T  IN PWR RU : Tx input power

by u s er.

d alarms detected by HPA itself:

larm

 T

OT ATT : total ATT value.

TOT ATT = USR ATT + ALC A

 USR ATT : ATT value co n f i g ured  ALC ATT : ATT valu e a dded by A

function.

 HPA relate

 On/Off : turn on or off HPA  OVPWR : over power alarm  OVTMP : over temperature a  VSWR : over VSWR alarm

39 / 56

wer

n block and

ff ASD function block and

 OUT PWR : detected Tx output power  OUT UPR / OUT LWR : upper and lo

limit value and alarm LED

 ALC : turn on / off ALC functio

ALC level value.

 ASD : turn on / o

its activation level.

See RHU.

 Protection On/Off : turn on / off Rx

piolot to check

ed Rx input power

d alarm

PWR : detected Rx output power.

protection function block.

 Pilot On/Off : turn on / off

Rx gain. It may be automatically turned off

after reboot.

 IN PWR : detect  IN UPR : input upper limit value an

LED

 AT T  OUT

LINK

 : RU is not installed. 

: RU is installed and

/ /

communication

stat us is good.

: RU is installed but communication

status is not stable.

6.8

.4. STR250R01C RHU Status Window

40 / 56

Group Description

 Version: Firmware Versoin  Type: Repeater unit type

 Name: ID of RHU for the communication

 Gain Setting

 TX: sets ATT to have 30dBm of output at the RU ANT Port

 User Connect: Connection status of COM port of repeater  PSU: Status of PSU  TMPCUR: Current temperature of the equipment

 TMPUPR: set the upper threshold value of temperature

(button) and alarm status (LED)

 Install: This sets up the RU to communicate with RHU. Even

when an RU is connected to RHU physically by optic cable, the

RU cannot communicate with RHU if RU is not installed.

 Band selection TAB.

 Path Use : PCS or Cellular band is used or not  PLL : PLL lock / unlock status  IN PWR : Tx input power value.  IN UPR : Tx input upper limit value and alarm status  IN LWR : Tx input lower limit value and alarm status  AT T 1, 2 :  Center : center channel number of Tx band. See “Additional

features”

41 /

 F

A Info : represents detected channel and configured channel.

 Bypass ON : turn on / off bypass function.  FPGA Ver : shows version information. When “F.F” is showed,

communication with FPGA is not stable.

 IN PWR : detected input power before filter.  ALC : ALC level and on/off status.  ALC AT T : added AT T value by ALC feature .  OUT PWR : last Tx output power after filter.

 PLL : PLL lock status of internal PLL module.  Output On/Off : turn on/off information of Rx HPA  IN PWR : detected Rx input power.  IN UPR : upper limit value and alarm LED for input power.  OUT PWR : detected Rx output power.  OUT UPR : upper limit value and alarm LED for output power  ALC : ALC level and on/off LED  Shutdown : shutdown level and on/off LED  AT T1, ATT2, AT T3  ALC ATT : ATT value added automatically by ALC feature.

 See “Tx FPGA”

42 / 56

6.8

.5. STR250R01C RU Status Window

Group Description

 Version: Firmware version  Type: Type of repeater  Name: Set the Name, ID, Serial No. of repeater RU

 User Connect: Connection status of COM port of repeater  PSU: Status of PSU  TMPCUR: Current temperature in repeater RU

43 /

 TMPUPR:

Value/control of upper threshold of temperature

(button) and alarm status (LED)

 LDPWR: Value of LD power (box) and status of LD (LED)  LDLWR: Value/control of lower threshold of LD power (button)

and lower alarm status of LD power (LED)

 PDPWR: Value of PD power (box) and status of PD (LED)  PDLWR: Value/control of lower threshold of PD power (button)

and lower alarm status (LED)

 RU parameters for PCS/Cellular band are displayed by the tab

selection. Each band has the identical items which can be

monitored and controlled.

 PLL: Alarm LED for 2 PLL’s  CFR On: On/Off status of Crest Factor Reduction function  ATT: Sets ATT to control FWD gain, and shows its value.

Dis p l ayed ATT value = U SR ATT + ALC ATT

 USR ATT: This is the main FWD Gain setting point. It is used

for FWD auto gain setting or gain fine tuning

 ALC ATT: When HPA output level is higher than ALC level it

automatically controls FWD gain to maintain output level

below HPA ALC level.

 CFR On: On/Off control the Crest factor reduction function  INPWR: Input total power level on CFR board  Center: Set the center frequency of FWD band by CDMA CH

No.

 nCH: Indicates the current no. of CDMA CH. When pressed,

more information about CDMA CHs can be viewed.

 Channel Setting Window for PCS CDMA CH and band center  Center: 25MHz operating band center frequency setting  Apply Values: setting action for Center and CDMA CH

44 /

 R

efresh from Status: verification action for set valuses after

setting the Center and CDMA CH

 Cellular Spectrum View Window  Center: CDMA CH for center freq. of 25MHz band  FA Information: Number of CDMA CH currently dectected

 On/Off: Status/control the operation state of HPA  OVTMP: Alarm status of HPA Over-temperature  OVPWR: Alarm status of HPA Over-Power  VSWR: Alarm status of HPA VSWR  OUT PWR: Output power level of HPA(box)  OUT UPR: Display/control of upper threshold of HPA output

power(button), alarm status(LED)

 OUT LWR: Value/control of lower threshold of HPA output

power(button), alarm status(LED)

 ALC: Set ALC level for HPA output, and shows ALC on/off

status of function(LED).

 ASD(Auto Shutdown): ASD level(button), and shows ASD on/off

status of function(LED).

 Protection On/Off: In order to protect RU from over input

RVS(Rx) signal power. In case that input signal is more than IN

UPR level, RU shuts down and LED is changed to RED.

 Pilot On/Off: Sets CW signal generation, and shows its status.

It is used for RVS gain setting.

 IN PWR: RVS power value at the LNA output point  IN UPR: Sets RVS input upper threshold, and shows the alarm

status of input upper threshold.

 OUTPWR: RVS RF output power of RRBS(RRCHS)  ATT: Sets ATT to control RVS gain, and shows it’s value.  Center Freq: It indicates pilot signal frequency value. This value

changes with FWD(Tx) center frequency automatically.

45 / 56

6.8

.6. Firmware download

Firmware download is performed when system needs to be updated.

Downloading improper images (executable file of repeater CPU) may cause harmful

damages to equipment.

The following steps should be taken for firmware download.

① Convert firmware source file (*.bin) to a downloadable file format.

Main menu: Action → Image Compression, toolbar:

② Open a pop-up window showing the status of the target equipment for firmware

download.

Step 1) Main menu View ¡æ Select Donor Windows or Remote Windows

Step 2) In Block View Dialog window, select Donor Windows or Remote Windows

③ Download firmware to the target equipment.

Step 1) Main menu Action ¡æ select Image Download menu

Step 2) In toolbar, select

for RHU, and select for RU

Download firmware after selecting the firmware file for the target equipment.

File conversion procedure :

46 /

Select target file

Perform function

Store modified

Select target file

Dow

nload procedure :

47 /

Display selected file information

Display progress of firmware download

Select file

Perform operation

6.9. Additional features

6.9.1. ASD (Auto Shutdown) Function

1. If the power level is above the shut down level for longer than 1 second, turn off HPA.

2. During shutdown state, monitor RU input power. If the level is below 5dB from shut

down level, turn on HPA automatically.

3. Monitor HPA output power in normal operation, and monitor RU input power during

shut down.

6.9.2. ALC (Auto Level Control) Function

1. If the power level reaches the ALC level, prevent from transmitting higher than ALC level

by using ATT control.

2. When power level goes down under ALC level, ALC ATT will be decreased until it

becomes 0. It will decreased 1dB per about 500 mS or 1 sec.

48 / 56

Longer than 1 sec, HPA off

6.9.3. Center Channel Selection

RHU and RU can cover only 25MHz band width. For Cellular band, it will be OK, But for PCS, user

have to choose proper center channel of device. It seems to sliding window.

User can specify center channel as following table:

Step Descriptions

Activated dialog by click

Select center channel.

(for Cellular, center channel cannot

be changed)

Select channels in-serviced.

You can select them by :

 Individual channel  Band name e.g. A, B, F

Finish center channel selection and

FA channels by click

49 /

Igno

res all values you specified, and

refresh values from RHU.

Refresh all values every 1 sec.

It is useful, if you want to check

current service channel.

50 / 56

51 / 56

Appendix A Factory setting v

alue for each equipment

RHU RU

Item Value Item Value

RHU TEMP UPR 80 RU TEMP UPR 90

1900/850MHz Tx IN UPR -25 Tx ATT1 31.5

1900/850MHz Tx IN LWR -63 Tx ATT2 (Hidden ATT) N.A

Optic LD LWR 0 PLL N.A

Optic PD LWR -10 HPA-850, HPA1900 On/off Off

Tx ATT1, ATT2 31.5 HPA-850, HPA-1900 OUT UPR 42

Center N.A HPA-850, HPA-1900 OUT LWR 20

FA Info N.A HPA-850, HPA-1900 ALC Level 40

Tx FPGA ALC -5 HPA-850, HPA-1900 ALC On/Off ON

Rx IN UPR -20 HPA-850, HPA-1900 ASD Level 43

Rx OUT UPR 29 HPA-850, HPA-1900 ASD On/Off ON

Rx ALC 27 Rx Protection ON/OFF ON

Rx ASD 30 Rx IN UPR -40

Rx ATT1, ATT2, ATT3 31.5 1900/850MHZ Rx ATT 31.5

FPGA Bypass ON Off Optic LD LWR 0

Optic PD LWR -10

52 / 56

Appendix B Cellular CDMA Frequency Map

Sub-

Band

Channel # DL (MHz) UL (MHz) Remarks

1019 869.88 824.88

37 871.11 826.11

78 872.34 827.34

119 873.57 828.57

160 874.8 829.8

201 876.03 831.03

242 877.26 832.26

283 878.49 833.49

DL : 869.265~879.105MHz

UL : 824.265~834.105MHz

384 881.52 836.52

425 882.75 837.75

466 883.98 838.98

507 885.21 840.21

548 886.44 841.44

589 887.67 842.67

630 888.9 843.9

DL : 880.905~889.515MHz

UL : 835.905~844.515MHz

A2 691 890.73 845.73 DL : 890.115~891.345MHz

UL : 845.115~846.345MHz

B2 777 893.31 848.31 DL : 892.695~893.925MHz

UL : 847.695~848.925MHz

53 / 56

Appendix C PCS CDMA Frequency Map

Sub-

Band

Channel # DL (MHz) UL (MHz) Remarks

25 1931.25 1851.25

75 1933.75 1853.75

100 1935.00 1855.00

125 1936.25 1856.25

150 1937.50 1857.50

175 1938.75 1858.75

200 1940.00 1860.00

225 1941.25 1861.25

250 1942.50 1862.50

275 1943.75 1863.75

DL : 1930.625~1944.375MHz

UL : 1850.625~1864.375MHz

325 1946.25 1866.25

350 1947.50 1867.50

375 1948.75 1868.75

DL : 1945.625~1949.375MHz

UL : 1865.625~1869.375MHz

425 1951.25 1871.25

450 1952.50 1872.50

475 1953.75 1873.75

500 1955.00 1875.00

525 1956.25 1876.25

550 1957.50 1877.50

575 1958.75 1878.75

600 1960.00 1880.00

625 1961.25 1881.25

650 1962.50 1882.50

675 1963.75 1883.75

DL : 1950.625~1964.375MHz

UL : 1870.625~1884.375MHz

725 1966.25 1886.25

750 1967.50 1887.50

775 1968.75 1888.75

DL : 1965.625~1969.375MHz

UL : 1885.625~1889.375MHz

F 825 1971.25 1891.25 DL : 1970.625~1974.375MHz

54 / 56

850 1972.50 1892.50

875 1973.75 1893.75

UL : 1890.625~1894.375MHz

925 1976.25 1896.25

950 1977.50 1897.50

975 1978.75 1898.75

1000 1980.00 1900.00

C3 Band

1025 1981.25 1901.25

1050 1982.50 1902.50

1075 1983.75 1903.75

1100 1985.00 1905.00

C4 Band

1125 1986.25 1906.25

1150 1987.50 1907.50

C5 Band

Auto gain control function

55 / 56

FSK

Modem

DOU

Controller

RS-232

Remote Unit [RU]

SOU

DNC

UPC

FWD IN

FWD LO

1900MHz

RVS OUT

824~849MHz

1850~1910MHz

ADC DAC

1900MHz HPA

APD

Board

850MHz / 1900MHz

CFR + Filtering

f(n T

)

FPG

850MHz

FWD OUT

DNC

UPC

FWD IN

FWD LO

ADC DAC

CFR + Filtering

f(n

)

FPG

360MHz

850MHz HPA

APD

Board

850MHz

RVS OUT

WDM

Coupler

ATT

LNA

AGC PLL

836.5MHz

ATT

824~849MHz

INPUT Detect

OUTPUT

Detect

LNA

AGC PLL 1880MHz

ATT

1850~1910MHz

INPUT Detect

OUTPUT

Detect

340MHz

RFCHS [850MHz]

RFBS [1900MHz]

RFE- DUP

[850MHz]

RFE-DUP

[1900MHz]

DIVIDER

RRBS [1900MHz]

RRCHS [850MHz]

Service ANT

[850MHz]

Service ANT

[1900MHz]

RRCOM

LNA

ATT

BPF

INPUT

DETECT

DNC

UPC

ADCDAC

Filtering

f(n T

)

FPG

ATT

DOU

WDM Coupler

FSK

Modem

Controller

RS-232

360MHz 340MHz

UPC

ADC

DAC

f(n

Filtering

)

FPGA

DNC

ATT

850MHz DL

850MHz PA

850MHz UL

RF Head Unit [RHU]

Link ANT [850MHz]

Link ANT

[1900MHz]

RHFE- DUP

[850MHz]

RHFE- DUP

[1900MHz]

RHFCHS [850MHz]

LNA

ATT

BPF

INPUT

DETECT

UPC

ADC

DAC

f(n

Filtering

)

FPGA

DNC

ATT

RHFBS [1900MHz]

1900MHz DL

RHRCHS [850MHz]

DNC

UPC

ATT

ADCDAC

Filtering

f(n T

)

FPG

3-Way

RRCOM

1900MHz UL

RHRBS [1900MHz]

1900MHz PA

RX ALC2 / ASD

RX ALC1

TX ALC2 / ASD

TX ALC1

ATT

To activate Automatic Gain Setting function

On the Tx path, the default gain is set to put out 30 dBm, which is 10 dB lower than the maximum output power with consideration of traffic fluctuation of the base station. If different output level is desired, Tx ATT value of RU can be set manually to change output power level. When output power level is manually changed by adjusting Tx. ATT value, ALC(Auto Level Control)/ASD(Auto Shutdown) function should be turned ON with 40 dBm

56 / 56

levels respectively for ALC and ASD to protect the system from overpower. On the Rx path, the default gain is set to put out 20 dBm, which is 7 dB lower than the maximum output power with consideration of traffic fluctuation of the mobile station. If different output level is desired, Rx ATT value of RU can be set manually to change output power level. When output power level is manually changed by adjusting Rx. ATT value, ALC(Auto Level Control)/ASD(Auto Shutdown) function should be turned ON with 27 dBm levels respectively for ALC and ASD to protect the system from overpower.

Kisan Telecom STR250R01C Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
