Congratulations on your new KIRK Z-3040 handset

The handset KIRK Z-3040 will provide you with the greatest possible degree of flexibility and mobility due to high
battery capacity, practical weight, size and design.

Contents:

1. Construction ...........................................................................4

2. Battery installation ..................................................................5

3. Charging .................................................................................6

4. Key functions ..........................................................................7

5. Turning the handset ON/OFF .................................................9

6. Making a call.........................................................................10

6.1 Receiving calls................................................................12

6.2 During conversation .......................................................13

6.2.1 Volume regulation.................................................13

6.2.2 Microphone mute..................................................13

6.2.3 Transferring the call to another handset...............13

7. Set ups.................................................................................14

8. Menu structure .....................................................................15

8.1 Using the alphanumeric keyboard .................................16

8.2 The key functions...........................................................17

8.3 Profile set up ..................................................................18

8.4 Profile functions..............................................................20

8.5 Menu subscription and login..........................................21

3

8.5.1 Create subscription ..........................................22

8.5.2 Login.................................................................23

8.5.3 Auto login .........................................................24

8.5.4 Remove subscription........................................25

8.5.5 Change startup text..........................................25

8.6 Battery...........................................................................26

8.7 Redial............................................................................27

8.8 Book..............................................................................29

8.9 External services...........................................................31

8.10 MSF Functions............................................................32

8.11 Mail/Textmessages......................................................33

8.12 Menu language ...........................................................36

9. Shortcuts.............................................................................37

10. Information ..........................................................................38

10.1 Error tree.....................................................................38

10.2 Error information .........................................................39

10.3 Warranty......................................................................39

10.4 Technical information ..................................................40

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 2 (Black/Process Black plate)

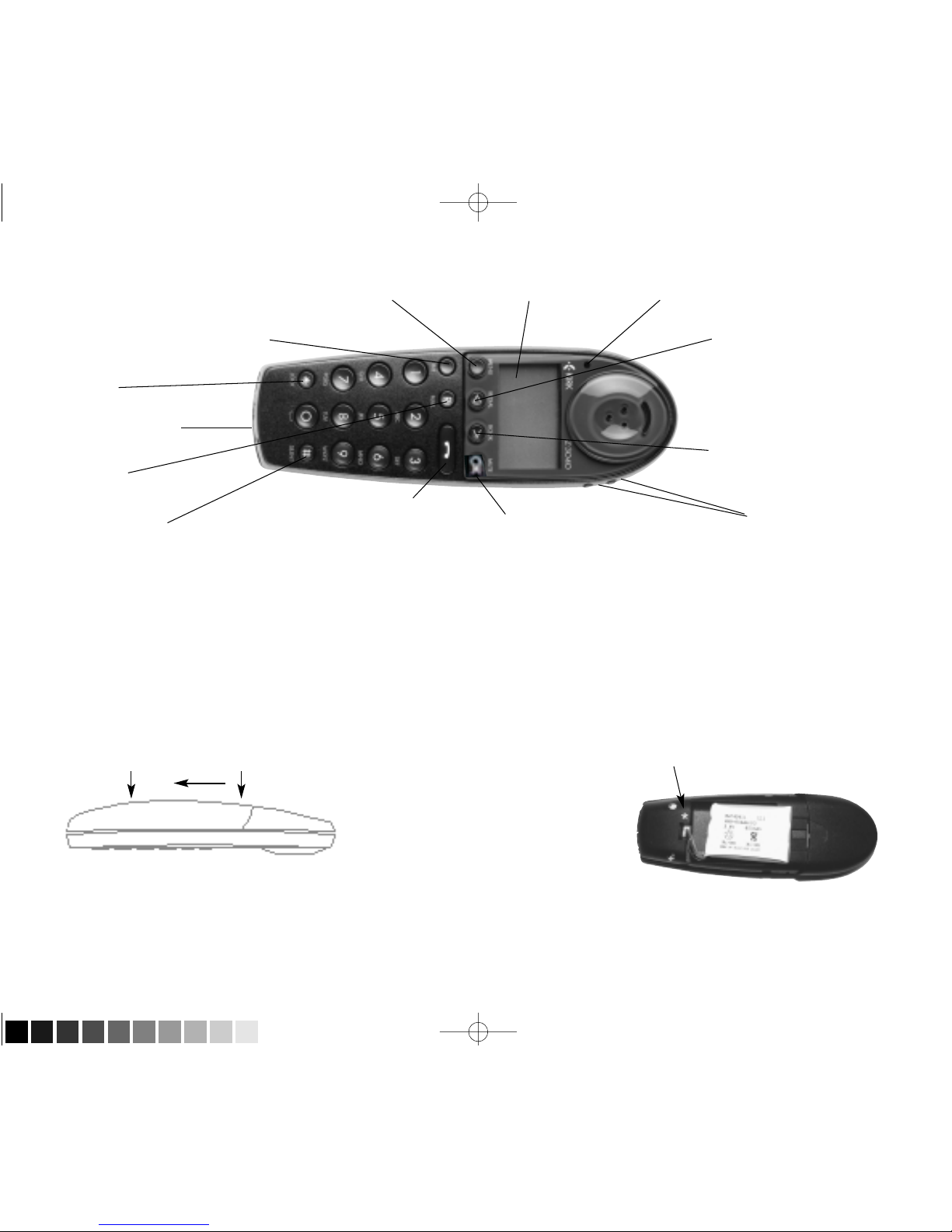

1. Construction

2. Battery installation

Before using the telephone it is important that you connect the battery to the connector in the battery box. Assem­ble the back cover as described below and place the handset into the charger.

1. Push the back cover 5 mm towards the headset plug using your thumbs.

2. Lift off back cover.

3. If the battery is not already installed, place battery plug
in the slot in the battery box.

4. Insert battery with the label readable and replace cover.

4

5

Key for internal calls
(not used on KIRK dect-z system 1500)

Keyboard LOCK
(Menu*)

MENU key Display with backlight

Recall key
(MAIL key)

SILENT (Menu#)

ON/OFF HOOK key­also used as turn ON key

CONFIRMATION "OK" key ­MUTE microphone.
MUTE ringer when ringing.
Long key press turns OFF.

Right arrow key, save number.
T elephone book menu from
standby text

Left arrow key, Redial menu
from standby text

Volume up/down

LED

Place the battery plug in the slot
with red wire closest to the mark

*

(see figure)

Headset Connector
(ACS Stratus Ultra)

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 3 (Black/Process Black plate)

3. Charging

It takes approximately 3 1/2 hours to charge the handset from fully discharged to its full capacity. Place the hand­set in the charger. The display shows the charging status in line 3. For correct charging the room temperature has
to be between 0°C and 25°C and the handset must therefore not be placed in direct sunshine. The battery has a
built-in heat sensor which will stop charging if the battery temperature is too high.

It is necessary to recharge the battery when the display shows “BATTERY LOW”, or if it can not be turned on. The
LED flashes at a low frequency while charging and lights constantly when the charging is finished. The display
goes back to normal mode when fully charged.

When the handset is placed in the charger it will not vibrate, and B-answer is inactive. If the battery is fully dis­charged, up to 10 min. may pass before charging begins (display lights up). When charging begins the charging
status is shown in the 3rd line of the display and the LED flashes slowly.

6

7

KIRK

❚❚❚❚❚❚❚❚❚ . . . .

4. Key Functions

The handset has 21 keys:
Two keys are placed at the right side for volume control. Press upper or lower key to change the volume. Each

key-press turns volume one step up/down.
“MENU” - Go to menu structure or exits the menu structure. (Escape or »NO«)
” < ”, “REDIAL” - Menu: left, Cursor left, after a digit: delete last digit. Long press: delete all.

From standby text: Redial menu.

” > ”, “BOOK” - Menu: right, Cursor right, After a digit: Store number in telephone book.

From standby text: T elephone book read.

“OK ”, “MUTE - Confirmation (»YES«) or jump to next level in the menu. In off hook: Mute.

Long key press turns the handset OFF.

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 4 (Black/Process Black plate)

8

9

“INT” -If residential systems: Internal calls off hook, and internal recall if already offhook.

(not used on KIRK dect-z systems 1500 and 500)
“R” - If offhook: Recall. If onhook: Read message.
“ ” - On hook/off hook and turn ON.
” *” - * (Change from pulse to DTMF on KIRK CCFP), Long = pause (-), extra long: change from pulse

to DTMF (a ”T” appears in the display, GAP standard).
“0-9” - Digits or letters in alphanumeric mode (names and messages)
“ # “ - #, Choose uppercase or lowercase letters in alphanumeric mode.

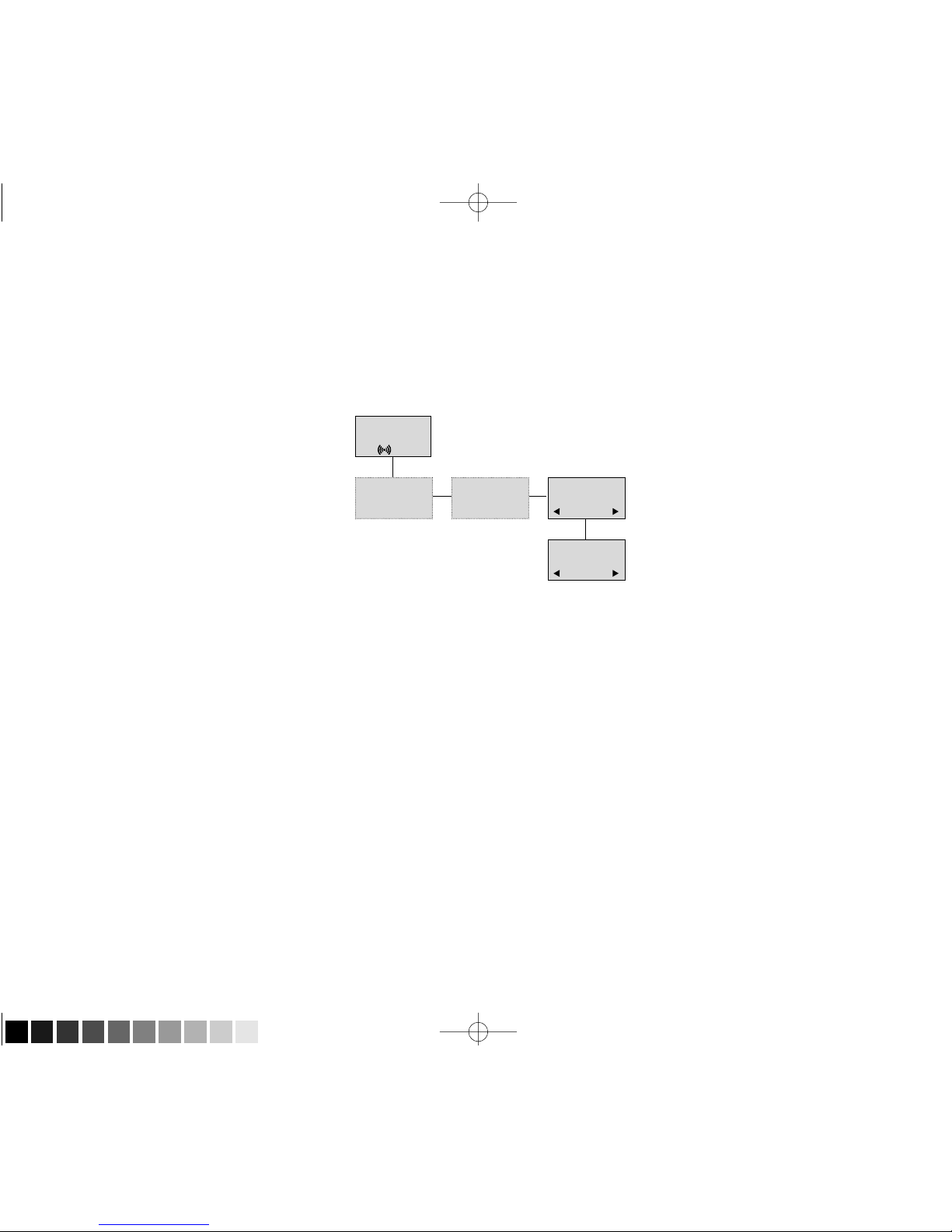

5. Turning the handset ON/OFF

ON: Press -key for 1/2 second.
When the handset is turned on the symbol is shown in the lower left corner of the display, if the handset is
subscribed to a system. (For subscription, see 8.5.1)

OFF: Press the “OK ” (MUTE) key for 3 seconds.
Please note: When the handset has been outside the coverage area, it can take up to 30 seconds before the hand-

set is back on the system after re-entering the coverage area.

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 5 (Black/Process Black plate)

10

11

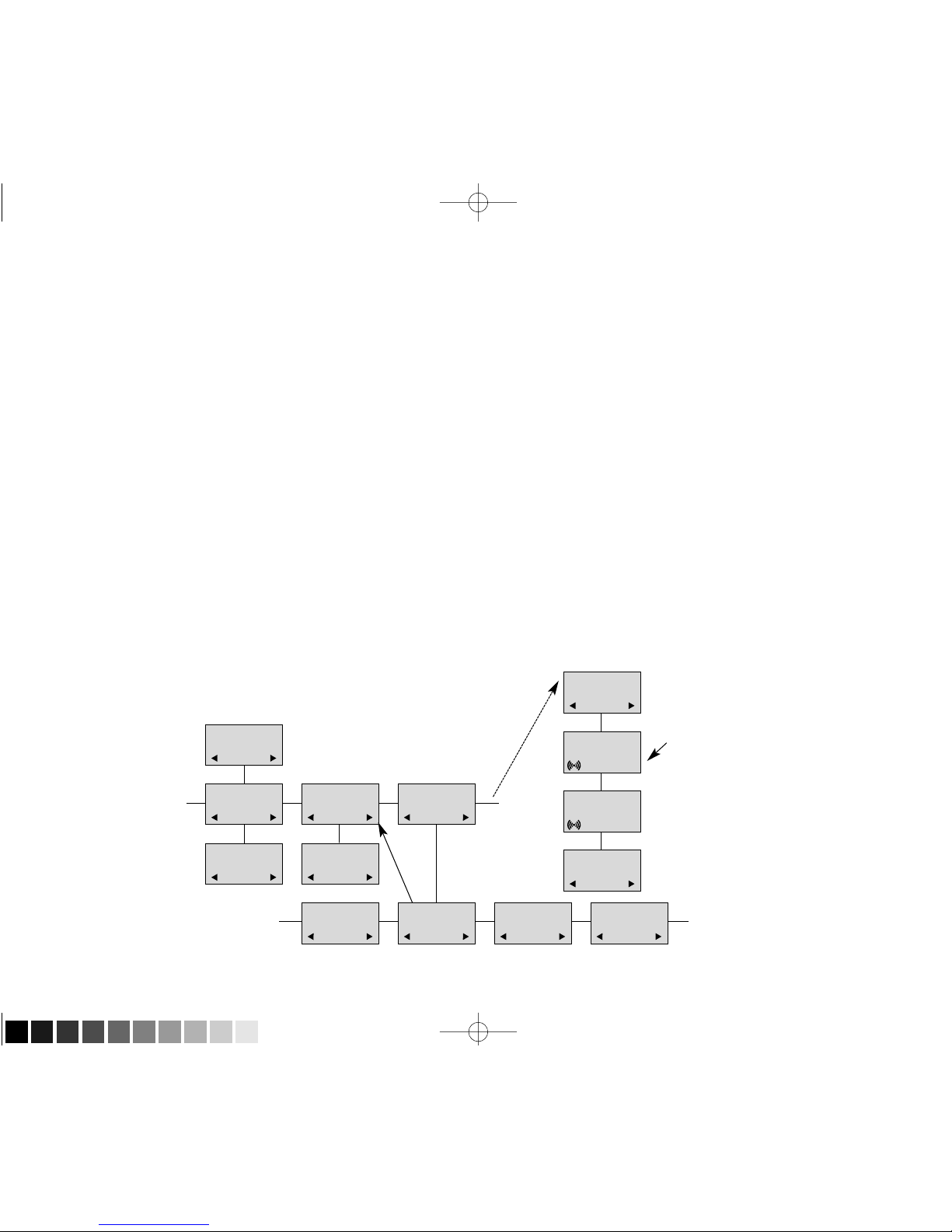

Redial:

Redial / CLIP (CLIP = Calling Line Identification Presentation) stack:
Press the < -key (redial-key) to enter the redial/CLIP stack
Search for the number by using the < -key or the > -key, redial numbers are marked with REDIAL or name and clip
numbers are marked either with CLIP or the name of the person who called and the LED is on.
Press the -key, the -icon will flash until the connection is established.

6. Making a call

For making or receiving calls the handset has to be subscribed to a system ( shown in display) (see chap. 8.5.1)
Press the -key, the -icon in the display will flash until connection is established
Dial the number

Pre-dial:

Press the number to dial (long press on »*« will make a pause, if necessary)
Press the -key, the -icon will flash until the connection is established

Telephone book:

Press the > -key (book-key) to enter the telephone book
Search for the number either by using the < -key or the > -key or by pressing the first letter in the name by using the
digits 1 – 9 (see chap. 8.2)
Press the -key, the -icon will flash until the connection is established

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 6 (Black/Process Black plate)

6.1. Receiving calls

If the phone rings, the call can be answered by pressing the -key.
When ringing the LED flashes fast, and the display shows the CLIP (if presented). If it is an external call (or if no
CLIP) the display shows “INCOMING CALL”

It is possible to stop the ring signal without answering the call. Press MUTE ( OK) and the ring signal is muted.
Display shows: »RINGER MUTED«

6.2 During conversation

6.2.1 Volume regulation:

Use the two keys placed at the right side of the handset for volume control.

6.2.2 Microphone mute:

Press the OK -key (mute-key), MIC. MUTEDis showed in the display.
Press the OK -key (mute-key) to enable the microphone again.

6.2.3 Transferring the call to another handset:

Press R, and dial new number.
Press the -key and the call is transferred to the other handset

12

13

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 7 (Black/Process Black plate)

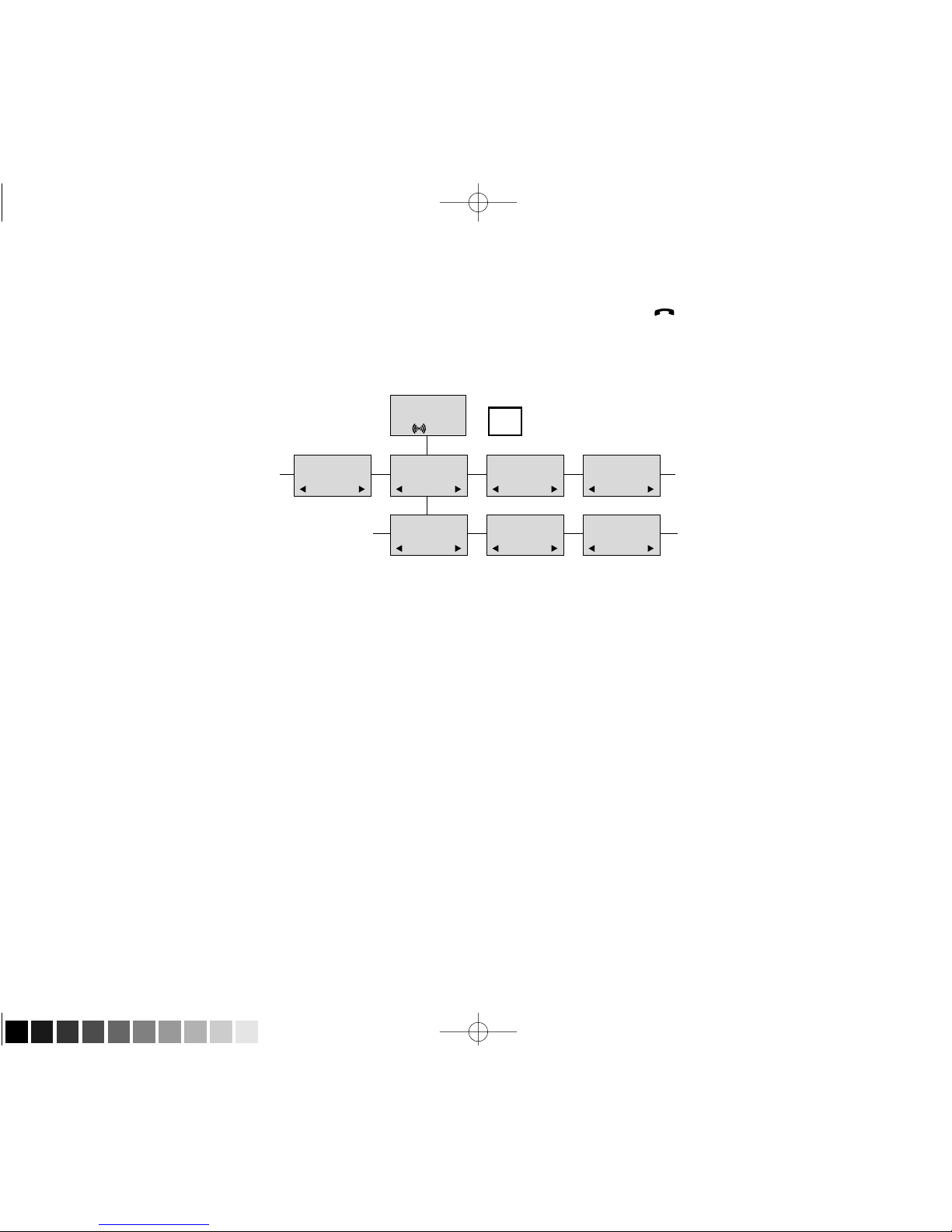

7. Set ups

The handset has two user-defined profiles (set ups), and a mode where all sounds are disabled (SILENT). Pres­sing “MENU” followed by “OK ” will show the chosen profile. Anew profile can be selected by using the arrow keys.
T o select the chosen profile press “OK ”. T o escape (without storing anything) press “MENU” again.

A quick way of choosing a profile, is to press “MENU” and then 1, 2 or # (1 is “Profile 1”, 2 is “Profile 2” and # is
“SILENT”). To change the set up in a profile, press “MENU” followed by “OK” twice. All settings have to be defined
under each of the two profiles. The display shows if the SILENT mode or PROFILE2 is chosen.

14

15

8. Menu structure

Pressing the MENU-key, enters or exits the menu structure. It has to be used if a “NO” or “CLEAR” is wanted in the
menu structure.
Pressing the OK -key, jumps to a lower level in the menu. When the lowest menu level is reached, it will store the
setting and jump to a higher level. It has to be used if a “YES” is wanted.

The phonebook and redial menu can be accessed directly. The phone book by pressing the > -key (book-key) and
the redial menu by pressing the < -key (redial-key).

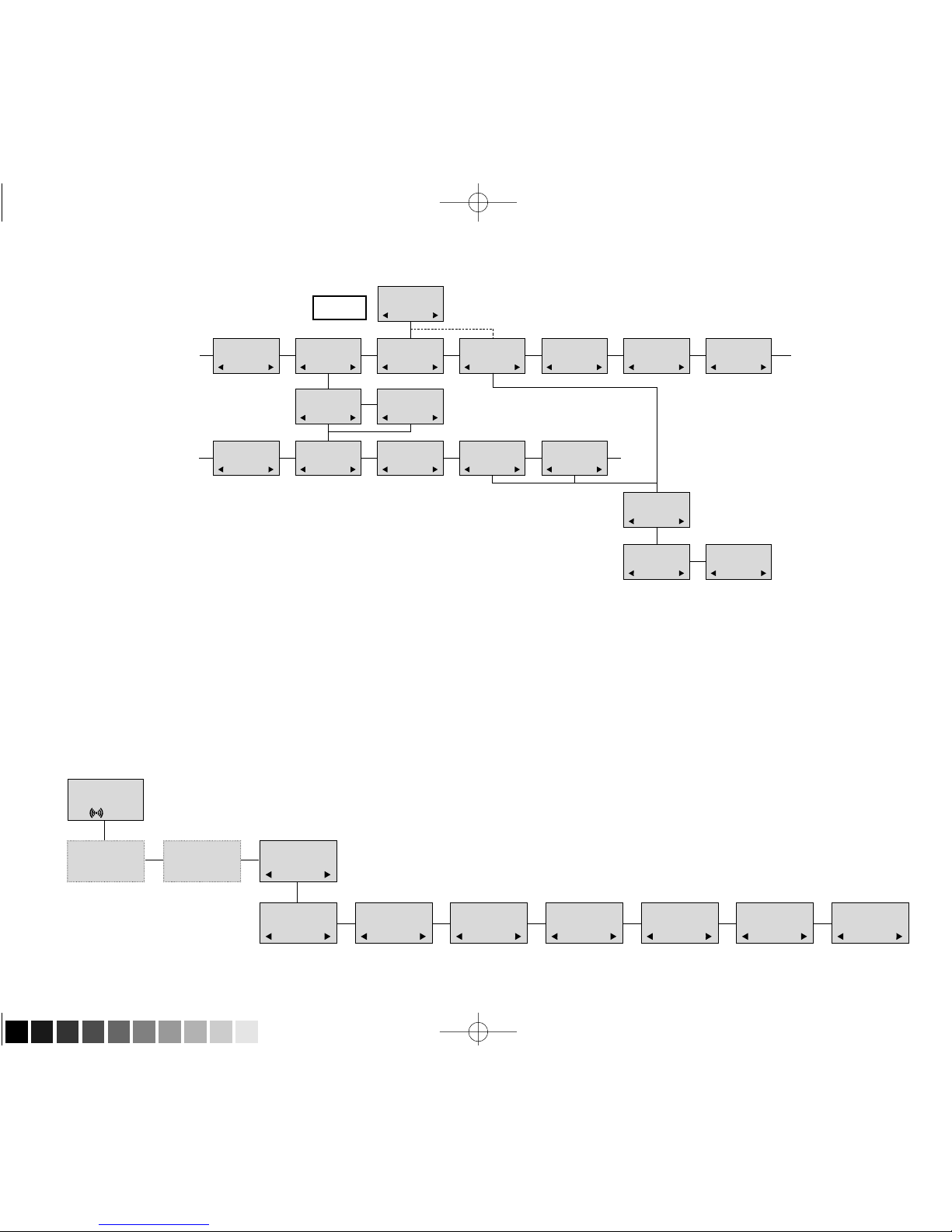

MENU
LOGIN

MENU

MSF FUNCTION

PROFILE

SET UP

MENU

EXT. SERVICE

MENU

BATTERY

MENU

PHONE BOOK

MENU

REDIAL

MENU

MAIL

MENU

LANGUAGE

KIRK

MENU

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 8 (Black/Process Black plate)

8.1 Using the alphanumeric keyboard

The normal dialling keys (0-9) are used for writing the name to be placed in the telephone book. By pressing the
keys a certain number of times the related letters or digits will appear in the display. Spaces are made by using the
0-key. Key # changes between uppercase and lowercase letters. The arrows will move the cursor. Left arrow is
also used for deleting (hold for 1 sec.) = delete. New letters can be inserted.

Change of key press and pauses lasting more than 1 second automatically moves the cursor to next position.

16

17

8.2 The key functions

Key
1 Æ Ø Å @ Ä Ö ß Ü 1
2 A B C @ Ä Á À Â 2
3 D E F 3
4 G H I Ï Î 4
5 J K L5
6 M N O Ö Ó Ò 6
7 P Q R S ß 7
8 T U V Ü Ú Ù Û 8
9W X YZ 9
0 Space . , _ - + : ? ! 0

*

* # / \ ( ) = &

# Upper/lower-case

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 9 (Black/Process Black plate)

8.3 Profile set-up

In the following you will find a description of how to set up one of the 2 profiles. To enter the Profile Setup menu
press “MENU”. Then press “OK ” and use > or < to find the profile you wish to change and confirm with “OK”. You are
now able to switch between the different settings. Press “OK” when you find the setting you wish to change (or see).
Change the setting according to your needs, confirm with “OK” and you automatically go to the next setting. Press
“Menu” to finalize profile setup.

18

19

Profile set-up (fig)

KIRK

SET PROFILE1

BACKLIGHT

SET PROFILE1

RINGERTONE

SET PROFILE1

RINGER VOL

SET PROFILE1

KEY CLICK

SET PROFILE1

VIBRATOR

SET PROFILE1

B-ANSWER

SET PROFILE1

START VOL

SET PROFILE1

OUT OF RANGE

BACKLIGHT

ON/OFF

RINGERTONE

1,2.........

RINGER VOL

❚❚❚❚❚

KEY CLICK

❚❚❚❚❚ - - -

VIBRATOR

ON/OFF

B-ANSWER

ON/OFF

START VOL

❚❚❚❚❚

OUT OF RANGE

TONE ON/OFF

SET PROFILE

PROFILE 1

SET PROFILE

PROFILE 2

SET PROFILE1

AUTO KEYLOCK

AUTO KEYLOCK

ON/OFF

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 10 (Black/Process Black plate)

20

21

8.4 Profile functions
BACKLIGHT:Can be turned on/off using the > and <. Confirm with (OK ).

RINGERTONE:Scroll through the 9 different ringertones using > and <. Confirm with (OK ).
RINGER VOL:Turn the volume up and down using > or <. Confirm with (OK ).
KEY CLICK:Turn the volume up and down using the > and <. Confirm with (OK ).
VIBRATOR:Can be turned on/off using the > and <. Confirm with (OK ).
B-ANSWER:Can be turned on/off using the > and <. Confirm with (OK ). When turned on, the telephone automatically

goes off hook when ringing. Automatically goes on hook when calls are terminated.
REMARK: Automatic on-hook is only reliable under defined conditions related to the interface settings between the
Control Unit and the PABX.

START VOL:Start volume can be adjusted using the > and <. Confirm with (OK ).
OUT OF RANGE:The out of range indication can be turned on/off using the > and <. Confirm with (OK ). With the out of

range indicator turned on, a beep will appear when the telephone is moving out of range of the base station, and
“OUT OF RANGE” will appear in the display.
AUTO KEYLOCK:The auto keylock function can be turned on/off using the > and <. Confirm with (OK ). With auto keylock
turned on the handset will automatically lock the keys after 60 seconds. Press MENU *to activate the keys again.

8.5 Menu subscription and login

Password is factory set  0000

LOGIN

SYSTEM1*

CREATE

SEARCH ID:

123456789012

REMOVE

SYSTEM 4

123456789015

REMOVE

SYSTEM 1*

123456789012

REMOVE

SYSTEM 2

123456789013

REMOVE

SYSTEM 3

123456789014

MENU
LOGIN

MENU

SELECT LOGIN

SUBSCRIPTION

CREATE

SUBSCRIPTION

REMOVE

REMOVE?

PASSWORD

_ _ _ _ _

SUBSCRIPTION

REMOVE

REMOVE

SYSTEM 1

SUBSCRIPTION

REMOVE

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 11 (Black/Process Black plate)

23

8.5.1 Create subscription

T o make subscriptions, the system must allow subscriptions to be made. Some systems also require an Access
Code (AC). If more than one system currently permits subscription, you will need to know the ID of the system to
which you wish to subscribe. Access Codes and system ID’s will be provided by the system administrator.
Choose the SUBSCRIPTION CREATE meny to subscribe to a new system. (see 8.5/8.5.4)
Use the < and > keys to scroll between the ID’s of the different systems available.
During subscription the handset will search for free positions and perform subscription on the first free position.
An alternative position can be choosen using < or >. Give in the AC (if required) using the keyboard, and press (OK ).
If the subscription was successful, the startup text will be replaced by the standby text given into the system by the
system administrator and is shown in the display. If not, the subscription has failed and the procedure must be
retried.
If the handset is already subscribed to 10 systems, you will have to remove a subscription before creating a new
subscreption (see 8.5.3)

22

8.5.2 Login

The handset can be subscribed to 10 different systems enabling you to use the same handset on 10 different
systems.
If you would like to change to another system, use the login menu to connect to another system number.
The actual chosen system is shown with the red LED on.
T o change to another system use < or > and press OK to confirm.
T o be able to log on to a system, subscription to the system has to be established. (See 8.5.1).
Under LOGIN/SELECT LOGIN only subscriptions will be shown. Free positions will not be shown.

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 12 (Black/Process Black plate)

8.5.3 Auto login

The handset can be subscribed to 10 different systems. If Auto login is chosen from the menu, the handset auto­matically selects a system. The selected system is marked with an “A”.

Please note: Auto login should only be used in separate systems without overlaps.

8.5.4 Remove subscription

Subscriptions can be removed from the system in use and from the 9 other systems (if connected). Removing a
subscription requires a password. Password is factory set at 0000. If the system in use is removed, it is necessary
either to select one of the remaining systems or to subscribe to a new one. If one of the systems not chosen is
removed, the handset remains connected to the system in use.

8.5.5 Change startup text

The startup text is predefined as i.e. ”KIRK telecom” as factory default. This can be changed by using the following
procedure: Press

****

, BOOK, (OK) and give in the new startup text by the keyboard followed by (OK). It is pos-

sible to give in 24 characters.

24

25

MENU

SELECT LOGIN

SUBSCRIPTION

CREATE

SUBSCRIPTION

REMOVE

SELECT LOGIN

SYSTEM 1

123456789015

SELECT LOGIN

SYSTEM 2A

123456789012

SELECT LOGIN

SYSTEM 3

123456789013

SELECT LOGIN

SYSTEM 4

123456789014

SELECT LOGIN

AUTO

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 13 (Black/Process Black plate)

26

27

8.6 Battery capacity

In the battery menu it is possible to see the remaining battery capacity. For reading the correct capacity, the hand­set has to be removed from the charger for at least one hour. Press “Menu” and use the > or < keys to reach the
Battery Menu. Press “OK” to enter the menu, and you can see the current status of the battery capacity. Press “OK”
to return to the menu system or press “Menu” to quit.
The indication on the display is not necessarily an exact reflection on the remaining speech time, but only an indi­cation of the voltage on the battery.

KIRK

MENU

BATTERY

BATTERY

CAPACITY

❚❚❚❚❚

8.7 Redial

The handset has maximum 10 redial numbers and 10 Caller ID’s placed in the same stack. Each number is only
represented once. Enter the redial menu by pressing ”< ”(Redial) from the standby text. Repeated presses at the
“<” button turn backward through the dialled numbers and CLIP numbers (from newest to the oldest). Right arrow
moves in the opposite direction. It is also possible to reach the redial menu in the main menu. Numbers are named
“REDIAL”, ”CLIP” or with the name.
The LED will flash slowly if a new number (unanswered call) has arrived in the CLIP stack. If no number (no clip) is
represented by a call only the LED will flash slow afterwards.
If you want to delete a ”CLIP” or a ”REDIAL” you scroll to the name/number and press »OK« twice.
The name/number is now deleted. If number is stored, it is moved to the telephone book.
It is possible to edit the CLIP or redial numbers. Find the number you wish to edit and press the digits you want to
add to the number, e.g. prefex = O.

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 14 (Black/Process Black plate)

28

29

The Redial and CLIP stack Menu (fig)

KIRK

REDIAL

75602850

CLIP

898

DELETE?

899

STORE NO.?

899

DELETE ALL?

NAME:

BILL GATES

899

<

8.8 Book

Storing a number (max. 24 digits) in the telephone book is done by pressing the number to be stored (in on hook),
then press the “>”- key followed by the “OK” key. The book can store up to 65 numbers with name. Typing of the
name and a confirmation is required. After storing the telephone will go back to standby mode. If the display shows
“MEMORY FULL”, it is necessary to delete one or
more numbers from the telephone book.
(See menu structure page 30)

NAME:

KIRK TELECOM

STORE NO.?

75602850

75602850

KIRK TELECOM

>

75602850

BOOK

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 15 (Black/Process Black plate)

30

31

Read BOOK numbers: The telephone book is entered by pressing ”>”(book). For quick-search: press the first letter
of the name (using 1-9)(see chap. 8.2). Call the displayed person by pressing the key. It is also possible to
reach the telephone book menu in the main menu. Viewing and editing the telephone book can also be done while
in conversation.

KIRK TELECOM

bILL JENSEN

899

CARL NIELSEN

7561XXXX

PHILIP

HANSEN

8614XXXX

CLAUS

PEDERSEN

134

DELETE?

7561XXXX

EDIT NO.?

7561XXXX

EDIT NAME?

CARL NIELSEN

>

BOOK

8.9 External services

External services are facilities placed in the main system, and only available if the handset is subscribed to a KIRK
system. Under External services can be found. Clip stack, Delete clip stack and local Phone book. The Local Pho­ne book is a comman Phone book for all handsets subscribed to the actual system, and all handsets subscribed to
the system are listed in the Phone book. Aditional numbers can be added to the Phone book by the system admini­strator.

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 16 (Black/Process Black plate)

32

33

8.10 MSF Functions

MSF Functions are special functions, which are based on MSF (Message Service Function). The functions require
special software in the main system.

8.11 Mail/Text Messages

Available in systems configured with the possibility of sending text messages

At the reception of a text message the envelope icon appears in the display. The envelope icon is indicating
one or more unread messages.
The text message is shown in the display, and when the message is read the envelope icon will disappear.
If the message contains a callback number, this will be displayed on the bottom line of the display. As long as the
callback number is in the display, it is possible to activate the number by pressing the -key.

1st letter in the display, in front of the timestamp, shows the message status: read (R), unread (N) or locked (L).
Mails include a maximum of 72 letters or digits (2 display screens of 36 each). Call back no. is max 24 digits (or
letters for E-mail).

14 messages can be ”stored” in the handset. When receiving a new message, the oldest unlocked will be deleted.
Locked messages will not automatically be overwritten, but can manually be deleted. Maximum 7 messages can
be locked.

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 17 (Black/Process Black plate)

34

35

Read a mail

Press the ”R”- (MAIL) key followed by the OK-key or enter the mail menu (in on hook condition).
If the message includes more than 36 letters or digits, the message will run over 2 display screens.
Use the > -key to scroll. To see the senderof the mail, press the OK-key. T o leave the mail, press the MENU-key.

Reply a mail

Open the mail by pressing the R-key followed by the OK-key, press the OK-key again and use the < >-keys to find the
reply feature, press the OK-key and you are then able to reply the mail. After writing your reply press the OK-key to
confirm.

Forward a mail

Open the mail by pressing the R-key followed by the OK-key, press the OK-key again and use the < >-keys to find the
forward feature, press the OK-key twice and you are then able to write the number on the receiver. Confirm with the
OK-key.

Delete all mail

Open the mail stack by pressing the R-key followed by the OK-key, press the OK-key again and use the < >-keys to
find the delete feature, press the OK-key and all mails are deleted.

Delete a mail

Open the mail by pressing the R-key followed by the OK-key, press the OK-key again and use the < >-keys to find the
delete feature, press the OK-key and the mail is deleted.

Lock/unlock a mail

Open the mail by pressing the R-key followed by the OK-key, press the OK-key again and use the < >-keys to find the
lock/unlock feature, press the OK-key and the mail is locked/unlocked.

Write a mail

T o write a new mail press the R (mail)-key, confirm with the OK-key and write your message. To send the mail press
the OK-key, type the number of the receiver and confirm with the OK-key.

If one or more mails are stored do as followed: Press the R (mail)-key followed by the >-key confirm with the OK-key
and write your message. Press the OK-key, type the number of the receiver and confirm with the OK-key. The messa­ge is send.

Note

In case a sent message is not received, the sender will get a message in the display.

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 18 (Black/Process Black plate)

36

37

N25-01 04.38
308
Temp 45° ..

L26-01 14.32
319
Hello, its me..

N28-01 15.46
236
FIRE ALARM..

WRITE NEW

MAIL?

√19-01 09.56
htj@kirktelec
I am working..

√20-01 10.13
319
Call me..

N
206
Meet me at 9 ..

Hello it’s me.
Yo can meet me
at 15

o’clock if you
want to.

DELETE

MAIL?

SENDER:

319

(UN)LOCK

MAIL?

REPLY
MAIL?

FORWARD

MAIL?

- - - -

PHONENO:

236

E-MAIL:

[e-mail]

KIRK telecom

MAIL

Menu structure

8.12 Menu language

There are 6 predefined languages in the handset: English, German, French, Italian, Spanish and Dutch. Select the
required language by accessing the menu, locate the language menu and select the required language by pressing
the OK-key. A7.th language might be present. If a 7.th language is present this will be shown as ”OPEN”. The
”OPEN” selection is a specific dealer language and is factory programmed.

KIRK

MENU

LANGUAGE

SELECT

LANGUAGE

ENGLISH

SELECT

LANGUAGE

GERMAN

SELECT

LANGUAGE

FRENCH

SELECT

LANGUAGE

ITALIAN

SELECT

LANGUAGE

SPANISH

SELECT

LANGUAGE

DUTCH

SELECT

LANGUAGE

OPEN

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 19 (Black/Process Black plate)

38

39

10. Information

10.1 Error tree

Problem Check
The telephone freezes. Remove and replace the battery pack. Press to turn on the telephone.
The telephone does not ring. Check whether the ringer is SILENT or RINGER VOL. is OFF.
The telephone cannot find a system ID at Check whether the system is set to allow subscriptions.

“SUBSCRIPTION CREATE”.
The telephone cannot subscribe even if Check if Access Code is necessary.

system ID has been found.
Not possible to turn on the telephone Check if battery is connected. If yes, charge the battery.
The telephone turn off when recieving a call Charge the battery. If still a problem change the battery as it might

and going off-hook be defective.

9. Shortcuts

”PROFILE 1”: Press: MENU 1.
”PROFILE 2”: Press: MENU 2. (Display shows PROFILE 2)
”SILENT”: Press: MENU #. (No sounds) (Display shows SILENT)
”KEY LOCKED”: Press: MENU

*

. (Display shows KEY LOCKED)
“PHONE BOOK”: Press >(BOOK) key in standby.
Name search in telephone book: Press the first letter in name and > (book) afterwards.
Store a number: Press >(BOOK) after the number (in on hook).
“REDIAL ”and “CLIP”: Press <(REDIAL) key in standby.
“MAIL”: Press R(MAIL) key in on hook.
MUTE temporarily the ringer: Press “OK”(MUTE) when the telephone is ringing.
MUTE the microphone: Press “OK”(MUTE) when the telephone is off hook.
RECALL: Press the INT key if residential system, else press the “R”-key.
Pause(-): Hold * for one second.
Change from pulse to DTMF(T): Hold *for 2 seconds.

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 20 (Black/Process Black plate)

10.4. Technical information
Approvals

Acoustics: TBR 10
Electrical: TBR 6 (DECT RF)
Access profile: TBR 22 (GAP)
EMC: ETS 300 329 (CE labelling)

Size and weight

Size: 143 x 48 x 26 mm
Weight: 121 g including battery ± 10 g

Capacity

Active talking time 12 hours
Stand-by time 120 hours

40

41

10.2 Error information

Improper function of the handset might be related to the installation of the DECT system or failures related to the
main system. Before declaring a handset for repair be sure that the main system is operating properly.

10.3 Warranty

The handset is covered by a normal warranty-solution, except the battery. The lifetime of the battery depends on
the general use of the handset.
The handset is not covered by a general warranty if:

• The handset is exposed to water or metal dust

• The handset is mistreated

• The handset is exposed to unauthorised break-in

Kirk Z-3040 håndsæt 14021600 26/03/03 9:35 Page 21 (Black/Process Black plate)
