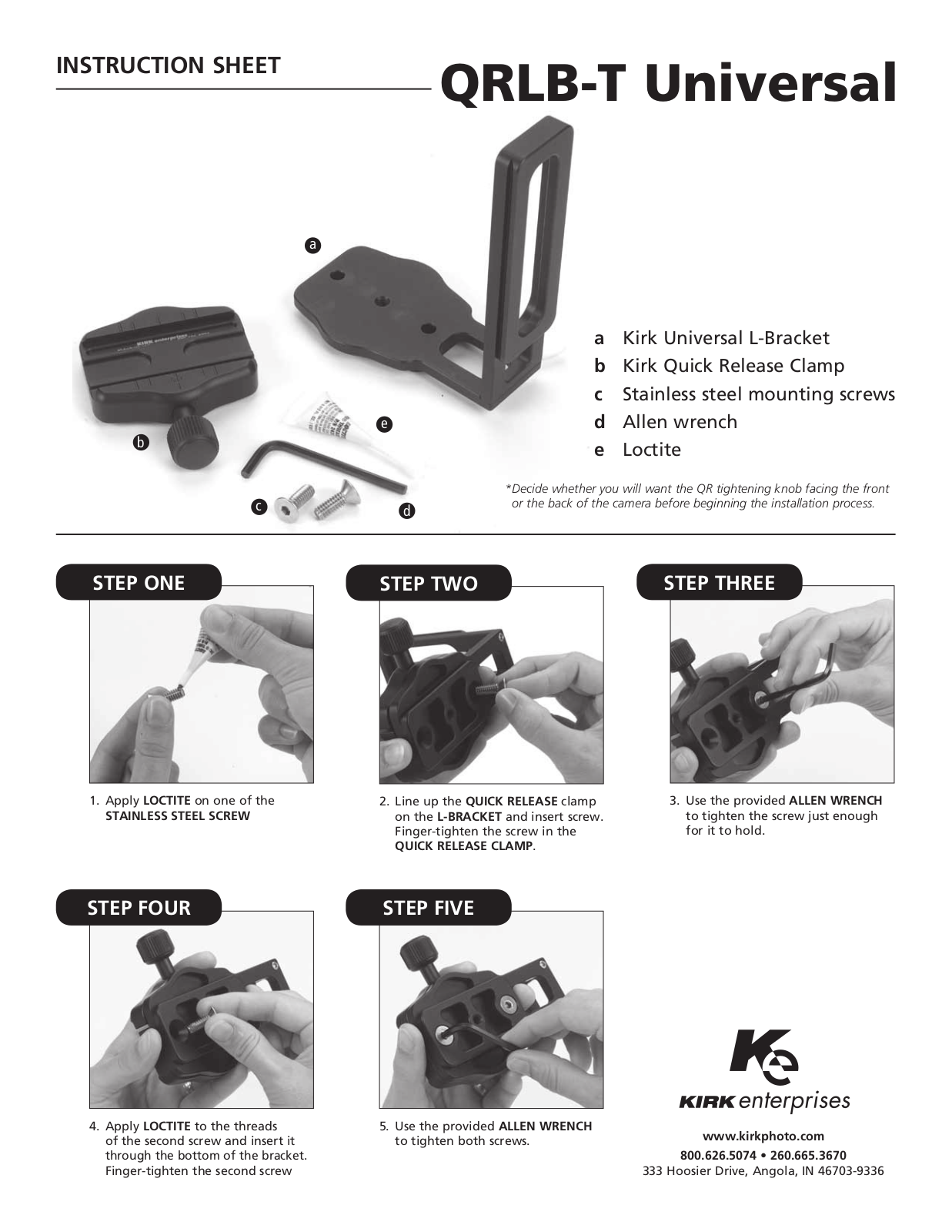

INSTRUCTION SHEET
QRLB-T Universal
a
a Kirk Universal L-Bracket
b Kirk Quick Release Clamp
c Stainless steel mounting screws
b
c
STEP ONE
1. Apply LOCTITE on one of the
STAINLESS STEEL SCREW
e
* Decide whether you will want the QR tightening knob facing the front
d
or the back of the camera before beginning the installation process.
STEP TWO
2. Line up the QUICK RELEASE clamp
on the L-BRACKET and insert screw.
Finger-tighten the screw in the
QUICK RELEASE CLAMP.
d Allen wrench
e Loctite
STEP THREE
3. Use the provided ALLEN WRENCH
to tighten the screw just enough
for it to hold.
STEP FOUR
4. Apply LOCTITE to the threads
of the second screw and insert
through the bottom of the bracket.
Finger-tighten the second screw
STEP FIVE
5. Use the provided ALLEN WRENCH
it
to tighten both screws.
333 Hoosier Drive, Angola, IN 46703-9336
www.kirkphoto.com
800.626.5074 • 260.665.3670
