TP620 Digital Portable Radio Quick Instruction Manual
II
TP620 Digital Portable Radio Quick Instruction Manual
Quick Instruction Manual
TP620
Digital Portable Radio
We are very grateful for your purchasing KIRISUN brand two-way radios produced
by Kirisun Communications Co., Ltd.
We believe KIRISUN two-way radio, which always incorporates the latest
technology, can bring great convenience to your life and work.
We also believe that the quality and function of KIRISUN two-way radio can meet
your demands for reliable communication.
II
TP620 Digital Portable Radio Quick Instruction Manual
Contents
1 UNPACKING AND CHECKING ......................................................................................... 1
2 PRODUCT OVERVIEW .................................................................................................. 5
3 BASIC OPERATION .................................................................................................... 12
4 RECEIVING AND RESPONDING TO THE CALL .....................................
5 MAKING A RADIO CALL ..................................................................
6 TEXT MESSAGE FEATURES ............................................................
7 TROUBLESHOOTING .................................................................................................. 17
II
................................
................................
................................
15
15
16
TP620 Digital Portable Radio Quick Instruction Manual
Declaration of Conformity
CE0700!
We, Kirisun Communications Co.,Ltd. 3-6Flrs, ROBETA Building, No.1, QiMin Road, Song Ping
Shan Area, Science&Industry Park, Nanshan District Shenzhen 518057 P.R. China
Declare on our sole responsibility that this equipment complies with the Annex IV of Council
Directive 1999/5/EC on radio equipment and telecommunications equipment and the mutual
recognition of their conformity, and that any applicable Essential Test Suits measurement has been
performed.
Description of equipment: UHF DMR Portable
Model No.: Kirisun/TP620
This compliances is based on conformity with the following harmonized standards or documents:
（1）.ETSI EN 300 086-2 V1.3.2
ETSI EN 300 113-2 V1.5.1
(2). ETSI EN 301 489-1 V1.9.2(2011-09)
ETSI EN 301 489-5 V1.3.1(2002-08)
(3) EN 60950-1:2006+A11:2009+A1:2010+A12:2011
1
TP620 Digital Portable Radio Quick Instruction Manual
(4) EN 50385:2002
FCC
We, Kirisun Communications Co.,Ltd. 3-6Flrs, ROBETA Building, No.1, QiMin Road, Song Ping
Shan Area, Science&Industry Park, Nanshan District Shenzhen 518057 P.R. China
Declare on our sole responsibility that this equipment complies with the FCC Part15 rules
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct. The interference by one or more of the following measures:
● Reorient or relocate the receiving antenna. Increase the separation between the equipment
and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
2
TP620 Digital Portable Radio Quick Instruction Manual
connected.
● Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the
following two conditions: 1.This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Note:” Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.”
1. Safety
Before using this radio, read this operating instruction carefully for safe and convenient usage.
This product can only be maintained by the professional technicians. Do not disassemble the radio
by yourself.
To avoid of the problems caused by electromagnetic interference or electromagnetic compatibility,
turn off the radio in any facilities where posted notices instruct you to do so, such as hospital and
other health care facilities. And when on board an aircraft, turn off the radio if instructed to do so too.
3
TP620 Digital Portable Radio Quick Instruction Manual
In the vehicle with an air bag, do not place the radio in the area over an air bag or in the air bag
deployment area.
Turn off the radio before entering any area with a potentially explosive atmosphere or blasting caps.
Do not operate the radio, disassemble or charge the battery in the potentially flammable and
explosive atmosphere (such as gas station, coal gas station, etc.).
Do not place the radio under the direct sunlight or near the area with heating devices.
Do not place the radio in the area with great dust, moisture or drips, or on the unstable surface.
Contact us or your local dealer for help if you want to redevelop or modify the radio.
Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into
contact with your skin, a minor burn can result.
Make sure the antenna is correctly installed when using. The radio without antenna may cause
damage in the process of transmission.
2. First Use
2.1 Unpacking and Checking
Standard Accessories
Please unpack carefully and check all the items listed in the following table before discarding the
4
TP620 Digital Portable Radio Quick Instruction Manual
Belt Clip an
packing material. If any damage or loss occurs during shipment, please contact your dealer.
Item Quantity
Antenna 1
Belt Clip
Charger 1
Battery
Hand Strap 1
Power Adapter
Instruction Manual 1
1
Antenna
1
1
Power Adapter
Hand strap
Battery
Charger
d
Screws
2.2 Product Overview

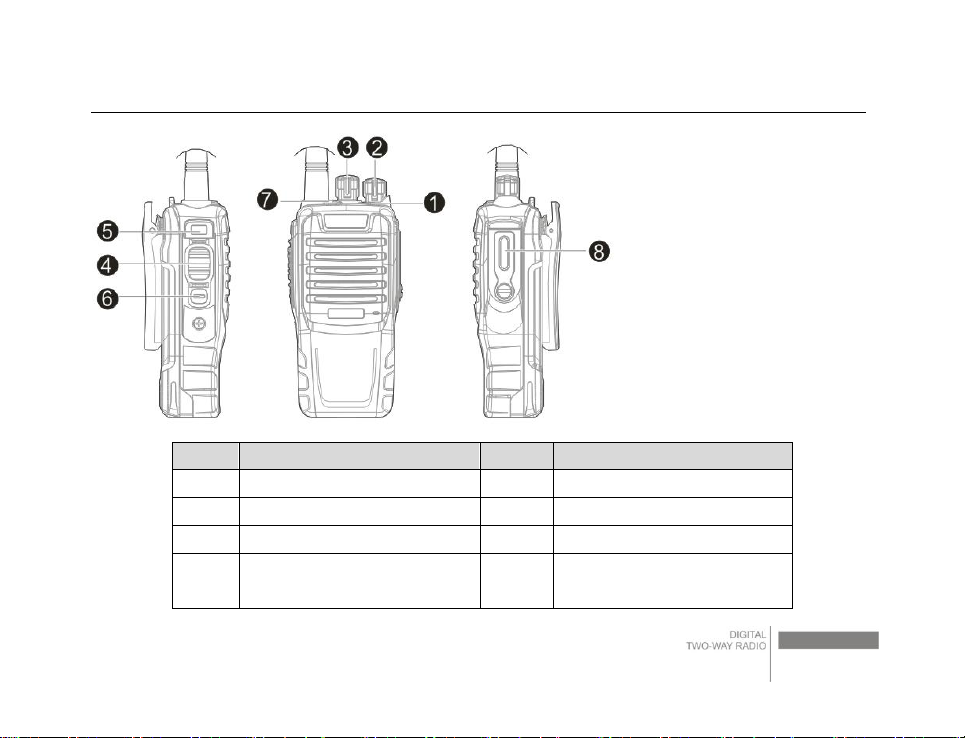

Identification of buttons
5
TP620 Digital Portable Radio Quick Instruction Manual
No Part Name No Part Name
1 LED Indicator 5 Side Button1
2 Power/Volume Switch 6 Side Button2
3 Channel Knob 7 Top Button
4 PTT Button 8 External speaker /
microphone interface
6
TP620 Digital Portable Radio Quick Instruction Manual
Programmable Buttons
Authorized Dealer can program the programmable buttons as shortcuts to various radio features.
Each button can has two features and can be activated through Long Press or Short Press.
Note：
Short Press – Pressing and releasing quickly
Long press – Pressing and holding for the programmed duration
LED Status Indicator
The LED indicator shows the operational status of your radio.
Solid red – Radio is transmitting
Solid green- Radio is powering up or receiving a non-privacy-enabled call or data, or detecting
activity over the air.
2.3 Preparing your product for use
Charging the Battery
7
TP620 Digital Portable Radio Quick Instruction Manual
Please refer to the following steps to charge your batter.
1) Plug the adaptor in the rear power jack of the intelligent charger, and plug the adaptor into the
suitable AC socket. The three LED lights will flash for about one second and turn green when
everything is properly set.
2) Put the battery or the radio with battery into the charger, and please turn off the radio before
charging.
3) Make sure the battery is properly attached to the charger. The charging begins when the red
light is on.
4) The red light is off after five-hour charging, and then the green light is on, indicating the charging
is completed.
8
TP620 Digital Portable Radio Quick Instruction Manual
se only the charger and battery
by
Note:
.
The yellow light flashing indicates abnormality in charging temperature or in the circuit, and
the charger will then enter the state of protection. During this state, do not impose charging
anymore and take out the battery before unplugging the charger.
Please u
9
provided
Kirisun.
TP620 Digital Portable Radio Quick Instruction Manual
Charging LED Indicator
LED Charging Status
Yellow light flashes. Abnormality in charging temperature or in
the circuit.
The red led lights. The battery is in charging.
The green led lights. The battery is full charged or Standby(no
load)

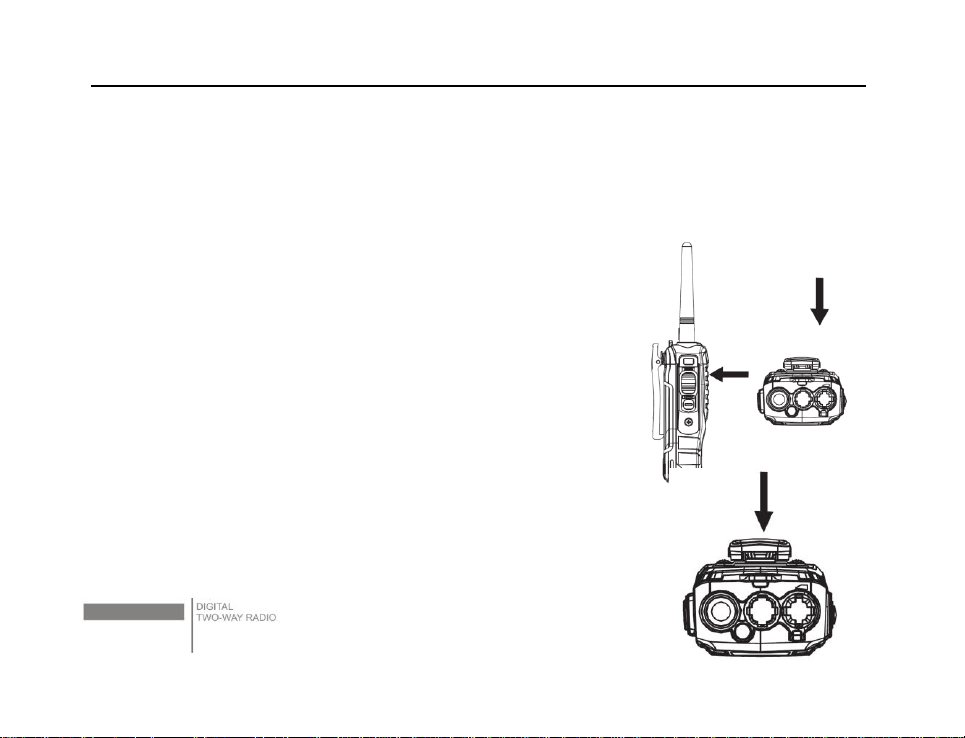

Installing/Uninstalling the Battery
Installing the Battery
Press the top of the belt clip, and align the battery with the slots on the back of the radio. Press the
battery firmly, and slide upward until the latch snaps into place.
10
TP620 Digital Portable Radio Quick Instruction Manual
Uninstalling the Battery
For detaching the battery, push downward the battery latch at the radio bottom and then push the
battery in the direction of the arrow shown in the picture until the battery is completely detached from
the radio.
11
TP620 Digital Portable Radio Quick Instruction Manual
Note：
Please do not throw the short-circuit battery terminal or battery into fire. Please do not
short-circuit the battery terminal or throw the battery into fire.
3. Basic Operation
Powering on/off
Turn the power/volume knob clockwise for powering on. If the dealer
12
TP620 Digital Portable Radio Quick Instruction Manual
set an alert tone, the radio will make a beep. Turn the power/volume knob counterclockwise for
powering off.
Adjusting the Volume
To increase the volume, turn the Volume Knob clockwise. To
decrease the volume, turn this knob counterclockwise.
Selecting a Channel
Turn the channel knob to select the channel you need. A sound from the
speaker indicates that the valid signal is received.
13
TP620 Digital Portable Radio Quick Instruction Manual
Push-To-TALK (PTT) Button
The PTT button in the radio’s side (Push To Talk, press to talk), this button have functions below:
To initiate a new call;
In the talking process, you can call other user of this channel.
Operation Steps；
Hold the radio vertically 1 to 2 inches (2.5-5.0 cm) from your mouth. Then press and hold the PTT
button and speak clearly into the microphone. Release PTT button to receive.
Selecting a Zone
A zone is a group of channels. Your radio supports up to a maximum 2
zones with every zone supporting up to a maximum of 16 channels.
Procedure：
1) Press the programmed zone button
2) A positive alert tone indicates the radio switched from zone 1 to zone 2.
14
TP620 Digital Portable Radio Quick Instruction Manual
A negative alert tone indicates the radio switched from zone 2 to zone 1.
Selecting a Radio ChannelProcedure：
Once the required zone is programmed (if you have multiple zones in your radio), turn the Channel
Selector Knob to select the channel.
4. Making/Receiving a Call
Making a Call
Hold down the PTT button to initial a call to the default contact which has set for current channel in
programming software. The contact can be set to private call, group call or all call by programming
software.
Receiving and Answering a Call
When a call is receive, the green LED lights on, you can hear the talking. After receiving, you can
press and hold on the PTT button to reply this call within call hang time duration.
15
TP620 Digital Portable Radio Quick Instruction Manual
5. Other Functions
Except making a call and receiving a call, the radio also supports many other functions. These
functions need to be programmed before using. You can connect your local dealer to use these
functions.
Functions
Send a Message You can send a quick message by one touch
button
Radio Enable encode Allows stolen/lost radios to be enabled over the
air.
Radio Disable encode Allows stolen/lost radios to be disabled over the
air.
Radio Check Decode It checks whether radios are active on system
without disturbing user.
Call Alert Enables a user to page another and request a
return call when convenient.
Remote Monitor Decode Enables supervisor radios to listen in on remote
radios to maximize employee safety and
16
TP620 Digital Portable Radio Quick Instruction Manual
instantly assess situation.
Digital Encryption Enhance communication security.
Emergency Variety emergency calls can be confirmed to
maximize employee safety.
Scan A scan helps ensure all relevant calls are heard.
DTMF Encode and
Decode
. .
DTMF function can allow users to send a PTT ID
or realize kinds of calls.
6. Troubleshooting
No. Problem Causes and Solutions
A. The battery may be used up. Charge or change the battery
1 Powered-on Failure
17
to try again.
B. The On/Off key may be in poor contact. Clean the metal
dome with alcohol and try again.
TP620 Digital Portable Radio Quick Instruction Manual
C. The power binding post isn’t connected with battery.
Re-install it and try again.
A. The frequency settings may be different from others. Set
your TX/RX frequencies to be the same as others.
Communication
2
Failure
Failed Receiving of
3
Signal
18
B. The CTCSS/CDCSS signaling maybe different from others.
Set your CTCSS/CDCSS signaling to be the same as others.
C. Beyond the radio’s coverage area. Your place may be too
far from the others.
A. The antenna may get loose or may be improperly installed –
Re-install the antenna.
B. The frequency settings may be different from others. Set
your TX/RX frequencies to be the same as others.
C. Beyond the radio’s coverage area. Your place may be too
far from the others.
TP620 Digital Portable Radio Quick Instruction Manual
19
The LED lights up
4
solid green without
any voice received
Failed CPS
5
Programming
A. Check whether the volume level is at its lowest or not.
Increase the volume level and try again.
B. Check whether the speaker is broken or not. Change the
speaker and try again.
A. Wrong wire connection. Check and try again.
B. Check if the USB driver is installed or not. Install a USB
driver and try again.
C. Poor contact of the earpiece interface board – Change the
earpiece interface board and try again.
TP620 Digital Portable Radio Quick Instruction Manual
FCC Statements:FCC Statements:FCC Statements:
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC Radiation Exposure Statement: FCC Radiation Exposure Statement: FCC Radiation Exposure Statement: FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an controlled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
RF Exposure Compliance and Control Guidelines and Operating Instructions
RF Exposure Compliance and Control Guidelines and Operating Instructions RF Exposure Compliance and Control Guidelines and Operating Instructions RF Exposure Compliance and Control Guidelines and Operating Instructions
To control your exposure and ensure co
limits always a
Guidelines:
Do not remove the RF Exposure Label from the device.
User awareness instructions should acco
Do not use this device if the operational re
dhere to the following procedures.
mpliance with the occupational/controlled
mpany device when transferred to other
quirements described herein are not met.
environment exposure
users.
Attention: Attention: Attention: Attention: Attention: Attention:
This radio complieswith IEEE and ICNIRP exposure limits for occupational/controlled RF exposure
emvironment
at operating duty factors of up to 50% and is authorized by the FCC for occupational use only.
20
TP620 Digital Portable Radio Quick Instruction Manual
An appropriate warning lable is affixed to all units.In order to comply with RF exposure requirements,
a minimum distance of 2.5cm must be maintained when held-to-face, and body-worn operations
are restricted to the approved original acessories (belt clip).
Do not use this device when antenna shows obvious damages
IC RSS warning IC RSS warning IC RSS warning IC RSS warning
This device complies with Industry Canada licence-exempt RSS standard (s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference,including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence.
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that, the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec
une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut
choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne
dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
21
L'exploitation est autorisée aux deux conditions suivantes:
Canada.
TP620 Digital Portable Radio Quick Instruction Manual
20
Loading...
