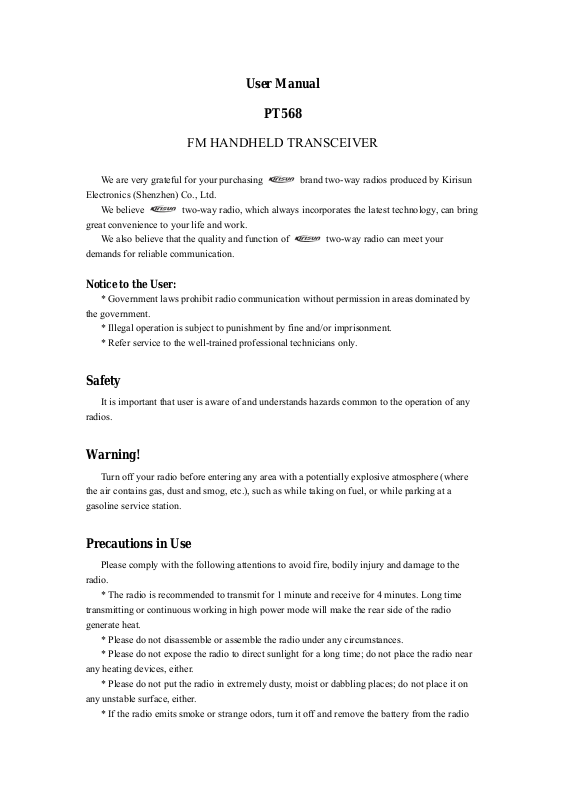

User Manual

PT568

FM HANDHELD TRANSCEIVER

We are very grateful for your purchasing

Electronics (Shenzhen) Co., Ltd.

We believe

great convenience to your life and work.

We also believe that the quality and function of

demands for reliable communication.

two-way radio, which always incorporates the latest technology, can bring

Notice to the User:

* Government laws prohibit radio communication without permission in areas dominated by

the government.

* Illegal operation is subject to punishment by fine and/or imprisonment.

* Refer service to the well-trained professional technicians only.

brand two-way radios produced by Kirisun

two-way radio can meet your

Safety

It is important that user is aware of and understands hazards common to the operation of any

radios.

Warning!

Turn off your radio before entering any area with a potentially explosive atmosphere (where

the air contains gas, dust and smog, etc.), such as while taking on fuel, or while parking at a

gasoline service station.

Precautions in Use

Please comply with the following attentions to avoid fire, bodily injury and damage to the

radio.

* The radio is recommended to transmit for 1 minute and receive for 4 minutes. Long time

transmitting or continuous working in high power mode will make the rear side of the radio

generate heat.

* Please do not disassemble or assemble the radio under any circumstances.

* Please do not expose the radio to direct sunlight for a long time; do not place the radio near

any heating devices, either.

* Please do not put the radio in extremely dusty, moist or dabbling places; do not place it on

any unstable surface, either.

* If the radio emits smoke or strange odors, turn it off and remove the battery from the radio

and contact your local authorized Kirisun dealer without delay.

Contents

1. Open Package Inspection

2. Preparation

2.1 Charge the battery

2.2 Install/Remove the battery

2.3 Install the antenna

2.4 Install external speaker/MIC

2.5 Install the belt clip

3. Radio Overview

4. Basic Operation

5. Functions of Programmable Buttons

6. Auxiliary Functions

7. Wired Clone Mode

8. Troubleshooting Guide

9. Major Specifications

10. FCC Notice

1. Open Package Inspection

Firstly, please take the radio out of the package box carefully. We recommend checking the

supplied accessories in the following table before disposing the packing material. If any article is

found lost or damaged, please contact the distributor without delay.

Accessories Quantity

Antenna 1

Battery 1

Belt Clip 1

Intelligent Charger 1

Adapter 1

Strap 1

User Manual 1

Warranty Card 1

Antenna

Adapter

Belt Clip

Intelligent Charger

Strap

Battery

2. Preparation

2.1 Charge the battery

Insert the cable plug of the adapter into the jack at the back of the charger. Then insert the

adapter into an applicable AC power output socket. The three LEDs will flash for about one

second, and then the green LED will be constantly on when the charger is normal.

Insert the battery to be charged or the radio into the charger. Do remember to turn off the radio

before inserting it into the charger.

Make sure that the battery and the charger terminal are fully and reliably connected with each

other. When the red LED is on, the charging starts.

After about five hours of charging, the red LED will be out, and the green LED will be on,

which indicates that the battery is fully charged.

Kept the battery in the charger under green LED on status for 1 to 2 hours, and then remove

the battery. In doing so, the battery can reach its best performance. Then you can remove the

adapter from the AC power output socket.

If the yellow LED flashes, it indicates that the charging temperature or the circuit is abnormal,

and the charger is in the protected status, in which you should not charge the battery compulsorily.

Please remove the battery and cut the power of the charger.

Note:

* The radio battery has not been charged when leaving the factory; please charge the battery

before using the radio for the first time.

* Both KB-56A lithium polymer battery and KB-56B lithium polymer battery of the company are

applicable to this radio.

* Charge the battery for several times for the first charging after purchase or after the radio is laid

aside for a long time (longer than 2 months), so that the battery can reach its normal battery

capacity. Meanwhile, please make sure to charge the battery at least once every three months.

* It is better not to recharge the battery if the battery is fully charged or the radio is not in its low

battery alarm status; otherwise, the battery’s service life and performance may be influenced. After

the battery charging is finished, please remove it from the charger.

* When the radio enters the low battery alarm status, please recharge the battery before reusing it.

Do not turn on the radio compulsorily; otherwise, the service life and performance of the battery

may be influenced.

* KB-56A/KB-56B battery is provided with internal protective circuit. When the battery power is

too low, the battery will cut the power supply automatically. If it is charged on the charger now,

the red LED will not be on immediately. After about 1 to 5 minutes, the charging indicator will

turn normal.

2.2 Install/Remove the battery

Install the battery:

Align the two protrusions at the upper end of the battery to the slots at the upper end of the

shell of the radio and insert them.

Press the lower end of the battery down until the latch of the radio completely bounces out,

and the battery is locked.

Remove the battery:

To remove the battery, please push the latch at the lower end of the radio forward, the lower

part of the battery will bounce up automatically. Then, loose the belt clip slightly and remove the

battery.

Note:

Please avoid short circuit of the battery terminals and do not throw the battery into fire.

Do not tear down the shell of the battery by yourself.

2.3 Install the antenna

Hold the base of the antenna and screw the antenna clockwise into the connector on the top of

the radio until the antenna is fastened.

2.4 Install external speaker/MIC

Open the cover of the jack for external speaker or microphone, and then insert the plug of the

external speaker or microphone into the jack on the radio.

2.5 Install the belt clip

Align the two holes on the upper part of the belt clip to the screw holes at the back shell of the

radio, and then fix the belt clip to the radio with two 2.5×8.0 screws. Loose the fixing screws to

remove the belt clip.
