King Technology Prevail Cycler 170, 01-02-0170 Instruction Manual

Prevail Cycler

Instruction Manual

Chlorine Pool-Care System

for Pools up to 25,000 Gallons

WARNING

To minimize the risk of serious injury, death or damage, before installing or first using this equipment, read Instruction Manual and all safety labels and follow all safety instructions and precautions. Save manual for future reference.

Ver la versión en español de este manual en kingtechnology.com/knowledge-center/manuals-diagrams

Customer Service 800-222-0169

kingtechnology.com

TABLE OF CONTENTS

Prevail Introduction 3

Notes and Safety Information 4

Safety Labels on Prevail Cycler 5

Installation Tips to Ensure Proper Performance 6

Filter Flex-Hose Installation 7

Base Flex-Hose Installation 8

Hard-Plumbed Installation 9

Step 1: Preparing the Pool 10-11

Step 2: Putting the System to Work 12

Step 3: Setting the Control Dial 13

Step 4: Routine Pool Care 14

Winterizing 15

Troubleshooting 16

Parts List 17

Maintenance - Replacing Control Dial O-Rings 18

Maintenance - Replacing Cap O-Rings and Knobs 18

Warranty 19

For information on King Technology’s entire product line, visit our website at kingtechnology.com

Prevail

Thank you for choosing Prevail. This system will maintain a clean, clear swimming pool while you spend less time on maintenance and more time having fun! There are two parts to the Prevail System:

Part 1: Prevail Cycler 170

The water treatment center that controls the ow

of water through the Prevail Pool Pack.

For pools up to 25,000 gallons

Product # 01-02-0170

Part 2: Prevail Pool Pack 70.5C

Prelled with chlorine tablets and ts inside the

Prevail Cycler (sold separately).

Product # 01-04-7413

Notes and Safety Information

General Notes

These instructions contain information for the safe and proper

operation of this Prevail Cycler. Observe the following principles:

• Ensure that everyone using this Prevail Cycler

follows the instructions and safety precautions.

• Keep the instructions nearby and available for reference

throughout the service life of this Prevail Cycler.

These instructions do not provide for every possible contingency

that might be encountered in connection with installation, opera-

tion or maintenance of this equipment. Should further informa-

tion be desired or should particular issues arise which are not

covered sufciently in this manual, contact King Technology at

800-222-0169.

Explanation of the signal words

Signal words, which depict the probability and severity of harm, are used in these instructions. They are dened as follows:

Signal Word

DANGER

WARNING

Meaning

Indicates an imminently hazardous situation which, if not avoided, will result in death, serious injury or major property damage.

Indicates a hazardous situation which, if not avoided, could result in serious injury, death, or major property damage.

NOTICE

Indicates special instructions that are important but not related to physical injury hazards.

Explanation of the safety pictographs

The following pictographs illustrate the type and source of

a hazard.

Pictograph Type of Danger

Safety Alert/General Hazard

Explosion Risk

Hazardous Pressure

Flammable Fire Hazard

Identication of warnings

Warnings are intended to help you recognize risks and avoid

death, injury or property damage. This is how warnings are identied:

Signal Word

Pictographs

Description of danger.

Consequences if ignored.

a The arrow signals a safety precaution to be taken to

eliminate or reduce the risk.

Safety Label on Cycler

Review this label before installing or operating this Cycler. Contact King Technology at 800-222-0169 if this label is missing from your Prevail Cycler.

Fire, explosion and high pressure hazards

To minimize the risk of serious injury, death or property damage while using the Prevail Cycler:

a Read, understand and follow all instructions and safety precautions in the manual, and on this Cycler and on any label for chemicals used with this Cycler including Prevail Pool Packs.

DANGER

a Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the Prevail Cycler.

a Never mix Trichlor chlorine tablets with Calcium Hypochlorite, or with any other form of concentrated chlorine or other chemicals.

a Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer.

These products should be added directly into the pool if required.

Do not contaminate the Prevail Cycler or Prevail Pool Packs with dirt, organic matter, pool chemicals (such as calcium hypochlorite or pool shocks), fertilizers or other household chemicals. Contact between any of these substances and the Prevail Cycler and Prevail Pool Packs, will result in a chemical reaction with the generation of heat, liberation of hazardous gasses and re or explosion.

WARNING

a Use only Prevail Pool Packs in the Prevail Cycler. Never use bulk chemicals.

a To prevent the build up of gas pressure in the Prevail Cycler, be sure the pool return line valves are open –

except when opening or servicing the unit.

a Do not inhale fumes from the Prevail Cycler or Prevail Pool Packs.

a Avoid sparks, smoking, or any open ame near Prevail Cycler or chemicals.

a Do not exceed maximum operating pressure of 50 psi or maximum temperature of 104º F.

a Do not remove the cap while under pressure. Always turn off pump and bleed off pressure before opening Prevail Cycler.

a Do not install automatic or fast shut off valves downstream of Prevail Cycler.

a Always install the Prevail Cycler AFTER a heater (if applicable) on the return line.

a Always install any additional sanitizing equipment AFTER and NEVER BEFORE the Prevail Cycler is installed on the return line.

a Do not permit children to use or climb on this product. This product must be positioned to prevent children from using it as a means of access to the pool.

a Always stand clear of the Prevail Cycler during pump start-up.

a Replace Prevail Cycler if you see signs of cracks, damage or degradation to the Cycler body or cap.

a Prior to pressurizing, check with your dealer to ensure your plumbing connections meet building codes.

a Failure to properly winterize your Prevail Cycler could result in freeze damage. (See page 15 for winterizing details.)

NOTICE

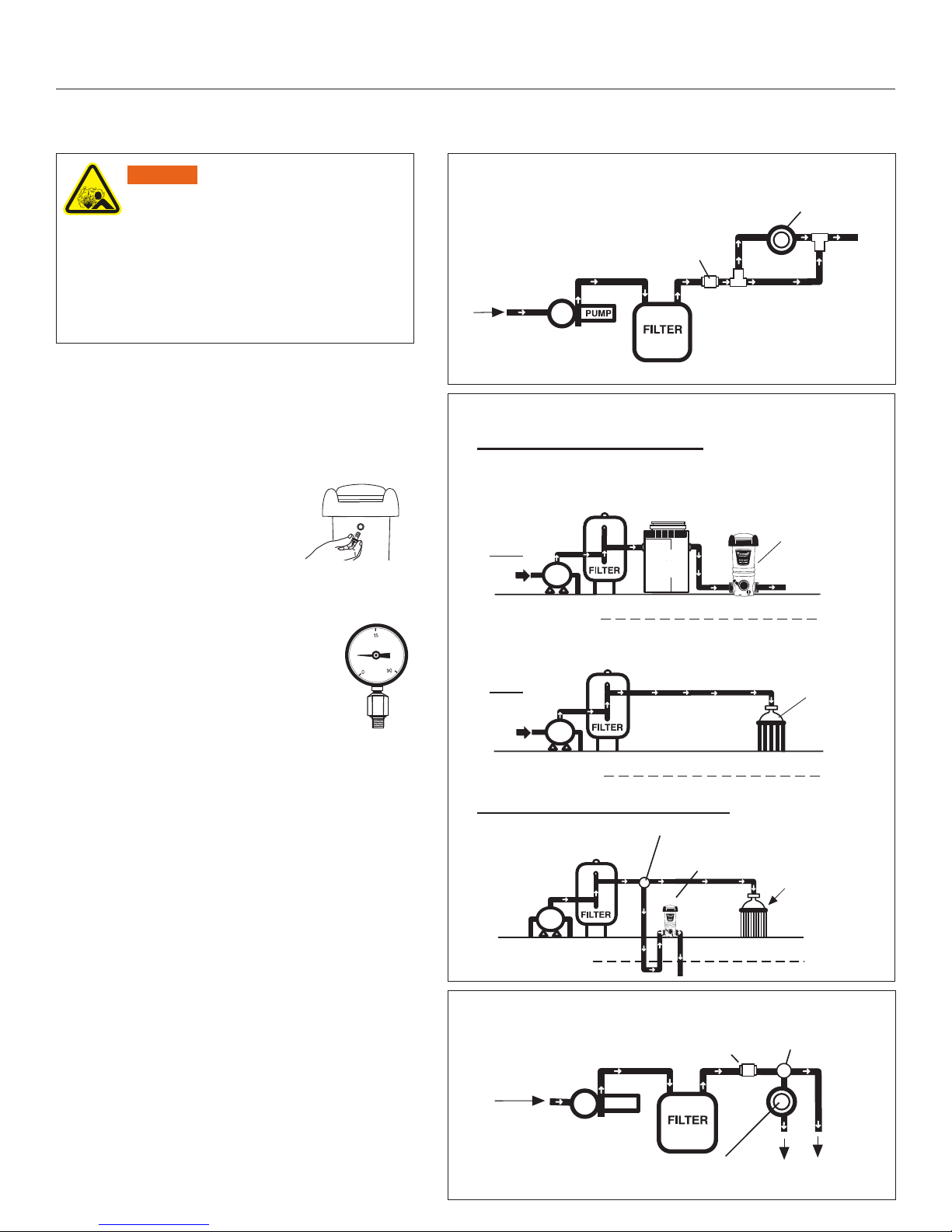

Installation Tips to Ensure Proper Performance

Before installing, read all directions carefully and contact your dealer for installation support.

WARNING

• Do not exceed maximum operating pressure of 50 psi.

• Do not install automatic or fast shut off valves downstream of feeder.

• Always install the Prevail Cycler AFTER the heater (if applicable) on the return line.

• Always install any additional sanitizing equipment AFTER and NEVER BEFORE the Prevail Cycler is installed on the return line.

1) If using a multi-speed pump, run pump for at least 6 hours per day at high speed (at least 40 gpm).

If the pump will run on low speed 24 hours per day or less than 6 hours per day on high speed, you must bleed the air while the pump is on by unscrewing the back knob until water appears. Then screw the knob back in. Repeat this process each time the cap is removed for any reason.

2) Install Cycler with 4-8 psi back pressure.

A. With High Flow Rate (greater than 80 gpm) Install T-ttings exactly as shown.

SUCTION FROM POOL/SPA

CHECK VALVE

Prevail Cycler

TO POOL

B. With In-Floor Cleaner - TWO OPTIONS

OPTION 1- A Two-Line Installation

The best option is to have two lines. One line with pump, lter, heater

and Prevail Cycler and a second line with a separate pump for the in-oor cleaning system (lter optional).

Line 1

Flow

PUMP

✙

HEATER

Prevail Cycler

POOL RETURN

Lower back pressures could result in under chlorination. Change the eyeball ttings in the return jets to a smaller size to increase back pressure. Contact King Technology at 800-222-0169 for a specially designed Cycler pressure gauge to determine back pressure at pool start-up.

PN #01-22-4000

3) Special installation Requirements:

IMPORTANT: Over chlorination or damage to the

Prevail Cycler or other equipment could result if special installations A, B or C are not used in these situations.

• If water ow is higher than 80 gallons per minute (gpm), see diagram A.

• If an in-oor cleaner is included with pool, see diagram B, with two options. Preferred installation is Option 1 with two separate lines.

• If set-up is a pool and spa combination with common equipment, see diagram C.

Questions? Call Customer Service at 800-222-0169 Monday thru Friday, 8 am to 5 pm central standard time.

POOL WATER LEVEL

Line 2

Flow

PUMP

POOL WATER LEVEL

OPTION 2 - A 3-Way Valve Installation

3-way manual valve or 3-way motor valve plus controls

Prevail Cycler

PUMP

✙

POOL WATER LEVEL

✙

C. Pool and Spillover Spa Combination

SUCTION FROM POOL/SPA

PUMP

CHECK VALVE

IN-FLOOR

✙

CLEANER VALVE

IN-FLOOR CLEANER VALVE

3-WAY VALVE

TO POOL

TO SPA

Prevail Cycler

TOOLS NEEDED

Screwdriver

Install

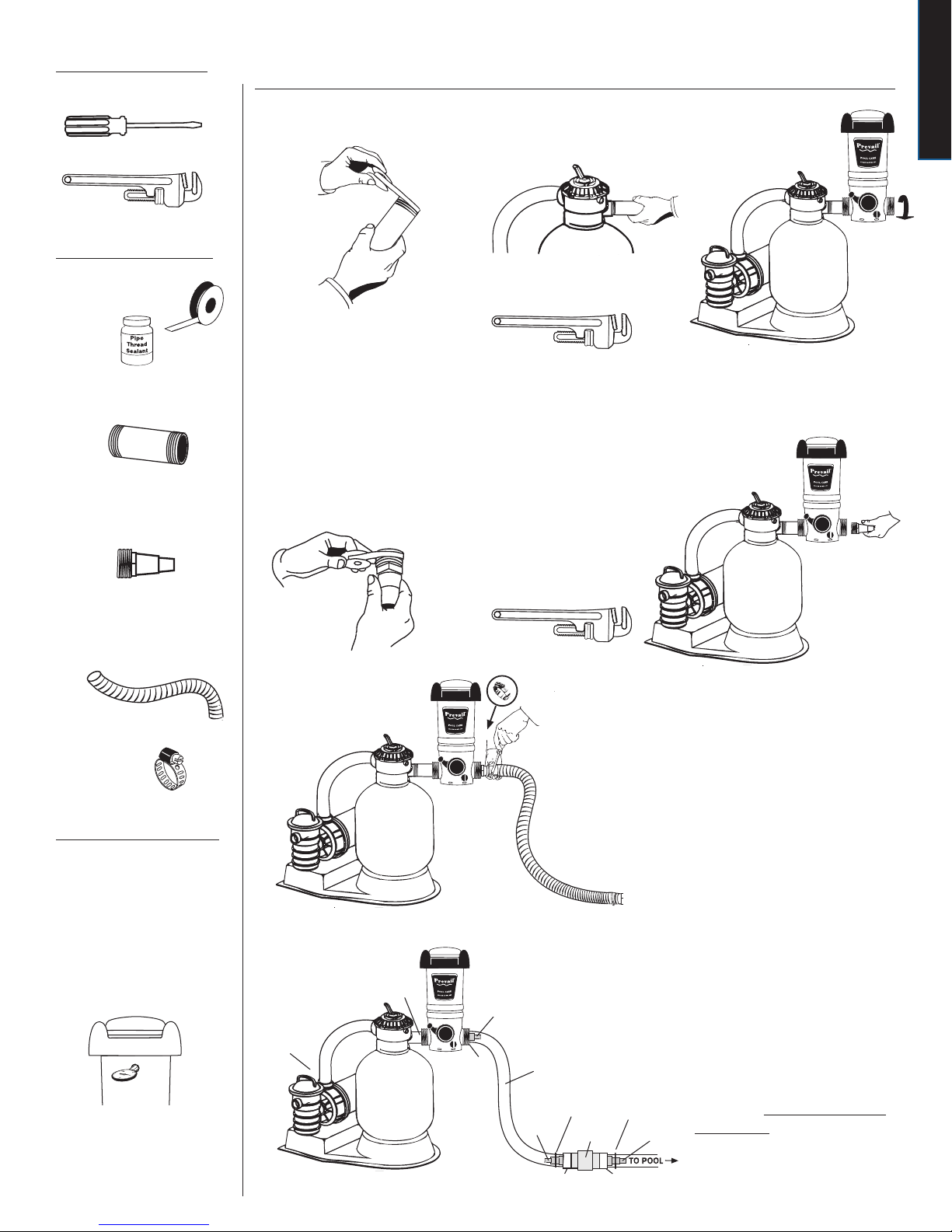

Filter Flex-Hose Installation

Pipe Wrench

MATERIALS NEEDED

Pipe Thread Tape or Sealant

One 6” x 1 ½” TBE PVC Nipple

One Hose Adapter 1½” x 1½” x 1¼”

One Section of 1½” or 1¼” Flex Hose (provided with lter)

Apply pipe thread tape or sealant to each threaded end of nipple.

Apply pipe thread tape or

sealant to threaded end of hose adapter.

2.1.

Screw one end of nipple into the lter return.

Hand tighten. Finish tightening by turning 1 to 2 revolutions with a pipe wrench.

DO NOT OVER TIGHTEN.

Screw adapter into the other

side of Prevail Cycler.

Hand tighten. Finish tightening by turning 1 to 2 revolutions with a pipe wrench. DO NOT OVER TIGHTEN.

Screw either side of Prevail Cycler on to open nipple end until upright and secure.

One Hose Clamp

RECOMMENDED

4-8 psi Back Pressure

To avoid over or under chlorination, replace eyeball ttings in the return jets to a smaller or larger size to adjust back pressure. For best results use King Technology’s pressure gauge, order part number 01-22-4000.

FILTER & PUMP

1 1/2” x 6” HOSE

NIPPLE

1 1/2” x 1 1/2” x 1 1/4”

HOSE ADAPTER

HOSE

CLAMP

1 1/2” or 1 1/4”

FLEX HOSE

HOSE

ADAPTER

BUSHING

HOSE

CLAMP

CHECK

VALV E

BUSHING

HOSE

CLAMP

HOSE

ADAPTER

Attach return section of hose to the adapter with clamp. Tighten clamp with screwdriver.

To prevent damage to heaters or lters, see your dealer about installing a corrosion resistant check valve which will reduce the back ow of chlorine gas when the Prevail Cycler is turned off.

TOOLS NEEDED

Screwdriver

Base Flex-Hose Installation

Pipe Wrench

MATERIALS NEEDED

Pipe Thread Tape or Sealant

Two Hose Adapters 1½” X 1½” X 1¼”

Two Sections of 1½ or 1¼” Flex Hose (one provided with lter)

PUMP

FILTER

Apply pipe thread tape or sealant

to the threaded end of both hose adapters.

TO POOL

The Prevail Cycler should always be installed between the lter and pool (or between heater and pool if applicable).

Never install Prevail Cycler before the heater or damage to the heater could occur.

Screw adapters into each end of Prevail Cycler. Hand tighten. Finish tightening by turning 1 to 2 revolutions with a pipe wrench. DO NOT

OVER TIGHTEN.

Two Hose Clamps

RECOMMENDED

4-8 psi Back Pressure

Attach the lter section of ex hose to one hose adapter

and the return section of ex hose to the other hose adapter with clamps and tighten with screwdriver. Bi-ow valve design allows water ow in either direction.

HOSE CLAMP

1 1/2" X 1 1/2" X 1 1/4"

FILTER & PUMP

HOSE ADAPTER

1 1/2" OR 1 1/4" FLEX HOSE

HOSE CLAMP

HOSE ADAPTER

BUSHING

CHECK VALVE

TOE NIPPLE

To prevent damage to heaters or lters, see your dealer

about installing a corrosion resistant check valve which will reduce the back ow of chlorine gas when the Cycler is turned off.

HOSE ADAPTER

HOSE CLAMP

TO POOL

For better stability, Prevail Cycler may be mounted on

a treated wood base using Phillips pan head screws, one in front and two in back. If you have questions about stability, please contact your dealer or King Technology.

Install

TOOLS NEEDED

Pipe Wrench

Hacksaw

Tape Measure

MATERIALS NEEDED

Pipe Thread Tape or Sealant and Primer and PVC Cement

Hard-Plumbed Installation

The Prevail Cycler should always be installed between the lter and pool (or between heater and pool if applicable).

Never install Prevail Cycler before the heater or damage to the heater could occur.

Do NOT install Prevail Cycler off-line.

Bi-ow valve design allows installation in either ow direction.

Do NOT install in copper pipe as chemical corrosion may lead to pipe failure.

Allow a minimum of 12” above and on

12"

each side of Prevail Cycler to ensure room for replacement of Prevail Pool Pack.

12"

1½” Male Adapter (slip x MPT)

Screw adapters into each end of Prevail Cycler following directions for a male adapter or a female adapter. Hand tighten. Finish tightening by turning 1 to 2 revolutions with a pipe wrench.

DO NOT OVER TIGHTEN.

2” Female Adapter (slip x FPT)

SECURE CYCLER

1a.

If using male adapters, apply pipe thread tape or sealant to the threaded end of each adapter.

For better stability, Prevail Cycler may be mounted on a treated wood base using

Phillips pan head screws, one in front

and two in back. If you have questions about

Following primer directions, brush primer on the inside of the adapters and to ends of pipe. Repeat this process with PVC cement following directions on that product.

stability, please contact your dealer or King Technology.

Measure the

distance between the outside adapters and cut out a section of pipe 3” less than that dimension.

1b.

If using female adapters, apply pipe thread tape or sealant to the threaded end of each Cycler port.

Insert PVC pipe into adapters with a twisting action. Hold in place 5 to 10 seconds to bond.

To prevent damage to heaters or lters, see your dealer about installing a corrosion resistant check valve which will reduce the back ow of chlorine gas when the Cycler is turned off.

Step 1: Preparing the Pool

Make sure the pool has adequate circulation. The total volume of pool water must completely circulate through the pump and lter at least 1 to 2 times per day. This usually requires 8 to 12 hours of circulation. Check with your dealer for the proper circulation time for your pool.

Check the pool’s lter gauge often and periodically clean lter per the manufacturer’s directions. A dirty lter will slow the ow of water which could hamper proper circulation.

WARNING

Do not exceed maximum operating pressure of 50 psi.

Check for metals in the pool such

Metal

Out

Before beginning with any pool care program, you must rst balance your pool water. Take a water sample to your local pool professional (or use a complete test kit) to test for the important Water Balance Guidelines.

IMPORTANT: Always follow printed instructions on the balancing chemical packkages. Add balancing chemicals in small increments one at a time with circulation running. For best results, wait 8-12 hours before testing again and adding any additional balancing chemicals.

as iron or copper. Before attempting water balance, these should be removed. See your dealer for a metal out or sequesterant and follow the label directions carefully.

Check the Water Hardness of your ll water before

adding to the pool. If calcium content is higher than 400 ppm, nd a soft water source to ll your pool instead; otherwise water balance will be very difcult.

Water Balance Guidelines

pH: 7.2 – 7.8 Total Alkalinity: 80 – 120 ppm Calcium Hardness: 200 – 400 Total Dissolved Solids: <1500 Stabilizer: 20 – 80 ppm Free Chlorine: 0.5 – 1.0 ppm

Continue... Step 1: Preparing the Pool

SmartChlor Out Indicator

Active Chlorine

If lighter color,

check Smart

Chlor catridge

If darker color, OK

If lighter color,

turn cartridge

setting up 1 number

If darker color, turn cartridge setting down 1 number

6.2 6.8 7.2 7.8 8.4

LOW BAJO

VERY LOW MUY BAJO

HIGH ALTO

SmartChlor Out Indicator

Active Chlorine

If lighter color,

check Smart

Chlor catridge

If darker color, OK

If lighter color,

turn cartridge

setting up

1 number

If darker color, turn cartridge setting down 1 number

IDEAL

For best results in achieving water balance, follow steps 5a through 5e in order.

5a. Take a water sample

from the pool and dip a Test Strip into it.

Test Strips

5b. Look at the Total Alkalinity reading rst. Adjustments

should be made to bring the Total Alkalinity in the range of 80 – 120 ppm prior to making any adjustments to pH even if it throws pH off further.

Total Alkalinity (ppm)

Alcalinidad Total (mg/L)

0 40 80 120 180 240

LOW

VERY LOW MUY BAJO

IDEAL

BAJO

HIGH ALTO

VERY HIGH MUY ALTO

5c. After Total Alkalinity is in range, test for pH. It should be

between 7.2 and 7.8. If higher or lower, add a pH adjuster.

Initially shock the pool with chlorine shock only to rid

the water of contaminants and establish a chlorine residual. Always follow the manufacturer’s directions carefully. See the DANGER box below for important guidance on shocking.

DANGER

• Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer. These products should be added directly into the pool if required.

• Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the Prevail Cycler.

Operate

6.2 6.8 7.2 7.8 8.4

LOW

VERY LOW MUY BAJO

IDEAL

BAJO

HIGH ALTO

5d. Then test your Water Hardness again. If lower than 200

ppm, add Calcium Increaser. Always maintain 200-400 ppm.

5e. Lastly, test for stabilizer or conditioner levels. Add

conditioner if the level is below 20 ppm. This will prevent chlorine burn off. If stabilizer level is above 80 ppm, partially drain water and re-ll.

Step 2: Putting the System to Work

Indent in plastic

DANGER

Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the Prevail Cycler.

WARNING

Avoid sparks, smoking, or any open ame near Prevail Cycler or chemicals.

IMPORTANT: Read the label on the Prevail Pool Pack carefully

before using.

Turn off pump. Turn dial to 0. This reduces the ow of water into the unit when the cap is open.

Open the cap. Stand back to allow any chlorine fumes to dissipate.

3E. If openings are pinched

together, open with ngers or re-cut closer to the colored screens inside Prevail Pool Pack. Leave at least 1/4” of plastic to t into Prevail Cycler base.

Pack Towe r

Avoid a pinched opening.

A correct oval opening

Invert Prevail Pool Pack and shake slightly until chlorine tablets fall into tower areas.

Insert Prevail Pool Pack into Prevail Cycler, lining up the openings in Prevail Pool Pack with keys in Prevail Cycler.

NOTE: Openings are a different shape than keys.

Cut handle from Prevail Pool Pac using a PVC cutting tool (KEEP OUT OF REACH OF CHILDREN)

3A. Find

the indent in the plastic.

3C.. Squeeze the handles

together. Repeat for other side.

PVC cutting tool available at local hardware stores.

3B. Place curved section of

tool around the narrow end of one pack tower and line up blade on indent

Finished cut ends

3D.. Make sure the blade

comes straight across on the indent line for a clean cut.

WE RECYCLE

Opening in Pack

Key in Cycler

Replace cap by hand only.

DO NOT OVERTIGHTEN.

The Prevail Pool Packs are made of HDPE plastic. Nonrellable container. Do not reuse or rell this container. Offer for recycling if available. Rinse thoroughly before recycling or discarding in trash.

Mark calendar ahead for the approximate replacement times for the Prevail Pool Pack.

Step 3: Setting Control Dial

This system is designed to work effectively with a variety of pool equipment as long as the following procedures are followed.

Set control dial on Prevail Cycler by matching up the parameters of your pool on the chart below. THIS IS A STARTING POINT ONLY

and may need to be adjusted to t your individual pool needs. See #2 below for adjusting directions. IMPORTANT: If using a multi-speed pump, pump-run times of at least 6 hours per day at high speed are recommended for proper performance. If running the pump at low speed only or on high speed less than 6 hours, please follow the 24 hour low-

speed directions below.

POOL SIZE

Gallons Diameter

7,000 (18’) 4.5

9,000 (21’) 5.0

12,000 (24’) 5.5

18,000 NR

20,000 NR

25,000 NR

^ Bypass installation recommended. See “Installation Tips” on page 6. NR -This pump size is not recommended for this size pool.

1/2 hp 3/4 hp 1 hp 1 1/2 hp

8 HOUR PUMP RUN TIME

PUMP SIZE

1/2 hp 3/4 hp 1 hp 1 1/2 hp

4.0 3.5 3.0 2.5 2.0 1.0 3.0^ 1.5 1.0 1.0 2.0^

4.5 4.0 3.5 3.0 2.5 2.0 3.5^ 2.0 1.5 1.0 2.5^

5.0 4.5 4.0 3.5 3.0 2.5 2.0 2.5 2.0 1.5 3.0^

5.5 5.0 4.5 4.0 3.5 3.0 2.5 3.0 2.5 2.0 1.5

NR 5.5 5.0 4.5 4.0 3.5 3.0 3.5 3.0 2.5 2.0

NR 6.0 5.5 5.0 4.5 4.0 3.5 4.0 3.5 3.0 2.5

24 HOUR, LOW-SPEED PUMP RUN TIME

In order to ensure proper performance when running the pump on low speed for 24 hours per day or high speed less than 6 hours per day, bleed the air while the pump is on by unscrewing the back knob until water appears. Then screw the knob back in. Repeat this process each time the cap is removed for any reason. Set the control dial at 6 and follow the adjustment directions in Step 2 to determine the correct setting for your pool.

12 HOUR PUMP RUN TIME

PUMP SIZE

1/2 hp 3/4 hp 1 hp 1 1/2 hp

EXAMPLE

POOL SIZE

Gallons Diameter

7,000 (18’)

9,000 (21’)

12,000 (24’)

18,000

20,000

25,000

Find your starting dial setting by matching up the parameters of your pool on the above chart. An above ground pool with approximately 12,000 gallons, with a 1 horsepower pump running 12 hours a day, would require a starting setting of 2.5.

1 hp 3/4 hp 1 hp 1 1/2 hp

12 HOUR PUMP RUN TIME

2.5 2.0 1.0 3.0^

3.0 2.5 2.0 3.5^

3.5 3.0 2.5 2.0

4.0 3.5 3.0 2.5

4.5 4.0 3.5 3.0

5.0 4.5 4.0 3.5

24 HOUR PUMP RUN TIME

PUMP SIZE

Operate

For the rst week, test the pool water daily for free chlorine to ensure correct dial setting. Continue to test weekly throughout the season..

IMPORTANT: Control dial settings in excess of these recommendations could result in excess trichlor levels being discharged into the pool. This can result in bleaching or discoloration of areas around the pool inlet or in some cases bleaching or discoloration of the entire pool liner or paint. In addition, excess trichlor in the pool can create health hazards to bathers.

After each testing, adjust the dial up by 1/2 increment if the free chlorine reading has dropped or down by 1/2 increment if the reading has risen. Continue this process each day until the reading stabilizes at your desired level between

1.0- 3.0 ppm. Remember to adjust dial by 1/2 increments only.

Step 4: Routine Pool Care

Run ltration system enough hours to circulate all water 1 to 2 times per day. More than that could result in over chlorination.

WARNING

To prevent the build up of gas pressure in the Prevail Cycler, be sure the pool return line valves are open except when opening or servicing the unit.

Regularly test water to maintain pH and Total Alkalinity.

NOTE: Water balance is affected by bather load, chemical usage, evaporation and the makeup of source water, so maintaining water balance regularly is important.

Test Strips

Shock the pool every week or as needed with a chlorine or a non-chlorine shock.

DANGER

• Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer. These products should be added directly into the pool if required.

• Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the Prevail Cycler.

Maintain 1.0 - 3.0 ppm free chlorine level at all times.

DANGER

Do not contaminate the Prevail Cycler or Prevail Pool Packs with dirt, organic matter, pool chemicals (such as calcium hypochlorite or pool shocks), fertilizers or other household chemicals. Contact between any of these substances and the Prevail Cycler or Prevail Pool Packs, will result in a chemical reaction with the generation of heat, liberation of hazardous gasses and re or explosion.

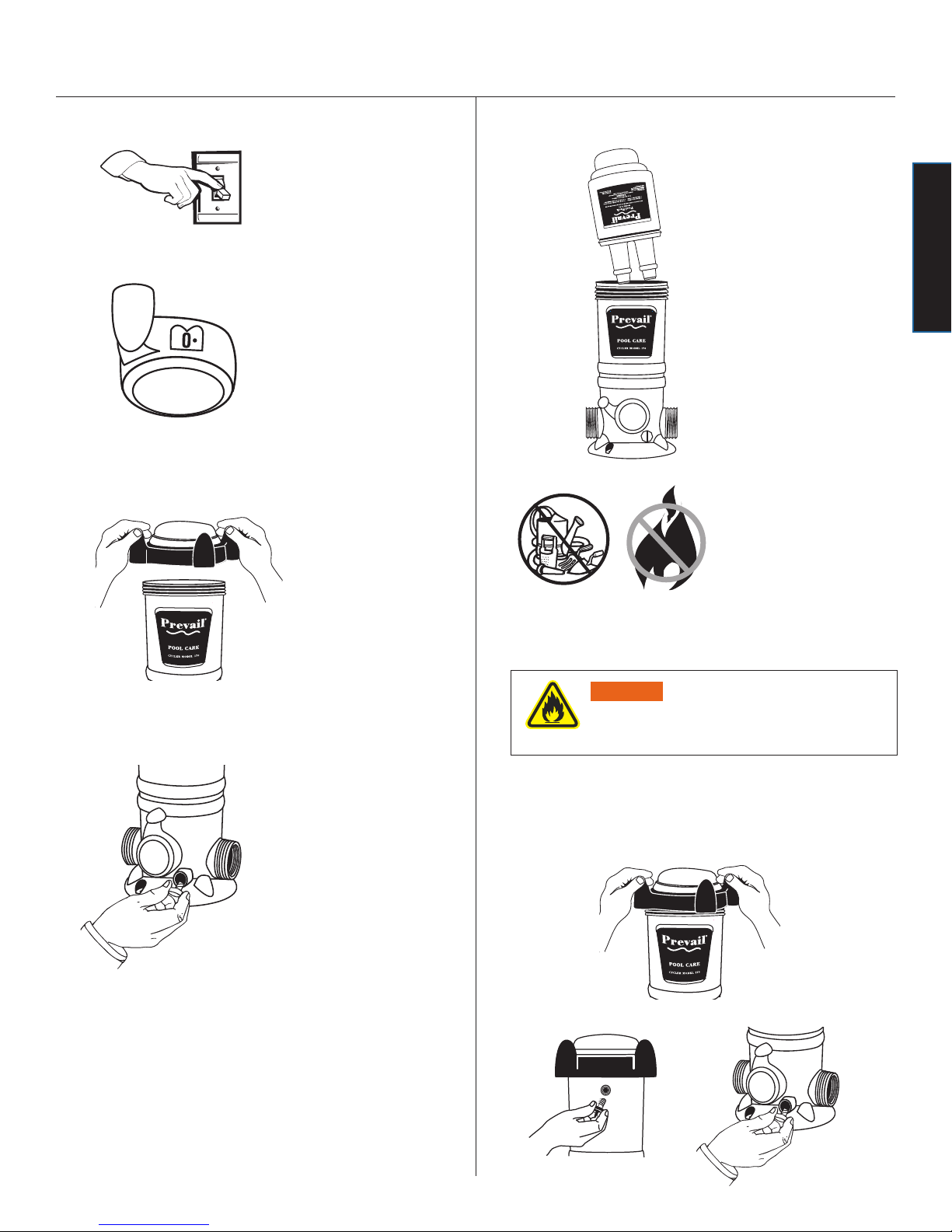

Winterizing

Turn pump off.

Turn dial to Setting 0.

Remove cap.

Remove Prevail Pool Pack

If Pack still contains chlorine, wrap in plastic bag and store in shed or cool, dry, well-ventilated location away from children, pets, cars, motorcycles or anything metal that can rust, pit, etc.

Operate

Unscrew knob from the front of Prevail Cycler. Allow all water to drain.

WARNING

Avoid sparks, smoking, or any open ame near Prevail Cycler or chemicals.

Replace the cap and knobs loosely.

If empty, rinse and recycle.

Troubleshooting

For help in troubleshooting call King Technology at 800-222-0169.

Problem Remedy

What do I do if the water looks cloudy?

What do I do if the water turns color?

What do I do if algae forms in or on my pool?

What do I do if I am under chlorinating with the Prevail Pool Pack?

1. Make sure your ltration system is working properly (i.e. clean lter, skimmer and pump basket).

2. Make sure circulation time is adequate – increase pump

1. Algae may be trying to form – shock the pool, increase circulation time if needed and clean the lter.

1. Use an algaecide per the directions on the bottle and brush the sides of the pool often.

1. If you are unable to maintain at least 1.0 ppm, rst make sure there are chlorine tablets in the tower areas of the Prevail Pool Pack and it is installed properly. If a correction was made, test the water in 24 hours.

2. If still low, turn the dial up one setting and test the water again in 24 hours. Continue raising the setting by one increment each day until the proper reading is achieved.

time if not.

3. Make sure the pool is properly balanced

4. Shock the water to eliminate build up of any organic matter.

5. Make sure pool has a

2. Metals in the ll water may have been oxidized. Have the pool tested. See pool dealer if metal control product is required.

2. Clean the lter and shock the pool with chlorine daily until water clarity returns

3. Shock the pool if the reading has been lower than 1.0 ppm for more than one day.

4. Make sure pump run time is at least 6 hours on high speed (40 gpm or higher) or if not, bleed the air from the back knob each time the cap is opened.

5. Contact your dealer to have your back pressure tested. If under 4 psi, consider a smaller eyeball tting in the return jet.

(see page 10).

6. Check for a suction side leak by looking for air bubbles in your pump basket or at the return jet. Contact dealer for help in correcting this situation.

7. Contact King Technology’s Customer Service Department at 800-222-0169.

free chlorine reading of

1.0 to 3.0 ppm.

6. Check with your dealer for more information.

3. Check with your dealer for more information.

What do I do

if I am over chlorinating with the Prevail Pool Pack?

1. If the chlorine reading is over 3.0 ppm, remove the Prevail Pool Pack from the Prevail Cycler and test the water daily until the reading is down to 1.0 ppm.

2. Reinsert the Prevail Pool Pack, lower the dial one setting and test the water again in 24 hours. If the reading has risen, lower the dial one setting again. Continue this process until proper reading is achieved.

3. If over-chlorinating at the lowest possible setting, consider decreasing the circulation time. Depending on your pump size, you may be circulating the water more than is necessary.

4. Contact your dealer to have your back pressure tested. If over 8 psi consider a larger eye-ball tting in the return jet.

5. Check to see if the pressure relief valve is loose or missing

and replace. It is a clear plastic piece approximately 1” long installed inside near the base. If loose or missing, it can provide another avenue for water to reach the chlorine.

6. Contact King Technology’s Customer Service Department at 800-222-0169.

Parts List

9 & 10

Troubleshoot

Included with Prevail Cycler 170

REF. # DESCRIPTION QTY. INCLUDED

1 & 2 Cap w/O-Ring 1 3 Body 1 4 Pressure Relief Valve 1 5, 6, 7, 8 Control Dial with O-Rings, Locking Pin and Number Plate 1 9 & 10 Knob with O-Ring 2 11 Mounting Base 1 12 Silicone Lubricant 1

Replacement Parts for Prevail 170

REF. # PART NO. DESCRIPTION

1 & 2 01-22-1410 Cap w/O-Ring 2 01-22-1926 Cap O-Ring 4 01-22-9486 Pressure Relief Valve 5, 6, 7, 8 01-22-1446 Control Dial with O-Rings Locking Pin and Number Plate

01-22-1456 Control Dial O-Ring Set

9 & 10 01-22-9946 Knob with O-Ring 11 01-22-1480 Mounting Base 12 01-22-9970 Silicone Lubricant 13 01-22-1710 Nipple Kit 14 01-22-4000 Pressure Gauge 15 01-22-1470 25k Tune-Up Kit

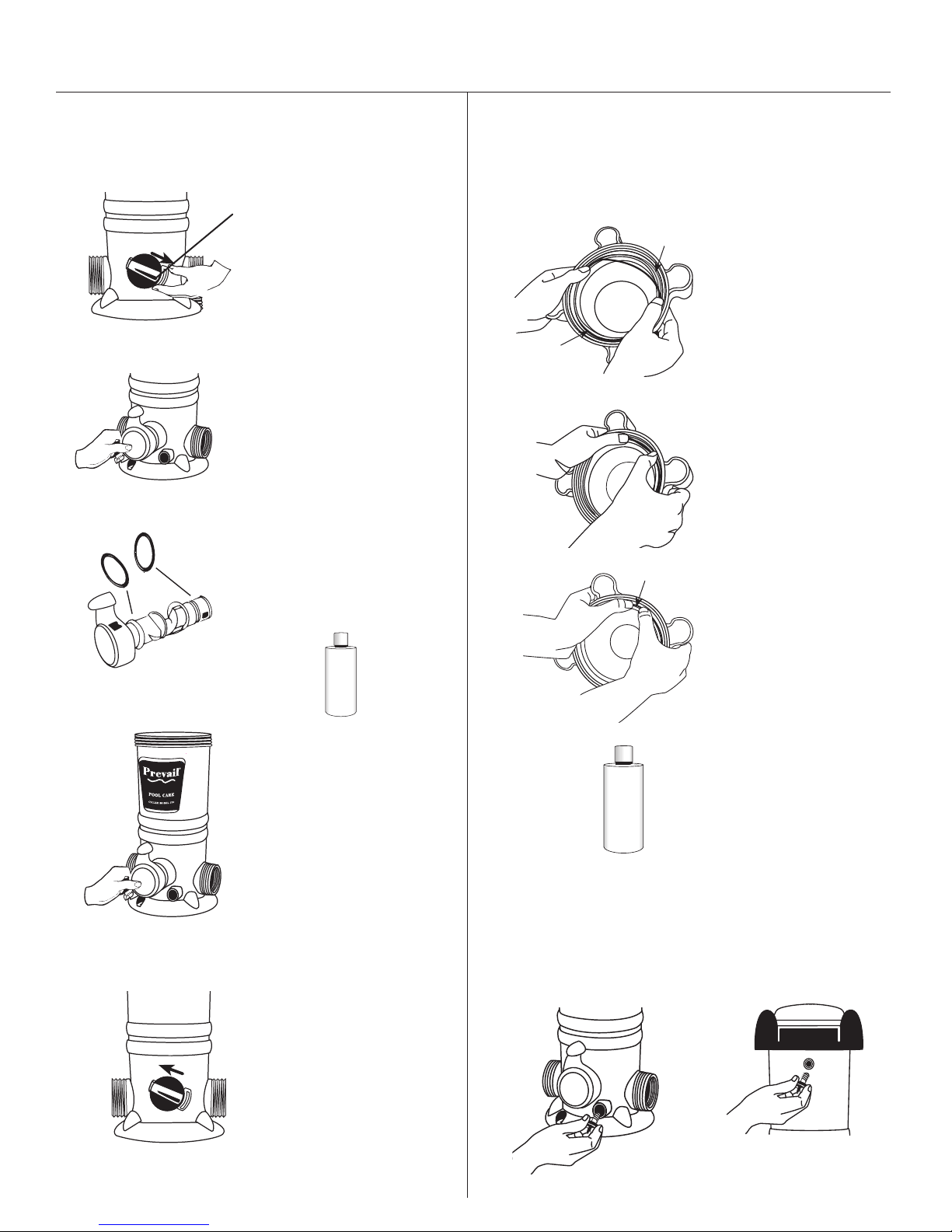

Cycler Maintenance

Replacing the Control Dial O-Rings Replacing Cap O-Ring

Remove old O-ring.

Center of locking pin

In the back of the Prevail Cycler depress center of locking pin with a nger and pull pin out of dial.

Turn control dial back and forth as you pull it out of the housing.

Bottom half of groove.

Top half of groove.

Place new O-ring in bottom half of groove.

Place your thumbs on each side of the cap over the O-ring in the groove.

Replace both O-rings. Apply silicone lubricant that came with your Prevail Cycler on O-rings.

Product #

01-22-9970

Carefully insert control dial back into housing.

Replace locking pin by pushing it through the slots on the dial until it locks into place.

O-ring in top

of groove

Roll your thumbs back and forth over the O-ring while pushing upward until the O-ring falls into the top of the groove.

Lubricate O-ring often with

Product #

01-22-9970

silicone lubricant that came with your Prevail Cycler. DO

NOT USE petroleum based lubricants.

Replacing Cycler Knobs

To replace, simply unscrew old knob and replace with the new one.

Limited One-Year Warranty

King Technology, Inc. will warrant this unit with a complete replacement for the original purchaser, should it prove defective by reason of improper workmanship and/or material for a period of one (1) year from the date of original purchase/installation. This warranty covers body, cap and control dial excluding O-rings. King Technology holds the option of replacing any defective part without charge if it is determined to be all that is needed to correct any situation. Parts used for replacement, with the exception of O-rings, are warranted for the remainder of the original warranty.

1. To obtain warranty service, you must deliver product to King Technology or its nearest authorized dealer. Shipping expenses are the purchaser’s responsibility. The name of the nearest authorized dealer can be obtained at frogproducts/nd-a-dealer or by calling King Technology at 1-800-222-0169. Proof of purchase is required when requesting warranty service. Purchaser must present the sales receipt or other document which establishes proof of purchase.

2. This warranty does not cover defects caused by: modication, alteration, repair or service of the product contrary to the accompanying instructions; physical abuse to or misuse of the product or operation or installation in a manner contrary to the accompanying instructions. This warranty also excludes all costs arising from the installation, adjustment, removal or replacement of defective units or parts. This warranty also excludes any and all claims arising out of the chemicals used in the product or their characteristics.

3. Any express warranty not provided for herein, and any remedy for breach of warranty or breach of contract which, but for this provision, might arise by implication or operation of law, is hereby expressly excluded and disclaimed. The implied warranties of merchantability and of tness for any particular purpose are expressly limited to a term of one year. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

4. Under no circumstance shall King Technology be liable to pur chaser or any other person for any damage or loss incurred because of any chemicals used in the product or their physical characteristics, or interruption of service of the product, or any special, incidental or consequential damages or losses, whether arising out of breach of warranty, breach of contract or otherwise. Some states do not allow the exclusion or limitation of incidental consequential damages, so the above limitation or exclusion may not apply to you.

5. Misuse or failure to use the proper Prevail Pool Pack may cause damage to equipment or personal injury. All warranty null and void if this product is not used with the recommended Prevail Pool Pack.

Made in U.S.A.

Patents: kingtechnology.com/IP

MANUFACTURED BY

530 11th AVENUE SOUTH

HOPKINS, MINNESOTA 55343

952-933-6118 • 800-222-0169

kingtechnology.com

Prevail is a registered trademark of King Technology, Inc.

Patents: kingtechnology.com/IP

20-48-0129 553121843R4N

King Technology Prevail Cycler 170, 01-02-0170 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
