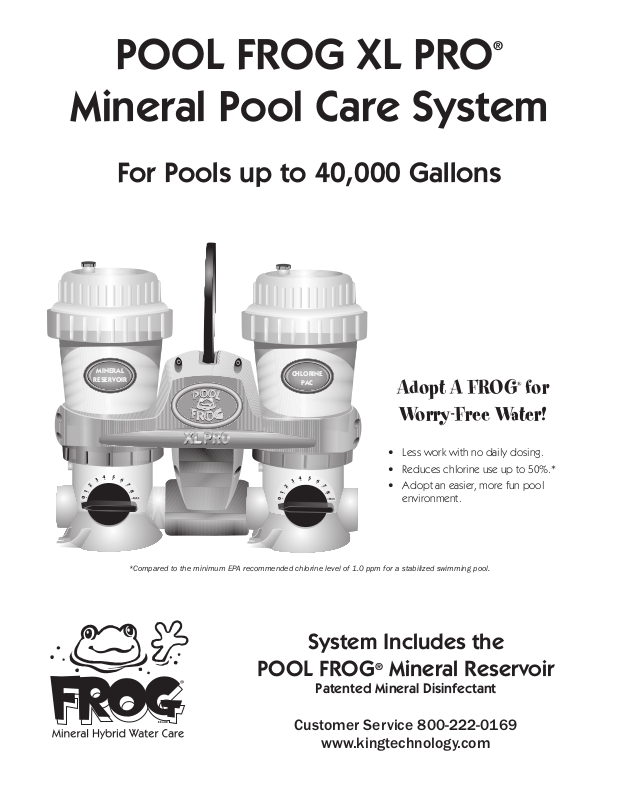

King Technology POOL FROG XL PRO User Manual
®
POOL FROG XL PRO
Mineral Pool Care System
For Pools up to 40,000 Gallons
MINERAL
RESERVOIR
CHLORINE
PAC
Adopt A FROG
Worry-Free Water!
• Lessworkwithnodailydosing.
• Reduceschlorineuseupto50%.*
• Adoptaneasier,morefunpool
environment.
*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.
System Includes the
®
for
BR AND
POOL FROG® Mineral Reservoir
®
Patented Mineral Disinfectant
Customer Service 800-222-0169
www.kingtechnology.com
1
TABLE OF CONTENTS
POOL FROG® Introduction 3
Swimming Pool Tips 4
Start-up and Operation 5-6
Replacing POOL FROG® Mineral Reservoir 7
Using FROG BAM® 8
Using POOL FROG® Pac 9
Troubleshooting 10
Parts List 11
Replacing Control Dial O-Rings 12
Replacing Cap O-Ring and Knob 12
Winterizing 13
In-line Installation 14
For Proper Performance 15
Warranty 16
For information on King Technology’s entire product line,
visit our website at www.kingtechnology.com
2
POOL
FROG
Welcome to easier pool care courtesy of POOL FROG XL PRO®. With
POOL FROG XL PRO®, your pool water will look and feel better without
a lot of work or a lot of chlorine. This system† controls bacteria using a
combination of minerals and reduced chlorine levels-up to 50%* less.
®
There are 5 parts to the POOL FROG XL PRO® System: Two In Ground
Cyclers, the POOL FROG® Mineral Reservoir, FROG BAM® 90-day Algae
Preventative and the POOL FROG® Pac.
Part 1 & 2
®
POOL FROG XL PRO
The water treatment centers that control the flow of
water through the POOL FROG
and the POOL FROG
MINERAL
RESERVOIR
®
Pac in the other.
Cyclers
®
Mineral Reservoir in one
CHLORINE
PAC
Part 3
POOL FROG®Mineral Reservoir
Holds the minerals and fits inside the POOL FROG
Cycler.
BRAND
®
THE POOL FROG
MINERAL RESERVOIR
MUST BE REPLACED
EVERY SIX MONTHS
OR AFTER ONE POOL
SEASON WHICHEVER
IS SHORTER.
®
Mineral
POOL FROG®
Mineral Cycler
For In Ground Pools
Part 4
FROG BAM
Use with the POOL FROG
XL PRO® System for a
90-day Algae-Protection
®
up to 40,000
gallons.
POOL FROG®
Chlorine Cycler
Part 5
POOL FROG®Pac
Pre-filled with chlorine tablets and fits
inside the POOL FROG
®
Chlorine Cycler.
PAC 540C
BRAND
Guarantee.
(POOL FROG
†FROG® Mineral System consists of the FROG® minerals silver chloride and carbonate used in conjunction with 0.5 ppm chlorine. The FROG® Mineral Reservoir
must be used in conjunction with the FROG® Bac Pac (EPA Reg. No.: 53735-2), an EPA registered chlorine pool product or a chlorine delivery device.
*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.
®
Mineral Reservoir sold inside POOL FROG® Mineral Cycler and separately for replacements.
POOL FROG
®
Bac Pac and FROG BAM® sold separately.)
3
Swimming Pool Tips
Start-up and Yearly Maintenance
1.
Make sure the pool has adequate circulation. The pool
water must completely circulate through the pump and
filter at least 1 to 2 times per day. This usually requires
8 to 12 hours. Check with your dealer for the proper
circulation time for your pool.
2.
Before beginning with any pool care program, you must
first balance your pool water. Take a water sample to your
local pool professional or use a complete test kit that will
test for the following important elements.
3.
If your fill water is high in metals, use a sequestering
agent or metal out product at start-up only before using
the POOL FROG® Mineral Reservoir. See your local dealer
for details on using these products and always follow
manufacturers directions carefully.
After your pool is up and running
4.
smoothly, continue to test your
water for pH, total alkalinity and
chlorine with FROG® Brand Test
Strips and maintain its balance
by adding any necessary
adjustment products (see your
dealer for details).
Water Balance Guidelines
pH: 7.2 – 7.8
Total Alkalinity: 60 – 120 ppm
Calcium Hardness: 150 – 400
Total Dissolved Solids: <1500
Stabilizer: 20 – 80 ppm
Free Chlorine: 0.5 – 1.0 ppm
4
5.
Check the pool’s filter gauge
often and periodically clean
filter per the manufacturer’s
directions. A dirty filter will slow
the flow of water which could
hamper proper circulation.
Start-up and Operation
1.
2.
Add a stabilizer or conditioner to the
pool at the beginning of the season
if the stabilizer level is below 20
ppm. This will prevent chlorine burn
off. Follow manufacturer’s directions
carefully.
Shock the pool with chlorine to rid the
water of all contaminants before beginning with POOL FROG XL PRO®. Follow
manufacturer’s directions carefully.
THIS STEP IS VERY IMPORTANT TO
START-UP.
USE CHLORINE SHOCK ONLY.
4.
5.
Replace cap and run
POOL FROG® Mineral
Cycler, with POOL FROG®
Mineral Reservoir
inserted, for 10 minutes
on Setting MAXIMUM.
FROG
®
BAM
B R AN D
®
For an Algae Protection
Guarantee insert FROG
BAM® into POOL FROG®
Mineral Reservoir in
POOL FROG® Mineral
Cycler. (Follow directions
on page 8.)
3.
Skimmer
POOL FROG®
Mineral Cycler
POOL FROG®
Chlorine Cycler
Do not add shock in or near the skimmer or into the POOL
FROG XL PRO® Cyclers as it could damage equipment, risk
potential explosion or discolor your pool surface.
POOL FROG®
Mineral
Reservoir
Install a POOL FROG®
Mineral Reservoir into
the POOL FROG® Mineral
®
D
AN
R
B
Cycler. (Follow directions
on page 7.)
REPLACE THE POOL
FROG® MINERAL
RESERVOIR EVERY
6 MONTHS OR AFTER
ONE POOL SEASON
WHICHEVER IS SHORTER.
6.
POOL FROG®
Mineral Cycler
POOL FROG®
Mineral Cycler
POOL FROG®
Chlorine Cycler
PAC 540C
BRAND
®
POOL FROG
POOL FROG®
Chlorine Cycler
®
Pac
When chlorine reading
is down to 1.0 ppm
(which may take a few
days) insert a POOL
FROG® Pac into
the POOL FROG®
Chlorine Cycler.
(Follow directions on
page 9.)
POOL FROG®
Mineral Cycler
POOL FROG®
Chlorine Cycler
5
