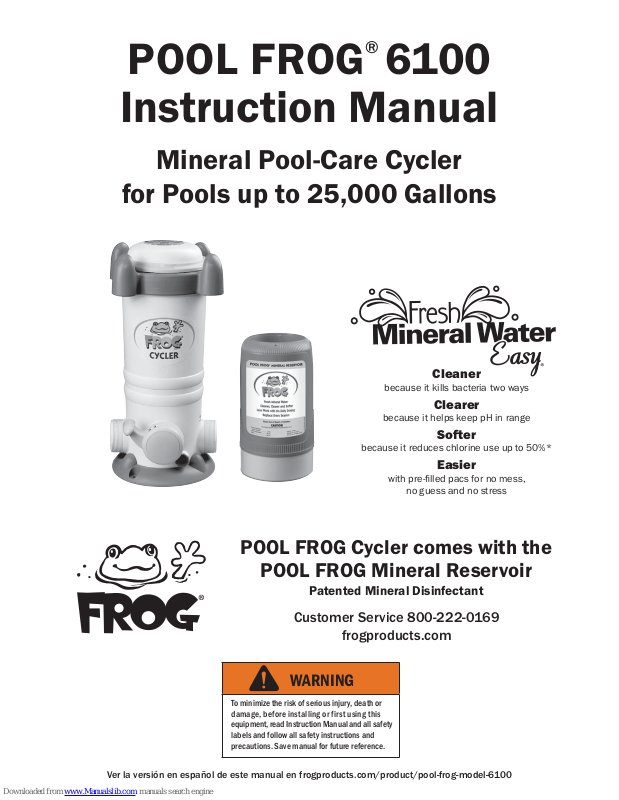

Page 1
®
POOL FROG
6100
Instruction Manual
Mineral Pool-Care Cycler
for Pools up to 25,000 Gallons
Cleaner
because it kills bacteria two ways
Clearer
because it helps keep pH in range
Softer
because it reduces chlorine use up to 50%*
Easier
with pre- lled pacs for no mess,
no guess and no stress
POOL FROG Cycler comes with the
POOL FROG Mineral Reservoir
Patented Mineral Disinfectant
Customer Service 800-222-0169
frogproducts.com
Ver la versión en español de este manual en frogproducts.com/product/pool-frog-model-6100
WARNING
To minimize the risk of serious injury, death or
damage, before installing or first using this
equipment, read Instruction Manual and all safety
labels and follow all safety instructions and
precautions. Save manual for future reference.
1
Page 2
TABLE OF CONTENTS
POOL FROG Introduction 3
Notes and Safety Information 4
Safety Labels on Cycler 5
Installation Tips to Ensure Proper Performance 6
Filter Flex-Hose Installation 7
Base Flex-Hose Installation 8
Hard-Plumbed Installation 9

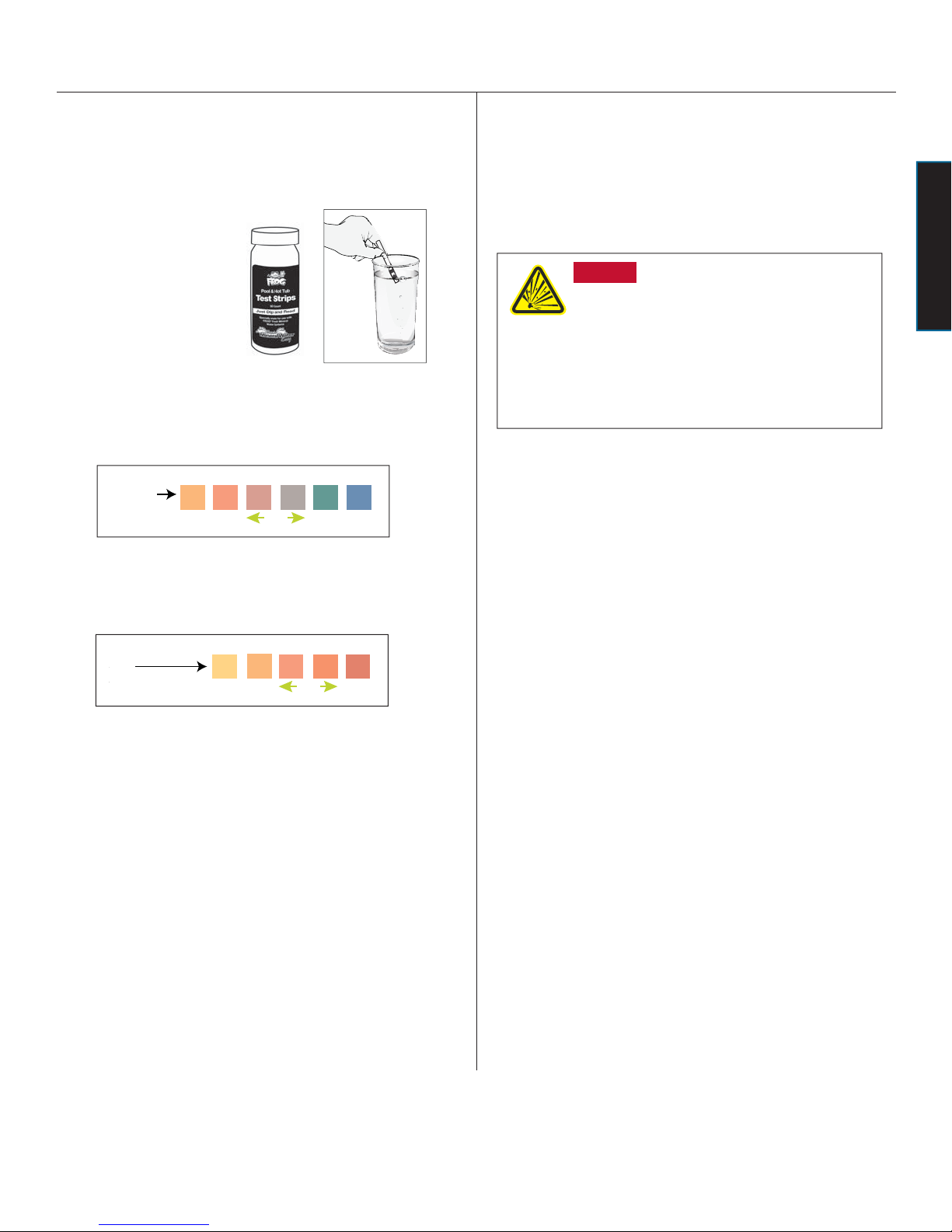

Step 1: Preparing the Pool 10-11
Step 2: Putting the System to Work 12
Step 3: Setting the Control Dial 13

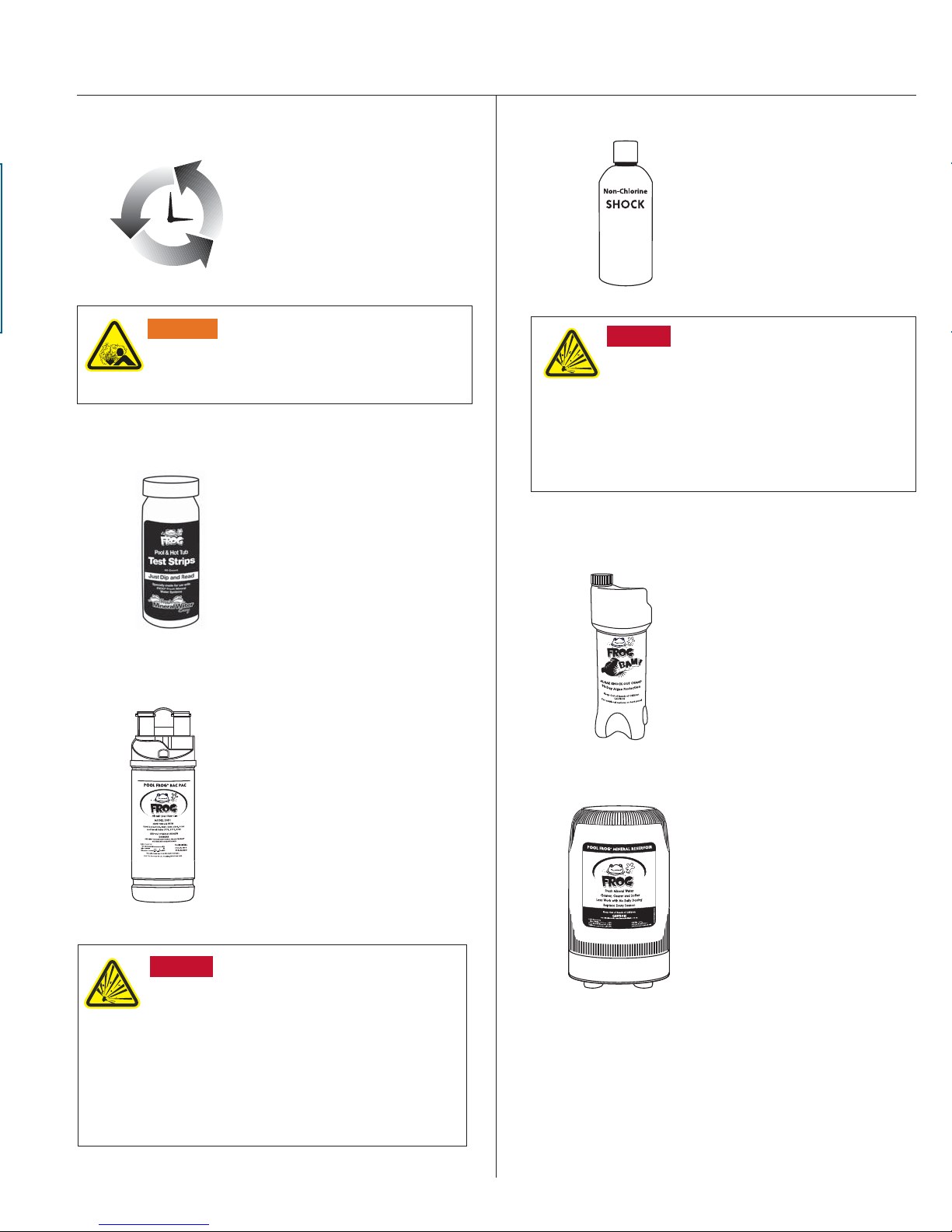

Step 4: Routine Pool Care 14

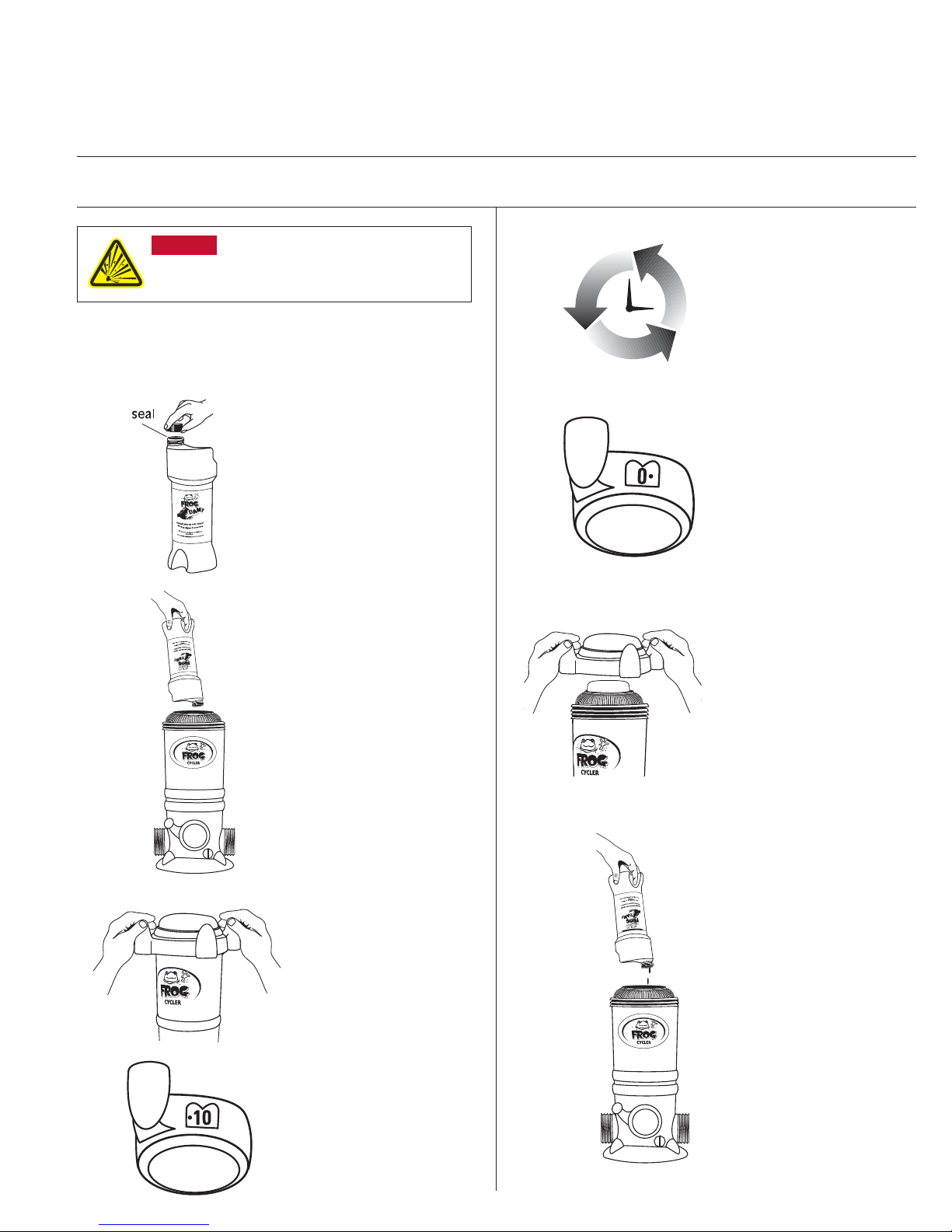

Replacing POOL FROG Mineral Reservoir 15
®
Using FROG BAM

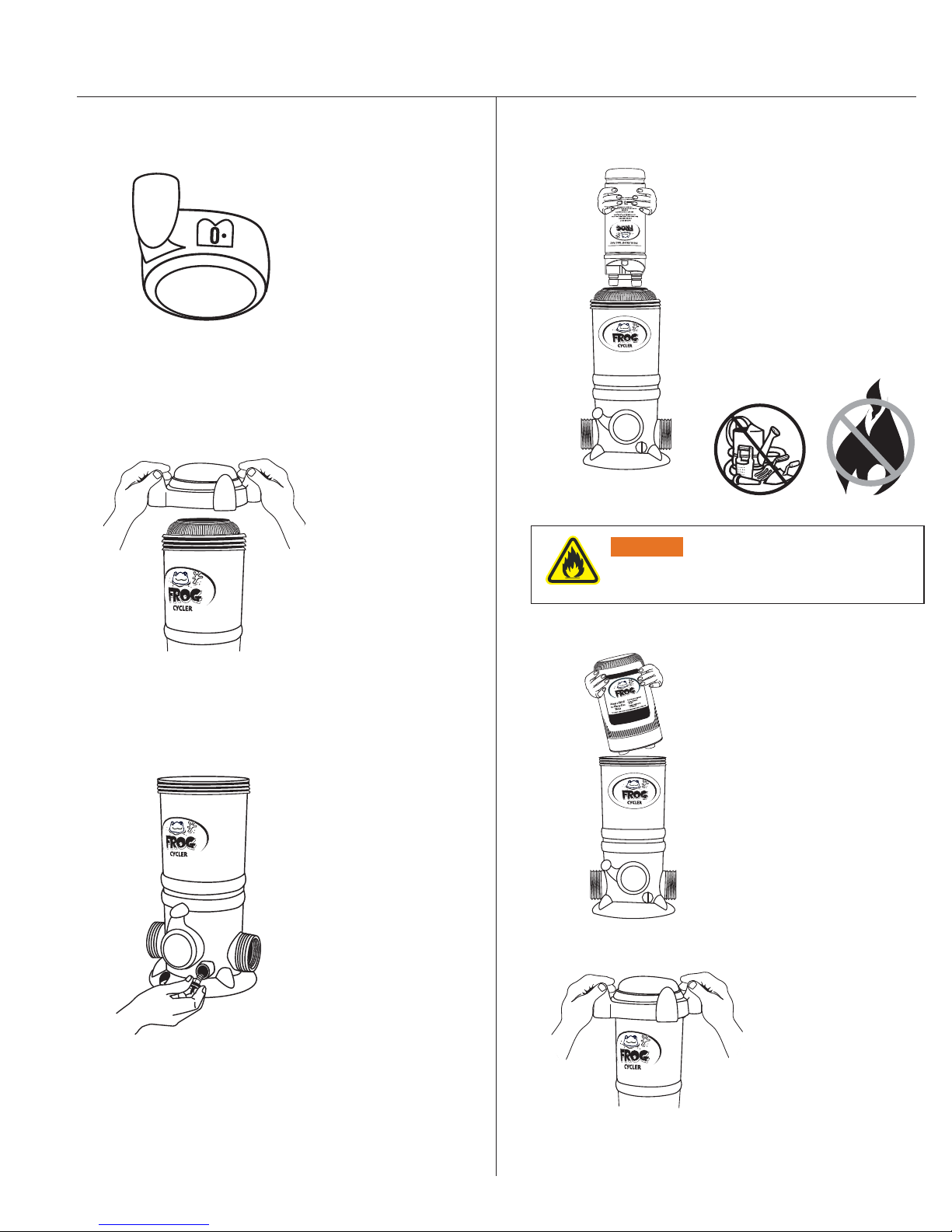

Using POOL FROG Bac Pac
16
®
17
Winterizing 18
Troubleshooting 19

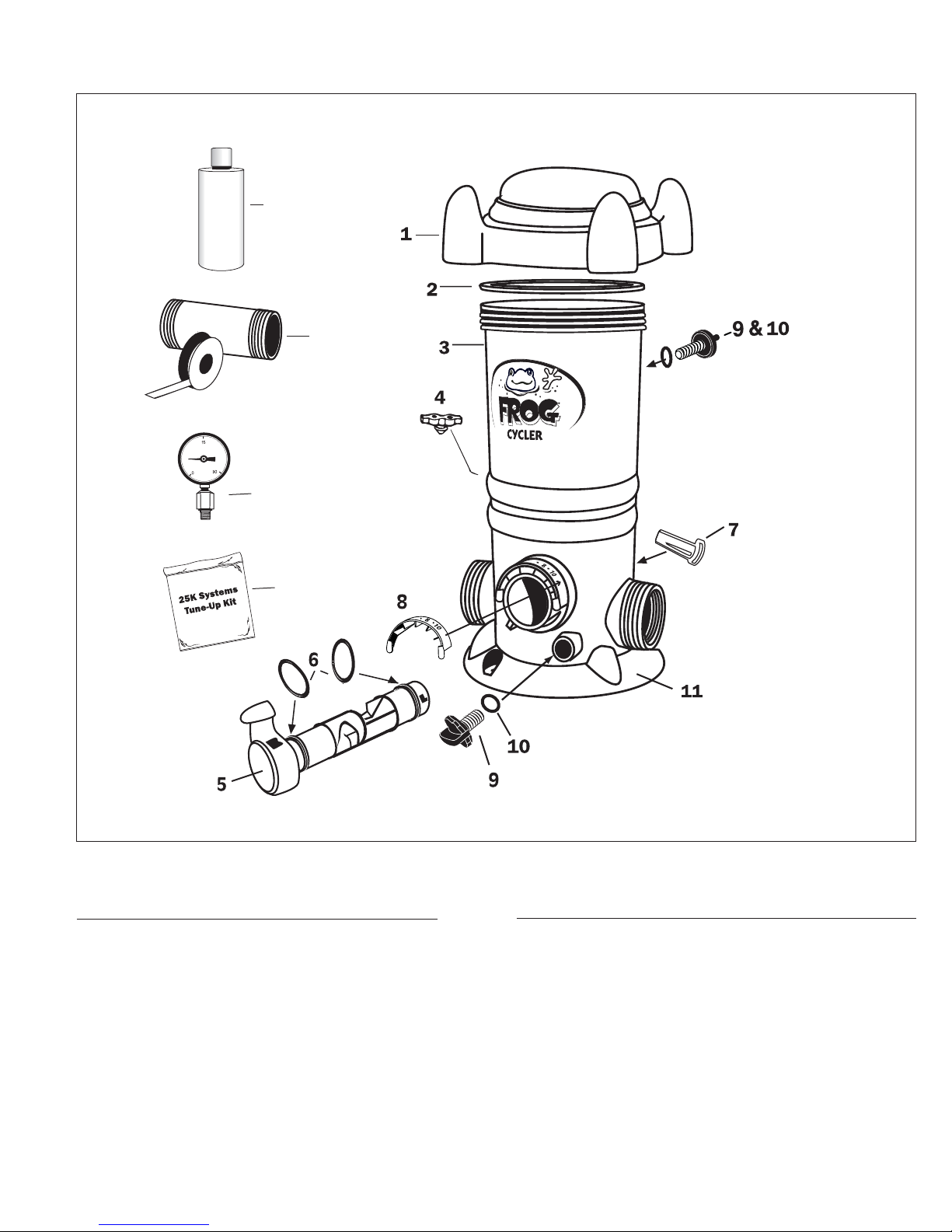

Parts List 20

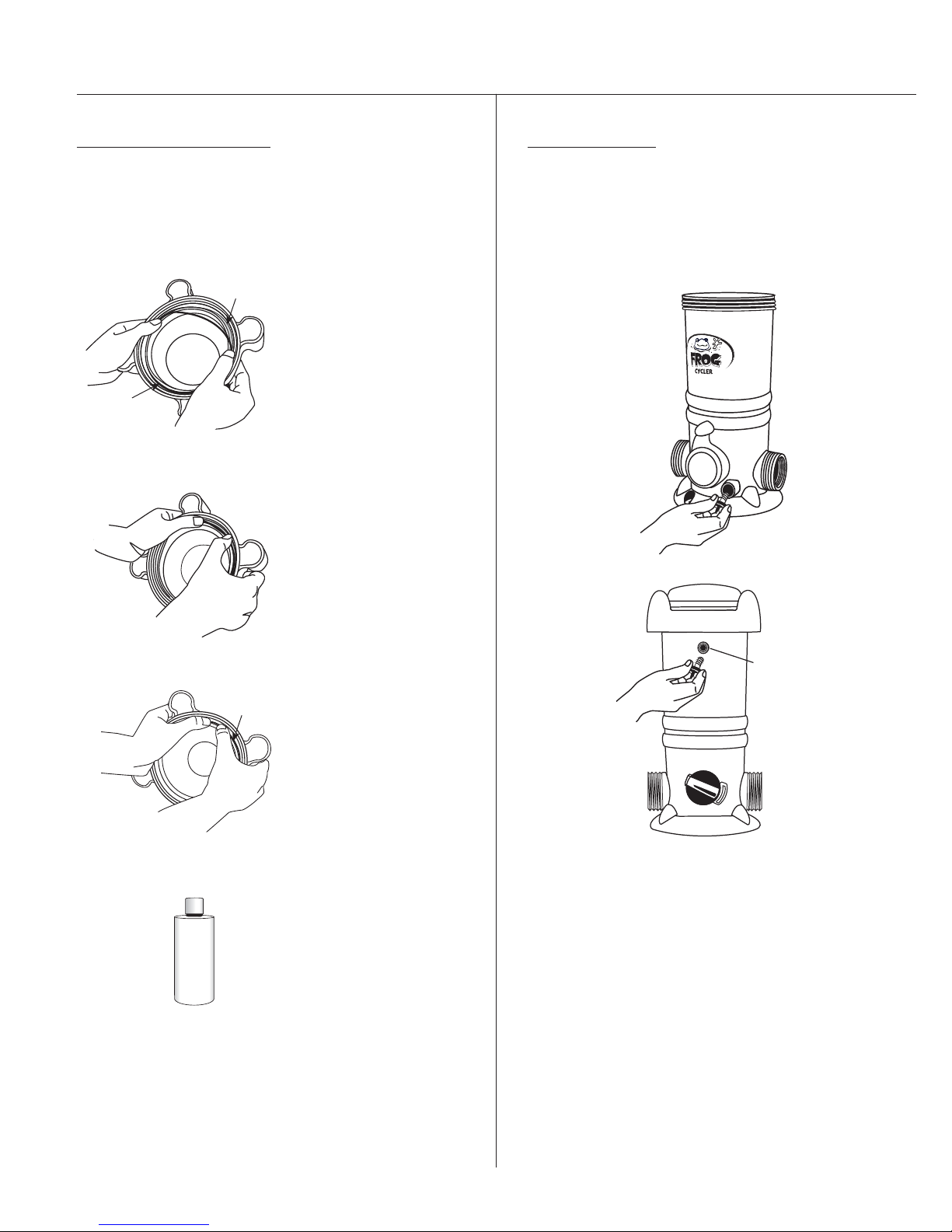

Maintenance - Replacing Control Dial O-Rings 21
Maintenance - Replacing Cap O-Rings and Knobs 22
Warranty 23
For information on King Technology’s entire product
line, visit our website at frogproducts.com
2
Page 3
Welcome to easier pool care courtesy of
FROG®. With POOL FROG, your pool water will
look and feel better without a lot of work or a
lot of chlorine. This system† controls bacteria
using a combination of minerals and reduced
chlorine levels–up to 50%* less.

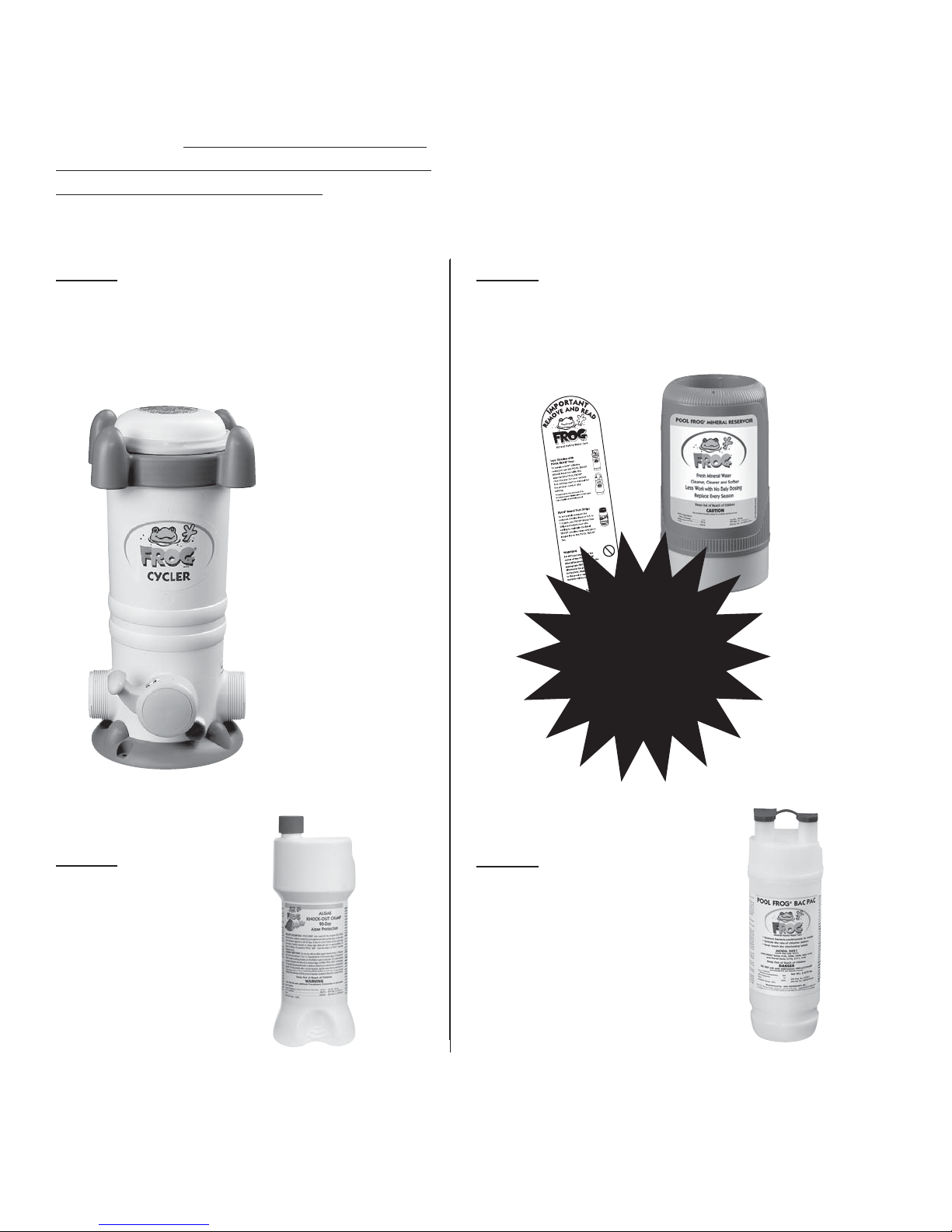

There are 4 parts to the POOL FROG System:
1. Model 6100 POOL FROG Cycler
2. POOL FROG Mineral Reservoir
3. FROG BAM 90-day Algae Preventative
4. POOL FROG Bac Pac
Part 1
POOL FROG
The water treatment center that controls the ow of
water to each part of the POOL FROG System.
Cycler
For Pools up to
25,000 gallons.
Product #01-01-6180
Part 2
POOL FROG Mineral Reservoir
Holds the minerals and ts inside the POOL FROG Cycler.
Product #01-12-6112
THE POOL FROG
MINERAL RESERVOIR
MUST BE REPLACED
EVERY SIX MONTHS
OR AFTER ONE POOL
SEASON WHICHEVER
IS SHORTER.
Part 3
FROG BAM
Use with the POOL
FROG Cycler for a
90-Day Algae-Protection
Guarantee. One bottle is
good for 15,000 gallons.
Product #01-10-5060
POOL FROG Mineral Reservoir comes inside POOL FROG Cycler and is also sold separately.
POOL FROG Bac Pac and FROG BAM also sold separately.
†
FROG Mineral System consists of the FROG minerals silver chloride and carbonate used in conjunction with 0.5 ppm chlorine. The FROG Mineral Reservoir must
be used in conjunction with the FROG Bac Pac (EPA Reg. No.: 53735-2), an EPA registered chlorine pool product or a chlorine delivery device.
*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.
Part 4
POOL FROG Bac Pac
Pre- lled with chlorine tablets and
ts inside the POOL FROG Mineral
Reservoir. Product #01-03-5880
3
Page 4
NOTICE
Notes and Safety Information
General Notes
These instructions contain information for the safe and proper
operation of this Cycler. Observe the following principles:
• Ensure that everyone using this Cycler follows the
instructions and safety precautions.
• Keep the instructions nearby and available for reference
throughout the service life of this Cycler.
These instructions do not provide for every possible contingency
that might be encountered in connection with installation, opera-
tion or maintenance of this equipment. Should further informa-
tion be desired or should particular issues arise which are not
covered suf ciently in this manual, contact King Technology at
800-222-0169.
Explanation of the signal words
Signal words, which depict the probability and severity of harm, are used in these instructions. They are de ned as follows:
Signal Word
DANGER
WARNING
Meaning
Indicates an imminently hazardous situation which, if not avoided, will result in death, serious injury
or major property damage.
Indicates a hazardous situation which, if not avoided, could result in serious injury, death, or major
property damage.
NOTICE
Indicates special instructions that are important but not related to physical injury hazards.
Explanation of the safety pictographs
The following pictographs illustrate the type of hazard.
Pictograph Type of Danger
Safety Alert/General Hazard
Explosion Risk
Hazardous Pressure
Flammable Fire Hazard
Identi cation of warnings
Warnings are intended to help you recognize risks and avoid
death, injury or property damage. This is how warnings are identi ed:
Signal Word
Pictographs
Description of danger.
Consequences if ignored.
a The arrow signals a safety precaution to be taken to
eliminate or reduce the risk.
4
Page 5
NOTICE
Safety Labels on Cycler
Review this label before installing or operating this Cycler. Contact King Technology at 800-222-0169 if this label is missing from your POOL FROG Cycler.
Fire, explosion and high pressure hazards
To minimize the risk of serious injury, death or property damage while using the POOL FROG Cycler:
a Read, understand and follow all instructions and safety precautions in the manual, and on this Cycler and on any label for
chemicals used with this Cycler including POOL FROG Bac Pacs, POOL FROG Mineral Reservoir and FROG BAM Algae Preventative.
DANGER
a Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the POOL FROG Cycler.
a Never mix Trichlor chlorine tablets with Calcium Hypochlorite, or with any other form of concentrated chlorine or other chemicals.
a Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer.
These products should be added directly into the pool if required.
a
Do not contaminate the POOL FROG Cycler, Mineral Reservoir, Bac Pac or FROG BAM with dirt, organic matter, pool chemicals (such as calcium
hypochlorite or pool shocks), fertilizers or other household chemicals. Contact between any of these substances and the POOL FROG Cycler,
Mineral Reservoir, Bac Pac or FROG BAM, will result in a chemical reaction with the generation of heat, liberation of hazardous gasses and re
or explosion.
WARNING
a Use only POOL FROG Bac Pacs, Mineral Reservoir, and FROG BAM in the POOL FROG Cycler. Never use bulk chemicals.
a To prevent the build up of gas pressure in the POOL FROG Cycler, be sure the pool return line valves are open –
except when opening or servicing the unit.
a Do not inhale fumes from the POOL FROG Cycler or POOL FROG Bac Pac.
a Avoid sparks, smoking, or any open ame near POOL FROG Cycler or chemicals.
a Do not exceed maximum operating pressure of 50 psi or maximum temperature of 104º F.
a Do not remove the cap while under pressure. Always turn off pump and bleed off pressure before opening POOL FROG Cycler.
a Do not install automatic or fast shut off valves downstream of Cycler.
a Always install the POOL FROG Cycler AFTER a heater (if applicable) on the return line.
a Always install any additional sanitizing equipment AFTER and NEVER BEFORE the POOL FROG Cycler is installed on the return line.
a Do not permit children to use or climb on this product. This product must be positioned to prevent children from using it as a
means of access to the pool.
a Always stand clear of the POOL FROG Cycler during pump start-up.
a Replace POOL FROG Cycler if you see signs of cracks, damage or degradation to the Cycler body or cap.
a Prior to pressurizing, check with your dealer to ensure your plumbing connections meet building codes.
a Failure to properly winterize your POOL FROG Cycler could result in freeze damage. (See page 18 for winterizing details.)
NOTICE
5
Page 6

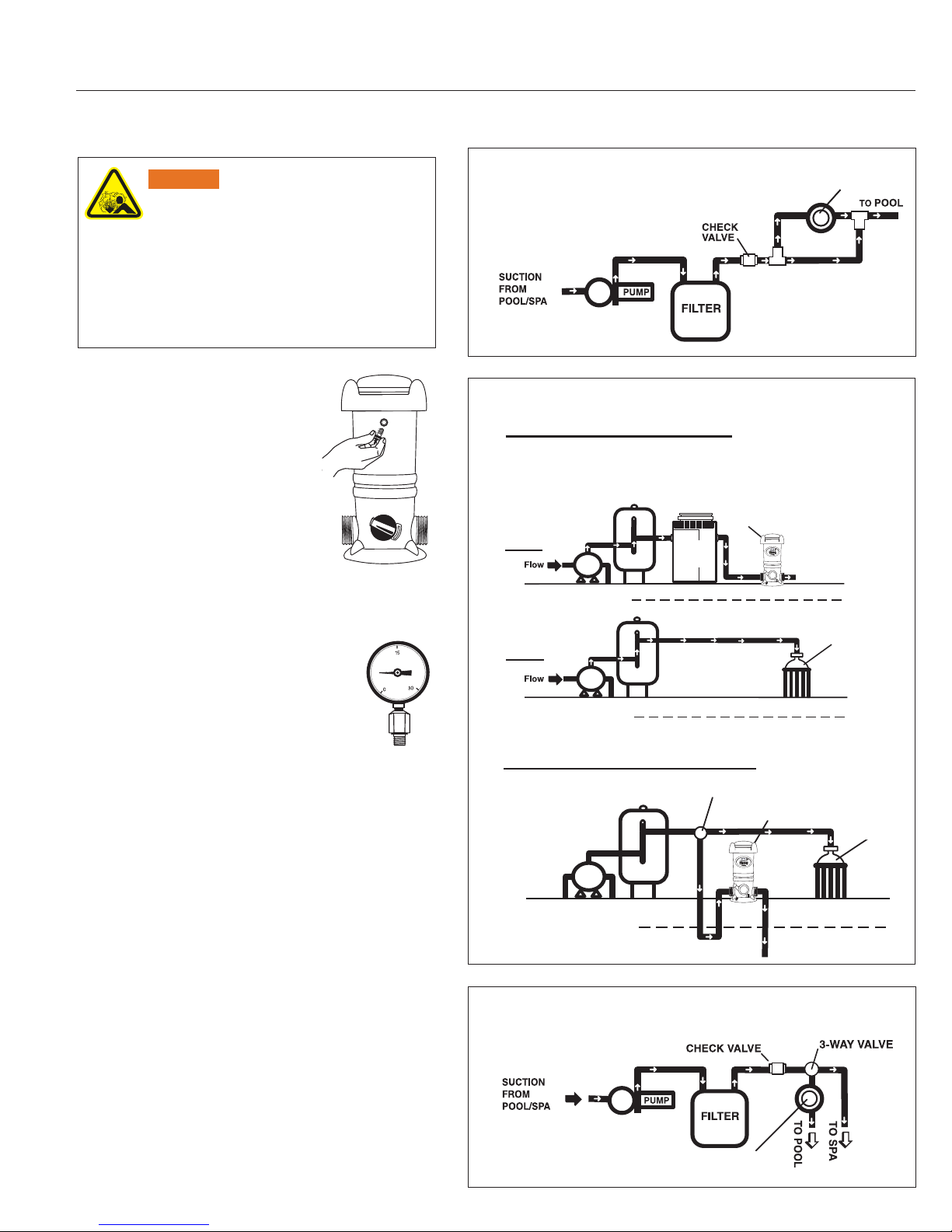

Installation Tips to Ensure Proper Performance
Before installing, read all directions carefully and contact your dealer for installation support.
WARNING
• Do not exceed maximum operating pressure of 50 psi.
• Do not install automatic or fast shut off valves
downstream of feeder.
• Always install the POOL FROG Cycler AFTER the
heater (if applicable) on the return line.
• Always install any additional sanitizing equipment
AFTER and NEVER BEFORE the POOL FROG Cycler is
installed on the return line.
1) If using a multi-speed pump, run
pump for at least 6 hours per day at
high speed (at least 40 gpm).
If the pump will run on low speed 24
hours per day or less than 6 hours per
day on high speed, you must bleed the
air while the pump is on by unscrewing
the back knob until water appears.
Then screw the knob back in. Repeat
this process each time the cap is
removed for any reason.
2) Install Cycler with 4-8 psi back pressure.
Lower back pressures could result in under
chlorination. Change the eyeball ttings in
the return jets to a smaller size to increase
back pressure. Contact King Technology at
800-222-0169 for a specially designed
Cycler pressure gauge to determine back
pressure at pool start-up.
3) Special installation Requirements:
IMPORTANT: Over chlorination or damage to the
POOL FROG Cycler or other equipment could result if
special installations A, B or C are not used in these
situations.
PN #01-22-4000
A. With High Flow Rate (greater than 80 gpm)
POOL FROG Cycler
Install T- ttings exactly as shown.
B. With In-Floor Cleaner - TWO OPTIONS
OPTION 1- A Two-Line Installation
The best option is to have two lines. One line with pump, lter, heater and
POOL FROG Cycler and a second line with a separate pump for the in- oor
cleaning system ( lter optional).
FILTER
HEATER
Line 1
PUMP
Line 2
FILTER
PUMP
OPTION 2 - A 3-Way Valve Installation
3-way manual valve or 3-way motor valve plus controls
PUMP
FILTER
POOL FROG Cycler
POOL WATER LEVEL
POOL WATER LEVEL
POOL FROG
Cycler
POOL RETURN
IN-FLOOR
CLEANER
VALVE
IN-FLOOR
CLEANER
VALVE
• If water ow is higher than 80 gallons per minute (gpm),
see diagram A.
• If an in- oor cleaner is included with pool,
see diagram B, with two options. Preferred
installation is Option 1 with two separate lines.
• If set-up is a pool and spa combination with
common equipment, see diagram C.
Questions? Call Customer Service at 800-222-0169
Monday thru Friday, 8 am to 5 pm central time.
6
C. Pool and Spillover Spa Combination
POOL FROG
Cycler
POOL WATER LEVEL
Page 7
Install
TOOLS NEEDED
Screwdriver
Pipe Wrench
INCLUDED WITH POOL
FROG CYCLER
Pipe Thread Tape
or Sealant
One 6” X 1½” TBE PVC
Nipple
MATERIALS NEEDED
One Hose Adapter
1½” X 1½” X 1¼”

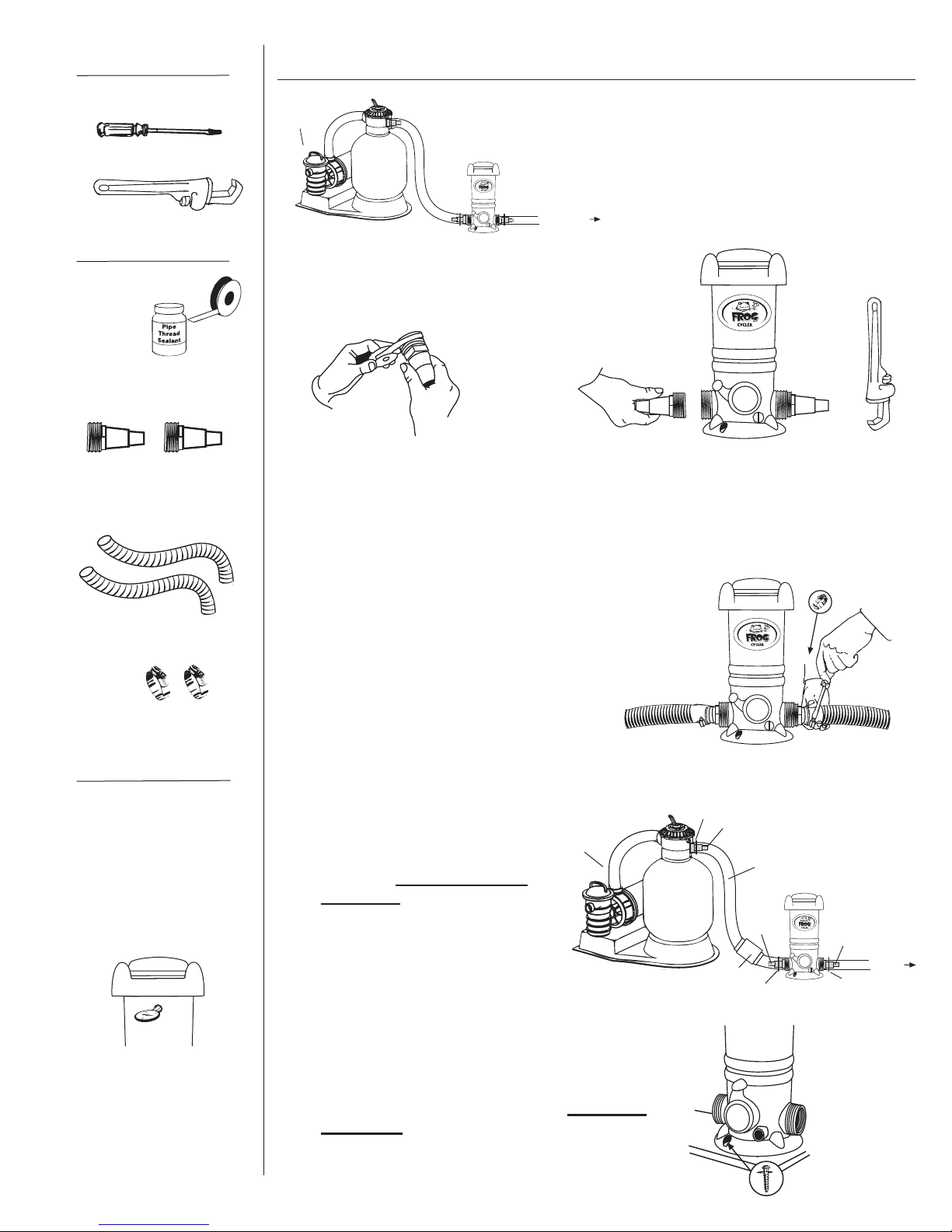

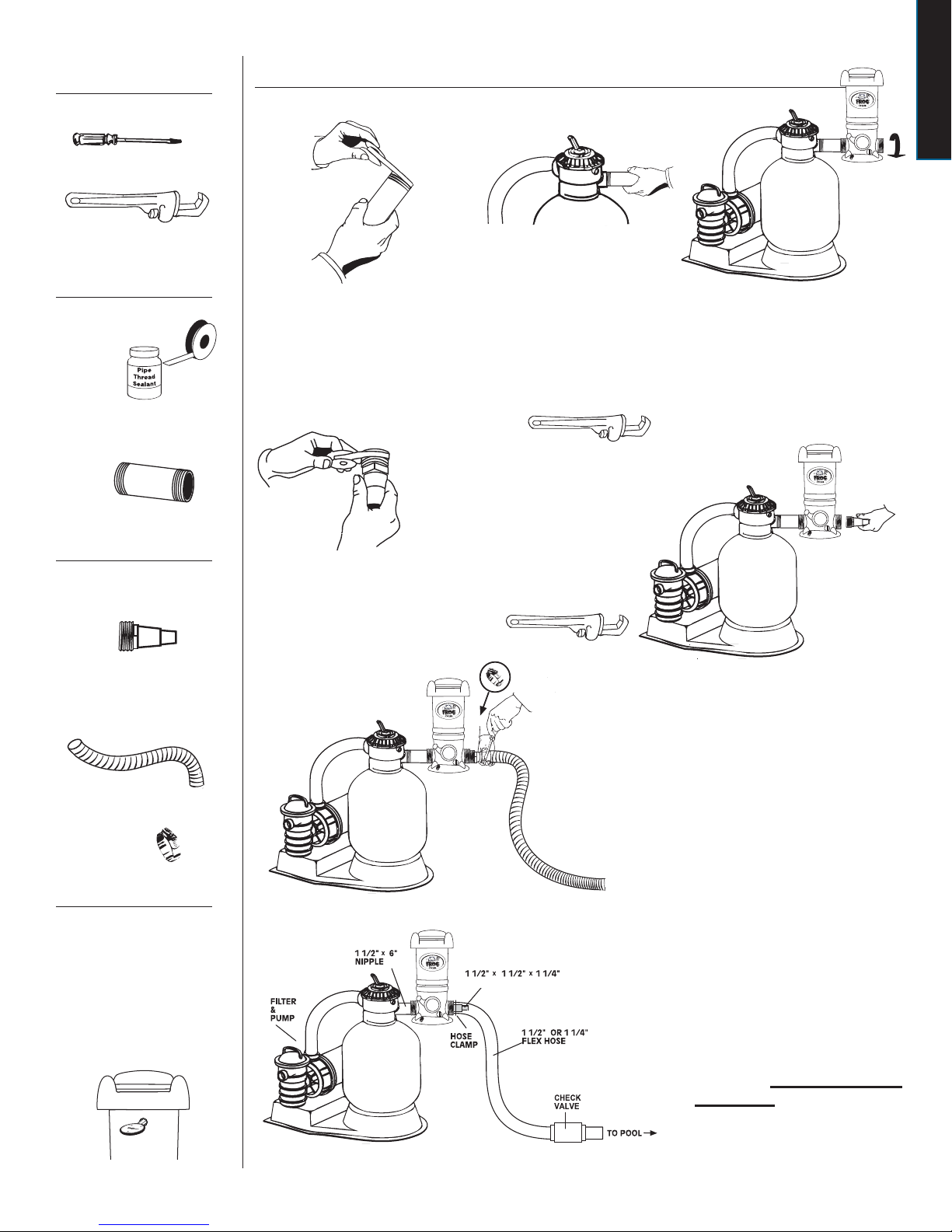

Filter Flex-Hose Installation
Apply pipe thread tape or
1.
sealant to each threaded
end of nipple.
Apply pipe thread tape or
4.
sealant to threaded end of
hose adapter.
Screw one end of nipple
2.
into the lter return. Hand
tighten. Finish tightening by
turning 1 to 2 revolutions
with a pipe wrench.
DO NOT OVER TIGHTEN.
Screw adapter into the other
5.
side of POOL FROG Cycler.
Hand tighten. Finish
tightening by turning
1 to 2 revolutions
with a pipe wrench.
DO NOT OVER TIGHTEN.
Screw either side of POOL
3.
FROG Cycler on to open
nipple end until upright
and secure.
One Section of
1½” or 1¼” Flex Hose
One
Hose Clamp
RECOMMENDED
4-8 psi Back Pressure
To avoid over or under chlorination,
replace eyeball ttings in the
return jets to a smaller or larger
size to adjust back pressure. For
best results use King Technology’s
pressure gauge, order part number
01-22-4000.
6.
Attach return section of hose to
the adapter with clamp. Tighten
clamp with screwdriver.
HOSE ADAPTER
7.
To prevent damage to heaters
or lters, see your dealer about
installing a corrosion resistant
check valve which will reduce
the back ow of chlorine gas
when the Cycler is turned off.
7
Page 8
TOOLS NEEDED
Screwdriver
Pipe Wrench
MATERIALS NEEDED
Pipe Thread
Tap e
or Sealant
Two Hose Adapters
1½” X 1½” X 1¼”

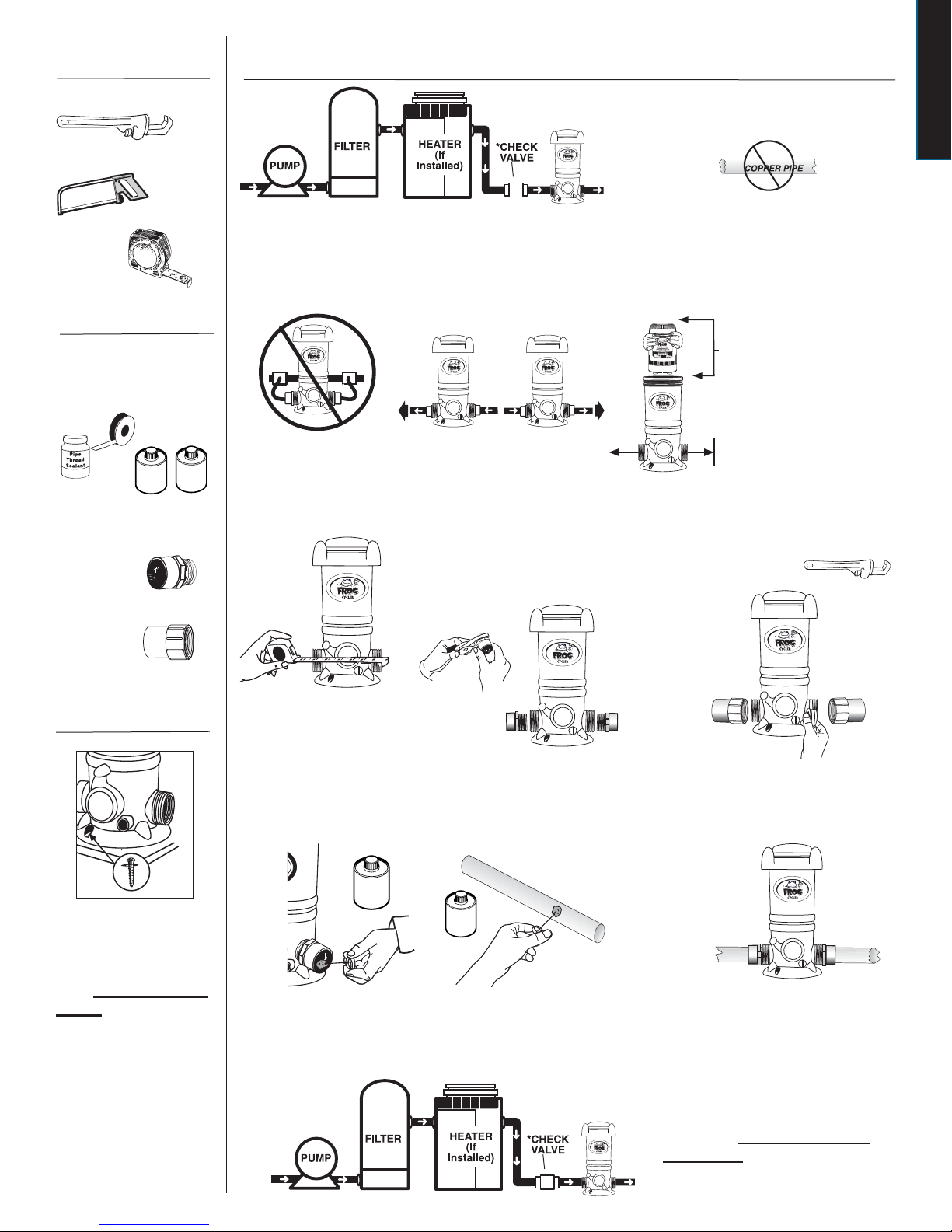

Base Flex-Hose Installation
05-0
&),4%2
4/0//,
The POOL FROG Cycler should always be
installed between the lter and pool (or between
heater and pool if applicable). Never install
POOL FROG before the heater or damage to
the heater could occur.
Two Sections of 1½”
or 1¼” Flex Hose
Two
Hose
Clamps
RECOMMENDED
4-8 psi Back Pressure
To avoid over or under chlorination,
replace eyeball ttings in the
return jets to a smaller or larger
size to adjust back pressure. For
best results use King Technology’s
pressure gauge, order part number
01-22-4000.
Apply pipe thread tape or sealant
1.
to the threaded end of both hose
adapters.
Attach the lter section of ex hose to one
3.
hose adapter and the return section of ex
hose to the other hose adapter with clamps
and tighten with screwdriver. Bi- ow valve
design allows water ow in either direction.
To prevent damage to heaters
4.
or lters, see your dealer about
installing a corrosion resistant
check valve which will reduce the
back ow of chlorine gas when the
Cycler is turned off.
FILTER &
PUMP
Screw adapters into each end of POOL
2.
FROG Cycler. Hand tighten. Finish
tightening by turning 1 to 2 revolutions
with a pipe wrench. DO NOT OVER
TIGHTEN.
HOSE
CLAMP
1 1/2" X 1 1/2" X 1 1/4"
HOSE ADAPTER
1 1/2" OR 1 1/4"
FLEX HOSE
HOSE
ADAPTER
CHECK
VALVE
HOSE
CLAMP
HOSE
ADAPTER
HOSE
CLAMP
TO POOL
5.
8
For better stability, POOL FROG Cycler may be
mounted on a treated wood base using Phillips pan
head screws, one in front and two in back. If you
have questions about stability, please contact your
dealer or King Technology.
Page 9
TOOLS NEEDED
Pipe Wrench
Hacksaw
Install
Hard-Plumbed Installation
Tape
Measure
MATERIALS NEEDED
Pipe Thread Tape
or Sealant, Primer and
PVC Cement
P
P
V
r
r
e
i
m
C
e
e
m
1½” Male Adapter
(slip x MPT)
or
2” Female
Adapter
(slip x FPT)
The POOL FROG Cycler should always be installed
between the lter and pool (or between heater and pool if
applicable). Never install POOL FROG before the heater or
Do NOT install in copper pipe if using
FROG Bac Pac as chemical corrosion
may lead to pipe failure.
damage to the heater could occur.
Allow a minimum
of 12” above and
12"
on each side of
OR
POOL FROG Cycler
to ensure room for
easy replacement of
Do NOT install POOL
C
t
n
FROG off-line.
Bi- ow valve design allows
installation in either ow
direction.
12"
12"
POOL FROG Mineral
Reservoir and Pool
FROG Bac Pac.
Screw adapters into each end of POOL FROG Cycler following directions
1.
2.
for a male adapter or a female adapter. Hand tighten. Finish tightening
by turning 1 to 2 revolutions with a pipe wrench.
DO NOT OVER TIGHTEN.
Measure the distance
SECURE CYCLER
between the outside
adapters and cut out a
section of pipe 3” less
than that dimension.
For better stability,
POOL FROG Cycler
may be mounted on
a treated wood base
3.
using Phillips pan head
screws, one in front
and two in back. If you
have questions about
Following Primer directions, brush Primer on the inside of the
adapters and to ends of pipe. Repeat this process with PVC
cement following manufacturer’s directions on that product.
stability, please contact
your dealer or King
Technology.
5.
2a.
If using male adapters, apply
pipe thread tape or sealant to the
threaded end of each adapter.
P
r
r
e
i
m
C
P
V
C
t
n
e
e
m
2b.
If using female adapters, apply
pipe thread tape or sealant to the
threaded end of each feeder port.
4.
Insert PVC pipe into adapters with
a twisting action. Hold in place 5 to
10 seconds to bond.
To prevent damage to heaters
or lters, see your dealer about
installing a corrosion resistant
check valve which will reduce the
back ow of chlorine gas when the
Cycler is turned off.
9
Page 10
Step 1: Preparing the Pool
1.
2.
Make sure the pool has adequate
circulation. The total volume of pool
water must completely circulate
through the pump and lter at least
1 to 2 times per day. This usually
requires 8 to 12 hours of circulation.
Check with your dealer for the
proper circulation time for your pool.
Check the pool’s lter gauge often
and periodically clean lter per
the manufacturer’s directions.
A dirty lter will slow the ow of
water which could hamper proper
circulation.
WARNING
Do not exceed maximum operating
pressure of 50 psi.
4.
5.
Check for metals in the pool such
Metal
Out
Before beginning with any pool care program, you
must rst balance your pool water. Take a water
sample to your local pool professional (or use a
complete test kit) to test for the important Water
Balance Guidelines.
IMPORTANT: Always follow printed instructions on
the balancing chemical packages. Add balancing
chemicals in small increments, one at a time,
with circulation running. For best results, wait
8-12 hours before testing again and adding any
additional balancing chemicals.
as iron or copper. Before attempting
water balance these should be
removed. See your dealer for a metal
out or sequesterant and follow the
label directions carefully.
Check the Water Hardness of your ll water before
3.
adding to the pool. If calcium content is higher than
400 ppm, nd a soft water source to ll your pool
instead; otherwise water balance will be very dif cult.
Water Balance Guidelines
pH: 7.2 – 7.8
Total Alkalinity: 80 – 120 ppm
Calcium Hardness: 200 – 400
Total Dissolved Solids: <1500
Stabilizer: 20 – 80 ppm
Free Chlorine: 0.5 – 1.0 ppm
10
Page 11
Continue... Step 1: Preparing the Pool
For best results in achieving water balance, follow steps
5a through 5e in order.
5a. Take a water sample
from the pool and dip a
FROG Test Strip into it.
5b. Look at the Total Alkalinity reading rst. Adjustments
should be made to bring the Total Alkalinity in the range of
80 – 120 ppm prior to making any adjustments to pH even
if it throws pH off further.
Total Alkalinity
(ppm)
Alcalinidad Total
(mg/L)
0 40 80 120 180 240
LOW
VERY LOW
MUY BAJO
IDEAL
BAJO
HIGH
ALTO
VERY HIGH
MUY ALTO
5c. After Total Alkalinity is in range, test for pH. It should be
between 7.2 and 7.8. If higher or lower, add a pH adjuster.
Initially shock the pool with a chlorine shock only to
6.
rid the water of contaminants and establish a chlorine
residual. Always follow the manufacturer’s directions
carefully. See the DANGER box below for important
guidance on shocking.
DANGER
• Never add any other types of chlorine, pH adjusters,
shock treatments or algaecides through the skimmer.
These products should be added directly into the
pool if required.
• Never use fast dissolving chlorine tablets, liquid
bleach, or calcium hypochlorite in the POOL FROG
Cycler.
Operate
6.2 6.8 7.2 7.8 8.4
pH
LOW
VERY LOW
MUY BAJO
IDEAL
BAJO
HIGH
ALTO
5d. Then test your Water Hardness again. If lower than
200 ppm, add Calcium Increaser. Always maintain 200-400
ppm.
5e. Lastly, test for stabilizer or conditioner levels. Add
conditioner if the level is below 20 ppm. This will prevent
chlorine burn off. If stabilizer level is above 80 ppm,
partially drain water and re- ll.
11
Page 12

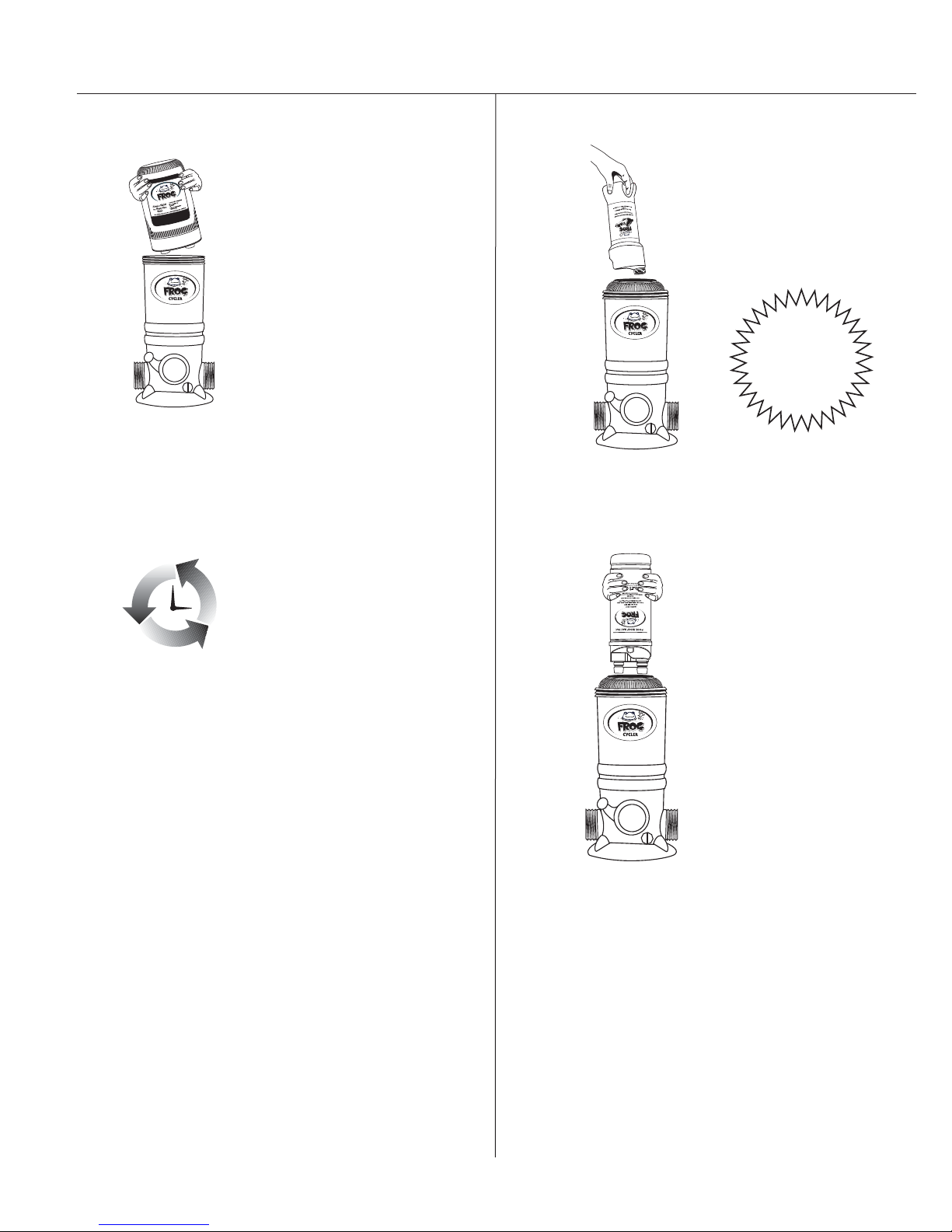

Step 2: Putting the System to Work
1.
2.
¥
Install a POOL FROG Mineral
Reservoir into the POOL
FROG Cycler. (See page 15 for
directions.)
IMPORTANT:
Replace the POOL FROG Mineral
Reservoir every 6 months
or after one pool season,
whichever is shorter. After that
time, you will hear the spent
media inside, however it is no
longer effective and must be
replaced.
Replace cap and run POOL
FROG Cycler, with POOL FROG
Mineral Reservoir inserted, for
10 minutes on Setting 5.
3.
4.
Insert FROG BAM into the
open center of the POOL FROG
Mineral Reservoir in the POOL
FROG Cycler. (See page 16 for
directions.)
Use FROG BAM
for a 90-day
Algae Protection
Guarantee!
When chlorine reading is down
®
to 1.0 ppm, which may take a
few days, insert POOL FROG
Bac Pac into the open center
of the POOL FROG Mineral
Reservoir. (See page 17 for
directions.)
12
Page 13

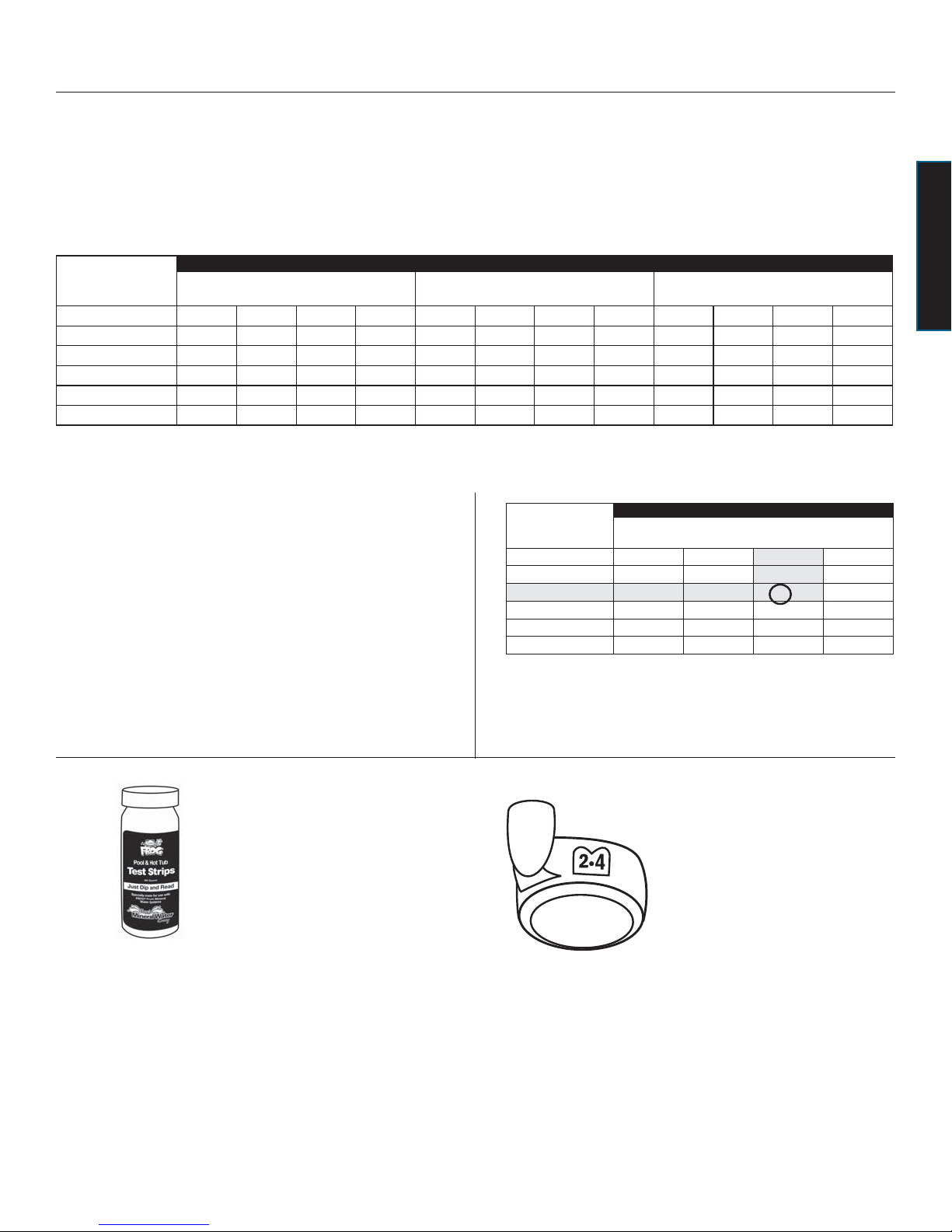

Step 3: Setting the Control Dial
This Cycler is designed to work effectively with a variety of pool equipment as long as the following procedures are followed.
1.
Set the control dial by matching up the parameters of your pool on the chart below. THIS IS A STARTING POINT ONLY and may need
to be adjusted to t your individual pool needs. See #2 below for adjusting directions. IMPORTANT: If using a multi-speed pump,
pump-run times of at least 6 hours per day at high speed are recommended for proper performance.
If running the pump at low speed only or on high speed less than 6 hours, please follow the 24 hour low-speed
directions below.
Operate
POOL SIZE
Gallons Diameter
7,000 (18’) 5.0
9,000 (21’) 5.5
12,000 (24’) 6.0
15,000 NR
20,000 NR
25,000 NR NR
* – Bypass installation recommended. NR – This pump size is not recommended for this size pool.
1/2 hp 3/4 hp 1 hp 1 1/2 hp
8 HOUR PUMP RUN TIME
PUMP SIZE
1/2 hp 3/4 hp 1 hp 1 1/2 hp
4.5 4.0 3.5 4.5 4.0 3.0 5.0* 3.5 3.0 2.5 4.0*
5.0 4.5 4.0 5.0 4.5 4.0 5.5* 4.0 3.5 3.0 4.5*
5.5 5.0 4.5 5.5 5.0 4.5 4.0 4.5 4.0 3.5 5.0*
6.0 5.5 5.0 6.0 5.5 5.0 4.5 5.0 4.5 4.0 3.5
NR 6.0 5.5 NR 6.0 5.5 5.0 5.5 5.0 4.5 4.0
6.5 6.0 NR 6.5 6.0 5.5 6.0 5.5 5.0 4.5
12 HOUR PUMP RUN TIME
24 HOUR, LOW-SPEED PUMP-RUN TIME
In order to ensure proper performance when running the
pump on low speed for 24 hours per day or high speed less
than 6 hours per day, bleed the air while the pump is on by
unscrewing the knob on the back of the Cycler near the cap
until water appears. Then screw the knob back on. Repeat this
process each time the cap is removed for any reason. Set the
control dial at 6 and follow the adjustment directions in Step 2
to determine the correct setting for your pool.
24 HOUR PUMP RUN TIME
PUMP SIZE
1/2 hp 3/4 hp 1 hp 1 1/2 hp
RECOMMENDED FLOW RATE: 20-60 gpm
PUMP SIZE
EXAMPLE
POOL SIZE
Gallons Diameter
7,000 (18’)
9,000 (21’)
12,000 (24’)
15,000
20,000
25,000
Find your starting dial setting by matching up the parameters of your
pool on the above chart. An above ground pool with approximately
12,000 gallons, with a 1 horsepower pump running 12 hours a day,
would require a starting setting of 4.5.
1/2 hp 3/4 hp 1 hp 1 1/2 hp
4.5 4.0 3.0 5.0*
5.0 4.5 4.0 5.5*
5.5 5.0 4.5 4.0
6.0 5.5 5.0 4.5
NR 6.0 5.5 5.0
NR 6.5 6.0 5.5
12 HOUR PUMP RUN TIME
PUMP SIZE
2.
For the rst week, test the pool water
daily for free chlorine with FROG Test
Strips to ensure correct dial setting.
Continue to test weekly throughout
the season.
IMPORTANT: Control dial settings in excess of these
recommendations could result in excess trichlor levels being
discharged into the pool. This can result in bleaching or
discoloration of areas around the pool inlet or, in some cases,
bleaching or discoloration of the entire pool liner or paint. In
addition, excess trichlor in the pool can create health hazards
to bathers.
After each testing, adjust the dial
up by 1/2 increment if the free
chlorine reading has dropped
below 0.5 ppm or adjust down by
1/2 increment if the reading has
risen above 1.0 ppm. Continue
this process each day until the free
chlorine reading stabilizes to at
least 0.5 ppm.
Remember to adjust dial by
1/2 increments only in order to
prevent over chlorination which
may bleach pool surfaces.
13
Page 14

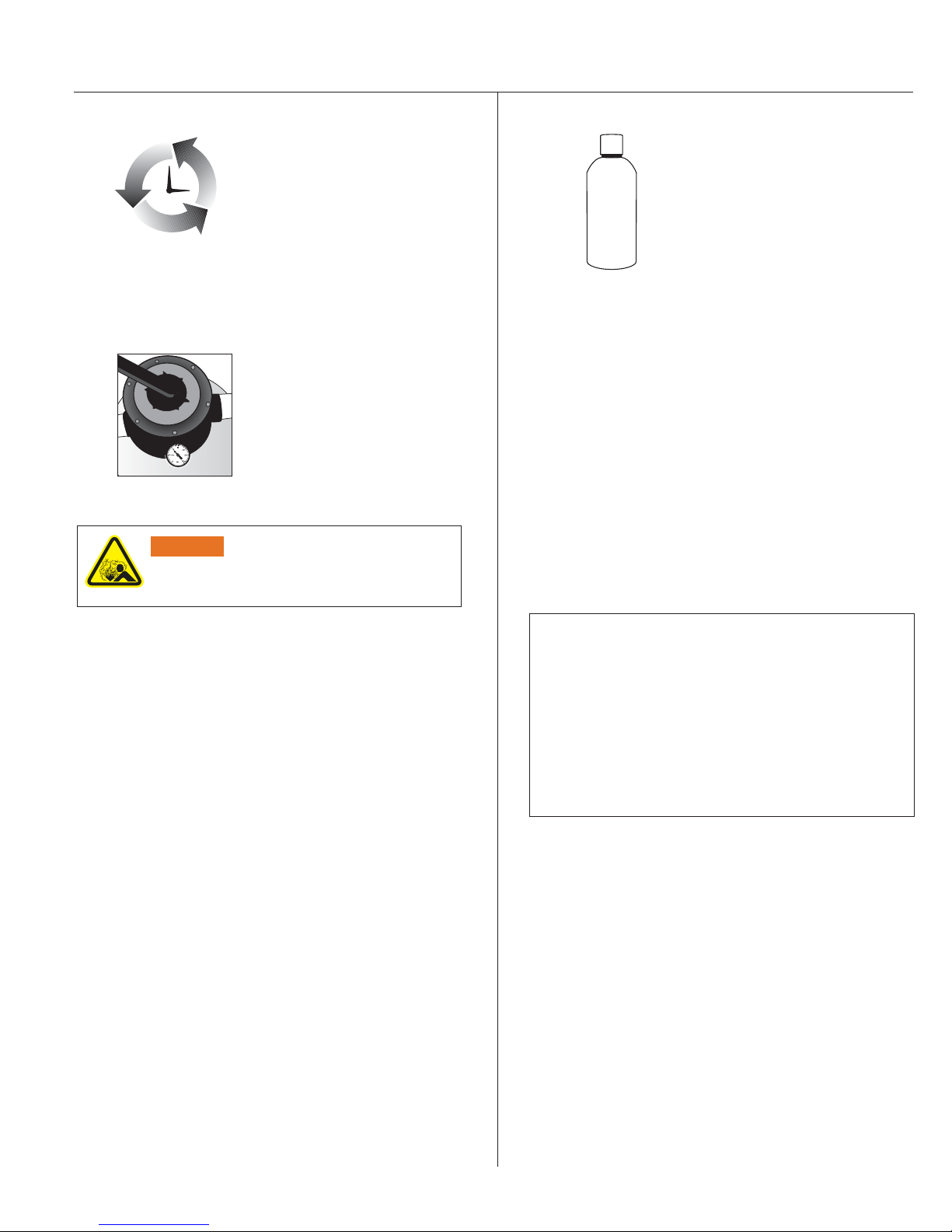

Step 4: Routine Pool Care
1.
2.
Run ltration enough hours to
circulate all water 1 to 2 times per
day. More than that could result in
over chlorination.
WARNING
To prevent the build up of gas pressure in the POOL FROG
Cycler, be sure the pool return line valves are open –except
when opening or servicing the unit.
Regularly test water with FROG Test
Strips to maintain pH and Total
Alkalinity.
NOTE: Water balance is affected
by bather load, chemical usage,
evaporation and the makeup of
source water, so maintaining water
balance regularly is important.
4.
5.
Shock the pool every other week
or as needed. We recommend a
non-chlorine shock as reducing
chlorine use is the goal of FROG
products. However, using a chlorine
shock is OK too.
DANGER
• Never add any other types of chlorine, pH adjusters,
shock treatments or algaecides through the skimmer.
These products should be added directly into the
pool if required.
• Never use fast dissolving chlorine tablets, liquid
bleach, or calcium hypochlorite in the POOL FROG
Cycler.
Before closing the pool for winter,
use FROG BAM following the
directions on page 16.
3.
Maintain 0.5 to 1.0 ppm free
chlorine level at all times.
Note: These lower chlorine levels
®
B R AN D
are only acceptable when using
FROG minerals.
DANGER
Do not contaminate the POOL FROG Cycler, Mineral
Reservoir, Bac Pac or FROG BAM with dirt, organic
matter, pool chemicals (such as calcium hypochlorite or
pool shocks), fertilizers or other household chemicals.
Contact between any of these substances and the
POOL FROG Cycler, Mineral Reservoir, Bac Pac or
FROG BAM, will result in a chemical reaction with the
generation of heat, liberation of hazardous gasses and
re or explosion.
6.
Remember to replace POOL FROG
Mineral Reservoir and all other
POOL FROG replacements as
directed.
14
Page 15

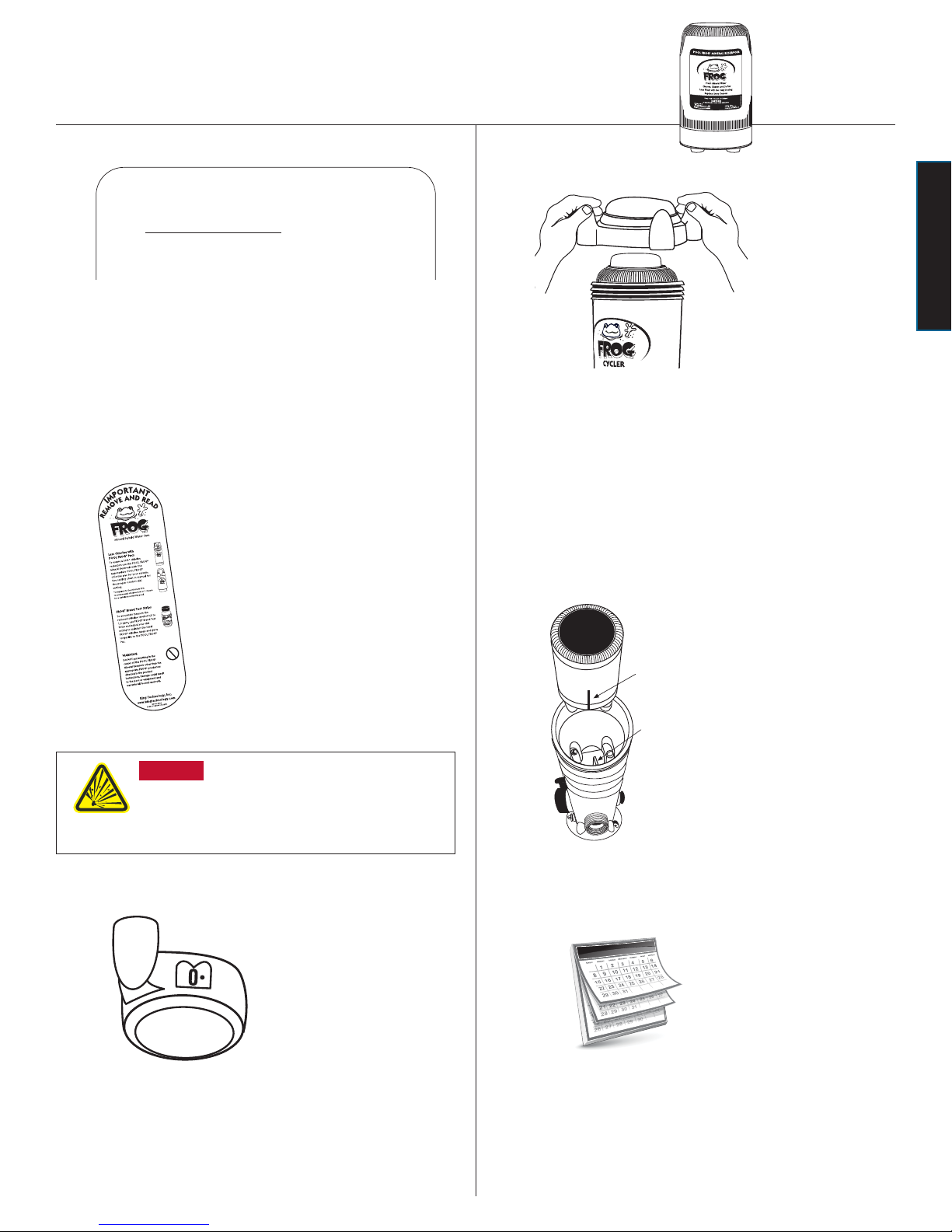

Replacing a POOL FROG Mineral Reservoir
Must be replaced every 6 months or after one pool season.
POOL FROG® MINERAL RESERVOIR
1.
Serial No.
Product Description:
The patented mineral formula in the POOL FROG Mineral Reservoir also neutralizes acids, which helps keep the pH in an
acceptable range with less monitoring. The controlled release of minerals provides an optimum level of protection in your
pool. The FROG Mineral System
source of chlorine such as the POOL FROG Bac Pac (EPA Reg. No. 53735-2) or a chlorine delivery device. Using the POOL
Check the top of the box and back label of product to make
sure you have the correct POOL FROG Mineral Reservoir to t
your POOL FROG Cycler.
IMPORTANT: The POOL FROG Mineral Reservoir must be
replaced every 6 months or after one pool season, whichever
is shorter.
2.
The Complete Low-Chlorine Alternative
www.FrogProducts.com s800-222-0169
The POOL FROG Mineral Reservoir is the heart of an advanced pool care system that destroys bacteria.
+
reduces chlorine use up to 50%*. Simply use with at least 0.5 ppm of an EPA registered
IMPORTANT: Remove and read the
information card.
Please note: Complete instructions
for inserting a POOL FROG Mineral
Reservoir, FROG BAM and POOL FROG
Bac Pac are included inside the POOL
FROG Mineral Reservoir.
+
Series 6100 (01-12-6112)
FOR POOLS UP TO 25,000 GALLONS
DANGER
• Never use fast dissolving chlorine tablets,
liquid bleach, or calcium hypochlorite in
the POOL FROG Cycler.
4.
Open POOL FROG
Cycler cap.
5.
Remove the POOL FROG Bac Pac and if not empty, set to the
side or store for winter. Then remove the POOL FROG Mineral
Reservoir and discard if it has been used for one pool season
or 6 months, whichever is shorter.
6.
SLOT IN POOL
FROG MINERAL
RESERVOIR
FIN INSIDE OF
POOL FROG
CYCLER
Find slot on side of
POOL FROG Mineral
Reservoir and line up
with n inside the POOL
FROG Cycler. Lower
POOL FROG Mineral
Reservoir into POOL
FROG Cycler until
secure.
Replace the POOL FROG
Bac Pac inside the POOL
FROG Mineral Reservoir
to continue operating
system (see directions
on page 17)
Operate
3.
Turn off pump and turn
dial to Setting 0. This
reduces the ow of water
into the unit when the cap
is open.
7.
Mark your calendar ahead for
the six month replacement
of the POOL FROG Mineral
Reservoir. Once wetted,
the time-released mineral
coating of this product
is effective up to 6
consecutive months or one
pool season, whichever is
shorter. After that time you
will hear the spent media
inside, however, it is no
longer effective and must
be replaced.
15
Page 16
Using FROG BAM for an Algae-Protection Guarantee
If you are not using FROG BAM, refer to page 17 for Using the
POOL FROG Bac Pac. See FROG BAM product labeling for
complete directions for use (EPA Reg. No. 53735-9).
NOTE: If using directly after a shock treatment, test the water rst to ensure the pH is in the proper range of 7.2-7.8 and the chlorine level is
no more than 4.0 ppm. Avoid using other chemicals until this product has been circulated ( ltered) for at least 24 hours.
DANGER
Never use fast dissolving chlorine tablets, liquid bleach,
or calcium hypochlorite in the POOL FROG Cycler.
Important: If storing FROG BAM prior to use, always keep
in a cool, dry place away from children and pets.
1.
Remove cap from FROG BAM
without removing seal.
For a preventive dose add:
•One FROG BAM for pools up to 15,000 gallons.
•Two FROG BAM for pools between 15,000 and 30,000 gallons.
5.
Turn pump on for 90 minutes
allowing FROG BAM to circulate
through pool.
6.
To remove expended FROG BAM
bottle, turn pump off and turn
dial to Setting 0.
2.
3.
Insert upside down into the
open center of the POOL FROG
Mineral Reservoir pushing down
rmly on FROG BAM bottle
allowing key in POOL FROG
Cycler to puncture seal.
Replace cap by hand only.
DO NOT OVER TIGHTEN.
7.
8.
Remove POOL FROG Cycler cap.
Lift FROG BAM up and allow
any water in the container to
drain through the POOL FROG
Cycler before discarding in trash
or offering for recycling. Do not
reuse or re ll this container.
NOTE: If water shows more than
a hint of blue inside POOL FROG
Cycler, replace the POOL FROG
Cycler cap, turn dial to Setting
10 and run the pump for one
minute.
4.
16
Turn control dial on POOL
FROG Cycler to Setting 10.
8a. If pool size requires
additional FROG BAM, repeat
steps 1-8.
8b. When water is clear in the
POOL FROG Cycler, insert a
POOL FROG Bac Pac according
to the instructions on page 17.
Page 17

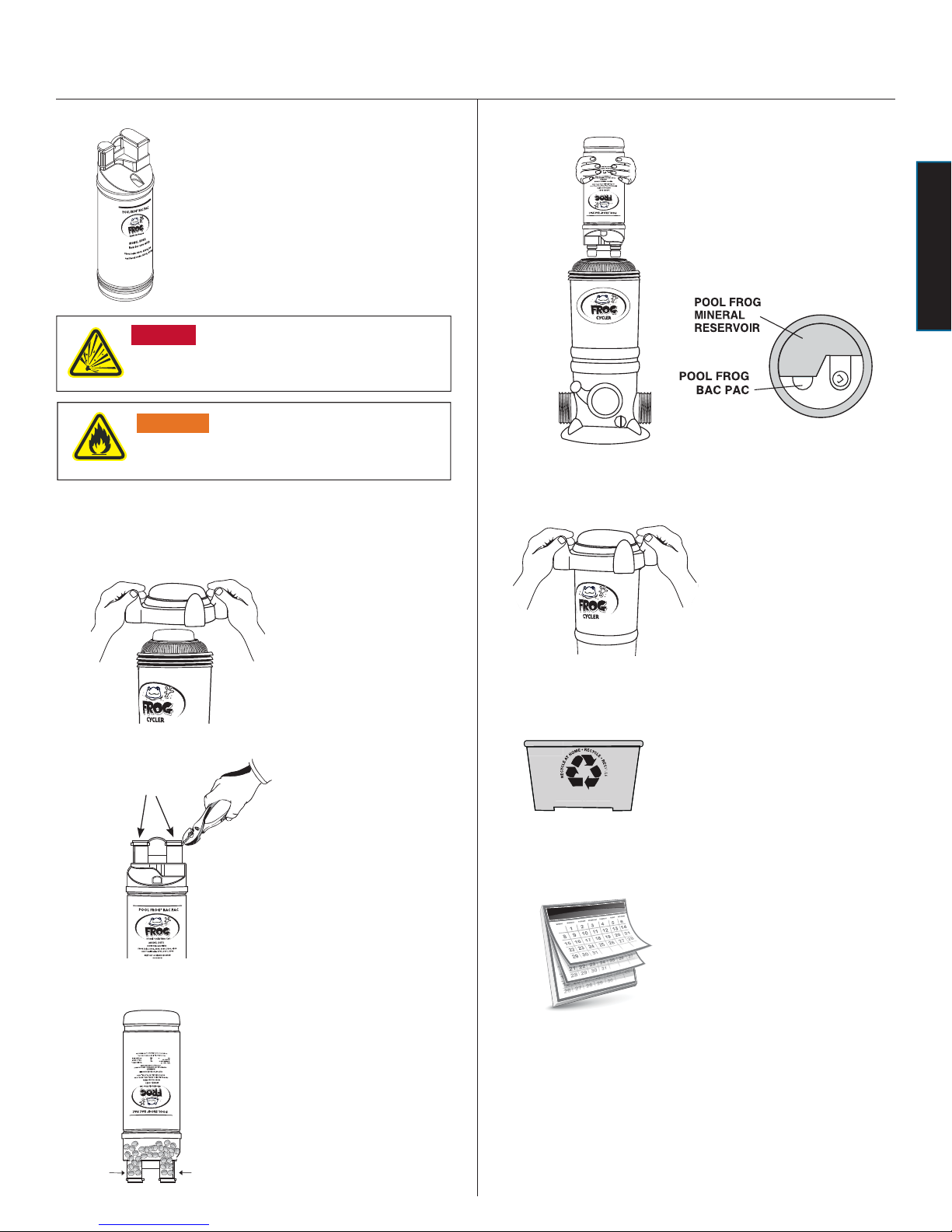

Using the POOL FROG Bac Pac
POOL FROG Bac Pac is required
to assure up to 50% reduction in
chlorine use*. POOL FROG Bac Pac
sold separately.
®
D
N
A
R
B
(EPA Reg. No. 53735-2)
DANGER
Never use fast dissolving chlorine tablets, liquid bleach,
or calcium hypochlorite in the POOL FROG Cycler.
WARNING
Avoid sparks, smoking, or any open ame near
POOL FROG Cycler or chemicals.
IMPORTANT: Read the label on the POOL FROG Bac Pac carefully
before using.
4.
5.
Line up the small leg of the POOL
FROG Bac Pac with the small
®
opening in the POOL FROG Mineral
Reservoir and the large leg with the
Operate
large opening. Lower POOL FROG
Bac Pac into POOL FROG Mineral
Reservoir until secure.
Top View
Replace cap by hand only.
DO NOT OVER TIGHTEN.
1.
2.
3.
Colored Caps
¥
"2!.$
"2!.$
¥
Remove cap from POOL
FROG Cycler and stand
back to let any chlorine
fumes dissipate.
Remove colored caps
by grabbing on to the lip
of one cap with a pliers
and pulling up until cap
releases. Repeat the
process for the other cap.
Invert POOL FROG Bac Pac
and shake slightly until
chlorine tablets fall into tower
areas.
6.
7.
WE RECYCLECYCLE
The chlorine pac container is made
of HDPE plastic. Non-re llable
container. Do not reuse or re ll
this container. Offer for recycling if
available. Rinse thoroughly before
recycling or discarding in trash.
Mark your calendar ahead for the
approximate replacement times for
the POOL FROG Bac Pac.
PAC
TOWERS
PAC
TOWERS
17
Page 18
Winterizing
1.
2.
Turn pump off and turn dial
to Setting 0.
Remove cap.
4.
If POOL FROG Bac Pac still
®
WARNING
Avoid sparks, smoking, or any open ame near
POOL FROG Cycler or chemicals.
contains chlorine, wrap in
plastic bag and store in shed or
cool, dry, well-ventilated location
away from children, pets, cars,
motorcycles or anything metal
that can rust, pit, etc.
If empty, rinse and recycle.
3.
Unscrew knob from the front
of POOL FROG Cycler. Allow
all water to drain.
5.
6.
¥
Remove the POOL FROG
Mineral Reservoir and discard in
trash. You will hear spent media
inside, however, it is no longer
effective.
Replace the cap and knob
loosely.
18
Page 19
Troubleshooting
For more in-depth troubleshooting, go to frogproducts.com or call King Technology at 800-222-0169.
Problem Remedy
What do I do
1.
if the water looks
cloudy?
What do I do
2.
if the water turns
color?
What do I do
3.
if algae forms in or
on my pool?
What do I do
4.
if I am under
chlorinating with
the POOL FROG
Bac Pac?
1. Make sure your ltration
system is working properly (i.e.
clean lter, skimmer and pump
basket).
2. Make sure circulation time
is adequate – increase pump
1. Algae may be trying to form
– shock the pool, increase
circulation time if needed and
clean the lter.
1. Use FROG BAM or an effective
algaecide per the directions on
the bottle and brush the sides of
the pool often.
2. Clean the lter and shock
the pool with chlorine daily until
1. If you are unable to
maintain 0.5 to 1.0 ppm, rst
make sure there are chlorine
tablets in the tower areas of
the POOL FROG Bac Pac and
it is installed properly. If a
correction was made, test the
water in 24 hours.
2. If still low, turn the dial up
one setting and test the water
again in 24 hours. Continue
raising the setting by one
increment each day until the
time if not.
3. Make sure the pool is
properly balanced.
4. Shock the water to eliminate
build up of any organic matter.
2. Metals in the ll water
may have been oxidized.
Have the pool tested. See
pool dealer if a metal control
product is required.
water clarity returns.
3. If you are in an area of the
country that struggles with
algae growth, see your dealer
regarding a 90-day Algae
Protection Guarantee using
proper reading is achieved.
3. Shock the pool if the reading
has been lower than 0.5 ppm
for more than one day.
4. Make sure pump run time is
at least 6 hours on high speed
(40 gpm or higher) or if not,
bleed the air from the back
knob each time cap is open.
5. Contact your dealer to have
your back pressure tested. If
under 4 psi consider a smaller
(See page 10.)
5. Make sure pool has a
free chlorine reading of
0.5 to 1.0 ppm.
6. Check with your dealer
for more information.
3. Check with your dealer for
more information.
FROG BAM. See product hang
tag for guarantee details.
4. Check with your dealer for
more information.
eyeball tting in the return jet.
6. Check for a suction side
leak by looking for air bubbles
in your pump basket or at the
return jet. Contact dealer for
help in correcting this situation.
7. Contact King Technology’s
Customer Service Department
at 800-222-0169.
Troubleshoot
What do I do
5.
if I am over
chlorinating with
the POOL FROG
Bac Pac?
1. If the chlorine reading is
over 3.0 ppm, remove the
POOL FROG Bac Pac from the
POOL FROG Mineral Reservoir
and test the water daily until
the reading is down to 1.0
ppm.
2. Reinsert the POOL FROG
Bac Pac, lower the dial one
setting and test the water
again in 24 hours. If the
reading has risen, lower
the dial one setting again.
Continue this process until
proper reading is achieved.
3. If over-chlorinating at
the lowest possible setting,
consider decreasing the
circulation time. Depending on
your pump size, you may be
circulating the water more than
is necessary.
4. Contact your dealer to have
your back pressure tested. If
over 8 psi consider a larger
eyeball tting in the return jet.
5. Check to see if the pressure
relief valve is loose or missing
and replace. It is a clear plastic
piece approximately 1” long
installed inside near the base.
If loose or missing, it can
provide another avenue for
water to reach the chlorine.
6. Contact King Technology’s
Customer Service Department
at 800-222-0169.
19
Page 20
Parts List Model 6100
S
I
L
E
C
I
O
N
L
U
T
B
N
I
C
R
A
12
13
14
15
Included with POOL FROG Cycler 6100
REF. # DESCRIPTION QTY. INCLUDED
1 & 2 Cap w/O-Ring 1
3 Body 1
4 Pressure Relief Valve 1
5, 6, 7, 8 Control Dial with O-Rings,
Locking Pin and Number Plate 1
9 & 10 Knob with O-Ring 2
11 Mounting Base 1
12 Silicone Lubricant 1
13 Nipple Kit 1
Replacement parts for POOL FROG Cycler 6100
REF. # PART NO. DESCRIPTION
1 & 2 01-22-1417 Cap w/O-Ring
2 01-22-1920 Cap O-Ring
4 01-22-9486 Pressure Relief Valve
5, 6, 7, 8 01-22-1458 Control Dial with O-Rings,
Locking Pin and Number Plate
6 01-22-1456 Control Dial O-Ring Set
9 & 10 01-22-9628 Knob with O-Ring
11 01-22-1480 Mounting Base
12 01-22-9971 Silicone Lubricant 3/4 oz.
13 01-22-1710 Nipple Kit
14 01-22-4000 Pressure Gauge
15 01-22-1470 25k Tune-Up Kit
20
Page 21
POOL FROG Cycler Maintenance

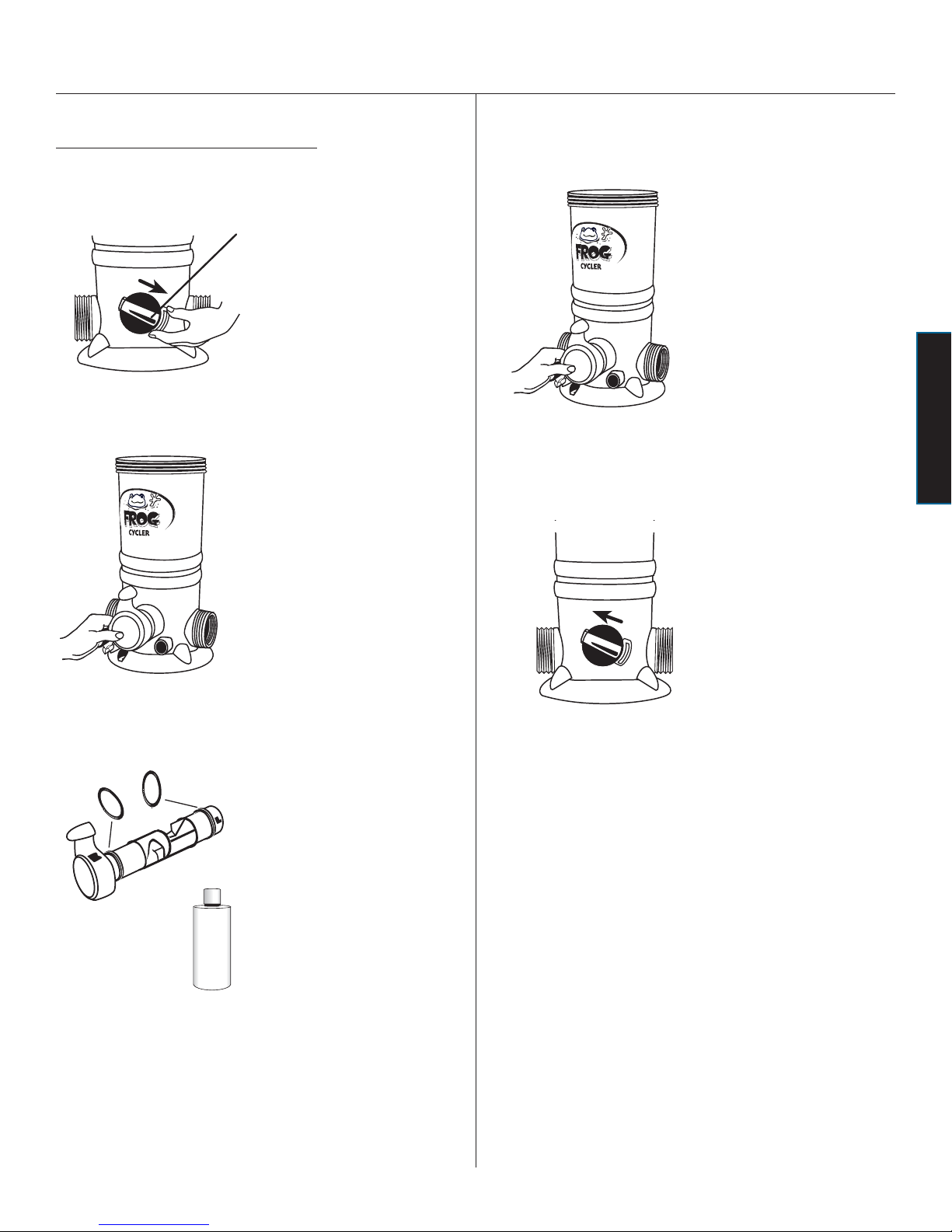

Replacing the Control Dial O-Rings
1.
2.
Center of locking pin
In the back of the POOL FROG
Cycler, depress center of locking
pin with a nger and pull pin out
of dial.
Turn control dial back and forth
as you pull it out of the housing.
4.
Carefully insert control dial
back into housing.
Troubleshoot
5.
Replace locking pin by
pushing it through the slots
on the dial until it locks into
place.
3.
Replace both o-rings. Apply
silicone lubricant that came
with your POOL FROG Cycler
on o-rings.
S
I
L
E
C
I
O
N
L
U
T
B
N
I
C
R
A
Product # 01-22-9971
21
Page 22
continued... POOL FROG Cycler Maintenance
Replacing the Cap O-Ring
Remove old o-ring.
1.
Top half of
2.
Bottom half
of groove.
groove.
3.
Replacing Knobs
To replace, simply unscrew old knob and replace
with the new one.
1.
Place new o-ring in bottom
half of groove.
Front of
POOL
FROG
Cycler
Place your thumbs on each
side of the cap over the
o-ring in the groove.
4.
5.
S
I
L
E
C
I
O
N
L
U
T
B
N
I
C
R
A
Product # 01-22-9971
O-ring in top
of groove
Roll your thumbs back and
forth over the o-ring while
pushing upward until the
o-ring falls into the top of
the groove.
2.
Back of
POOL
FROG
Cycler
Lubricate o-ring every couple
of months with silicone
lubricant that came with your
POOL FROG Cycler.
DO NOT USE petroleum
based lubricants.
22
Page 23
POOL FROG Cycler Two-Year Limited Warranty
Register your product online today to extend your POOL FROG warranty to 10 years.
frogproducts.com/reg
King Technology, Inc. will warrant this unit with a complete replacement for the original purchaser, should it prove defective by reason
of improper workmanship and/or material for a period of two (2)
years from the date of original purchase/installation. This warranty
covers body, cap and control dial excluding o-rings. King Technology
holds the option of replacing any defective part without charge if it
is determined to be all that is needed to correct any situation. Parts
used for replacement, with the exception of o-rings, are warranted
for the remainder of the original warranty.
1. To obtain warranty service, you must deliver product to King
Technology or its nearest authorized dealer. Shipping expenses are
the purchaser’s responsibility. The name of the nearest authorized
dealer can be obtained at frogproducts.com/ nd-a-dealer or by
calling King Technology at 1-800-222-0169. Proof of purchase is
required when requesting warranty service. Purchaser must present the sales receipt or other document which establishes proof of
purchase. To validate your warranty, complete the warranty card that
came with your unit and return it to King Technology within 30 days
of purchase and installation.
2. This warranty does not cover defects caused by: modi cation,
alteration, repair or service of the product contrary to the accompanying instructions; physical abuse to or misuse of the product or
operation or installation in a manner contrary to the accompanying
instructions. This warranty also excludes all costs arising from the
installation, adjustment, removal or replacement of defective units
or parts. This warranty also excludes any and all claims arising out
of the chemicals used in the product or their characteristics.
3. Any express warranty not provided for herein, and any remedy
for breach of warranty or breach of contract which, but for this
provision, might arise by implication or operation of law, is hereby
expressly excluded and disclaimed. The implied warranties of merchantability and of tness for any particular purpose are expressly
limited to a term of two years. Some states do not allow limitation
on how long an implied warranty lasts, so the above limitation may
not apply to you.
4. Under no circumstance shall King Technology be liable to purchaser or any other person for any damage or loss incurred because
of any chemicals used in the product or their physical characteristics, or interruption of service of the product, or any special, incidental or consequential damages or losses, whether arising out of
breach of warranty, breach of contract or otherwise. Some states
do not allow the exclusion or limitation of incidental consequential
damages, so the above limitation or exclusion may not apply to you.
5. Misuse or failure to use the proper POOL FROG Mineral Reservoir
and Bac Pac may cause damage to equipment or personal injury.
All warranty null and void if this product is not used with the recommended POOL FROG Mineral Reservoir and Bac Pac.
Made in U.S.A.
Patents: kingtechnology.com/IP
23
Page 24
MANUFACTURED BY
© King Technology. The following are trademarks of King Technology
®
FROG
POOL FROG
®
POOL FROG XL PRO
®
FROG BAM® SmartChlor
SPA FROG® FROG Jump Start
FILTER FROG® Fresh Mineral Water
Flippin’ FROG® INSTANT FROG® New Water
Flippin’ FROG XL® @ease® Perform-Max
®
®
®
530 11TH AVE S, HOPKINS, MN 55343 | 800.222.0169 | frogproducts.com
®
®
20-48-0151
553121743R9N
24
Loading...
