FROG Leap Infuzer™

Mineral Pool Care System

Model 7800

For Pools up to 25,000 Gallons

infuzer

System Includes the

FROG Leap Anti-Bac Mineral Pac™

Patented Mineral Disinfectant

Customer Service 800-222-0169

www.kingtechnology.com

FROG Leap™ Introduction 3

Swimming Pool Tips 4

Start-up and Operation 5-6

Replacing FROG Leap Anti-Bac Mineral Pac™ 7

Using FROG Leap Depth Charge™, Reveille, Torpedo Pac™ 8

Using FROG Leap ALL-OUT!™ 9

Troubleshooting 10

Parts List 11

Replacing Control Dial O-Rings 12

Replacing Cap O-Rings and Knobs 12

Winterizing 13

Filter Installation 14

Base Installation 15

Warranty 16

For information on King Technology’s entire product line, visit our website at www.kingtechnology.com

Welcome to easier pool care courtesy of FROG Leap™. With FROG Leap™, your pool water will look and feel better without a lot of work or a lot of chlorine. This system† controls bacteria using a combination of minerals and reduced chlorine levels. Chlorine lasts 2X longer with FROG Leap™ Mineral System.*

There are 4 main parts to the FROG Leap™ System: The FROG Leap Infuzer™, the FROG Leap Anti-Bac

Mineral Pac™, FROG Leap ALL-OUT!™ (90-day Algae Preventative) and the FROG Leap Torpedo Pac™. Plus FROG Leap™ offers easy and effective FROG Leap Pool Wake Up and FROG Leap Pool Hibernation convenience packs for opening a pool in the spring and closing for the winter.

Part 1

FROG Leap Infuzer™

The water treatment center that controls the ﬂow of water to each part of the FROG Leap™ System.

infuzer

For Pools Up to 25,000 gallons.

Part 2

FROG Leap Anti-Bac Mineral Pac™

Holds the minerals and ﬁts inside the FROG Leap Infuzer™.

THE FROG Leap Anti-Bac Mineral Pac™ MUST BE REPLACED EVERY SIX MONTHS OR AFTER ONE POOL SEASON WHICHEVER IS SHORTER.

Part 3

FROG Leap ALL-OUT™

Use with the FROG Leap™ System for a 90-Day AlgaeProtection Guarantee.

Part 4

FROG Leap Torpedo Pac™

Pre-ﬁlled with chlorine tablets and ﬁts inside the FROG Leap Anti-Bac Mineral Pac™.

NOW ALL IN ONE BOX!

™

REVEILLE

FROG Leap Reveille™, FROG Leap Depth

Charge™ and FROG Leap ALL-OUT!™

FROG Leap Pool Wake Up!™ and Pool Hibernation™

An easy 3-step pool opening and pool closing program that effectively removes contaminants, prevents algae and sets a chorine residual with precise dispensing and no touching chemicals!

FROG Leap

†FROG Leap™ Mineral System consists of the FROG Leap™ minerals silver chloride and carbonate used in conjunction with 0.5 ppm chlorine. The FROG Leap Anti-Bac Mineral Pac™ must be used in conjunction with the FROG Leap Torpedo Pac™ (EPA Reg. No.: 53735-2), an EPA registered chlorine pool product or a chlorine delivery device.

*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.

Torpedo Pac™ and FROG Leap ALL-OUT!™, along with FROG Leap Pool Wake Up/Pool Hibernation, are sold separately.

Anti-Bac Mineral Pac™ sold inside FROG Leap Infuzer™ and separately for replacements.

Swimming Pool Tips

Start-up and Yearly Maintenance

Make sure the pool has adequate circulation. The pool water must completely circulate through the pump and ﬁlter at least 1 to 2 times per day. This usually requires 8 to 12 hours. Check with your dealer for the proper circulation time for your pool.

If your ﬁll water is high in metals, use a sequestering agent or metal out product at start-up only before using the FROG Leap Anti-Bac Mineral Pac™. See your local dealer for details on using these products and always follow manufacturers directions carefully.

After your pool is up and running

smoothly, continue to test your water for pH, total alkalinity and chlorine with FROG® Brand Test Strips and maintain its balance by adding any necessary adjustment products (see your dealer for details).

Before beginning with any pool care program, you must ﬁrst balance your pool water. Take a water sample to your local pool professional or use a complete test kit that will test for the following important elements.

Water Balance Guidelines

pH: 7.2 – 7.8

Total Alkalinity: 60 – 120 ppm

Calcium Hardness: 150 – 400

Total Dissolved Solids: <1500

Stabilizer: 20 – 80 ppm

Free Chlorine: 0.5 – 1.0 ppm

Check the pool’s ﬁlter gauge often and periodically clean ﬁlter per the manufacturer’s directions. A dirty ﬁlter will slow the ﬂow of water which could hamper proper circulation.

Start-up and Operation -

FROG Leap Anti-Bac Mineral Pac™ now with 25% More Water Polishers for easier start up.

Stabil izer

Add a stabilizer or conditioner to the pool at the beginning of the season if the stabilizer level is below 20 ppm. This will prevent chlorine burn off. Follow manufacturer’s directions carefully.

Install an FROG Leap Anti-Bac Mineral Pac™ into the FROG Leap Infuzer™. (See page 7 for directions.)

REPLACE THE FROG Leap ANTI-BAC MINERAL PAC™ EVERY 6 MONTHS OR AFTER ONE POOL SEASON WHICHEVER IS SHORTER.

Replace cap and run FROG Leap Infuzer™, with FROG Leap Anti-Bac Mineral Pac™ inserted, for 10 minutes at Setting 5.

For a 90-day algae protection guarantee, insert FROG Leap ALLOUT!™ into FROG Leap Anti-Bac Mineral Pac™ in Infuzer. (See page 9 for directions.)

When chlorine reading is down to

1.0 ppm, which may take a few days, insert FROG Leap Torpedo Pac™. (See page 8 for directions.)

REVEILLE

Shock the pool with FROG Leap Depth Charge™ to rid the water of all contaminants. (see page 8 for FROG Leap Depth Charge™ directions)

Create a chlorine residual with FROG Leap Reveille™ or a chlorine shock (see page 8 for FROG Leap Reveille™ directions). THIS STEP IS VERY IMPORTANT TO START-UP. Always begin with chlorine in the pool water.

If using standard chlorine shocks do not add in or near the skimmer or into the FROG Leap Infuzer™ as it could damage equipment, risk potential explosion or discolor your pool surface.

Start-up and Operation

Set control dial by matching up the parameters of your pool on the chart below. THIS IS A STARTING POINT ONLY and may

need to be adjusted to ﬁt your individual pool needs. See #8 below for directions. IMPORTANT: Pump run times less than 8 hours could result in under chlorination due to inadequate ﬂow through the System.

POOL SIZE

Gallons Diameter

7,000 (18’) 5.0

9,000 (21’) 5.5

12,000 (24’) 6.0

15,000 NR

20,000 NR

25,000 NR NR

1/2 hp 3/4 hp 1 hp 1 1/2 hp

8 HOUR PUMP RUN TIME

4.5 4.0 3.5 4.5 4.0 3.0 5.0* 3.5 3.0 2.5 4.0*

5.0 4.5 4.0 5.0 4.5 4.0 5.5* 4.0 3.5 3.0 4.5*

5.5 5.0 4.5 5.5 5.0 4.5 4.0 4.5 4.0 3.5 5.0*

6.0 5.5 5.0 6.0 5.5 5.0 4.5 5.0 4.5 4.0 3.5

NR 6.0 5.5 NR 6.0 5.5 5.0 5.5 5.0 4.5 4.0

PUMP SIZE

6.5 6.0 NR 6.5 6.0 5.5 6.0 5.5 5.0 4.5

12 HOUR PUMP RUN TIME

PUMP SIZE

1/2 hp 3/4 hp 1 hp 1 1/2 hp

24 HOUR PUMP RUN TIME

PUMP SIZE

* – Bypass installation recommended. RECOMMENDED FLOW RATE: 20-60 gpm NR – This pump size is not recommended for this size pool. Most common pool size

24 HOUR, LOW SPEED PUMP RUN TIME

In order to ensure proper performance when running the pump on low speed for 24 hours per day or high speed less than 6 hours per day, bleed the air while the pump is on by unscrewing the cap knob until water appears. Then screw the knob back on. Repeat this process each time the cap is removed for any reason. Set the control dial at 6 and follow the adjustment directions in Step 8 to determine the correct setting for your pool.

For the ﬁrst week test the pool water

daily for free chlorine with FROG® Brand

POOL SIZE

Gallons Diameter

7,000 (18’)

9,000 (21’)

12,000 (24’)

15,000

20,000

25,000

Find your starting dial setting by matching up the parameters of your pool on the above chart. A pool with approximately 12,000 gallons with a 1 horse pump running 12 hours a day would require a starting setting of 4.5.

1/2 hp 3/4 hp 1 hp 1 1/2 hp

4.5 4.0 3.0 5.0*

5.0 4.5 4.0 5.5*

5.5 5.0 4.5 4.0

6.0 5.5 5.0 4.5

NR 6.0 5.5 5.0

NR 6.5 6.0 5.5

If using another means of chlorine support, follow

steps 1-5 on page 5 then continue below.

12 HOUR PUMP RUN TIME

PUMP SIZE

Test Strips to ensure correct dial setting. Continue to test weekly throughout the season.

After each testing, adjust the dial up by 1/2 increment if the free chlorine reading has dropped below 0.5 ppm or adjust down by 1/2 increment if the reading has risen above 1.0 ppm. Continue this process each day until the free chlorine reading stabilizes to at least 0.5 ppm.

Set dial to Setting 5. Maintain a minimum chlorine reading of 0.5 ppm with a chlorine delivery device or hand feeding.

Remember to adjust dial by 1/2 increments only in order to prevent over chlorination which may bleach pool surfaces.

Shock pool every two weeks or as needed to maintain water quality. Follow label directions on the shock treatment used.

Do not add shock in or near the skimmer or into the FROG Leap

Infuzer™ as it could damage

equipment, risk potential explosion or discolor your pool surface.

Shock pool every two weeks or as needed

to maintain water quality. Follow label directions on the shock treatment used.

Do not add shock in or near the skimmer or into the FROG Leap

Infuzer™ as it could damage

equipment, risk potential explosion or discolor your pool surface.

Replacing a FROG Leap Anti-Bac Mineral Pac™

(FROG Leap Anti-Bac Mineral Pac™ MUST be Replaced Every Season)

Check the top of the box and back label of product to make sure you have the correct FROG Leap Anti-Bac Mineral Pac™ to ﬁt your FROG Leap Infuzer™.

THE FROG Leap ANTI-BAC MINERAL PAC™ MUST BE REPLACED EVERY 6 MONTHS OR AFTER ONE POOL SEASON WHICHEVER IS SHORTER.

SERIES 7800 (ORDER #01-12-7822)

NOW FITS THE FOLLOWING SYSTEMS:

FROG 4500, 5100, 5200, 6100, 6500 and 7100 Prevail 5770 and 5771

IMPORTANT: Remove and read the information card.

Please note: Complete instructions for inserting a FROG Leap Anti-Bac Mineral Pac™, and all other FROG Leap products are included inside the FROG Leap AntiBac Mineral Pac™.

Use ONLY the factory recommended FROG

Leap™ replacement products. DO NOT USE bulk chemical tablets in the FROG Leap Infuzer™ or put anything inside the FROG Leap Infuzer™ other than the appropriate FROG Leap™ product as directed in the product instructions. Use of any other product could result in damage to pool equipment or surface, unsafe pool conditions, ﬁre or explosion. Warranty will be VOID if the correct FROG Leap™ products are not used.

Turn off pump and turn dial to Setting 0. This reduces the ﬂow of water into the unit when the cap is open.

SLOT IN ANTI-BAC MINERAL PAC

FIN INSIDE INFUZER

Mark your calendar for the six month replacement of the FROG Leap Anti-Bac Mineral Pac™. Once wetted, the time-released

mineral coating of this product is effective up to 6 consecutive months or one pool season whichever is shorter. After that time even if you hear the spent media inside it is no longer effective and must be replaced.

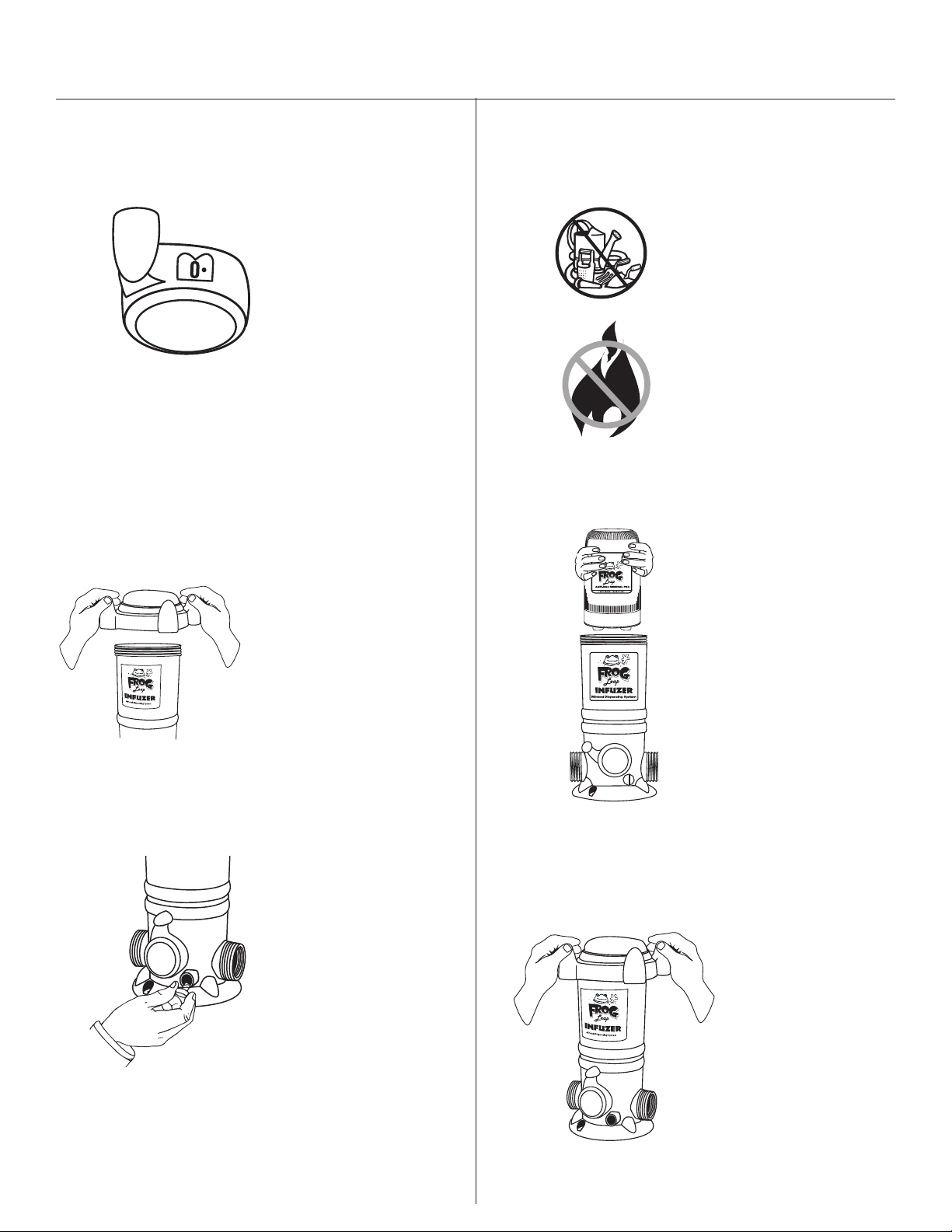

Open cap. Stand back to avoid inhaling chlorine fumes from the FROG Leap Torpedo Pac™.

Find slot on side of FROG Leap AntiBac Mineral Pac™ and line up with ﬁn inside the FROG Leap Infuzer™. Lower FROG Leap Anti-Bac Mineral Pac™ into FROG Leap Infuzer™ until secure.

Using

FROG Leap Depth Charge™, FROG Leap Reveille™ or FROG Leap Torpedo Pac

Avoid sparks, open ﬂame or smoking when handling FROG Leap Depth Charge™, FROG Leap Reveille™ or FROG Leap Torpedo Pac™.

REVEILLE

FROG Leap Depth Charge™ is a one time start-up product used to rid the water of all contaminants. FROG Leap Reveille™ - also used at start up, sets the chlorine residual to help ﬁnd the proper dial setting for maintaining up to 50%* less chlorine while using

FROG Leap

Depth Charge™

FROG Leap

Reveille™

FROG Leap

Torpedo Pac™

the FROG Leap Torpedo Pac™ (EPA Reg. No.: 53735-2). All three products sold separately.

™

COLORED CAPS

To remove colored caps, grab onto the lip of one cap with a pliers and pull up until cap releases. Repeat the process for the other cap.

Turn pac over and shake slightly until ingredients fall into tower areas.

Line up the small leg of the pac with the small opening in the FROG Leap Anti-Bac Mineral Pac™ and the large leg with the large opening. Lower pac into FROG Leap Anti-Bac Mineral Pac™ until secure.

FROG LEAP

ANTI-BAC

MINERAL

PAC

OTHER PAC

Replace cap by hand only.

DO NOT OVER TIGHTEN.

TOWERS

PAC

PAC TOWERS

Turn control dial on FROG Leap Infuzer to setting 5.

Run the pump and ﬁlter for each pac according to the directions on the product label. Remove from the FROG Leap Infuzer™ when empty and discard or offer for recycling.

Mark your calendar for the approximate replacement times for the FROG Leap Torpedo Pac™.

Using FROG Leap ALL-OUT

™

for a 90-Day Algae Protection Guarantee

If you are not using FROG Leap ALL-OUT!™ proceed to inserting FROG Leap Torpedo Pac™. See FROG Leap ALL-OUT!™ product labeling for complete directions for use (EPA Reg. No. 53735-9).

*NOTE: If using directly after a shock treatment, test the water ﬁrst to ensure the pH is in the proper range of 7.2-7.8 and the chlorine

level is no more than 4.0 ppm. Avoid using other chemicals until this product has been circulated (ﬁltered) for at least 24 hours.

Remove cap from FROG Leap ALL-OUT!™ without removing seal.

For a preventive dose add:

•One FROG Leap ALL-OUT!™ for pools up to 15,000 gallons.

•Two FROG Leap ALL-OUT!™ for pools between 15,000 & 30,000 gallons.

Turn pump on for 90 minutes allowing FROG Leap ALL-OUT!™ to circulate through pool.

To remove FROG Leap ALLOUT!™, turn pump off. Turn dial to Setting 0.

Insert upside down into center of FROG Leap AntiBac Mineral Pac™ pushing down ﬁrmly on key to puncture seal.

Replace cap by hand only.

DO NOT OVER TIGHTEN.

Turn control dial on FROG Leap Infuzer™ to Setting

Remove FROG Leap Infuzer™ cap.

Lift FROG Leap ALL-OUT!™ up and allow any water in the container to drain through the FROG Leap Infuzer™ before discarding in trash.

NOTE: If water shows more than a hint of blue inside FROG Leap Infuzer™, replace the FROG Leap Infuzer™ cap, turn dial to Setting 5 and run the pump for one minute.

8a. If pool size requires additional FROG Leap ALLOUT!™, repeat steps 1-8.

8b. When water is clear in FROG Leap Infuzer™, proceed to inserting FROG Leap Torpedo Pac™.

Troubleshooting

For more in-depth troubleshooting, go to www.kingtechnology.com

Problem

What do I do if the water looks cloudy?

What do I do if the water turns color?

What do I do if algae forms in or on my pool?

1. Make sure your ﬁltration system is working properly (i.e. clean ﬁlter, skimmer and pump basket).

2. Make sure circulation time is adequate – increase pump

1. Metals in the ﬁll water may have been oxidized. Have the pool tested. Shock the pool and clean the ﬁlter until water clarity returns.

1. Use a nonmetallic (polyquat) algaecide per the directions on the bottle and brush the sides of the pool often.

2. Clean the ﬁlter and shock the pool with chlorine daily

Remedy

time if not.

3. Make sure the pool is properly balanced

4. Shock the water to eliminate build up of any organic matter.

2. Algae may be trying to form – shock the pool, increase circulation time if needed and clean the ﬁlter.

until water clarity returns.

3. If you are in an area of the country that struggles with algae growth, see your dealer regarding a 90-day Algae Protection Guarantee

(see page 4).

5. Make sure pool has a free chlorine reading of

0.5 to 1.0 ppm.

6. Check with your dealer for more information.

3. Check with your dealer for more information.

using FROG Leap ALL-OUT!™.

See product hang tag for guarantee details.

4. Check with your dealer for more information.

What do I do if I am under chlorinating with the FROG Leap Torpedo Pac™?

What do I do if I am over chlorinating with the FROG Leap Torpedo Pac™?

1. If you are unable to maintain 0.5 to 1.0 ppm, ﬁrst make sure there are chlorine tablets in the tower areas of the FROG Leap Torpedo Pac™ and it is installed properly. If a correction was made, test the water in 24 hours.

2. If still low, turn the dial up one setting and test the water again in 24 hours. Continue raising the setting

1. If the chlorine reading is over 3.0 ppm, remove the FROG Leap Torpedo Pac™ from the FROG Leap Anti-Bac Mineral Pac™ and test the water daily until the reading is down to 1.0 ppm.

2. Reinsert the FROG Leap Torpedo Pac™, lower the dial one setting and test the water again in 24 hours. If the reading has risen, lower the dial one setting again. Continue this process until

by one increment each day until the proper reading is achieved.

3. Shock the pool if the reading has been lower than

0.5 ppm for more than one day.

4. Make sure pump run time is at least 6 hours on high speed (40 gpm or higher) or if not, bleed the air from the back knob each time cap is open.

proper reading is achieved.

3. If over-chlorinating at the lowest possible setting, consider decreasing the circulation time. Depending on your pump size, you may be circulating the water more than is necessary.

4. Contact your dealer to have your back pressure tested. If over 8 psi consider a larger eye-ball ﬁtting in the return jet.

5. Contact your dealer to have your back pressure tested to ensure it is at least 4 psi.

6. Check for a suction side leak by looking for air bubbles in your pump basket or at the return jet. Contact dealer for help in correcting this situation.

7. Contact King Technology’s Customer Service Department at 800-222-0169.

5. Check to see if the pressure relief valve is loose or missing and replace. It is a clear plastic piece approximately 1” long installed inside near the base. If loose or missing, it can provide another avenue for water to reach the chlorine.

6. Contact King Technology’s Customer Service Department at 800-222-0169.

Parts List Model 7800

Included with FROG Leap Infuzer™ 7800

REF. # DESCRIPTION QTY. INCLUDED

1 & 2 Cap w/O-Ring 1

3 Body 1 4 Pressure Relief Valve 1 5, 6, 7 Control Dial with O-Rings and Locking Pin 1

8 & 9 Knob with O-Ring 2

10 Silicone Lubricant 1 11 Nipple Kit 1 12 Mounting Base 1

Replacement parts for FROG Leap Infuzer™ 7800

REF. # PART NO. DESCRIPTION

1 & 2 01-22-1418 Cap w/O-Ring

2 01-22-1920 Cap O-Ring 4 01-22-9480 Pressure Relief Valve 5, 6, 7 01-22-1443 Control Dial with O-Rings and Locking Pin 6 01-22-1450 Control Dial O-Ring Set

8 & 9 01-22-9940 Knob with O-Ring

10 01-22-9971 Silicone Lubricant 11 01-22-1710 Nipple Kit 12 01-22-1485 Mounting Base

FROG Leap Infuzer™ Maintenance

Replacing the Control Dial O-Rings

1. 1.

Center of locking pin

Replacing Cap O-Ring

In the back of the FROG Leap Infuzer™ depress center of locking pin with a ﬁnger and pull pin out of dial.

Turn control dial back and forth as you pull it out of the housing.

Hold cap in front of you upside down with the o-ring groove facing up. Place one end of o-ring into cap groove at the point closest to you. Hold o-ring down with the thumb and index ﬁnger of one hand.

Take hold of the far end of the o-ring with the thumb and index ﬁnger of the other hand. Roll o-ring slightly back towards you as you stretch the o-ring into the remainder of the cap groove.

Y T

E R

P O

C O

P Y

C O

P Y

O Y P

Replace both o-rings. Apply silicone lubricant that came

with your FROG Leap Infuzer™ on o-rings.

Lubricate o-ring often with silicone lubricant that came with your FROG Leap Infuzer™. DO NOT USE petroleum based lubricants.

Replacing Knobs

Carefully insert control dial back into housing.

Back of

Front of FROG LEAP Infuzer

Replace locking pin by pushing it through the slots on the dial until it locks into place.

FROG LEAP Infuzer

To replace, simply unscrew old knob and replace with the new one.

Winterizing

Turn pump off and turn dial to Setting 0.

Remove cap.

If FROG Leap Torpedo Pac™ still contains chlorine, wrap in plastic bag and store in shed or cool well-ventilated location away from children, pets, cars, motorcycles or anything metal that can rust, pit, etc. Make sure FROG Leap Torpedo Pac™ is away from open ﬂame.

Remove the FROG Leap AntiBac Mineral Pac™ and discard in trash. Even if you hear spent minerals inside, it is no longer effective.

Unscrew knob from the front of FROG Leap Infuzer™. Allow all water to drain.

Replace the cap and knob loosely.

TOOLS NEEDED

Screwdriver

Pipe Wrench

INCLUDED WITH FROG Leap Infuzer™

Filter Installation

Pipe Thread Tape or Sealant

One 6” X 1 1/2” TBE PVC Nipple

MATERIALS NEEDED

One Hose Adapter 1 1/2” X 1 1/2” X 1 1/4”

One Section of 1 1/2” Flex Hose (provided with ﬁlter)

Apply pipe thread tape or sealant to each threaded end of nipple.

Apply pipe thread tape or

sealant to threaded end of hose adapter.

Screw one end of nipple into the ﬁlter return. Hand tighten. Finish tightening by turning 1 to 2 revolutions with wrench.

DO NOT OVER TIGHTEN.

Screw adapter into the other

side of FROG Leap Infuzer™. Hand tighten. Finish tightening by turning 1 to 2 revolutions with wrench. DO NOT OVER TIGHTEN.

Screw either side of

FROG Leap Infuzer™ on to open nipple end until

upright and secure.

One Hose Clamp

RECOMMENDED

Corrosion Resistant Check Valve

4-8 psi Back Pressure

To avoid over or under chlorination, replace eye ball ﬁttings in the return jets to a smaller or larger size to adjust back pressure.

Attach return section of hose to the adapter with clamp. Tighten clamp with screwdriver.

If using a FROG Leap Torpedo Pac™, installing a corrosion resistant check valve is recommended.

TOOLS NEEDED

Screwdriver

Base Installation

Pipe Wrench

Materials Needed

Pipe Thread Tape or Sealant

Two Hose Adapters 1 1/2” X 1 1/2” X 1 1/4”

Two Sections of 1 1/2” Flex Hose (one provided with ﬁlter)

PUMP

FILTER

TO POOL

The FROG Leap Infuzer™ should always be installed between the ﬁlter and pool (or between heater and pool if applicable).

Apply pipe thread tape or

sealant to the threaded end of both hose adapters.

• Never install FROG Leap

Infuzer™ before the heater.

• Any additional sanitizing

equipment that is installed with FROG Leap Infuzer™ must be installed after FROG Leap Infuzer™ (never before) on the return line to the pool.

Screw adapters into each end of FROG

Leap Infuzer™. Hand tighten. Finish tightening by turning 1 to 2 revolutions with wrench. DO NOT OVER TIGHTEN.

Two Hose Clamps

Recommended

Corrosion Resistant Check Valve

4-8 psi Back Pressure

To avoid over or under chlorination, replace eye ball ﬁttings in the return jets to a smaller or larger size to adjust back pressure.

10 X 1 1/4” Phillips Pan Head Screws with Washers

Attach the ﬁlter section of ﬂex hose to one hose adapter

and the return section of ﬂex hose to the other hose adapter with clamps and tighten with screwdriver. Bi-ﬂow valve design allows water ﬂow in either direction.

HOSE

1 1/2" X 1 1/2" X 1 1/4"

CLAMP

FILTER & PUMP

HOSE ADAPTER

1 1/2" OR 1 1/4" FLEX HOSE

HOSE ADAPTER

HOSE CLAMP

HOSE ADAPTER

HOSE CLAMP

TO POOL

If using a FROG Leap Torpedo Pac™ installing a

corrosion resistant check valve is recommended.

For better stability,

FROG Leap Infuzer™ may be mounted on a base using Phillips pan head screws. One in front and two in back.

Option

1 1/2” Male Adapter (slip x MPT)

2” Female Adapter (slip x FPT)

When installing with hard PVC pipe, use either a female adapter on the outside port threads or a male adapter on the inside port threads.

FROG Leap Infuzer™ Two-Year Limited Warranty

King Technology, Inc. warrants to the original purchaser this unit will be free from any defects in workmanship and/or material, for a period of two (2) years from the date of original purchase. This warranty covers body, cap and control dial, but speciﬁcally excludes o-rings. King Technology at its option may replace any defective parts or the entire unit without charge after it is determined what is needed to correct any deﬁciency. Replacement parts with the exception of o-rings are warranted for the remainder of the original warranty. To extend the limited warranty from two years to ten years, simply complete the warranty card that came with your unit and return it to King Technology within 30 days of purchase and installation.

1. To obtain warranty service, you must deliver the unit to King Technology or its nearest authorized dealer. Shipping expenses are the purchaser’s responsibility. The name of the nearest authorized dealer can be obtained by writing or calling King Technology at the address and telephone number provided below. Proof of purchase is required when requesting warranty service. Purchaser must present the sales receipt or other documentation verifying proof of purchase.

2. This warranty does not cover defects caused by: Modiﬁcation, alteration, repair or service of the unit contrary to the accompanying instructions; physical abuse to or misuse of the product or operation or installation in a manner contrary to the accompanying instructions. This warranty also excludes all costs arising from the installation, adjustment, removal or replacement of defective units or parts. This warranty also excludes any and all claims arising out of the chemicals used in the product or their characteristics.

B. Control dial settings higher than needed can result in excess sanitizers being discharged into the pool. If the sanitizer level goes unmonitored, it can result in bleaching or discoloration of areas around the pool inlet or in some cases bleaching or discoloration of the entire pool liner or paint.

C. Excess trichlor in the pool can create health hazards to bathers. Consult each chemical manufacturer’s warnings and cautions for speciﬁcs.

D. Misuse or failure to use the proper FROG Leap Anti-Bac Mineral Pac™ and FROG Leap Torpedo Pac™ may cause damage to equipment or personal injury. This warranty will be null and void, if this unit is not used with the recommended FROG Leap Anti-Bac Mineral Pac™ and FROG Leap Torpedo Pac™.

4. This warranty is the exclusive warranty for the FROG Leap Infuzer™. This warranty is not transferable. KING TECHNOLOGY

MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER CONCERNING THE FROG Leap INFUZER™. Any

express warranty not provided herein, and any remedy for breach of contract but which for this provision might arise by implication or operation of law is hereby excluded and disclaimed. THE EXCLUSIVE REMEDY FOR ANY CUSTOMER IS THE REPAIR OR REPLACEMENT OF THE UNIT, AND THE RECOVERY OF DAMAGES WILL NOT EXCEED THE PURCHASE PRICE OF THE UNIT. IN NO EVENT WILL KING TECHNOLOGY BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES FROM ANY CAUSE.

3. CAUTION - Read carefully – Failure to follow these instructions will void the warranty. Do not add shock in or near skimmer.

A. This unit is not designed for shock treatment of pools. See your pool dealer or distributor for further information concerning shock treatments.

Manufactured by: King Technology Inc.

530 11th Ave S, Hopkins, MN 55343 U.S.A.

952-933-6118 • 800-222-0169 • FAX 952-933-2206

www.kingtechnology.com

FROG®, POOL FROG®, XL PRO®, SPA FROG®, INSTANT FROG®, FILTER FROG®, FROG BAM®,

NEW WATER® and SANI-KING®

are registered trademarks of King Technology, Inc.

5. Under no circumstance shall King Technology be liable to purchaser or any other person for any damage or loss incurred because of any chemicals used in the product or their physical characteristics, or interruption of service of the product, or any resulting special, incidental or consequential damages or losses. Some states do not allow the exclusion or limitation of incidental consequential damages, so the above limitation or exclusion may not apply to you.

Made in U.S.A.

U.S. Patents D540,906; D551,971; 6,190,547; 6,210,566; 6,217,892; 6,383,507; 6,544,415; 6,551,609; 6,652,871; 7,604,018 and other U.S. and Foreign patents pending.

20-48-2022

553011343R2N

King Technology 7800 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TABLE OF CONTENTS

Swimming Pool Tips

Using FROG Leap ALL-OUT

Troubleshooting

Winterizing

Filter Installation

Base Installation
