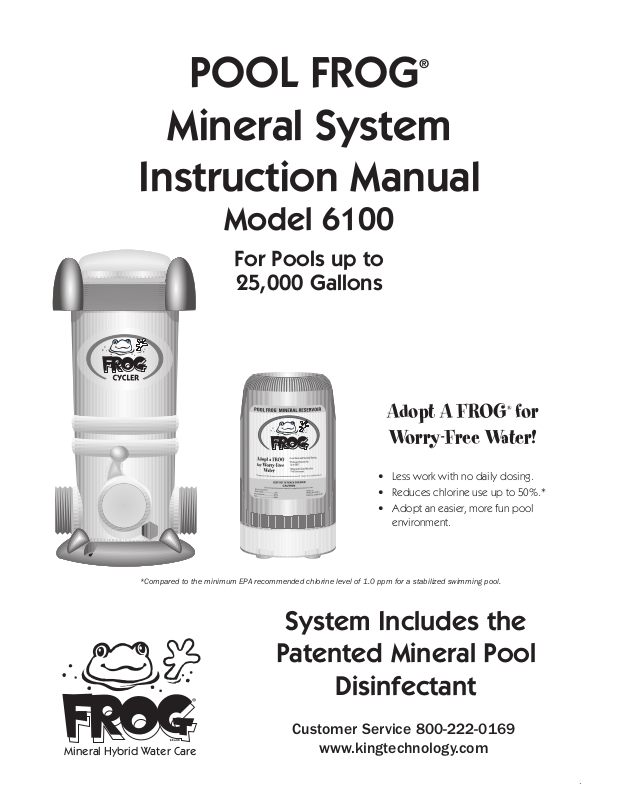

King Technology 6100 User Manual
®
�
�
®
BR AND
Mineral Hybrid Water Care
POOL FROG
Mineral System
Instruction Manual
Model 6100
For Pools up to
25,000 Gallons
Adopt A FROG
®
for
Worry-Free Water!
• Lessworkwithnodailydosing.
• Reduceschlorineuseupto50%.*
• Adoptaneasier,morefunpool
environment.
*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.
System Includes the
Patented Mineral Pool
Disinfectant
Customer Service 800-222-0169
www.kingtechnology.com
1
TABLE OF CONTENTS
POOL FROG® Introduction 3
Swimming Pool Tips 4
Start-up and Operation 5-6
Replacing POOL FROG® Mineral Reservoir 7
Using FROG BAM® 8
Using POOL FROG® Bac Pac 9
Troubleshooting 10
Parts List 11
Replacing Control Dial O-Rings 12
Replacing Cap O-Rings and Knobs 12
Winterizing 13
Above Ground Filter Installation 14
Above Ground Base Installation 15
Warranty 16
For information on King Technology’s entire product
line, visit our website at www.kingtechnology.com
2
�
POOL
�
�
FROG
Welcome to easier pool care courtesy of POOL FROG®. With POOL FROG®,
your pool water will look and feel better without a lot of work or a lot of
chlorine. This system controls bacteria using a combination of minerals
and reduced chlorine levels–up to 50%* less. There are 4 parts to the
®
POOL FROG® System: The Above Ground POOL FROG® Cycler, the POOL
FROG® Mineral Reservoir, FROG BAM® 90-day Algae Preventative and the
POOL FROG® Bac Pac.
Part 1
®
POOL FROG
The water treatment center that controls the flow of
water to each part of the POOL FROG®System.
Cycler
For Above Ground Pools
up to 25,000 gallons.
Part 2
POOL FROG®Mineral Reservoir
Holds the minerals and fits inside the POOL FROG®Cycler.
®
THE POOL FROG
MINERAL RESERVOIR
MUST BE REPLACED
EVERY SIX MONTHS
OR AFTER ONE POOL
SEASON WHICHEVER
IS SHORTER.
Part 3
FROG BAM
Use with the POOL
FROG®System for
an Algae-Protection
Guarantee.
®
POOL FROG
*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.
Part 4
POOL FROG®Bac Pac
Pre-filled with chlorine tablets and
fits inside the POOL FROG®Mineral
Reservoir.
®
Mineral Reservoir sold inside POOL FROG® Mineral Cycler and separately for replacements.
POOL FROG
®
Bac Pac and FROG BAM® sold separately.
3
Swimming Pool Tips
®
Start-up and Yearly Maintenance
1.
Make sure the pool has adequate circulation. The pool
water must completely circulate through the pump and
filter at least 1 to 2 times per day. This usually requires
8 to 12 hours. Check with your dealer for the proper
circulation time for your pool.
2.
3.
If your fill water is high in metals, use a sequestering
agent or metal out product at start-up only before using
the POOL FROG® Mineral Reservoir. See your local dealer
for details on using these products and always follow
manufacturers directions carefully.
After your pool is up and running
4.
smoothly, continue to test your
water for pH, total alkalinity and
chlorine with FROG® Brand Test
Strips and maintain its balance
by adding any necessary
adjustment products (see your
dealer for details).
Before beginning with any pool care program, you must
first balance your pool water. Take a water sample to your
local pool professional or use a complete test kit that will
test for the following important elements.
Water Balance Guidelines
pH: 7.2 – 7.8
Total Alkalinity: 60 – 120 ppm
Calcium Hardness: 150 – 400
Total Dissolved Solids: <1500
Stabilizer: 20 – 80 ppm
Free Chlorine: 0.5 – 1.0 ppm
5.
Check the pool’s filter gauge often and periodically clean
filter per the manufacturer’s directions. A dirty filter
will slow the flow of water which could hamper proper
circulation.
4
POOL FROG BAC PAC
Start-up and Operation
1.
2.
Add a stabilizer or conditioner to the
pool at the beginning of the season
if the stabilizer level is below 20
ppm. This will prevent chlorine burn
off. Follow manufacturer’s directions
carefully.
Shock the pool with chlorine to rid
the water of all contaminants before
beginning with POOL FROG®. Follow
manufacturer’s directions carefully.
THIS STEP IS VERY IMPORTANT TO
START-UP.
USE CHLORINE SHOCK ONLY.
4.
5.
Replace cap and run POOL
FROG® Cycler, with POOL
FROG® Mineral Reservoir
inserted, for 10 minutes on
Setting 5.
For an Algae Protection
Guarantee insert FROG BAM®
into POOL FROG® Mineral
Reservoir in POOL FROG®
Cycler. (Follow directions on
page 8.)
WARNING
Do not add shock in or near the skimmer or into the
POOL FROG® Cycler as it could damage equipment,
risk potential explosion or discolor your pool surface.
3.
Install a POOL FROG® Mineral
Reservoir into the POOL FROG®
Cycler. (Follow directions on page 7.)
REPLACE THE POOL FROG®
MINERAL RESERVOIR EVERY
6 MONTHS OR AFTER ONE POOL
SEASON WHICHEVER IS SHORTER.
6.
When chlorine reading is down
to 1.0 ppm, which may take a
few days, insert POOL FROG®
Bac Pac. (Follow directions on
page 9.)
5
