King Technology 01-02-5510, SPARCO Instruction Manual

SPARCO

AUTOMATIC WATER TREATMENT SYSTEM

Instruction Manual

Chlorine Pool-Care System

for Pools up to 30,000 Gallons

Ver la versión en español de este manual en kingtechnology.com/knowledge-center/manuals-diagrams

Customer Service 800-222-0169

kingtechnology.com

WARNING

To minimize the risk of serious injury, death or
damage, before installing or first using this
equipment, read Instruction Manual and all safety
labels and follow all safety instructions and
precautions. Save manual for future reference.

1

TABLE OF CONTENTS

Sparco Introduction 3

Notes and Safety Information 4

Safety Labels on Sparco System 5

Installation Tips to Ensure Proper Performance 6

Base Flex-Hose Installation 7

Hard-Plumbed Installation 8

Step 1: Preparing the Pool 9-10

Step 2: Putting the System to Work 11

Step 3: Setting the Control Dial 12

Step 4: Routine Pool Care 13

Winterizing 14

Troubleshooting 15

Parts List 16

Maintenance - Replacing Control Dial O-Rings 17

Maintenance - Replacing Cap O-Rings and Knobs 18

Warranty 19

For information on King Technology’s entire product
line, visit our website at kingtechnology.com

2

Thank you for choosing the Sparco Automatic Water
Treatment System. This system will maintain a clean, clear
swimming pool while you spend less time on maintenance
and more time having fun! There are two parts to the Sparco
System:

Part 1

Sparco System

The water treatment center that controls the ow of
water through the Sparco Water Treatment Chamber.

Part 2

Sparco Chamber

Pre-lled with chlorine tablets and ts inside the Sparco Water
Treatment System.

For Pools up to

30,000 gallons.

Product # 01-02-5510

Product # 01-04-5003

3

Notes and Safety Information

General Notes

These instructions contain information for the safe and proper

operation of this Sparco System. Observe the following principles:

• Ensure that everyone using this Sparco System follows the
instructions and safety precautions.

• Keep the instructions nearby and available for reference
throughout the service life of this Sparco System.

These instructions do not provide for every possible contingency

that might be encountered in connection with installation, opera-

tion or maintenance of this equipment. Should further informa-

tion be desired or should particular issues arise which are not

covered sufciently in this manual, contact King Technology at

800-222-0169.

Explanation of the signal words

Signal words, which depict the probability and severity of harm, are used in these instructions. They are dened as follows:

Signal Word

DANGER

WARNING

Meaning

Indicates an imminently hazardous situation which, if not avoided, will result in death, serious injury
or major property damage.

Indicates a hazardous situation which, if not avoided, could result in serious injury, death, or major
property damage.

NOTICE

Indicates special instructions that are important but not related to physical injury hazards.

Explanation of the safety pictographs

The following pictographs illustrate the type and source of

a hazard.

Pictograph Type of Danger

Safety Alert/General Hazard

Explosion Risk

Hazardous Pressure

Flammable Fire Hazard

Identication of warnings

Warnings are intended to help you recognize risks and avoid

death, injury or property damage. This is how warnings are identied:

Signal Word

Pictographs

Description of danger.

Consequences if ignored.

a The arrow signals a safety precaution to be taken to

eliminate or reduce the risk.

4

Safety Label on Sparco System

Review this label before installing or operating this System. Contact King Technology at 800-222-0169 if this label is missing from your Sparco System.

Fire, explosion and high pressure hazards

To minimize the risk of serious injury, death or property damage while using the Sparco System:

a Read, understand and follow all instructions and safety precautions in the manual, and on this Sparco System and on any label for
chemicals used with this Sparco System including Sparco Chamber.

DANGER

a Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the Sparco System.

a Never mix Trichlor chlorine tablets with Calcium Hypochlorite, or with any other form of concentrated chlorine or other chemicals.

a Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer.

These products should be added directly into the pool if required.

a

Do not contaminate the Sparco System or Sparco Chamber with dirt, organic matter, pool chemicals (such as calcium hypochlorite or
pool shocks), fertilizers or other household chemicals. Contact between any of these substances and the Sparco System or Sparco Chamber,
will result in a chemical reaction with the generation of heat, liberation of hazardous gasses and re or explosion.

WARNING

a Use only Sparco Chamber in the Sparco System. Never use bulk chemicals.

a To prevent the build up of gas pressure in the Sparco System, be sure the pool return line valves are open – except when opening

or servicing the unit.

a Do not inhale fumes from the Sparco System or Sparco Chamber.

a Avoid sparks, smoking, or any open ame near Sparco System or chemicals.

a Do not exceed maximum operating pressure of 50 psi or maximum temperature of 104º F.

a Do not remove the cap while under pressure. Always turn off pump and bleed off pressure before opening Sparco System.

a Do not install automatic or fast shut off valves downstream of Sparco System.

a Always install the Sparco System AFTER a heater (if applicable) on the return line.

a Always install any additional sanitizing equipment AFTER and NEVER BEFORE the Sparco System is installed on the return line.

a Do not permit children to use or climb on this product. This product must be positioned to prevent children from using it as a
means of access to the pool.

a Always stand clear of the Sparco System during pump start-up.

a Replace Sparco System if you see signs of cracks, damage or degradation to the Sparco System body or cap.

a Prior to pressurizing, check with your dealer to ensure your plumbing connections meet building codes.

a Failure to properly winterize your Sparco System could result in freeze damage. (See page 14 for winterizing details.)

NOTICE

5

Installation Tips to Ensure Proper Performance

Before installing, read all directions carefully and contact your dealer for installation support.

WARNING

• Do not exceed maximum operating pressure of 50 psi.

• Do not install automatic or fast shut off valves
downstream of feeder.

• Always install the Sparco System AFTER the
heater (if applicable) on the return line.

• Always install any additional sanitizing equipment
AFTER and NEVER BEFORE the Sparco System is
installed on the return line.

1) If using a multi-speed pump, run pump for at
least 6 hours per day at high speed (at least 40
gpm).

If the pump will run on low speed
24 hours per day or less than 6
hours per day on high speed, you
must bleed the air while the pump
is on by unscrewing the cap knob
until water appears. Then screw the
knob back on. Repeat this process
each time the cap is removed for any reason.

2) Install Sparco System with 4-8 psi back pressure.

Lower back pressures could result
in under chlorination. Change the eyeball
ttings in the return jets to a smaller
size to increase back pressure. Contact
King Technology at 800-222-0169 for a
specially designed pressure gauge
to determine back pressure at
pool start-up.

PN #01-22-4000

A. With High Flow Rate (greater than 80 gpm)
Install T-ttings exactly as shown.

SPARCO
SYSTEM

B. With In-Floor Cleaner - TWO OPTIONS

OPTION 1- A Two-Line Installation

The best option is to have two lines. One line with pump, lter, heater and

Sparco System and a second line with a separate pump for the in-oor
cleaning system (lter optional).

SPARCO
SYSTEM

POOL RETURN

IN-FLOOR
CLEANER
VALVE

✙

Line 1

FLOW

FLOW PUMP

PUMP

Line 2

FILTER

FILTER

✙

✙

✙

HEATER

POOL WATER LEVEL

POOL WATER LEVEL

3) Special installation Requirements:

IMPORTANT: Over chlorination or damage to the

Sparco System or other equipment could result if
special installations A, B or C are not used in these
situations.

• If water ow is higher than 80 gallons per minute
(gpm), see diagram A.

• If an in-oor cleaner is included with pool,
see diagram B, with two options. Preferred
installation is Option 1 with two separate lines.

• If set-up is a pool and spa combination with
common equipment, see diagram C.

Questions? Call Customer Service at 800-222-0169
Monday thru Friday, 8 am to 5 pm central standard
time.

6

OPTION 2 - A 3-Way Valve Installation

3-way manual valve or 3-way motor valve plus controls

SPARCO
SYSTEM

FILTER

PUMP

POOL WATER LEVEL

C. Pool and Spillover Spa Combination

SPARCO
SYSTEM

IN-FLOOR
CLEANER
VALVE

TOOLS NEEDED

Base Flex-Hose Installation

Install

Screwdriver

Pipe Wrench

MATERIALS NEEDED

Pipe Thread
Sealant

Two 2” Threaded by
1 ½” Threaded Male
Adapters

Two Hose Adapters
1½” x 1½” x 1¼”

Two Sections of 1½”
or 1¼” Flex Hose (one
provided with lter)

AUTOMATIC

WATER

TREATMENT

SYSTEM

1.

Following pipe thread sealant directions, brush
sealant on to Sparco System threads in both
ports and both male adapters.

DO NOT USE PIPE THREAD TAPE
as the threads on these units are
not suitable for this use and leaking
or tting failure could result.

2.

The Sparco System should always be installed
between the lter and pool (or between heater
and pool if applicable). Never install Sparco

System before the heater or damage to the
heater could occur.

AUTOMATIC

WATER

TREATMENT

4.

SYSTEM

Screw adapters into each end of Sparco System.
Hand tighten. Finish tightening by turning 1 to 2
revolutions with pipe wrench.

DO NOT OVER TIGHTEN.

5.

AUTOMATIC

WATER

TREATMENT

SYSTEM

Attach the lter section of ex hose to one hose
adapter and the return section of ex hose to
the other hose adapter with clamps and tighten
with screwdriver. Bi-ow valve design allows
water ow in either direction.

Two
Hose
Clamps

RECOMMENDED

4-8 psi Back Pressure

To avoid over or under
chlorination, replace eyeball
ttings in the return jets to a
smaller or larger size to adjust
back pressure. For best results
use King Technology’s pressure
gauge, order part number
01-22-4000.

Screw a male adapter into each port of the
Sparco System. Hand tighten. Finish tightening
by turning 1 to 2 revolutions with a pipe wrench.

DO NOT OVER TIGHTEN.

3.

Apply sealant to threaded ends of both hose
adapters and inside of both male adapters.

6.

AUTOMATIC

WATER

TREATMENT

SYSTEM

To prevent damage to heaters or lters, see your
dealer about installing a corrosion resistant
check valve which will reduce the back ow of
chlorine gas when the Sparco System is turned off.

For better stability,
Sparco System may be
mounted on a treated
wood base using

Phillips pan head
screws, one in front

and one in back. If you
have questions about stability, please contact
your dealer or King Technology.

7

W

a

t

e

r

C

Y

C

L

E

R

M

e

t

e

r

e

d

P

o

o

l

P

u

r

i

f

i

e

r

TOOLS NEEDED

W

a

t

e

r

C

Y

C

L

E

R

M

e

t

e

r

Pipe Wrench

Hard-Plumbed Installation

Hacksaw

Tape Measure

MATERIALS NEEDED

Pipe Thread
Sealant

Primer and
PVC Cement

P

r

P

r

e

i

m

C

e

Two 2” Threaded
x 2” or 1 1/2” Slip
Male Adapters
(not Included)

AUTOMATIC

WATER

TREATMENT

SYSTEM

The Sparco System should always be installed between
the lter and pool (or between heater and pool if

Do NOT install in copper pipe as chemical
corrosion may lead to pipe failure.

applicable). Never install Sparco SYSTEM before the

heater or damage to the heater could occur.

Allow a minimum

12"

AUTOMATIC

TREATMENT

WATER

SYSTEM

OR

AUTOMATIC

WATER

TREATMENT

SYSTEM

AUTOMATIC

WATER

TREATMENT

SYSTEM

of 12” above

to

and on each side

15"

of the Sparco
System to ensure
room for easy

3.

12"

to 15"

replacement of
Sparco Chamber.

Do NOT install an in-line
Sparco System off-line.

C

V

t

n

e

m

e

d

P

o

r

o

l

e

P

i

f

u

i

r

1.

Bi-ow valve design allows
installation in either ow direction.

2.

12"

to 15"

RECOMMENDED

For better stability, Sparco
System may be mounted on
a treated wood base using

Phillips pan head screws,

one in front and one in back.
If you have questions about
stability, please contact your
dealer or King Technology.

4-8 psi Back Pressure

To avoid over or under chlorination,
replace eyeball ttings in the
return jets to a smaller or larger
size to adjust back pressure. For
best results use King Technology’s
pressure
gauge, order
part number
01-22-4000.

8

Screw a male adapter
into each port of the Sparco

Following pipe thread sealant
directions, brush sealant onto
Sparco System threads in both
ports and both male adapters.

System. Hand tighten. Finish
tightening by turning 1 to 2
revolutions with
a pipe wrench.

DO NOT OVER

DO NOT USE

TIGHTEN.

PIPE THREAD TAPE

P

r

r

e

i

m

C

P

V

C

t

n

e

e

m

4. 5.

Following Primer directions,
brush Primer on the inside of the
male adapters and to ends of
pipe. Repeat this process with PVC
cement following manufacturer’s
directions on that product.

Insert PVC pipe into male
adapters with a twisting
action. Hold in place
5 to 10 seconds to bond.

W

M

Measure the distance
between the Sparco System
male adapters and cut out a
section of pipe 3” less than
that dimension.

a

t

e

r

C

Y

C

L

E

R

e

t

e

r

e

d

P

o

o

r

l

e

i

f

P

i

u

r

4

0

0

S

E

R

I

E

S

AUTOMATIC

WATER

TREATMENT

SYSTEM

To prevent damage to

6.

heaters or lters, see your
dealer about installing a

corrosion resistant check
valve which will reduce the

back ow of chlorine gas
when the Sparco System is
turned off.

Step 1: Preparing the Pool

1.

2.

Make sure the pool has adequate
circulation. The total volume of pool
water must completely circulate
through the pump and lter at least
1 to 2 times per day. This usually
requires 8 to 12 hours of circulation.
Check with your dealer for the
proper circulation time for your pool.

Check the pool’s lter gauge often
and periodically clean lter per
the manufacturer’s directions.
A dirty lter will slow the ow of
water which could hamper proper
circulation.

WARNING

Do not exceed maximum operating
pressure of 50 psi.

4.

5.

Check for metals in the pool such
as iron or copper. Before attempting

Metal

Out

Before beginning with any pool care program, you
must rst balance your pool water. Take a water
sample to your local pool professional (or use a
complete test kit) to test for the important Water
Balance Guidelines.

IMPORTANT: Always follow printed instructions on
the balancing chemical packages. Add balancing
chemicals in small increments one at a time
with circulation running. For best results, wait
8-12 hours before testing again and adding any
additional balancing chemicals.

water balance, these should be
removed. See your dealer for a metal
out or sequesterant and follow the
label directions carefully.

Operate

Check the Water Hardness of your ll water before

3.

adding to the pool. If calcium content is higher than
400 ppm, nd a soft water source to ll your pool
instead; otherwise water balance will be very difcult.

Water Balance Guidelines

pH: 7.2 – 7.8
Total Alkalinity: 80 – 120 ppm
Calcium Hardness: 200 – 400
Total Dissolved Solids: <1500
Stabilizer: 20 – 80 ppm
Free Chlorine: 0.5 – 1.0 ppm

9

Continue... Step 1: Preparing the Pool

SmartChlor
Out Indicator

Active Chlorine

If lighter color,

check Smart

Chlor catridge

If darker
color, OK

If lighter color,

turn cartridge

setting up
1 number

If darker color,
turn cartridge
setting down
1 number

6.2 6.8 7.2 7.8 8.4

LOW
BAJO

VERY LOW
MUY BAJO

HIGH
ALTO

SmartChlor
Out Indicator

Active Chlorine

pH

If lighter color,

check Smart

Chlor catridge

If darker
color, OK

If lighter color,

turn cartridge

setting up

1 number

If darker color,
turn cartridge
setting down
1 number

IDEAL

For best results in achieving water balance, follow
steps 5a through 5e in order.

5a. Take a water sample

from the pool and dip a
test strip into it.

l

P

o

o

a

n

d

S

a

p

t

T

s

e

s

p

S

i

t

r

Test Strips

5b. Look at the Total Alkalinity reading rst. Adjustments

should be made to bring the Total Alkalinity in the range of
80 – 120 ppm prior to making any adjustments to pH even
if it throws pH off further.

Total Alkalinity
(ppm)

Alcalinidad Total
(mg/L)

0 40 80 120 180 240

LOW

VERY LOW
MUY BAJO

IDEAL

BAJO

HIGH
ALTO

VERY HIGH

MUY ALTO

6.

Initially shock the pool with
a chlorine shock only to rid
the water of contaminants
and establish a chlorine
residual. Always follow the
manufacturer’s directions
carefully. See the DANGER
box below for important
guidance on shocking.

DANGER

• Never add any other types of chlorine, pH adjusters,
shock treatments or algaecides through the skimmer.
These products should be added directly into the
pool if required.

• Never use fast dissolving chlorine tablets, liquid
bleach, or calcium hypochlorite in the Sparco
System.

5c. After Total Alkalinity is in range, test for pH. It should be

between 7.2 and 7.8. If higher or lower, add a pH adjuster.

6.2 6.8 7.2 7.8 8.4

pH

LOW

VERY LOW
MUY BAJO

IDEAL

BAJO

HIGH
ALTO

5d. Then test your Water Hardness again. If lower than

200 ppm, add Calcium Increaser. Always maintain 200-400
ppm.

5e. Lastly, test for stabilizer or conditioner levels. Add

conditioner if the level is below 20 ppm. This will prevent
chlorine burn off. If stabilizer level is above 80 ppm,
partially drain water and re-ll.

10

Step 2: Putting the System to Work

DANGER

Never use fast dissolving chlorine tablets, liquid bleach,
or calcium hypochlorite in the Sparco System.

WARNING

Avoid sparks, smoking, or any open ame near
Sparco System or chemicals.

IMPORTANT: Read the label on the Sparco Chamber carefully

before using.

1.

2.

3.

Cut handle from Sparco Chamber using a PVC
cutting tool (KEEP OUT OF REACH OF CHILDREN)

Turn off pump. Turn dial to
Minimum. This reduces the ow
of water into the unit when the
cap is open.

Open the cap. Use the cap
tool included with Sparco
System to loosen cap by
hitting the handle with the
at of your hand counter
clockwise. Stand back to
allow any chlorine fumes to
dissipate.

3e. If openings are pinched

together, open with ngers or
re-cut closer to the colored
screens inside Sparco
Chamber. Leave at least 1/4”
of plastic to t into Sparco
base.

4.

Chamber

towers

Chamber
towers

5.

Avoid a
pinched
opening.

A correct
oval
opening

Invert Sparco Chamber and
shake slightly until tablets fall
into tower areas.

Insert Sparco Chamber into
Sparco System, lining up the
openings in Sparco Chamber
with keys in Sparco System.

NOTE: Openings are a
different shape than keys.

Opening
in Sparco
Chamber

Key in
Sparco
System

Operate

Indent in plastic

3a. Find

the indent in
the plastic.

3c. Squeeze the handles

together. Repeat for other side.

PVC cutting tool
available at local
hardware stores.

3b. Place curved section of

tool around the narrow end of
one Sparco Chamber tower
and line up blade on indent

Finished cut ends

3d. Make sure the blade

comes straight across on the
indent line for a clean cut.

6.

7.

8.

WE RECYCLE

Replace cap by hand only.

DO NOT OVERTIGHTEN.

DO NOT USE
CAP TOOL TO
TIGHTEN CAP.
FOR REMOVAL
ONLY.

The Sparco Chamber is made
of HDPE plastic. Non-rellable
container. Do not reuse or
rell this container. Offer for
recycling if available. Rinse
thoroughly before recycling or
discarding in trash.

Mark your calendar ahead for
the approximate replacement
times for the Sparco Chamber.

11

Step 3: Setting the Control Dial

This system is designed to work effectively with a variety of pool equipment as long as the following procedures are
followed.

Set control dial on Sparco System by matching up the parameters of your pool on the chart below. THIS IS A STARTING

1.

POINT ONLY and may need to be adjusted to t your individual pool needs. See #2 below for adjusting directions.
IMPORTANT: If using a multi-speed pump, pump-run times of at least 6 hours per day at high speed are recommended for
proper performance. If running the pump at low speed only or on high speed less than 6 hours, please follow the 24

hour low-speed directions below.

SINGLE-SPEED PUMP OR HIGH-SPEED PUMP-RUN TIME

POOL SIZE

Gallons

7,000 3.5

9,000 4.0

12,000 4.5

18,000 NR

25,000 NR

30,000 NR NR

^ Bypass installation recommended. See “Installation Tips” on page 6. NR- This pump size is not recommended for this size pool.

3/4 hp 1 hp 1 1/2 hp 2 hp

6 HOUR PUMP RUN TIME

PUMP SIZE

3/4 hp 1 hp 1 1/2 hp 2 hp

3.0 2.5 2.5^ 2.5 2.0 3.5^ 3.0^ 1.0 3.0^ 2.5 2.0^

3.5 3.0 2.5 3.0 2.5 2.0 3.5^ 2.0 3.5^ 3.0 2.5^

4.0 3.5 3.0 3.5 3.0 2.5 2.0 2.5 2.0 1.0 3.0

4.5 4.0 3.5 4.5 3.5 3.0 2.5 3.0 2.5 2.0 1.5

NR 4.5 3.5 NR 4.5 3.5 3.0 3.5 3.0 2.5 2.0

5.5 4.5 NR 5.0 4.5 3.5 NR 3.5 3.0 2.5

12 HOUR PUMP RUN TIME

PUMP SIZE

3/4 hp 1 hp 1 1/2 hp 2 hp

24 HOUR PUMP RUN TIME

PUMP SIZE

24 HOUR, LOW-SPEED, PUMP-RUN TIME

In order to ensure proper performance when running the
pump on low speed for 24 hours per day or high speed less
than 6 hours per day, bleed the air while the pump is on by
unscrewing the cap knob until water appears. Then screw
the knob back on. Repeat this process each time the cap is
removed for any reason. Set the control dial at 6 and follow
the adjustment directions in Step 2 to determine the correct
setting for your pool.

2.

l

P

o

o

a

n

d

S

a

p

t

T

s

e

p

S

i

t

r

For the rst week test the pool water daily
for free chlorine to ensure correct dial

s

setting., Continue to test weekly throughout
the season.

Test Strips

After each testing, adjust the dial up
by 1/2 increment if the free chlorine
reading has dropped or down by
1/2 increment if the reading has
risen. Continue this process each
day until the reading stabilizes at
your desired level between 1.0- 3.0
ppm. Remember to adjust dial by 1/2
increments only.

EXAMPLE

POOL SIZE

Gallons

7,000

9,000

12,000

18,000

25,000

30,000

3/4 hp 1 hp 1 1/2 hp 2 hp

2.5 2.0 3.5^ 3.0^

3.0 2.5 2.0 3.5^

3.5 3.0 2.5 2.0

4.5 3.5 3.0 2.5

NR 4.5 3.5 3.0

NR 5.0 4.5 3.5

Find your starting dial setting by matching up the parameters of your
pool on the above chart. An above ground pool with approximately
12,000 gallons, with a 1 ½ horsepower pump running 12 hours a
day, would require a starting setting of 2.5.

12 HOUR PUMP RUN TIME

PUMP SIZE

IMPORTANT: Control dial settings in excess of these
recommendations could result in excess trichlor levels being
discharged into the pool. This can result in bleaching or
discoloration of areas around the pool inlet or in some cases
bleaching or discoloration of the entire pool liner or paint. In
addition, excess trichlor in the pool can create health hazards
to bathers.

Use the handle end of cap tool if the
dial is hard to turn.

12

Step 4: Routine Pool Care

1.

2.

Run ltration system enough
hours to circulate all water 1 to
2 times per day. More than that
could result in over chlorination.

WARNING

To prevent the build up of gas pressure in the Sparco System,
be sure the pool return line valves are open –except when
opening or servicing the unit.

Regularly test water to maintain pH
and Total Alkalinity.

l

P

o

o

a

n

d

S

a

p

t

T

s

e

s

p

S

i

t

r

NOTE: Water balance is affected
by bather load, chemical usage,
evaporation and the makeup of
source water, so maintaining water
balance regularly is important.

Test Strips

4.

Shock the pool every week or as
needed with a non-chlorine or
chlorine shock.

Operate

DANGER

• Never add any other types of chlorine, pH adjusters,
shock treatments or algaecides through the skimmer.
These products should be added directly into the
pool if required.

• Never use fast dissolving chlorine tablets, liquid
bleach, or calcium hypochlorite in the Sparco
System.

3.

Maintain 1.0 - 3.0 ppm free chlorine
level at all times.

DANGER

Do not contaminate the Sparco System or Sparco
Chamber with dirt, organic matter, pool chemicals
(such as calcium hypochlorite or pool shocks), fertilizers
or other household chemicals. Contact between any of
these substances and the Sparco Chamber will result
in a chemical reaction with the generation of heat,
liberation of hazardous gasses and re or explosion.

13

Winterizing

1.

2.

Turn pump off and turn dial
to Minimum.

Remove cap.

4.

Remove Sparco Chamber.

If the Sparco Chamber still
contains chlorine, wrap in
plastic bag and store in shed or
cool, dry, well-ventilated location
away from children, pets, cars,
motorcycles or anything metal
that can rust, pit, etc.

If empty, rinse and recycle.

3.

Unscrew knob in the back
of Sparco System. Allow all
water to drain.

5.

WARNING

Avoid sparks, smoking, or any open ame near
Sparco System, Sparco Chamber or chemicals.

Replace the cap and knob
loosely.

14

Troubleshooting

For help troubleshooting call King Technology at 800-222-0169.

Problem Remedy

What do I do

1.

if the water looks
cloudy?

What do I do

2.

if the water turns
color?

What do I do

3.

if algae forms in or
on my pool?

What do I do

4.

if I am under
chlorinating
with the Sparco
Chamber?

1. Make sure your ltration
system is working properly (i.e.
clean lter, skimmer and pump
basket).

2. Make sure circulation time
is adequate – increase pump
time if not.

1. Algae may be trying to form
– shock the pool, increase
circulation time if needed and
clean the lter.

1. Use an algaecide per the
directions on the bottle and
brush the sides of the pool
often.

1. If you are unable to maintain
at least 1.0 ppm, rst make
sure there are chlorine tablets
in the tower areas of the Sparco
Chamber and it is installed
properly. If a correction was
made, test the water in 24
hours.

2. If still low, turn the dial up one
setting and test the water again
in 24 hours. Continue raising the
setting by one increment each
day until the proper reading is
achieved.

3. Make sure the pool is
properly balanced

4. Shock the water to eliminate
build up of any organic matter.

5. Make sure pool has a

2. Metals in the ll water may
have been oxidized. Have the
pool tested. See pool dealer
if a metal control product is
required.

2. Clean the lter and shock
the pool with chlorine daily
until water clarity returns

3. Shock the pool if the reading
has been lower than 1.0 ppm for
more than one day.

4. Make sure pump run time is
at least 6 hours on high speed
(40 gpm or higher) or if not,
bleed the air from the cap knob
each time cap is open.

5. Contact your dealer to have
your back pressure tested. If
under 4 psi, consider a smaller
eyeball tting in the return jet.

(see page 9).

free chlorine reading of

1.0 to 3.0 ppm.

6. Check with your dealer
for more information.

3. Check with your dealer for
more information.

3. Check with your dealer for
more information.

6. Check for a suction side leak
by looking for air bubbles in your
pump basket or at the return
jet. Contact dealer for help in
correcting this situation.

7. Contact King Technology’s
Customer Service Department
at 800-222-0169.

Troubleshoot

1. If the chlorine reading is

What do I do

5.

if I am over
chlorinating
with the Sparco
Chamber?

over 3.0 ppm, remove the
Sparco Chamber from the
Sparco System and test the
water daily until the reading is
down to 1.0 ppm.

2. Reinsert the Sparco
Chamber, lower the dial
one setting and test the
water again in 24 hours. If
the reading has risen, lower
the dial one setting again.
Continue this process until
proper reading is achieved.

3. If over-chlorinating at
the lowest possible setting,
consider decreasing the
circulation time. Depending
on your pump size, you may
be circulating the water more
than is necessary.

4. Contact your dealer to have
your back pressure tested. If
over 8 psi consider a larger
eye-ball tting in the return jet.

5. Check to see if the pressure
relief valve is loose or missing
and replace. It is a clear
plastic piece approximately
1” long installed inside near the
base. If loose or missing, it can
provide another avenue for
water to reach the chlorine.

6. Contact King Technology’s
Customer Service Department
at 800-222-0169.

15

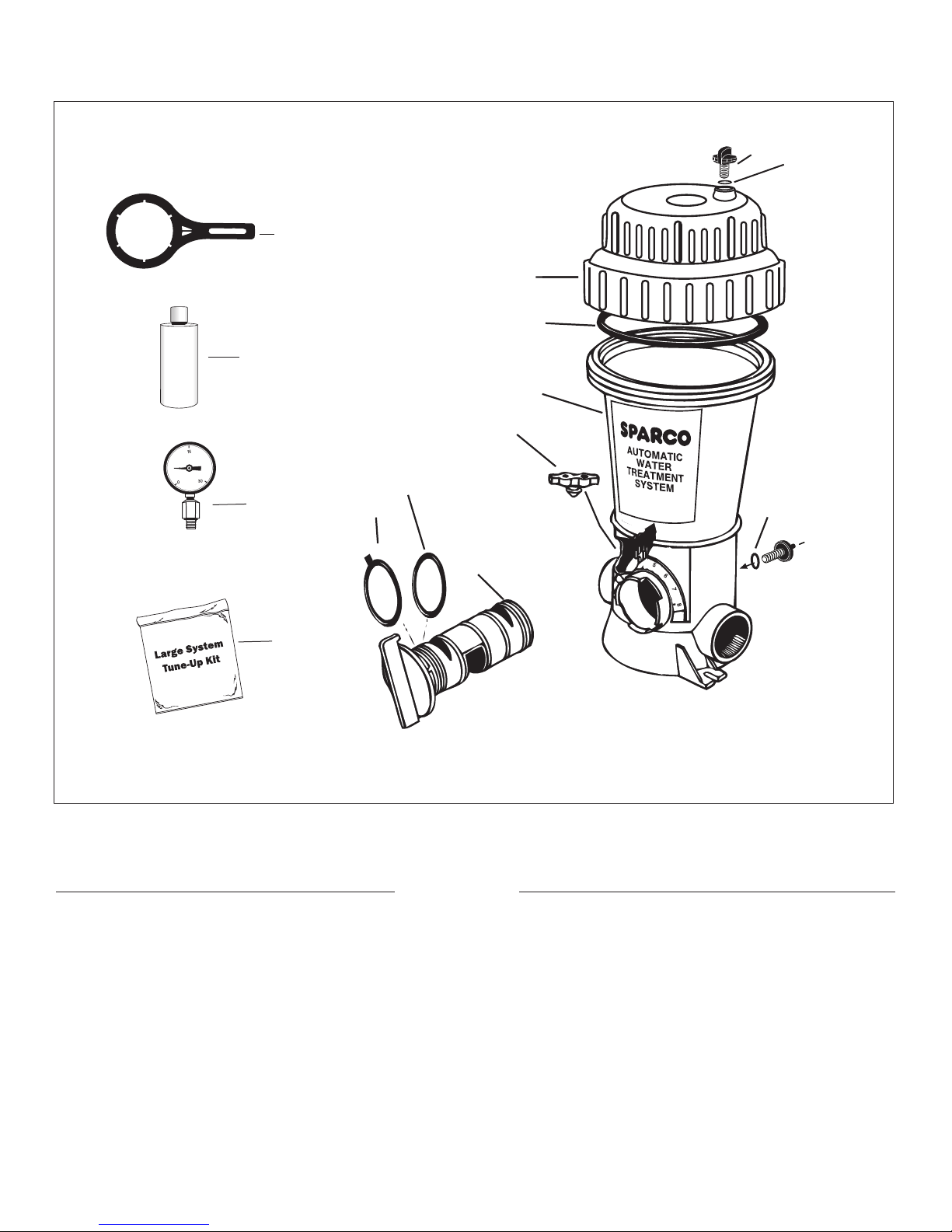

Parts List

8

9

10

1

2

S

I

L

E

C

I

O

N

L

U

T

B

N

I

C

R

A

11

3

4

7

12

6

9

13

INCLUDED WITH SPARCO SYSTEM Model 5510

REF. # DESCRIPTION QTY. INCLUDED

1 & 2 Cap w/O-Ring 1

3 Body 1

4 Pressure Relief Valve 1

5, 6, 7 Control Dial with O-Rings 1

8 & 9 Knob with O-Ring 2

10 Cap/Control Dial Tool 1

11 Silicone Lubricant 1

8

5

REPLACEMENT PARTS FOR SPARCO SYSTEM Model 5510

REF. # PART NUMBER DESCRIPTION

1 & 2 01-22-9418 Cap w/O-Ring

2 01-22-9926 Cap O-Ring

3 N/A Body

4 01-22-9486 Pressure Relief Valve

5, 6, 7 01-22-9446 Control Dial with O-Rings

6 & 7 01-22-9456 Control Dial O-Ring Kit

8 & 9 01-22-9946 Knob with O-Ring

10 01-22-8870 Cap/Control Dial Tool

11 01-22-9970 Silicone Lubricant 3/4 oz.
12 01-22-4000 Pressure Gauge
13 01-22-9950 Large System Tune Up Kit

16

System Maintenance

Replacing the Control Dial O-Rings

1.

2.

Using a needle nose pliers, nd
the snap ring tail located at
approximately the ve o’clock
position under the control dial.

Pull down and out of the groove.

5.

6.

Push control dial completely
into the housing and turn the
dial to setting 2.

Troubleshoot

Insert the non-lipped end
of snap ring into the groove
opening beginning at the 5
o’clock position and push it up
so that it threads itself around
the control dial.

3.

4.

7.

Using a small screwdriver or
pointed tool to help guide it,
make sure the snap ring stays
in the groove as it is inserted.

Using a large screwdriver, loosen
the control dial. Carefully pry the
dial until it pulls out.

Carefully replace the rubber
O-ring without stretching it. Apply
silicone lubricant that came with
your Sparco System on O-ring.

S

I

L

E

C

I

O

N

L

U

T

B

N

I

C

R

A

Product # 01-22-9970

17

continued... System Maintenance

Replacing the Cap O-Ring

1.

2.

3.

Remove old O-ring.

Top half of
groove

Bottom half
of groove

Top half of
groove

Place new O-ring in bottom
half of groove.

Place your thumbs on each
side of the cap over the
O-ring in the groove.

Roll your thumbs back and
forth over the O-ring while
pushing upward until the
O-ring falls into the top of
the groove.

Replacing Knobs

To replace, simply unscrew old knob and replace with the new
one.

1.

Back of System

Top of Cap

2.

4.

Bottom half
of groove

S

I

L

E

C

I

O

N

L

U

T

B

N

I

C

R

A

Product # 01-22-9970

Lubricate O-ring every
couple of months with
silicone lubricant that
came with your Sparco
System.

DO NOT USE petroleum
based lubricants.

18

Limited One-Year Warranty

King Technology, Inc. will warrant this unit with a complete replace­ment for the original purchaser, should it prove defective by reason
of improper workmanship and/or material for a period of one (1)
years from the date of original purchase/installation. This warranty
covers body, cap and control dial excluding O-rings. King Technology
holds the option of replacing any defective part without charge if it
is determined to be all that is needed to correct any situation. Parts
used for replacement, with the exception of O-rings, are warranted
for the remainder of the original warranty.

1. To obtain warranty service, you must deliver product to King Tech­nology or its nearest authorized dealer. Shipping expenses are the
purchaser’s responsibility. The name of the nearest authorized deal­er can be obtained at frogproducts.com/nd-a-dealer or by calling
King Technology at 1-800-222-0169. Proof of purchase is required
when requesting warranty service. Purchaser must present the sales
receipt or other document which establishes proof of purchase.

2. This warranty does not cover defects caused by: modication,
alteration, repair or service of the product contrary to the accom­panying instructions; physical abuse to or misuse of the product or
operation or installation in a manner contrary to the accompanying
instructions. This warranty also excludes all costs arising from the
installation, adjustment, removal or replacement of defective units
or parts. This warranty also excludes any and all claims arising out
of the chemicals used in the product or their characteristics.

3. Any express warranty not provided for herein, and any remedy for
breach of warranty or breach of contract which, but for this provision,
might arise by implication or operation of law, is hereby expressly
excluded and disclaimed. The implied warranties of merchantability
and of tness for any particular purpose are expressly limited to a
term of one year. Some states do not allow limitation on how long an
implied warranty lasts, so the above limitation may not apply to you.

4. Under no circumstance shall King Technology be liable to pur­chaser or any other person for any damage or loss incurred because
of any chemicals used in the product or their physical characteris­tics, or interruption of service of the product, or any special, inci­dental or consequential damages or losses, whether arising out of
breach of warranty, breach of contract or otherwise. Some states
do not allow the exclusion or limitation of incidental consequential
damages, so the above limitation or exclusion may not apply to you.

5. Misuse or failure to use the proper Sparco Chamber may cause
damage to equipment or personal injury. All warranty null and void
if this product is not used with the recommended Sparco Chamber.

Register your warranty at kingtechnology.com/product-registration

Made in U.S.A.

Patents: kingtechnology.com/IP

19

MANUFACTURED BY

530 11th AVENUE SOUTH

HOPKINS, MINNESOTA 55343 U.S.A.

952-933-6118 • 800-222-0169

kingtechnology.com

20

20-48-0150 553111843R5N
