FROG Leap®

Instruction Manual

Mineral Pool-Care Infuzer®

for Pools up to 25,000 Gallons

Cleaner

because it kills bacteria two ways

Clearer

because it helps keep pH in range

Softer

because it reduces chlorine use up to 50%*

Easier

with pre- lled pacs for no mess,

no guess and no stress

FROG Leap Infuzer comes with the

FROG Leap Anti-Bac Mineral Pac

Patented Mineral Disinfectant

Customer Service 800-222-0169

frogproducts.com

Ver la versión en español de este manual en frogproducts.com/product/frog-leap

WARNING

To minimize the risk of serious injury, death or damage, before installing or first using this equipment, read Instruction Manual and all safety labels and follow all safety instructions and precautions. Save manual for future reference.

TABLE OF CONTENTS

FROG Leap Introduction 3

Notes and Safety Information 4

Safety Labels on Infuzer 5

Installation Tips to Ensure Proper Performance 6

Filter Flex-Hose Installation 7

Base Flex-Hose Installation 8

Hard-Plumbed Installation 9

Step 1: Preparing the Pool 10-11

Step 2: Putting the System to Work 12

Step 3: Setting the Control Dial 13

Step 4: Routine Pool Care 14

Replacing FROG Leap Anti-Bac Mineral Pac 15

Using FROG Leap Wake Up!

Using FROG Leap ALL-OUT

Using FROG Leap Torpedo Pac

Winterizing 19

Troubleshooting 20

Parts List 21

Maintenance - Replacing Control Dial O-Rings 22

Maintenance - Replacing Cap O-Rings and Knobs 22

Warranty 23

For information on King Technology’s entire product line, visit our website at frogproducts.com

Welcome to easier pool care courtesy of FROG Leap. With FROG Leap, your pool water will look and feel better without a lot of work or a lot of chlorine. This system† controls bacteria using a combination of minerals and reduced chlorine levels. Chlorine lasts 2X longer with the FROG Leap Mineral System.*

There are 4 main parts to the FROG Leap System:

1. FROG Leap Infuzer

2. FROG Leap Anti-Bac Mineral Pac

3. FROG Leap Pool Wake Up!/Hibernation®

4. FROG Leap Torpedo Pac

Part 1

FROG Leap Infuzer

The water treatment center that controls the  ow of water to each part of the FROG Leap System.

For Pools Up to 25,000 gallons. Product #01-01-7820

Part 3

FROG Leap Wake Up!/Hibernation

Three-step pool opening and closing kit with an Algae Protection Guarantee. Product #01-10-7858.

Part 2

FROG Leap Anti-Bac Mineral Pac

Holds the minerals and  ts inside the FROG Leap Infuzer. Product #01-12-7822

THE FROG LEAP ANTI-BAC MINERAL PAC MUST BE REPLACED EVERY SIX MONTHS OR AFTER ONE POOL SEASON, WHICHEVER IS SHORTER.

Part 4

FROG Leap Torpedo Pac

Pre- lled with chlorine tablets and  ts inside the FROG Leap Anti-Bac Mineral Pac. Product #01-03-7937

FROG Leap Reveille®, FROG Leap Depth Charge® and FROG Leap ALL-OUT

FROG Leap Anti-Bac Mineral Pac comes inside the FROG Leap Infuzer and is also sold separately.

Also sold separately: FROG Leap Torpedo Pac, FROG Leap ALL-OUT Product #01-10-7872 and

†FROG Leap Mineral System consists of the FROG Leap minerals silver chloride and carbonate used in conjunction with 0.5 ppm chlorine. The FROG Leap Anti-Bac Mineral Pac must be used in conjunction with the FROG Leap Torpedo Pac (EPA Reg. No.: 53735-2), an EPA registered chlorine pool product or a chlorine delivery device.

*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.

FROG Leap Pool Wake Up!/Hibernation.

NOTICE

Notes and Safety Information

General Notes

These instructions contain information for the safe and proper

operation of this system. Observe the following principles:

• Ensure that everyone using this system follows the instructions and safety precautions.

• Keep the instructions nearby and available for reference

throughout the service life of this system.

These instructions do not provide for every possible contingency

that might be encountered in connection with installation, opera-

tion or maintenance of this equipment. Should further informa-

tion be desired or should particular issues arise which are not

covered suf ciently in this manual, contact King Technology at

800-222-0169.

Explanation of the signal words

Signal words, which depict the probability and severity of harm, are used in these instructions. They are de ned as follows:

Signal Word

DANGER

WARNING

Meaning

Indicates an imminently hazardous situation which, if not avoided, will result in death, serious injury or major property damage.

Indicates a hazardous situation which, if not avoided, could result in serious injury, death, or major property damage.

NOTICE

Indicates special instructions that are important but not related to physical injury hazards.

Explanation of the safety pictographs

The following pictographs illustrate the type of hazard.

Pictograph Type of Danger

Safety Alert/General Hazard

Explosion Risk

Hazardous Pressure

Flammable Fire Hazard

Identi cation of warnings

Warnings are intended to help you recognize risks and avoid

death, injury or property damage. This is how warnings are identi ed:

Signal Word

Pictographs

Description of danger.

Consequences if ignored.

a The arrow signals a safety precaution to be taken to

eliminate or reduce the risk.

NOTICE

Safety Labels on Infuzer

Review this label before installing or operating this Infuzer. Contact King Technology at 800-222-0169 if this label is missing from your FROG Leap Infuzer.

Fire, explosion and high pressure hazards

To minimize the risk of serious injury, death or property damage while using the FROG Leap Infuzer:

a Read, understand and follow all instructions and safety precautions in the manual, and on this Infuzer and on any label for chemicals used with this Infuzer including FROG Leap Torpedo Pacs, FROG Leap Anti-Bac Mineral Pacs and FROG Leap Wake Up!/Hibernation.

DANGER

a Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the FROG Leap Infuzer.

a Never mix Trichlor chlorine tablets with Calcium Hypochlorite, or with any other form of concentrated chlorine or other chemicals.

a Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer.

These products should be added directly into the pool if required.

Do not contaminate the FROG Leap Infuzer, Anti-Bac Mineral Pac, Torpedo Pac or Wake Up!/Hibernation (which includes Reveille, Depth Charge and ALL-OUT) with dirt, organic matter, pool chemicals (such as calcium hypochlorite or pool shocks), fertilizers or other household chemicals. Contact between any of these substances and the FROG Leap Infuzer, Anti-Bac Mineral Pac, Torpedo Pac or Wake Up!/Hibernation, will result in a chemical reaction with the generation of heat, liberation of hazardous gasses and  re or explosion.

WARNING

a Use only FROG Leap Torpedo Pacs, Anti-Bac Mineral Pacs and Wake Up!/Hibernation (which includes Reveille, Depth Charge and ALL-OUT) in the FROG Leap Infuzer. Never use bulk chemicals.

a To prevent the build up of gas pressure in the FROG Leap Infuzer, be sure the pool return line valves are open – except when opening or servicing the unit.

a Do not inhale fumes from the FROG Leap Infuzer or FROG Leap Torpedo Pac.

a Avoid sparks, smoking, or any open  ame near FROG Leap Infuzer or chemicals.

a Do not exceed maximum operating pressure of 50 psi or maximum temperature of 104º F.

a Do not remove the cap while under pressure. Always turn off pump and bleed off pressure before opening FROG Leap Infuzer.

a Do not install automatic or fast shut off valves downstream of Infuzer.

a Always install the FROG Leap Infuzer AFTER a heater (if applicable) on the return line.

a Always install any additional sanitizing equipment AFTER and NEVER BEFORE the FROG Leap Infuzer is installed on the return line.

a Do not permit children to use or climb on this product. This product must be positioned to prevent children from using it as a means of access to the pool.

a Always stand clear of the FROG Leap Infuzer during pump start-up.

a Replace FROG Leap Infuzer if you see signs of cracks, damage or degradation to the Infuzer body or cap.

a Prior to pressurizing, check with your dealer to ensure your plumbing connections meet building codes.

a Failure to properly winterize your FROG Leap Infuzer could result in freeze damage. (See page 19 for winterizing details.)

NOTICE

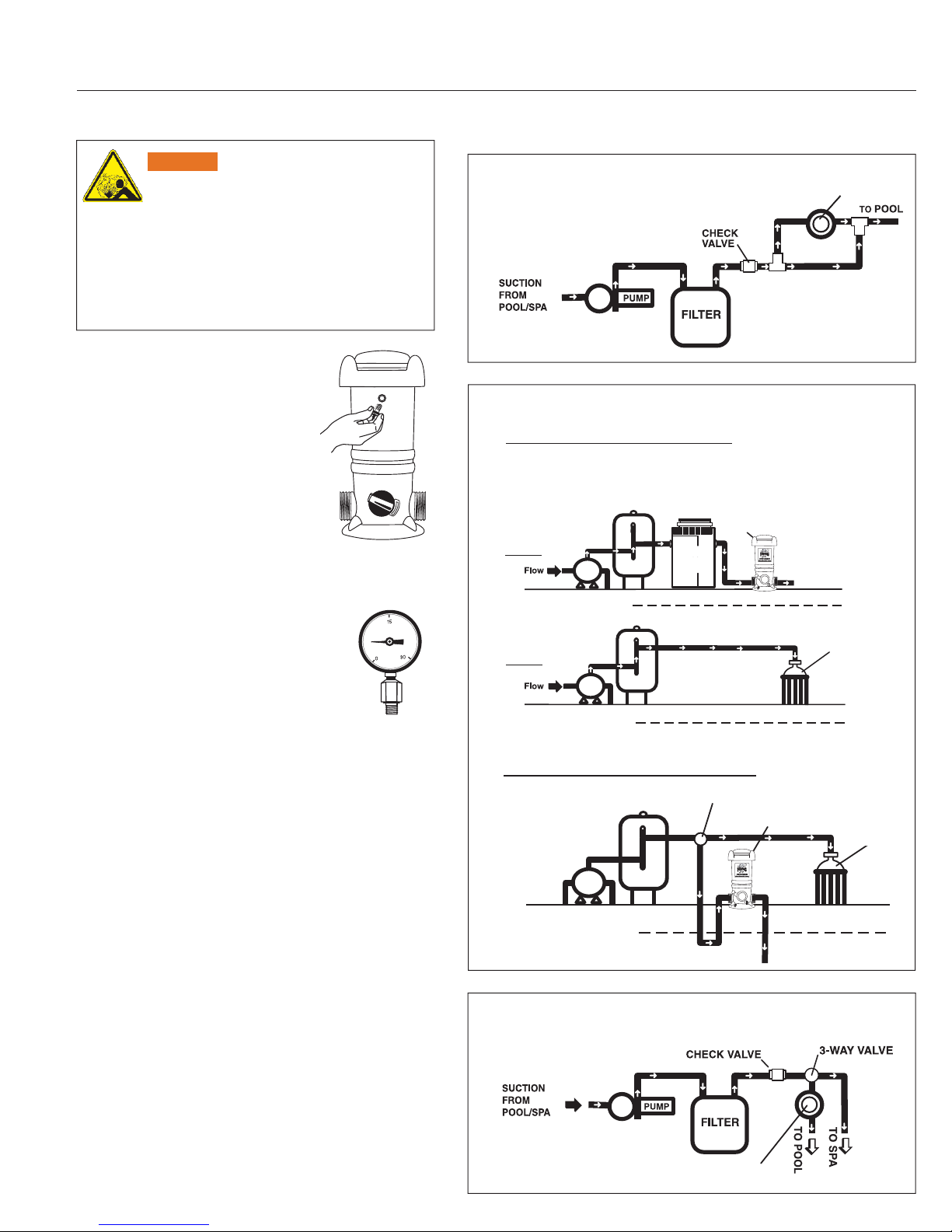

Installation Tips to Ensure Proper Performance

Before installing, read all directions carefully and contact your dealer for installation support.

WARNING

• Do not exceed maximum operating pressure of 50 psi.

• Do not install automatic or fast shut off valves downstream of feeder.

• Always install the FROG Leap Infuzer AFTER the heater (if applicable) on the return line.

• Always install any additional sanitizing equipment AFTER and NEVER BEFORE the FROG Leap Infuzer is installed on the return line.

1) If using a multi-speed pump, run pump for at least 6 hours per day at high speed (at least 40 gpm).

If the pump will run on low speed 24 hours per day or less than 6 hours per day on high speed, you must bleed the air while the pump is on by unscrewing the back knob until water appears. Then screw the knob back in. Repeat this process each time the cap is removed for any reason.

2) Install system with 4-8 psi back pressure.

Lower back pressures could result in under chlorination. Change the eyeball  ttings in the return jets to a smaller size to increase back pressure. Contact King Technology at 800-222-0169 for a specially designed Infuzer pressure gauge to determine back pressure at pool start-up.

PN #01-22-4000

A. With High Flow Rate (greater than 80 gpm)

FROG Leap Infuzer

Install T- ttings exactly as shown.

B. With In-Floor Cleaner - TWO OPTIONS

OPTION 1- A Two-Line Installation

The best option is to have two lines. One line with pump,  lter, heater and

FROG Leap Infuzer and a second line with a separate pump for the in- oor cleaning system ( lter optional).

FROG Leap Infuzer



POOL WATER LEVEL



POOL WATER LEVEL

POOL RETURN

IN-FLOOR CLEANER VALVE

Line 1

Line 2

PUMP

FILTER



HEATER

3) Special installation Requirements:

IMPORTANT:

Over chlorination or damage to the FROG

Leap Infuzer or other equipment could result if special installations A, B or C are not used in these situations.

• If water  ow is higher than 80 gallons per minute (gpm), see diagram A.

• If an in- oor cleaner is included with pool, see diagram B, with two options. Preferred installation is Option 1 with two separate lines.

• If set-up is a pool and spa combination with common equipment, see diagram C.

Questions? Call Customer Service at 800-222-0169 Monday thru Friday, 8 am to 5 pm central time.

OPTION 2 - A 3-Way Valve Installation

3-way manual valve or 3-way motor valve plus controls

FROG Leap Infuzer

PUMP

FILTER

C. Pool and Spillover Spa Combination

FROG Leap Infuzer

POOL WATER LEVEL

IN-FLOOR CLEANER VALVE

TOOLS NEEDED

Screwdriver

Pipe Wrench

INCLUDED WITH FROG Leap Infuzer

Install

Filter Flex-Hose Installation

Pipe Thread Tape or Sealant

One 6” X 1½” TBE PVC Nipple

MATERIALS NEEDED

One Hose Adapter 1½” X 1½” X 1¼”

One Section of 1½ or 1¼” Flex Hose

Apply pipe thread tape or

sealant to each threaded end of nipple.

Apply pipe thread tape or

sealant to threaded end of hose adapter.

Screw one end of nipple

into the  lter return. Hand

tighten. Finish tightening by turning 1 to 2 revolutions with a pipe wrench.

DO NOT OVER TIGHTEN.

Screw adapter into the other

side of FROG Leap Infuzer. Hand tighten. Finish tightening by turning 1 to 2 revolutions with a pipe wrench. DO NOT OVER TIGHTEN.

Screw either side of

FROG Leap Infuzer on to open nipple end until upright and secure.

One Hose Clamp

RECOMMENDED

4-8 psi Back Pressure

To avoid over or under chlorination, replace eyeball  ttings in the return jets to a smaller or larger size to adjust back pressure. For best results use King Technology’s pressure gauge, order part number 01-22-4000.

Attach return section of hose to the adapter with clamp. Tighten clamp with screwdriver.

To prevent damage to heaters or  lters, see your dealer about installing a corrosion resistant check valve which will reduce the back  ow of chlorine gas when the Infuzer is turned off.

TOOLS NEEDED

Screwdriver

Base Flex-Hose Installation

Pipe Wrench

MATERIALS NEEDED

Pipe Thread Tap e or Sealant

Two Hose Adapters 1½” X 1½” X 1¼”

Two Sections of 1½” or 1¼” Flex Hose

05-0

&),4%2

Apply pipe thread tape or sealant

to the threaded end of both hose adapters.

4/0//,

The FROG Leap Infuzer should always be installed between the  lter and pool (or between heater and pool if applicable). Never install FROG Leap before

the heater or damage to the heater could occur.

Screw adapters into each end of FROG

Leap Infuzer. Hand tighten. Finish tightening by turning 1 to 2 revolutions with a pipe wrench. DO NOT OVER TIGHTEN.

Two Hose Clamps

RECOMMENDED

4-8 psi Back Pressure

Attach the  lter section of  ex hose to one hose adapter and

the return section of  ex hose to the other hose adapter with clamps and tighten with screwdriver. Bi- ow valve design allows water  ow in either direction.

FILTER &

To prevent damage to heaters

or  lters, see your dealer about

PUMP

installing a corrosion resistant check valve which will reduce the

back  ow of chlorine gas when the Infuzer is turned off.

HOSE CLAMP

1 1/2" X 1 1/2" X 1 1/4" HOSE ADAPTER

1 1/2" OR 1 1/4" FLEX HOSE

HOSE ADAPTER

CHECK VALVE

HOSE CLAMP

HOSE ADAPTER

HOSE CLAMP

TO POOL

For better stability, FROG Leap Infuzer may be mounted

on a treated wood base using Phillips pan head screws, one in front and two in back. If you have

questions about stability, please contact your dealer or King Technology.

TOOLS NEEDED

Pipe Wrench

Hacksaw

Install

Hard-Plumbed Installation

Tape Measure

MATERIALS NEEDED

Pipe Thread Tape or Sealant, Primer and PVC Cement

1½” Male Adapter (slip x MPT)

2” Female Adapter (slip x FPT)

The FROG Leap Infuzer should always be installed between the  lter and pool (or between heater and pool if applicable).

Never install FROG Leap Infuzer before the heater or damage to the heater could occur.

Do NOT install FROG Leap off-line.

Bi- ow valve design allows installation in either  ow direction.

Screw adapters into each end of FROG Leap Infuzer following directions

for a male adapter or a female adapter. Hand tighten. Finish tightening by turning 1 to 2 revolutions with a pipe wrench.

DO NOT OVER TIGHTEN.

Do NOT install in copper pipe if using FROG Leap Torpedo Pac as chemical corrosion may lead to pipe failure.

Allow a minimum of 12” above and on

12"

each side of FROG Leap Infuzer to ensure room for easy replacement of FROG

12"

Leap Anti-Bac Mineral Pac and FROG Leap Torpedo Pac.

SECURE INFUZER

Measure the distance between the outside adapters and cut out a section of pipe 3” less than that dimension.

For better stability, FROG Leap Infuzer may be mounted on a treated wood base using Phillips pan head screws, one in front and two in back. If you have questions about stability, please contact

Following Primer directions, brush Primer on the inside of the adapters and to ends of pipe. Repeat this process with PVC cement following manufacturer’s directions on that product.

your dealer or King Technology.

2a.

If using male adapters, apply pipe thread tape or sealant to the threaded end of each adapter.

2b.

If using female adapters, apply pipe thread tape or sealant to the threaded end of each feeder port.

Insert PVC pipe into adapters with a twisting action. Hold in place 5 to 10 seconds to bond.

To prevent damage to heaters or  lters, see your dealer about installing a corrosion resistant check valve which will reduce the back  ow of chlorine gas when the Infuzer is turned off.

Step 1: Preparing the Pool

Operate

WARNING

Do not exceed maximum operating pressure of 50 psi.

Make sure the pool has adequate circulation. The total volume of pool water must completely circulate through the pump and  lter at least 1 to 2 times per day. This usually requires 8 to 12 hours of circulation. Check with your dealer for the proper circulation time for your pool.

Check the pool’s  lter gauge often and periodically clean  lter per the manufacturer’s directions. A dirty  lter will slow the  ow of water which could hamper proper circulation.

Metal

Out

Before beginning with any pool care program, you must  rst balance your pool water. Take a water sample to your local pool professional (or use a complete test kit) to test for the important Water Balance Guidelines.

IMPORTANT: Always follow printed instructions on the balancing chemical packages. Add balancing chemicals in small increments, one at a time, with circulation running. For best results, wait 8-12 hours before testing again and adding any additional balancing chemicals.

Check for metals in the pool such as iron or copper. Before attempting water balance these should be removed. See your dealer for a metal out or sequesterant and follow the label directions carefully.

Check the Water Hardness of your  ll water before

adding to the pool. If calcium content is higher than 400 ppm  nd a soft water source to  ll your pool instead; otherwise water balance will be very dif cult.

Water Balance Guidelines

pH: 7.2 – 7.8 Total Alkalinity: 80 – 120 ppm Calcium Hardness: 200 – 400 Total Dissolved Solids: <1500 Stabilizer: 20 – 80 ppm Free Chlorine: 0.5 – 1.0 ppm

Continue... Step 1: Preparing the Pool

For best results in achieving water balance, follow steps 5a through 5e in order.

5a. Take a water sample

from the pool and dip a FROG® Test Strip into it.

5b. Look at the Total Alkalinity reading  rst. Adjustments

should be made to bring the Total Alkalinity in the range of 80 – 120 ppm prior to making any adjustments to pH even if it throws pH off further.

Total Alkalinity (ppm)

Alcalinidad Total (mg/L)

0 40 80 120 180 240

LOW

VERY LOW MUY BAJO

IDEAL

BAJO

HIGH ALTO

VERY HIGH MUY ALTO

5c. After Total Alkalinity is in range, test for pH. It should be

between 7.2 and 7.8. If higher or lower, add a pH adjuster.

Initially shock the pool with a chlorine shock only to

rid the water of contaminants and establish a chlorine residual. Always follow the manufacturer’s directions carefully. See the DANGER box below for important guidance on shocking.

DANGER

• Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer. These products should be added directly into the pool if required.

• Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the FROG Leap Infuzer.

Operate

6.2 6.8 7.2 7.8 8.4

LOW

VERY LOW MUY BAJO

IDEAL

BAJO

HIGH ALTO

5d. Then test your Water Hardness again. If lower than

200 ppm, add Calcium Increaser. Always maintain 200-400 ppm.

5e. Lastly, test for stabilizer or conditioner levels. Add

conditioner if the level is below 20 ppm. This will prevent chlorine burn off. If stabilizer level is above 80 ppm, partially drain water and re- ll.

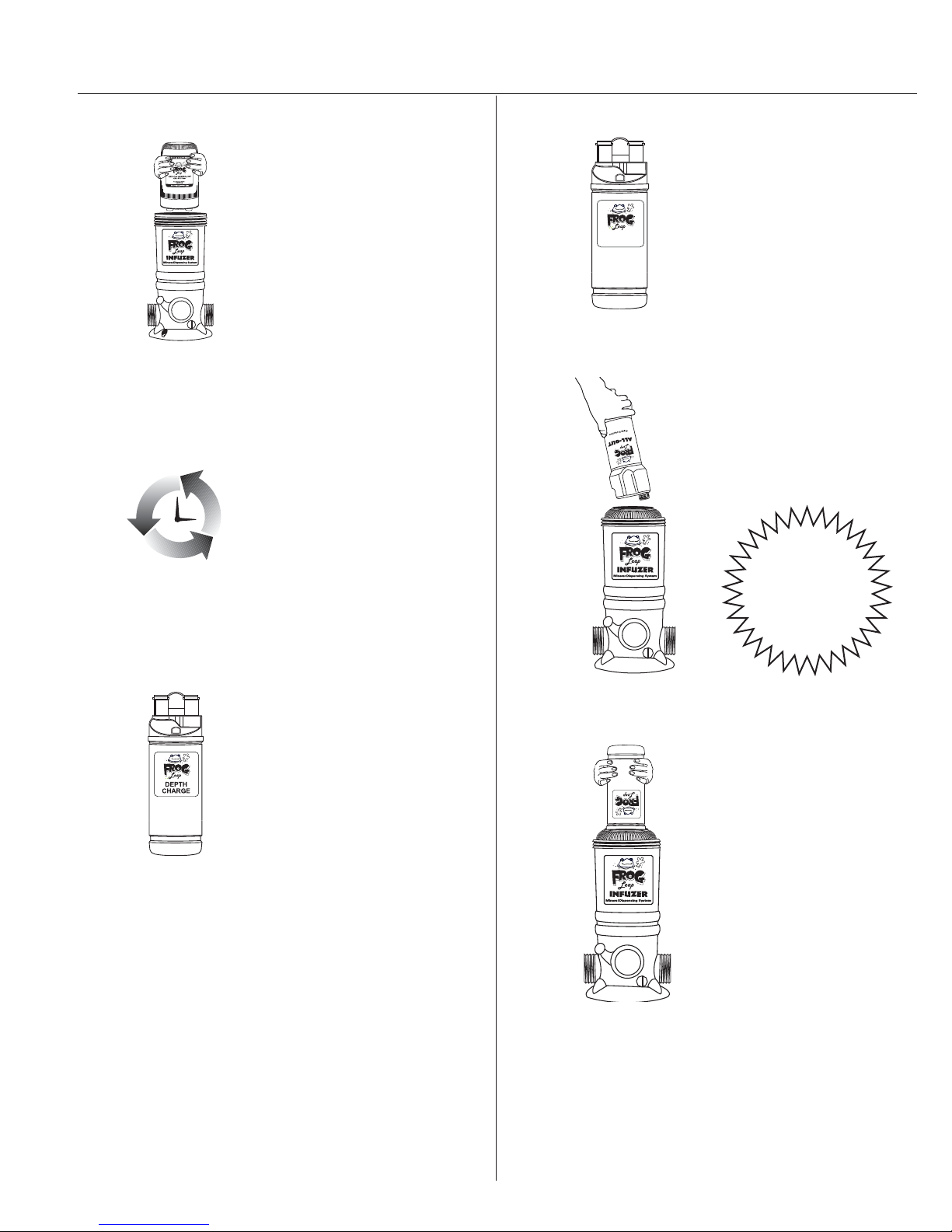

Step 2: Putting the System to Work

Install a FROG Leap Anti-Bac

Mineral Pac into the FROG Leap Infuzer. (See page 15 for directions.)

IMPORTANT:

Replace the FROG Leap AntiBac Mineral Pac every 6 months or after one pool season, whichever is shorter. After that time, you will hear the spent media inside, however it is no longer effective and must be replaced.

Replace cap and run FROG Leap Infuzer, with FROG Leap Anti-Bac Mineral Pac inserted, for 10 minutes on Setting 5.

2%6%),,%

Create a chlorine residual with FROG Leap Reveille. (See page 16 for FROG Leap Reveille directions.)

Insert FROG Leap ALL-OUT into

the open center of the FROG Leap Anti-Bac Mineral Pac in the Infuzer. (See page 17 for directions.)

Use FROG Leap

ALL-OUT for a

90-day Algae

Protection

Guarantee!

Shock the pool with FROG Leap Depth Charge to rid the water of contaminants. (See page 16 for FROG Leap Depth Charge directions.)

When chlorine reading is down to

1.0 ppm, which may take a few days, insert FROG Leap Torpedo Pac into the open center of the FROG Leap Anti-Bac Mineral Pac. (See page 18 for directions.)

Step 3: Setting the Control Dial

This system is designed to work effectively with a variety of pool equipment as long as the following procedures are followed.

Set the control dial by matching up the parameters of your pool on the chart below. THIS IS A STARTING POINT ONLY and may need to be adjusted to  t your individual pool needs. See #2 below for adjusting directions. IMPORTANT: If using a multi-speed pump, pump-run times of at least 6 hours per day at high speed are recommended for proper performance.

If running the pump at low speed only or on high speed less than 6 hours, please follow the 24 hour low-speed directions below.

Operate

POOL SIZE

Gallons Diameter

7,000 (18’) 5.0

9,000 (21’) 5.5

12,000 (24’) 6.0

15,000 NR

20,000 NR

25,000 NR

1/2 hp 3/4 hp 1 hp 1 1/2 hp

8 HOUR PUMP RUN TIME

PUMP SIZE

1/2 hp 3/4 hp 1 hp 1 1/2 hp

4.5 4.0 3.5 4.5 4.0 3.0 5.0* 3.5 3.0 2.5 4.0*

5.0 4.5 4.0 5.0 4.5 4.0 5.5* 4.0 3.5 3.0 4.5*

5.5 5.0 4.5 5.5 5.0 4.5 4.0 4.5 4.0 3.5 5.0*

6.0 5.5 5.0 6.0 5.5 5.0 4.5 5.0 4.5 4.0 3.5

NR 6.0 5.5 NR 6.0 5.5 5.0 5.5 5.0 4.5 4.0

NR 6.5 6.0 NR 6.5 6.0 5.5 6.0 5.5 5.0 4.5

12 HOUR PUMP RUN TIME

PUMP SIZE

1/2 hp 3/4 hp 1 hp 1 1/2 hp

24 HOUR PUMP RUN TIME

* – Bypass installation recommended. RECOMMENDED FLOW RATE: 20-60 gpm NR – This pump size is not recommended for this size pool.

24 HOUR, LOW-SPEED PUMP-RUN TIME

In order to ensure proper performance when running the pump on low speed for 24 hours per day or high speed less than 6 hours per day, bleed the air while the pump is on by unscrewing the cap knob until water appears. Then screw the knob back on. Repeat this process each time the cap is removed for any reason. Set the control dial at 6 and follow the adjustment directions in Step 2 to determine the correct setting for your pool.

EXAMPLE

POOL SIZE

Gallons Diameter

7,000 (18’)

9,000 (21’)

12,000 (24’)

15,000

20,000

25,000

Find your starting dial setting by matching up the parameters of your pool on the above chart. A pool with approximately 12,000 gallons with a 1 horsepower pump running 12 hours a day would require a starting setting of 4.5.

1/2 hp 3/4 hp 1 hp 1 1/2 hp

4.5 4.0 3.0 5.0*

5.0 4.5 4.0 5.5*

5.5 5.0 4.5 4.0

6.0 5.5 5.0 4.5

NR 6.0 5.5 5.0

NR 6.5 6.0 5.5

12 HOUR PUMP RUN TIME

PUMP SIZE

For the  rst week, test the pool

water daily for free chlorine with FROG Test Strips to ensure correct dial setting. Continue to test weekly throughout the season.

IMPORTANT: Control dial settings in excess of these recommendations could result in excess trichlor levels being discharged into the pool. This can result in bleaching or discoloration of areas around the pool inlet or, in some cases, bleaching or discoloration of the entire pool liner or paint. In addition, excess trichlor in the pool can create health hazards to bathers.

After each testing, adjust the dial up by 1/2 increment if the free chlorine reading has dropped below 0.5 ppm or adjust down by 1/2 increment if the reading has risen above 1.0 ppm. Continue this process each day until the free chlorine reading stabilizes to at least 0.5 ppm.

Remember to adjust dial by 1/2 increments only in order to prevent over chlorination which may bleach pool surfaces.

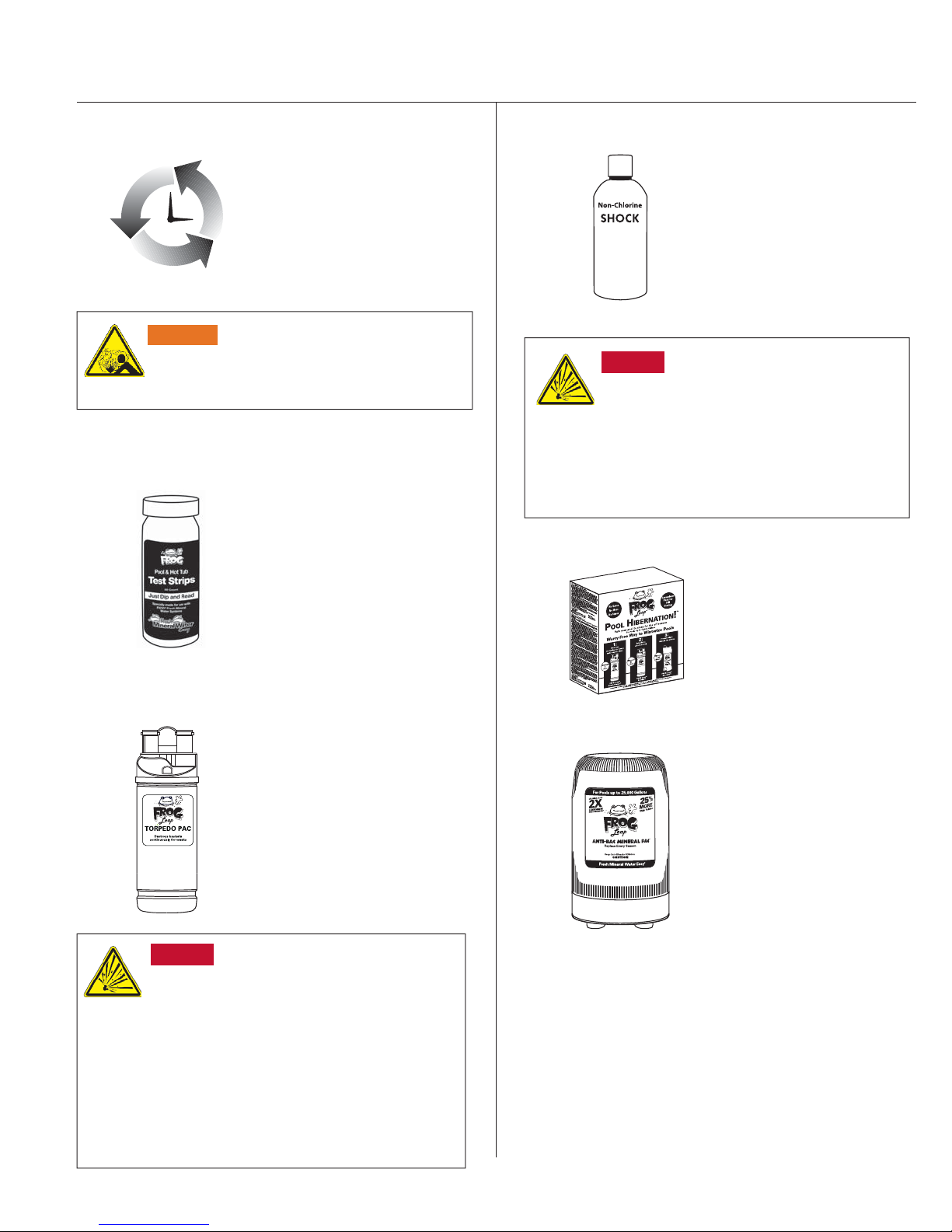

Step 4: Routine Pool Care

Run  ltration enough hours to circulate all water 1 to 2 times per day. More than that could result in over chlorination.

WARNING

To prevent the build up of gas pressure in the FROG Leap Infuzer, be sure the pool return line valves are open –except when opening or servicing the unit.

Regularly test water with FROG Test Strips to maintain pH and Total Alkalinity.

NOTE: Water balance is affected by bather load, chemical usage, evaporation and the makeup of source water, so maintaining water balance regularly is important.

Shock the pool every other week or as needed. We recommend a non-chlorine shock as reducing chlorine use is the goal of FROG products. However, using a chlorine shock is OK too.

DANGER

• Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer. These products should be added directly into the pool if required.

• Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the FROG Leap Infuzer.

Before closing the pool for the winter, use FROG Leap Pool Hibernation following the same directions as FROG Leap Pool Wake Up! on page 16.

Maintain 0.5 to 1.0 ppm free chlorine level at all times.

Note: These lower chlorine levels are only acceptable when using FROG minerals.

DANGER

Remember to replace FROG Leap Anti-Bac Mineral Pac and all other FROG Leap replacements as directed.

Replacing a FROG Leap Anti-Bac Mineral Pac

Must be replaced every 6 months or after one pool season.

For Pools up to 25,000 Gallons

Check the top of the box and back label of product to make sure you have the correct FROG Leap Anti-Bac Mineral Pac to  t your FROG Leap Infuzer.

IMPORTANT: The FROG Leap Anti-Bac Mineral Pac must be replaced every 6 months or after one pool season, whichever is shorter.

IMPORTANT: Remove and read the information card.

Please note: Complete instructions for inserting a FROG Leap Anti-Bac Mineral Pac, and all other FROG Leap products are included inside the FROG Leap Anti-Bac Mineral Pac.

Open FROG Leap Infuzer cap.

Remove the FROG Leap Torpedo Pac and if not empty, set to the side or store for winter. Then remove the FROG Leap AntiBac Mineral Pac and discard if it has been used for one pool season or 6 months, whichever is shorter.

SLOT IN ANTI-BAC MINERAL PAC

FIN INSIDE INFUZER

Find slot on side of FROG Leap Anti-Bac Mineral Pac and line up with  n inside

the FROG Leap Infuzer. Lower FROG Leap Anti-Bac

Mineral Pac into FROG Leap Infuzer until secure.

Operate

DANGER

• Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the FROG Leap Infuzer.

Turn off pump and turn dial to Setting 0. This reduces the  ow of water into the unit when the cap is open.

Replace the FROG Leap Torpedo Pac inside the FROG Leap Anti-Bac Mineral Pac to continue operating system (see directions on page 18).

Mark your calendar ahead for the six month replacement of the FROG Leap Anti-Bac Mineral Pac. Once wetted,

the time-released mineral coating of this product is effective up to 6 consecutive months or one pool season, whichever is shorter. After that time you will hear the spent media inside, however, it is no longer effective and must be replaced.

Using FROG Leap Wake Up!

2%6%),,%

FROG Leap

Depth Charge

For

FROG Leap Depth Charge and Reveille

FROG Leap

Reveille

DANGER

Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the FROG Leap Infuzer.

WARNING

Avoid sparks, smoking, or any open  ame near FROG Leap Infuzer or chemicals.

Important: Read the labels on the FROG Leap Depth

Charge, Reveille and ALL-OUT products carefully before using.

COLORED CAPS

To remove colored caps, grab onto the lip of one cap with a pliers and pull up until cap releases. Repeat the process for the other cap.

FROG Leap

ALL-OUT

FROG Leap Depth Charge is a one time start-up product used to rid the water of all contaminants.

FROG Leap Reveille - also used at start up, sets the chlorine residual to help  nd the proper dial setting for maintaining up to 50%* less chlorine.

FROG Leap ALL-OUT offers a 90-day Algae Protection Guarantee.

Line up the small leg of the FROG Leap Depth Charge or

Reveille with the small opening in the FROG Leap Anti-Bac Mineral Pac and the large leg with the large opening. Lower pac into FROG Leap Anti-Bac Mineral Pac until secure.

FROG Leap Anti-Bac Mineral Pac

FROG Leap Depth Charge or Reveille

Top View

Replace cap by hand only.

DO NOT OVER TIGHTEN.

until ingredients fall into tower areas.

Turn pac over and shake slightly

PAC

TOWERS

PAC TOWERS

Turn control dial on FROG Leap Infuzer to Setting 10.

Run the pump and  lter for each pac according to the directions on the product label. Remove from the FROG Leap Infuzer when empty and discard or offer for recycling.

Using FROG Leap ALL-OUT for an Algae-Protection Guarantee

If you are not using FROG Leap ALL-OUT refer to page 18 for Using the FROG Leap Torpedo Pac. See FROG Leap ALL-OUT product labeling for complete directions for use (EPA Reg. No. 53735-9).

For a preventive dose add:

•One FROG Leap ALL-OUT for pools up to 15,000 gallons.

•Two FROG Leap ALL-OUT for pools between 15,000 & 30,000 gallons.

NOTE: If using directly after a shock treatment, test the water ﬁ rst to ensure the pH is in the proper range of 7.2-7.8 and the chlorine level

is no more than 4.0 ppm. Avoid using other chemicals until this product has been circulated (ﬁ ltered) for at least 24 hours.

DANGER

Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the FROG Leap Infuzer.

Turn pump on for 90 minutes allowing FROG Leap ALL-OUT to circulate through pool.

Important: If storing FROG Leap ALL-OUT prior to use, always

keep in a cool, dry place away from children and pets.

Remove cap from FROG Leap ALL-OUT without removing seal.

To remove expended FROG Leap ALL-OUT bottle, turn pump off and turn dial to Setting 0.

Operate

Insert upside down into

center of FROG Leap Anti-Bac Mineral Pac pushing down  rmly on FROG Leap ALL-OUT bottle allowing key in FROG Leap Infuzer to puncture seal.

Looking down at top of bottle

seal

Replace cap by hand only.

DO NOT OVER TIGHTEN.

Remove FROG Leap Infuzer cap.

Lift FROG Leap ALL-OUT up and allow any water in the container to drain through the FROG Leap Infuzer before discarding in trash or offering for recycling. Do not reuse

or re ll this container.

NOTE: If water shows more than a hint of blue inside FROG Leap Infuzer, replace the FROG Leap Infuzer cap, turn dial to Setting 5 and run the pump for one minute.

8a. If pool size requires additional FROG Leap ALL-OUT, repeat steps 1-8.

Turn control dial on FROG Leap Infuzer to Setting 10.

8b. When water is clear in FROG Leap Infuzer, insert a FROG Leap Torpedo Pac according to the instructions on page 18.

Using the

WE R

FROG Leap Torpedo Pac

FROG Leap Torpedo Pac is required to assure up to 50% reduction in chlorine use*. FROG Leap Torpedo Pac sold separately. (EPA Reg. No. 53735-2)

DANGER

Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the FROG Leap Infuzer.

WARNING

Avoid sparks, smoking, or any open  ame near FROG Leap Infuzer or chemicals.

IMPORTANT: Read the label on the FROG Leap Torpedo Pac

carefully before using.

Line up small leg of the FROG Leap Torpedo Pac with small opening in FROG Leap Anti-Bac Mineral Pac, and large leg with large opening. Lower FROG Leap Torpedo Pac into FROG Leap AntiBac Mineral Pac until secure.

FROG Leap Anti-Bac Mineral Pac

FROG Leap Torpedo Pac

Replace cap by hand only.

DO NOT OVER TIGHTEN.

Top View

COLORED CAPS

Remove cap from FROG Leap Infuzer and stand back to let any chlorine fumes dissipate.

Remove colored caps by grabbing on to the lip of one cap with a pliers and pulling up until cap releases. Repeat the process for the other cap.

Invert FROG Leap Torpedo Pac and shake slightly until chlorine tablets fall into tower areas.

WE RECYCLE

ECYCLE

The chlorine pac container is made of HDPE plastic. Nonre llable container. Do not reuse or re ll this container. Offer for recycling if available. Rinse thoroughly before recycling or discarding in trash.

Mark your calendar ahead for the approximate replacement times for the FROG Leap Torpedo Pac.

Pac

Tow ers

Pac Tow ers

Winterizing

FROG Leap

Depth Charge

2%6%),,%

FROG Leap

Reveille

Before closing your pool, refer to page 14 and follow directions

FROG Leap

ALL-OUT

for using FROG Leap Hibernation.

Then proceed to steps 2-7.

Turn pump off and turn dial to Setting 0.

If FROG Leap Torpedo Pac still contains chlorine, wrap in plastic bag and store in shed or cool, dry, well-ventilated location away from children, pets, cars, motorcycles or anything metal that can rust, pit, etc.

If empty, rinse and recycle.

WARNING

Avoid sparks, smoking, or any open  ame near FROG Leap Infuzer or chemicals.

Operate

Remove cap.

Unscrew knob from the front of FROG Leap Infuzer. Allow all water to drain.

Remove the FROG Leap AntiBac Mineral Pac and discard in trash. You will hear spent media inside, however, it is no longer effective.

Replace the cap and knob loosely.

Troubleshooting

For more in-depth troubleshooting, go to frogproducts.com or call King Technology at 800-222-0169.

Problem

What do I do

if the water looks cloudy?

What do I do

if the water turns color?

What do I do

if algae forms in or on my pool?

1. Make sure your  ltration system is working properly (i.e. clean  lter, skimmer and pump basket).

2. Make sure circulation time is adequate – increase pump

1. Algae may be trying to form – shock the pool, increase circulation time if needed and clean the  lter.

1. Use FROG Leap ALL-OUT or an effective algaecide per the directions on the bottle and brush the sides of the pool often.

2. Clean the  lter and shock the pool with chlorine daily until

Remedy

time if not.

3. Make sure the pool is properly balanced.

4. Shock the water to eliminate build up of any organic matter.

2. Metals in the  ll water may have been oxidized. Have the pool tested. See pool dealer if a metal control product is required.

water clarity returns.

3. If you are in an area of the country that struggles with algae growth, see your dealer regarding a 90-day Algae-Protection Guarantee

(See page 10.)

5. Make sure pool has a free chlorine reading of

0.5 to 1.0 ppm.

6. Check with your dealer for more information.

3. Check with your dealer for more information.

using FROG Leap ALL-OUT.

See product hang tag for guarantee details.

4. Check with your dealer for more information.

What do I do

if I am under chlorinating with the FROG Leap Torpedo Pac?

What do I do

if I am over chlorinating with the FROG Leap Torpedo Pac?

1. If you are unable to maintain 0.5 to 1.0 ppm,  rst make sure there are chlorine tablets in the tower areas of the FROG Leap Torpedo Pac and it is installed properly. If a correction was made, test the water in 24 hours.

2. If still low, turn the dial up one setting and test the water again in 24 hours. Continue raising the setting by one increment each day until the

1. If the chlorine reading is over 3.0 ppm, remove the FROG Leap Torpedo Pac from the FROG Leap Anti-Bac Mineral Pac and test the water daily until the reading is down to 1.0 ppm.

2. Reinsert the FROG Leap Torpedo Pac, lower the dial one setting and test the water again in 24 hours. If the reading has risen, lower the dial one setting again. Continue this process until

proper reading is achieved.

3. Shock the pool if the reading has been lower than 0.5 ppm for more than one day.

4. Make sure pump run time is at least 6 hours on high speed (40 gpm or higher) or if not, bleed the air from the back knob each time cap is open.

5. Contact your dealer to have your back pressure tested. If under 4 psi, consider a smaller

proper reading is achieved.

3. If over-chlorinating at the lowest possible setting, consider decreasing the circulation time. Depending on your pump size, you may be circulating the water more than is necessary.

4. Contact your dealer to have your back pressure tested. If over 8 psi consider a larger eyeball  tting in the return jet.

eyeball  tting in the return jet.

6. Check for a suction side leak by looking for air bubbles in your pump basket or at the return jet. Contact dealer for help in correcting this situation.

7. Contact King Technology’s Customer Service Department at 800-222-0169.

5. Check to see if the pressure relief valve is loose or missing and replace. It is a clear plastic piece approximately 1” long installed inside near the base. If loose or missing, it can provide another avenue for water to reach the chlorine.

6. Contact King Technology’s Customer Service Department at 800-222-0169.

Parts List Model 7800

Troubleshoot

Included with FROG Leap Infuzer 7800

REF. # DESCRIPTION QTY. INCLUDED

1 & 2 Cap w/O-Ring 1 3 Body 1 4 Pressure Relief Valve 1 5, 6, 7, 8 Control Dial with O-Rings, Locking Pin and Number Plate 1 9 & 10 Knob with O-Ring 2 11 Mounting Base 1 12 Silicone Lubricant 1 13 Nipple Kit 1

Replacement parts for FROG Leap Infuzer 7800

REF. # PART NO. DESCRIPTION

1 & 2 01-22-1416 Cap w/O-Ring 2 01-22-1920 Cap O-Ring 4 01-22-9486 Pressure Relief Valve 5, 6, 7, 8 01-22-1457 Control Dial with O-Rings, Locking Pin and Number Plate 6 01-22-1456 Control Dial O-Ring Set 9 & 10 01-22-9627 Knob with O-Ring 11 01-22-1481 Mounting Base 12 01-22-9971 Silicone Lubricant 3/4 oz. 13 01-22-1710 Nipple Kit 14 01-22-4000 Pressure Gauge 15 01-22-1470 25k Tune-Up Kit

FROG Leap Infuzer Maintenance

Replacing Knobs

Replacing the Control Dial O-Rings Replacing the Cap O-Ring

1. 1.

Center of locking pin

In the back of the FROG Leap Infuzer, depress center of

locking pin with a  nger and pull pin out of dial.

Bottom half of groove.

Turn control dial back and forth

as you pull it out of the housing.

Replace both o-rings. Apply silicone lubricant that came with your FROG Leap Infuzer on o-rings.

Remove old o-ring.

Top half of groove.

Place new o-ring in bottom half of groove.

Place your thumbs on each side of the cap over the o-ring in the groove.

Roll your thumbs back and forth over the o-ring while pushing upward until the o-ring falls into the top of the groove.

O-ring in top of groove

Carefully insert control dial back into housing.

Replace locking pin by pushing it

through the slots on the dial until it locks into place.

Product # 01-22-9971

Replacing Knobs

Front of FROG Leap Infuzer

Lubricate o-ring every couple of months with silicone lubricant that came with your FROG Leap Infuzer. DO NOT USE petroleum based lubricants.

Back of FROG Leap Infuzer

To replace, simply unscrew old knob and replace with the new one.

FROG Leap Infuzer Two-Year Limited Warranty

King Technology, Inc. will warrant this unit with a complete replacement for the original purchaser, should it prove defective by reason of improper workmanship and/or material for a period of two (2) years from the date of original purchase/installation. This warranty covers body, cap and control dial excluding o-rings. King Technology holds the option of replacing any defective part without charge if it is determined to be all that is needed to correct any situation. Parts used for replacement, with the exception of o-rings, are warranted for the remainder of the original warranty.

1. To obtain warranty service, you must deliver product to King Technology or its nearest authorized dealer. Shipping expenses are the purchaser’s responsibility. The name of the nearest authorized dealer can be obtained at frogproducts.com/ nd-a-dealer or by calling King Technology at 1-800-222-0169. Proof of purchase is required when requesting warranty service. Purchaser must present the sales receipt or other document which establishes proof of purchase. To validate your warranty, complete the warranty card that came with your unit and return it to King Technology within 30 days of purchase and installation.

2. This warranty does not cover defects caused by: modi cation, alteration, repair or service of the product contrary to the accompanying instructions; physical abuse to or misuse of the product or operation or installation in a manner contrary to the accompanying instructions. This warranty also excludes all costs arising from the installation, adjustment, removal or replacement of defective units or parts. This warranty also excludes any and all claims arising out of the chemicals used in the product or their characteristics.

3. Any express warranty not provided for herein, and any remedy for breach of warranty or breach of contract which, but for this provision, might arise by implication or operation of law, is hereby expressly excluded and disclaimed. The implied warranties of merchantability and of  tness for any particular purpose are expressly limited to a term of two years. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

4. Under no circumstance shall King Technology be liable to purchaser or any other person for any damage or loss incurred because of any chemicals used in the product or their physical characteristics, or interruption of service of the product, or any special, incidental or consequential damages or losses, whether arising out of breach of warranty, breach of contract or otherwise. Some states do not allow the exclusion or limitation of incidental consequential damages, so the above limitation or exclusion may not apply to you.

5. Misuse or failure to use the proper FROG Leap Anti-Bac Mineral Pac and FROG Leap Torpedo Pac may cause damage to equipment or personal injury. All warranty null and void if this product is not used with the recommended FROG Leap Anti-Bac Mineral Pac and FROG Leap Torpedo Pac.

Made in U.S.A.

Patents: kingtechnology.com/IP

MANUFACTURED BY

FROG FROG Leap® Flippin’ FROG XL POOL FROG

POOL FROG XL PRO

Flippin’ FROG

FROG BAM SPA FROG

FILTER FROG INSTANT FROG @ease SmartChlor

FROG Jump Start

Fresh Mineral Water New Water Perform-Max

530 11TH AVE S, HOPKINS, MN 55343 | 800.222.0169 | frogproducts.com

20-48-2022

553111743R5N

King Technology 01-01-7820, 01-12-7822, 01-10-7858, 01-03-7937 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
