Kingston KVR800D2D8P62GHE User Manual
Memory Module Specification
KVR800D2D8P6/2GHE
2GB 256M x 72-Bit DDR2-800
CL6 Registered w/Parity 240-Pin DIMM
DRAM Supported:
Hynix E-Die
DESCRIPTION:
This document describes ValueRAM's 256M x 72-bit 2GB (2048MB) DDR2-800 CL6 SDRAM
(Synchronous DRAM) "dual rank" Registered w/Parity memory module. The components on
this module include eighteen 128M x 8-bit DDR2-800 SDRAM in FBGA packages. This 240pin DIMM uses gold contact fingers and requires +1.8V. The electrical and mechanical
specifications are as follows:
FEATURES:
Clock Cycle Time (tCK) CL=6 2.5ns (min.) / 8ns (max.)
Row Cycle Time (tRC) 60ns (min.)
Refresh to Active/Refresh Command Time (tRFC) 127.5ns
Row Active Time (tRAS) 45ns (min.) / 70,000ns (max.)
Single Power Supply of +1.8V (+/- .1V)
Power 3.024 W (operating)
UL Rating 94 V - 0
(Units = millimeters)

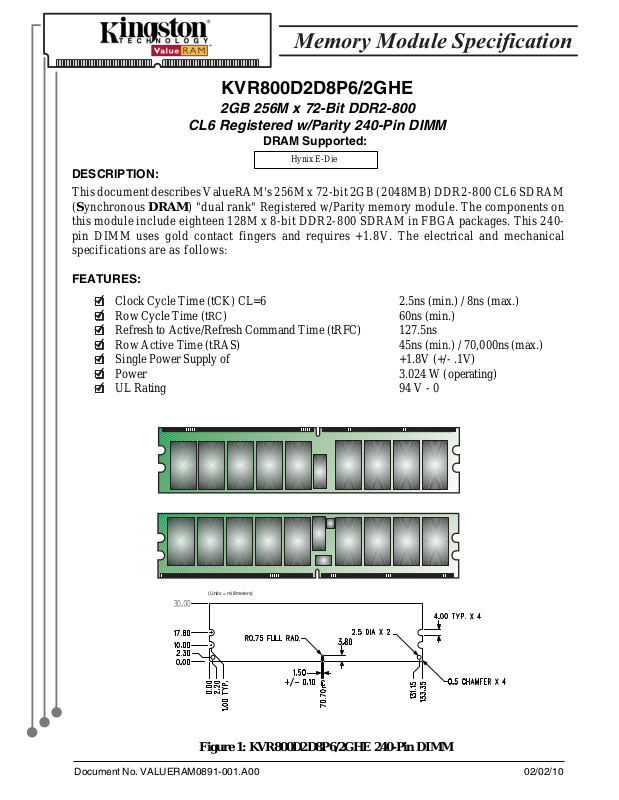

Figure 1: KVR800D2D8P6/2GHE 240-Pin DIMM
Document No. VALUERAM0891-001.A00
02/02/10
