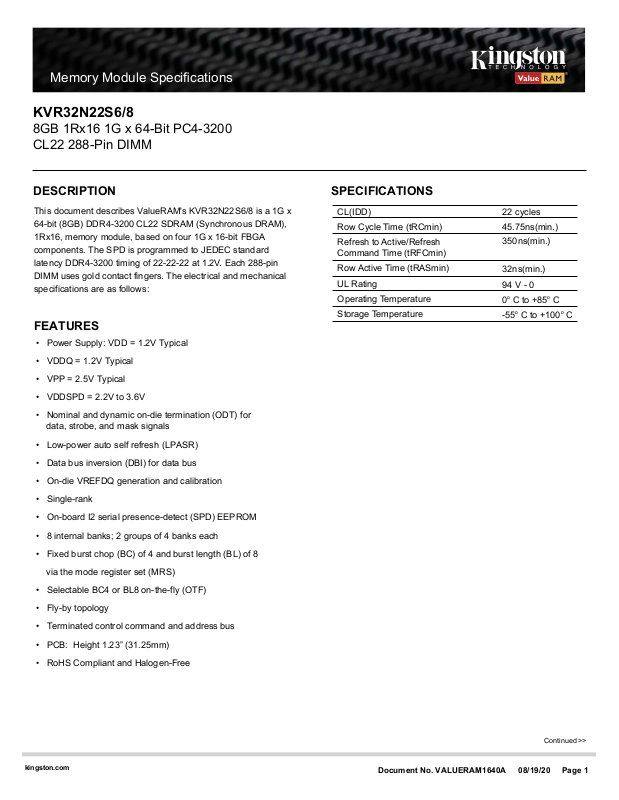

Kingston KVR32N22S6-8 User Manual

Memory Module Speciﬁ cations

KVR32N22S6/8

8GB 1Rx16 1G x 64-Bit PC4-3200 CL22 288-Pin DIMM

DESCRIPTION

This document describes ValueRAM's KVR32N22S6/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

• Low-power auto self refresh (LPASR)

• Data bus inversion (DBI) for data bus

• On-die VREFDQ generation and calibration

SPECIFICATIONS

CL(IDD)

Row Cycle Time (tRCmin)

Refresh to Active/Refresh Command Time (tRFCmin)

Row Active Time (tRASmin)

UL Rating

Operating Temperature

Storage Temperature

22 cycles

45.75ns(min.)

350ns(min.)

32ns(min.)

94 V - 0

C to +85o C

C to +100o C

-55

• Single-rank

• On-board I2 serial presence-detect (SPD) EEPROM

• 8 internal banks; 2 groups of 4 banks each

• Fixed burst chop (BC) of 4 and burst length (BL) of 8

via the mode register set (MRS)

• Selectable BC4 or BL8 on-the-fly (OTF)

• Fly-by topology

• Terminated control command and address bus

• PCB: Height 1.23” (31.25mm)

• RoHS Compliant and Halogen-Free

kingston.com

Continued >>

Document No. VALUERAM1640A 08/19/20 Page 1

continued HyperX

MODULE DIMENSIONS

All measurements are in millimeters.

(Tolerances on all dimensions are ±0.12 unless otherwise specified)

The product images shown are for illustration purposes only and may not be an exact representation of the product. Kingston reserves the right to change any information at anytime without notice.
