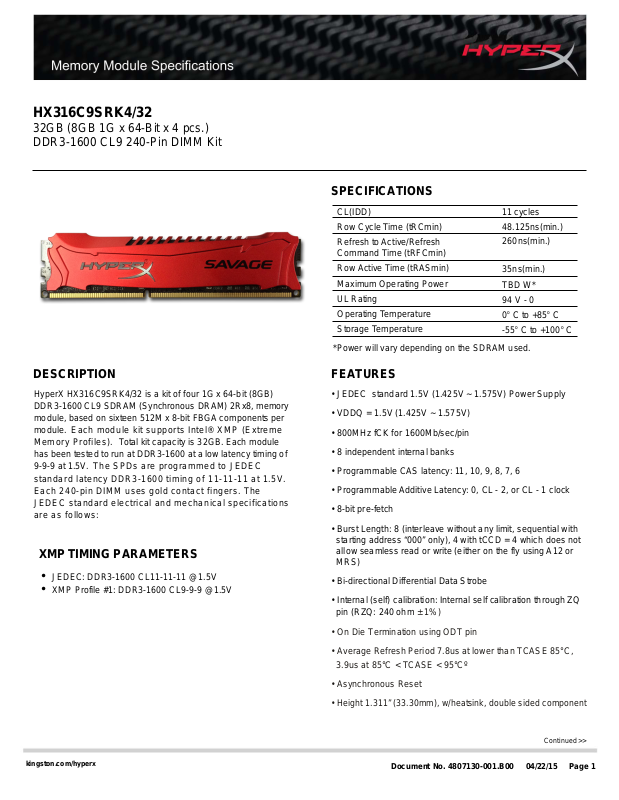

HX316C9SRK4/32

32GB (8GB 1G x 64-Bit x 4 pcs.) DDR3-1600 CL9 240-Pin DIMM Kit

SPECIFICATIONS

DESCRIPTION

HyperX HX316C9SRK4/32 is a kit of four 1G x 64-bit (8GB) DDR3-1600 CL9 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components per module. Each module kit supports Intel® XMP (Extreme Memory Profiles). Total kit capacity is 32GB. Each module has been tested to run at DDR3-1600 at a low latency timing of 9-9-9 at 1.5V. The SPDs are programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. Each 240-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

XMP TIMING PARAMETERS

•

JEDEC: DDR3-1600 CL11-11-11 @1.5V

• XMP Profile #1: DDR3-1600 CL9-9-9 @1.5V

CL(IDD) Row Cycle Time (tRCmin) Refresh to Active/Refresh

Command Time (tRFCmin) Row Active Time (tRASmin) Maximum Operating Power UL Rating Operating Temperature Storage Temperature

*Power will vary depending on the SDRAM used.

11 cycles

48.125ns(min.) 260ns(min.)

35ns(min.) TBD W* 94 V - 0

C to +85o C

C to +100o C

-55

FEATURES

• JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply

• VDDQ = 1.5V (1.425V ~ 1.575V)

• 800MHz fCK for 1600Mb/sec/pin

• 8 independent internal banks

• Programmable CAS latency: 11, 10, 9, 8, 7, 6

• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock

• 8-bit pre-fetch

• Burst Length: 8 (interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write (either on the fly using A12 or MRS)

• Bi-directional Differential Data Strobe

• Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%)

kingston.com/hyperx

• On Die Termination using ODT pin

• Average Refresh Period 7.8us at lower than TCASE 85°C,

3.9us at 85°C < TCASE < 95°Cº

• Asynchronous Reset

• Height 1.311” (33.30mm), w/heatsink, double sided component

Continued >>

Document No. 4807130-001.B00 04/22/15 Page 1

continued HyperX

MODULE WITH HEAT SPREADER

7.9 mm

133.35 mm

33.3 mm

MODULE DIMENSIONS

FOR MORE INFORMATION, GO TO WWW.KINGSTON.COM/HYPERX

All Kingston products are tested to meet our published specifications. Some motherboards or system configurations may not operate at the published HyperX memory speeds and timing settings. Kingston does not recommend that any user attempt to run their computers faster than the published speed. Overclocking or modifying your system timing may result in damage to computer components.
