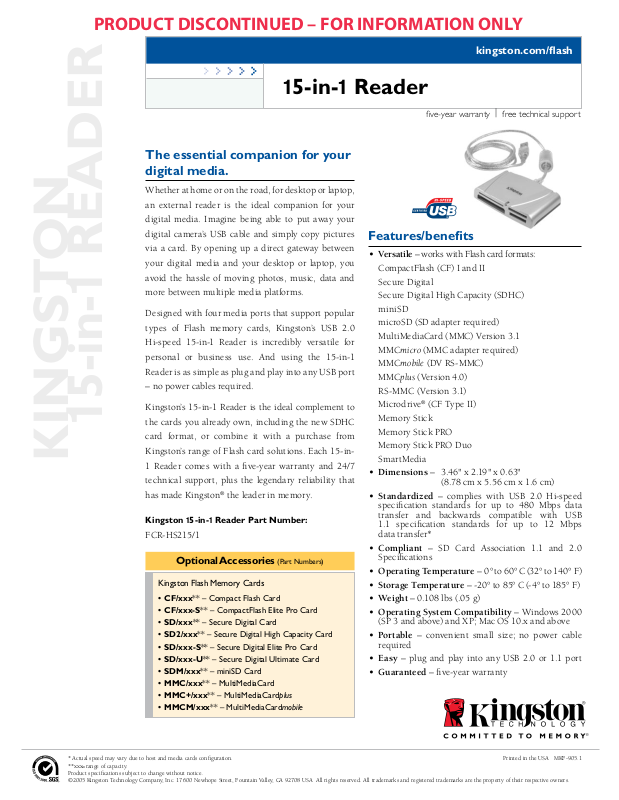

Kingston FCR-HS215 User Manual

PRODUCT DISCONTINUED – FOR INFORMATION ONLY

KINGSTON 15-in-1 Reader

kingston.com/flash

15-in-1 Reader

five-year warranty | free technical support

The essential companion for your digital media.

Whether at home or on the road, for desktop or laptop, an external reader is the ideal companion for your digital media. Imagine being able to put away your digital camera’s USB cable and simply copy pictures via a card. By opening up a direct gateway between your digital media and your desktop or laptop, you avoid the hassle of moving photos, music, data and more between multiple media platforms.

Designed with four media ports that support popular types of Flash memory cards, Kingston’s USB 2.0 Hi-speed 15-in-1 Reader is incredibly versatile for personal or business use. And using the 15-in-1 Reader is as simple as plug and play into any USB port

– no power cables required.

Kingston’s 15-in-1 Reader is the ideal complement to the cards you already own, including the new SDHC card format, or combine it with a purchase from Kingston’s range of Flash card solutions. Each 15-in- 1 Reader comes with a five-year warranty and 24/7 technical support, plus the legendary reliability that has made Kingston® the leader in memory.

Kingston 15-in-1 Reader Part Number:

FCR-HS215/1

Optional Accessories (Part Numbers)

Kingston Flash Memory Cards

•CF/xxx** – Compact Flash Card

•CF/xxx-S** – CompactFlash Elite Pro Card

•SD/xxx** – Secure Digital Card

•SD2/xxx** – Secure Digital High Capacity Card

•SD/xxx-S** – Secure Digital Elite Pro Card

•SD/xxx-U** – Secure Digital Ultimate Card

•SDM/xxx** – miniSD Card

•MMC/xxx** – MultiMediaCard

•MMC+/xxx** – MultiMediaCardplus

•MMCM/xxx** – MultiMediaCardmobile

Features/benefits

•Versatile – works with Flash card formats: CompactFlash (CF) I and II

Secure Digital

Secure Digital High Capacity (SDHC) miniSD

microSD (SD adapter required) MultiMediaCard (MMC) Version 3.1 MMCmicro (MMC adapter required) MMCmobile (DV RS-MMC) MMCplus (Version 4.0)

RS-MMC (Version 3.1) Microdrive® (CF Type II) Memory Stick

Memory Stick PRO Memory Stick PRO Duo SmartMedia

•Dimensions – 3.46" x 2.19" x 0.63"

(8.78 cm x 5.56 cm x 1.6 cm)

•Standardized – complies with USB 2.0 Hi-speed specification standards for up to 480 Mbps data

transfer and backwards compatible with USB 1.1 specification standards for up to 12 Mbps data transfer*

•Compliant – SD Card Association 1.1 and 2.0 Specifications

•Operating Temperature – 0° to 60°C (32° to 140° F)

•Storage Temperature – -20° to 85° C (-4° to 185° F)

•Weight – 0.108 lbs (.05 g)

•Operating System Compatibility – Windows 2000 (SP 3 and above) and XP; Mac OS 10.x and above

•Portable – convenient small size; no power cable required

•Easy – plug and play into any USB 2.0 or 1.1 port

•Guaranteed – five-year warranty

* Actual speed may vary due to host and media cards configuration. **xxx=range of capacity.

Product specifications subject to change without notice.

Printed in the USA MKF-905.1
