Kingsman Zero Clearance Installation Instructions Manual

Installation Instructions

Listed Certified for USA. and Canada

This appliance may be installed in an aftermarket permanently located, manufactured (mobile home),

where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate.

This appliance is not convertible for use with other gases, unless a certified kit is used.

Model Number ZDV3318/3622

Stock #’s: ZDV3318N, ZDV3318LP, ZDV3622N and ZDV3622LP are Certified to:

ANSI Z21.88-2005, ANSI Z21.88a / CSA 2.33a-2007

Vented Gas Fireplace Heaters and CGA 2.17-M91, CSA P.4.1-02

Gas Fired Appliances For Use At High Altitudes

Read this complete manual before beginning installation.

These instructions must be kept with the unit for future reference.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the

vicinity of this or any other appliance.

What To Do If You Smell Gas

Do not try to light any appliance.

Extinguish any open flame.

Do not touch any electrical switch.

Do not use any phone in your building.

Immediately call your gas supplier from a neighbour’s phone.

If you can not reach your gas supplier, call the fire department.

KINGSMAN INDUSTRIES

A Division of R-Co. Inc.

2340 Logan Avenue

Winnipeg, Manitoba, Canada R2R 2V3

Ph: (204) 632-1962

Warning: If the information in these instruction are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Refer to this manual. Installation and service must be performed by a qualified installer, service agency or the gas supplier.

Printed in Canada December 17, 2008 Part # 3318-MAN

“Zero Clearance”

Direct Vent Gas Fireplace

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

About curing of the paint

Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used. The following information applies to the curing process to get the paint fully hard and durable.

Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between each. Be aware during log and firebox paint curing that a white deposit may be developing on the inside of the glass doors. It is important to remove this white deposit from the glass doors with an appropriate cleaner to prevent build-up (such as Windex or a commercial fireplace glass cleaner).

• Babies, small children, pregnant women and pets should leave the area during the cure phase.

• Ventilate well, open doors and windows.

• Do not touch during curing.

Why does my fireplace or stove give off odor?

It is normal for your fireplace to give off some odor. This is due to the curing of the paint, adhesives, silicones and any undetected oil from the manufacturing process as well as the finishing materials used with the installations (e.g. marble, tile and the adhesives used to adhere this product to the walls can react with heat and cause odors).

It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with the fan off after the curing of the paint has been completed. These odors can last upward to 40 hours of burn time, keep burning at a minimum of four hours per use until odors dissipate.

Noise coming from the fireplace?

• Noise caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced by a furnace or heating duct. This noise does not affect the operation or longevity of your fireplace.

PRE-INSTALLATION QUESTIONS and ANSWERS

Pre-Installation Questions and Answers . . . . . . . . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Mobile Home/Manufactured Housing Installation . . . . . . . . . . . . . . . . .4

Installation and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Installation Requirements for the Commonwealth of Massachusetts . . .6

ZDV3318

Locating your appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Fireplace Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Framing your gas fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Framing & Facing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

ZDV3622

Locating you appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Fireplace Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Framing your gas fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Framing & Facing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . .12

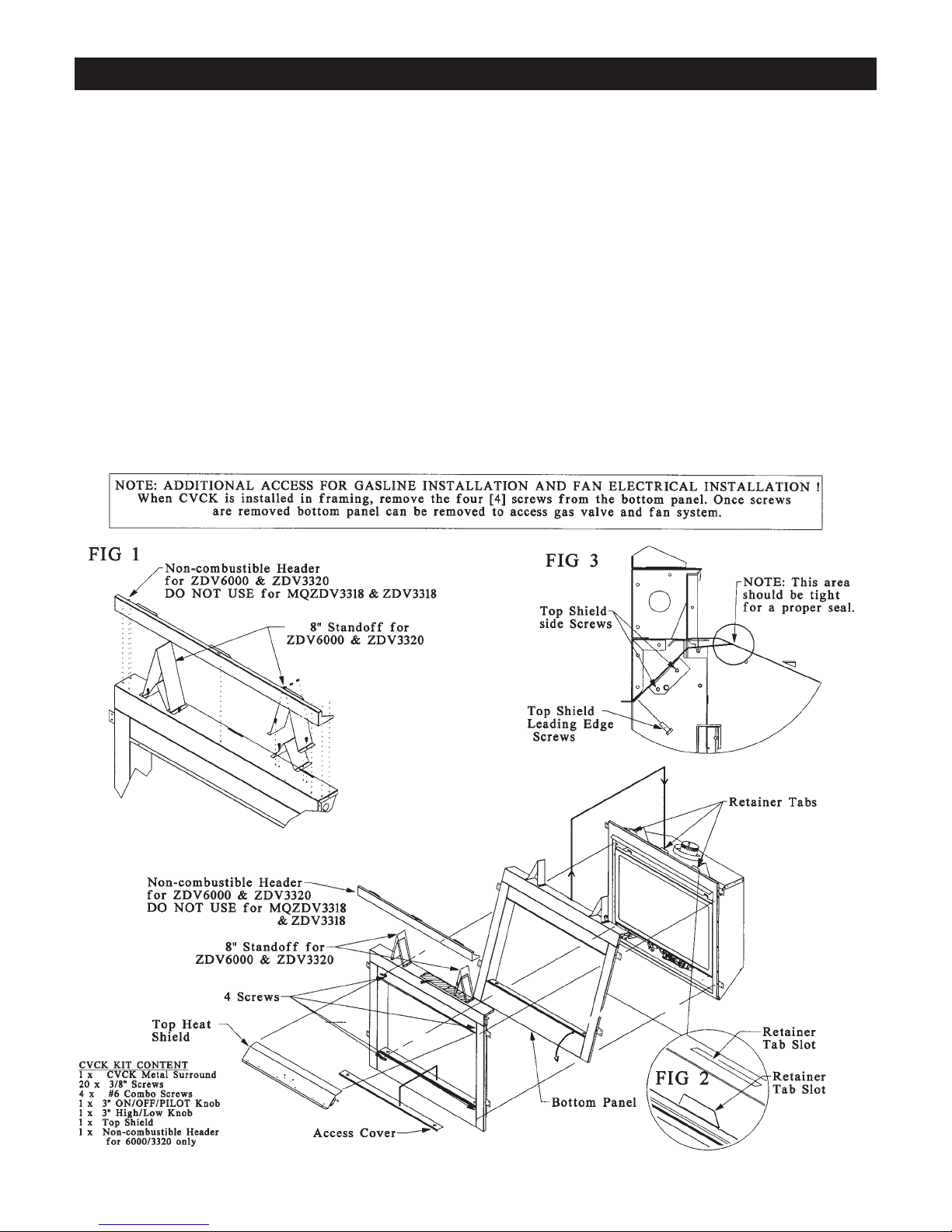

Installing Clean View Kit (CVCK) . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Clearances to Combustibles Diagram . . . . . . . . . . . . . . . . . . . . . . . . . .14

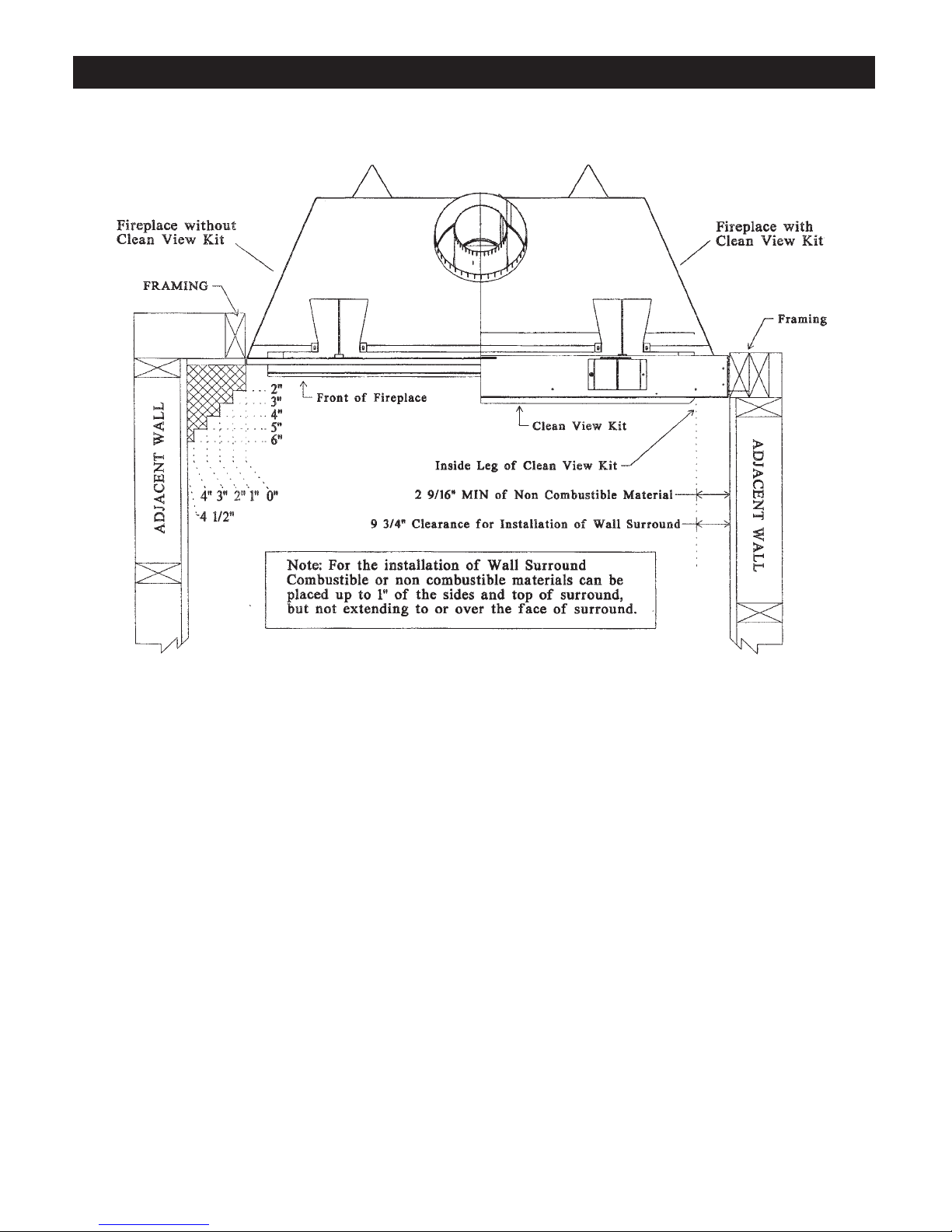

Mantel Leg Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Clearance to Combustibles Specifications . . . . . . . . . . . . . . . . . . . . . .16

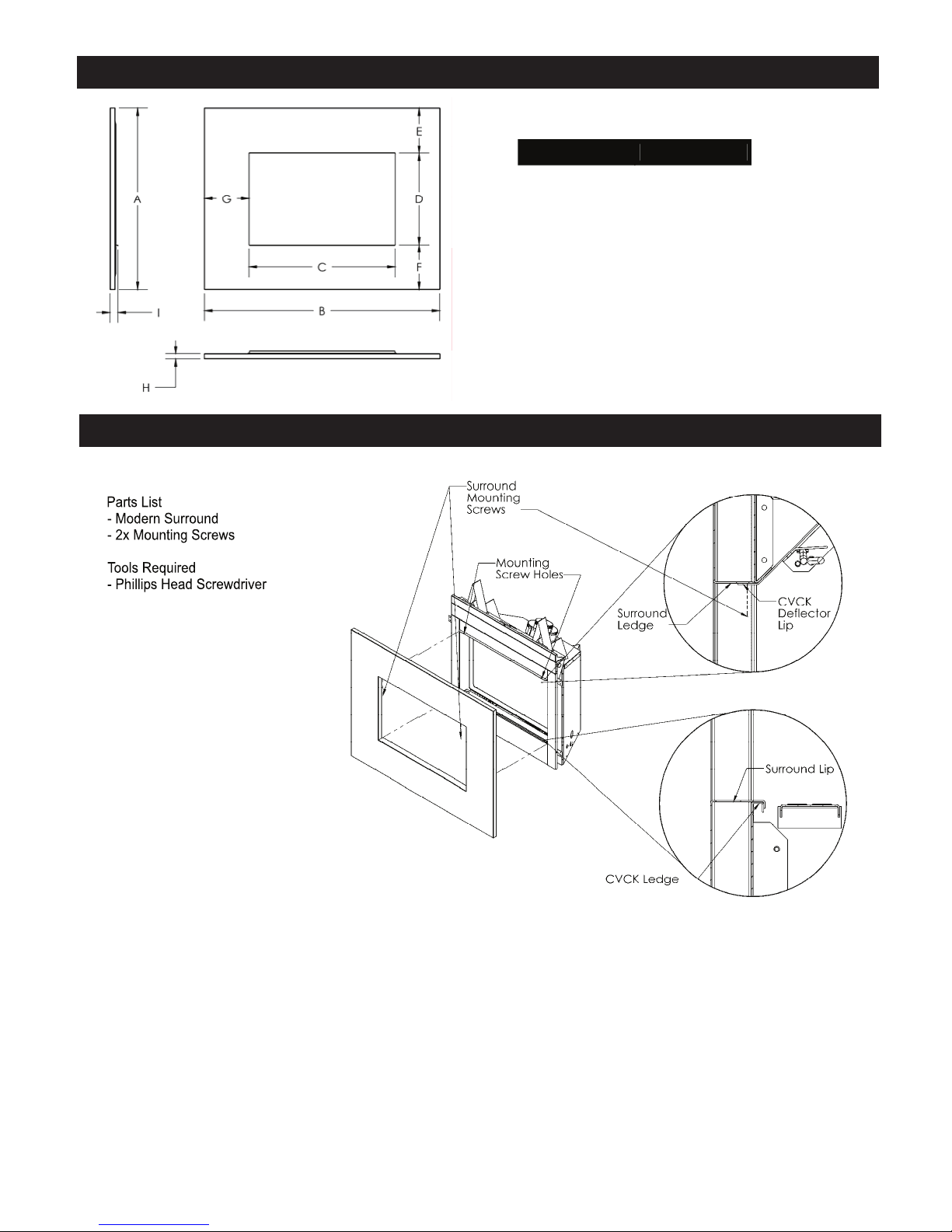

Dimensions & Installation of Wall Mount Surrounds . . . . . . . . . . . . . 17

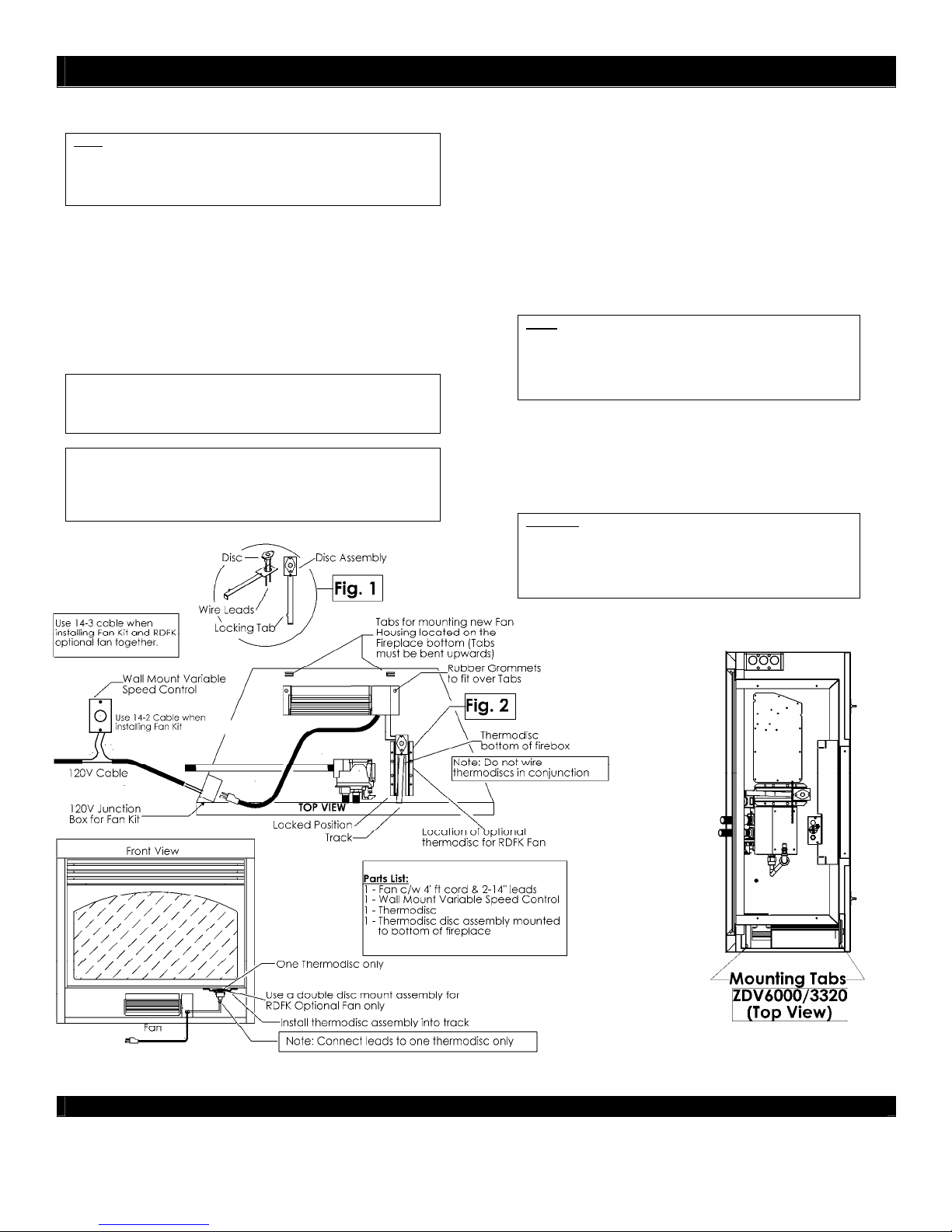

Fan Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Brick Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

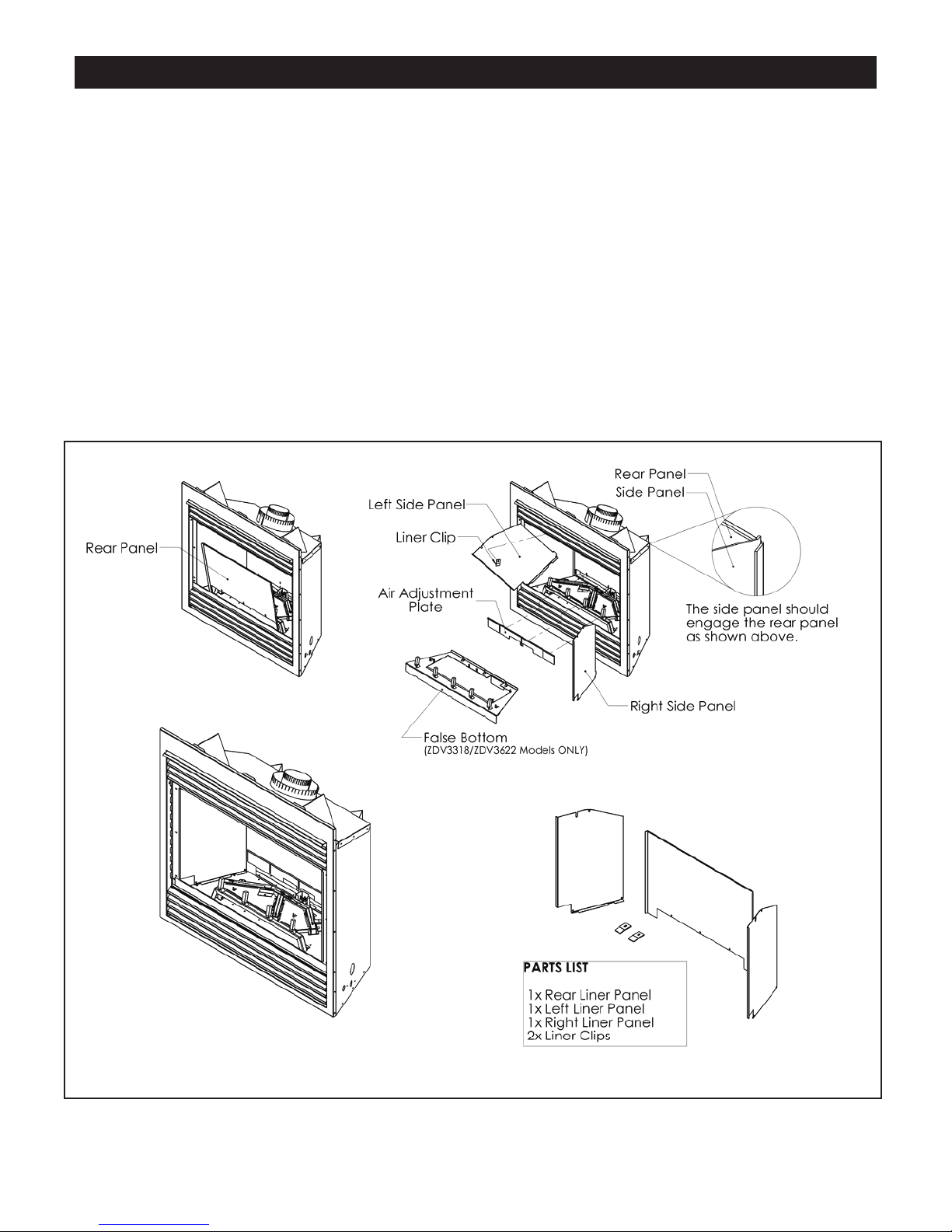

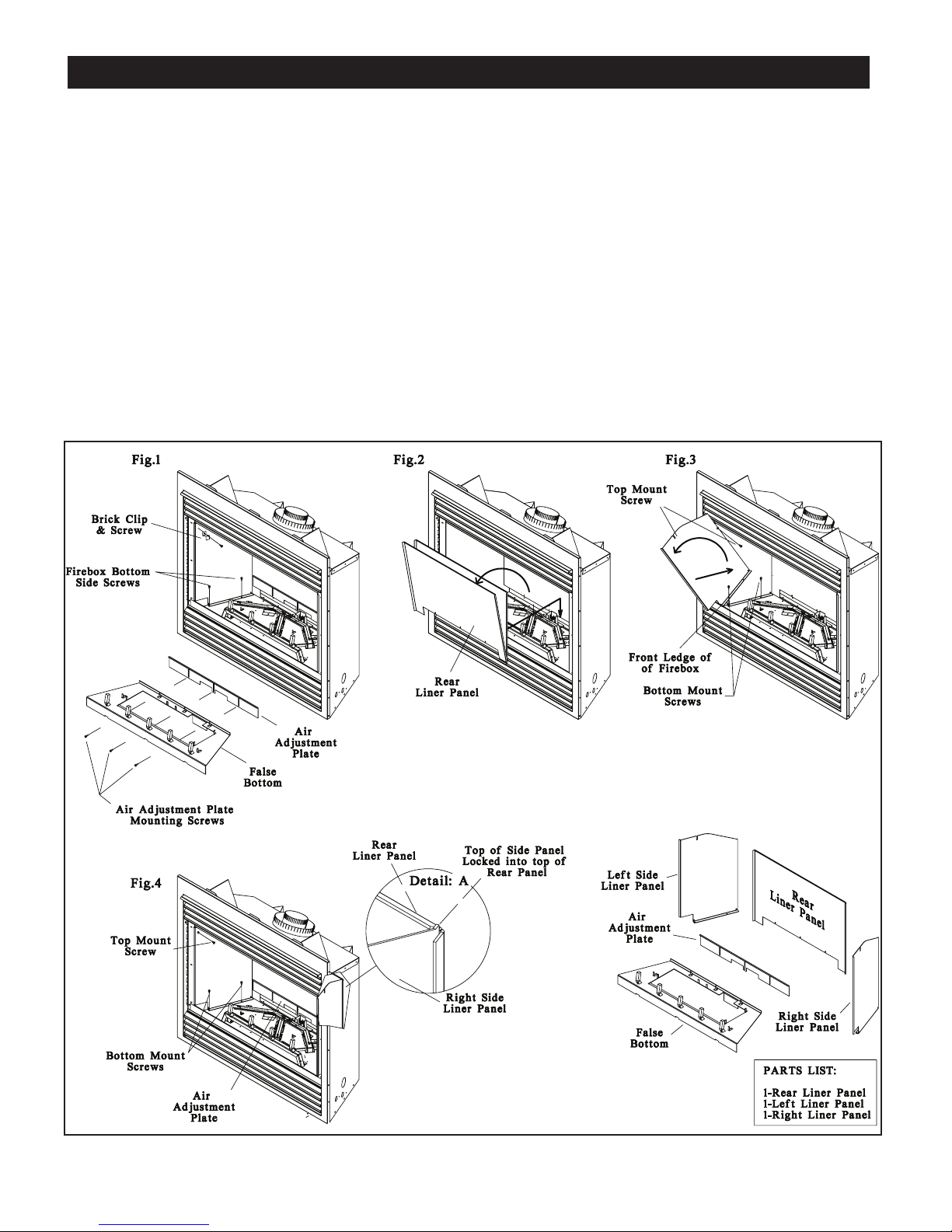

Porcelain Panel Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

General Glass Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

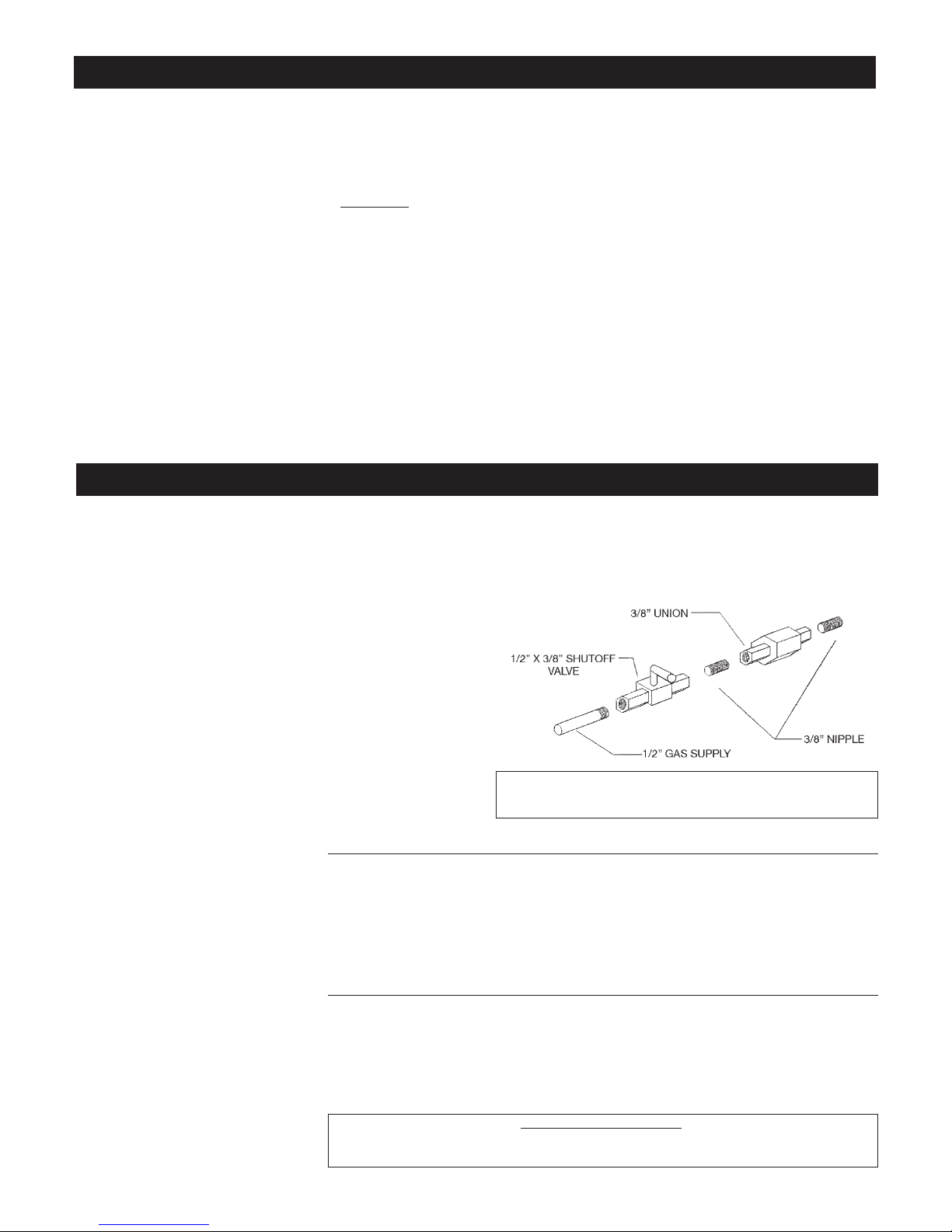

Gas Line Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

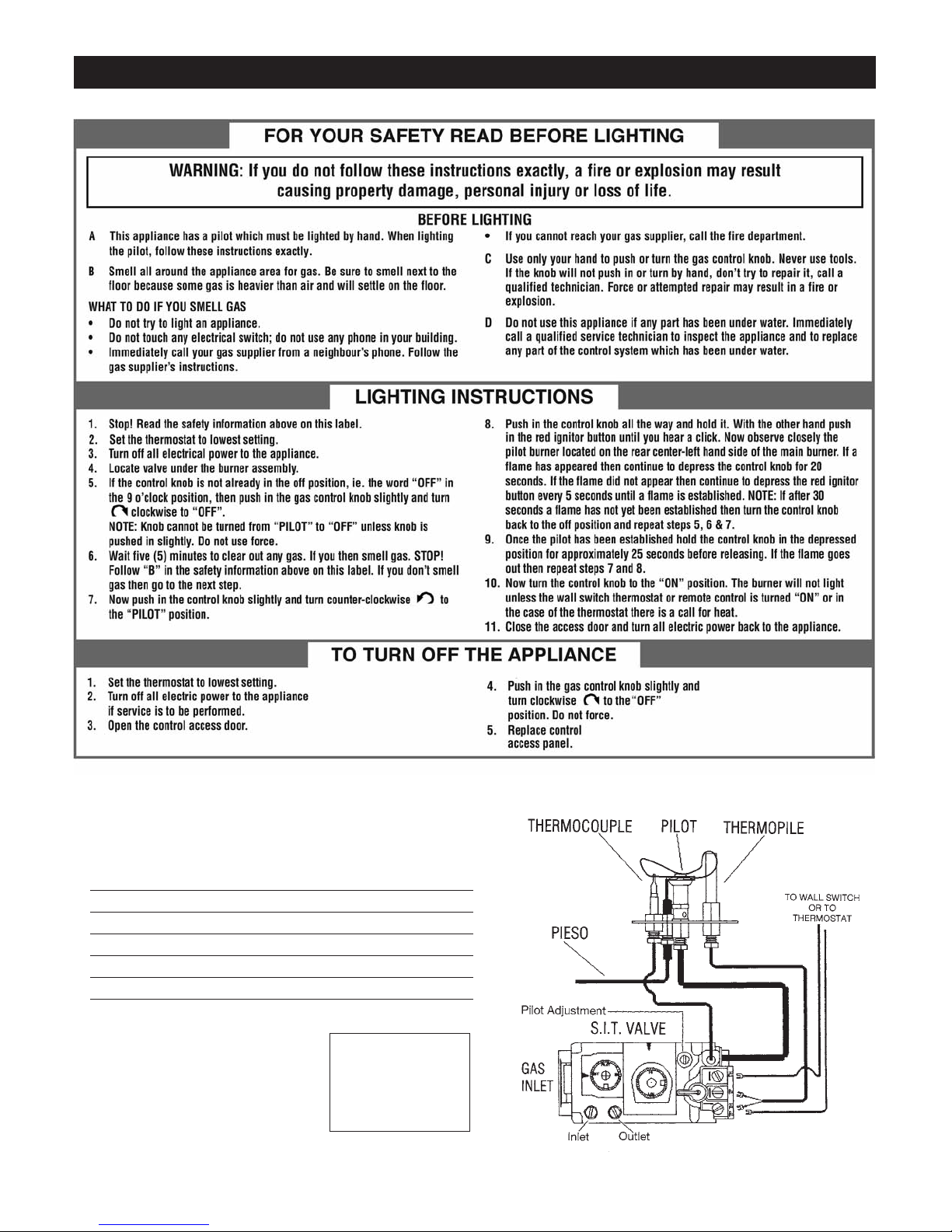

Millivolt system, lighting, & burner control . . . . . . . . . . . . . . . . . . . . .22

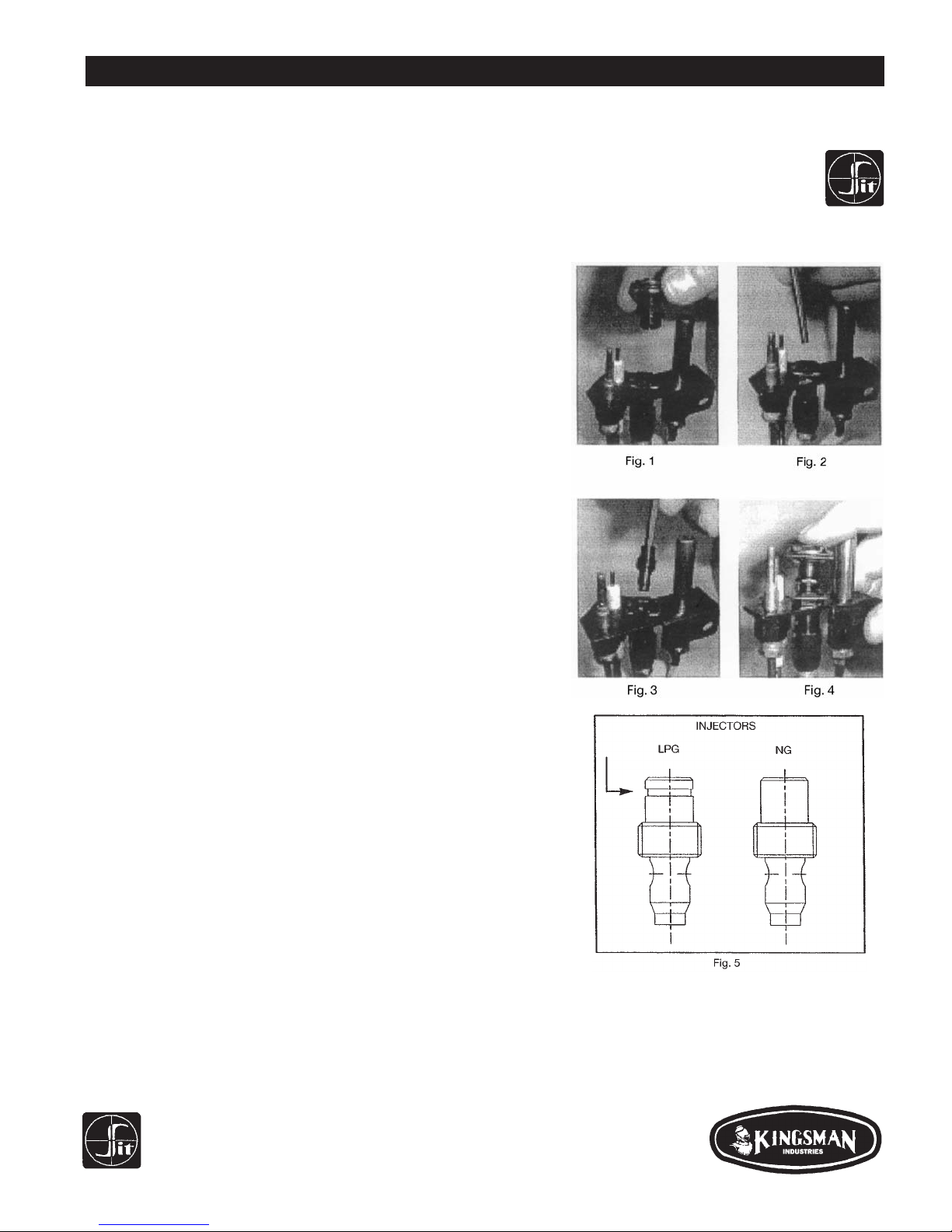

Installation of Gas Conversion Kit for Top Convertible Pilot . . . . . . . .23

Trouble shooting the gas control system . . . . . . . . . . . . . . . . . . . . . . . .24

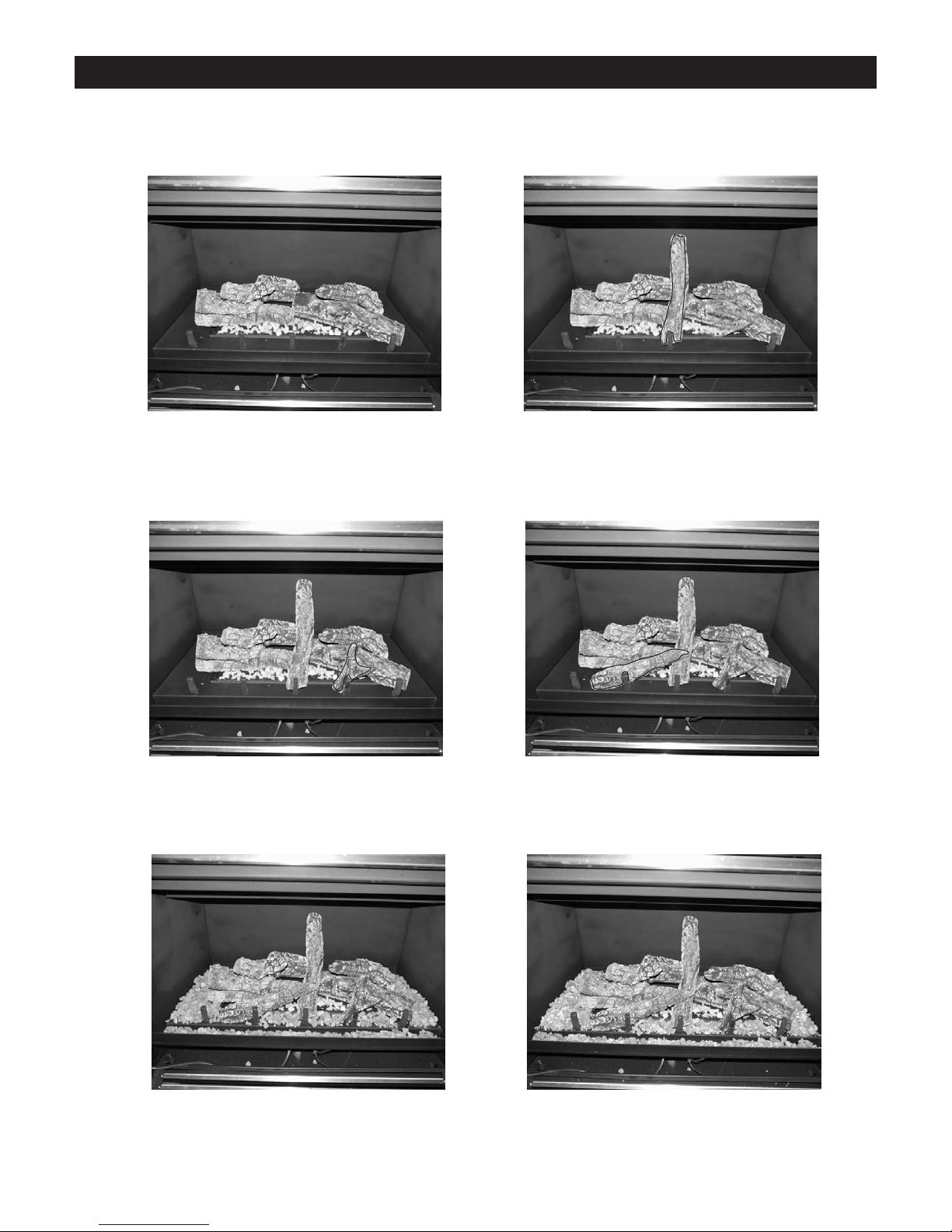

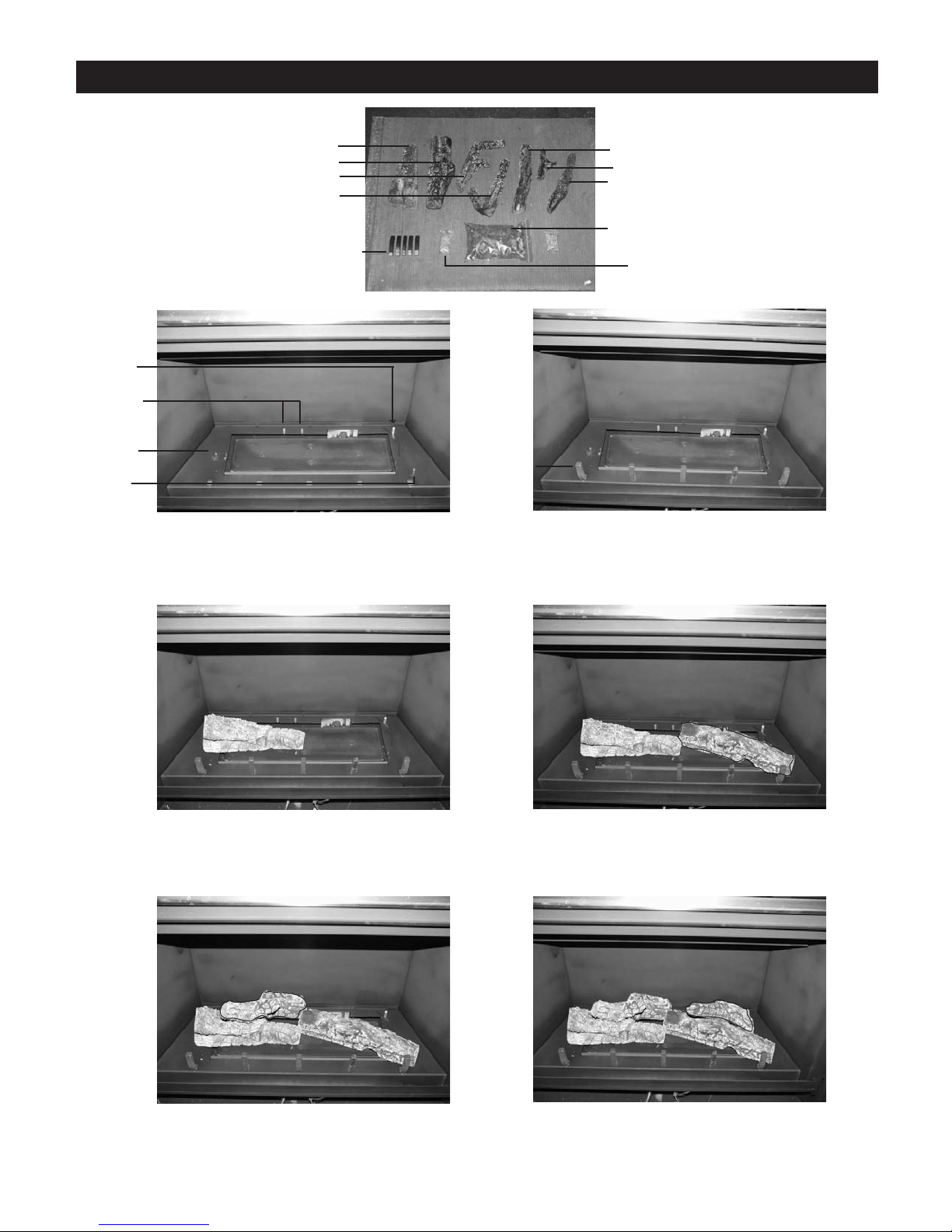

Log C50 Log Placement Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . .25-26

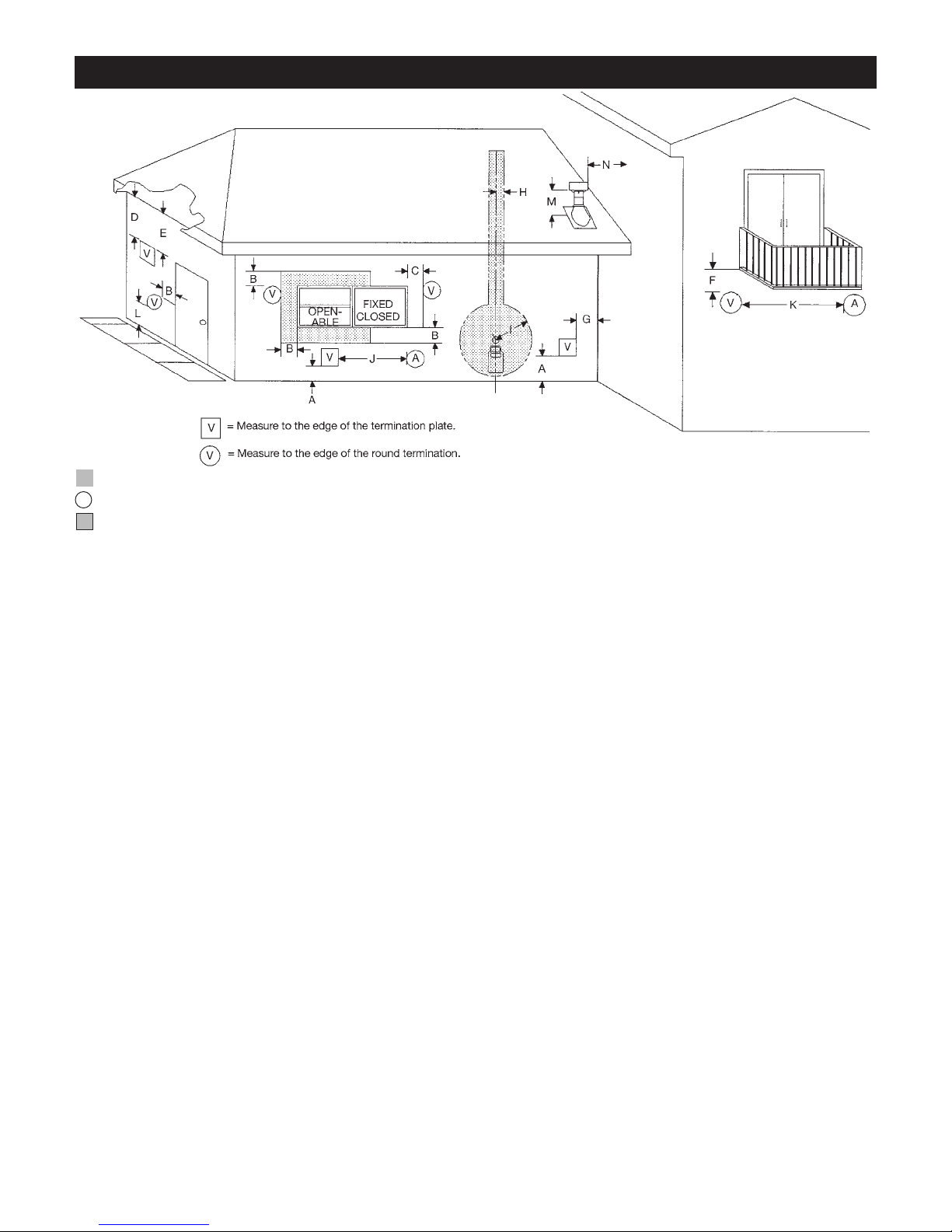

Vent termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

General vent installation information . . . . . . . . . . . . . . . . . . . . . . . . . .28

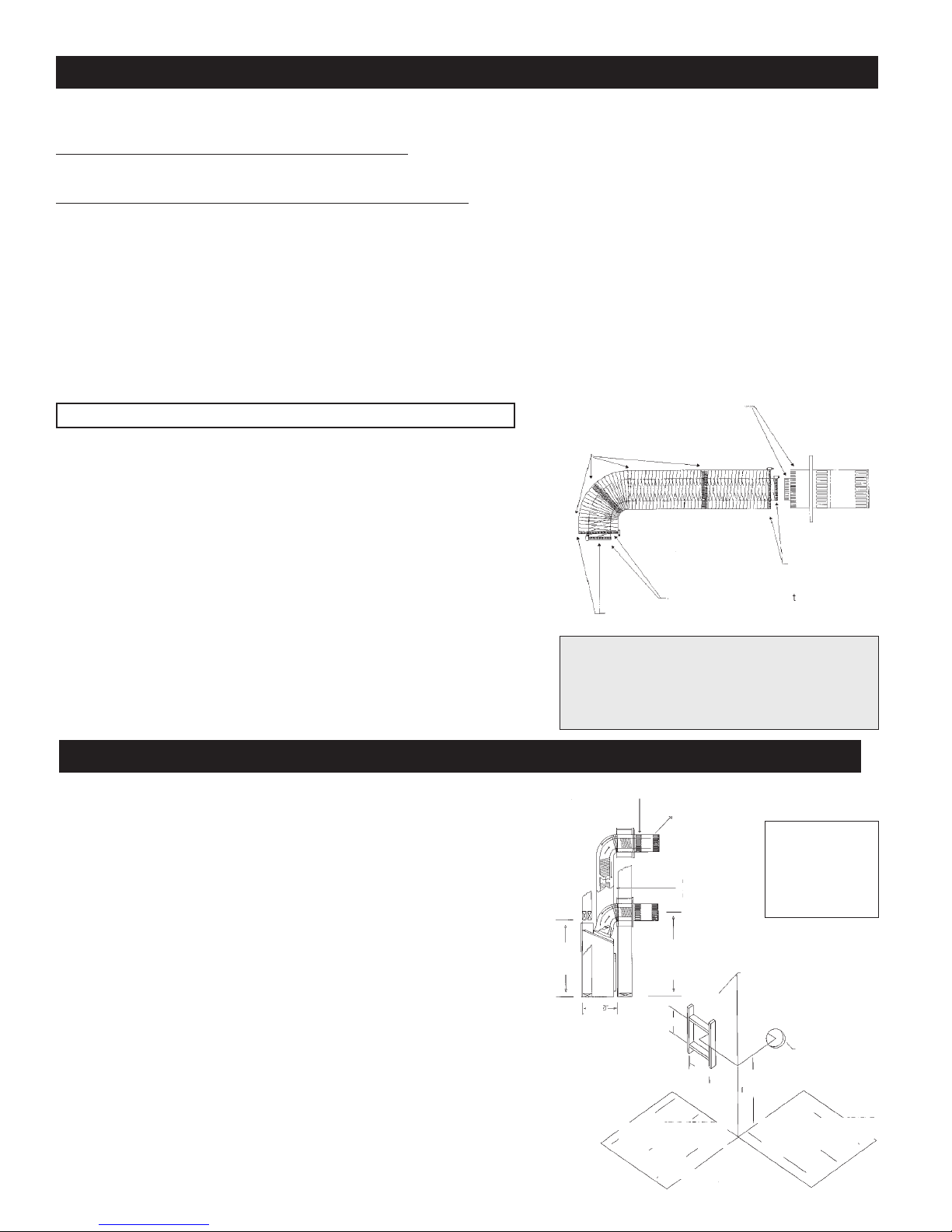

Installation of side wall venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

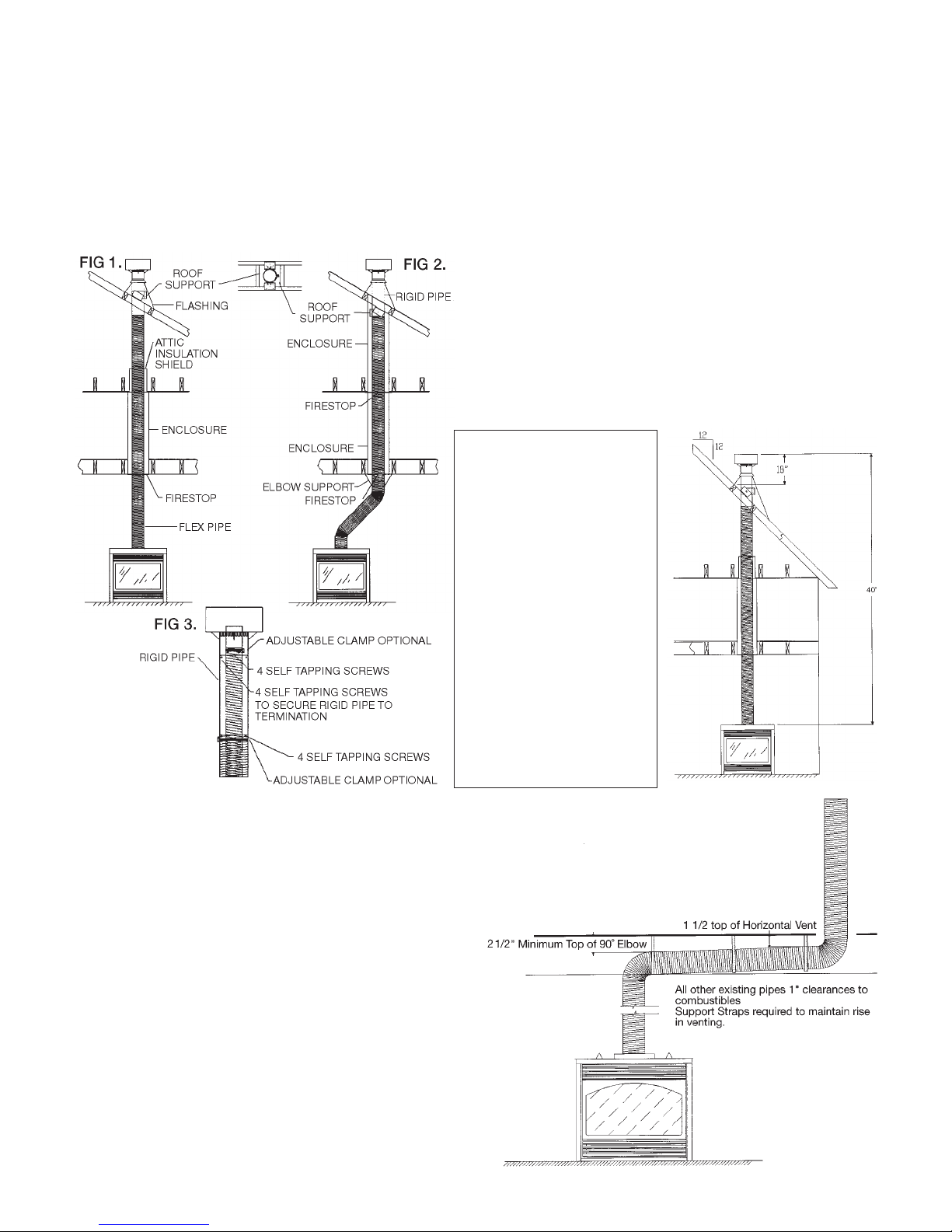

Installation of venting straight up through Roof . . . . . . . . . . . . . . .30-31

ZDV3318 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

ZDV3622 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Common parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Limited Lifetime Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Table of Contents

Mobile Home/Manufactured Housing Installation

This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada.

THE ZDV3318, ZDV3318LP, ZDV3622N and ZDV3622LP MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE IN THE USA. IN CANADA THE ZDV3318, ZDV3318LP, ZDV3622N and ZDV3622LP MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES.

Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in Canada.

An appliance must be grounded to the steel chassis of the home with 8 ga. copper wire using a serrated or star washer to penetrate paint or protective coating to insure grounding.

Use carriage bolt at the attachment point (see diagram above) to secure the appliance to the floor.

Warning: Do not compromise the structural integrity of the manufactured home wall, floor or ceiling, during

installation of appliance or venting.

For required venting components see venting installation in appropriate section of this manual.

Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed milli volt thermostat. In USA see local codes.

Installation and Operation

Installation Regulations

This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CGA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1 when installed in the United States.

This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or with the national Electrical Code; ANSI/NFPA 70-1987 when installed in the United States.

FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING:

1. This appliance gives off high temperatures and should be

located out of heavy traffic areas and away from furniture and draperies.

2. Children and adults should be alerted to the hazards of the high surface temperatures of this appliance and should stay away to avoid burns or ignition of clothing.

3. Children should be carefully supervised when they are in the same room as your fireplace appliance.

4. Under no circumstances should this appliance be modified. Any parts that have to be removed for servicing should be replaced prior to operating this appliance.

5. Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etcetera. It is imperative that control compartments, burners and circulating air passageways of the appliance be kept clean.

6. Control compartments, burners and air passages in this appliance should be kept clean and free of dust and lint. Make sure that the gas valve and pilot light are turned off before you attempt to clean this unit.

7. The venting system (chimney) of this appliance should be inspected at least once a year and if needed, your venting system should be cleaned.

8. Clothing or other flammable material should not be placed on or near the appliance. This appliance should not be used as a drying rack for clothing nor should Christmas stockings or decorations be hung from it.

9. Under no circumstances should any solid fuels (wood, paper) be used in this appliance.

10. For safe operation, glass doors must be closed.

11. Do not use this heater if any part has been under water. Immediately call a qualified service technician to inspect the heater and to replace any part of the control system and any gas control which has been under water.

12. WARNING: Do not operate appliance with the glass front removed, cracked or broken. Replacement of glass should be done by a licensed or qualified service person.

13. Do not operate appliance unless completely installed as per installation instructions.

14. In the Commonwealth of Massachusetts a CO detector must be installed in the same room as the appliance.

15. Gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no circumstances shall they provide a primary heat source.

Never use your gas fireplace as a cooking device.

The Burner/Log Assembly has been engineered and permanently adjusted for proper flame control.

Periodically remove the logs from the grate assembly and vacuum any loose particles from the grate and burner areas.

See log/rock placement on pages 36-40 to remove logs, vacuum burner parts and replace logs.

Make adequate accessibility clearances for servicing and proper operation.

This appliance must not be connected to a chimney flue serving a separate solid fuel burning appliance.

Be sure that the flow of combustion and ventilation air is not obstructed.

Warning: When purging the gas line, the glass front must be removed.

Do not alter gas orifice.

Note: It is normal for your gas fireplace to give off some odor the first time it is burned. This is due to the curing of the paint and any undetected oil from the manufacturing process.

Please ensure that your room is well ventilated - open all windows. It is recommended that you burn your gas fireplace for at least four (4) hours the first time you use it without the fan on.

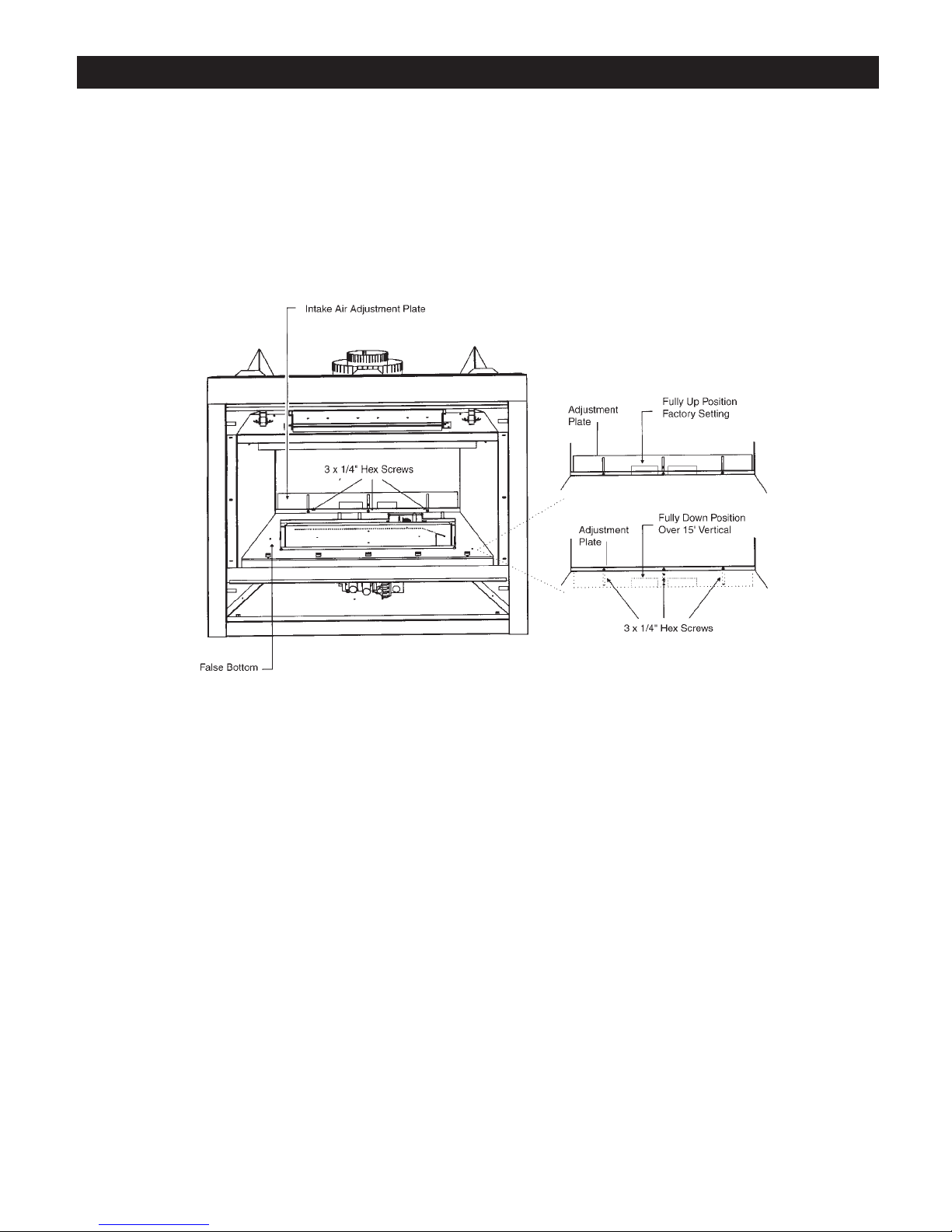

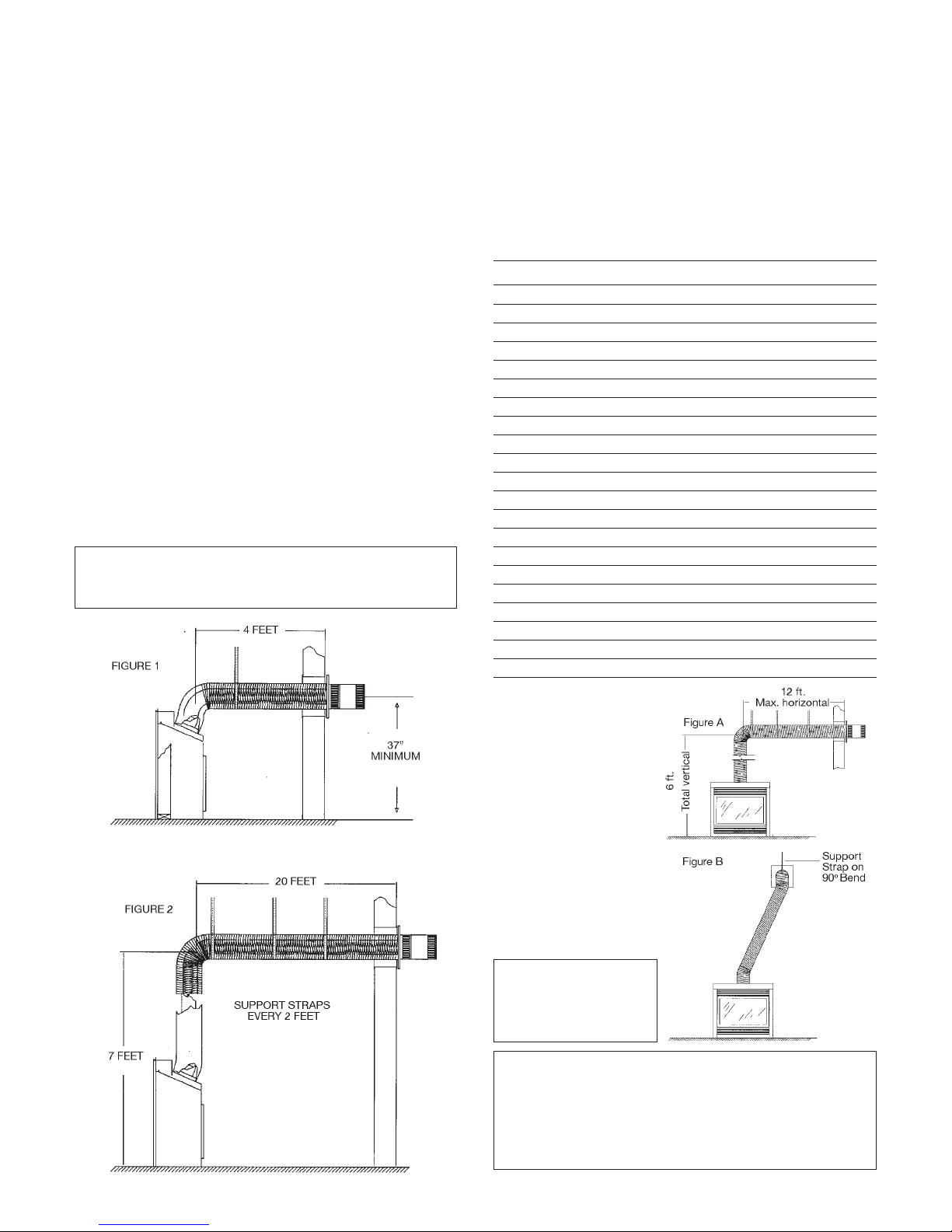

Vertical Venting in Cold Climates

In cold climate conditions where temperatures go below -10 degrees Celsius or 14 degrees Fahrenheit, we recommend that the chase be insulated and where the vent pipe enters into the attic space that the pipe be wrapped with an insulated mylar sleeve. This will increase the temperature of the vent and help the appliance to vent properly in cold weather conditions.

It is also important in vertical vented direct vent appliances that the appliance be operated daily during the winter months as this will help stop the Termination from freezing up. We recommend using a thermostat set at room temperature to allow the unit to cycle.

NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of your home. Place a detector about 15 feet (4.5 meters) outside the room that houses your gas appliance.

Installation Requirements for the Commonwealth of Massachusetts

In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the Commonwealth.

When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO detector per the requirements listed below.

1. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of the

vent terminal and the air intake is installed below four feet above grade the following requirements must be satisfied:

A If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide detector and alarm shall be placed in the

living area outside the bedroom(s). The carbon monoxide detector shall comply with NFPA 720 (2005 Edition).

B. A carbon monoxide detector shall be located in the room that houses the appliance or equipment and shall:

a. Be powered by the same electrical circuit as the appliance or equipment such that only one service switch services both the appliance and

the carbon monoxide detector;

b. Have battery back-up power;

c. Meet ANSI./UL 2034 Standards and comply with NFPA 720 (2005 Edition); and

d. Have been approved and listed by a Nationally Recognized Testing Laboratory as recognized under 527 CMR.

C. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used. Installation shall be in strict

compliance with the manufacturer’s instructions. A copy of the installation instructions shall remain with the appliance or equipment at the completion of the installation.

D. A metal or plastic identification plate shall be mounted at the exterior of the building, four feet directly above the location of vent terminal. The

plate shall be of sufficient size to be easily read from a distance of eight feet away, and read “Gas Vent Directly Below”.

2. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment where the bottom of the vent terminal and the air intake is installed above four feet above grade the following requirements must be satisfied:

A If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide detector and alarm shall be placed in the

living area outside the bedroom(s). The carbon monoxide detector shall comply with NFPA 720 (2005 Edition).

B. A carbon monoxide detector shall:

a. Be located in the room that houses the appliance or equipment;

b. Be either hard-wired or battery powered or both; and

c. Shall comply with NFPA 720 (2005 Edition).

C. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used. Installation shall be in strict

compliance with the manufacturer instructions. A copy of the installation instructions shall remain with the appliance or equipment at the completion of the installation.

ZDV3318 - Locating your Appliance

ZDV3318 Fireplace Dimensions

Installing with Top Vent

Island installation with a top vent is possible as long as the horizontal portion of the vent system does not exceed 20 feet (6.1 m).

A - Flat on a wall D - As a room divider B - Across the corner E - Flat on wall corner C - As an island F - Exterior wall

ZDV3318 -CVCK (Clean View Circulating Kit)

ZDV3318 louvered

For Propane Horizontal Installations the venting must be a minimum of one foot vertical off the flue before the elbow on any horizontal runs of one foot or greater. This allows for cleaner combustion and greatly reduces carboning and cleaning of glass.

ZDV3318 - Framing for your Gas Fireplace

ZDV3318 Louvered

ZDV3318 WITH CVCK (CLEAN VIEW CIRCULATING KIT)

4. When installing horizontal with a 90 degree bend maintain a minimum of two and a half (2.5”) inches above the bend in enclosures.

For a fireplace with louvers combustible floor can raise 1” above the bottom of the fireplace. For a fireplace with 33CVCK (Clean view Circulating Kit) floor or hearth can raise 7” above the bottom of the fireplace with portions being combustible and non combustible. See drawing on following page.

6. When installing MQSWF surround, the fireplace must be raised a minimum of 2 7/8” above the finished floors, to accommodate the wall surround. The fireplace may be raised higher but the 60” clearance measured from the bottom of the fireplace to the ceiling must be maintained at all times. (i.e. For an 8 ft. ceiling the unit can be raised only 36 inches.)

Framing Specifications

1. Cold climate installation recommendation: When installing this fireplace against non insulated exterior wall or chase, it is recom mended that the outer walls be insulated to conform to applicable insulation codes. Drywall must be installed over insulation to prevent contact of insulation and unit.

2. Choose fireplace location and frame in accordance with the fireplace framing dimensions specified (See Framing Diagrams). Bend nailing tabs forward on left and right of unit and place fireplace into framed enclosure. This allows for 1/2” in front of framing tabs for finishing materials.

3. Drywall or other material can extend flush with the appliance on the bottom, sides and top of fireplace. (louvered models only)

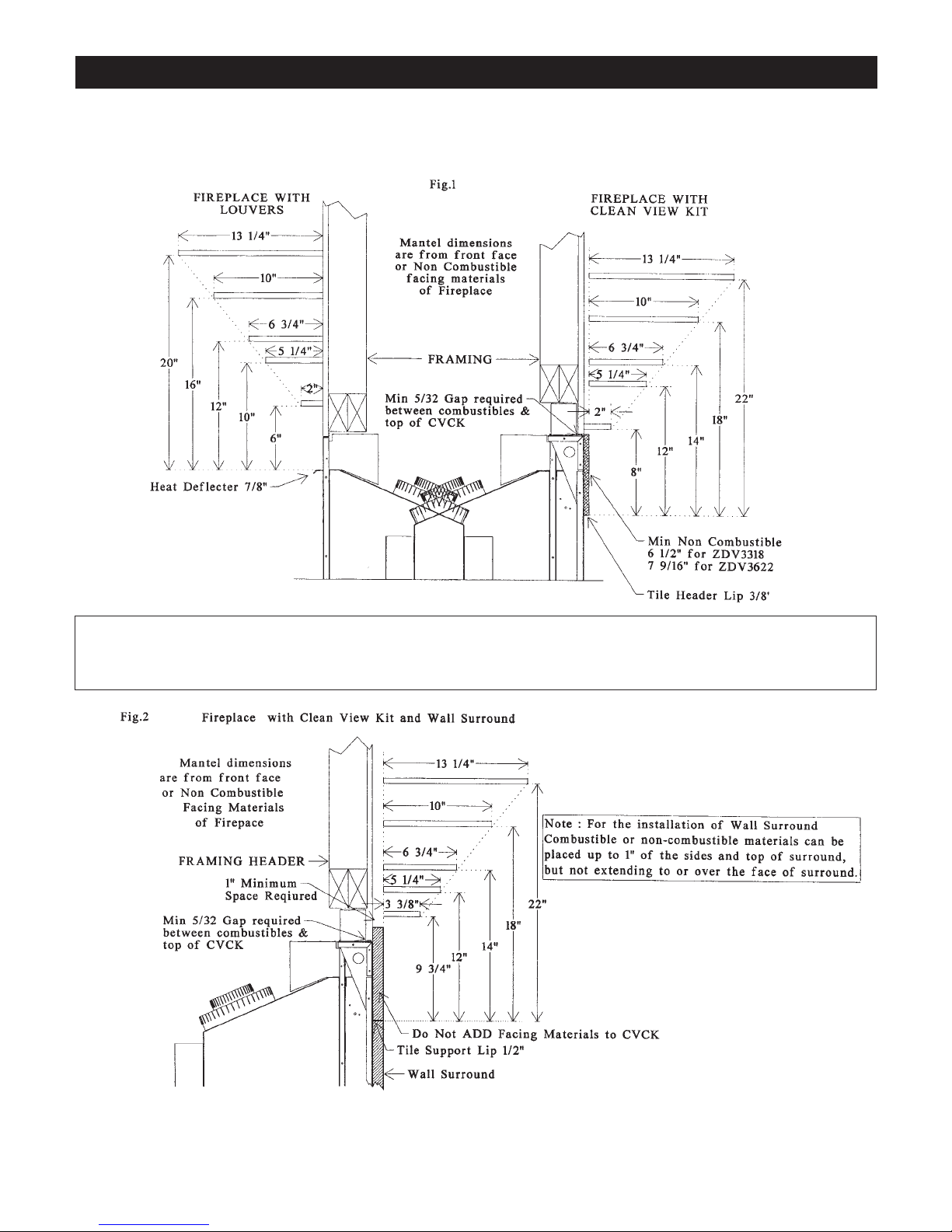

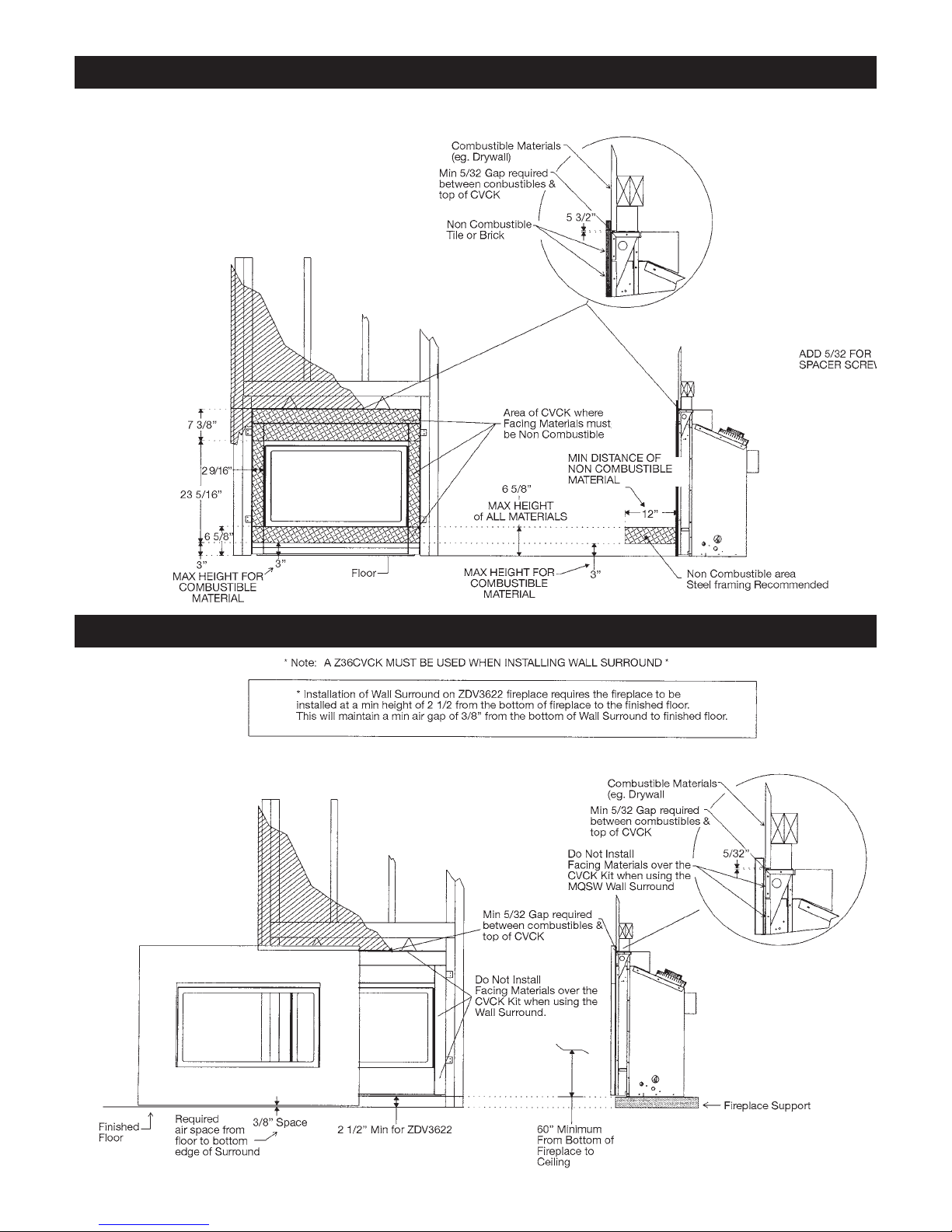

Z33CVCK - Framing and Facing Requirements

ZDV3318 WITH Z33CVCK (CLEAN VIEW CIRCULATING KIT)

Z33CVCK - with Wall Surround

ZDV3622 - Locating your Appliance

ZDV 3622 Fireplace Dimensions

Installing with Top Vent

Island installation with a top vent is possible as long as the horizontal portion of the vent system does not exceed 20 feet (6.1 m).

A - Flat on a wall D - As a room divider B - Across the corner E - Flat on wall corner C - As an island F - Exterior wall

ZDV3622 -CVCK (Clean View Circulating Kit)

ZDV3622 louvered

It is recommended for Propane Horizontal Installations that the venting should be a minimum of one foot vertical off the flue before the elbow on any horizontal runs of one foot or greater. This allows for cleaner combustion and greatly reduces carboning and cleaning of glass.

ZDV3622 - Framing for your Gas Fireplace

ZDV3622 Louvered

ZDV3622 WITH CVCK (CLEAN VIEW CIRCULATING KIT)

4. When installing horizontal with a 90 degree bend maintain a minimum of two and a half (2.5”) inches above the bend in enclosures.

For a fireplace with louvers combustible floor can raise 1” above the bottom of the fireplace. For a fireplace with 36CVCK (Clean view Circulating Kit) floor or hearth can raise 7” above the bottom of the fireplace with portions being combustible and non combustible. See drawing on following page.

6. When installing MQ36SWF surround, the fireplace must be raised a minimum of 2 1/2” above the finished floors, to accommodate the wall surround. The fireplace may be raised higher but the 60” clearance measured from the bottom of the fireplace to the ceiling must be maintained at all times. (i.e. For an 8 ft. ceiling the unit can be raised only 36 inches.)

Framing Specifications

3. Drywall or other material can extend flush with the appliance on the bottom, sides and top of fireplace. (louvered models only)

+ 24 hidden pages

Kingsman Zero Clearance Installation Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
