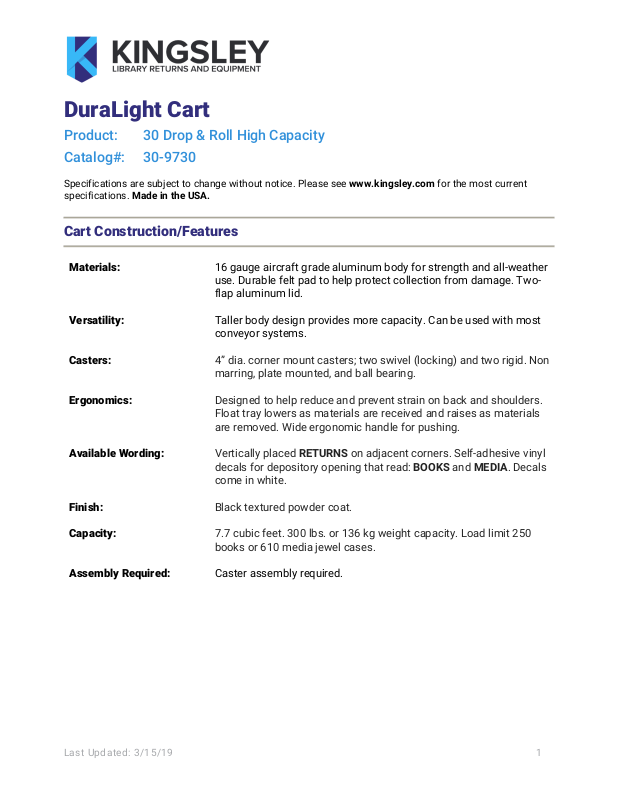

Product:
30 Drop & Roll High Capacity
Catalog#:
30-9730
Materials:
16 gauge aircraft grade aluminum body for strength and all-weather
Versatility:
Taller body design provides more capacity. Can be used with most
Casters:
4” dia. corner mount casters; two swivel (locking) and two rigid. Non
Ergonomics:
Designed to help reduce and prevent strain on back and shoulders.
Finish:
Black textured powder coat.
Capacity:
7.7 cubic feet. 300 lbs. or 136 kg weight capacity. Load limit 250
Assembly Required:
Caster assembly required.
DuraLight Cart
Specifications are subject to change without notice. Please see www.kingsley.com for the most current
specifications. Made in the USA.
Cart Construction/Features
use. Durable felt pad to help protect collection from damage. Twoflap aluminum lid.
conveyor systems.
Available Wording:
marring, plate mounted, and ball bearing.
Float tray lowers as materials are received and raises as materials
are removed. Wide ergonomic handle for pushing.
Vertically placed RETURNS on adjacent corners. Self-adhesive vinyl
decals for depository opening that read: BOOKS and MEDIA. Decals
come in white.
books or 610 media jewel cases.
Last Updated: 3/15/19 1
Page 2
Overall Dimensions:
20-7/16” W x 21-5/16” D x 38-3/8” H
Depository Opening:
Product Weight:
16” W x 3-1/2” H [406.4 mm W x 88.9 mm H]
36 lbs. [16.33 kg]
Shipping Method/Class:
Ground or Freight /Class 150
Lightweight Springs – #99-3032
Bottom Pad – #99-2520
Cart Measurements
[519.11 mm W x 541.33 mm D x 974.72 mm H]
Height includes casters. Depth includes handle.
Included with This Cart:
Keyed cam lock for access lid security.
Accessories/Options for This Cart:
Standard Springs – #99-3021
Casters – #99-3004
