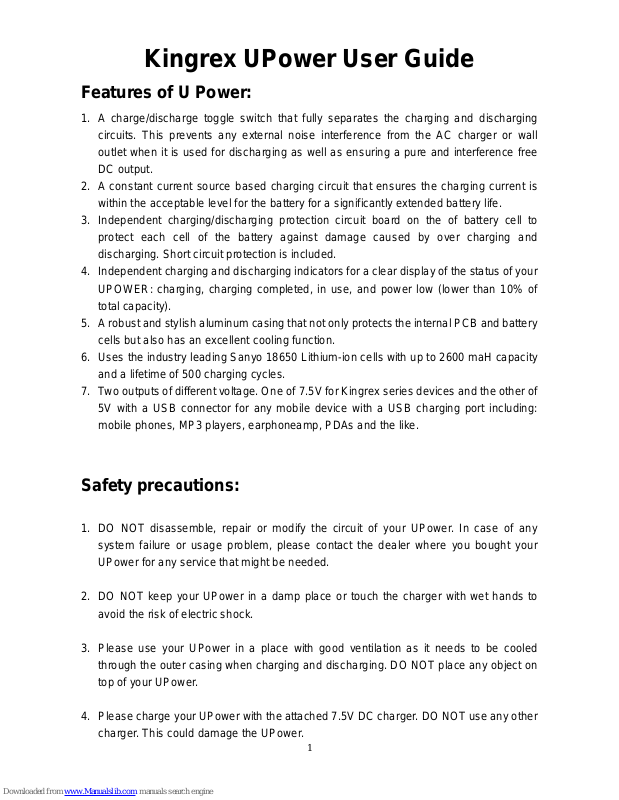

Kingrex UPower User Guide
Features of U Powe r:
1. A charge/discharge toggle switch that fully separates the charging and discharging
circuits. This prevents any external noise interference from the AC charger or wall
outlet when it is used for discharging as well as ensuring a pure and interference free
DC output.
2. A constant current source based charging circuit that ensures the charging current is
within the acceptable level for the battery for a significantly extended battery life.
3. Independent charging/discharging protection circuit board on the of battery cell to
protect each cell of the battery against damage caused by over charging and
discharging. Short circuit protection is included.
4. Independent chargi ng and dis char gi ng i ndicator s for a clear display o f the status of your
UPOWER: charging, charging completed, in use, and power low (lower than 10% of
total capacity).
5. A robust and stylish aluminum cas ing that not only pr otect s the internal PCB an d battery
cells but also has an excellent cooling functio n.
6. Uses the industry leading Sanyo 18650 Lithium-ion cells with up to 2600 maH capacity
and a lifetime of 500 charging cycles.
7. Tw o outpu ts of di f feren t v olt age. O ne of 7.5V for Kingrex series devi ces and the ot her of
5V with a USB connector for any mobile device with a USB charging port including:
mobile phones, MP3 players, earphoneamp, PDAs and the like.
Safety precautions:
1. DO NOT disassemble, repair or modify the circuit of your UPower. In case of any
system failure or usage problem, please contact the dealer where you bought your
UPower for any service that might be needed.
2. DO NOT keep your UPower in a damp place or touch the charger with wet hands to
avoid the risk of electric shock.
3. Please use your UPower in a place with good ventilation as it needs to be cooled
through the outer casing when charging and discharging. DO NOT place any object on
top of your UPower.
4. Please charge y our UPower with the att ach ed 7.5V DC charger. DO NOT use any other
charger. This could damage the UPower.
2
List of items in package:
1. UPower
2. DC OUT cable
3. Charger
3
Panel configuration
7.5V IN: Power input connector for your UPower charger (DC7.5V)
CHG/DC OUT: Charge/discharge tog gle s w itch w here CHG stands for charge and DC OUT
for DC 7.5V AND USB 5V OUTPUT.
7.5V OUT: DC 7.5V output connector for Kingrex 7.5V series devices exclusively. For
example: UC192, UD384 and...
USB 5V OUT: For any device that features a USB charging function.
CHARGING: The charging indicator turns blue when charging and turns off when the
battery is fully charged.
DC OUT: The output indicator. This turns green when your UPower is in e ither 7.5V or 5V
output mode. The light will flash when the battery capacity drops below 10%
and turn off when the UPower is charging, or when the battery is flat.
4
How to connect and use your UPower:
Charging:
Connect the 7.5V output socket to your UPower DC 7.5V IN connector and press the
CHG/DC OUT toggle switch to the CHG position. The charging process starts and the
CHARGING indicator turns blue. It takes around 7 hours to fully charge your battery. The
CHARGING indicator turns off after the battery is fully charged.
Please charge your UPower fully before using it for the first time.
Discharging:
Connect the device to be powered by your UPower correctly. Press the CHG/DC OUT
toggle switch to the DC OUT position and you are ready to use the pure DC current from
your UPower. The 7.5V output is for Kingrex UC192 and UD 384 series products or any
other device that requires DC 7.5V supply.
Precautions when using lithium-ion batteries:
Your Kingrex UPower features two quality Sanyo lithium-ion cells to ensure high power
density, low output impedance and more than 500 charge and discharge cycles. You may
experience significant decline in battery capacity as the battery cells reach the end of their
lives. This is normal. Please contact an authorized dealer for replacement cells.
Specifications:
Power supply with lithium-ion cells
Charging by: Constant current source based charging circuit
Charging current: 0.7A
Charging time: Around 7 hours
Output voltage:
DC 7.5V OUT port: 7.5-8.4 V
USB port: DC 5V
Main device dimension:
Main device weight:
Package dimension:
Package weight:
5
Why choose UPower
It is widely accepted that power is the key to any audio system. Pure power is the ultimate
goal of each and every music enthusiast. From a dedicated power source, an exclusive
wall socket, a quality power cord, down to premium filter capacitors, the pursuit for clean
power is everywhere.
Kingrex has undertaken to provide pure power since its establishment. From PSU MKII to
SLAP to t he lates t UPower, Kingrex continues to provide low-voltage DC pow er supplies for
almost all audio peripherals and is highly appreciated by consumers.
Your UPower differs from most USB power supplies on the mar ket w ith i ts cl ean D C curr ent
provided exclusively by battery cells. In order to achieve compact size and high capacity
many other providers of power supplies use two 3.7v/2500ma battery cells in parallel that
share a single protection PCB. Some Mainland Chinese products even come without
protection circuits at all in order to reduce cost. With this design, the 5V USB power can
only be achieved with a “dc to dc up converter” based boost switching power supply where
a 3.7v DC current is converted to a steady 5V output by passing it through a fast switching
circuit, up to hundreds of khz, and a simple filtering and regulating circuit. While you are
under the impression that you are connecting to a pure 5V DC current (battery) power
supply, your devices are actually being powered by an inferior 5V switching power supply.
This may work for charging purposes but not when used to charge your mobile phone or
MP3 player, or to power the playback function, because the sound quality could easily be
affected.
The Kingrex UPower has a completely new design and guarantees perfectly clean DC
current from its two output connectors.
The 7.5V input conn ec t or di r ec tl y c onnects to the two 3.75V Sanyo quality Lithium-ion cells
6
in series.
The 5V output is generated by dropping a 7.5V current through a linear regulator without
the use of any switching power circuit.
Your device provides the so-called “audio grade” pure DC current.
The waveform of UPower at 5V/500ma output is a pure clean DC current as shown on the
oscilloscope screen.
The waveform of other mobile power supplies at 5V/500ma output, as shown on the
oscilloscope screen, have pulses of a magnitude up to 0.7V at 340KHZ.
