PO Box 1200
305 Commerce Drive
Winfield, Alabama 35594

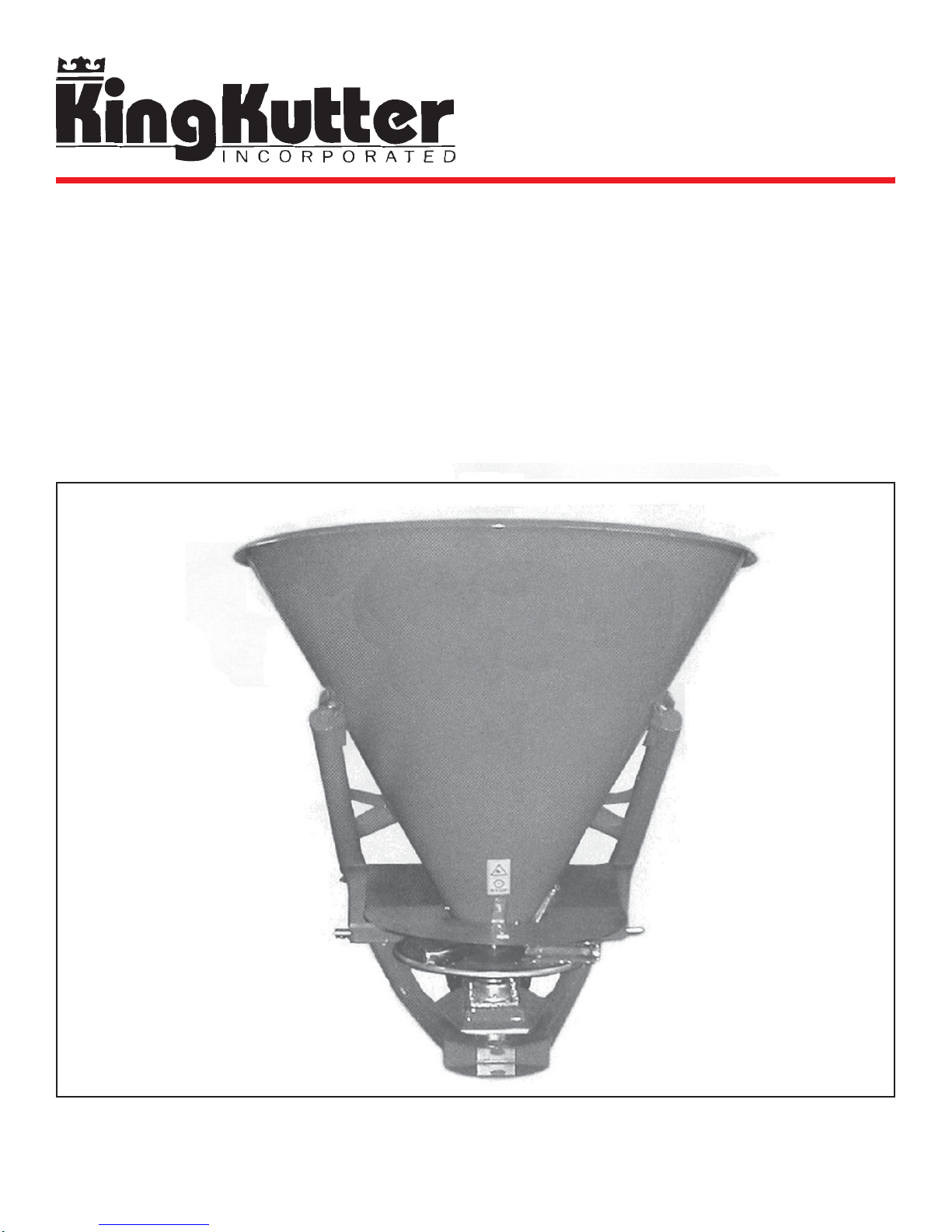

SEEDER
OPERATION AND PARTS
MANUAL
www.kingkutter.com
TO THE PURCHASER
This manual contains valuable information about your
new Seeder It has been carefully prepared to give you helpful suggestions for operating, adjusting, servicing and ordering repair parts.
Keep this manual in a convenient place for quick and
easy reference. Study it carefully. You have purchased a
dependable and sturdy seeder, but only by proper care and
operation can you expect to receive the service and long life
designed and built into it.
Sometime in the future your seeder may need new part s
to replace those that are worn or broken. If so, go to your
dealer and provide him with the model and part number.
Customer Information
Name_______________________________________________
Purchased From ______________________________________
Date Purchased ______________________________________
Model No. ___________________________________________
Serial No. ___________________________________________
3
It is the purchaser and/or operator ’s responsibility to….
zz
z Read and understand the information contained in
zz
this manual.
zz
z Operate, lubricate, assemble and maintain the equip-
zz
ment in accordance with all instructions and safety
procedures in this manual.
zz
z Inspect the equipment and replace or repair any parts
zz
that are damaged or worn which under continued operation would cause damage, wear to other parts, or
cause a safety hazard.
zz
z Return the equipment or parts to the authorized King
zz
Kutter dealer, from where it was purchased, for service or replacement of defective parts that are covered
by warranty. (The King Kutter Factory may inspect
equipment or parts before warranty claims are honored.)
zz
z Payment of all costs incurred by the dealer for travel-
zz
ing to or transporting the equipment for warranty inspection and or claims.
4
CONTENTS
ITEM PAGE
Introduction ................................................................6

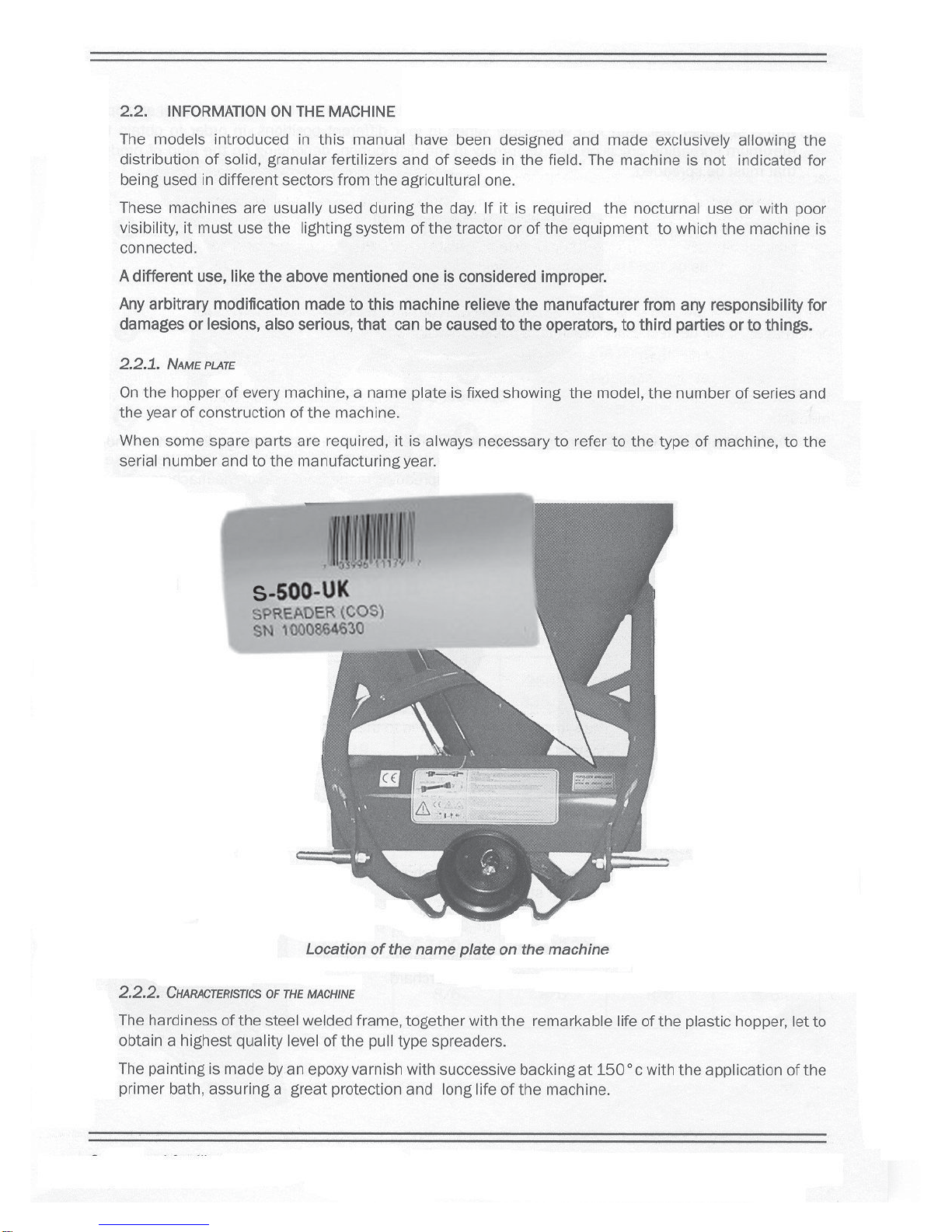

General Information ...................................................6

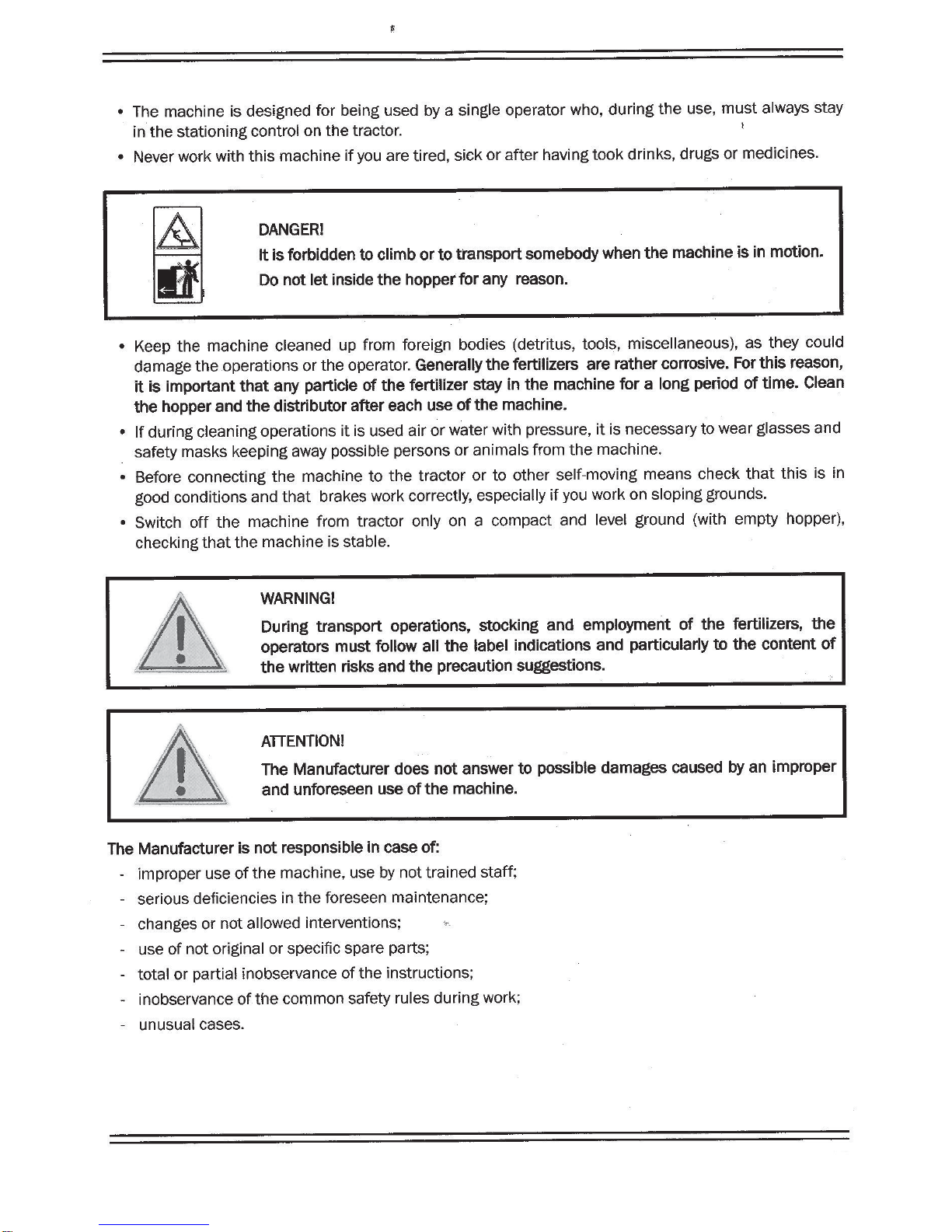

Safety Information ....................................................10

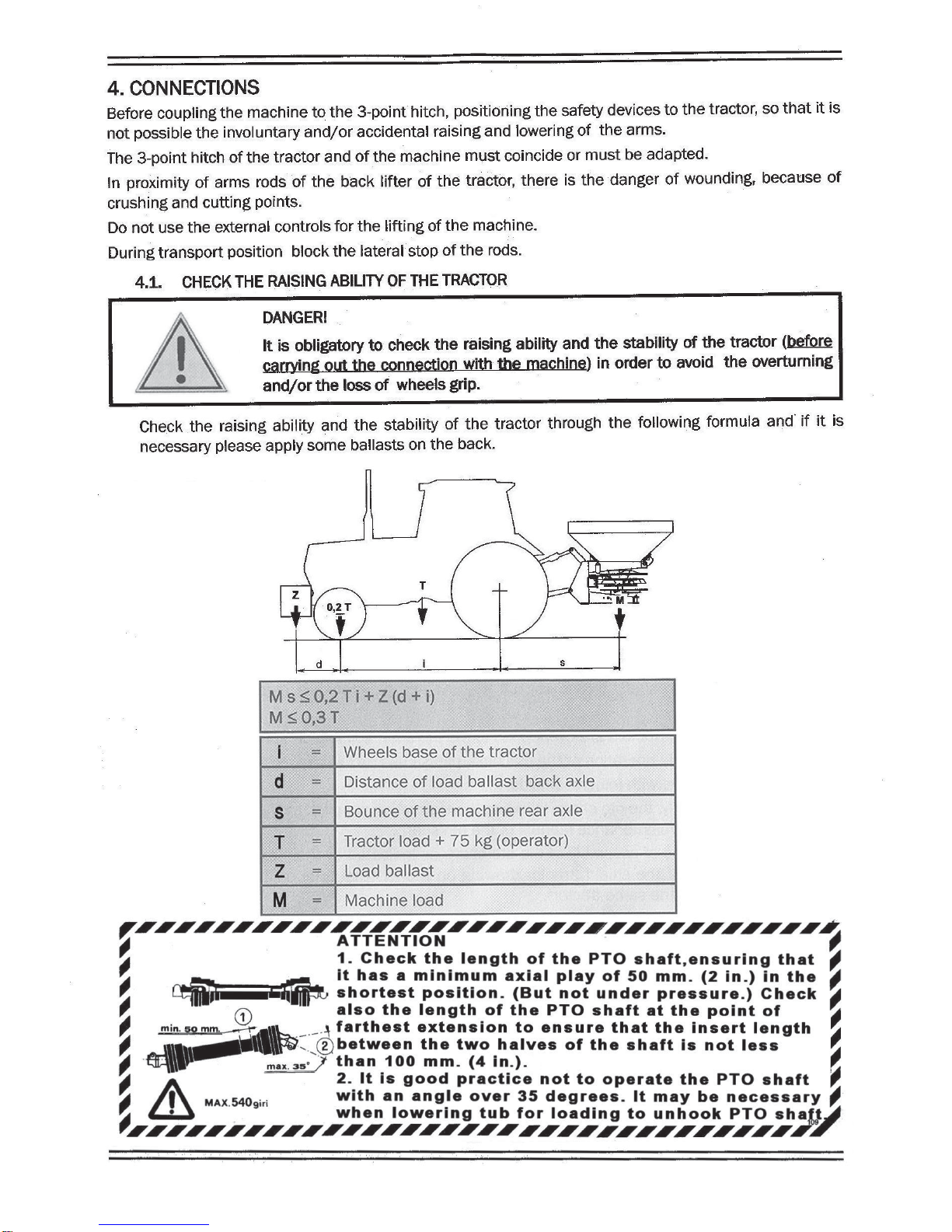

Connections .............................................................15

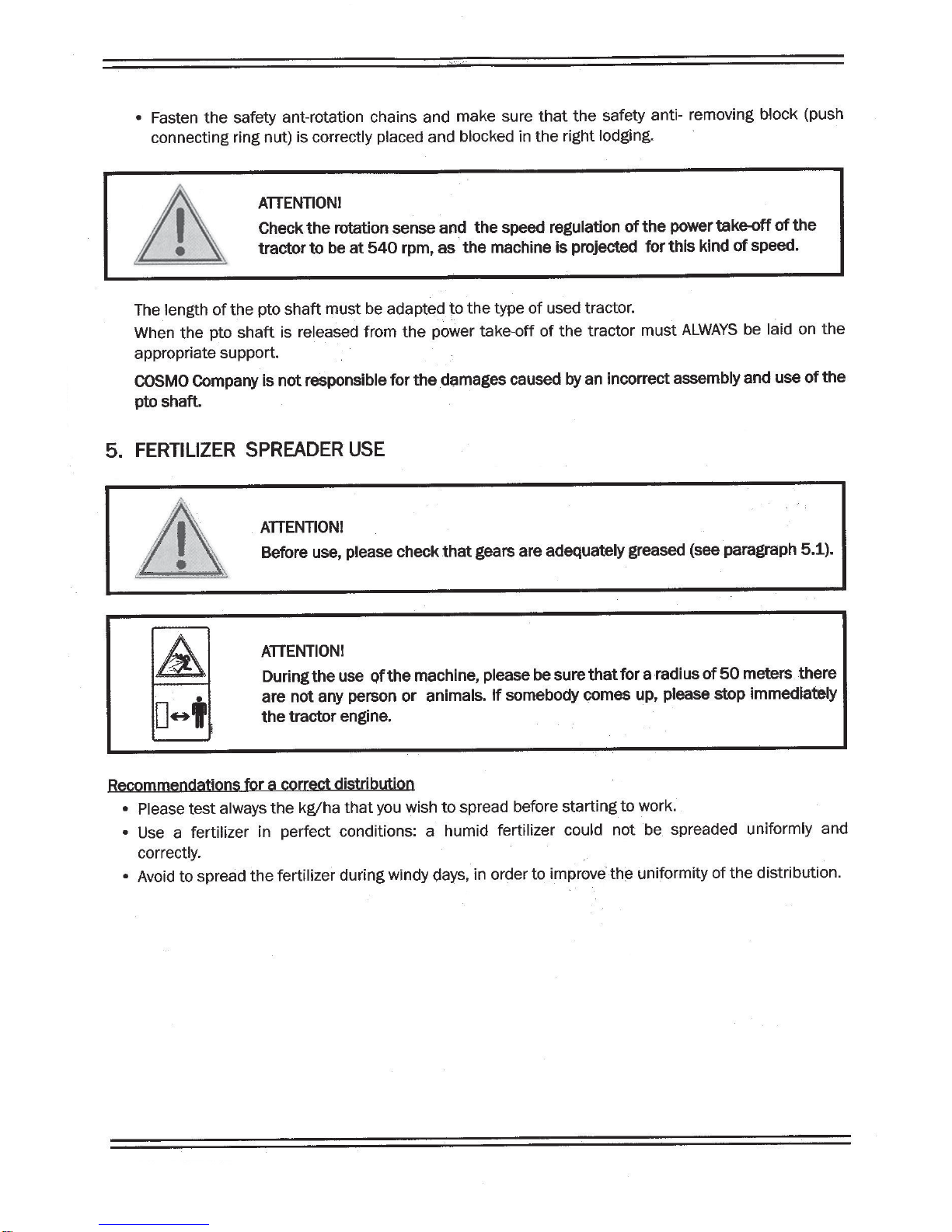

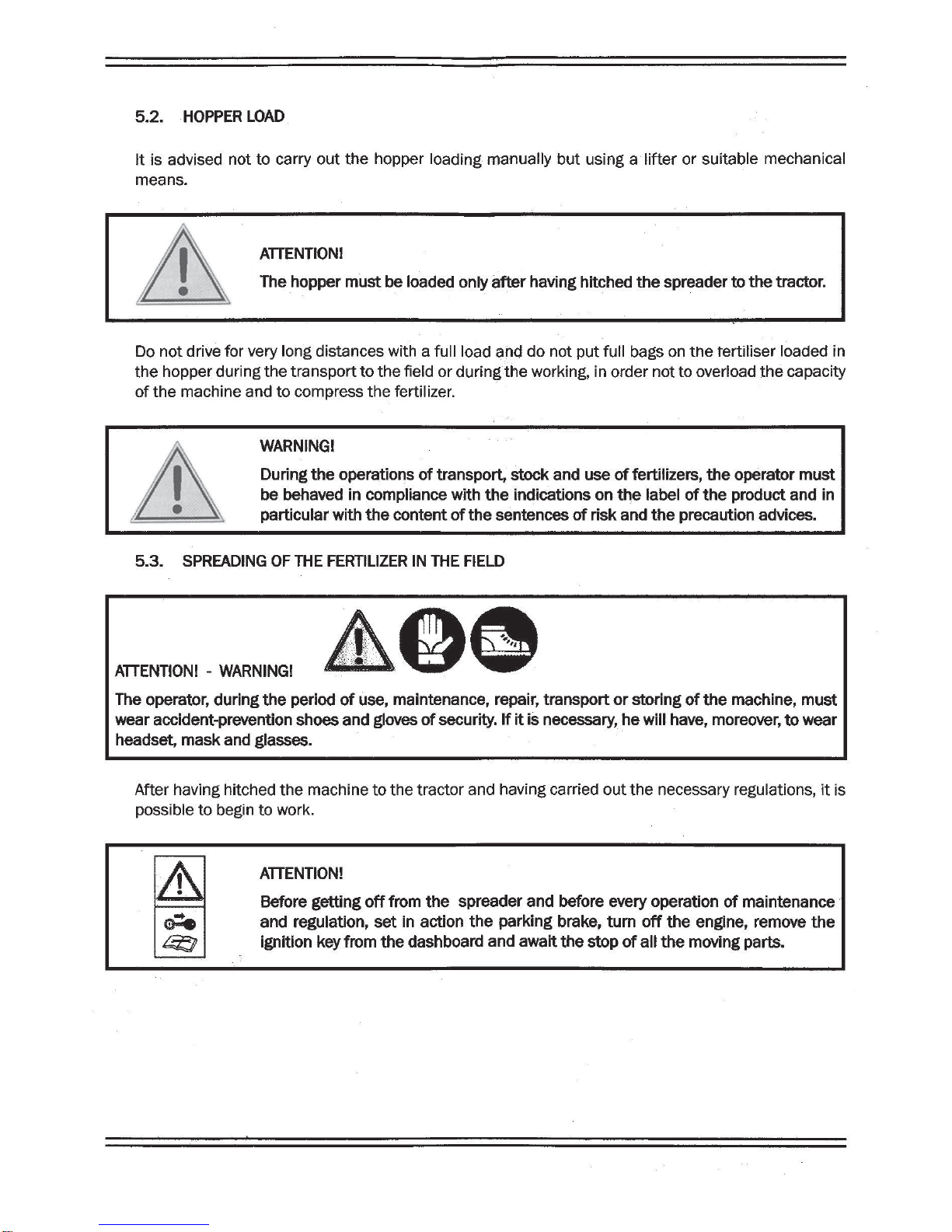

Fertilizer Spreader Use ............................................17
General Maintenance...............................................23
Replacement Parts...................................................26

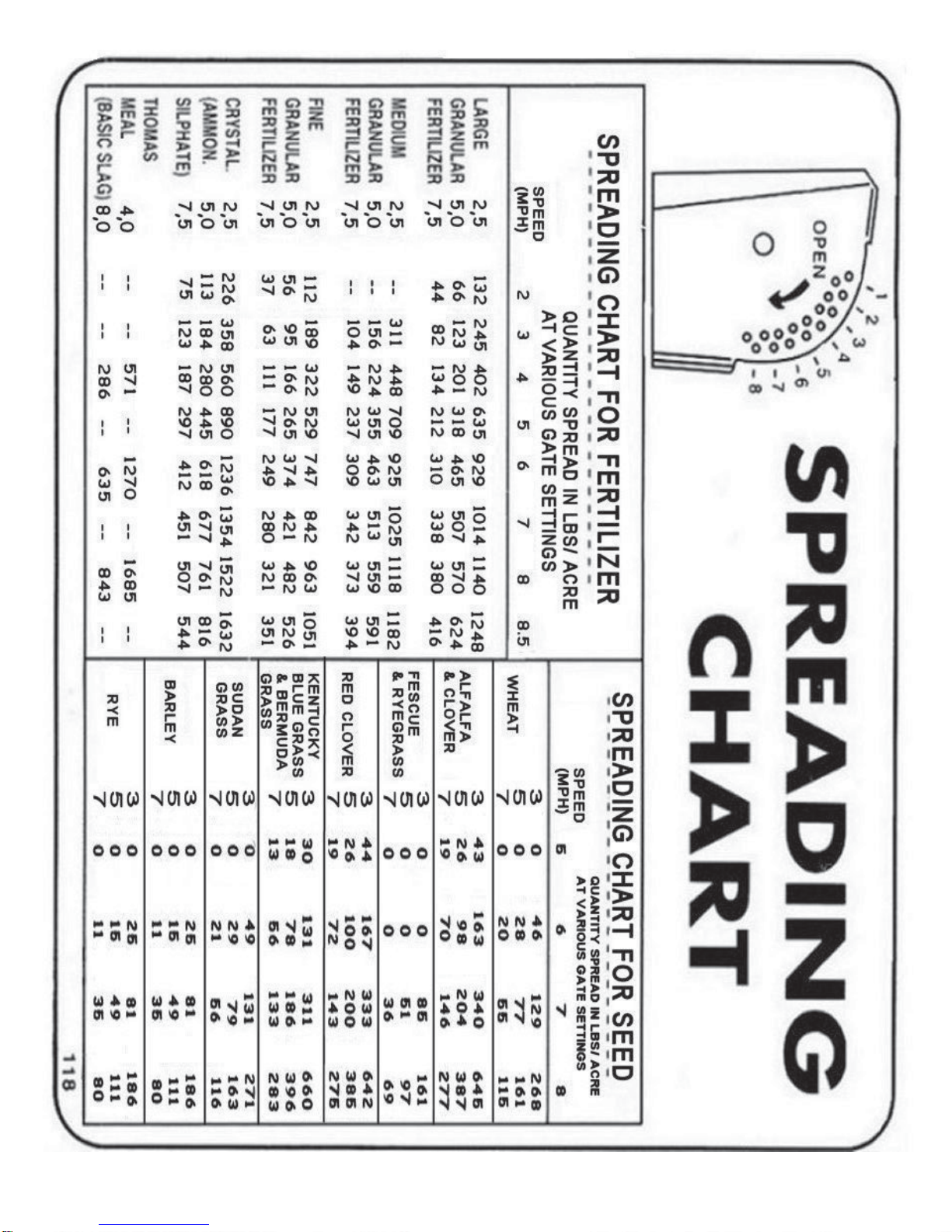

Spreading Chart .......................................................27
Warranty...................................................................28
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
LUBRICATION
Before using the seeder for the first time, put at least (35 shots with a hand
grease gun) of grease in zerk shown below. After every 8 hours of use put in (3
to 4 shots with a hand grease gun).
Make sure the grease zerks are clean from dirt and other foreign materials
before injecting the grease.
NOTE: Use only a grade Type II or Lithium tube grease.
POINT TO GREASE

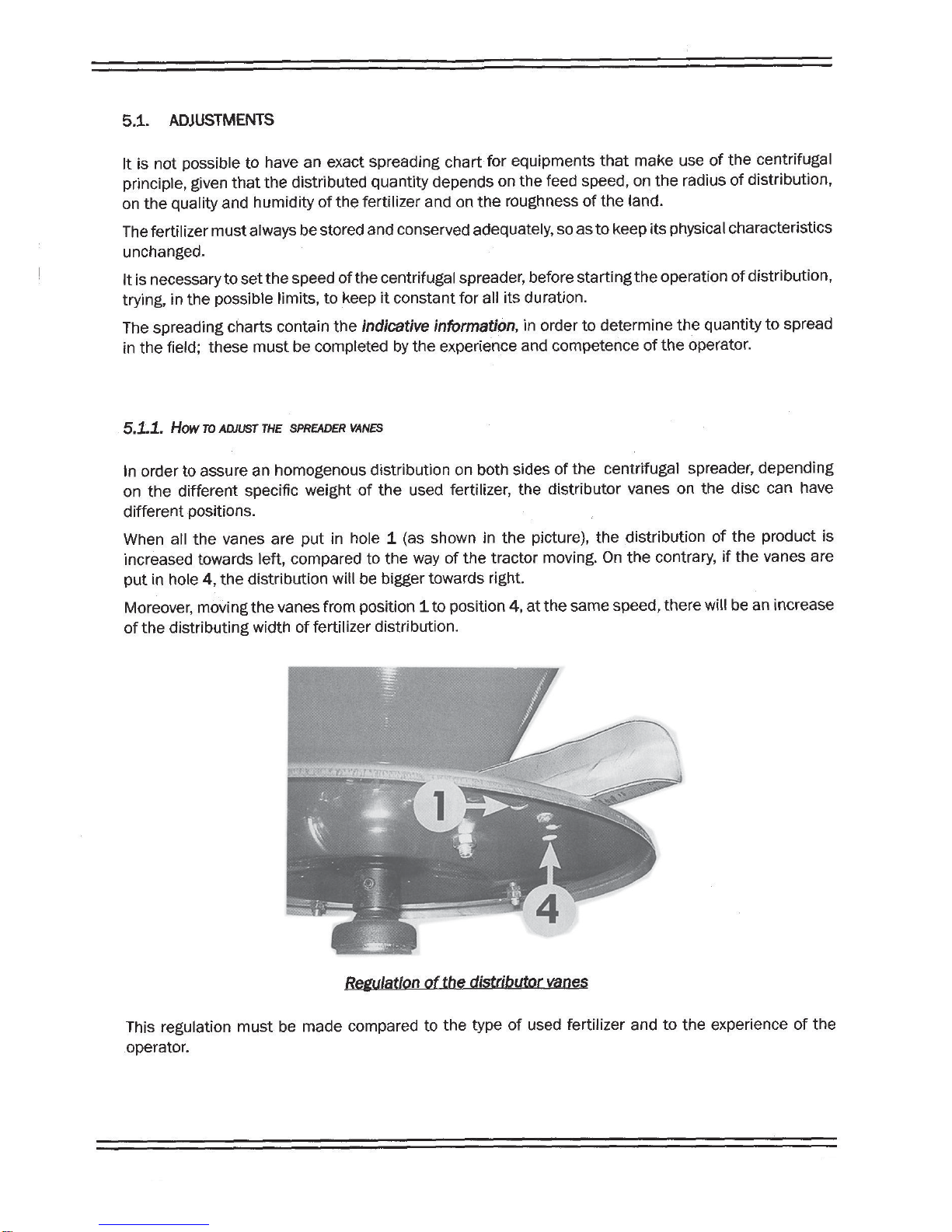

REPLACEMENT OF THE SPREADER VANES
In case the spreader vanes of the disc brake or get damaged, it will be necessary to replace them with new ones.
Unscrew the nut and replace the damaged vane. The nuts and bolts you remove, if
not damaged may be reused. If they are damaged or worn replace them with the
same type and size nuts and bolts.
24
25
26
27
1. Limited Warranty.
King Kutter, Inc. (“King Kutter”), P.O. Box 1200, Winfield, Alabama 35594, warrants to the original retail purchaser
(“Purchaser”) that the product that is the subject of this sale is free from defects in material and workmanship at the
time of sale.
Under this warranty , King Kutter will repair the defective product free of charge to the Purchaser, with either new or
used and reconditioned replacement parts. All warranty service will be performed at service centers designated by
King Kutter. If King Kutter is unable to repair the product to conform to the warranty after a reasonable number of
attempts, King Kutter will provide, at its option, one of the following: (a) a replacement for the product or, (b) a full
refund of the purchase price. Repair, replacement, or refunds are the Purchaser’s EXCLUSIVE remedies against
King Kutter under this limited warranty. King Kutter will not be liable for any special, incidental or consequential
damages based upon breach or warranty , breach of contract, negligence, strict tort liability , or any other legal theory.
Such damages include, but are not limited to, loss of profits, loss of savings or revenue, loss of use of the product or
any associated equipment, cost of capital, cost of any substitute equipment, facilities or services, down time, the
claims of third parties including customers, and injury to property . These limit ations also apply , to the extent allowed
by law, to personal injury.
The purchaser must notify the Seller in writing of any defect in material or workmanship within one (1) year following
the date of purchase. If the equipment is used for commercial purposes, the Purchaser must notify the Seller in
writing of any defect in material or workmanship within ninety (90) days following the date of purchase. In no event
will King Kutter be liable under this warranty unless written notice is received by the Seller within one (1) year from
the date of original retail sale.
2. Warranty of Title.
King Kutter warrants that it transfers a good title to the product free of any encumbrances, and free of the rightful
claim of any third party for infringement of patent or copyright.
3. What is Not Covered by This Limited Warranty.
King Kutter will not be responsible for damage to or failure in the product which results from accident, misuse,
abuse, neglect, installation of attachments not provided by King Kutter, modifications to the product, or damage
caused by use of the product for purposes other than those for which it was designed.
4. No Other Warranties.
Unless modified in writing and signed by both parties, this agreement is understood to be the complete and exclusive agreement and warranty between King Kutter and Purchaser, superseding all prior agreements, oral and written, and all other communication between King Kutter and Purchaser related to the subject matter of this agreement.
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED T O, THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF
FITNESS FOR A PAR TICULAR PURPOSE. No employee of King Kutter nor anyone else is authorized to make any
warranty or representation in addition to or different from those made in this agreement.
5. Allocation of Risk.
This agreement allocates the risk of product failure between King Kutter and the Purchaser. This Allocation is
