PO Box 1200 305 Commerce Drive Winfield, Alabama 35594

XB ROT AR Y TILLER

OPERAT OR MANUAL

Part No 999995 www.kingkutter.com

TO THE PURCHASER

This manual contains valuable information about your new King Kutter XB-Rotary Tiller. It has been carefully prepared to give you helpful suggestions for operating, adjusting, servicing and ordering repair parts.

Keep this manual in a convenient place for quick and easy reference. Study it carefully. You have purchased a dependable and sturdy tiller, but only by proper care and operation can you expect to receive the service and long life designed and built into it.

Sometime in the future your tiller may need new part s to replace those that are worn or broken. If so, go to your dealer and provide him with the model and part number.

Customer Information

Name _______________________________________________ Purchased From ______________________________________ Date Purchased ______________________________________ Model No. ___________________________________________ Serial No. ___________________________________________

It is the purchaser and/or operator ’s responsibility to….

z Read and understand the information contained in

this manual.

z Operate, lubricate, assemble and maintain the equip-

ment in accordance with all instructions and safety procedures in this manual.

z Inspect the equipment and replace or repair any parts

that are damaged or worn which under continued operation would cause damage, wear to other parts, or cause a safety hazard.

z Return the equipment or parts to the authorized King

Kutter dealer, from where it was purchased, for service or replacement of defective parts that are covered by warranty. (The King Kutter Factory may inspect equipment or parts before warranty claims are honored.)

z Payment of all costs incurred by the dealer for travel-

ing to or transporting the equipment for warranty inspection and or claims.

CONTENTS

ITEM PAGE

Safety .........................................................................6

Assembly Instructions................................................8

Before Putting Into Service ........................................8

Safety Training ......................................................... 11

Transportation Safety...............................................15

Attaching To Tractor .................................................16

Sizing PTO...............................................................18

Operating Instructions.............................................. 19

Maintenance.............................................................20

Maintenance Safety .................................................20

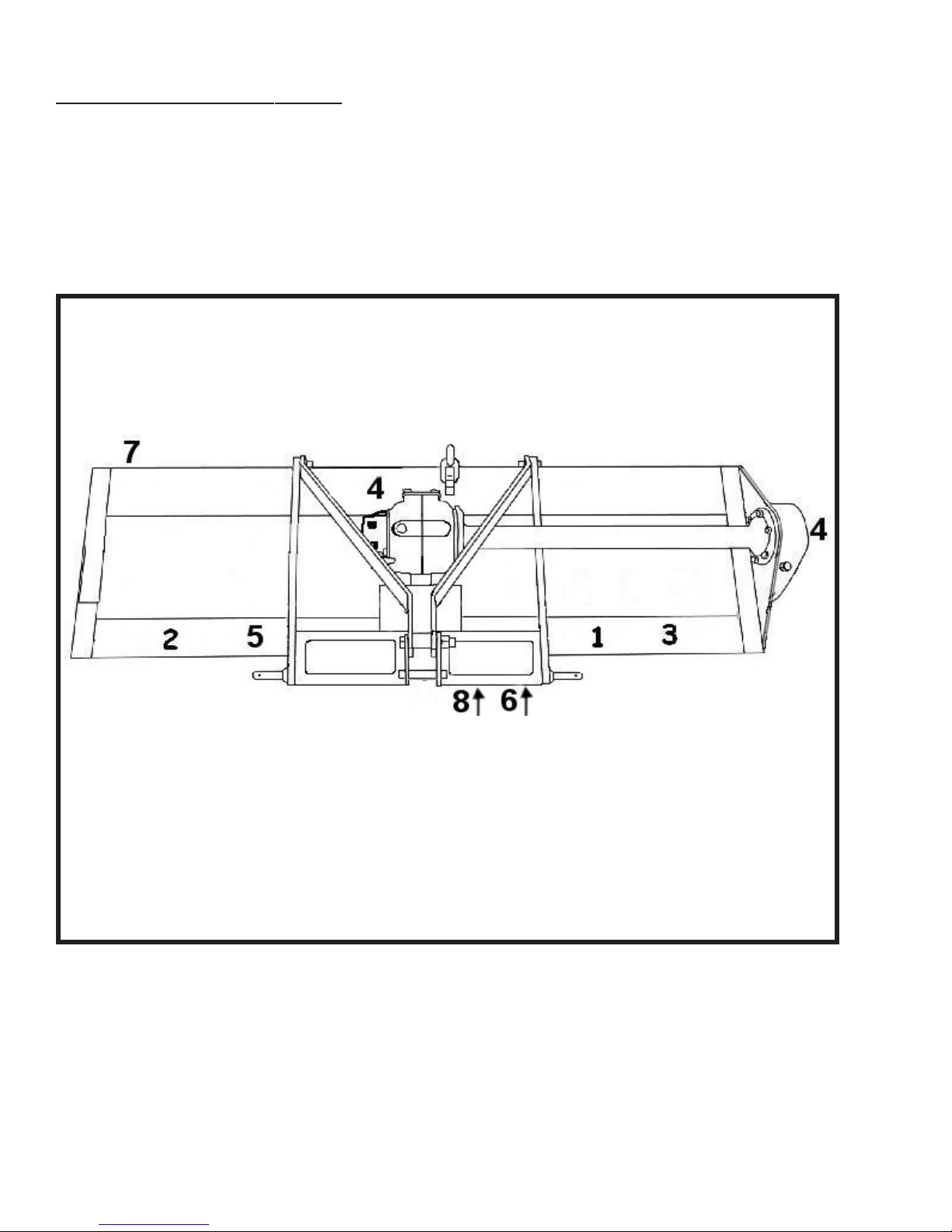

Safety Decal's And Locations...................................22

PTO Shaft Parts.......................................................27

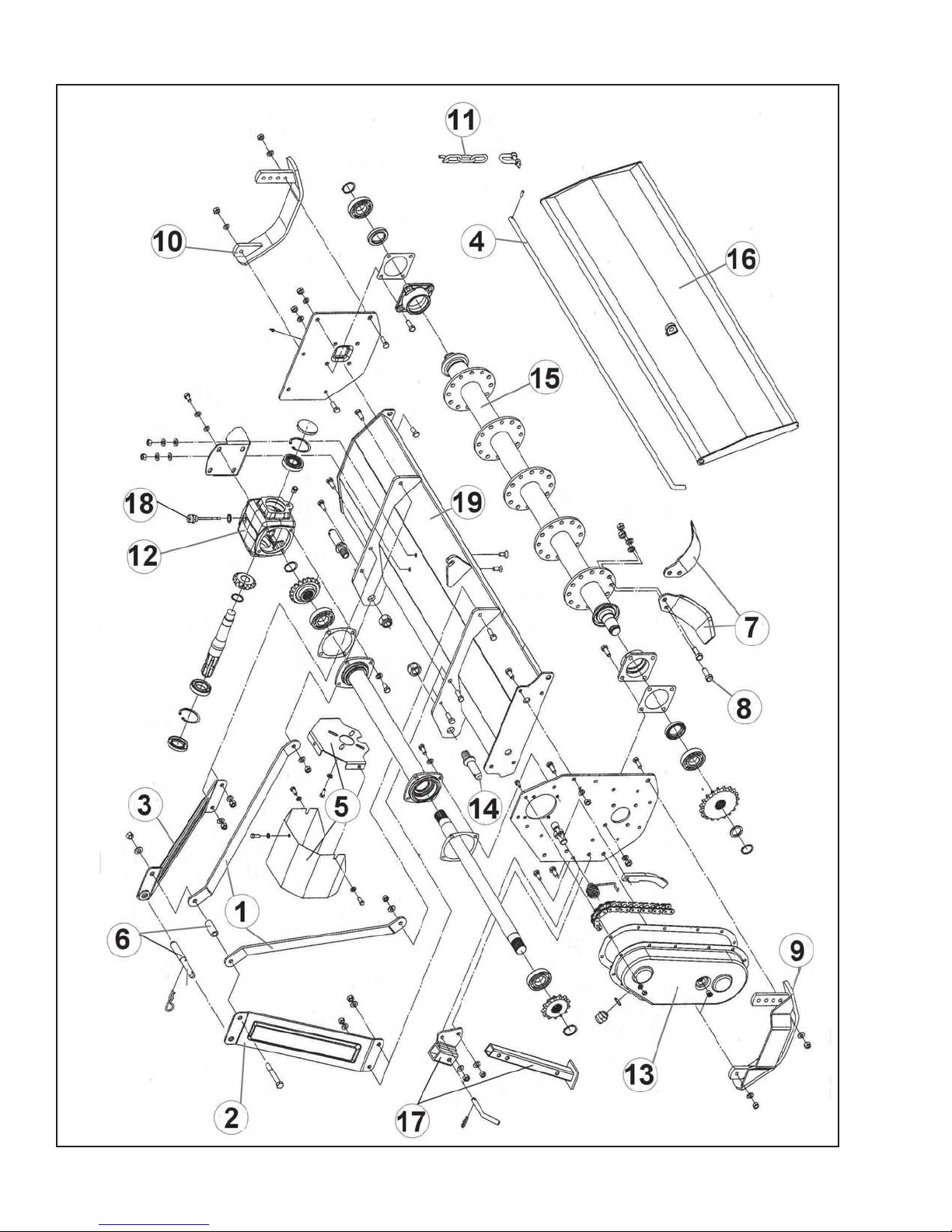

Replacement Parts ...................................................28

Side Gearbox Parts....................................................32

Top Gearbox Parts....................................................34

Warranty...................................................................36

SAFETY

READ AND FOLLOW THE INSTRUCTIONS IN THIS MANUAL AND ESPECIALLY IN THE SAFETY SECTION. FAILURE TO DO SO CAN RESULT IN SERIOUS INJURY OR DEATH.

TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY AND THE SAFETY OF OTHERS.

SIGNAL WORDS:

The signal words DANGER, WARNING and CAUTION are used with

THIS SYMBOL MEANS

ATTENTION!

BECOME ALERT!

YOUR SAFETY IS INVOLVED

the safety messages in this manual and with each safety sign. They are defined as follows:

DANGER: Indicates an immediate hazardous situation that, if not avoided, could result in serious injury or death. This signal word is to be limited to the most extreme situations typically for machine components that, for functional purposes, cannot be guarded.

WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in serious injury or death, and includes hazards that are exposed when guards are removed. It may also be used to alert against unsafe practices.

CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practice.

If you have any questions not answered in this manual or require additional copies or the manual is damaged, please contact your local dealer or King Kutter Inc. P.O. Box 1200 Winfield, AL 35594 (205) 487-3202 or

www.kingkutter.com

EQUIPMENT SAFETY GUIDELINES

z Safety of the operator and bystanders is one of the main concerns in designing and

developing a tiller . However, every year accident s occur which could have been avoided

by a few seconds of thought and a more careful approach to handling equipment. You,

the operator, can avoid many accident s by observing the following precautions and insist

those working with you, or for you, follow them. z In order to provide a better view , certain photographs or illustrations in this manual may

show an assembly with a safety shield removed. However , equipment should never be

operated in this condition. Keep all shields in place. If shield removal becomes neces-

sary for repairs, replace the shield prior to use. z Replace any safety sign that is not readable or missing. Location of such safety signs

are indicated in this manual. z Never use alcoholic beverages or drugs that can hinder alertness or coordination while

operating this equipment. Consult your doctor about operating this machine while taking

prescription medications.

z Under no circumstances should children under the age of 18 be allowed to work

with this equipment. Do not allow persons to operate or assemble this unit until

they have read this manual and have developed a thorough understanding of

the safety precautions and how it works. Review the safety instructions with all users

annually. z This equipment is dangerous to children and persons unfamiliar with its operation. The

operator should be a responsible, properly trained and physically able person familiar

with farm machinery and trained in this equipment’s operations. If the elderly are assist-

ing with farm work, their physical limitations need to be recognized and accommodated.

z Use a tractor equipped with a Roll Over Protective System and seat belts. (ROPS) z Never exceed the limits of a piece of machinery . If its ability to do a job, or to do so safely,

is in question- DON’T TRY IT. z Do not modify the equipment in any way . Unauthorized modification could result in seri-

ous injury or death and may impair the function and life of the equipment. z In addition to the design and the confirmation of this implement, including safety signs

and safety equipment, hazard control and accident prevention are dependent upon the

awareness, concern, prudence, and proper training of personnel involved in the opera-

tion, transport, maintenance, and storage of the machine. Refer also to safety messages

and operation instruction in each of the appropriate sections of the tractor and tiller manuals.

Pay close attention to the safety signs affixed to the tractor and the tiller .

XB-ROT ARY TILLER ASSEMBLY INSTRUCTIONS

STEP 1

With rotary tiller still in crate, lay flat on a level surface. Cut banding straps on the two (2) upright crate posts.

STEP 2

Remove the top & upper side sections of the crate, leaving the rotary tiller resting on the bottom section.

STEP 3

Remove tie wire holding the PTO shaft and set aside PTO.

STEP 4

Attach tiller according to your tractors manual and using the instructions on pages 16 and 17.

STEP 5

Install tail back plate chain.

STEP 6

Install PTO shaft as outlined in the Att aching to Tractor Section, pg 16-19.

Note: The safety chains on the PTO shaft should be attached to the tractor and tiller to prevent the plastic safety shield from rotating.

BEFORE PUTTING ROTARY TILLER INTO SERVICE

(IMPORTANT-INSTRUCTIONS PRIOR TO START UP) SHIPPED WITHOUT OIL IN GEAR BOXES AND WITHOUT GREASE IN GREASE FITTINGS. UNIT MUST BE SERVICED BEFORE USING.

• Fill Gearbox using gear oil (type SAE-EP-80W 90.)

• For all Grease Fittings use TYPE/grade II tube grease.

STEP 1 Place rotary tiller so that the deck is secure and level. STEP 2 Remove Oil Plug (Located at top of transmission gearbox). See Figure A

& B.

STEP 3 Fill gearbox using gear oil until gearbox is approximately 1/2 full (16 oz).

The plug has marks on it. (See FIgure C) Make sure oil level is close to top line, but not over it. DO NOT OVERFILL!

STEP 4 Replace and tighten the oil plug and clean away any excess oil. STEP 5 Remove Oil Plug (Located at top of side gearbox, See (FIG. D point A),

there is a sight glass (Located in the side of the side gearbox) (FIG. D point B & Close-up Figure E) fill oil until oil is to top of glass.(20 oz.)

STEP 6 Replace and tighten the plug. Clean away any excess oil. STEP 7 Grease the grease fitting on the "outboard hub," the two (2) grease fittings on

the PTO universal joints, the two (2) grease fittings on the PTO safety shield and the inner surface portion of the PTO shaft. See Figures F, G and H.

CAUTION:

DO NOT over fill gearbox. This could cause damage to oil seals and can

cause permanent damage to the gearbox. This issue will not be covered under warranty .

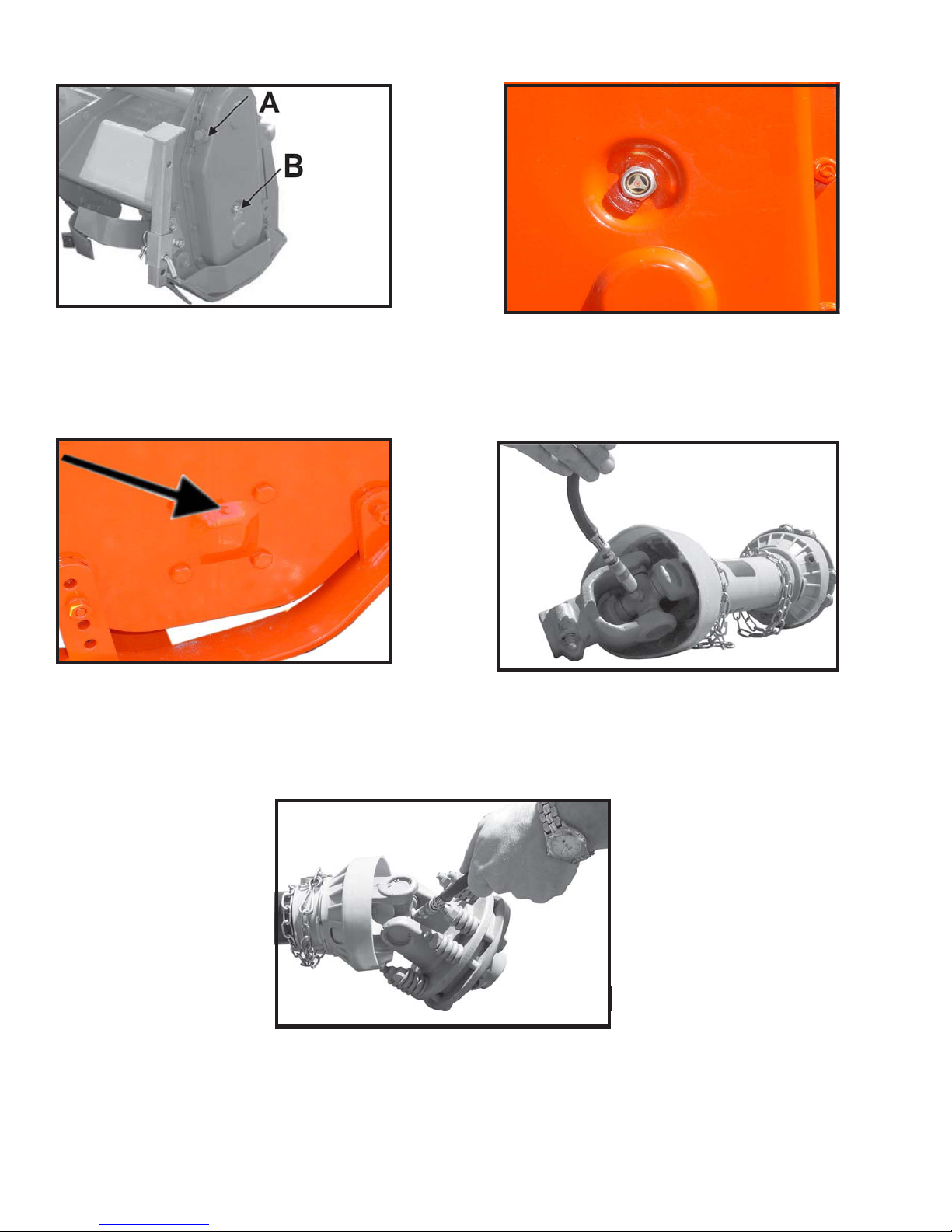

Figure A Figure B

Figure C

Figure D

Figure E

Figure F

Figure G

Figure H

SAFETY TRAINING

z Safety is a primary concern in the design and manufacturing of our prod-

uct. Unfortunately, our efforts to provide safe equipment can be wiped out by a single careless act of an operator or bystander.

z In addition to the design and configuration of equipment, hazard control

and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of this equipment.

z It has been said, “ The best safety device is an informed, careful opera-

tor.” We ask you to be that kind of operator. It is the operator’s responsibility to read and understand all safety and operating instructions in the manual and to follow them. Accidents can be avoided.

z Working with unfamiliar equipment can lead to careless injuries. Read

this manual, and the manual for your tractor, before assembly or operating, to acquaint yourself with the machines. If this machine is used by any person other than you, or is loaned or rented, it is the rotary tiller owner’s responsibility to make certain that the owner's manual be available to the operator prior to operating:

1- Reads and understands the operator’s manuals. 2- Is instructed in safe and proper use.

z Know your controls and how to stop the tractor, engine, and tiller quickly

in an emergency. Read this manual and the one provided with your tractor.

z Train all new personnel and review instructions frequently with existing

workers. Be certain only a properly trained and physically able person will operate the machinery. A person who has not read and understood all operating and safety instructions is not qualified to operate the machine. An untrained operator exposes himself and bystanders to possible serious injury or death. If the elderly are assisting with farm work, their physical limitations need to be recognized and accommodated.

PREPARATION

z Never operate the tractor and tiller until you have read and completely understand this manual,

the Tractor Operator’s Manual, and each of the safety messages found on the safety signs on the tractor and tiller.

z Personal protection equipment including hardhat, safety glasses, safety shoes, and gloves

are recommended during assembly , installation, operation, adjustment, maintenance, repairing, removal, or moving the implement. Do not allow long hair , loose fitting clothing, or jewelry to be around equipment.

z PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING

LOSS! Tractors with or without tillers att ached can often be noisy enough to cause permanent, partial hearing loss. We recommend that you wear hearing protection on a fulltime basis if the noise in the operator’s position exceeds 80 db. Noise over 80 db on a long-term basis can cause severe hearing loss. Noise over 90 db adjacent to the operator over a long-term basis may cause permanent, total hearing loss. NOTE: Hearing loss from loud noise (from tractors, chain saws, radios, and other such sources close to the ear) is cumulative over a lifetime without hope of natural recovery .

z Operate the tiller only with a tractor equipped with an approved Roll-Over-Protective Sys-

tem (ROPS). Always wear your seat belt. Serious injury or even death could result from falling off the tractor — particularly during a turnover when the operator could be pinned under the ROPS or the tractor.

z Clear area to be tilled of stones, branches or other debris that might be thrown or en-

tangled in the tiller , causing injury or damage.

z Operate only in daylight or good artificial light. z Ensure tiller is properly mounted, adjusted and in good operating condition. z Ensure that all safety shielding and safety signs are properly installed and in good condi-

tion.

STARTING AND STOPPING SAFETY

z Check the tractor master shield over the PTO stub shaft. Make sure it is in good condi-

tion and fastened securely to the tractor. Purchase a new shield if old shield is damaged or missing.

z All tractors that are not equipped with a “live” power takeoff (PTO) need to be equipped

with an over-running PTO clutch. These are available through most farm equipment stores. NOTE: The addition of an over-running PTO clutch may change the length of the PTO driveline required. Pay extra attention to the instructions on the PTO Driveline Installation. Be sure that the driveline system guarding is adequate.

z Tiller operating power is supplied from the tractor PTO. Refer to your tractor manual for

PTO engagement and disengagement instructions. Know how to stop tractor and tiller quickly in case of an emergency .

z When engaging PTO, the engine RPM should always be at idle speed. Once engaged

and ready to start tilling, raise PTO speed to 540-RPM and maintain throughout tilling operation.

OPERATIONAL SAFETY

z The use of this equipment is subject to certain hazards that cannot be

protected against by the mechanical means or product design. All operators of this equipment must read and understand this entire manual, paying particular attention to safety and operating instructions, prior to using. If there is something in this manual you do not understand, ask your supervisor, or your dealer, to explain it to you.

z Most accidents occur because of neglect or carelessness. Keep all help-

ers and bystanders at least several hundred feet from an operating rotary tiller. Only properly trained people should operate this machine.

z When machine is operated in populated areas where thrown objects could

injure persons or property, operation must be stopped when anyone

comes within several hundred feet.

z The majority of the accidents involve entanglement on the driveline, injury

of bystanders by the objects thrown by the rotating tines, and operators being knocked off the tractor by low hanging limbs and then being run over by the tiller. Accidents are most likely to occur with machines that are loaned or rented to someone who has not read the owner’s manual and is not familiar with a rotary tiller.

z The rotary tiller is designed for use only on tractors with the power take-

off (PTO) turning at 540-RPM.

z Install and secure all guards and shields before starting or operating.

The tiller tines, driveline guards and tractor, shields should be used and maintained in good working condition. They should be inspected carefully, at least daily, for missing or broken chain links, shields, or guards. (Worn items must be replaced at once to reduce possibility of injury.)

z Disengage power takeoff (PTO) and place transmission in neutral before

attempting to start engine.

z Many varied objects, such as wire, cable, rope, or chains, can become

entangled in the operating parts of the tiller. These items could then swing outside the housing at greater velocities than the tines. Such a situation is extremely hazardous. Inspect the cutting area for such objects before tilling. Remove any like objects from the site.

OPERATIONAL SAFETY continued...

z Never allow the tilling tines to contact such items. Never assume an area

is clear. Always Check!

z Always stop the tractor, disengage PTO, set brake, shut off the tractor

engine, remove the ignition key, lower implement to the ground and allow rotating pieces to come to a complete stop before dismounting tractor. Never leave equipment unattended with the tractor running.

z Never place hands or feet under tiller with tractor engine running or be-

fore you are sure all motion has stopped. Stay clear of all moving parts.

z Do not reach or place any part of your body under equipment until it is

blocked securely.

z Do not allow riders on the rotary tiller or tractor at anytime. There is no

safe place for any riders.

z Do not operate unless all personnel, livestock, and pets are several hun-

dred feet away to prevent injury by thrown objects.

z Never operate tractor and rotary tiller under trees with low hanging limbs.

Operators can be knocked off the tractor and then run over by the rotating tines.

z The rotating parts of this machine have been designed and tested for

rugged use. However, they could fail upon impact with heavy, solid objects such as steel guardrails and concrete abutment. Such impact could cause the broken objects to be thrown outward at very high velocities. To reduce the possibility of property damage, serious injury, or even death, never allow the tilling tines to contact such obstacles.

z S top rotary tiller and tractor immediately upon striking an obstruction. T urn

engine off, remove key, inspect and repair any damage before resuming operation.

z Stay alert for uneven terrain, holes, rocks, and roots and other hidden

hazards. Keep away from drop-offs and hazards that could cause roll over. Use extreme care and maintain minimum ground speed when transporting or operating on hillsides, over rough ground and when operating close to ditches or fences. Be careful and slow down when turning sharp corners and changing direction on slopes. Do not start or stop suddenly on slopes. Avoid operation on steep slopes. In extremely uneven terrain, rear wheels weights, front tractor weight, and/or tire ballast should be used to improve stability.

OPERATIONAL SAFETY continued...

z Pass rotary tiller diagonally through sharp dips and avoid sharp drops to

prevent “hanging up” tractor and rotary tiller. Practice will improve your skills in maneuvering on rough terrain. Always cut down slopes, never across the face. Always check tractor manual for proper use on slopes.

z When using a unit, a minimum 20% of tractor and equipment weight must

be on tractor front wheels. Without this weight, tractor could tip over, causing personal injury or death. The weight may be attained with a frontend loader , front wheel weight s, ballast in the tires or front tractor weights. When attaining a minimum 20% of tractor and equipment weight on the front wheels, you must not exceed the ROPS weight certification. Weigh the tractor and equipment. Do not guess or estimate!

TRANSPORT SAFETY

z Comply with state and local laws governing highway safety and move-

ment of farm machinery on public roads.

z The use of flashing amber lights is acceptable in most localities. How-

ever, some localities prohibit their use. Local laws should be checked for all lighting and marking requirements.

z At all times, when driving the tractor and equipment on the road or high-

way under 20 m.p.h. (32kph) use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem. Do not exceed 20 m.p.h. (32 kph). Reduce speed on rough roads and surfaces.

z Plan your route to avoid heavy traffic. z Always install transport locks, pins or brackets before transporting. z Do not drink and drive. z Be a safe and courteous driver. Always yield to oncoming traffic in all

situations, including narrow bridges, intersections, etc. Watch for traffic when operating near or crossing roadways.

z Turn curves or go up or down hills only at a low speed and at a gradual

steering angle. Make certain that a least 20% of the tractor’s weight is on the front wheels to maintain safe steerage. Slow down on rough or uneven surface. Always check tractor manual for proper use on slopes.

z Use extreme care and maintain minimum ground and when operating close

to ditches or fences. Be careful when turning sharp corners.

z Never allow riders on either tractor or tiller.

ATTACHING TO TRACTOR

STEP 1

Attach to tractor's category 1 three point hitch as described in the Tractor's Operator’s Manual.

W ARNING

Never stand between

tractor and rotary tiller

while backing up tractor

to the hitch.

STEP 2

Determine if the PTO shaft needs to be shortened.

NOTE:

Due to the many variations in the tractor hitch points and distances between equipment gearbox input shaft and tractor PTO out put shafts, some combinations may require PTO shafts to be shortened as described by the following steps.

STEP 3

Raise and lower rotary tiller in order to locate the shortest distance between equipment gearbox input shaft and tractor PTO output shaft. With the rotary tiller in the shortest distance position shut down the tractor and SECURELY BLOCK ROTARY TILLER IN POSITION.

WARNING: IF TILLER IS RAISED UP SO THAT PTO SHAFT IS AT AN ANGLE SHARPER THAN 35 DEGREES PTO MUST BE STOPPED!

ATTACHING TO TRACTOR continued....

STEP 4

Pull apart PTO shaft and attach outer section to tractor PTO output shaft. NOTE: Be sure to pull on PTO shaft section to ensure yoke has locked into place.

STEP 5

Place and hold inner PTO shaft section next to outer section and check if PTO shaft is too long. Each section should end approximately 1- inch short of reaching u-joint shield on the too long measure 1 inch back from each u-joint shield and mark the other shaft section. (Measure 1 inch from arrow on FIG. C on page 18). Be sure to do this for both PTO shaft halves. NOTE: Do not cut PTO shaft sections at this time.

STEP 6

Raise rotary tiller and remove blocking. Raise and lower rotary tiller in order to locate the longest distance between equipment input shaft and the tractor PTO output shaft. With the rotary tiller in the longest distance position shut down the tractor and SECURELY BLOCK THE ROTARY TILLER IN POSITION.

STEP 7

As in step 5 hold PTO shaft sections together and check for a minimum of 6 inches of overlap. If PTO shaft has been marked for cutting the overlap is the distance measured between the two marks. If the PTO shaft has less than a 6 inch overlap, DO NOT USE. Contact your authorized King Kutter Dealer.

NOTE

If the PTO shaft length is too long go to SIZING PTO SHAFT (pg. 18)

STEP 8

Apply any multipurpose grease to the outside of the male (inner) PTO shaft section. Assemble PTO shaft and install on rotary tiller and tractor.

STEP 9

Pull on tractor side of PTO shaft yoke to be sure it has locked in place. Make certain PTO shaft shielding is in place and good working condition.

STEP 10

The PTO shaft shield is a non-rotating design and must be secured prior to equipment use. Using the chain on each yoke shield attach to a fixed object on the tractor and equipment ends that will not allow the PTO shaft shield to rotate during operation.

opposite section. If the shaft is

SIZING PTO SHAFT

STEP 1

Cutting the PTO shaft to length. NOTE: Be sure to cut equal lengths of each PTO shaft section. Clamp end of PTO shaft in a vice and cut off shield where marked. (Figure 1-A & 1-B)

Figure 1-A

STEP 2

Using cut section of the shield as a guide cut shaft off the same amount. (Figure 2)

STEP 3

Repeat steps 1 and 2 for other PTO shaft section.

STEP 4

Use a file to deburr PTO shafts. Clean up all chips, burrs and filings from both ends of the PTO shaft.

Figure 1-B

Figure 2

OPERATING INSTRUCTIONS

WARNING: IF TILLER IS RAISED UP SO THAT PTO SHAFT IS AT AN ANGLE SHARPER THAN 35 DEGREES PTO MUST BE STOPPED!

STEP 1

Before each use perform the maintenance described in maintenance section (page 20).

STEP 2

Read, understand, and follow the information on safety training, preparation, starting and stopping safety, operational safety, transport safety warning sections of this manual (pages 12 thru 15).

STEP 3

With the rotary tiller positioned on level ground, adjust the tractor lift arms so that when lifted, the rotor bar remains parallel to the ground.

STEP 4

With the rotary tiller attached to the tractor, raise and support the tiller with suitable blocks. Adjust the skids, located on the sides of the tiller. The adjustment bolts for both right and left sides should be positioned in the same adjustment hole. This allows the tiller to till the same depth on each side. Adjust

the back plate, with regulating chain, until the desired mulching effect is found.

Note: Never attempt to adjust the rotary tiller while the tractor is running.

STEP 5

Raise the tiller and remove the blocks. Lower the tiller to the ground.

STEP 6

With the tractor at idle RPM and the tiller lifted off of the ground, engage PTO and slowly advance throttle to 540 PTO RPM. NOTE: Rotary tiller is designed to run at 540 PTO RPM only.

STEP 7

Select a low gear for the tractor and begin to move forward. Tractor ground speed is to be controlled by gear selection only and not engine speed. As the tractor moves forward, slowly lower the tiller down. Allow the tiller tines to gradually engage the ground.

NOTE: Do not allow the tractor engine or rotary tiller to bog down or stall. This causes undue wear and tear on the tiller and tractor. If this continues to happen reduce ground speed and raise tilling depth of rotary tiller. Never attempt to remove objects from the rotor bar until the tractor has been shut down and the tiller tines have completely stopped.

W ARNING

Never travel at a fast ground speed while using the tiller, this could damage it. Never attempt to turn the tractor or travel in reverse with the PTO engaged and the tiller in the ground. Always raise the tiller out of the ground when backing up or attempting to turn. Failure to due so may cause damage to the tiller. STEP 8

After each use clean all debris from the tiller tines. Replace any missing or illegible safety decals. Inspect for any damaged or worn parts and replace before next use. Store rotary tiller in a dry environment.

MAINTENANCE

1). Periodically check and maintain proper gear oil level.

2). Every 8 hours, (1) grease "outboard hub", (2) PTO shaft universal joints, (3) PTO

shaft safety shield and (4) PTO telescoping surface.

NOTE: Use only a grade Type II tube grease.

NOTE: Do not grease the slip clutch assembly.

3). Before each use check to make sure all safety shields are installed and working

properly .

4). Check tiller tines for cracks and breaks before every use.

5). Periodically check all nuts and bolts to insure they are tight and secure.

6). Periodically loosen torque spring bolts and allow slip clutch to slip for approximately

two (2) revolutions. Loosen the bolts until the springs lose contact with the flange yoke. This ensures that the slip clutch is not in a "locked" position.

7). Make sure that the clutch slips.

8). To retighten the slip clutch, tighten the torque spring bolts until the nut makes contact

with the flange yoke and further tighten one and a half turns (1-1/2). This is a good starting point , further adjustments may need to be made based on soil conditions.

NOTE: Do not over or under tighten slip clutch assembly or damage may occur.

MAINTENANCE SAFETY

z Good maintenance is your responsibility . Poor maintenance is an invitation to trouble.

z Follow good shop practices. z Keep service area clean and dry

z Be sure electrical outlets and tools are properly grounded z Use adequate light for the job at hand.

z Make sure there is plenty ventilation. Never operate the engine of the towing

vehicle in a closed building. The exhaust fumes may cause asphyxiation.

z Before working on this machine, disengage the PTO, shut off the engine,

set the brakes, and remove the ignition keys.

z Be certain all moving parts on attachments have come to a complete

stop before attempting to perform maintenance.

z Never work under equipment unless it is blocked securely. z Always use personal protection devices such as eye, hand and hearing

protectors, when performing any service or maintenance.

z Frequently check tiller tines. They should be sharp, free of nicks and

cracks and securely fastened.

z Periodically tighten all bolts, nuts, and screws and check that all cotter

pins are properly installed to ensure unit is in safe condition.

z When completing a maintenance or service function, make sure all safety

shields and devices are installed before placing unit in service.

z After servicing, be sure all tools, parts and service equipment are re-

moved from tiller.

z Do not allow debris, grease or oil to build up on any deck or platform. z Where replacement parts are necessary for periodic maintenance and

servicing, genuine factory replacement parts must be used to restore your equipment to original specifications.

z The manufacturer will not be responsible for injuries or damages caused

by use of unapproved parts and/or accessories.

z A fire extinguisher and the first aid kit should be kept readily accessible

while performing maintenance on this equipment.

STORAGE SAFETY

z Following operation, or when unhooking the tiller, stop the tractor, set the

brakes, disengage the PTO, shut off the engine and remove the ignition keys.

z S tore the unit in an area away from human activity. z Do not park equipment where it can be exposed to direct contact to live-

stock for long periods of time. Damage and livestock injury could result.

z Make sure all parked machines are on a hard, level surface and engage

all safety devices.

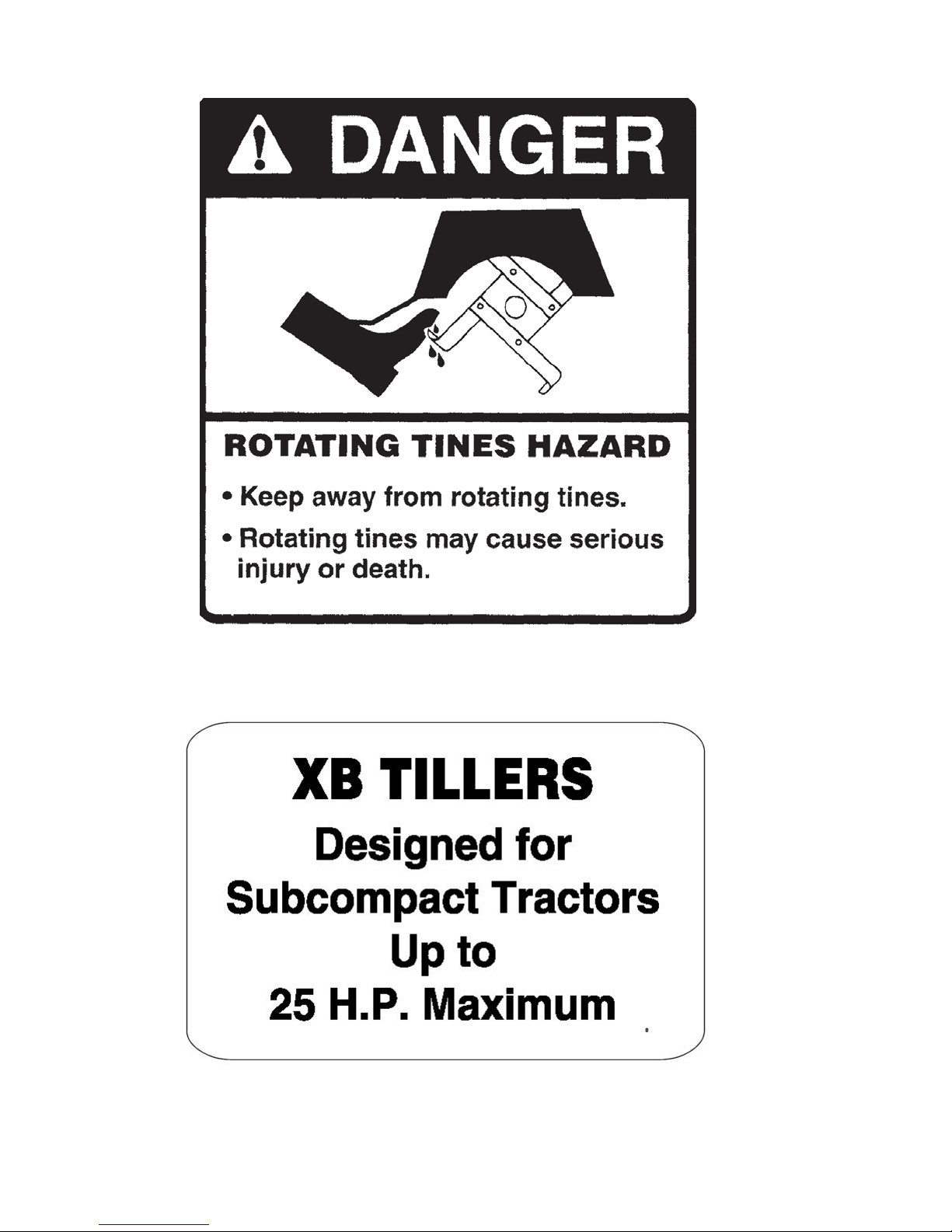

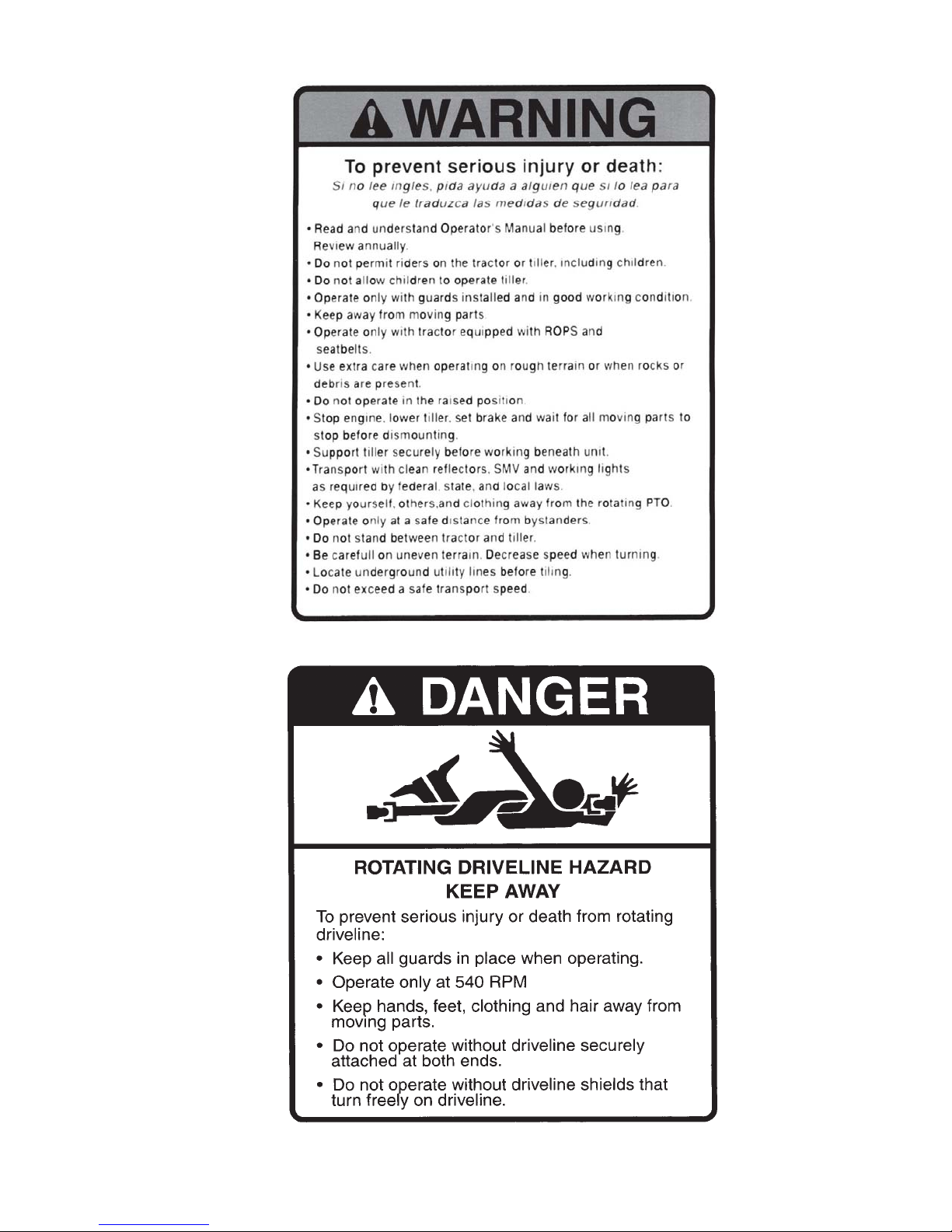

SAFETY SIGN LOCATIONS

The types of safety signs and locations on the equipment are shown in the illustration below. Good safety requires that you familiarize yourself with the various safety signs, the type of warning and the area, or particular function related to that area, that requires your SAFETY AWARENESS.

Note: The numbers represent the safety decals on the following pages. REMEMBER: If safety signs have been damaged, removed, become illeg-

ible or parts have been replaced without signs, new safety signs must be applied. New safety signs are available from your authorized dealer, distributor or factory.

Top V iew

22" PTO 147122

Ref.

No.

1 Safety Shield 2 3 4 5 6 7 8

9 10 11 Flanged Y oke 12 13 14 15 16 17

Female Tube End Y oke

Part Name

Roll Pin

Male Tube End Y oke

Tractor End Yoke

Inner Tube 14 Series

Outter Tube 14 Series

Cross Kit #4

Quick Disconnect Pin

T orque S pring

Bushing

Friction Hub

10 x 70 Bolt

Pressure Plate (outer)

Slip Clutch Bolt

Friction Disc

147122

124311 170120 151045 151050 151035 151090 151091 170015 170110 140218 140226 140221 140220 140224 140216

140023 140219

TC-48-XB-TILLER: EXPLODED VIEW

TC-48-XB-TILLER: PARTS LIST

Ref.

No.

1 Lift Arm Brace 904010 2 3 4 T ail Rod Assembly 5 Cover Assembly Kit 6 7 Tine Pkg. (1 right & 1 left) w/ bolts 504204 7

7 4' Complete Tine Pkg. (30pcs.)

8 8

9 10 11

Tine Pkg. (3 right & 3 left) w/bolt s

Tine Bolt Pkg. (12 pcs.)

Tine Bolt Pkg. (60 pcs.)

Part Name

Lift Arm (left hand)

Lift Arm (right hand)

Lift Arm Spacer Kit

Skid Left

Skid Right

Chain & Shackle Kit

Part Number

TC-48-XB

904002 904005 504200 504201 504202

504205

504206

504207 504208

904056 904051

504203 12 13 14 15 16 17

18 19 Frame

T op Gearbox Part s

Side Gearbox Parts

Lift Pins CA T.#1(2pk)

Rotor

Back Plate

Support Stand Assembly

Oil Plug/Gage

See Page 34 See Page 32

500001

904065

904070

504209

904021 904047

NOTES:

TC-48-XB SIDE GEARBOX PARTS

TC-48-XB SIDE GEARBOX PARTS LIST

Ref. Part Name Part Number

No.

1 2 3 4 Chain Adjust Spring 5 6 Chain ASA 60HE 46 MG 7 8

9 10 11 12 13 14 15 16

Bolt M-8-20 (pk. of 13)

Driving Gear Z 13

Retaining Ring 35mm

Chain Adjuster

Driven Gear Z19

Shim

Retaining Ring 30mm

Cover

Oil Plug M22X1.5

Oil Plug M14

Bearing 6207

Gasket

Oil Seal 40 x 62 x 10 PP

Bearing Housing

Gasket

504210 904034 904029 904044 904054 904043 904058 904057 904019 904040 901015 904039 155010 904031 904059 904061 904060

Chain Drive Cover Gasket

904055

TC-48-XB SERIES TOP GEARBOX PARTS

Ref.

No.

TC-48-XB SERIES TOP GEARBOX PARTS LIST

Part Name

Part Number

1 Bearing Pkg.(1ea.- Seal,Bearing 6007,Retain Ring 62mm)

9 10 11 12 13 14 15 16 17

Bearing Pkg. (1 ea. Bearing 30305, Retaining Ring, Cap)

Plug M14 x 1.5

Bevel Gear Z19

External Retaining Ring 35mm (Pkg 2)

Output Shaft Support 600mm

Output Shaft 600 mm

Driving Gear Z13

Input Shaft

Retaining Ring 30mm

Oil Plug/ Gage

Housing

Bevel Gear Z13

Bearing 6207 2RS

Bolt M10 x 25 (Pkg. 8)

Gasket (Pkg. 2)

Bearing (6207)

504211

904018 904019 904021

904023

504212

901017

904020

904030

902323 504215 504214

904032 504213

904033 155010

904034

1. Limited Warranty .

King Kutter, Inc. (“King Kutter”), P.O. Box 1200, Winfield, Alabama 35594, warrants to the original retail purchaser (“Purchaser”) that the product that is the subject of this sale is free from defects in material and workmanship at the time of sale.

Under this warranty , King Kutter will repair the defective product free of charge to the Purchaser , with either new or used and reconditioned replacement parts. All warranty service will be performed at service centers designated by King Kutter. If King Kutter is unable to repair the product to conform to the warranty af ter a reasonable number of attempts, King Kutter will provide, at its option, one of the following: (a) a replacement for the product or, (b) a full refund of the purchase price. Repair, replacement, or refunds are the Purchaser’s EXCLUSIVE remedies against King Kutter under this limited warranty. King Kutter will not be liable for any special, incidental or consequential damages based upon breach or warranty, breach of contract, negligence, strict tort liability , or any other legal theory . Such damages include, but are not limited to, loss of profits, loss of savings or revenue, loss of use of the product or any associated equipment, cost of capital, cost of any substitute equipment, facilities or services, down time, the claims of third parties including customers, and injury to property. These limitations also apply, to the extent allowed by law, to personal injury .

The purchaser must notify the Seller in writing of any defect in material or workmanship within one (1) year following the date of purchase. If the equipment is used for commercial purposes, the Purchaser must notify the Seller in writing of any defect in material or workmanship within ninety (90) days following the date of purchase. In no event will King Kutter be liable under this warranty unless written notice is received by the Seller within one (1) year from the date of original retail sale.

2. Warranty of Title.

King Kutter warrants that it transfers a good title to the product free of any encumbrances, and free of the rightful claim of any third party for infringement of patent or copyright.

3. What is Not Covered by This Limited Warranty.

King Kutter will not be responsible for damage to or failure in the product which results from accident, misuse, abuse, neglect, installation of attachments not provided by King Kutter, modifications to the product, or damage caused by use of the product for purposes other than those for which it was designed.

4. No Other Warranties.

Unless modified in writing and signed by both parties, this agreement is understood to be the complete and exclusive agreement and warranty between King Kutter and Purchaser, superseding all prior agreement s, oral and written, and all other communication between King Kutter and Purchaser related to the subject matter of this agreement. THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A P ARTICULAR PURPOSE. No employee of King Kutter nor anyone else is authorized to make any warranty or representation in addition to or different from those made in this agreement.

5. Allocation of Risk.

This agreement allocates the risk of product failure between King Kutter and the Purchaser. This Allocation is recognized by both parties as reflected in the price of the goods. The Purchaser acknowledges that he or she has read this agreement, understands it, and is bound by its terms.

King Kutter 999995 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
