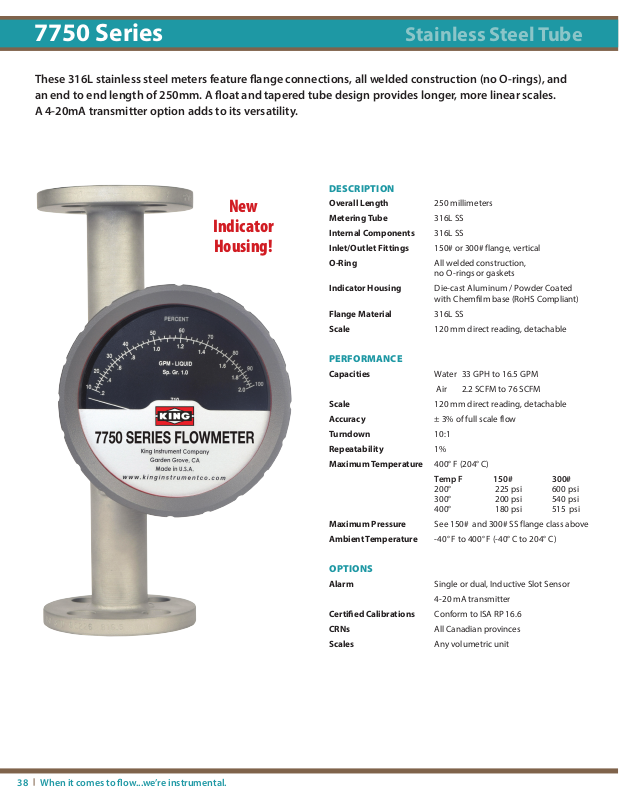

King Instrument 7750 Specifications
7750 Series
Stainless Steel Tube
These 316L stainless steel meters feature ange connections, all welded construction (no O-rings), and
an end to end length of 250mm. A oat and tapered tube design provides longer, more linear scales.
A 4-20mA transmitter option adds to its versatility.
DESCRIPTION
New
Indicator
Housing!
Overall Length 250 millimeters
Metering Tube 316L SS
Internal Components 316L SS
Inlet/Outlet Fittings 150# or 300# flange, vertical
O-Ring All welded construction,
no O-rings or gaskets
Indicator Housing Die-cast Aluminum / Powder Coated
with Chemlm base (RoHS Compliant)
Flange Material 316L SS
Scale 120 mm direct reading, detachable
PERFORMANCE
Capacities Water 33 GPH to 16.5 GPM
Air 2.2 SCFM to 76 SCFM
Scale 120 mm direct reading, detachable
Accuracy ± 3% of full scale flow
Turndown 10:1
Repeatability 1%
Maximum Temperature 400° F (204° C)
Temp F
Maximum Pressure See 150# and 300# SS flange class above
Ambient Temperature -40° F to 400° F (-40° C to 204° C)
OPTIONS
Alarm Single or dual, Inductive Slot Sensor
Certied Calibrations Conform to ISA RP 16.6
CRNs All Canadian provinces
Scales Any volumetric unit
200°
300°
400°
4-20 mA transmitter
150#
225 psi
200 psi
180 psi
300#
600 psi
540 psi
515 psi
When it comes to ow...we’re instrumental.38
7750 Series Specifications
Stainless Steel Tube
Order
Number
706 33.0 GPH 1/2" 4.87 4.80 3.27 9.84 3.67 3.50 3.75
708 1.1 GPM 1/2" 4.87 4.80 3.27 9.84 3.67 3.50 3.75
710 2.0 GPM 1/2" 4.87 4.80 3.27 9.84 3.67 3.50 3.75
712 4.0 GPM 1/2" 4.87 4.80 3.27 9.84 3.67 3.50 3.75
716 5.0 GPM 1" 4.87 4.80 3.56 9.84 3.92 4.25 4.88
718 10.0 GPM 1" 4.87 4.80 3.56 9.84 3.92 4.25 4.88
720 16.5 GPM 1" 4.87 4.80 3.56 9.84 3.92 4.25 4.88
Order
Number
705 2.2 SCFM 1/2" 4.87 4.80 3.27 9.84 3.67 3.50 3.75
707 4 SCFM 1/2" 4.87 4.80 3.27 9.84 3.67 3.50 3.75
709 8 SCFM 1/2" 4.87 4.80 3.27 9.84 3.67 3.50 3.75
711 16.5 SCFM 1/2" 4.87 4.80 3.27 9.84 3.67 3.50 3.75
715 20 SCFM 1" 4.87 4.80 3.56 9.84 3.92 4.25 4.88
717 42 SCFM 1" 4.87 4.80 3.56 9.84 3.92 4.25 4.88
719 76 SCFM 1" 4.87 4.80 3.56 9.84 3.92 4.25 4.88
Full Scale
Flow
GPM-Water
Full Scale
Flow
SCFM - Air
Meter Dimension (Inches) 150 # Flange 300 # Flange
A B C D E F F
Meter Dimension (Inches) 150 # Flange 300 # Flange
A B C D E F F
DIMENSION DIAGRAM
ORDERING:
Use the following guide to determine the specific product number you require.
7 7 5
Meter Series Connection Type Float Material O-ring Material Optional Alarm/Transmitter Order Number
150# R.F. Flanged - 2 316L SS - 2 No O-ring - 0 None - 0 See Specifications
300# R.F. Flanged - 3 With Transmitter - T table
One Alarm (Inductive Slot Sensor) - A
Two Alarms (Inductive Slot Sensors) - D
(714) 891-0008 • www.kinginstrumentco.comWhen it comes to ow...we’re instrumental.
