King Instrument 7480 Specifications

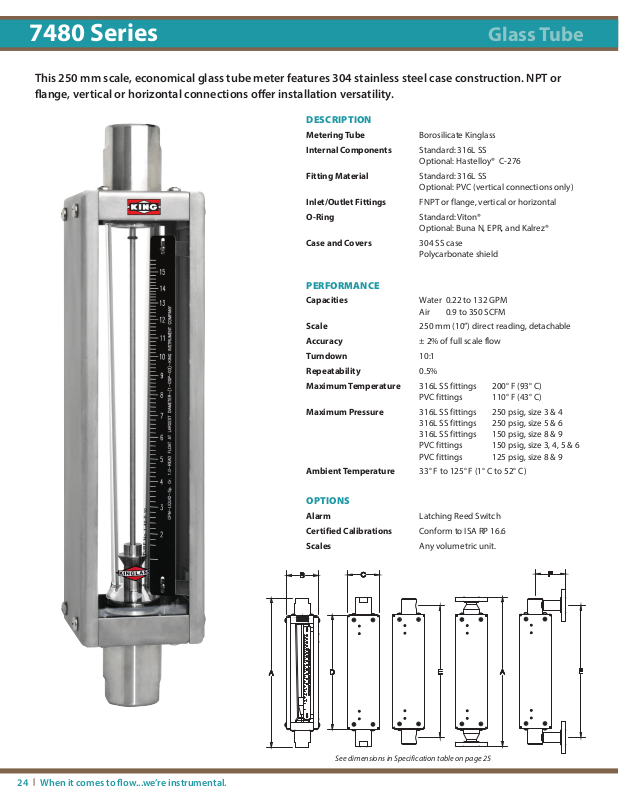

7480 Series

Glass Tube

This 250 mm scale, economical glass tube meter features 304 stainless steel case construction. NPT or
ange, vertical or horizontal connections oer installation versatility.

DESCRIPTION

Metering Tube Borosilicate Kinglass

Internal Components Standard: 316L SS

Optional: Hastelloy® C-276

Fitting Material Standard: 316L SS

Optional: PVC (vertical connections only)

Inlet/Outlet Fittings FNPT or flange, vertical or horizontal

O-Ring Standard: Viton®

Optional: Buna N, EPR, and Kalrez®

Case and Covers 304 SS case

Polycarbonate shield

PERFORMANCE

Capacities Water 0.22 to 132 GPM

Air 0.9 to 350 SCFM

Scale 250 mm (10”) direct reading, detachable

Accuracy ± 2% of full scale flow

Turndown 10:1

Repeatability 0.5%

Maximum Temperature 316L SS fittings 200° F (93° C)

PVC fittings 110° F (43° C)

Maximum Pressure 316L SS fittings 250 psig, size 3 & 4

316L SS fittings 250 psig, size 5 & 6
316L SS fittings 150 psig, size 8 & 9
PVC fittings 150 psig, size 3, 4, 5 & 6
PVC fittings 125 psig, size 8 & 9

Ambient Temperature 33° F to 125° F (1° C to 52° C)

OPTIONS

Alarm Latching Reed Switch

Certified Calibrations Conform to ISA RP 16.6

Scales Any volumetric unit.

See dimensions in Specification table on page 25

When it comes to ow...we’re instrumental.24

7480 Series Specifications

Glass Tube

Full Scale

Order

No.

31W .22 No 31A .9 No 3/8-LPG-01 LP — 3G - 3/8-20-G-10 19.69 4.22 4.22 15.00 17.42 3.56 3/4” 1/2”
32W .315 No 32A 1.4 No 3/8-SLG-01 SL 2 3G - 3/8-20-G-10 19.69 4.22 4.22 15.00 17.42 3.56 3/4” 1/2”

33W .64 No 33A 2.7 No 3/8-SLG-02 SL 7 3G - 3/8-20-G-10 19.69 4.22 4.22 15.00 17.42 3.56 3/4” 1/2”

41W .77 No 41A 3.4 No 1/2-LPG-01 LP 6 4G - 1/2-32-G-10 19.69 4.22 4.22 15.00 17.42 3.56 3/4” 1/2”
42W 1.02 No 42A 4.4 No 1/2-LPG-02 LP 10 4G - 1/2-32-G-10 19.69 4.22 4.22 15.00 17.42 3.56 3/4” 1/2”
43W 1.20 Ye s 43A 5.0 Yes 1/2-GVG-01 GV 10 4G - 1/2-32-G-10 19.69 4.22 4.22 15.00 17.42 3.56 3/4” 1/2”
44W 1.44 No 44A 6.1 No 1/2-GSG-01 GS 15 4G - 1/2-32-G-10 19.69 4.22 4.22 15.00 17.42 3.56 3/4” 1/2”
45W 1.92 Ye s 45A 8.5 Yes 1/2-SLG-01 SL 28 4G - 1/2-32-G-10 19.69 4.22 4.22 15.00 17.42 3.56 3/4” 1/2”
46W 2.26 Ye s 46A 10.2 Yes 1/2-SLG-02 SL 41 4G - 1/2-32-G-10 19.69 4.22 4.22 15.00 17.42 3.56 3/4” 1/2”
51W 1.1 No 51A 4.5 No 3/4-LPG-01 SL 1 5G - 3/4-28-G-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
52W 2.4 Yes 52A 10.0 Yes 3/4-GVG-01 SL 4 5G - 3/4-28-G-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
53W 3.0 Yes 53A 12.0 Yes 3/4-GSG-01 SL 5 5G - 3/4-28-G-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
54W 3.3 Yes 54A 13.2 Yes 3/4-GVG-02 SL 6 5G - 3/4-28-G-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
55W 4.0 Yes 55A 16.4 Yes 3/4-GSG-02 SL 6 5G - 3/4-28-G-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
56W 5.2 Yes 56A 22.0 Yes 3/4-SLG-01 SL 18 5G - 3/4-28-G-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
61W 6.9 Yes — — — 1-LPG-02 LP 4 6G - 1-32-G-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
62W 9.8 No — — — 1-SLG-01 SL 8 6G - 1-32-G-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
63W 12.6 Ye s — — — 1-SLG-02 SL 13 6G - 1-32-G-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
64W 6.7 No 64A 27.0 No 1-LPP-01 LP 4 6P - 1-40-P-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
65W 7.4 No 65A 30.0 No 1-GVP-01 GV 6 6P - 1-40-P-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
66W
67W 10.4 No 67A 42.5 No 1-GSP-01 GS 10 6P - 1-40-P-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
68W 11.6 No 68A 46.5 No 1-GVP-03 GV 15 6P - 1-40-P-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”

69W 12.0 No 69A 50.0 No 1-GSP-02 GS 14 6P - 1-40-P-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
610W 15.6 No 610A 63.0 No 1-GSP-03 GS 24 6P - 1-40-P-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
611W 21.6 Yes 611A 100.0 Yes 1-SLP-01 SL 61 6P - 1-40-P-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
612W 27.5 Yes — — — 1-SLP-02 SL 85 6P - 1-40-P-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”
613W 34.5 Yes — — — 1-SLP-03 SL 110 6P - 1-40-P-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”

84W 17.0 No 84A 70.0 No 11/2-GVP-01 LP 2 8P - 11/2-32-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

85W 21.2 No 85A 87.0 No 11/2-GVP-02 LP 4 8P - 11/2-32-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

86W 22.2 No — — — 11/2-GSP-01 LP 6 8P - 11/2-32-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

87W 24.8 No 87A 102.0 No 11/2-GVP-03 GV 10 8P - 11/2-32-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

88W 28.5 No — — — 11/2-GSP-02 GV 20 8P - 11/2-32-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

89W 35.0 No — — — 11/2-GSP-03 GS 24 8P - 11/2-32-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

94W 41.5 No 94A 170.0 No 2-GVP-01 GV 2 9P - 2-30-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

95W 58.0 No 95A 240.0 No 2-GSP-01 GS 6 9P - 2-30-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

96W 65.0 No 96A 270.0 No 2-GSP-02 GS 10 9P - 2-30-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

97W 85.0 No 97A 350.0 No 2-SLP-00 SL 40 9P - 2-30-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

98W 100.0 No — — — 2-SLP-01 SL 50 9P - 2-30-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

99W 132.0 No — — — 2-SLP-02 SL 60 9P - 2-30-P-10 19.69 5.90 5.90 16.14 20.41 5 1 1/2” 1 1/2”

Flow

GPM - Water

8.5 No 66A 35.0 No 1-GVP-02 GV 8 6P - 1-40-P-10 19.69 4.22 4.22 15.00 17.42 4.00 3/4” 1”

Alarm

Opt.

Order

No.

Full Scale

Flow

SCFM - Air

Alarm

Opt.

Float

Number

Float
Type

Press.

Drop

In W.C

Tube

Size - Number

Dimensions (Inches)

A B C D E F FNPT Flange

Connection

Size

ORDERING:

Use the following guide to determine the specific product number you require.

7 4 8

Meter Series Fitting Material Float Material O-Ring Material Order Number Alarm Option

Vertical FNPT - 316L SS - 1 316L SS - 2 EPR - 1 See Specification Check Specifications

Horizontal FNPT - 316L SS - 2 Hastelloy® C-276 - 4 Buna - N - 2 table above

Vertical Flange - 150# - 3 Viton® - 3 Without Alarm - 0

Vertical Flange - 300# - 4 Kalrez® - 4 With Alarm - 1

Horizontal Flange - 150# - 5

Horizontal Flange - 300# - 6

Vertical FNPT-PVC - 7
(not for air service)

* Only use this box
with order numbers
610W thru 613W.
Otherwise leave
blank

*

table for availability
