60.8mm (2.4 INCH) 5x8 DOT MATRIX DISPLAYS
TA24-11EWA/GWA/YWA/SRWA
TC24-11EWA/GWA/YWA/SRWA
TBA24-11EGWA
TBC24-11EGWA
TBA24-22EGWA
TBC24-22EGWA
Features
!2.4 INCH MATRIX HEIGHT.
!DOT SIZE 5mm.
!LOW CURRENT OPERATION.
!HIGH CONTRAST AND LIGHT OUTPUT.
!COMPATIBLE WITH ASCII AND EBCDIC CODES.
!STACKABLE HORIZONTALLY.
!COLUMN CATHODE AND COLUMN ANODE
AVAILABLE.
!EASY MOUNTING ON P.C. BOARDS OR SOCKETS.
!MULTICOLOR AVAILABLE.
!CATEGORIZED FOR LUMINOUS INTENSITY,
YELLOW AND GREEN CATEGORIZED FOR COLOR.
!MECHANICALLY RUGGED.
!STANDARD : GRAY FACE, WHITE DOT.
Package Dimensions & Internal Circuit Diagram
Description
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. Specifications are subject to change whitout notice.
SPEC NO: CDA0881 REV NO: V.1 DATE: NOV/18/2001 PAGE: 1 OF 6
APPROVED:J.LU CHECKED: DRAWN: S.H.CHEN

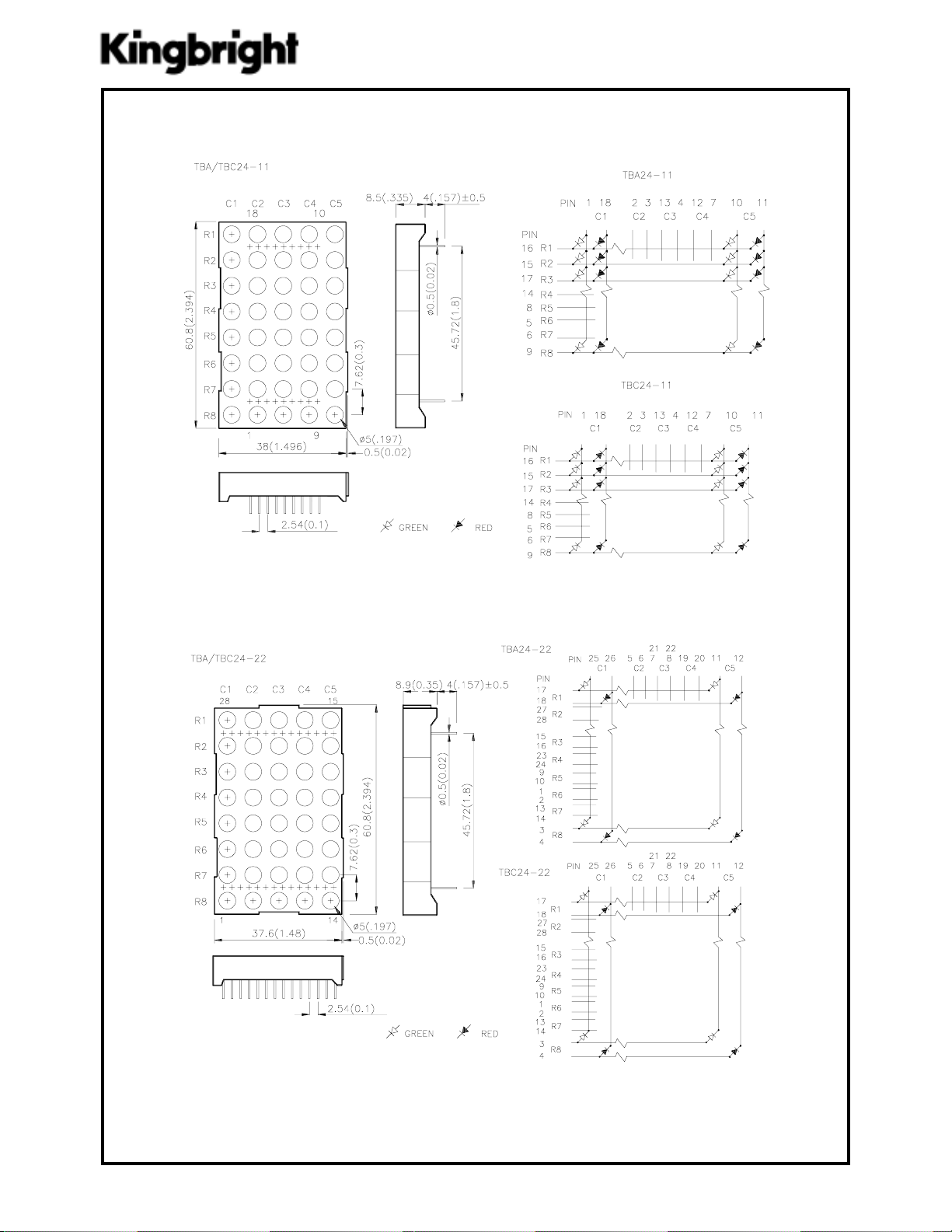

Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. Specifications are subject to change whitout notice.
SPEC NO: CDA0881 REV NO: V.1 DATE: NOV/18/2001 PAGE: 2 OF 6
APPROVED:J.LU CHECKED: DRAWN: S.H.CHEN
