50mm (2.0 INCH) 5x7 DOT MATRIX DISPLAYS
TA20-11EWA/GWA/YWA/SRWA
TC20-11EWA/GWA/YWA/SRWA
TBA20-11EGWA
TBC20-11EGWA
TBA20-12EGWA
TBC20-12EGWA
TBA20-22EGWA
TBC20-22EGWA
Features
!2.0 INCH MATRIX HEIGHT.
!DOT SIZE 5mm.
!LOW CURRENT OPERATION.
!HIGH CONTRAST AND LIGHT OUTPUT.
!COMPATIBLE WITH ASCII AND EBCDIC CODES.
!STACKABLE HORIZONTALLY.
!COLUMN CATHODE AND COLUMN ANODE
AVAILABLE.
!EASY MOUNTING ON P.C. BOARDS OR SOCKETS.
!APPLICABLE TO THREE COLORS - GREEN, ORANGE
AND YELLOW (MIXED COLOR).
!CATEGORIZED FOR LUMINOUS INTENSITY.
!MECHANICALLY RUGGED.
!STANDARD: GRAY FACE, WHITE DOT.

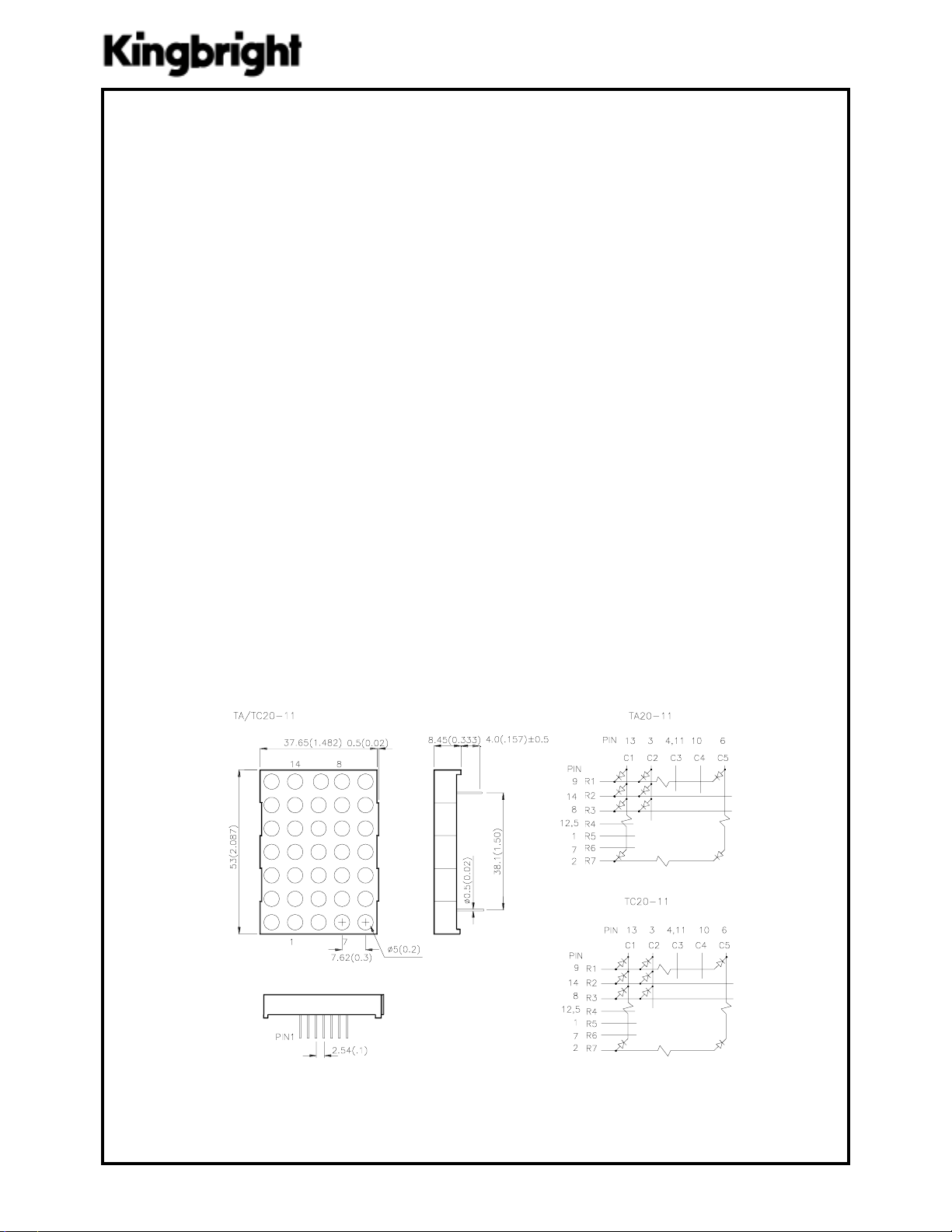

Package Dimensions & Internal Circuit Diagram
Description
The High Efficiency Red source color devices are made
with Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
The Super Bright Red source color devices are made
with Gallium Aluminum Arsenide Red Light Emitting
Diode.
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. Specifications are subject to change whitout notice.
SPEC NO: CDA0879 REV NO: V.1 DATE: NOV/18/2001 PAGE: 1 OF 6
APPROVED:J.LU CHECKED: DRAWN: S.H.CHEN
Package Dimensions & Internal Circuit Diagram
SPEC NO: CDA0879 REV NO: V.1 DATE: NOV/18/2001 PAGE: 2 OF 6
APPROVED:J.LU CHECKED: DRAWN: S.H.CHEN
