T-1 3/4 (5mm) SOLID STATE LAMP
Part Number: L-7113SRD-J4 Super Bright Red
Features
z Low power consumption.
z Popular T-1 3/4 diameter package.
z General purpose leads.
z Reliable and rugged.
z Long life - solid state reliability.
z Available on tape and reel.
z RoHS compliant.

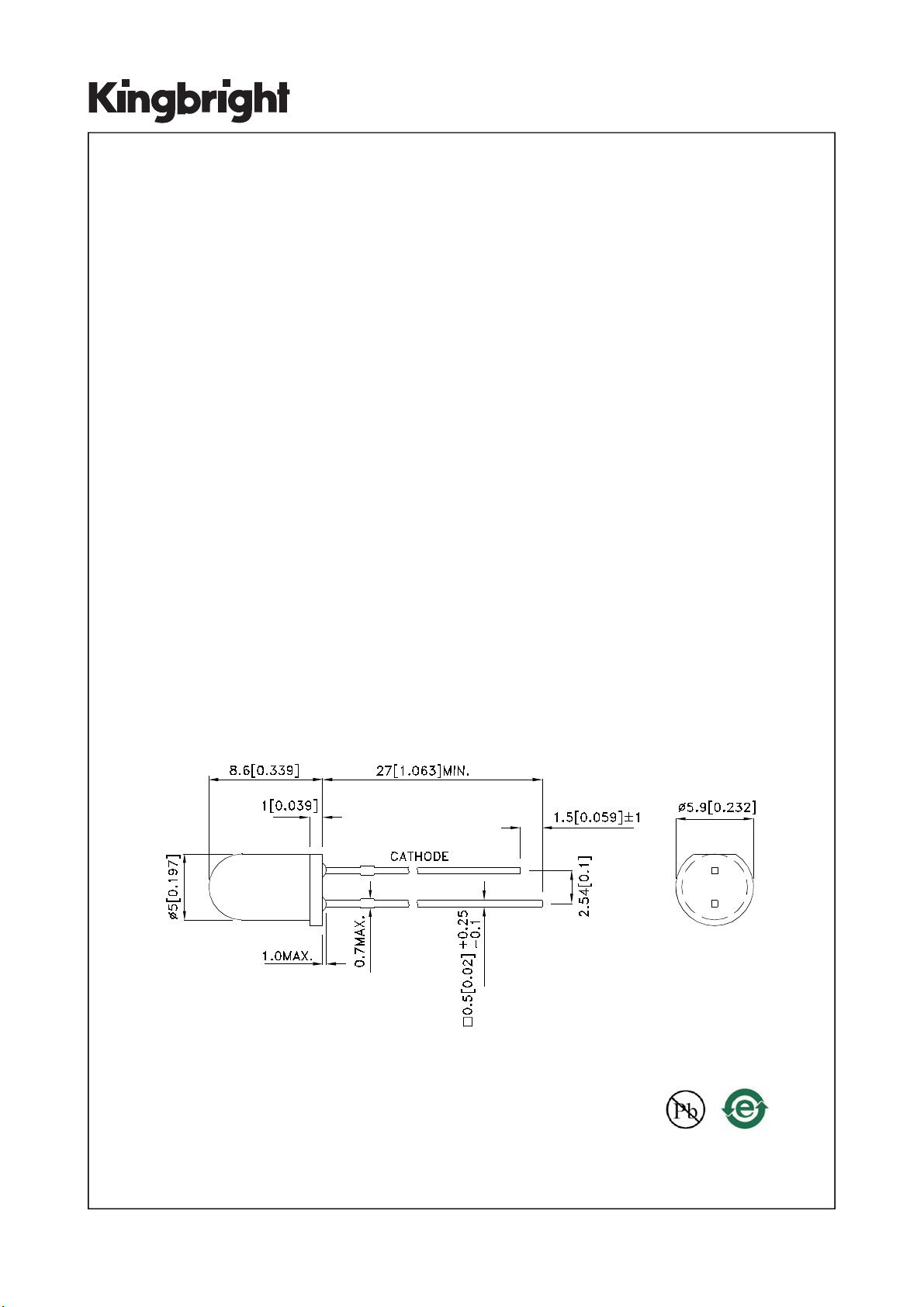

Package Dimensions
Description
The Super Bright Red source color devices are made with
AlGaInP on Si substrate Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAM7336 REV NO: V.1A DATE: NOV/15/2012 PAGE: 1 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: F.Cui ERP: 1101032238
Selection Guide
V
Part No. Dice Lens Type
Iv (mcd) [2]
@ 20mA
iewing
Angle [1]
Min. Typ. 2θ1/2
L-7113SRD-J4
Super Bright Red (AlGaInP) Red Diffused
*300 *600
1000 1800
Notes:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
*Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Electrical / Optical Characteristics at TA=25°C
Symbol Parameter Device Typ. Max. Units Test Conditions
λpeak Peak Wavelength Super Bright Red 660
λD [1] Dominant Wavelength Super Bright Red 640
Δλ1/2 Spectral Line Half-width Super Bright Red 20
C Capacitance Super Bright Red 45
F [2] Forward Voltage Super Bright Red 2.1 2.5 V IF=20mA
V
R Reverse Current Super Bright Red
I
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
10 uA VR = 5V
nm I
nm I
nm I
pF V
F=20mA
F=20mA
F=20mA
F=0V;f=1MHz
30
°
Absolute Maximum Ratings at TA=25°C
Parameter Super Bright Red Units
Power dissipation 75 mW
DC Forward Current 30 mA
Peak Forward Current [1] 150 mA
Reverse Voltage 5 V
Operating/Storage Temperature -40°C To +85°C
Lead Solder Temperature [2] 260°C For 3 Seconds
Lead Solder Temperature [3] 260°C For 5 Seconds
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
SPEC NO: DSAM7336 REV NO: V.1A DATE: NOV/15/2012 PAGE: 2 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: F.Cui ERP: 1101032238

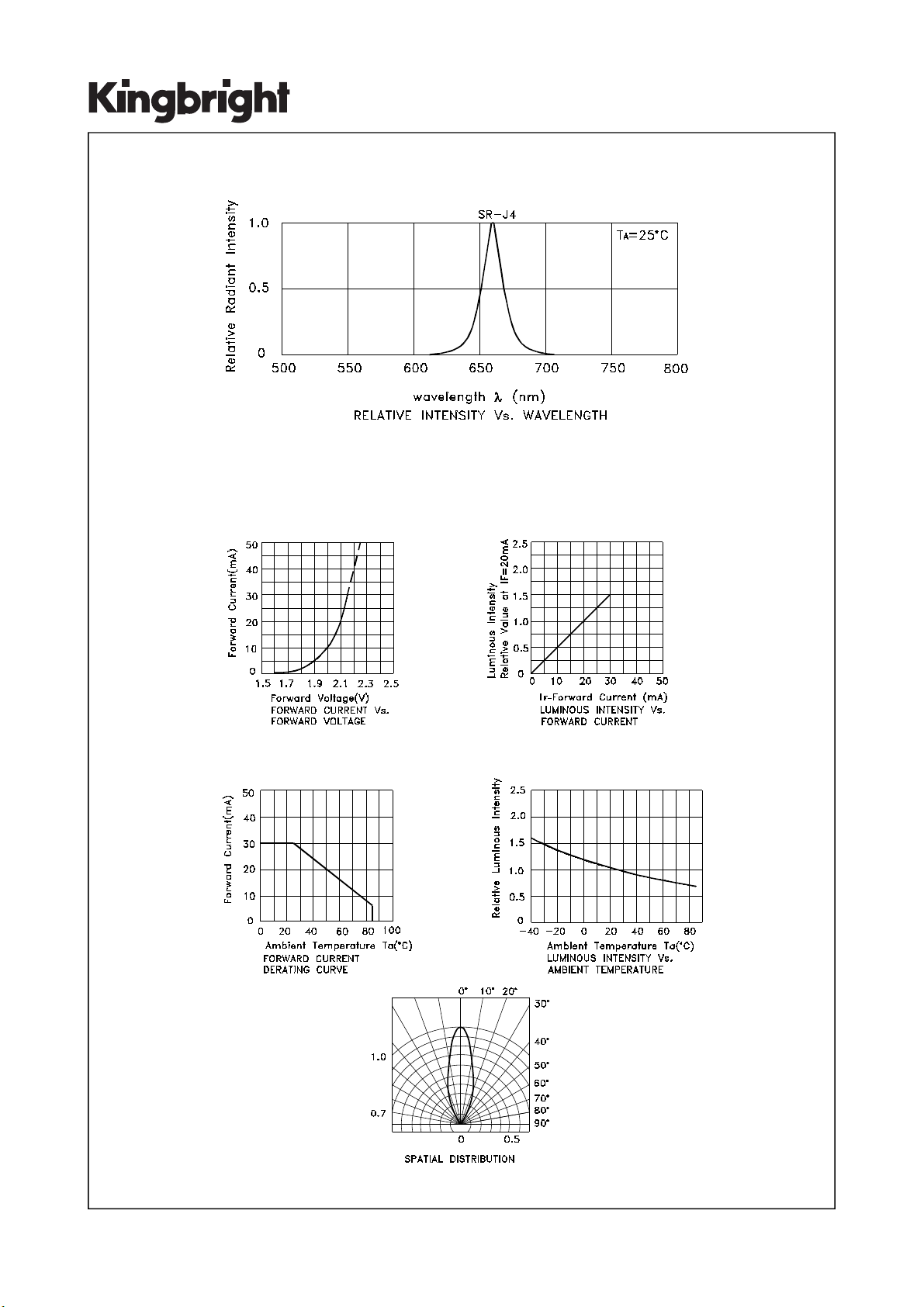

Super Bright Red L-7113SRD-J4
SPEC NO: DSAM7336 REV NO: V.1A DATE: NOV/15/2012 PAGE: 3 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: F.Cui ERP: 1101032238
PACKING & LABEL SPECIFICATIONS L-7113SRD-J4
SPEC NO: DSAM7336 REV NO: V.1A DATE: NOV/15/2012 PAGE: 4 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: F.Cui ERP: 1101032238
SPEC NO: DSAM7336 REV NO: V.1A DATE: NOV/15/2012 PAGE: 5 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: F.Cui ERP: 1101032238

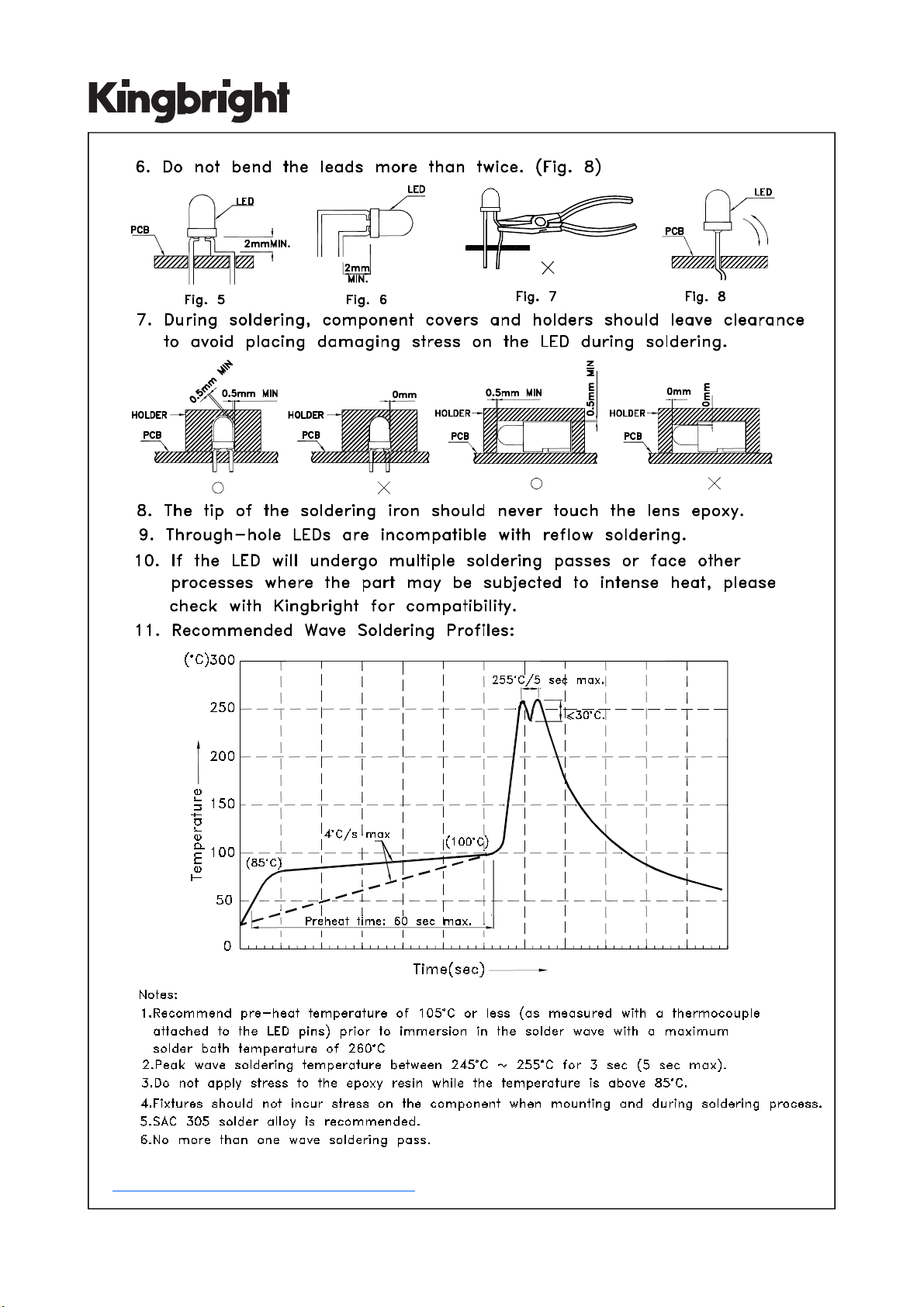

Detailed application notes are listed on our website.
http://www.kingbright.com/application_notes
SPEC NO: DSAM7336 REV NO: V.1A DATE: NOV/15/2012 PAGE: 6 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: F.Cui ERP: 1101032238
