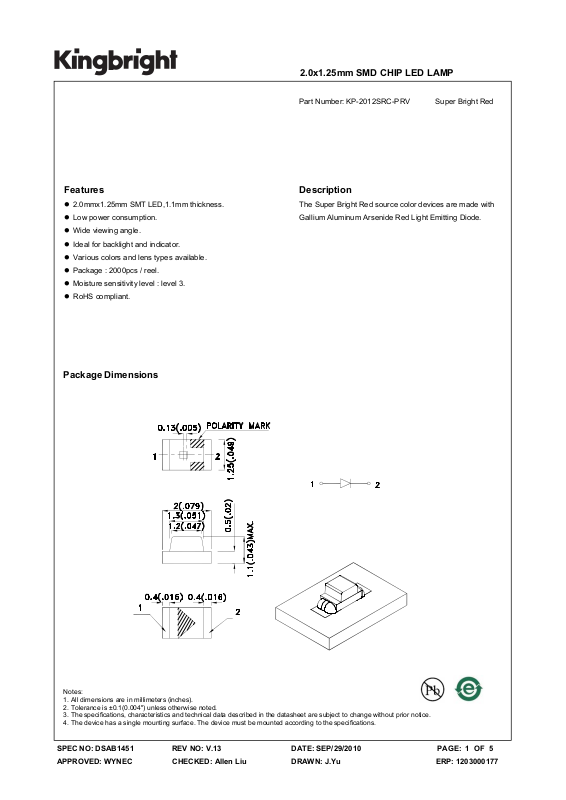

2.0x1.25mm SMD CHIP LED LAMP
Part Number: KP-2012SRC-PRV Super Bright Red
Features
z 2.0mmx1.25mm SMT LED,1.1mm thickness.
z Low power consumption.
z Wide viewing angle.
z Ideal for backlight and indicator.
z Various colors and lens types available.
z Package : 2000pcs / reel.
z Moisture sensitivity level : level 3.
z RoHS compliant.
Package Dimensions
Description
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.1(0.004") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAB1451 REV NO: V.13 DATE: SEP/29/2010 PAGE: 1 OF 5
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: J.Yu ERP: 1203000177
Selection Guide
V
Part No. Dice Lens Type
Iv (mcd) [2]
@ 20mA
iewing
Angle [1]
Min. Typ. 2θ1/2
KP-2012SRC-PRV Super Bright Red (GaAlAs) Water Clear 55 100
Notes:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
Electrical / Optical Characteristics at TA=25°C
Symbol Parameter Device Typ. Max. Units Test Conditions
λpeak Peak Wavelength Super Bright Red 660
λD [1] Dominant Wavelength Super Bright Red 640
Δλ1/2 Spectral Line Half-width Super Bright Red 20
C Capacitance Super Bright Red 45
F [2] Forward Voltage Super Bright Red 1.85 2.5 V IF=20mA
V
R Reverse Current Super Bright Red
I
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
10 uA VR=5V
nm I
nm I
nm I
pF V
F=20mA
F=20mA
F=20mA
F=0V;f=1MHz
120
°
Absolute Maximum Ratings at TA=25°C
Parameter Super Bright Red Units
Power dissipation 75 mW
DC Forward Current 30 mA
Peak Forward Current [1] 155 mA
Reverse Voltage 5 V
Operating Temperature -40°C To +85°C
Storage Temperature -40°C To +85°C
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
SPEC NO: DSAB1451 REV NO: V.13 DATE: SEP/29/2010 PAGE: 2 OF 5
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: J.Yu ERP: 1203000177
