KINGBRIGHT DSAB5355 User Manual

T-1 3/4 (5mm) SOLID STATE LAMP

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Features



LOW POWER CONSUMPTION.



POPULAR T-1 3/4 DIAMETER PACKAGE.



GENERAL PURPOSE LEADS.



RELIABLE AND RUGGED.



LONG LIFE - SOLID STATE RELIABILITY.



AVAILABLE ON TAPE AND REEL.



RoHS COMPLIANT.

P/N: L-54PWC WHITE

Description

The source color devices are made with InGaN on SiC
Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. Specifications are subject to change without notice.

SPEC NO: DSAB5355 REV NO: V.8 DATE: APR/14/2006 PAGE: 1 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU

Selection Guide

Viewing

Part No. Dice Lens Type

Iv (mcd) [2]

@ 20mA

Min. Typ.

Angle [1]

2θθθθ1/2

L-54PWC WHITE (InGaN) WATER CLEAR 480 1200

Notes:

1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

1.θ

2.Luminous Intensity / Luminous Flux: +/-15%

Electrical / Optical Characteristics at T

A=25°C

20°

Symbol Parameter Device Typ. Max. Units Test Conditions

VF [1] Forward Voltage White 3.65 4.2 V IF=20mA

IR Reverse Current White 10 uA VR = 5V

X [2]

0.33

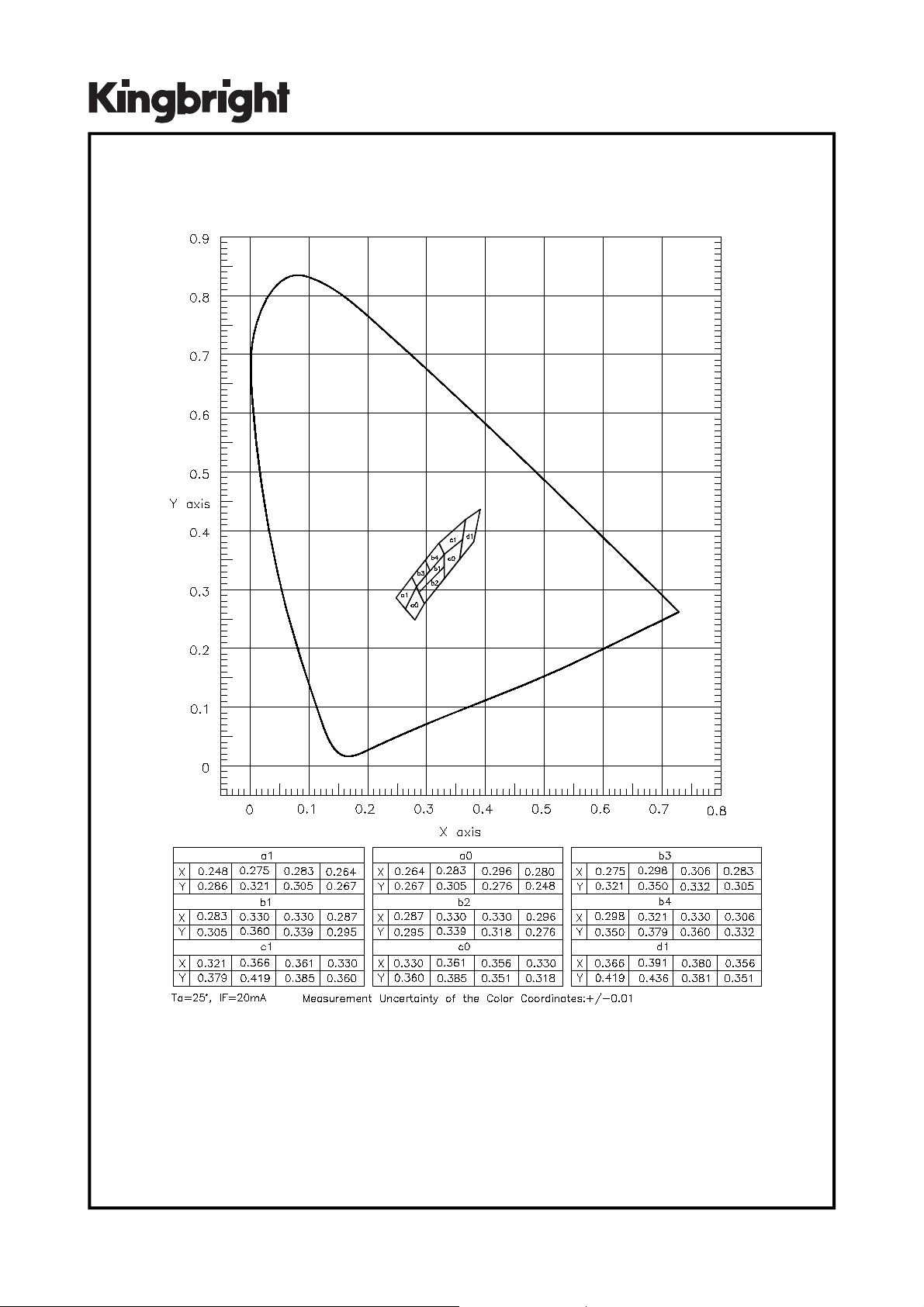

Chromaticity Coordinates White

Y [2] 0.34

C Capacitance White 65 pF VF=0V;f=1MHz

Notes:

1.Forward Voltage: +/-0.1V.

2.Chromaticity Coordinates X, Y: +/-0.01.

Absolute Maximum Ratings at T

A=25°C

Parameter White Units

Power dissipation 102 mW
DC Forward Current 30 mA
Peak Forward Current [1] 160 mA
Reverse Voltage 5 V
Operating/Storage Temperature -40°C To +85°C
Lead Solder Temperature [2] 260°C For 3 Seconds
Lead Solder Temperature [3] 260°C For 5 Seconds

Notes:

1. 1/10 Duty Cycle, 0.1ms Pulse Width.

2. 2mm below package base.

3. 5mm below package base.

SPEC NO: DSAB5355 REV NO: V.8 DATE: APR/14/2006 PAGE: 2 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU
