SPEC NO:
'6$
D1196
REV NO: V.3 DATE: JUL/04/2005 PAGE:
1OF5
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
EPR:1204000266
-
01
Package Dimen sion
s
4.1 x 1.0mm RIGHT
ANGLE
SMD CHIP
LED LAMP
Notes:
1. All dimensions are in mil limeters (inches).
2. Tolerance is
±
0.25(0.01") unless other wise noted.
3. Specifications are subjec t to change without notice.
ATTENTION
OBSERVE PRECAU TIONS
F
OR HANDLING
E
LECTROSTATIC
DISCHARGE
SENSITIVE
DEVICE
S
APKA4110TGC GREEN
Description
The Green source color devices are made with InGaN on
SiC Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.
Features
z
4.1mm x 1.0mm RIGHT ANGLE SMT LED, 1.52mm
THICKNESS.
z
LOW POWER CONSUMPTION.
z
WIDE VIEWING ANGLE.
z
IDEAL FOR BACKLIGHT AND INDICATOR
z
VARIOUS COLORS AND LENS TYPES AVAILABLE.
z
PACKAGE: 2000PCS/REEL.
z
RoHS COMPLIANT.
Page 2
SPEC NO:
'6$
D1196
REV NO: V.3 DATE: JUL/04/2005 PAGE:
2OF5
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
EPR:1204000266
-
01
Selection Guid
e
Note:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA
Viewing
Angle
Min.
Typ.
2θ1/2
APKA4110TGC
GREEN (InGaN)
WATER CLEAR
36
100
90
Electrical / Optical Characteristics at T
A
=25°CAbsolute Maximum Ratings at T
A
=25
°C
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Symbol
Parameter
Device
Typ.
Max.
Test Conditions
Units
λ
peak
Peak Wavelength
Green
500nmIF=20mA
D
Dominant Wavelength
Green
505nmIF=20mA
1/2
Spectral Line Half
-
width
Green
30nmIF=20mA
C
Capacitance
Green
56 pFVF=0V;f=1MHz
VFForward Voltage
Green
3.6
4.4VIF=20mA
IRReverse Current
Green
10uAVR = 5V
Parameter
Green
Units
Power dissipation
110mWDC Forward Current
30mAPeak Forward Current [1]
150mAReverse Voltage
5VOperating/Storage Temperature
-
40°C
To +85°C
°
λ
∆λ
Page 3
SPEC NO:
'6$
D1196
REV NO: V.3 DATE: JUL/04/2005 PAGE:
3OF5
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
EPR:1204000266
-
01
Green APKA4110TGC
Page 4
SPEC NO:
'6$
D1196
REV NO: V.3 DATE: JUL/04/2005 PAGE:
4OF5
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
EPR:1204000266
-
01
APKA4110TGC
Tape Specific ations
(Units : mm
)
Recommended Solderi ng Patte rn
(Units : mm
)
Page 5
SPEC NO:
'6$
D1196
REV NO: V.3 DATE: JUL/04/2005 PAGE:
5OF5
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
EPR:1204000266
-
01

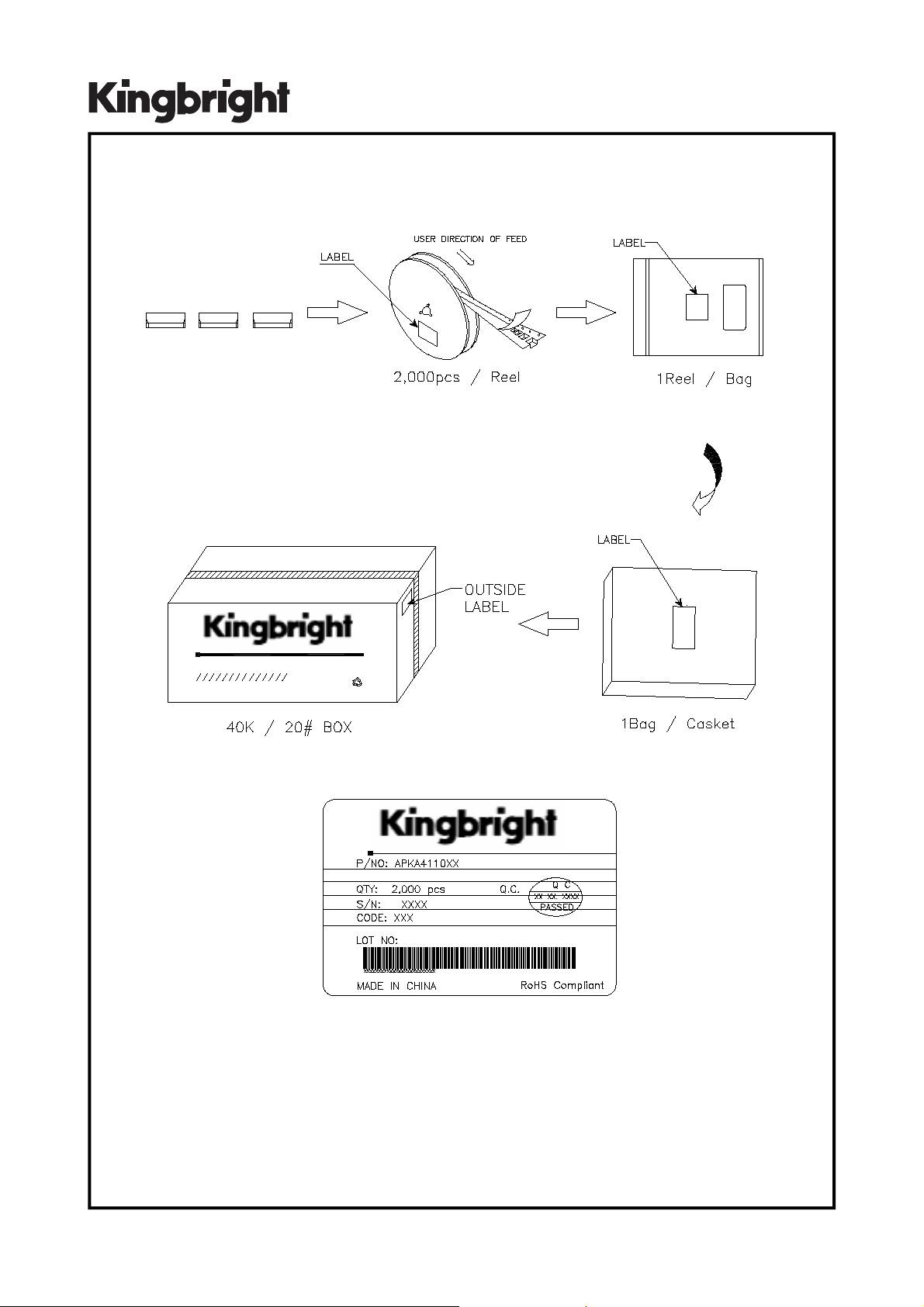

PACKING & LABEL SPECIFICATIONS
APKA41 10T G C
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity/ luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/
-
1nm
2. Luminous Intensity/ luminous flux: +/
-
15%
3. Forward Voltage: +/
-
0.1V
Note: Accuracy may depend on the sorting parameters.
