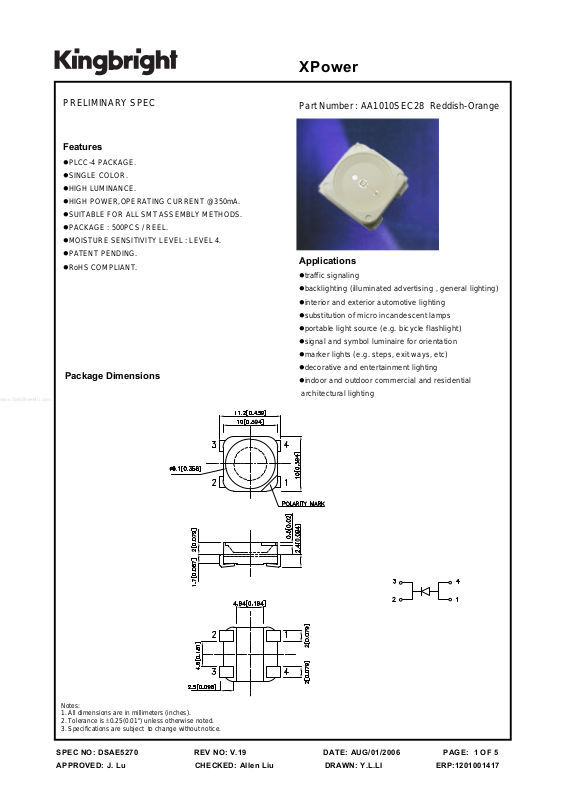

XPower
PRELIMINARY SPEC
Features
zPLCC-4 PACKAGE.
zSINGLE COLOR.
zHIGH LUMINANCE.
zHIGH POWER,OPERATING CURRENT @350mA.
zSUITABLE FOR ALL SMT ASSEMBLY METHODS.
zPACKAGE : 500PCS / REEL.
zMOISTURE SENSITIVITY LEVEL : LEVEL 4.
zPATENT PENDING.
zRoHS COMPLIANT.
Package Dimensions
Part Number : AA1010SEC28 Reddish-Orange
Applications
ztraffic signaling
zbacklighting (illuminated advertising , general lighting)
zinterior and exterior automotive lighting
zsubstitution of micro incandescent lamps
zportable light source (e.g. bicycle flashlight)
zsignal and symbol luminaire for orientation
zmarker lights (e.g. steps, exit ways, etc)
zdecorative and entertainment lighting
zindoor and outdoor commercial and residential
architectural lighting
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAE5270 REV NO: V.19 DATE: AUG/01/2006 PAGE: 1 OF 5
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: Y.L.LI ERP:1201001417
Selection Guide
V
Part No.
Dice Lens Type
luminous Intensity
Iv(cd)@ 350 mA [2]
Фv (lm)
@ 350mA [2]
Min. Typ. Min. Typ.
AA1010SEC28 Reddish-Orange (InGaAlP) WATER CLEAR 16 32 10 20
Notes:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. Luminous intensity / luminous Flux: +/-15%.
Absolute Maximum Ratings at TA=25°C
Parameter Symbol Unit
Power dissipation Pt W
Reverse Voltage VR V
Junction temperature TJ 110 °C
Operating Temperature Top °C
Storage Temperature Tstg °C
DC Forward Current [1] IF mA
Peak Forward Current [2] IFM 500 mA
Thermal resistance [1] Rth °C/W
Notes:
1.Results from mounting on PC board FR4(pad size≥100mm
for lowest thermal Resistance.
2.1/10 Duty Cycle, 0.1ms Pulse Width.
2
per pad), mounted on pc board-metal core PCB is recommend
Value
1.2
5
-40 To +85
-40 To +85
350
60
iewing
Angle [1]
2θ1/2
120°
Electrical / Optical Characteristics at T
Parameter Symbol Value Unit
Wavelength at peak emission IF=350mA [Typ.]
Dominant Wavelength IF=350mA [Typ.]
Spectral bandwidth at 50%ΦREL MAX IF=350mA [Typ.]
Viewing angle at 50%ΦV [Typ.] θ
Forward Voltage IF=350mA [Min.]
Forward Voltage IF=350mA [Typ.] 2.5
Forward Voltage IF=350mA [Max.] 3.0
Reverse Current (VR=5V) [Max.] IR 10
Temperature coefficient of λpeak
I
F=350mA, -10°C≤ T≤100°C [Typ.]
Temperature coefficient of λdom
I
F=350mA, -10°C≤ T≤100°C [Typ.]
Temperature coefficient of VF
IF=350mA, -10°C≤ T≤100°C [Typ.]
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
A=25°C
λpeak
λDom [1]
Δλ
640 nm
625 nm
30 nm
120
2.0
VF [2]
TCλpeak 0.14
TCλdom 0.12
TCV -3.0
°
V
μA
nm/°C
nm/°C
mV/°C
SPEC NO: DSAE5270 REV NO: V.19 DATE: AUG/01/2006 PAGE: 2 OF 5
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: Y.L.LI ERP:1201001417
