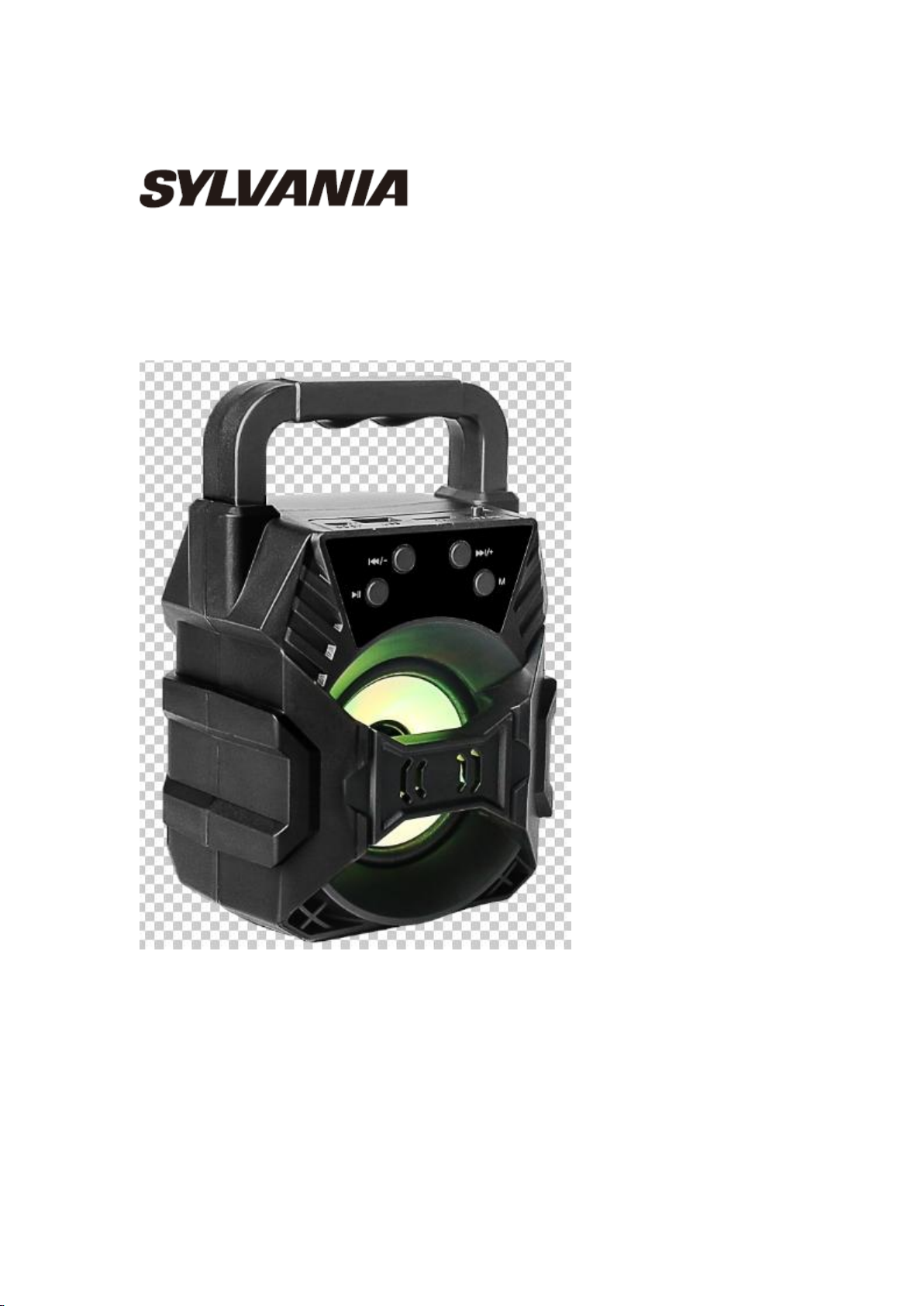

Bluetooth Speaker
MODEL NO: SP776-PDQ_DG
INSTRUCTION MANUAL
The picture is only provided for reference. Please refer to the actual unit！
SYLVANIA is a registered trademark of OSRAM Sylvania Inc. used under license.
Instructions for use
Please read all instructions carefully
Getting started
Remove the unit from the box
Remove any packaging from the product.
Place the packaging inside the box and store for safekeeping
In the box
Bluetooth Speaker
USB charging cable
Instruction Manual
Features
-Bluetooth wireless connection functionality
-Built-in rechargeable battery
-Support USB/TF card
-FM radio ,search and record
Safety Instructions
Keep the unit away from heat sources, direct sunlight,
humidity, water and any other liquids
Do not use the unit if it has been dropped or damaged in
any way.
Repairs to electrical equipment should only be performed
by a qualified electrician. Improper repairs may place
the user at serous risk.
Do not put objects into any of the openings. Keep the unit
free from dust, lint etc.
Do not use this unit for anything other than its intended use
Keep the unit out of reach of children
This product is not a toy
Do not use abrasive cleaning solvents to clean
To minimize the risk of fire or electrical shock, avoid
operating in wet conditions such as rain or humidity
Do not operate around water (e.g. bathroom, swimming
pool etc.)
Do not expose to excessive heat such as sunshine, fire etc
Never immerse the unit in water or any other liquid for
cleaning purposes
Warning: Changes or modifications to this unit not
expressly approved by the part responsible for compliance
could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement
The device has been evaluated to meet general RF
exposure requirement. The device can be used in
fixed/mobile （ min20cm ） exposure condition without
restriction.
TF slot:
Used to read the Mp3 files In FAT 32 format
with maximum size of 32GB
USB slot
Used to read the Mp3 files In FAT32 format
with maximum size of 32GB
Under FM/USB/TF/Bluetooth mode, short
press to move to previous channel/track,
Press and hold to decrease the volume
Under USB/TF/Bluetooth mode, short press
for play and pause; Under FM mode, Short
press for automatic search.
Under FM/USB/TF/Bluetooth mode, short
press to move to next channel/track, Press
and hold to increase the volume
Mode
Mode shift button. Short press and shift to
bluetooth/FM mode default mode will be
wireless connection mode
DC-5V
One end of the cable should be inserted In
DC 5V. another end with USB jack be
inserted In USB port of the PC or other
charging device
with standard DC5V jack. The indicate LED
is on when charging.
INSTRUCTION FOR USE
Charging the speaker
This unit has a built in rechargeable battery.
Before using it for the first time we recommend you use the USB
cable to
charge the battery fully.
Connect USB charging cable to the USB port or USB wall
charger(Not included)
And connect other side to the USB charging slot of the speaker.
The
battery charging LED indicator illuminates while the speaker is
being charged.
Pairing your device with Bluetooth speaker
Pairing the Bluetooth with Bluetooth devices(phone or music
device)
Turn the VOL knob to turn the speaker ON and the Bluetooth mode
will on automatically, you will hear a tone
Place the speaker and Bluetooth device (phone or music device)so
that they are no further than 20 feet apart;
Activate the Bluetooth function on your Bluetooth device (phone or
music device). Please refer to the manufacturer's instructions for
instructions on enabling Bluetooth on your device.
Once you have activated Bluetooth on your device, select the
pairing name "Sylvania SP776" from the list of available Bluetooth
devices.
If required, enter the password 0000 to confirm to pairing.
Once paired successfully, you will hear a tone indicating pairing
successful.You can now start to use the speaker.
Once you have paired the speaker with a device, the speaker will
remember this device and will pair automatically when the devices
Bluetooth is activated and in range. You do not need to re-pair any
previously connected devices.
The speaker will attempt to automatically connect to the last device
it was paired with when Bluetooth mode turns on. If you want to pair
it with a new device, please turn off your last Bluetooth
device(phone or music device) then use your new device to search
and select the pairing name.
Once the speaker is paired with your device the music will transmit
directly to the speaker. Please refer to your devices user manual for
further information.
Function Summary
Listening to Music
Once the speakers are paired with your device you can stream
music
wirelessly through the portable speaker, Select the track you wish
to listen to and it will be streamed to your Bluetooth speaker, and
you can use your device to control the Volume and skip tracks.
USB/ TF card playback
After the speaker is turned on, insert the USB/TF card to the slot
will start to play the music automatically, and the Bluetooth mode
will be disconnect.
FM radio
After pressing M button to change to FM radio status，press ll
button to search channel automatically. This operation will scan all
FM stations and pre-record them to memory. The scan procedure
will take several minutes to complete and should not be interrupted.
Please Note
Not all mobile phones support all the functions listed above
Please refer to your cell phone s user's manual for further
information
Certain functions and indication tones may vary depending on
your mobile phone.
Cleaning & Maintenance
Turn OFF the speaker if it is left unattended and before cleaning.
Never immerse the speaker into water and please use a dry cloth
for
Cleaning.
Storage
Turn OFF the power when you not in use, clean and store
safety.
Do's and Don'ts
Read the following recommendations before using the speaker.
Following these you will be able to enjoy the product for many
years
Don't use abrasive cleaning solvents to clean the speaker.
Do not expose the speaker to extremely high or low
temperature as this will shorten the life of electronic devices,
distort certain plastic parts.
Don't dispose of the speaker in a fire as it will result in an
explosion
Don't expose the speaker to contact with sharp objects as this
will cause scratches and damage
Bluetooth specification
Bluetooth V4.2
Operating distance
10 meters(max.)
Speaker drive size
3inch
Speaker power
5W
Frequency response
100Hz-20KHz
Signal to noise ratio
≧85dB
Charging time
About 2hours
Don't attempt to disassemble the speaker as it may get
damaged if you are not professional
Do not expose the speaker to heat or fire. Avoid storage in
direct sunlight.
Do not subject the speaker to mechanical shock
Do not add any fluids or solids to your speaker
Do not use the speaker if it has been damaged in any way
Specifications
Note: Battery life &charging time may vary based on usage & types
of devices used.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency
energy and if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
aparticular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected
-Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received including
interference that may cause undesired operation.
For service assistance and product information, please call
1-800-968-9853.
Curtis International Ltd.
7045 BECKETT DRIVE, UNIT 15, MISSISSAUGA, ON, L5S 2A3
