Çay & Kahve Makine Seti / Tea & Turkish Coffee Maker Set

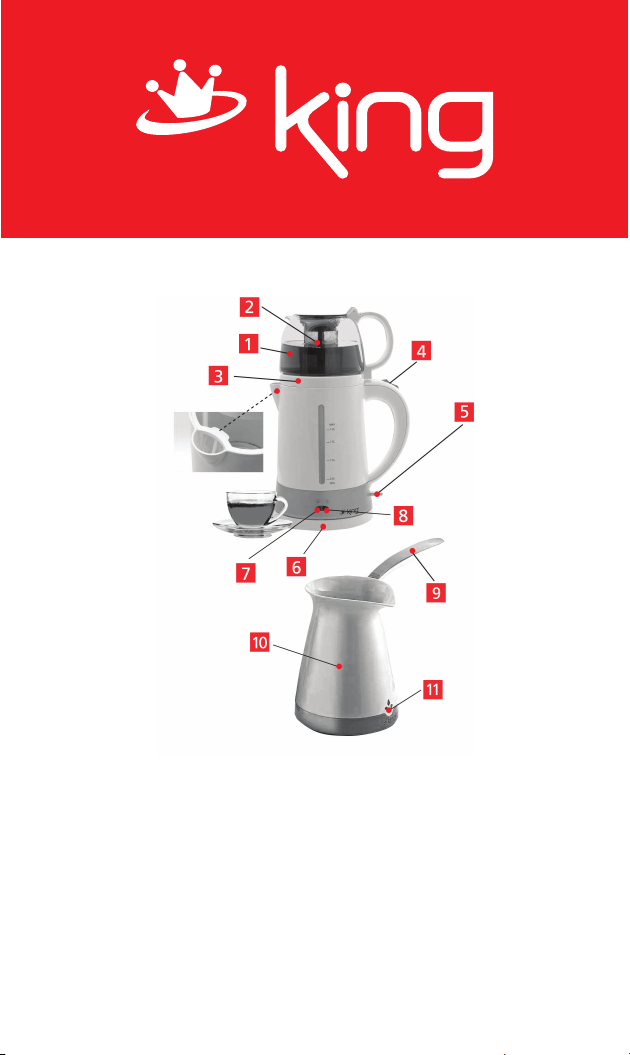

MAIN PARTS
1. Teapot
2.Tea basket
3.Kettle cover
4.Boiling / Keeping warm control Switch
5.Main power Switch
6.Base
7.Keeping-warm Indicator Light
8.Power Indicator Light
TURKISH COFFEE MAKER PARTS
9.Handle
10.Body
11.Lamp
IMPORTANT SAFETY INSTRUCTIONS
■
Please read these instructions carefully before using the appliance for the first time.
■
Before you connect the kettle to the mains supply, make sure that the voltage
indicated on the rating plate, located on the bottom of the jug kettle matches the mains
voltage in your home. If it does not, contact your dealer and do not use the kettle.
■
The kettle will switch off automatically when the water has boiled. You may switch
the kettle off before the boiling process if complete by using the on/off switch.
■
To connect, always plug the cord into the wall outlet first then switch on. To
disconnect, pull switch to “OFF” then remove plug from wall outlet.
■
After the kettle has switched off automatically (or has been switched of manually)
it may need time to cool down. After 15-20secs, the kettle can be switched on again.
■
If the kettle ever boils dry, allow 15 minutes to cool before refilling with cold water.
■
The safety cutout will automatically reset during this time.
■
Place the kettle on a stable flat surface.
■
Ensure that the kettle is switched off before removing it from its stand.
■
Never immerse the kettle or cord in water or any other liquid. Do no allow liquid to
penetrate the electrical parts of this kettle.
■
Prevent children from pulling on the mains cord or knocking the kettle over.
■
Ensure that the mains lead does not overhang the worktop surface.
■
Before cleaning the kettle disconnect from the power supply and wait until it was
cooled down.
■
Only use the cord supplied with this kettle. If a replacement is required, only
approved components may be used.
■
The outside surface of the kettle may get hot during use, please take care when
using the kettle.
■
Never fill in water more than the maximum acceptable water level.
■
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
■
If the kettle is overfilled, boiling water may be ejected.
■
Keep electrical appliance out of reach from Children or infirm persons.Do not let
them use the appliance without supervision.
■
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
■
Children should be supervised to ensure that they do not play with the appliance.
■
You can use your coffee maker as a kettle also. In this case, when the water
begins to boil switch off your appliance by pressing on/off switch since your unit
would not be switched off automatically.
■
If you want to re-boil your water, wait for about 15-20 seconds before switching on
your appliance.
■
Put sufficient quantity of cold water into your Turkish Coffee Maker, according to
the number of cup of coffee (for 3-4 persons, max).
■
If you wish to prepare a medium-sugar coffee for 1 person, put 1 cup of water. I
tablet of sugar. And I spoon of Turkish coffee powder by using the measuring spoon
supplied with the appliance.
■
Place the appliance onto the power base unit, and switch on the coffee maker by
simply pressing on/off switch.
■
At this time mix your coffee for one or two times.
■
When the coffee starts bloating out, turn off the appliance and pour a little coffee
into the cups (for foam).
■
Replace your appliance onto the power base unit and restart the coffee maker,
then pour the coffee to the cup when the prepared coffee bloats out again.
■
You can prepare coffee in different measures according to your personal taste.
■
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Before first use
Before first use, it is recommended to operate the kettle for 2 or 3 times following the
instructions below , this will remove any dust or residues remaining from the
manufacturing process.
Boiling Water
■
Take up the jug kettle from the base before filling.
■
Remove the cover and fill the kettle with as much fresh, cold water as you desired,
then close the cover. The water capacity must between the Max and Min level
showed on the kettle.
■
Place the kettle on the Power Base, connect the kettle to the power supply, turn
on the Main Power Switch, the red lamp on the kettle body lights up, then turn on
the Boiling Switch Control by switch the “Boiling Water” side down to boil the water.
Once the water is boiling, the Boiling Switch will be automatically switched off, the
red lamp turns out and the blue lamp turns on.
Note:
■
The Boiling Switch Control should be turned on when boiling water, otherwise the
water can not reach 100°C.
■
Do not open the cover while the water is boiling, wait a few seconds to let the hot
vapour to escape, otherwise scalding may occur.
■
Kettle is only to be used with the stand provided.
Infusing Tea
■
Add some tea leaf into the basket, put it into the Tea Pot. After the water is boiling,
pour the boiling water into the Tea Pot then put it on the kettle. You must leave some
water in the kettle to keep warm the Tea Pot.
Pour out tea and serve
■
When the tea is infused, remove the basket, pour out tea and serve.
Cleaning
■
First read the instructions in the section titled ‘Importance’.
■
Always disconnect the kettle from electrical outlet before cleaning.
■
Before cleaning make sure the kettle and the Tea Pot is cold enough.
■
Clean the exterior surface of the kettle with a clean, damp cloth to preserve its
original highly polished finish. Dry and polish with a soft cloth.
■
Do not use abrasive cleansers or scouring agents of any kind inside or on the
exterior of the kettle.
■
Do not immerse the kettle or power base in water or other liquid, and make sure
the electrical kettle socket is kept dry.
Descaling
■
Half fill the kettle with tap water and add the juice of 1 lemon to the water.
■
Boil this mixture and allow it to stand for 15 minutes. Re-boil the mixture and allow it
to stand a further 15 minutes. Re-boil this mixture a third time then rinse the kettle well.
DESCALING FOR COFFEE MAKER
■
To clean your kettle with a descaling agent: Once you have boiled some water in
the kettle, add the decaling agent and mix them. Boil for 2-3 minutes more, empty
the kettle, and rinse the inside of it 2-3 times repeatedly.
KING K - 8287 Duo set’ in PARÇALARINI TANIYALIM
1. Demlik
2. Çay sepeti
3. Su ısıtıcı kapağı
4. Kaynama / Sıcak tutma kontrol düğmesi
5. Ana çalıştırma düğmesi
6. Güç tabanı
7. Sıcak tutma gösterge lambası
8. Güç gösterge lambası
TÜRK KAHVESİ MAKİNESİ PARÇALARI
9. Tutacak
10. Gövde
11. Lamba
■
Elektrikli cihazları kullanacağınız zaman, temel emniyet kurallarına, aşağıdakiler
dahil olmak üzere daima uyulmalıdır:
■
Cihazı ilk defa kullanmadan önce bütün talimatları okuyunuz.
■
Cihazın fişini prize takmadan önce üzerindeki etikette belirtilen voltajla evinizdeki
voltajın aynı olduğundan emin olunuz.
■
Cihazınız evlerde kullanım içindir. Ev dışında kullanmayınız. Ticari amaçla
kullanılamaz.
■
Cihazınızı topraklı bir prizde çalıştırınız.
■
Su kaynadığı zaman su ısıtıcı otomatik olarak kapanacaktır. Su ısıtıcıyı kendinizde
kaynama işlemi tamamlanmadan çalıştırma düğmesinden kapatabilirsiniz.
■
Sıcak yüzeylere dokunmayınız. Tutacak kullanınız.
■
Çay makinesini çalıştırmak için daima önce güç tabanının fişini prize takınız sonra
düğmesinden açınız. Cihazı kapatmak için, önce düğmeyi OFF konumuna getiriniz
sonra güç tabanının fişini prizden çekiniz.
■
Kahve makinesini çalıştırmak için önce cihazı güç tabanının üzerine yerleştiriniz,
sonra güç tabanının fişini prize takınız. Kahve makinesi otomatik olarak çalışmaya
başlayacaktır.
■
Çay makinesi otomatik olarak veya elle kapatıldıktan sonra soğuması için biraz
zamana ihtiyacı vardır. 15 – 20 saniye sonra tekrar çalıştırılabilir.
■
Eğer çay veya kahve makinesi kuru kaynarsa, tekrar soğuk su doldurmadan önce
15 dakika soğuması için bekleyiniz. Bu süre içinde emniyet kesici otomatik olarak
tekrar devreye girecektir.
■
Cihazın güç tabanını sabit düz bir yüzeyin üzerine yerleştiriniz.
■
Çay makinesini güç tabanından ayırmadan önce kapattığınızdan emin olunuz.
■
Yangına, elektrik çarpmasına ve kişilerin yaralanmasına karşı korunmak için
kabloyu, fişi veya güç tabanını asla suya veya başka bir sıvının içine sokmayınız.
■
Cihazın elektrikli parçalarının suya temas etmesine izin vermeyiniz.
■
Çocukların güç tabanının kablosunu çekmelerine veya cihazı yere vurmalarına
izin vermeyiniz.
■
Güç kablosunun masa veya tezgah kenarlarından sarkmasına ve sıcak
yüzeylere temas etmesine izin vermeyiniz.
■
Cihazı kullanmadığınız zaman veya temizlemeden önce fişini prizden çekiniz.
■
Parçalarını söküp takmadan ve temizlemeden önce soğumasına izin veriniz.
■
Çay veya kahve makinesinin dış yüzeyi kullanım esnasında ısınabilir, her ikisini
de kullanırken çok dikkatli olunuz.
■
Su seviyesinin maksimum seviyeyi geçmediğinden emin olarak su doldurunuz.
■
Eğer güç kablosu hasar görmüşse, en yakın yetkili KING servisince yenisi ile
değiştirilmelidir.
■
Eğer çay veya kahve makinesi aşırı doldurulursa, kaynayan su veya kahve
dışarı taşabilir.
■
Elektrikli cihazları çocukların veya yetersiz kişilerin ulaşabileceği yerlerden uzak
tutunuz. Yakın gözetim olmadan kullanmalarına izin vermeyiniz.
■
Bu cihaz fiziksel ve zihinsel kapasitesi düşük (çocuklar dahil) veya deneyim ve
bilgiden yoksun kişilerin, güvenliklerinden sorumlu kişilerin yakın gözetimi
olmaksızın veya cihazın kullanımına dair bilgi verilmeden, kullanmalarına izin
verilmemelidir.
■
Çocukların cihazla oynamadıklarından emin olmak için yakın gözetim gerekmektedir.
■
Cihazı sıcak gazlı veya elektrikli ısıtıcıların üzerine veya yanına veya ısıtılmış bir
fırının içine yerleştirmeyiniz.
■
Cihazı amacı dışında başka bir şey yapmak için kullanmayınız.
■
Çay ve Kahve Makinesi Seti sadece beraberinde satıcı tarafından verilmiş olan
güç tabanı ile kullanılabilir.
■
Türk Kahve makinesinide su ısıtıcısı olarak kullanabilirsiniz. Su ısınmaya
başlayınca cihazı güç tabanının üzerinden alınız.
■
Bu cihaz 8 yaş ve üstü çocuklar ve eğer yakın gözetimde bulunurlarsa veya
cihazın kullanım talimatı emniyetli bir şekilde verilebilirse veya cihazın tehlikeleri
anlatılırsa fiziksel, duygusal ve mental kapasitesi düşük (çocuklar dahil) veya
tecrübe ve bilgi sahibi eksik kişiler tarafından da kullanılabilir. Çocuklar cihazla
oynamamalıdır. Temizlik ve kullanıcı bakımı yakın gözetim olmadan çocuklar
tarafından yapılmamalıdır.
UYARI: TÜRK KAHVE MAKİNESİ OTOMATİK OLARAK KAPANMAZ. SU ISININCA
LÜTFEN GÜÇ TABANININ ÜZERİNDEN KALDIRINIZ VE GÜÇ TABANININ FİŞİNİ
PRİZDEN ÇEKİNİZ.
UYARI: EĞER ÇAY MAKİNESİNİ SU ISITICI OLARAK KULLANIYORSANIZ, SU
KAYNARKEN KAPAĞINI ÇIKARTMAYINIZ.
ÇAY MAKİNESİ OLARAK KULLANIM
İLK KULLANIMDAN ÖNCE
İlk kullanımdan önce, Demlikli Çay Makinenizi aşağıdaki
talimatları takip ederek 2-3 defa çalıştırmanız tavsiye edilir.
Bu, imalat sırasında kalan tozları ve atıkları çıkartacaktır.
SU KAYNATMA
Kapağı açınız ve su ısıtıcıyı iyi su ile istediğiniz kadar
doldurunuz ve kapağı kapatınız. Su kapasitesi su ısıtıcının
üzerinde gösterilen Max ve Min seviye aralığında olmalıdır.
Su ısıtıcıyı güç tabanının üzerine yerleştiriniz, fişini prize takınız, ana çalıştırma
düğmesinden açınız. Su ısıtıcının gövdesi üzerindeki kırmızı ışık yanacaktır, sonra
Kaynama kontrol düğmesini suyu kaynatmak için “Su kaynatma” tarafına bastırarak
açınız. Su kaynadıktan sonra kaynatma kontrol düğmesi otomatik olarak kapanır,
kırmızı ışık söner ve mavi ışık yanar. Şu andan itibaren çay makineniz kaynamış
olan suyun sıcaklığını sıcak tutma konumuna geçerek 92° de sabit tutmaya başlar.
Not: Kaynama kontrol düğmesi su kaynatacağınız zaman açılmalıdır, aksi takdirde
su 100 C sıcaklığa ulaşmaz. Su kaynıyorken kapağı açmayınız. Sıcak buharın
çıkması için birkaç saniye bekleyiniz, aksi takdirde yanabilirsiniz.
ÇAY DEMLEME
Sepetin içine bir miktar çay koyunuz, sepeti demliğin içine yerleştiriniz. Su
kaynadıktan sonra, kaynayan suyu demliğin içine dökünüz. Su ısıtıcısının suyu
yetersiz ise takviye yapıp güç tabanının üzerine yerleştirip ana çalıştırma düğmesini
açıp kaynama kontrol düğmesini “Su kaynatma” konumuna getiriniz.
Loading...
+ 20 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
