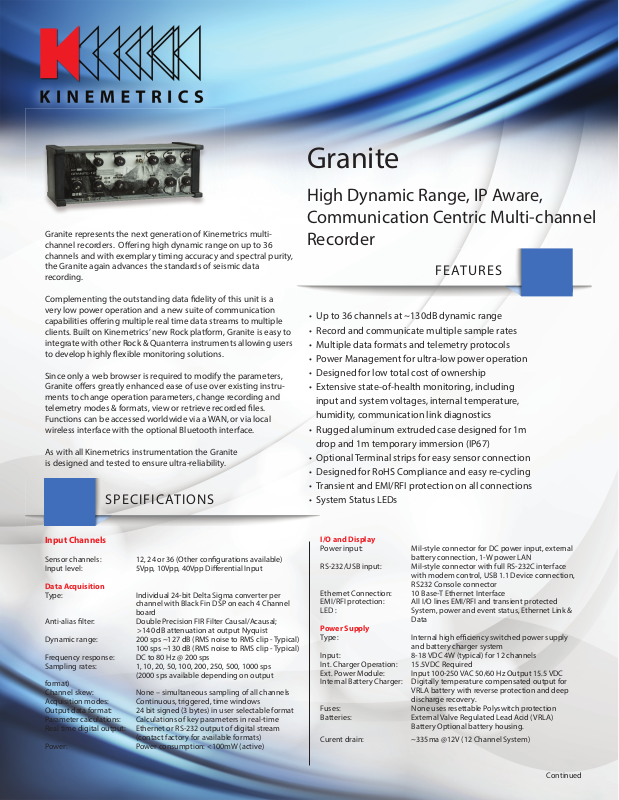

Kinemetrics Granite Datasheet

Granite represents the next generation of Kinemetrics multi­channel recorders. O ering high dynamic range on up to 36
channels and with exemplary timing accuracy and spectral purity,
the Granite again advances the standards of seismic data
recording.

Complementing the outstanding data  delity of this unit is a
very low power operation and a new suite of communication
capabilities o ering multiple real time data streams to multiple
clients. Built on Kinemetrics’ new Rock platform, Granite is easy to
integrate with other Rock & Quanterra instruments allowing users
to develop highly  exible monitoring solutions.

Since only a web browser is required to modify the parameters,
Granite o ers greatly enhanced ease of use over existing instru­ments to change operation parameters, change recording and
telemetry modes & formats, view or retrieve recorded  les.
Functions can be accessed worldwide via a WAN, or via local
wireless interface with the optional Bluetooth interface.

As with all Kinemetrics instrumentation the Granite
is designed and tested to ensure ultra-reliability.

SPECIFICATIONS

Granite

High Dynamic Range, IP Aware,
Communication Centric Multi-channel
Recorder

FEATURES

• Up to 36 channels at ~130dB dynamic range

• Record and communicate multiple sample rates

• Multiple data formats and telemetry protocols

• Power Management for ultra-low power operation

• Designed for low total cost of ownership

• Extensive state-of-health monitoring, including
input and system voltages, internal temperature,
humidity, communication link diagnostics

• Rugged aluminum extruded case designed for 1m
drop and 1m temporary immersion (IP67)

• Optional Terminal strips for easy sensor connection

• Designed for RoHS Compliance and easy re-cycling

• Transient and EMI/RFI protection on all connections

• System Status LEDs

Input Channels

Sensor channels: 12, 24 or 36 (Other con gurations available)
Input level: 5Vpp, 10Vpp, 40Vpp Di erential Input

Data Acquisition

Type: Individual 24-bit Delta Sigma converter per

channel with Black Fin DSP on each 4 Channel

board
Anti-alias  lter: Double Precision FIR Filter Causal/Acausal;
>140 dB attenuation at output Nyquist
Dynamic range: 200 sps ~127 dB (RMS noise to RMS clip - Typical)
100 sps ~130 dB (RMS noise to RMS clip - Typical)
Frequency response: DC to 80 Hz @ 200 sps
Sampling rates: 1, 10, 20, 50, 100, 200, 250, 500, 1000 sps
(2000 sps available depending on output
format)
Channel skew: None – simultaneous sampling of all channels
Acquisition modes: Continuous, triggered, time windows
Output data format: 24 bit signed (3 bytes) in user selectable format
Parameter calculations: Calculations of key parameters in real-time
Real time digital output: Ethernet or RS-232 output of digital stream

(contact factory for available formats)
Power: Power consumption: <100mW (active)

I/O and Display

Power input: Mil-style connector for DC power input, external

battery connection, 1-W power LAN

RS-232/USB input: Mil-style connector with full RS-232C interface

with modem control, USB 1.1 Device connection,

RS232 Console connector
Ethernet Connection: 10 Base-T Ethernet Interface
EMI/RFI protection: All I/O lines EMI/RFI and transient protected
LED : System, power and event status, Ethernet Link &

Data

Power Supply

Type: Internal high e ciency switched power supply

and battery charger system
Input: 8-18 VDC 4W (typical) for 12 channels
Int. Charger Operation: 15.5VDC Required
Ext. Power Module: Input 100-250 VAC 50/60 Hz Output 15.5 VDC
Internal Battery Charger: Digitally temperature compensated output for

VRLA battery with reverse protection and deep

discharge recovery.
Fuses: None uses resettable Polyswitch protection
Batteries: External Valve Regulated Lead Acid (VRLA)

Battery Optional battery housing.

Curent drain: ~335ma @12V (12 Channel System)

Continued

SPECIFICATIONS

Trigger

Type: IIR bandpass  lter (three types available)
Trigger selection: Independently selected for each channel
Threshold trigger: Selectable from 0.01% to 100% of full scale
Trigger voting: Internal, external and network trigger votes with

Additional trigger: STA/LTA, Time Window

Storage

Primary slot: Internal Compact Flash Slot, std 4GB up to 64GB
Secondary slot: Internal SD Card Slot
Storage Module: Additional User Accessible Compact FlashSlot
(Option) Accessible SD Card Slot (Replaces internal slot)
Hard Drive (Additional Option)
Recording capacity: Approximately 42 kB per channel per minute on

Recording format: Main CF Card Linux EXT3
Removable Media FAT

Firmware

Type: Multi-tasking operating system supports

System control: Con gure sample rate,  lter type, trigger type

Supported File Formats: Kinemetrics EVT, MiniSEED, SAC, COSMOS,

User interface: 1 x 10BaseT Ethernet Ports

2 x USB 2.0 Ports (1 OTG/1 Host) (optional in

Bluetooth Interface (optional)
Intelligent alerting: System can be con gured to initiate

Auto-diagnostics: System can be con gured to continuously check

Rapid setup: Unit can be con gured from parameter  le stored

Timing

Type: Oscillator digitally locked to GPS or RockNet
GPS: Integrates completely with system, providing

RockNet: Shared timing for two units over CAT-5 cable
Timing: Accuracy: <1 microseconds of UTC with GPS

arithmetic combination

Memory Card of 24-bit data @ 200 sps.

32 File System

simultaneous acquisition and interrogation; boot
loader allows remote and optionally automatic
 rmware upgrades

and voting, maintains communications and event
storage

MATLAB, SUDS, SEISAN, ASCII

1 x RS232 (2nd Port/Modem Optional)
1 x USB 1.1 Device

Storage Module)

communications when an event is detected or if
an auto-diagnostic failure occurs

system voltages, temperature, humidity, and
timing system integrity

on Compact Flash

timing, internal oscillator correction and position
information, optional power cycling.

Communications

Ethernet interface: Real Time Telemetry (Multiple destinations TCP/IP Protocol),

Parameter set up, and event retrieval (FTP/SFTP)

RS-232 interface: Real Time Telemetry (Multiple destinations TCP/IP Protocol),

Parameter set up, and event retrieval

Modem: Remote access, initiated by user or by the Granite. Optional

Support Software

Altus File Viewer*:Multiplatform program for rapid review of waveforms and event

information.

Antelope: Comprehensive commercial network operational and mgmt

system for medium and large networks

Earthworm: Comprehensive public domain network operational and

management system for medium and large networks

NMS: Commercial PC-based network management system for small to

medium sized networks via modem or real-time data

RockTalk*: Multiplatform program for command and control

Rockhound: Commercial open architecture user-extensible real-time data

collection and processing software that runs on a variety of

computers

PSD: Commercial Pseudo Spectral Density software for earthquake

data analysis

SMA: Commercial Strong Motion Analyst software for earthquake data

analysis and processing

K2COSMOS*: Conversion software from Altus EVT  le format to COSMOS v1.20

format (COSMOS format can also be produced natively from the

Granite)

Miscellaneous: Format converters to ASCII and other formats. Web Server for

command and control, Optional Software Development Kit and

Compilers. Contact Kinemetrics for other options.

*No charge

Environment

Operating temperature: -20° to 70°C Operation
Humidity: 0-100% RH (Non-condensing)

Physical

Size & Weight: Granite 12 ~ 19”(L) x 7.5”(D) x 6.8”(H) 16lbs
Granite 24, 36 ~19”(L) x 7.5”(D) x 13.6”(H) 32lbs
Enclosure Rating: IP67 Equivalent
Environmental: RoHS Compliant Unit

*Speci cations subject to change without notice
