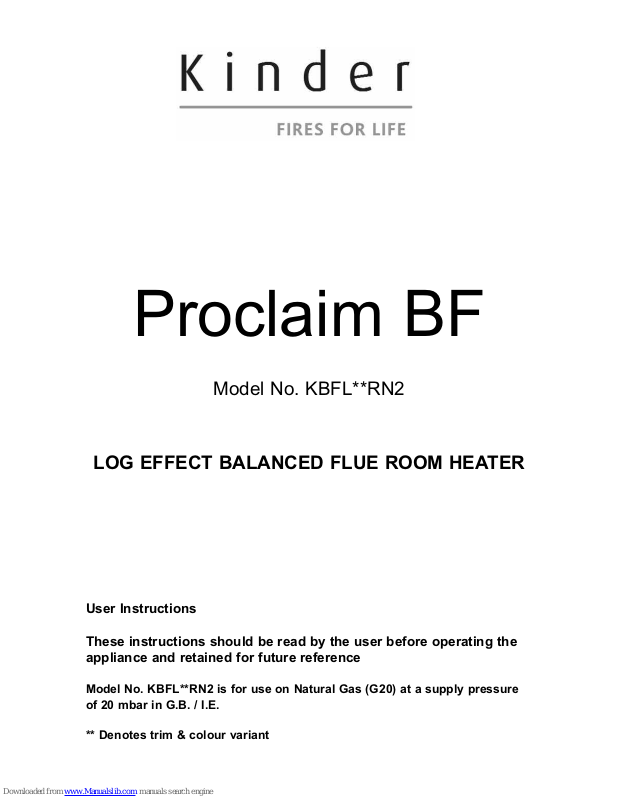

Kinder KBFL**RN2 User Instructions
Proclaim BF
Model No. KBFL**RN2
LOG EFFECT BALANCED FLUE ROOM HEATER
User Instructions
These instructions should be read by the user before operating the
appliance and retained for future reference
Model No. KBFL**RN2 is for use on Natural Gas (G20) at a supply pressure
of 20 mbar in G.B. / I.E.
** Denotes trim & colour variant
INSTALLATION INFORMATION
CONDITIONS OF INSTALLATION
It is the law that all gas appliances are installed only by a competent (e.g. GAS
SAFE Registered) Installer, in accordance with the installation instructions and the
Gas Safety (Installation and Use) Regulations 1998 as amended. Failure to install
appliances correctly could lead to prosecution. It is in your own interest and that
of safety to comply with the law.
The fire may be fitted below a combustible shelf provided that the shelf is at least
200mm above the top of the appliance and the depth of the shelf does not exceed
150mm.
The fire may be installed below combustible shelves, which exceed 150mm deep
providing that the clearance above the fire is increased by 15mm for each 25mm
of additional overhang in excess of 150mm.
If this appliance is fitted directly on to a wall without the use of a fireplace or
surround, soft wall coverings such as wallpaper, blown vinyl etc. could be affected
by the heat and may discolour or scorch. This should be considered when
installing or decorating.
The Model number of this appliance is KBFL**RN2 and it is manufactured by :-
** Denotes trim & colour variant
BFM Europe Ltd.
Trentham Lakes
Stoke-on-Trent
Staffordshire
ST4 4TJ
2
ABOUT YOUR NEW PROCLAIM ROOM HEATER
The Kinder Proclaim fuel effect balanced flue room heater incorporates a unique
and highly developed fuel bed which gives the realism of a loose log layout
combined with realistic flames and glow. The use of durable hard ceramic material
in the construction of the fuelbed components ensures long and trouble free
operation.
When first using the new fire a slight smell may be noticed. This is due to small
deposits of oil on the firebox, but will soon disappear
Please take the time to fully read these instructions as you will then be able to
obtain the most effective and safe operation of your fire.
DO NOT UNDER ANY CIRCUMSTANCES ATTEMPT TO USE THIS APPLIANCE
IF THE GLASS PANEL IS BROKEN OR HAS BEEN REMOVED.
IMPORTANT SAFETY INFORMATION
WARNING : This appliance has a hot surface and as with all heating
appliances a fireguard should be used for the protection of children, the
elderly and infirm. Fireguards should conform to B.S. 8423 : 2002
(Fireguards for use with gas heating appliances).
Servicing should be carried out annually by a competent person such as a
GAS SAFE registered engineer. It is a condition of Kinder Fires lifetime
guarantees schemes that this is carried out by a competent person i.e
a GAS SAFE registered Engineer in accordance with these servicing notes.
As a condition of the guarantee, the pilot assembly must be changed
annually.
The service should include visually checking the appliance, flue terminal and
and inspection of the flue pipe seals, replacing as necessary.
The condition of the ceramic log set should be checked and if necessary the
whole unit should be replaced with a genuine replacement set.
After any servicing work a gas tightness check must always be carried out.
Any debris or deposits should be removed from the log set from time to time. This
may be carried out by referring to the cleaning section as described later in this
book.
Only the fuelbed components as supplied must be used and complete and
genuine replacements must be used.
Always keep furniture and combustible materials well clear of the fire and never
dry clothing or items either on or near to the fire. Never use aerosols or
flammable cleaning products near to the fire when it is in use.
3
The fuel bed remains hot for a considerable period after use and sufficient
time should be allowed for the fire to cool before cleaning etc.
The fire must only be operated with the trim as supplied, in position.
OPERATING THE FIRE
This appliance is designed so the pilot burner runs constantly, and the remote
control handset is used to operate the main burner only. The remote control can
not
be used to light the pilot burner. The pilot burner control and main gas valve
are located behind the trim, to remove the trim, see page 13 for details.
The control valve features two control knobs, the left hand one to light the pilot,
and the right hand one to adjust the heat input to the appliance from high (7.5kW)
to low (3.5kW). Fig. 1 below shows the control valve.
Fig. 1
Lighting the Pilot
To light the pilot, press the knob in and turn it anticlockwise. (It may be necessary to hold the control knob
in for a few seconds to purge air from the pipe). Once gas is available at the pilot, by turning the control
knob further anticlockwise the piezo igniter will cause a spark at the pilot to light the pilot burner. Once the
pilot burner is lit, hold the control knob depressed for approximately 10 seconds to hold the flame supervision device in. Let the control knob go and the pilot should remain lit, if the pilot goes out repeat the lighting sequence. Turn the control knob to the large flame position, this will allow gas to the main burner section of the control valve.
Extinguishing the Pilot
The pilot flame can be extinguished by turning the left hand control knob clockwise to the position marked
This product is designed to have the pilot burner running continuously, therefore giving full operational
control via the remote handset when the pilot burner is running continuously.
Lighting the Main Burner (Manually)
The right hand control knob will be in the off position, denoted by
No gas can enter the main burner until this control knob is turned anticlockwise. When this knob is turned
anti-clockwise, the main burner will light. The heat input can then be adjusted to any level between
maximum heat input (7.5kW) and minimum heat input (3.5kW).
4
Pilot Control Main Burner
Knob Knob
Lighting the Main Burner (via the Remote Handset)
With the pilot burner established it is possible to light the main burner and adjust
the gas rate between high and low with the remote control handset.
Press the “up” button to light the main burner and adjust the heat input
to the maximum setting. (7.5kW heat input). Press the “down” button to reduce
the heat input to the minimum setting (3.5kW heat input). See Fig. 2 below. If you
press and hold the “down” button it will reduce the heat input to the minimum
(3.5kW heat input) setting, if you keep the button depressed it will turn the main
burner off.at this point a clicking noise will be heard from the motor.
Fig. 2
If the remote does not work, first check the LED in the top left hand corner is
illuminating when the button is pressed. If it does not illuminate, change the
battery in the handset.
NOTE :
The remote control does not light the pilot, it only lights
the main burner when the pilot flame is established and regulates
the heat input between high and low. If the remote is lost or
broken, the fire can still be operated manually, see previous page
for details.
IMPORTANT
: IF THE BURNER IS EXTINGUISHED FOR ANY REASON YOU
MUST ENSURE THAT YOU WAIT A FULL FIVE MINUTES BEFORE
ATTEMPTING TO RE-LIGHT THE FIRE.
5
“Up” button to
increase heat input
“Down” button to
decrease heat input
or turn off main
burner
