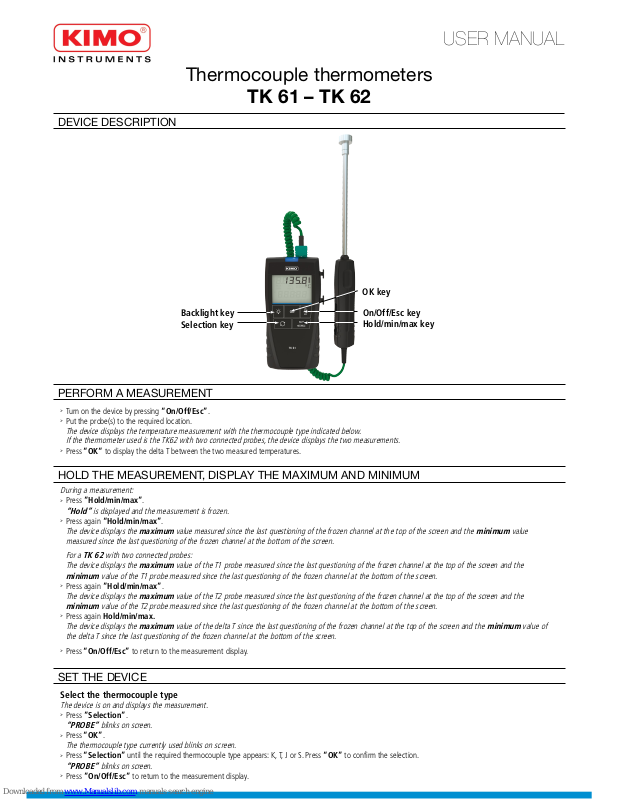

Thermocouple thermometers
TK 61 – TK 62
DEVICE DESCRIPTION
OK key
Hold/min/max key
Selection key
Backlight key On/Off/Esc key
USER MANUAL
➢
Turn on the device by pressing “On/Off/Esc”.
➢
Put the probe(s) to the required location.
The device displays the temperature measurement with the thermocouple type indicated below.
If the thermometer used is the TK62 with two connected probes, the device displays the two measurements.
➢
Press “OK“ to display the delta T between the two measured temperatures.
PERFORM A MEASUREMENT
During a measurement:
➢
Press ”Hold/min/max”.
“Hold” is displayed and the measurement is frozen.
➢
Press again “Hold/min/max”.
The device displays the maximum value measured since the last questioning of the frozen channel at the top of the screen and the minimum value
measured since the last questioning of the frozen channel at the bottom of the screen.
For a TK 62 with two connected probes:
The device displays the maximum value of the T1 probe measured since the last questioning of the frozen channel at the top of the screen and the
minimum value of the T1 probe measured since the last questioning of the frozen channel at the bottom of the screen.
➢
Press again ”Hold/min/max”.
The device displays the maximum value of the T2 probe measured since the last questioning of the frozen channel at the top of the screen and the
minimum value of the T2 probe measured since the last questioning of the frozen channel at the bottom of the screen.
➢
Press again Hold/min/max.
The device displays the maximum value of the delta T since the last questioning of the frozen channel at the top of the screen and the minimum value of
the delta T since the last questioning of the frozen channel at the bottom of the screen.
➢
Press “On/Off/Esc” to return to the measurement display.
HOLD THE MEASUREMENT, DISPLAY THE MAXIMUM AND MINIMUM
SET THE DEVICE
Select the thermocouple type
The device is on and displays the measurement.
➢
Press ”Selection”.
“PROBE” blinks on screen.
➢
Press “OK”.
The thermocouple type currently used blinks on screen.
➢
Press “Selection” until the required thermocouple type appears: K, T, J or S. Press “OK” to confirm the selection.
“PROBE” blinks on screen.
➢
Press ”On/Off/Esc” to return to the measurement display.
NTang – TK61-TK62 – 01/06/17 – RCS (24) Périgueux 349 282 095 Non-contractual document – We reserve the right to modify the characteristics of our products without prior notice.
The device is on.
➢
Press “Backlight” to activate the device backlight.
➢
Press again this key to deactivate the backlight.
ACTIVATE THE BACKLIGHT
➢
Remove the front part at the back of the device.
➢
Change the old batteries by AAA LR03 1.5V batteries.
➢
Replace the front
REPLACE THE BATTERIES
To turn off the device:
➢
Carry out a long press on “On/Off/Esc”.
TURN OFF THE DEVICE
Select the temperature unit
The device is on and displays the measurement.
➢
Press “Selection” until “UNIT” blinks on screen. Press “OK”.
The unit currently used blinks on screen.
➢
Press “Selection” until the required unit appears: °C or °F.
➢
Press “OK” to confirm the unit selection.
“UNIT” blinks on screen.
➢
Press ”On/Off/Esc” to return to the measurement display.
Activate or deactivate the keys beep
The device is on and displays the measurement.
➢
Press “Selection” until “BEEP” blinks on screen. Press “OK”.
“OFF” or “ON” blinks on screen.
➢
Press “Selection” to activate the keys beep “ON” or deactivate it “OFF”.
➢
Press “OK” to confirm the selection.
“BEEP” blinks on screen.
➢
Press ”On/Off/Esc” to return to the measurement display.
Set the auto shut-off
The device is on and displays the measurement.
➢
Press “Selection” until “AUTO OFF” blinks on screen. Press “OK”.
The time before the device auto shut-off blinks at the bottom of the screen.
➢
Press“Selection” until the required time before the device auto shut-off appears: 15, 30, 45, 60, 75, 90, 105, 120 minutes or OFF.
➢
Press “OK” to confirm the selection.
“AUTO OFF” blinks on screen.
➢
Press ”On/Off/Esc” to return to the measurement display.
Set the alarm
This function allows to activate a temperature alarm on channel 1 when the device reaches or exceeds a previously defined threshold. This threshold is between
-200 and +1760°C according to the thermocouple type of the probe.
The device is on and displays the measurement.
➢
Press “Selection” until “AL 1” blinks on screen.
➢
Press “OK”.
The first digit blinks.
➢
Press “Selection” to select the value of the first digit according to the thermocouple type of the probe: -, 0, 1 or OFF.
●
If“Off” is selected, the alarm is deactivated. Press “OK” to confirm, “AL 1” blinks on screen.
●
If -, 0 or 1 is selected, press “OK”. The next digit blinks, press “Selection” to select its value then press “OK” to confirm. Perform the same procedure
to select the value of the following digits (press “On/Off/Esc” to return to the previous digit). Press “OK” when the last digit is set, “AL 1” blinks on
screen.
➢
Press ”On/Off/Esc” to return to the measurement display.
Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to 2002/96/CE guidelines relating to WEEE
SAFETY INSTRUCTIONS
In order to avoid any risk of a voltage on the surface of the element on which we want to perform a temperature
measurement, the thermocouple(s) MUST NOT be under a voltage higher than 30V alternating or 60V direct voltage relating
to earth.
In order to avoid any damage on the device, the voltage between the two thermocouples MUST NOT be higher than 0.5V.
