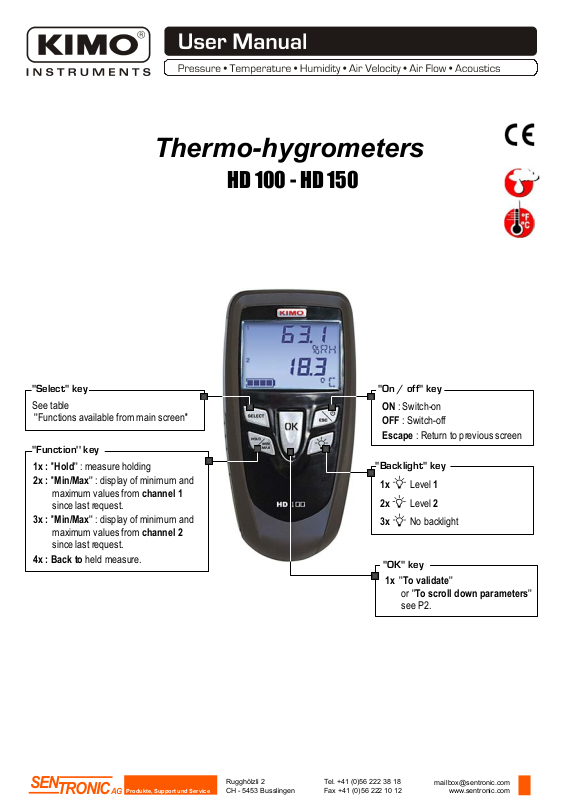

Thermo-hygrometers
HD 100 - HD 150
ON : Switch-on
OFF : Switch-off
Escape : Return to previous screen
''On / off'' key
1x Level 1
2x Level 2
3x No backlight
''Backlight'' key
''OK'' key
1x ''To validate''
or ''To scroll down parameters''
see P2.
''Function'' key
''Select'' key
1x : ''Hold'' : measure holding
2x : ''Min/Max'' : display of minimum and
maximum values from channel 1
since last request.
3x : ''Min/Max'' : display of minimum and
maximum values from channel 2
since last request.
4x : Back to held measure.
See table
''Functions available from main screen''
Rugghölzli 2
CH - 5453 Busslingen
Tel. +41 (0)56 222 38 18
Fax +41 (0)56 222 10 12
mailbox@sentronic.com
www.sentronic.com
Produkte, Support und Service
SEN
TRONIC
AG
NTang – HD100 – HD 150 – 01/08 A – We reserve the rigth to modify the characteristics of our products without notice.
Select
parameters
%RH
°C
Select
temperature
units
1x
°C
°C
td
°C
td
%RH
2x
Beep
3x
Press on to activate or deactivate Validate with key
Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to 2002/96/CE guidelines relating to WEEE.
How to change battery
Functions available from main screen
1. Remove the front part at the back of the instrument
2. Remove old battery
3. Insert the new battery in accordance with proper polarity drew
inside the housing.
4. Replace the front.
Press on key to scroll down units Validate with key
Press on key to scroll down minutes Validate with key
Automatic
shut-off
