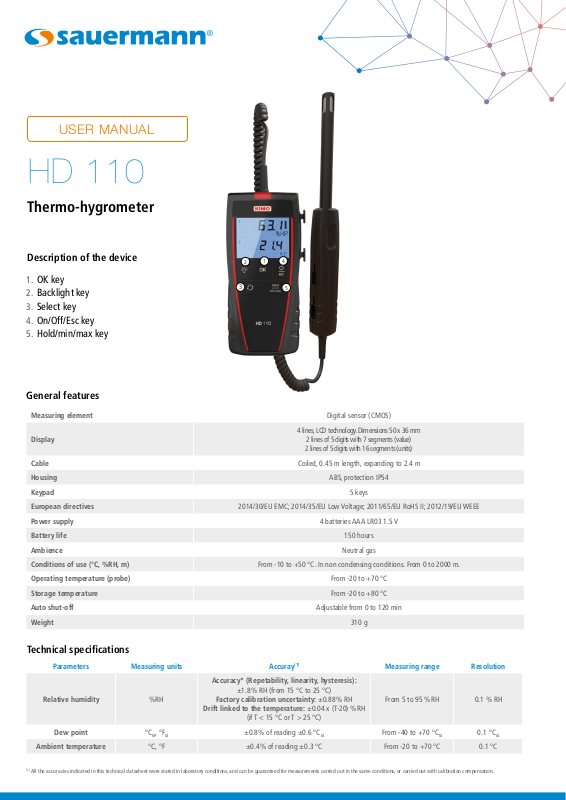

USER MANUAL
HD 110
Thermo-hygrometer
Description of the device
1. OK key
2. Backlight key
2
3
4
1
5
3. Select key
4. On/Off/Esc key
5. Hold/min/max key
General features
Measuring element Digital sensor (CMOS)
Display
Cable Coiled, 0.45 m length, expanding to 2.4 m
Housing ABS, protection IP54
Keypad 5 keys
European directives 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE
Power supply 4 batteries AAA LR03 1.5 V
Battery life 150 hours
Ambience Neutral gas
Conditions of use (°C, %RH, m) From -10 to +50 °C. In non condensing conditions. From 0 to 2000 m.
Operating temperature (probe) From -20 to +70 °C
Storage temperature From -20 to +80 °C
Auto shut-off Adjustable from 0 to 120 min
Weight 310 g
4 lines, LCD technology. Dimensions 50 x 36 mm
2 lines of 5 digits with 7 segments (value)
2 lines of 5 digits with 16 segments (units)
Technical specications
Parameters Measuring units Accuray
Accuracy* (Repetability, linearity, hysteresis):
Relative humidity %RH
Dew point °C
Ambient temperature °C, °F ±0.4% of reading ±0.3 °C From -20 to +70 °C 0.1 °C
(1)
All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.
, °F
td
td
Drift linked to the temperature: ±0.04 x (T-20) %RH
±1.8% RH (from 15 °C to 25 °C)
Factory calibration uncertainty: ±0.88% RH
(if T < 15 °C or T > 25 °C)
±0.8% of reading ±0.6 °C
(1)
td
Measuring range Resolution
From 5 to 95 %RH 0.1% RH
From -40 to +70 °C
td
0.1 °C
td
Page 2
Perform a measurement
• Turn on the device by pressing on “On/Off/Esc”.
The device displays its name “HD110” then the measured values.
• Put the probe to the required location.
The device displays the temperature and hygrometry measurements.
• Press “OK”.
The device displays the dew point measurement with the temperature measurement.
• Press again on “OK”.
• The device displays the dew point measurement with the hygrometry measurement.
Freeze the measurement
During the measurement:
• Press “Hold/min/max” to freeze the measurement.
“Hold” displays on screen and the measurements are frozen.
• Press “On/Off/Esc” to exit the hold function.
The device returns to the measurements display.
Display the minimum and the maximum
Once the measurement is frozen:
• Press “Hold/min/max”.
• The device displays the maximum value of hygrometry measured since the last questioning at the top of the screen and
the minimum value of hygrometry measured since the last questioning at the bottom of the screen.
• Press “Hold/min/max”.
• The device displays the maximum value of temperature measured since the last questioning at the top of the screen and
the minimum value measured since the last questioning at the bottom of the screen.
• Press again “Hold/min/max”.
• The device displays the maximum value of dew point measured since the last questioning at the top of the screen and
the minimum value of dew point measured since the last questioning at the bottom of the screen.
• Press “On/Off/Esc” to return to the measurements display.
Adjust the device
Device drop-down menu
Select the measuring unit
• Press “Select”.
“UNIT” blinks on screen.
• Press “OK”, the measuring unit currently used blinks at the bottom of the screen.
• Press “Select” to select the required measuring unit: °C or °F.
• Press“OK” to validate.
“UNIT” blinks on screen.
• Press “On/Off/Esc” to return to the measurement.
Page 3
Adjust the auto shut-off
The device is on and displays the measurements.
• Press “Select” until “AUTO OFF” blinks on screen.
• Press “OK”.
The time before auto shut-off blinks on screen.
• Press “Select” to select the time before device auto shut-off: 15, 30, 45, 60, 75, 90, 105, 120 minutes or OFF.
• Press “OK” to validate.
• Press “On/Off/Esc” to return to the measurement.
Activate or deactivate the keys beep
• The device is on and displays the measurements.
• Press “Select” until “BEEP” blinks on screen.
• Press “OK”.
“OFF” or “ON” blinks on screen.
• Press “Select” to activate the keys beep “ON” or deactivate the keys beep “OFF”.
• Press “OK” to validate.
• Press “On/Off/Esc” to return to the measurement.
Activate the backlight
• Press on “Backlight” to activate the device backlight.
• To deactivate the backlight press again on “Backlight”.
Change the batteries
• Remove the front part at the back of the device.
• Change the old batteries by AAA LR03 1.5 V batteries.
• Replace the front part.
Page 4
