Configuration of class 210-R transmitters
by keypad
USER MANUAL
Table of contents
1. INTRODUCTION........................................................................................................................................................... 5
1.1. Description of the transmitter................................................................................................................................ 5
1.2. Description of the keys.......................................................................................................................................... 5
1.3. Selection of the output signal............................................................................................................................... 6
1.4. Protection tip of the sensors................................................................................................................................. 6
2. WARNING.................................................................................................................................................................... 7
2.1. Wiring.................................................................................................................................................................. 7
2.2. Probes................................................................................................................................................................. 7
3. ACCESS TO THE DIFFERENT FUNCTIONS........................................................................................................................8
4. F 100: CONFIGURE THE TRANSMITTER.........................................................................................................................9
4.1. Access to the firmware version..............................................................................................................................9
4.2. Configure the screen............................................................................................................................................ 9
4.2.1 Set the contrast: F 110...................................................................................................................................9
4.2.2 Set the backlight duration: F 111...................................................................................................................9
4.2.3 Set the backlight........................................................................................................................................... 9
4.3. Lock the keypad: F 140.......................................................................................................................................10
5. F 200: CHANNELS AND MEASUREMENT UNITS CONFIGURATION...............................................................................11
6. F 300: ANALOGUE OUTPUTS MANAGEMENT..............................................................................................................12
6.1. Outputs diagnostic.............................................................................................................................................12
6.1.1 Connection configuration.............................................................................................................................12
6.1.2 Perform the outputs diagnostic.................................................................................................................... 12
6.2. Set the range of the analogue outputs................................................................................................................ 13
6.3. Set the purge time (CP210-R)............................................................................................................................. 14
7. F 400: MANAGE THE RELAYS...................................................................................................................................... 16
8. F 500: MEASUREMENT SETTINGS............................................................................................................................... 18
8.1. Auto-zero (CP210-R).......................................................................................................................................... 18
8.2. Pressure measurement integration (CP210-R)...................................................................................................... 18
8.3. Time-delay between two auto-zeros (CP211-R and CP212-R)...............................................................................18
8.4. Air velocity measurement integration (CTV210-R)................................................................................................19
8.5. Add an offset...................................................................................................................................................... 19
9. F 600: COMPENSATION, MEANS OF MEASUREMENT AND SECTION SETTINGS............................................................21
9.1. Temperature compensation (CP210-R).................................................................................................................21
9.1.1 Set the unit................................................................................................................................................. 21
9.1.2 Set the temperature compensation value temperature...................................................................................21
9.2. Altitude compensation (COT212-R, CP210-R and CTV210-R)...............................................................................21
9.3. Selection of the means of measurement.............................................................................................................. 22
9.3.1 Select the means of measurement (CP210-R)...............................................................................................22
9.3.2 Set the coefficient value of the differential pressure element (CP210-R).........................................................22
9.3.3 Set the correction factor value of the air velocity (CP210-R and CTV210-R)...................................................22
9.4. Setting of the type of section and airflow coefficient (CP210-R, CTV210-R)..........................................................23
9.4.1 Select the type of section.............................................................................................................................23
9.4.2 Select the unit if the section.........................................................................................................................23
9.4.3 Set the size of the section............................................................................................................................ 23
9.4.4 Set the airflow coefficient (CP210-R)............................................................................................................ 24
10. FUNCTIONS RECAP.................................................................................................................................................. 25
10.1. F 100............................................................................................................................................................... 25
10.2. F 200............................................................................................................................................................... 25
10.3. F 300............................................................................................................................................................... 26
10.4. F 400............................................................................................................................................................... 26
10.5. F 500............................................................................................................................................................... 27
10.6. F 600............................................................................................................................................................... 27
1. INTRODUCTION
1.1. Description of the transmitter

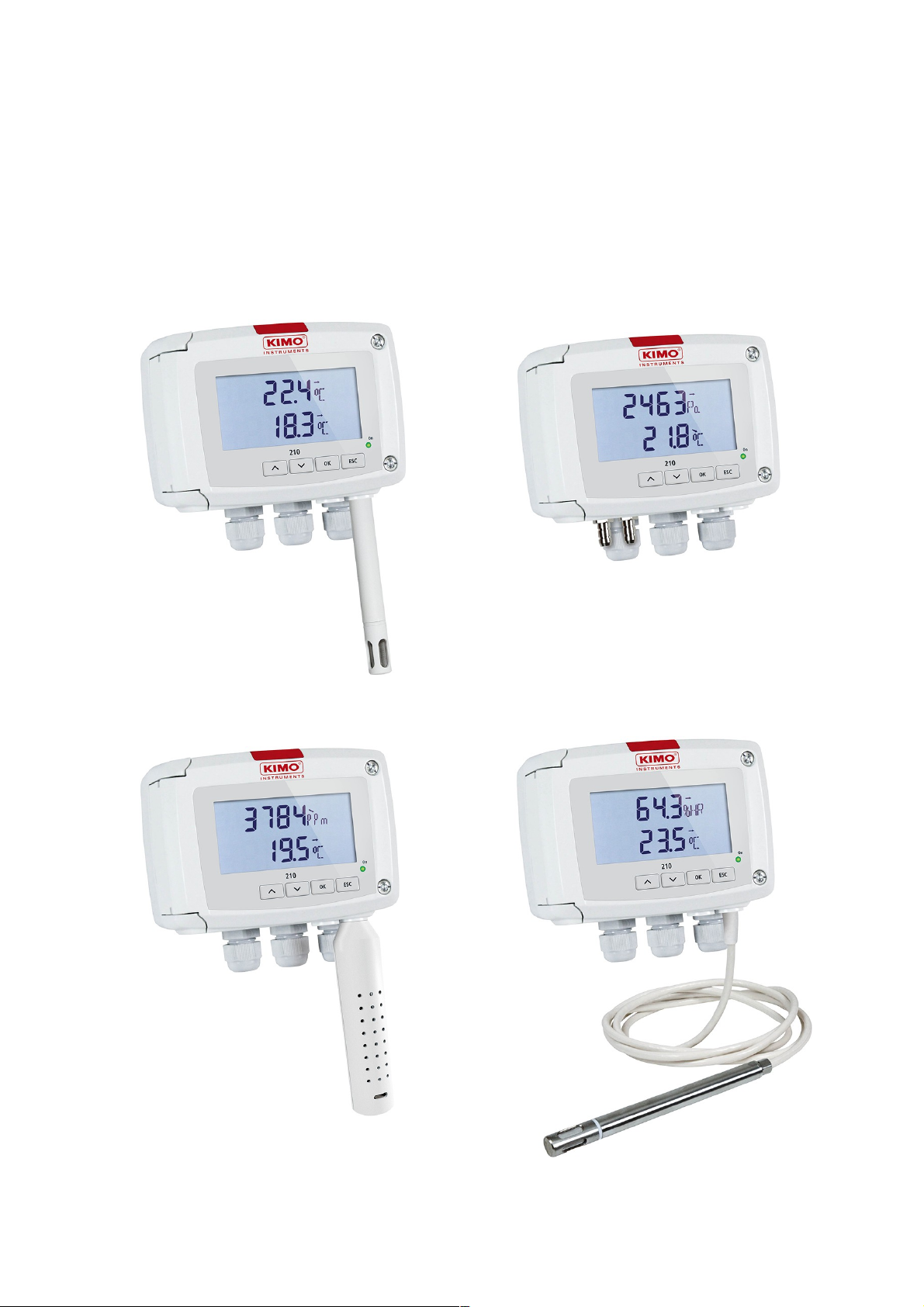

Class 210-R transmitters with display can be configured via keypad. It is possible to set measurement units, activate or not
a channel, etc.
Principle: the configuration options are accessed via folders and sub-folders. Access is made via a numerical code
(full details in this manual).
Trend indicator: on the screen, a trend indicator represented by a rising arrow, a going down arrow or a stable arrow is
displayed above the measurement unit. It means the calculation of a moving average on the last hour (M1) to compare
with a moving average on the last 5 minutes (M2):
• If M1 = M2, the trend is stable.
• If M1 < M2, the trend is upwards.
• If M1 > M2, the trend is downwards.
Indicator light: the indicator light blinks quickly during the initialisation phase of the transmitter then becomes fixed
when this phase has been completed.
For the pressure transmitters with solenoid valve (CP211-R and CP212-R), it blinks when the solenoid valve is activated.
1.2. Description of the keys
– Up key: increments a value or a level
– Down key: decrements a value or a level
– OK key: validates an input
– Esc key: cancels an input or backs to the previous step
INTRODUCTION
5
10 pa
Up key
Down key
OK key Esc key
Indicator light
1.3. Selection of the output signal
The selection of the output signal in voltage (0-10 V or 0-5 V) or in current (4-20 mA or 0-20 mA) must be performed with
the transmitter NOT ENERGISED and is made with the DIP switch of the electronic board putting the on-off switches as
shown on the table below:
Configuration 4-20 mA 0-10 V 0-5 V 0-20 mA
Combinations
1.4. Protection tip of the sensors
It's extremely unwise to remove the protection tip of our hygrometry probes as the sensitive
element is very fragile even to light contacts. However, if you have to remove the protection tip,
take all possible precautions and AVOID ANY CONTACT with the sensitive element.
To remove the protection tip, unscrew it or unclip it.
6
INTRODUCTION
2341
2341
2 3 41
2341
Protection tip
to unscrew
Protection tip
to unscrew
Sensitive
element
Sensitive
element
2. WARNING
2.1. Wiring
In order to avoid cross-wiring:
• 1: this cable-gland must be reserved to relays
• 2: this cable-gland must be reserved to analogue outputs
• 3: this cable-gland must be reserved to power supply
To consider cable-glands as fixation points, the cable diameter range to place in the cable gland
must be between 4 and 8 mm.
The power supply wiring must be performed with crimping copper connections or a tinning in case
of multi-wire cable.
➢ After performing the wiring, tight the cable-glands.
For details about the different wiring possibilities, please see the data sheet of the concerned sensor.
2.2. Probes
To avoid any device damage, probes must not be subject to voltage above 30 Vac or 60 Vdc with
respect to the ground.
WARNING
7
1 32
3. ACCESS TO THE DIFFERENT FUNCTIONS
This step is compulsory for each configuration.
First, to access to the transmitter functions, and for safety, a safety code must be entered. This safety code is 0101 and can
not be modified.
The transmitter must be energised.
➢ Connect the transmitter.
➢ Wait for the initialisation phase.
➢ Press OK.
The screen displays “Code” with “0000”. The first 0 blinks.
➢ Press OK to go to the second 0.
It blinks.
➢ Press Up key to display 1 then press OK.
The third 0 blinks.
➢ Press OK to go to the fourth 0.
➢ Press Up key to display 1 then press OK.
The following screen is displayed:
“F 100” is for the number of the configuration folder. There are 6 folders:
• F 100: folder of the transmitter configuration. See page 9
• F 200: folder of the channels and units of measurement. See page 11
• F 300: folder of the analogue outputs. See page 12
• F 400: folder of the relays configuration. See page 16
• F 500: folder of the measurement configuration. See page 18
• F 600: folder of the measurement configuration specific to the COT212-R, CP210-R and CTV210-R transmitters.
See page 21
To select the required folder:
“F 100” is displayed and 1 is blinking.
➢ Press Up key until the number of the required folder is display (“F 100”, “F 200”, “F 300”, “F 400”, “F 500”
or “F 600” according to the type of transmitter).
➢ Press OK.
If a wrong code is entered, “CODE” blinks a few seconds on the bottom right of the screen then
the measured values are displayed. It is necessary to enter the right code.
8
ACCESS TO THE DIFFERENT FUNCTIONS
F 100
Code
0101
4. F 100: CONFIGURE THE TRANSMITTER
This folder allows to configure the following parameters of the transmitter: contrast, backlight and keypad locking.
It also indicates the firmware version of the transmitter.
4.1. Access to the firmware version
The activation code is validated and “F 100” is displayed (see previous page).
➢ Press OK.
“F 101” is displayed with the firmware version number above. (Ex: 1.04)
4.2. Configure the screen
4.2.1 Set the contrast: F 110
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
“F 100” folder is displayed.
➢ Press OK.
➢ Press Up key to go the “F 110” folder.
“F 110” is displayed with the number corresponding to the contrast level between 0 and 5.
➢ Press OK.
The contrast number blinks.
➢ Set it between 0 and 5 pressing Up and Down keys.
When pressing Up or Down key to change the contrast level, there is a lag time of 1 second where
the digits disappear then they reappear with the new contrast.
➢ Press OK.
4.2.2 Set the backlight duration: F 111
It is possible to set the backlight duration:
• 0: backlight is inactive
• 1: backlight lasts 10 s.
• 2: backlight lasts 30 s.
• 3: backlight lasts 60 s.
• 4: backlight is permanent.
Backlight is activated pressing any key (unless the level 0 is selected).
“
F 110” sub-folder is displayed.
➢ Press Up key.
“F 111” is displayed with the number corresponding to the backlight duration between 0 and 4.
➢ Press OK.
The backlight duration blinks.
➢ Set it between 0 and 4 pressing Up and Down keys.
➢ Press OK.
4.2.3 Set the backlight
“
F 111” sub-folder is displayed.
➢ Press Up key.
“F 112” is displayed with the number corresponding to the backlight level between 0 and 10.
F 100: CONFIGURE THE TRANSMITTER
9
➢ Press OK.
The backlight level blinks.
➢ Set it between 0 and 10 pressing Up and Down keys.
➢ Press OK.
4.3. Lock the keypad: F 140
For more safety and avoid any unwanted manipulation, it is possible to lock the keys of the transmitter.
“F 112” sub-folder is displayed.
➢ Press Up key.
“F 140” is displayed with “OFF” meaning that the locking is deactivated.
➢ Press OK.
“OFF” blinks.
➢ Press Up or Down key, “ON” blinks, then press OK.
“LOCK” is displayed for a few seconds then the transmitter displays the measured values.
All the keys are inactive.
To reactivate them:
➢ Press for 10 seconds on OK key.
“LOCK” blinks for a few seconds then the measured values are displayed and the keys are activated.
10
F 100: CONFIGURE THE TRANSMITTER
5. F 200: CHANNELS AND MEASUREMENT UNITS CONFIGURATION
This folder allows to activate the channels and to configure the measurement unit for each channel.
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to the folder “F 200”.
➢ Press OK.
“00” blinks and the unit corresponding to the channel 1 is displayed.
➢ Press OK.
The unit blinks.
➢ Press Up and Down keys to select the required unit according to the type of transmitter.
Or when “00” blinks:
➢ Press Up or Down key to select the sub-folder “F 210” corresponding to the channel 2.
➢ Press Up and Down keys to select the required unit according to the type of transmitter.
“---” sign allows to deactivate the channel.
Units available according to the channel and the type of transmitter:
CP211-212-213-R: Pa, mmH2O, inWG, mbar, mmHg, daPa, kPa, hPa, m/s*, fpm*, m3/h*, l/s*, cfm*, m3/s*, dam3/h*, °C, °F
CTV210-R: m/s, fpm, km/h, m3/h, l/s, cfm, m3/s, dam3/h, °C, °F
COT212-R: ppm, °C, °F
TM210-R: °C, °F, dT,%RH, g/kg, kJ/kg, °C Td, °F Td, °C Tw, °F Tw, g/m³
TH210-R: %RH, g/kg, kJ/kg, °C Td, °F Td, °C Tw, °F Tw, °C, °F, g/m³
*: units regarding the air velocity and airflow calculation, available on CP211-212-213-R transmitters with SQR3 option only.
F 200: CHANNELS AND MEASUREMENT UNITS CONFIGURATION
11
6. F 300: ANALOGUE OUTPUTS MANAGEMENT
6.1. Outputs diagnostic
This function allows to check on a measurement device (multimeter, regulator or automate) the proper functioning of the
outputs. The transmitter will generate a voltage (between 0 and 10 V) or a current (between 0 and 20 mA) according to the
setting of the DIP switch of the transmitter electronic board.
• For a 0-10 V output signal, the transmitter will generate 0 – 5 or 10 V.
• For a 0-5 V output signal, the transmitter will generate 0 – 2.5 or 5 V.
• For a 4-20 mA output signal, the transmitter will generate 4 – 12 or 20 mA.
• For a 0-20 mA output signal, the transmitter will generate 0 – 10 or 20 mA.
6.1.1 Connection configuration
Before carrying out the output diagnostics, all connections and configurations of the transmitter
must be enabled, to avoid any damage on the transmitter and the measurement device!
➢ Select a channel for the outputs diagnostic.
OUT1 or OUT2, indicated on the electronic board above the terminal blocks.
➢ Connect a measurement device on the channel 1 or on the channel 2.
6.1.2 Perform the outputs diagnostic
Once the connection to the measurement device is complete, the outputs diagnostic on several check points can be
performed:
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to the “F 300” folder.
➢ Press OK.
“F 301” blinks, corresponding to the diagnostic of the channel 1.
➢ Press OK.
➢ Press Up and Down keys to select the signal that the transmitter has to generate.
12
F 300: ANALOGUE OUTPUTS MANAGEMENT
Screen Generated output Example
0 Deactivated -
1 Simulates 0% of the output range On the 0-10V range, the transmitter will generate 0V.
2 Simulates 50% of the output range On the 0-10V range, the transmitter will generate 5V.
3 Simulates 100% of the output range On the 0-10V range, the transmitter will generate 10V.
If the deviations are too large (> 0.05V or > 0.05mA) between the signal issued and the value
displayed on the multimeter, we recommend to return the transmitter to our factory.
➢ For the diagnostic of the channel 2, go to “F 311” folder and do the same procedure as the channel 1.
6.2. Set the range of the analogue outputs
This function allows to modify the range of the analogue outputs.
Values to enter depend on the measurement unit and not on the measurement range of the
transmitter.
Ex: on a CP211-R pressure transmitter (0 to ±1000 Pa) with a reading in mmH2O, the minimum and maximum ranges must
be configured on measuring range of 0 to ±102 mmH2O. See conversion chart on page 15.
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to folder “F 302” corresponding to the low range of the channel 1.
➢ Press OK.
The first digit of the low range blinks.
➢ Enter with Up and Down keys the figure value or the negative sign of the value then press OK.
The second digit blinks.
➢ Enter with Up and Down keys its value then press OK.
➢ Perform the same procedure for the following figures.
➢ Press OK when the last figure has been configured.
“F 302” blinks, the low range is configured.
➢ Press Up key then press OK to enter in the folder “F 303” corresponding to the high range of the channel 1.
The first digit of the high range blinks.
➢ Enter with Up and Down keys the figure value or the negative sign of the value then press OK.
The second digit blinks.
➢ Enter with Up and Down keys its value then press OK.
➢ Perform the same procedure for the following figures.
➢ Press OK when the last figure has been configured.
“F 303” blinks, the high range is configured.
To set the low and high ranges of the channel 2, go to the folders “F 312” (low range) and “F 313”
(high range) and follow the setting procedure of the channel 1.
F 300: ANALOGUE OUTPUTS MANAGEMENT
13
6.3. Set the purge time (CP210-R)
The purge mode enables to freeze the measurement when being displayed, enables to lock the analogue outputs, and to
activate the relay 1, in order to actuate a de-dust system of an air movement conditions system and to activate the relay 2
in order to isolate the transmitter.
Here is the detailed process of the purge mode:
1. Measurement is frozen.
2. Wait for 3 seconds.
3. Activation of the relay 2 (isolation of the transmitter).
4. Wait for time-delay (for example: 10 seconds).
5. Activation of the relay 1 (sending compressed air into the network to clean the installation).
6. Purge duration (for example: 30 seconds).
7. Deactivation of the relay 1 (stop sending compressed air).
8. Wait for time-delay (for example: 10 seconds).
9. Deactivation of the relay 2.
10. Wait for 3 seconds.
11. Recovery of the measurement.
The transmitter is powered on.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to the “F 300” folder.
➢ Press OK.
➢ Press Up key to go to the “F 390” folder corresponding to the purge mode setting.
➢ Press OK.
➢ With the Up and Down keys, select ON to activate the purge mode or OFF to deactivate it.
➢ Press OK.
➢ Press Up key to go to the “F 391” folder corresponding to the purge duration setting.
➢ Press OK.
➢ With the Up and Down keys, set the purge duration from 1 to 60 seconds.
14
F 300: ANALOGUE OUTPUTS MANAGEMENT
➢ Press OK.
➢ Press Up key to go to the “F 392” folder corresponding to the duration between two purges.
➢ Press OK.
➢ With Up and Down keys, set the duration between two purges from 1 to 9999 minutes.
➢ Press OK.
➢ Press the Up key to go to the “F 393” folder corresponding to the delay setting.
➢ Press OK.
➢ With Up and Down keys, set the delay from 1 to 60 seconds.
➢ Press OK.
The purge duration must be between 1 and 60 seconds.
The duration between 2 purges must be between 1 and 9999 minutes.
The delay duration must be between 1 and 60 seconds.
Unit of measurement conversion chart
• Pressure
Pa mmH2O InWG mbar mmHG kPa PSI daPa hPa
CP211-R
±100 ±10.2 ±0.40 ±1.00 ±0.75 ±0.100 - ±10.0 ±1.00
CP212-R
±1000 ±102.0 ±4.01 ±10.00 ±7.50 ±1.000 - ±100.0 ±10.00
CP213-R
±10 000 ±1019.7 ±40.14 ±100.00 ±75.00 ±10.000 - ±1000.0 ±100.00
• Temperature
TH210-R °C °F
Ambient model From 0.0 to +50.0 From +32.0 to +122.0
Model with polycarbonate probe From -20.0 to +80.0 From -4.0 to +176.0
Model with stainless steel probe From -40.0 to +180.0 From -40.0 to +356.0
TM210-R °C °F
Ambient model From 0.0 to +50.0 From +32.0 to +122.0
Terminal block model From -100.0 to +400.0 From -148.0 to +752.0
CTV210-R / COT212-R °C °F
Ambient model From 0.0 to +50.0 From +32.0 to +122.0
CP210-R °C °F
On terminal block From -100.0 to +400.0 From -148.0 to +752.0
• Air velocity
CTV210-R m/s fpm km/h
Standard From 0 to 30 From 0 to 5905 From 0 to 108
F 300: ANALOGUE OUTPUTS MANAGEMENT
15
7. F 400: MANAGE THE RELAYS
When the transmitter is still in alarm state, the relay goes off and activates its negative or positive security according to its
configuration.
Three relays activation modes are available:
• Rising edge (1 threshold): the relay goes off when the measurement exceeds the threshold and stops when it
is below the threshold.
• Falling edge (1 threshold): the relay goes off when the measurement is below the threshold and stops when it
exceeds the threshold.
• Monitoring (2 thresholds): the relay goes off when the measurement is outside the defined low and high
thresholds.
It is possible to set 2 different relays activation:
• “F 400” folder corresponds to the relay 1 setting
• “F 410” folder corresponds to the relay 2 setting
The relay setting procedure explained below corresponds to the relay 1 setting. For the relay 2 setting, go to the
corresponding folder and perform the same procedure as for the relay 1.
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press the Up key to go to the “F 400” folder.
➢ Press OK.
This folder corresponds to the activation relay mode.
➢ With Up and Down keys, select the required relay activation mode:
16
F 400: MANAGE THE RELAYS
Rising edge
Falling edge
Measurement (m) > Threshold (S) during the time-delay
T1 Relay activation→
Measurement (m) < Threshold (S) - Hysteresis (H)
during the time-delay T2 Relay deactivation→
Measurement (m) < Threshold (S) during time-delay
T1 Relay activation.→
Measurement (m) > Threshold (S) + Hysteresis (H)
during time-delay T2 Relay deactivation→
Monitoring
The relay goes off when the measurement is outside the low and
high thresholds.
• 0/3: relay is deactivated
• 1/3: rising edge mode
• 2/3: falling edge mode
• 3/3: monitoring mode
➢ Press OK.
“F 400” blinks.
➢ Press Up key to go to the “F 401” folder of relay 1 (“F 411” for relay 2) then press OK.
➢ With Up and Down keys, select the channel where the relay will be activated.
➢ Press OK.
“F 401” blinks.
➢ Press Up key to go to the “F 402” folder (“F 412” for relay 2) then press OK.
This folder corresponds to the threshold 1 settings.
➢ Set the threshold 1 with the Up and Down keys.
➢ Press OK when the last digit has been set.
“F 402” blinks.
➢ Press Up key to go to the “F 403” folder (“F 413” for relay 2) then press OK.
This folder concerns:
• For a rising or falling edge: hysteresis setting
• For a monitoring: threshold 2 setting
➢ Set the hysteresis or threshold 2 with the Up and Down keys.
➢ Press OK when the last digit has been set.
“F 403” blinks.
➢ Press Up key to go to the “F 404” folder (“F 414” for relay 2) then press OK.
This folder corresponds to the delay 1 setting.
➢ Set the delay 1 with the Up and Down keys.
➢ Press OK when the last digit has been set.
“F 404” blinks.
➢ Press the Up key to go to the “F 405” folder (“F 415” for relay 2) then press OK.
This folder corresponds to the delay 2 setting.
➢ Set the delay 2 with Up and Down keys.
➢ Press OK when the last digit has been set.
“F 405” blinks.
➢ Press Up key to go to the “F 406” folder (“F 416” for relay 2) then press OK.
This folder corresponds to the relay safety. The relay outputs are by default, in negative security: the relay is
energized when a set point is reached. With the keypad, you can swap the relays in positive security: then, the
relay is de-energised when a set point is reached or during a power outage.
➢ Activate or deactivate the safety relay with Up and Down keys.
• 1: positive safety
• 0: negative safety
➢ Press OK to confirm.
F 400: MANAGE THE RELAYS
17
8. F 500: MEASUREMENT SETTINGS
In order to compensate a potential drift of the transmitter, it is possible to add an offset to value displayed by the
transmitter.
Adding an offset is only possible for the measured parameters (temperature, humidity, pressure, air velocity, ...). It is not
possible to add one for the calculated parameters (airflow, psychrometry,...).
8.1. Auto-zero (CP210-R)
Class 210 pressure transmitters have an auto-zero which guarantees a good reliability of the measurement in high and low
ranges.
The auto-zero compensates for any long-term drifts of the sensitive element, with the manual adjusting of the zero.
To perform a self-calibration:
➢ Unplug the 2 pressure connection tubes.
➢ Press auto-zero button. (See “Connection” on the data sheet).
If the instrument has a display, it is possible to perform an auto-zero pressing for 3 seconds the
“Esc” key. “AutoZ” is displayed briefly meaning the auto-zero has been well performed.
On the CP211-R and CP212-R transmitters, it is not necessary to unplug the 2 pressure connection
tubes (see chapter 8.3).
8.2. Pressure measurement integration (CP210-R)
This function is available on CP210-R transmitters only.
The pressure measurement element is very sensitive and reacts to pressure changes. When making measurements in
unstable air movement conditions, the pressure measurement may fluctuate. The integration coefficient (from 0 to 9) makes
an average of the measurements; this helps to avoid any excessive variations and guarantees a stable measurement.
New displayed value = [((10 - Coef.) x New value) + (Coef. x Old value)] /10
Example: CP212-R (0-1000 Pa) – Current measurement: 120 Pa – New measurement: 125 Pa
The pressure source being stable, the user selects a low integration. Integration: 1, maximum admitted variation ±10 Pa.
The variation is lower than 10 Pa, it is possible to apply the integration calculation formula.
Next displayed value: ((9 * 125) + (1 * 120))/10 = 124.5 i.e, 124 Pa. If the new measurement had been 131 Pa, the
next displayed value would have been 100% of the new value i.e, 131 Pa.
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to folder “F 500”.
➢ Press OK.
➢ Set the integration value with Up and Down keys.
This value must be between 0 and 9 with:
• Coefficient 0: no integration, important fluctuation of the displayed value.
• Coefficient 9: maximum integration, more stable measurement display.
8.3. Time-delay between two auto-zeros (CP211-R and CP212-R)
On transmitters having a solenoid valve for auto-zero (CP211-R and CP212-R), it is possible to set an interval between 2
auto-zeros:
The transmitter is powered on.
18
F 500: MEASUREMENT SETTINGS
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to folder “F 500”.
➢ Press OK.
➢ Press Up key to go to folder “F 510”.
➢ Press OK.
The duration between two auto-zeros is displayed.
➢ Set it with Up and Down keys.
This time-delay must be between 0 (no auto-zero) and 60 minutes.
➢ Press OK to validate the duration.
8.4. Air velocity measurement integration (CTV210-R)
This function is available on CTV210-R transmitters only.
The air velocity measurement element of the class 210 is very sensitive and reacts to air velocity changes. When making
measurements in unstable air systems, the air velocity measurement may fluctuate. The integration coefficient (from 0 to 9)
makes an average of the measurement; this helps to avoid any excessive variations and guarantees a stable measurement.
New displayed value = [((10 - Coef.) x New value) + (Coef. x Old value)] /10
Example: CTV210-R with hot wire (0-30 m/s) – Current measurement: 2 m/s – New measurement: 8 m/s
The air velocity source being unstable, the user selects a strong integration. Integration: 7. The variation is lower than
10 m/s, it is possible to apply the integration calculation formula.
Next displayed value: ((2 * 8) + (7 * 2))/10 = 3 m/s.
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to folder “F 501”.
➢ Press OK.
➢ Set the integration value with Up and Down keys.
This value must be between 0 and 9 with:
• Coefficient 0: no integration, important fluctuation of the displayed value.
• Coefficient 9: maximum integration, more stable measurement display.
8.5. Add an offset
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to folder “F 500”.
➢ Press OK.
“F 521” blinks, corresponding to the setting folder for the main parameter.
➢ Press OK.
The first number of the offset blinks.
➢ Enter with Up and Down keys the number value or the negative sign of the value then press OK.
The second number blinks.
➢ Enter with Up and Down keys its value then press OK.
➢ Repeat the procedure for the following numbers.
➢ Press OK when the last number is set.
“F 521” blinks, the offset for the main parameter is configured.
F 500: MEASUREMENT SETTINGS
19
➢ Press Up key then press OK to enter in the “F 531” folder corresponding to the offset of the second parameter.
The first number of the offset blinks.
➢ Enter with Up and Down keys the number value or the negative sign of the value then press OK.
The second number blinks
➢ Enter with Up and Down keys its value then press OK.
➢ Repeat the procedure for the following numbers.
➢ Press OK when the last number is set.
“F 531” blinks, the offset for the main parameter is configured.
The unit of the offset is set by default and can not be modified. If this unit is not the same than
the unit of measurement, a conversion must be done.
20
F 500: MEASUREMENT SETTINGS
9. F 600: COMPENSATION, MEANS OF MEASUREMENT AND SECTION SETTINGS
9.1. Temperature compensation (CP210-R)
It is possible to modify the temperature compensation. Indeed the air velocity and airflow measured with a differential
probe (such as Pitot tube, Debimo blade, orifice plate...) depends on the working temperature. Then, it is required to enter
the working temperature to get more accurate results.
9.1.1 Set the unit
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to “F 600” folder.
➢ Press OK.
➢ Select 0 for °C or 1 for °F then press OK.
9.1.2 Set the temperature compensation value temperature
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to “F 602” folder.
➢ Press OK.
The 1st digit blinks.
➢ Press Up or Down key to set the temperature sign: 0 for a positive temperature or – for a negative
temperature.
➢ Press OK.
The 2nd digit blinks.
➢ Press Up or Down key to set the digit then press OK.
➢ Repeat the procedure for the following digits.
➢ Press OK when the last digit has been set to validate the temperature compensation value.
9.2. Altitude compensation (COT212-R, CP210-R and CTV210-R)
If measurements are performed at a specific altitude, it is advised to set the altitude in which the transmitter is.
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to “F 605” folder.
➢ Press OK.
The 1
st
digit blinks.
➢ Press Up or Down to set the digit: only 1 and 0 are available.
➢ Press OK.
The 2nd digit blinks.
➢ Press Up and Down key to set the digit then press OK.
➢ Repeat the procedure to set the following digits.
➢ Press OK when the last digit has been set to validate the altitude value.
F 600: COMPENSATION, MEANS OF MEASUREMENT AND SECTION SETTINGS
21
9.3. Selection of the means of measurement
The calculation of air velocity being calculated from the pressure (for a CP210-R transmitter) and from a differential
pressure element, the used differential pressure element must be selected to perform the measurements. The coefficient of
this element and the air velocity correction coefficient must be then entered.
9.3.1 Select the means of measurement (CP210-R)
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to “F 610” folder.
➢ Press OK.
➢ Select 0, 1, 2 or 3 for:
➢ 0: Pitot L tube
➢ 1: Pitot S tube
➢ 2: Debimo blade
➢ 3: Factor
9.3.2 Set the coefficient value of the differential pressure element (CP210-R)
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to “F 611” folder.
➢ Press OK.
➢ Set the 1st digit with Up and Down keys then press OK to set the 2nd digit.
➢ Repeat the procedure to set the following digits.
➢ Press OK when the last digit has been set to validate the coefficient.
This coefficient is between 0.0000 and 9.9999.
9.3.3 Set the correction factor value of the air velocity (CP210-R and CTV210-R)
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to “F 612” folder.
➢ Press OK.
➢ Set the 1st digit with Up and Down keys then press OK to set the 2nd digit.
➢ Repeat the procedure to set the following digits.
➢ Press OK when the last digit has been set to validate the factor.
This coefficient is between 0.000 and 2.000
22
F 600: COMPENSATION, MEANS OF MEASUREMENT AND SECTION SETTINGS
9.4. Setting of the type of section and airflow coefficient (CP210-R, CTV210-R)
This function is available for CP210-R transmitters with SQR3 option only.
9.4.1 Select the type of section
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to “F 620” folder.
➢ Press OK.
➢ Select 0, 1, or 2 for:
➢ 0: rectangular section
➢ 1: circular section
➢ 2: coefficient*
9.4.2 Select the unit of the section
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to “F 621” folder.
➢ Press OK.
➢ Select 0 or 1 for:
➢ 0: section in mm
➢ 1: section in inch
9.4.3 Set the size of the section
For a rectangular section:
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to “F 622” folder to set the length of the rectangular section.
➢ Press OK.
➢ Set the length with Up and Down keys.
➢ Press OK when the last digit has been set to validate the length.
➢ Press Up key to go to “F 623” folder to set the width of the rectangular section
➢ Press OK.
➢ Set the width with Up and Down keys.
➢ Press OK when the last digit has been set to validate the width.
For a circular section:
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to “F 624” folder to set the diameter of the circular section.
➢ Press OK.
➢ Set the diameter with Up and Down keys.
➢ Press OK when the last digit has been set to validate the diameter.
F 600: COMPENSATION, MEANS OF MEASUREMENT AND SECTION SETTINGS
23
*CP210-R only.
9.4.4 Set the airflow coefficient (CP210-R)
This function is available on CP210-R with SQR3 option only.
This coefficient allows to calculate an airflow from the pressure. It is indicated by the manufacturer that supplies air vents
with pressure connections (+ and -). From the square root of the measured pressure (Delta P), and this coefficient, you will
get the airflow:
Airflow=C
D
√
Δ pressure
The transmitter is powered on.
➢ Press OK.
➢ Enter the activation code (see page 8).
➢ Press OK.
➢ Press Up key to go to “F 625” folder to set the coefficient value.
➢ Press OK.
➢ Set the coefficient with Up and Down keys.
➢ Press OK when the last digit has been set to validate the coefficient.
This coefficient must be between 0000.0 and 9999.9.
➢ Press Up key to go to “F 626” folder to set the unit of measurement.
➢ Press OK.
➢ Select 0, 1, 2, 3 or 4 for:
➢ 0: Pa
➢ 1: mmH2O
➢ 2: inWG
➢ 3: mbar
➢ 4: mmHG
24
F 600: COMPENSATION, MEANS OF MEASUREMENT AND SECTION SETTINGS
10. FUNCTIONS RECAP
10.1. F 100
Code Description Possibilities
F 101 Firmware version -
F 110 Screen contrast From 0 to 5
F 111 Backlight duration From 0 to 4
F 112 Screen backlight From 0 to 10
F 140 Keypad locking Off
10.2. F 200
Code Description Possibilities
F 200 Change unit channel 1 / deactivation of the channel According to the type of transmitter (see below)
F 210 Change unit channel 2 / deactivation of the channel According to the type of transmitter (see below)
Units available according to the channel and the type of transmitter:
CP211-212-213-R: Pa, mmH2O, inWG, mbar, mmHg, daPa, kPa, hPa, m/s*, fpm*, m3/h*, l/s*, cfm*, m3/s*, dam3/h*, °C, °F
CTV210-R: m/s, fpm, km/h, m3/h, l/s, cfm, m3/s, dam3/h, °C, °F
COT212-R: ppm, °C, °F
TM210-R: °C, °F, dT,%RH, g/kg, kJ/kg, °C Td, °F Td, °C Tw, °F Tw, g/m³
TH210-R: %RH, g/kg, kJ/kg, °C Td, °F Td, °C Tw, °F Tw, °C, °F, g/m³
“---” sign allows to deactivate the channel.
*: units regarding the air velocity and airflow calculation, available on CP211-212-213-R transmitters with SQR3 option only.
FUNCTIONS RECAP
25
10.3. F 300
Code Description Possibilities
F 301 Diagnostic of the channel 1:
generation of current or voltage
Display
Generation according to the output
signal
0-10 V 0-5 V 0-20 mA 4-20 mA
0 no generation
1 0 V 0 V 0 mA 4 mA
2 5 V 2.5 V 10 mA 12 mA
3 10 V 5 V 20 mA 20 mA
F 302 Low range of the channel 1 According to the type of transmitter
F 303 High range of the channel 1 According to the type of transmitter
F 311 Diagnostic of the channel 2:
generation of current or voltage
Display
Generation according to the output
signal
0-10 V 0-5 V 0-20 mA 4-20 mA
0 no generation
1 0 V 0 V 0 mA 4 mA
2 5 V 2.5 V 10 mA 12 mA
3 10 V 5 V 20 mA 20 mA
F 312 Low range of the channel 2 According to the type of transmitter
F 313 High range of the channel 2 According to the type of transmitter
F 390 Purge mode ON: activated
OFF: deactivated
F 391 Purge duration From 1 to 60 seconds
F 392 Duration between two purges From 1 to 9999 minutes
F 393 Delay From 1 to 60 seconds
10.4. F 400
Code Description Possibilities
F 400 Activation mode of relay 1 0: None
1: Rising edge
2: Falling edge
3: Monitoring
F 401 Channel selection relay 1 Channel 1
Channel 2
F 402 Threshold 1 relay 1 setting According to the connected probe
F 403 Threshold 2 or hysteresis relay 1 setting According to the connected probe
F 404 Delay 1 relay 1 setting From 0 to 600 seconds
F 405 Delay 2 relay 1 setting From 0 to 600 seconds
26
FUNCTIONS RECAP
F 406 Safety relay 1 1: Positive safety / 0: Negative safety
F 410 Activation mode for relay 2 0: None
1: Rising edge
2: Falling edge
3: Monitoring
F 411 Channel selection relay 2 Channel 1
Channel 2
F 412 Threshold 1 relay 2 setting According to the connected probe
F 413 Threshold 2 or hysteresis relay 2 setting According to the connected probe
F 414 Delay 1 relay 2 setting From 0 to 600 seconds
F 415 Delay 2 relay 2 setting From 0 to 600 seconds
F 416 Safety relay 2 1: Positive safety
0: Negative safety
10.5. F 500
Code Transmitter Description Possibilities
F 500 CP210-R only Integration of the measurement (pressure) From 0 to 9
F 501 CTV210-R only Integration of the measurement (air
velocity)
From 0 to 9
F 510 CP210-R with
solenoid valve only
Time-delay between two auto-calibrations From 0 to 60 minutes
F 521 All Offset main parameter According to the measurement
range of the transmitter
F 531 All Offset secondary parameter According to the measurement
range of the transmitter
10.6. F 600
Code Transmitter Description Possibilities
F 600 CP210-R Temperature unit 0: °C
1: °F
F 602 CP210-R Temperature compensation
F 605 COT212-R, CP210-R and
CTV210-R
Altitude compensation
F 610 CP210-R Means of measurement 0: Pitot L
1: Pitot S
2: Debimo blade
3: Factor
F 611 CP210-R Differential pressure
coefficient
F 612 CP210-R and CTV210-R Factor of air velocity
correction
FUNCTIONS RECAP
27
F 620 CP210-R and CTV210-R Type of section 0: Rectangular
1: Circular
2: Coefficient*
F 621 CP210-R and CTV210-R Unit of the section 0: mm
1: inch
F 622 CP210-R and CTV210-R Rectangular section length
F 623 CP210-R and CTV210-R Rectangular section width
F 624 CP210-R and CTV210-R Circular section diameter
F 625 CP210-R Airflow coefficient
F 626 CP210-R Unit of measurement 0: Pa
1: mmH2O
2: inWG
3: mbar
4: mmHG
*CP210-R only.
28
FUNCTIONS RECAP
NTang – Transmitters_Class_210-R – 30/10/18 - RCS (24) Périgueux 349 282 095 Non-contractual document – We reserve the right to modify the characteristics of our products without prior notice.
Loading...
