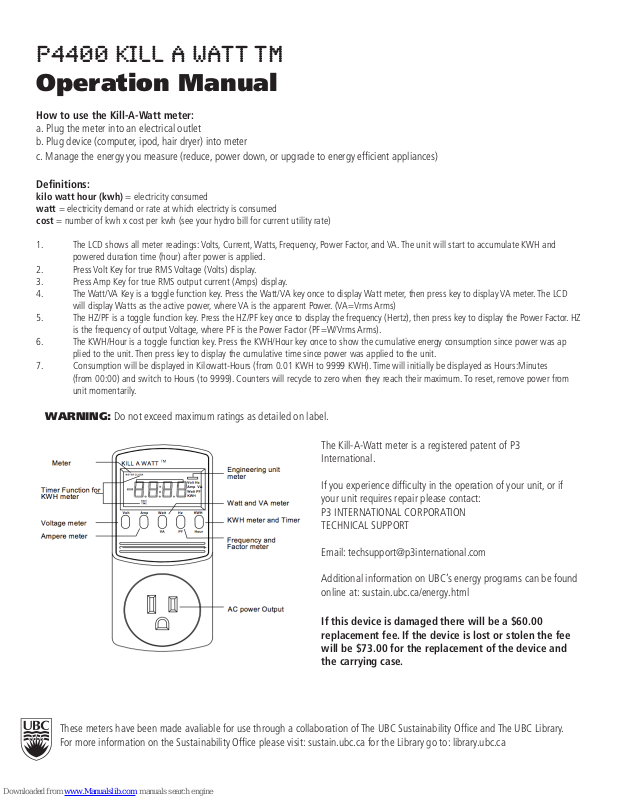

KILL A WATT P4400 Operation Manual

P4400 Kill A Watt TM

Operation Manual

How to use the Kill-A-Watt meter:

a. Plug the meter into an electrical outlet
b. Plug device (computer, ipod, hair dryer) into meter

c. Manage the energy you measure (reduce, power down, or upgrade to energy efficient appliances)

Definitions:

kilo watt hour (kwh) = electricity consumed
watt = electricity demand or rate at which electricty is consumed
cost = number of kwh x cost per kwh (see your hydro bill for current utility rate)

1.
powered duration time (hour) after power is applied.

2.

3.

4.
will display Watts as the active power, where VA is the apparent Power. (VA=Vrms Arms)

5.
is the frequency of output Voltage, where PF is the Power Factor (PF=W/Vrms Arms).

6.
plied to the unit. Then press key to display the cumulative time since power was applied to the unit.

7.
(from 00:00) and switch to Hours (to 9999). Counters will recycle to zero when they reach their maximum. To reset, remove power from
unit momentarily.

The LCD shows all meter readings: Volts, Current, Watts, Frequency, Power Factor, and VA. The unit will start to accumulate KWH and

Press Volt Key for true RMS Voltage (Volts) display.
Press Amp Key for true RMS output current (Amps) display.
The Watt/VA Key is a toggle function key. Press the Watt/VA key once to display Watt meter, then press key to display VA meter. The LCD

The HZ/PF is a toggle function key. Press the HZ/PF key once to display the frequency (Hertz), then press key to display the Power Factor. HZ

The KWH/Hour is a toggle function key. Press the KWH/Hour key once to show the cumulative energy consumption since power was ap

Consumption will be displayed in Kilowatt-Hours (from 0.01 KWH to 9999 KWH). Time will initially be displayed as Hours:Minutes

WARNING: Do not exceed maximum ratings as detailed on label.

The Kill-A-Watt meter is a registered patent of P3
International.

If you experience difficulty in the operation of your unit, or if
your unit requires repair please contact:
P3 INTERNATIONAL CORPORATION
TECHNICAL SUPPORT

These meters have been made avaliable for use through a collaboration of The UBC Sustainability Office and The UBC Library.
For more information on the Sustainability Office please visit: sustain.ubc.ca for the Library go to: library.ubc.ca

Email: [e-mail]

Additional information on UBC’s energy programs can be found
online at: sustain.ubc.ca/energy.html

If this device is damaged there will be a $60.00
replacement fee. If the device is lost or stolen the fee
will be $73.00 for the replacement of the device and
the carrying case.
