Multifunctional AC Power Supply
PCR-LA Series
High-quality, high-stability output with high-speed linear amplifier
Features a full range of measuring functions and supports both AC and DC outputs
Single-phase 500 VA to 6 kVA

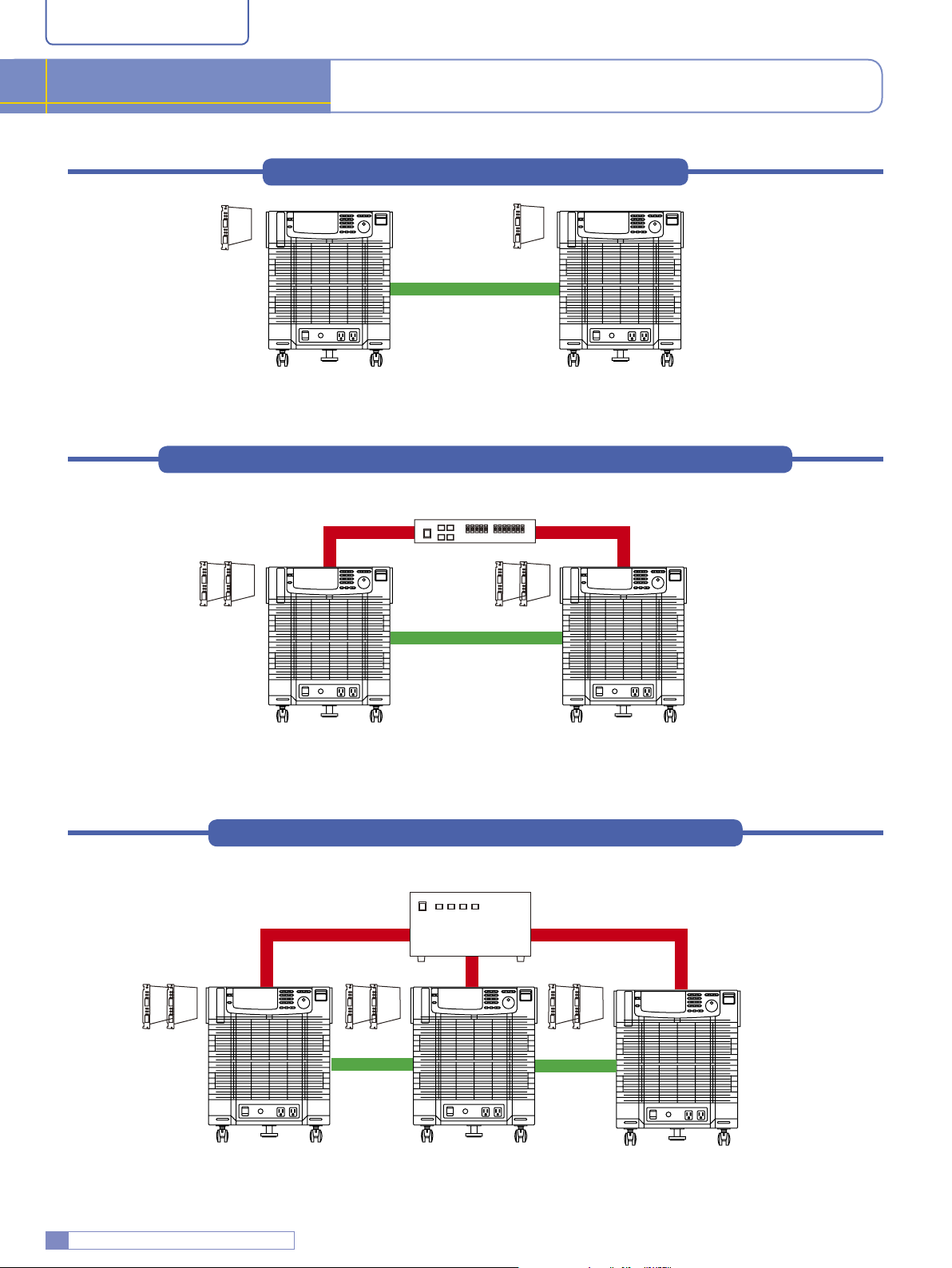

Options enable implementation of many system configurations - parallel, single-phase, three-wire, three-phase,
single-phase/single-phase, three-wire switchable, and single-phase/three-phase switchable
Single-phase system is expandable up to 30 kVA, and three-phase system up to 54 kVA
AC Power Supply
Internet
http://www.kikusui.co.jp
/
AC POWER SUPPLY PCR-LA SERIES
2
PCR-LA SERIES
Multifunctional AC Power Supply
PCR-LA SERIES
High-stability, high-quality output with high-speed linear amplifier
Features a full range of measuring functions and supports both AC and DC outputs
Diverse power line abnormality simulation functions
RS-232C and remote control interface are standard equipment
Expandable to single-phase/single-phase, three-wire or single-phase/
three-phase switchable system
T he PC R - LA Se r i e s is a l i ne of a d van c e d
multifunctional AC power supplies that have been
developed from our best-selling PCR-L Series of AC
power supplies. By incorporating new functions and
adding options while inheri ti ng the well-prove n
performance of its predecessor, the PCR-LA Series
provides a new line of safe and highly reliable models
that are much easier to use. The PCR-LA Series
models are equipped with an RS-232C interface and
a d edic ated r emot e cont rol exter n al interface a s
standard (GPIB is optional), allowing you to access all
of the system’s functions from a PC. An optional
remote controller (RC03-PCR-LA) has been specifically
designed for power line abnormality simulations, which
constitute a major part of power supply environment
Multifunctional AC power supply capable of
power supply environment testing
testing. This controller lets you perform these simulations
both easily and at low cost. Also, by adding an output

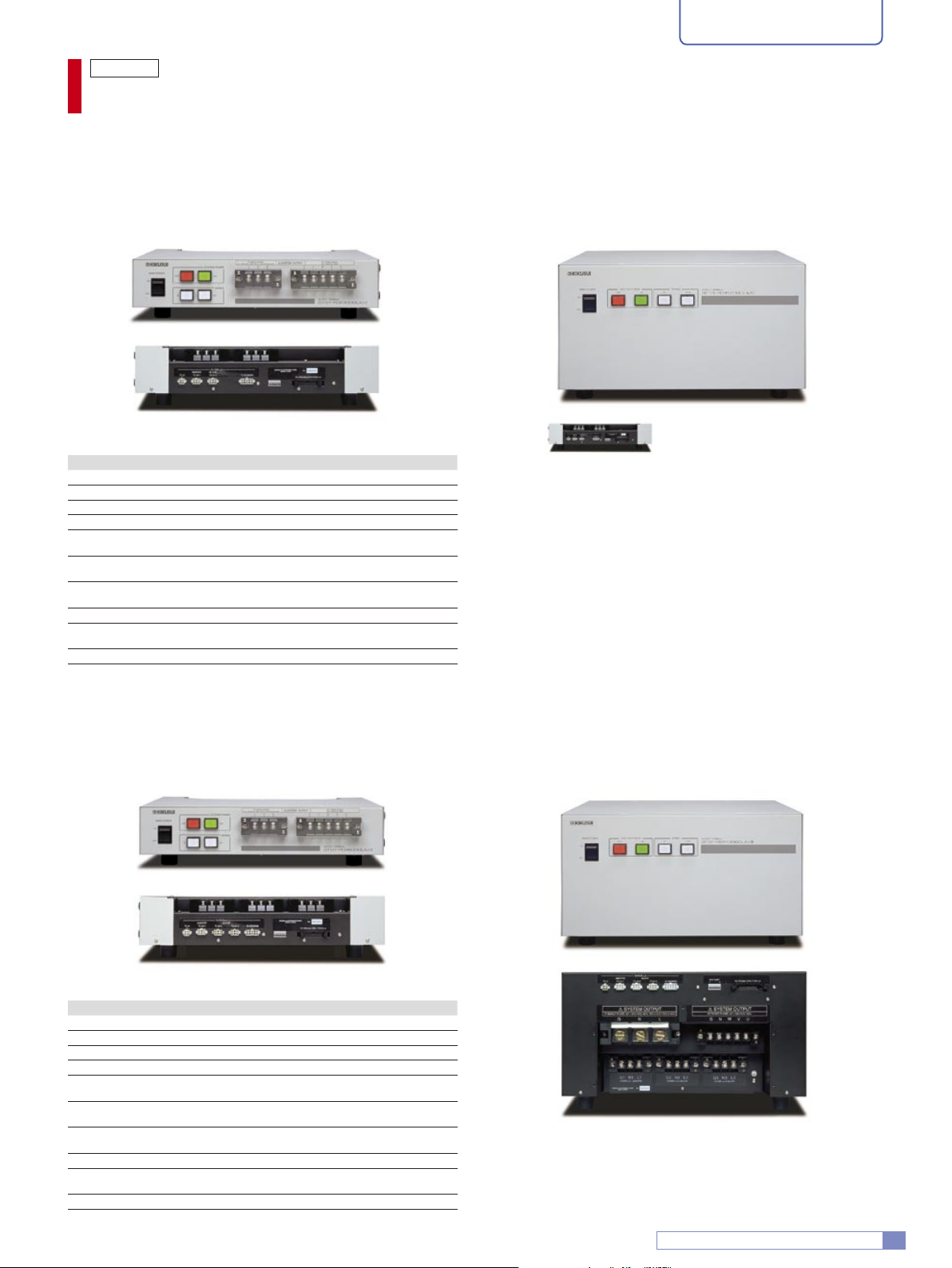

extension kit (OT01-PCR-LA/2, OT01-PCR-LA/3, etc.)
to the system, you can easily create a single-phase/
single-phase, three-wire or single-phase/three-phase
switchable system configuration.
With its advanced basic performance and flexible
and expandable configuration, the PCR-LA Series
sy s t e m can be app l i e d to m o s t fie l d s, including
electrical apparatus, machinery, and chemicals, and
supports a host of capabilities including power supply
environment testing, immunity testing, and the power
amplification of output waveforms from arbitrary signal
generators.
AC POWER SUPPLY PCR-LA SERIES
3
Wide-Ranging Specs
Output voltage rating (2 ranges) 1.0 - 150.0 V/2.0 - 300.0 V
Output frequency rating 1.00 - 999.9 Hz
*
1
Input power is as stated in the universal specs.
85 - 132 V/170 - 250 V, 50/60 Hz
*
2
In addition to the output pins on the back panel, the system also
has three-pin outlets on its front panel, making it easy to use.

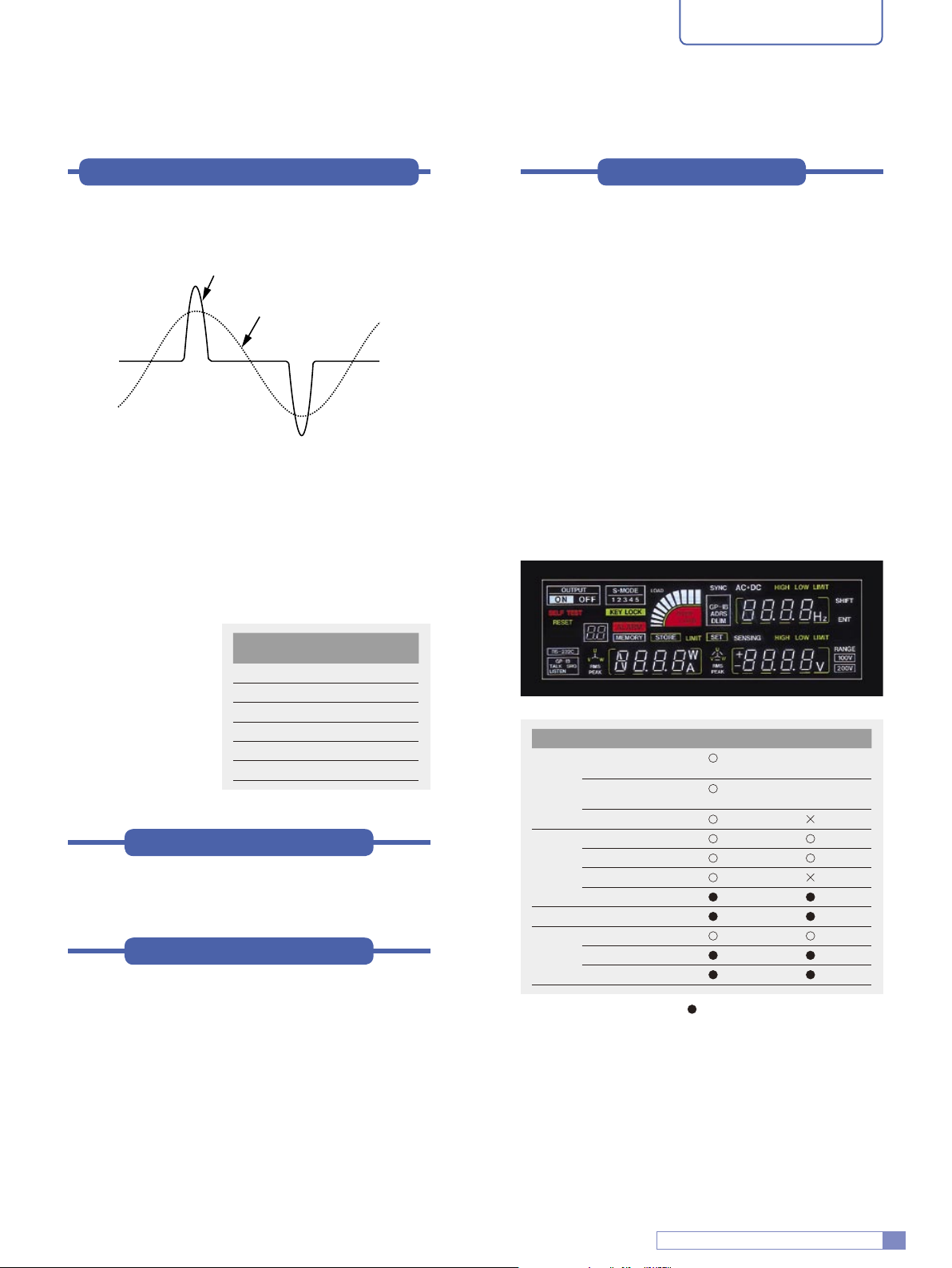

Peak Current Four Times Greater Than Rating
A peak current of up to four times the maximum current rating
(RMS value) can be handled with a capacitor input-type rectifier
load.
*
3
DC Output Also Supported
The system supports a DC output mode as standard, enabling a
DC output of ±1.4 to 424 V.
Excellent I/O Characteristics
The system offers excellent I/O characteristics with a voltage
waveform distortion rate of 0.3% or less. An active filter (power
factor = 0.95) reduces the occurrence of a harmonics current.
Range of Measuring Functions
In addition to the RMS and peak voltage and current values,
power factor, and apparent and effective power values, the FFT
function built into the system’s main unit enables the simple
measurement of the harmonics current (1st to 39th).
*
4

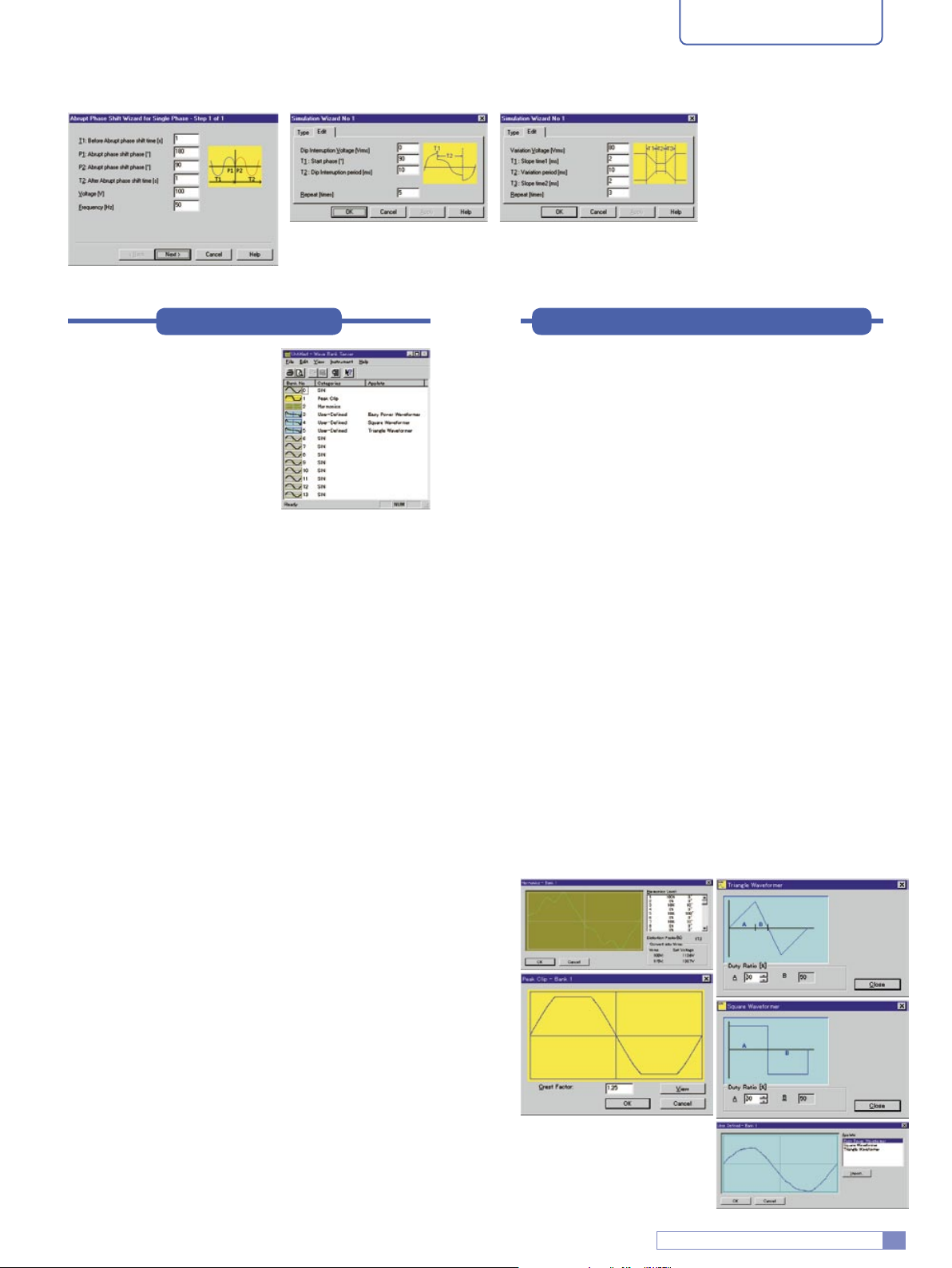

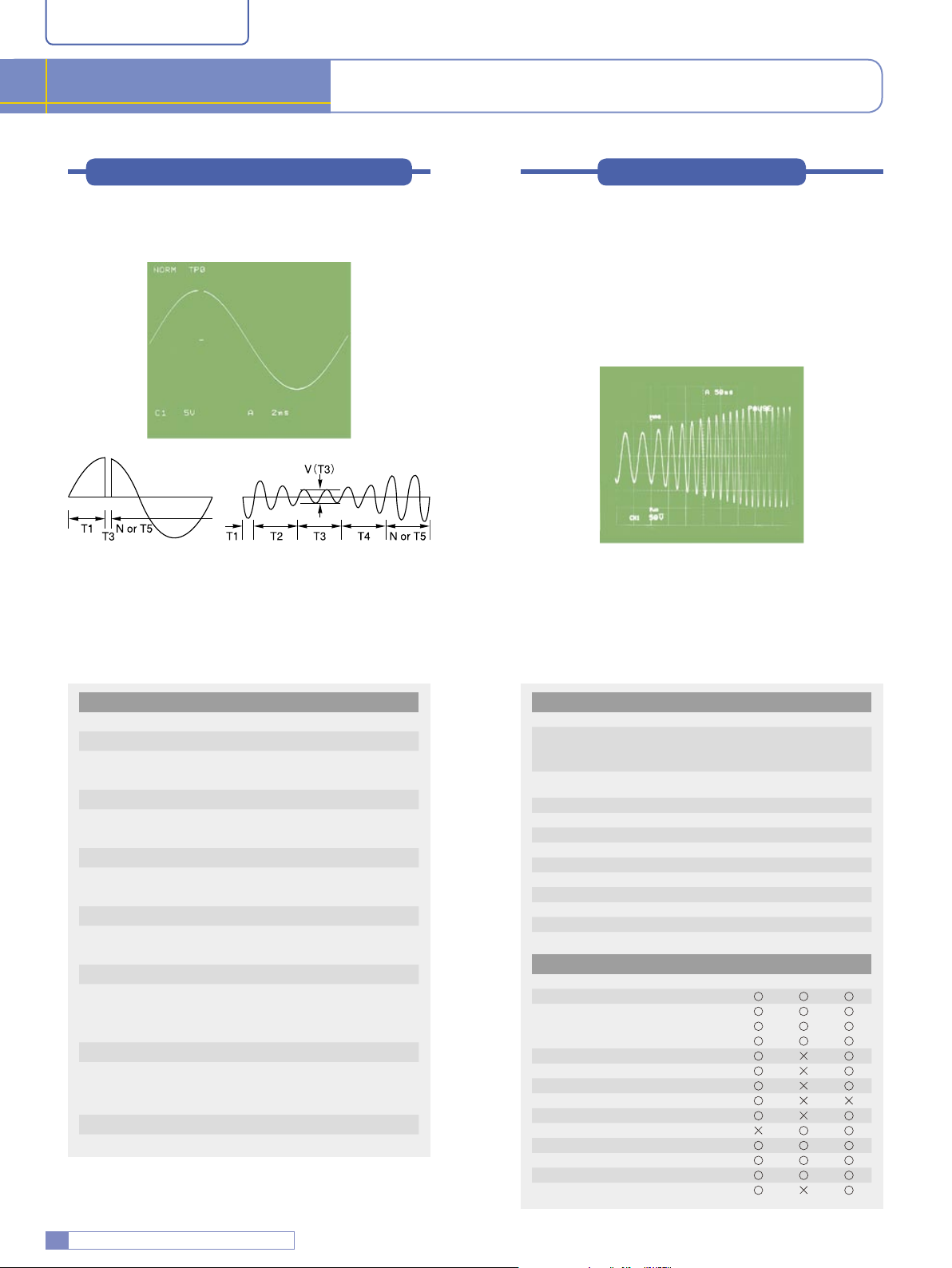

Arbitrary Waveform Creation
The built-in arbitrary waveform synthesizer can be used for
power line abnormality simulations.
*
4

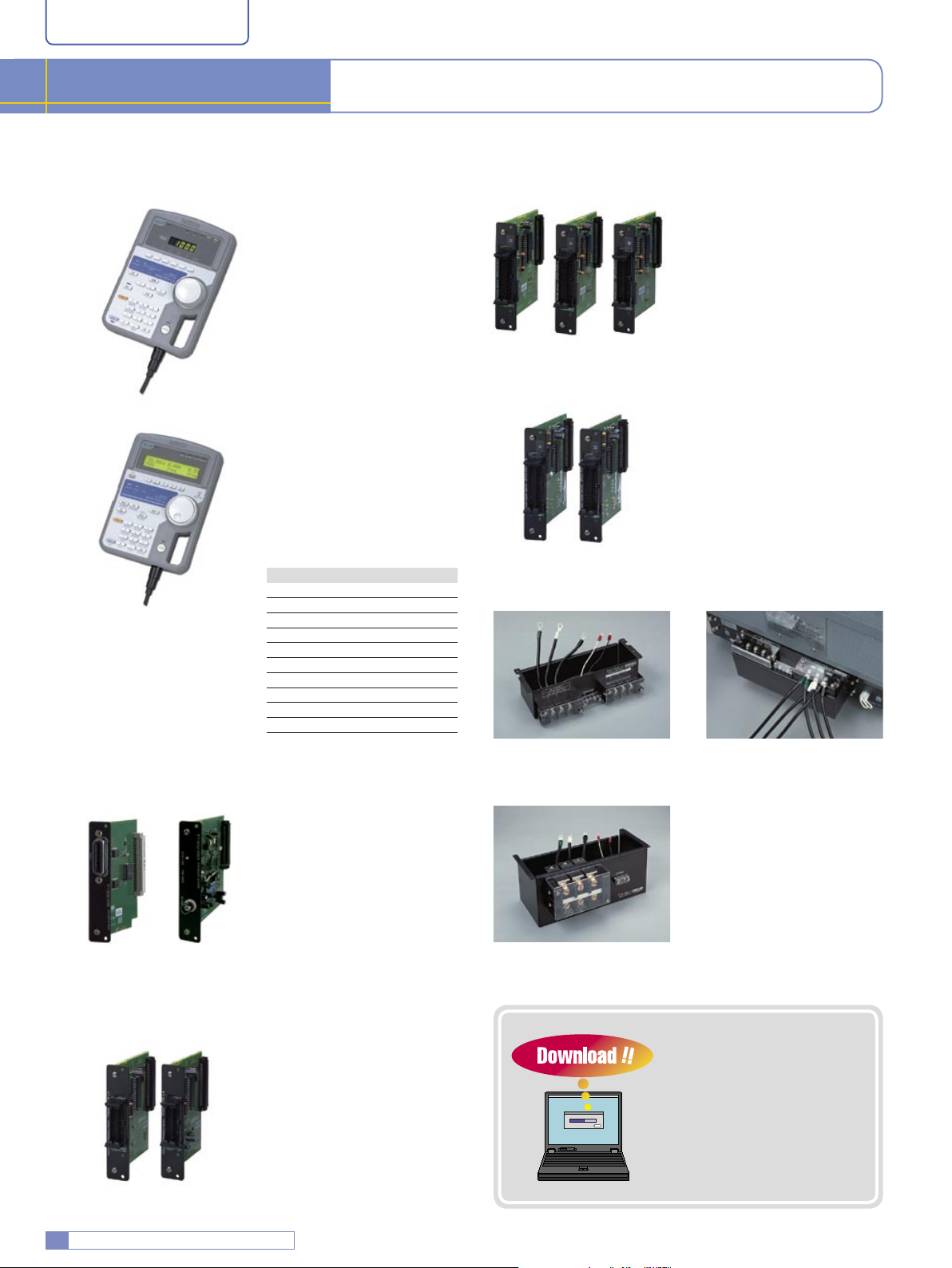

Diverse Options
A w ide r ange of optio ns are avai labl e, i nclud ing a r emot e
co ntro ller, s evera l typ es of i nter fac es, dri ver s, an d out put
extension kits.
*1 Resolution is 0.01 Hz for 1.00 to 99.99 Hz and 0.1 Hz for 100.0 to 999.9 Hz.
*2 For PCR500LA, PCR1000LA, PCR2000LA, and PCR4000LA
*3 For a capacitor input-type rectifier load, such as that of a switching power supply
*4 Some simulations assume the use of the relevant options.

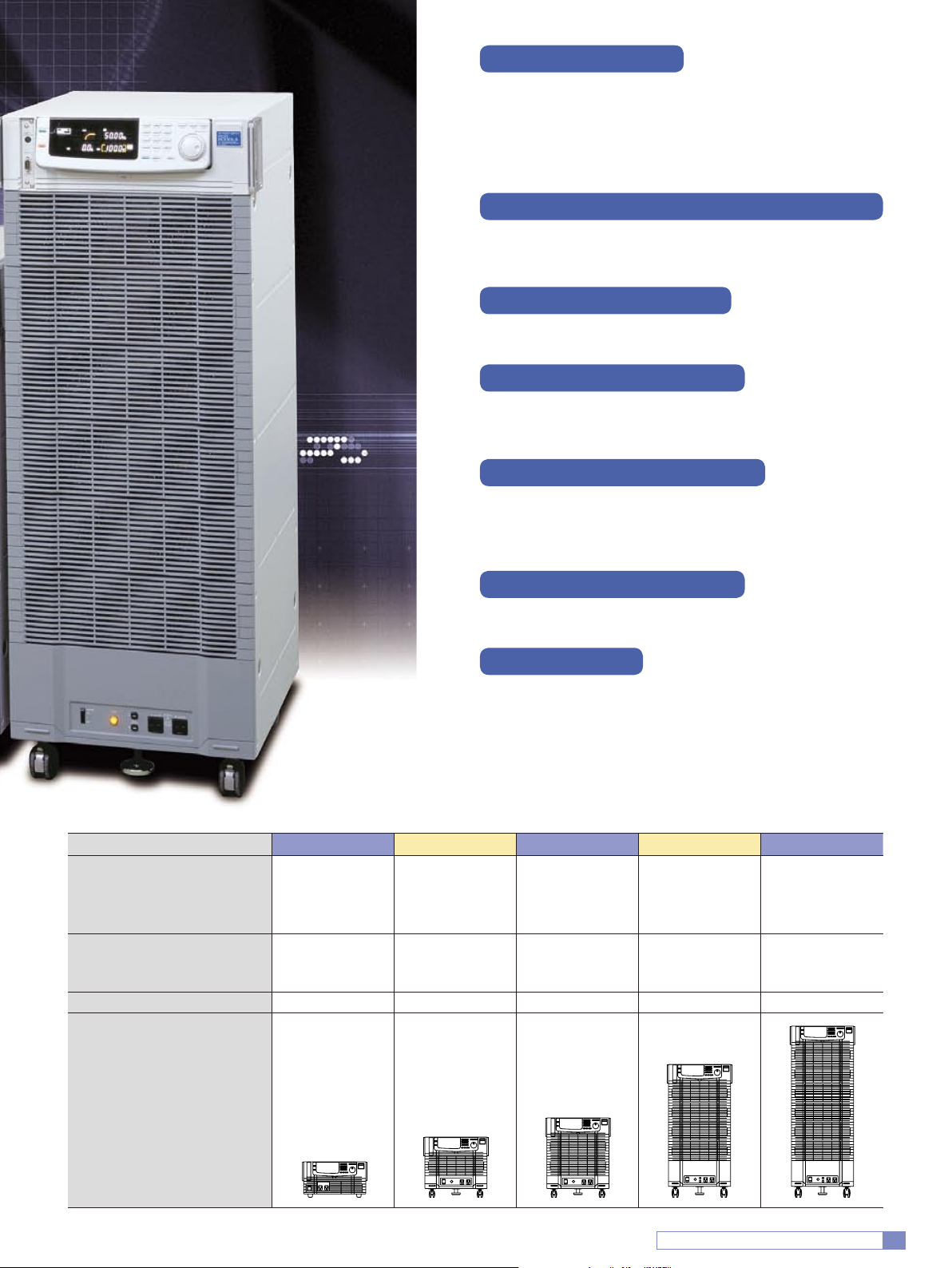

Model Name
PCR500LA PCR1000LA PCR2000LA PCR4000LA PCR6000LA
Output capacity
Maximum output current (100 V/200 V)
Apparent input power
Input current (100 V/200 V)
Single-phase 500 VA
5 A/2.5 A
Approx. 1 kVA
12 A/6 A or less
Single-phase 1 kVA
10 A/5 A
Approx. 2 kVA
24 A/12 A or less
Single-phase 2 kVA
20 A/10 A
Approx. 4 kVA
48 A/24 A or less
Single-phase 4 kVA
40 A/20 A
Approx. 8 kVA
96 A/48 A or less
Single-phase 6 kVA
60 A/30 A
Approx. 12 kVA
72 A or less

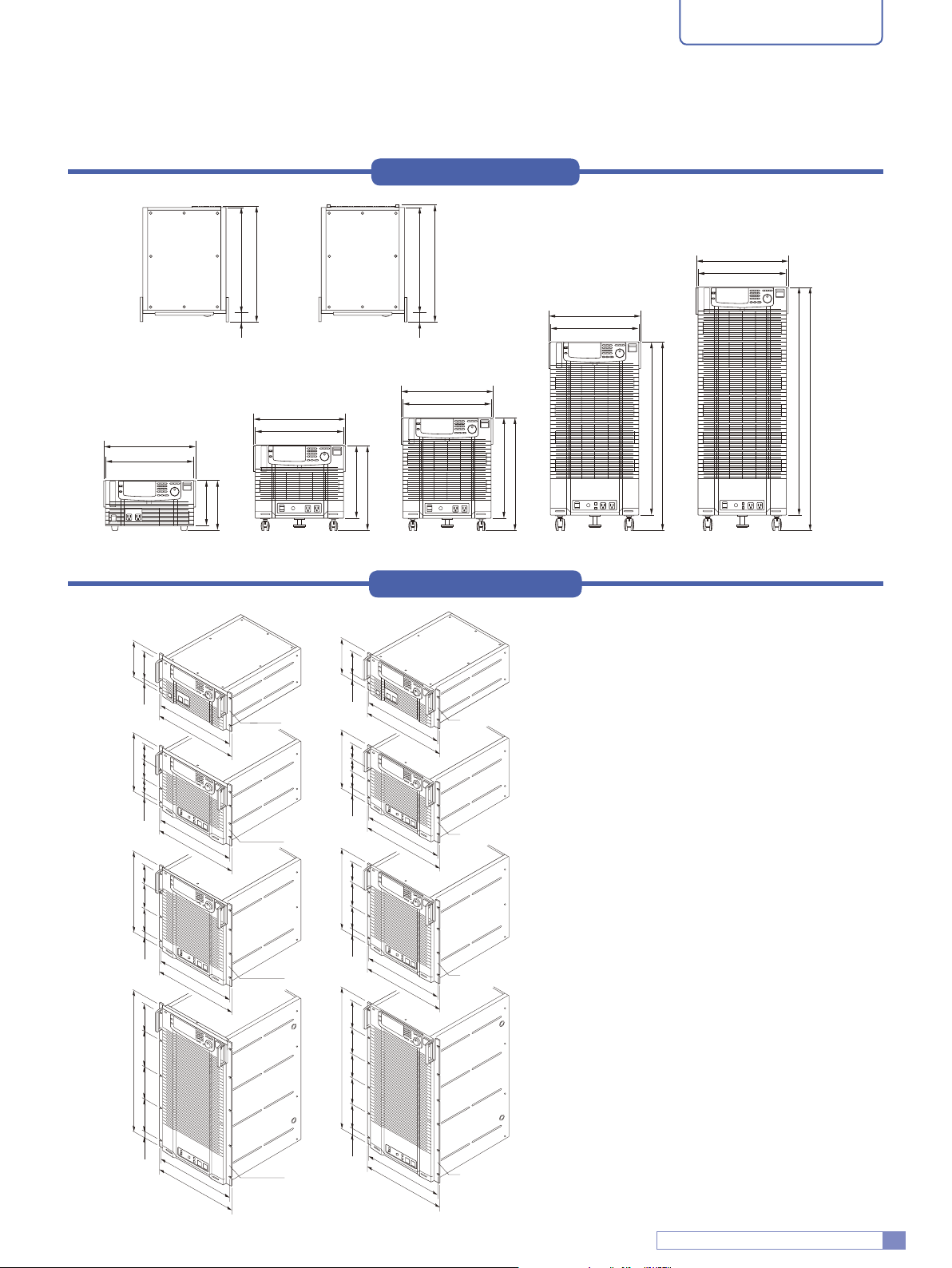

Dimensions (mm)
* Figures in parentheses are maximum values.
430 (455) W
217 (245) H
550 (595) D
430 (455) W
351 (415) H
550 (595) D
430 (455) W
484 (550) H
550 (595) D
430 (455) W
839 (920) H
550 (605) D
430 (455) W
1105 (1190) H
550 (605) D
Weight Approx. 25 kg Approx. 49 kg Approx. 69 kg Approx. 120 kg Approx. 160 kg

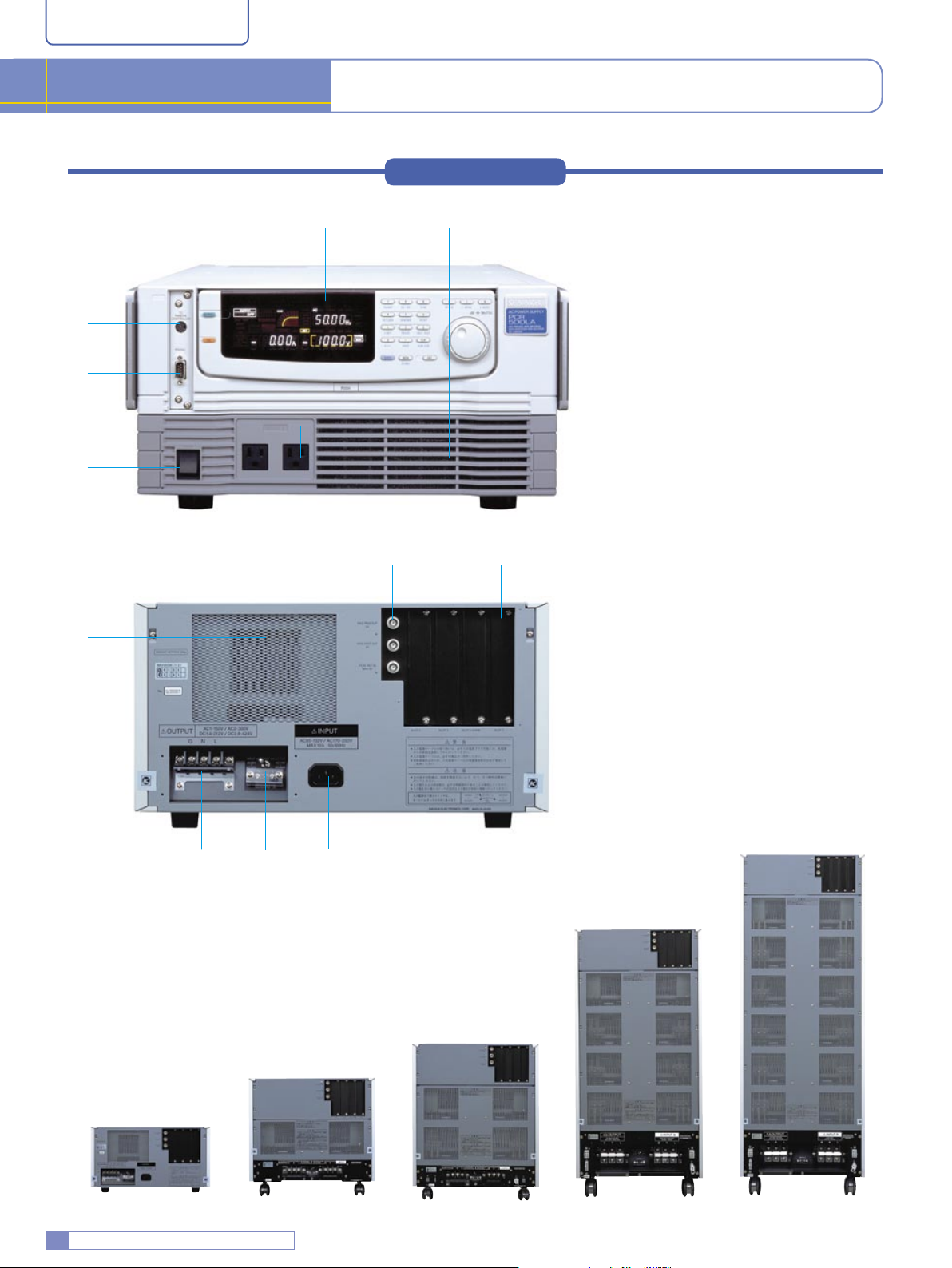

Appearance
●
Lineup
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
4
R&D
Resarch & Development
☞
Fo r de te rm in in g pr oo f valu es fo r po we r lin e
abnormalities
☞
Support of DC output
☞
Power can be measured easily
☞
For use in radio wave darkrooms and shielded rooms
The main unit of the PCR-LA Series system has built-in
measuring functions that let you easily measure not only
vo l t a g e and current values but also o t h e r values
including apparent and effective power values, power
factor, and harmonics current. Furthermore, functions
such as power line abnormality simulation, sequence,
and arbitrary waveform creation give better-than-ever
reproducibility and reliability of the data needed for proof
evaluations for instantaneous power failure, voltage
fluctuation, waveform distor tion, missing phase, and
other power line abnormalities. In addition, the system
supports a DC output of up to 424 V. This feature very
convenient when a temporary DC output is needed, such
as when driving a DD converter. The system can also
be used as an AC power supply in all kinds of EMC
testing site (radio wave darkrooms, shielded rooms, etc.).
* The relevant options are required to enable the apparent power, peak
current, and harmonics current measuring functions, simulation functions,
sequence function, arbitrary waveform creation function, and so on.
Production
Production Lines
☞
Can be used as a CVCF power supply
☞
For stabilizing the line power supply
A single PCR-LA Series system can be used as a CVCF
power supply that satisfies all global commercial power
supply specs (100 to 240 V), as well as those for ships
and aircraf t (4 00 H z). The system also s upports a
maximum output peak current of four times the current
rating for a capacitor input-type load, such as that of a
switching power supply (continuous supply is possible),
or about twice the current rating for a larger rush (peak)
current such as that of a motor (about 10 seconds* for a
power factor of 1). The PCR-LA Series system is also
recom men ded for stabi liz ing t he power su pplies o f
precision processing machines, measuring equipment,
or other apparatus that could be adversely affected by
unstable line voltages. It offers extremely high-speed,
high-quality output, with an output voltage response
speed of 30 µs (typical value) and a waveform distortion
rate of 0.3% or less. This makes the system particularly
suita ble for us e wit h equ ipment whose qualit y and
accuracy can be affected by minor fluctuations in the
p o w e r o r lo ad , s u c h as we l d i n g m a c h in es or
semiconductor production systems.
* The Output will be shut off when per iod of time exceeds 10 seconds.
The distortion of wave will be appeared when the current value exceeds
rated value during the period until 10 seconds.
Inspection
Adjustment and Inspection Lines
☞
For checking power supply voltage margins
☞
For automated inspection systems
The PCR-LA Series system can be used for operation
checking within the power supply voltage range, and
al s o as a po w er su p p l y fo r
agi n g . Mu l ti p l e PC R - LA
Serie s system s can b e
connected in parallel to
i n c r e a s e th e ov e r a l l
sy s t e m c a p a c i t y or to
provi de a t hree -pha se
connection. This flexibility
lets yo u r espond to the
changing needs of your line
configuration, or to increase or
decrease the numbe r of power s upplies needed for
aging. In addit ion, the syste m su ppor t s PC-bas ed
remote control and monitoring through either the GPIB
(option) or RS-232C interface. You can use the system
to manage q uali ty con trol d ata s uch as inspect ion
records.
QA
Quality Assurance
☞
Can be used as a standard room power supply
☞
For IEC standard tests
The PCR-LA Series system can be used as a power
supply in a standard room or me asuring equipment
control room.
Service
After-Sales Service
☞
Can be used as a p o wer sup ply for rep air and
calibration
☞
For reproducing power line abnormalities
The PCR-LA Series system also performs extremely
well in a p p l ica t i o n s i nvol v i n g re p a i r, in s p e ctio n ,
calibration, and so forth. For example, the PCR500LA
(with an output capacity of 500 VA) can deliver power
that satisfies all global commercial power supply specs
(100 to 240 V), even from a residential power outlet (100
V/15 A). This makes the system ideal for use in service
si tuat ions w here large-s cale equ ipme nt ca nnot b e
installed, as well as for use on business trips. Also, the
system can provide a stable supply of power that is free
of fluctuation and distortion during the inspection and
calibration work, thereby contributing to maintaining or
improving the level of service quality.
Applications
For use in a wide range of applications from R&D to production and inspection lines and commercial services
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
5

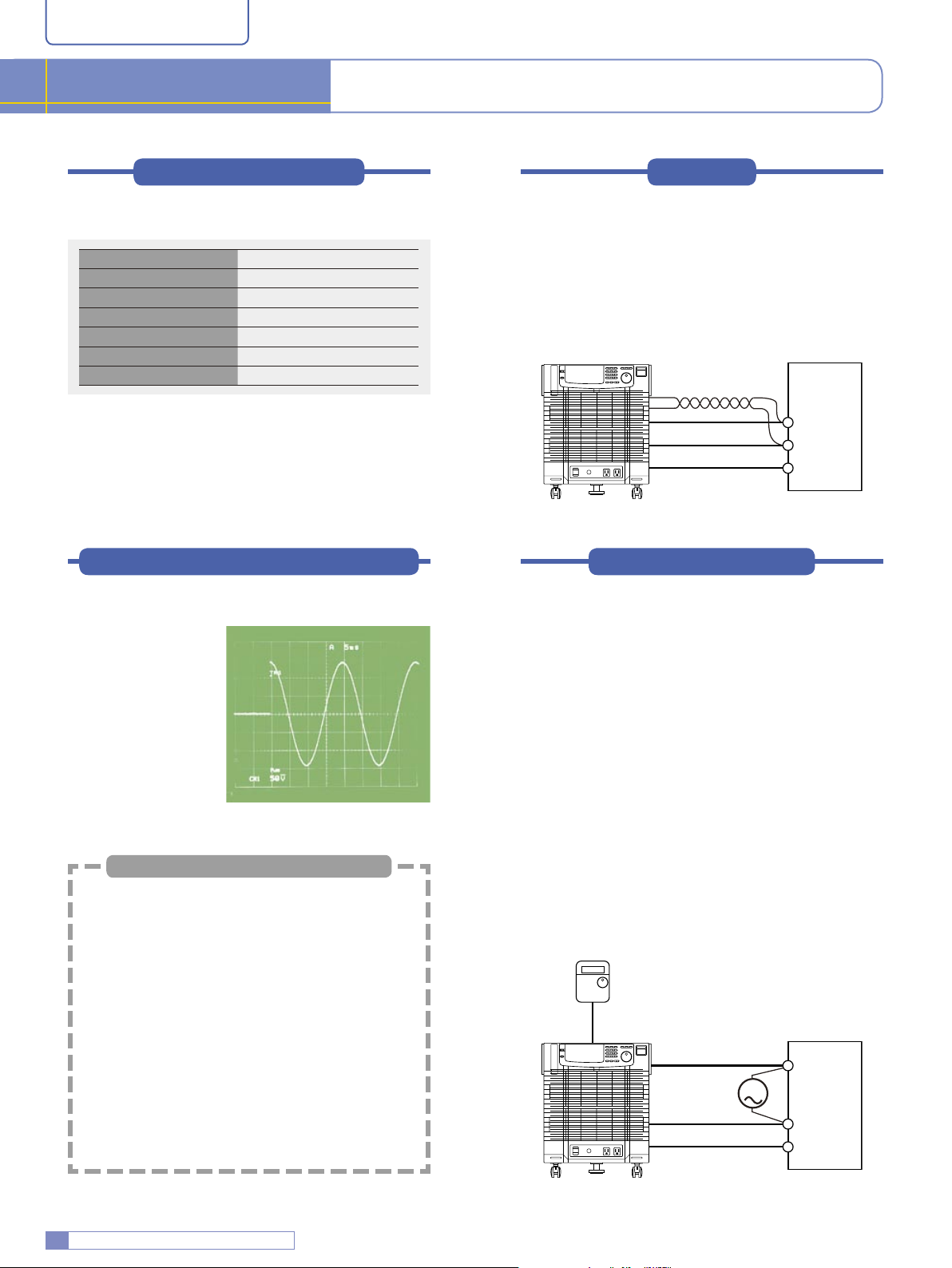

Input Current
An a c t i ve smoothin g
filter is used so that the
waveform of the input
curr ent appr oximate s
to a sine wave with a
power factor is 0.95
(typical value), thereby
reducing the waveform
distortion of the input
c u r r e n t a n d t h e
harmonics current.
Output Impedance
While the o utput impedance (output resi stance) of this
system is nearly 0 Ω, you can change the output impedance
value (resistance) from a PC (connected via the RS-232C
interface) or an optional remote controller (RC04-PCR-LA).
Thus, the output impedance can be closely matched to the
actual commercial power supply environment. Also, once
an impedance value has been set using this function, the
system saves the setting and retains it even after the option
is uninstalled from the main unit.
*
GPIB control requires the installation of an interface card (IB03-PCR-LA).
Output Voltage
The output voltage can be varied over a wide range so as to
satisfy any global commercial power supply specs (100 to
240 VAC). The output voltage can be set directly in steps of
0.1 V by using the numerical keypad, or changed in small
consecutive steps by using the jog/shuttle wheel. Also, for a
three-phas e output (extended configurat ion featur ing a
th r e e - p ha s e ou t pu t
d r iv e r) , th e ph a s e
vo l t a g e or inter-wire
voltage can be set.
Output Frequency
An output frequency of
1.00 to 999.9 Hz can
be set directly by using
the numerical keypad,
or c h a nge d in sm a l l
consecut ive steps by
using the jo g/s huttle w hee l without th e need to swit ch
ranges.
DC Mode
Switching to DC mode
i n s i n g l e - p h a s e
operation c auses t he
system to output a DC
voltage between ±1.4
and 424 V.
Input Voltage
The system suppor ts a
w i de ra n ge of in p u t
voltages and thus can be
used a round th e wor ld
without modification.
* Some of the functions described below assume the use of the relevant options. For details, see pages 16 and 17.
Performance and Functions
High-quality output characteristics provided by a high-speed linear amplifier system
100 V range
1.0 to 150.0 VAC/Resolution: 0.1 V
200 V range
2.0 to 300.0 VAC/Resolution: 0.1 V
100 V range
Model Name Setting Range Resolution Setting Accuracy
PCR500LA 0 Ω to 4.0
Ω
40 m
Ω
±(20% + 80 mΩ)
PCR1000LA 0 Ω to 2.0
Ω
20 m
Ω
±(20% + 40 mΩ)
PCR2000LA 0 Ω to 1.0
Ω
10 m
Ω
±(20% + 20 mΩ)
PCR4000LA 0 Ω to 0.5
Ω
5 m
Ω
±(20% + 10 mΩ)
PCR6000LA 0 Ω to 0.333 Ω3.33 m
Ω
±(20% + 6.67 mΩ)
200 V range
Model Name Setting Range Resolution Setting Accuracy
PCR500LA 0 Ω to 16.0
Ω
160 m
Ω
±(20% + 320 mΩ)
PCR1000LA 0 Ω to 8.0
Ω
80 m
Ω
±(20% + 160 mΩ)
PCR2000LA 0 Ω to 4.0
Ω
40 m
Ω
±(20% + 80 mΩ)
PCR4000LA 0 Ω to 2.0
Ω
20 m
Ω
±(20% + 40 mΩ)
PCR6000LA 0 Ω to 1.333 Ω13.33 m
Ω
±(20% + 26.67 mΩ)
1.00 Hz to 99.99 Hz
Resolution: 0.01 Hz
100.0 Hz to 999.9 Hz
Resolution: 0.1 Hz
100 V range
1.4 to 212 VDC/Resolution: 0.1 V
200 V range
2.8 to 424 VDC/Resolution: 0.1 V
PCR500LA• 1000LA• 2000LA•4000LA
Single phase 85 to 132 VAC/170 to 250 VAC
PCR6000LA
Single phase 170 to 250 VAC
Memory Function/Limit Value Setting Function
■
Memory function
Nine sets of output voltage and frequency settings can be
stored as address data in memory. Installing the relevant
option increases the storage capacity to 99 addresses.
■
Limit value setting function
This function allows you to set the upper and lower limits of
the output voltage and frequency, as well as the upper limit of
the curre nt. This he lps pr even t load damage c aused by
operational errors.
Note: For a system with a three-phase output driver, you cannot
use this function to set an upper limit on the current.
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
6
* Some of the functions described below assume the use of the relevant options. For details, see pages 16 and 17.
Sensing
This function is useful when the load is in a remote location
and you want to improve the stability of the RMS voltage at
that location (sensing point).
Note: When the sensing function is being used, the output
stability, response characteristics to sudden changes
in the load current, waveform distor tion rate, and
other parameters degrade relative to the system’s
standard specifications.
Regulation Adjustment
The output voltage can be adjusted automatically according
to the output current. While this function is similar to the
sensing function, it differs in that the former detects and
calculates a drop in the output voltage caused by the output
current through the output terminal on the system’s main
unit, and raises the output voltage by that amount. The
regulation adjustment function also has the advantage of not
requiring a separate cable for the detection signals, which is
needed to use the sensing function.
* The use of this function requires that a PC (controlled via the RS-232C
interface) and a remote controller (RC04-PCR-LA) be connected. An
interface card (IB03-PCR-LA) is also needed to apply GPIB control.
* When using the regulation adjustment function, you must make sure
that the output current is at least one-tenth of the current rating. The
voltage can be adjusted by up to 10% of the output voltage of the
PCR-LA system.
* When the regulation adjustment function is being used, the voltage
stabilization accuracy, distortion rate, and response speed degrade
relative to the system’s standard specs. This function should be used
with caution depending on the application.
* This function cannot be used with a system featuring a three-phase
output driver.

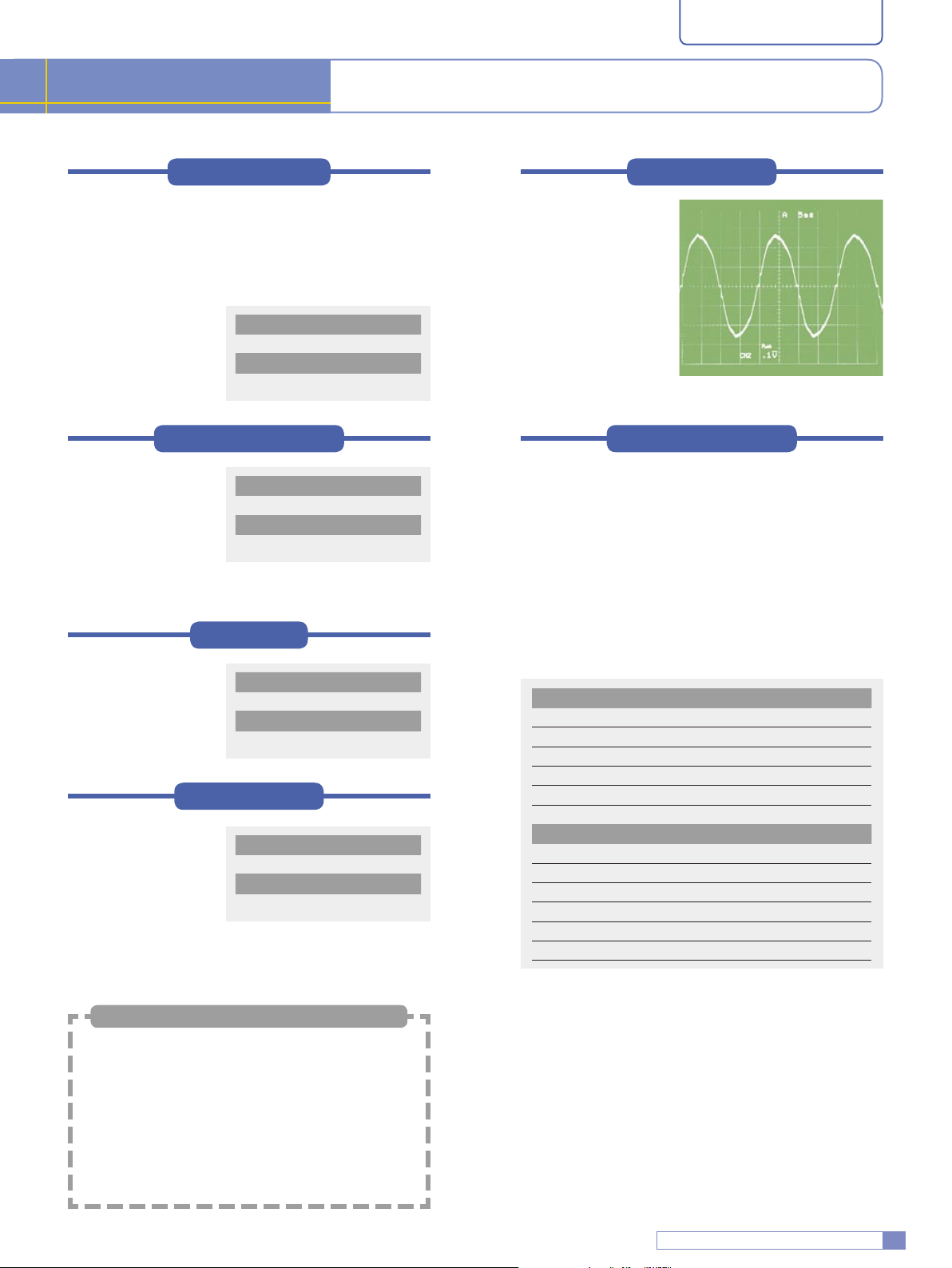

Output Voltage Stability
High-speed linear amplifier system with high-quality output
characteristics.
On/Off switching without Chattering
The use of an electronic switch allows you to switch the
output on or off while maintaining a pure waveform free of
chatt erin g. A lso, the
p h as e c an b e s et
ar b i t rarily (usin g the
relevant option) when
switching the output on
or off (see the “Output
On/Off Phase Setting”
section on page 9).
Sensing terminal L
Sensing terminal
N
Twist
Load
L
N
G
Performance and Functions
Options offer more diverse functions.
Line voltage variation Within ±0.1%
Output current variation
Within ±0.1 V/±0.2 V (100 V/200 V range)
Output frequency variation Within ±0.3%
Ambient temperature variation 100 ppm/˚C (typical value)
Output frequency stability Within ±5 × 10
–5
Output voltage waveform distortion ratio
0.3% or less
Output voltage response time 30 µs (typical value)
Safety, Maintainability, Protection, etc.
■
Modular configuration
If any o f the power unit s fails, the modular co nfigu rat ion
(available for systems supporting 1 kVA or higher) allows you
to remove tha t fau lty powe r unit fro m the s yst em , thus
minimizing system downtime. This significantly improves the
system’s maintainability.
■
Self-test function
If the system experiences any abnormality (such as when the
ove rlo ad pro te cti on fun ct ion is ac tivated ), thi s f un cti on
executes self-diagnosis to identify its cause and displays the
result on the display panel.
■
Protection functions
• Input range protection function
• Overheat protection function
• Internal circuit protection function
• Overload protection function
■
Key lock function
This function prevents the system from being operated from
the operation panel.
Load
L
N
V
G
AC voltmeter
Using the jog /shuttle wheel on the re mote
controller, adjust the reading of the voltmeter
co nne c ted to the loa d ter min a l s o that i t
matches the voltage set on the power supply.
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
7
Measuring Functions
The system displays the root mean square (RMS) and peak
(PEAK) values of the output voltage or current, effective
power value (W), and the average voltage or current value in
DC mode. Also, the load meter lets you know the reference
load factor with respect to the rated value. Furthermore, the
use of the optional remote controller (RC04-PCR-LA) or
interface card (IB03-PCR-LA) makes it possible to measure
the power factor (PF), apparent voltage (VA), and peak hold
current. Once activated, the peak hold current measurement
function continues the peak current measurement until the
system receives the peak clear signal or command. This
function, when used in combination with the output on/off
ph a s e sett i n g func t i on, let s you p e rfo r m rush c u rrent
measurements and other tests with the voltage phase set to
any value.
[System display panel]
Displays the load level as well as the
voltage, current, and frequency.
* The photo below shows the display panel with all its elements lit. It may
appear different in actual operation.
Maximum Output Peak Current Four Times the Rating
A maximum peak current of up to four times the maximum
cu rrent rat ing (R MS va lue) c an flo w wit h res pect t o a
capacitor input-type rectifier load.
Maximum output peak current
= Rated maximum output current (RMS value) × 4
(Only when the RMS value of the current is equal to or
smaller than the rated current)
In addition, a momentary peak current can be supplied for
several seconds with other types of load. (T his varies
depending on the current waveform, output voltage, output
frequency, and other factors.)
The table on the right lists the momentary peak currents that
can be supplied for an
output voltage of 100
VAC an d an ou tp u t
fr e q u e n c y of 50 Hz.
The momentar y peak
cu r re n t ra t io is th e
output c u r r e n t ratio
(reference) assumed
w h e n t ha t o f t h e
m a x i m u m o u t p u t
current is 100%.
Synchronization Function
This function allows the output voltage frequency and phase
to be synchronized with the frequency of the input power (50
Hz/60 Hz).
Power Amplifier Function
The system can amplify the power of analog signals received
from an external source and thus can be used as a power
amplifier. Note that the signal input terminal is electrically
is olat e d fro m the o utpu t of th e PCR - LA ma in uni t. The
isolated amplifier offers a voltage amplification factor of either
100 or 200. The voltage amplification factor can be fine-tuned.
The system can be used with electrical apparatus, machinery,
chemicals, and almost all other fields of technology, and
su p por ts a ho s t of c a pabili t ies in c luding power su p ply
environment testing that involves reproduction of the power
line st atus, immunity testing, an d power amplification of
waveforms output from arbitrary signal generators.
*
To use this function, an analog interface card (EX03-PCR-LA) is needed.
Capacitor input-type rectifier load
Resistance load
Load Power
Factor
Momentary Peak
Current Ratio
1 200%
0.9 160%
0.8 150%
0.6 140%
0.4 120%
0.2 110%
Item Single-Phase Three-Phase
Voltage RMS value Phase voltage/
Inter-wire voltage
Peak value Phase voltage/
Inter-wire voltage
Average DC value
Current RMS value
Peak value
Average DC value
Peak hold value
Harmonics current
Power Effective power
Apparent power
Power factor
* Those measurements marked require that a PC (controlled via the
RS-232C interface) and a remote controller (RC04-PCR-LA) be used.
An interface card (IB03-PCR-LA) is needed to apply GPIB control.
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
8
Sequence Operation
This function creates a fluctuation in the voltage, frequency,
and other characteristics by outputting a series of settings in
sequence for up to 100 addresses (10 items are set per
address, including the voltage, frequency, and execution
time). This function can be used for brown-out and automated
tests. It also allows the status and trigger signals to be set
(the signals are output at the TTL level through the BNC
connector on the back panel) and thus can be used for the
likes of establishing synchronization with other equipment.
* This function requires that a PC (controlled via the RS-232C interface)
and a remote controller (RC04-PCR-LA) be used. An interface card
(IB03-PCR-LA) is necessary to apply GPIB control.
* In the case of a sing le-ph ase, t hree- wire system (o ne featurin g a
single-phase, three-wire output driver) or a three-phase system (one
featuring a three-phase output driver), the same voltage is set for all the
phases.
Power Line Abnormality Simulation
This function lets you set the parameters listed below to
perform power failure, voltage drop (dip), and voltage surge
(pop) simulations.
* This function requires that a PC (controlled via the RS-232C interface)
or a remote controller (RC04-PCR-LA or RC03-PCR-LA) be used. An
interface card (IB03-PCR-LA) is necessary to apply GPIB control.
* All the functions described below assume the use of relevant options. For details, see pages 16 to 20.
Performance and Functions
Options provide more advanced functions.
Parameter Setting Range
[Magnifying Power] Single-Phase Three-Phase*
Voltage fluctuation start time and phase
[×1ms] 0.0 to 999.9 ms 0 to 999 ms ●
●
0 to 360 deg
→
●
Slope time (T2, T4)
[×1] 0 to 9999 ms
→
● ●
[×10] 0.00 to 99.99 s
× ●
Voltage fluctuation time (T3)
[×1] 0.0 to 999.9 ms
× ● ●
[×10] 0 to 9999 ms
→
●
Power restoration time (T5)
[×1] 0 to 9999 ms
→
●
[×10] 0.00 to 99.99 s
→
●
Power restoration cycles (N)
[×1] 0 to 9999 cycles
→
● ●
[×10] 0 to 99990 cycles
→
●
[×100] 0 to 999900 cycles
→
●
Pop/dip voltage (V(T3))
Within the rated output voltage Within the rated
● ●
output voltage
(same setting for
three-phase)
Repeat (RPT)
0 to 9998 times or infinity
→
●
* System featuring a three-phase output driver
Parameter Setting Range
Address : ADRS 0 to 99
Time : HOUR 0 to 999 h 59 min
: MIN 0 to 999 min 59 s
: SEC 0 to 999.999 s
Waveform : WAVE Sine, peak clip
(14 waveforms can be input.)
Voltage (AC) : Vac 1.0 V to 300.0 V
Frequency : FRQ 1.00 Hz to 999.9 Hz
Impedance : IMP Varies with the model.
Frequency change characteristic
: R Ramp/step
Voltage (DC) : Vdc –424.0 V to + 424.0 V
Status signal : STAT ON/OFF
Trigger signal : TRG ON/OFF
Output : OUT ON/OFF
AC voltage change characteristic
: R Ramp/step
Effective Mode for Each Parameter
AC DC AC + DC
Address : ADRS
Time : HOUR
: MIN
: SEC
Waveform : WAVE
Voltage (AC) : Vac
Frequency : FRQ
Impedance : IMP
Frequency change characteristic
: R
Voltage (DC) : Vdc
Status signal : STAT
Trigger signal : TRG
Output : OUT
AC voltage change characteristic
: R
●
A setup is possible at RC04-PCR-LA
●
A setup is possible at RC03-PCR-LA
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
9

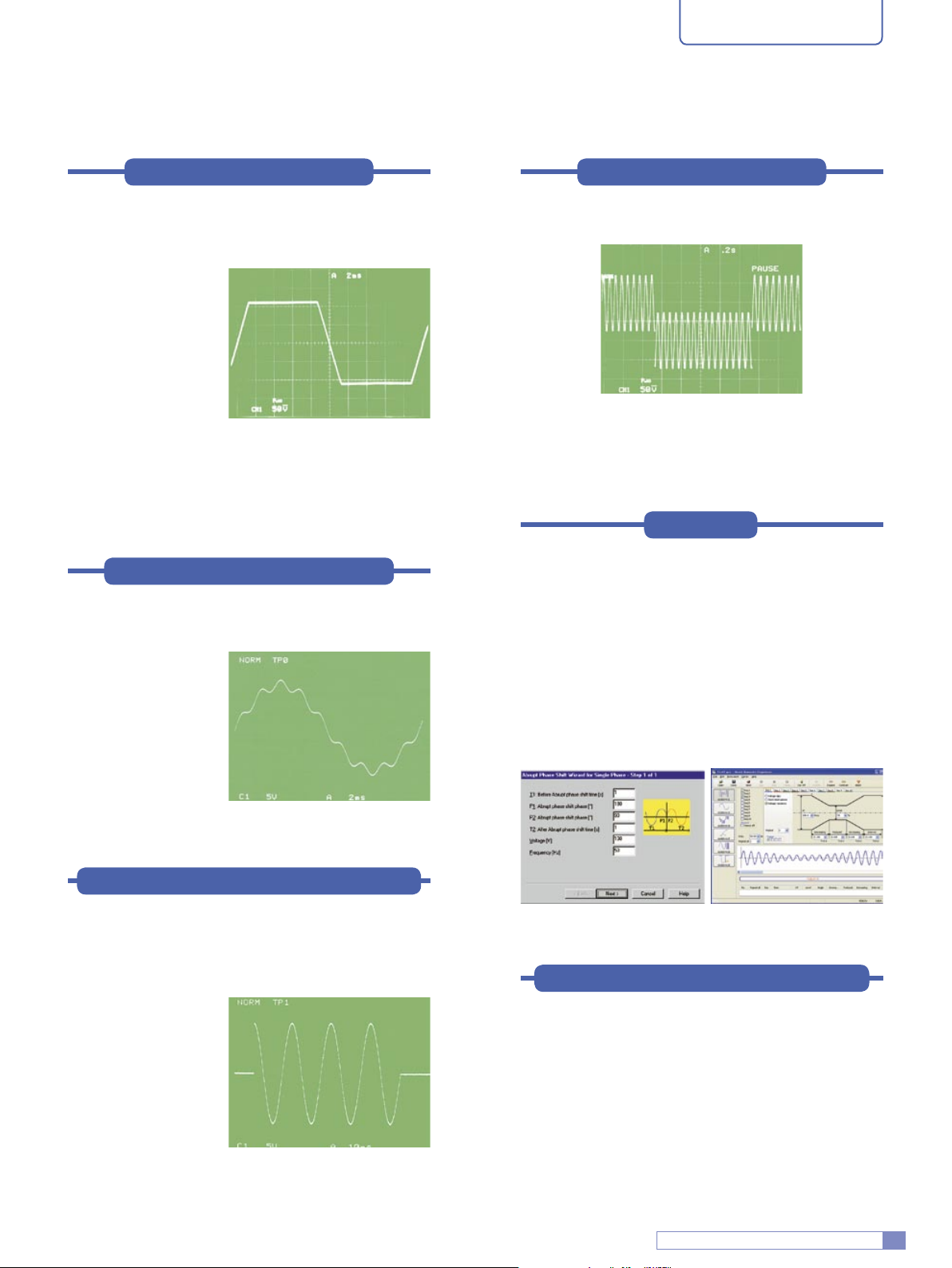

Special Waveform Output
This function allows the power supply to output waveforms
for which the peak of the sine wave is suppressed. A crest
factor value (= peak value/RMS value) of between 1.10 and
1.40 can be set (with a resolution of 0.01). Also, operational
loa d sa v i n gs can be
achi eved by stor ing a
w a ve f o r m ha v i n g a
value you want to use
r e p e a t e d l y i n t h e
wavefor m bank (up to
14 waveforms can b e
stored).
* This function requires that a PC (controlled via the RS-232C interface)
or a remote controller (RC04-PCR-LA) be used. An interface card
(IB03-PCR-LA) is necessary to apply GPIB control.
* I n the cas e o f a s ingle - p h a s e, thr e e - w i r e syste m ( o n e with a
single-phase, three-wire output driver) or a three-phase system (one
with a three-phase output driver), the same voltage is set for all the
phases. Also, the voltage waveform differs from that for a single-phase
system.
User-Defined Waveform Output
This function outputs a waveform by converting numerical data
input from a PC. Using the function, you can output arbitrary
waveforms from the system, such as distorted waveforms that
i n c l u d e h a r m o n i c
co m p o n e n t s . I n th e
ca se of a t hree -pha se
connection, a command
is available that lets you
write data separately for
each of the three phases
(U, V, and W).
* This function requires that a PC (controlled via the RS-232C interface)
be used. Also, an interface card (IB03-PCR-LA) is necessary to apply
GPIB control.
Output On/Off Phase Setting (Phase Difference Setting)
A separate output on/off phase can be set individually for
each phase in the range of 0 to 360 degrees, with a setting
resolution of 1˚. Once values have been set using this
function, the system saves the settings and retains them
even if the option is uninstalled from the main unit. In the
case of a three-phase
s y s t e m (o n e w i th a
t h r e e - p h a s e ou t p ut
d r i v e r ) , p h a s e
differences can be set
between Phases U and
V and between Phases
U and W, respectively.
* This function requires that a PC (controlled via the RS-232C interface)
or a remote controller (RC04-PCR-LA) be connected. An interface card
(IB03-PCR-LA) is necessary to apply GPIB control.
AC + DC Superimposition
This function allows the output of a voltage waveform in
which an AC voltage is superimposed over a DC voltage.
* This function requires that a PC (controlled via the RS-232C interface)
and a remote controller (RC04-PCR-LA) be used. Also, an interface
card (IB03-PCR-LA) is necessary to apply GPIB control.
* This function cannot be used for a single-phase, three-wire system
(one featuring a single-phase, three-wire output driver) or a three-phase
system (one featuring a three-phase output driver).
Software

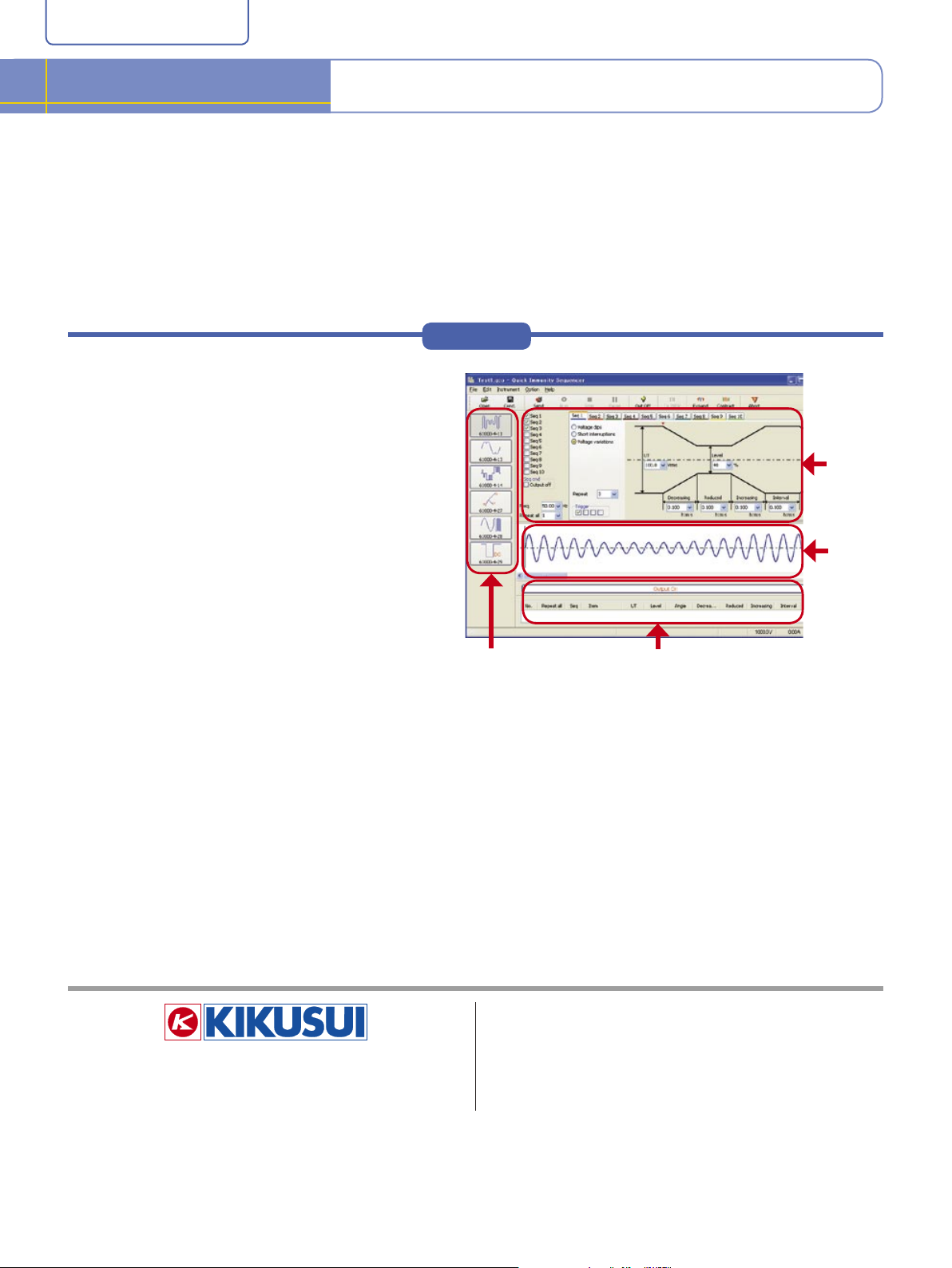

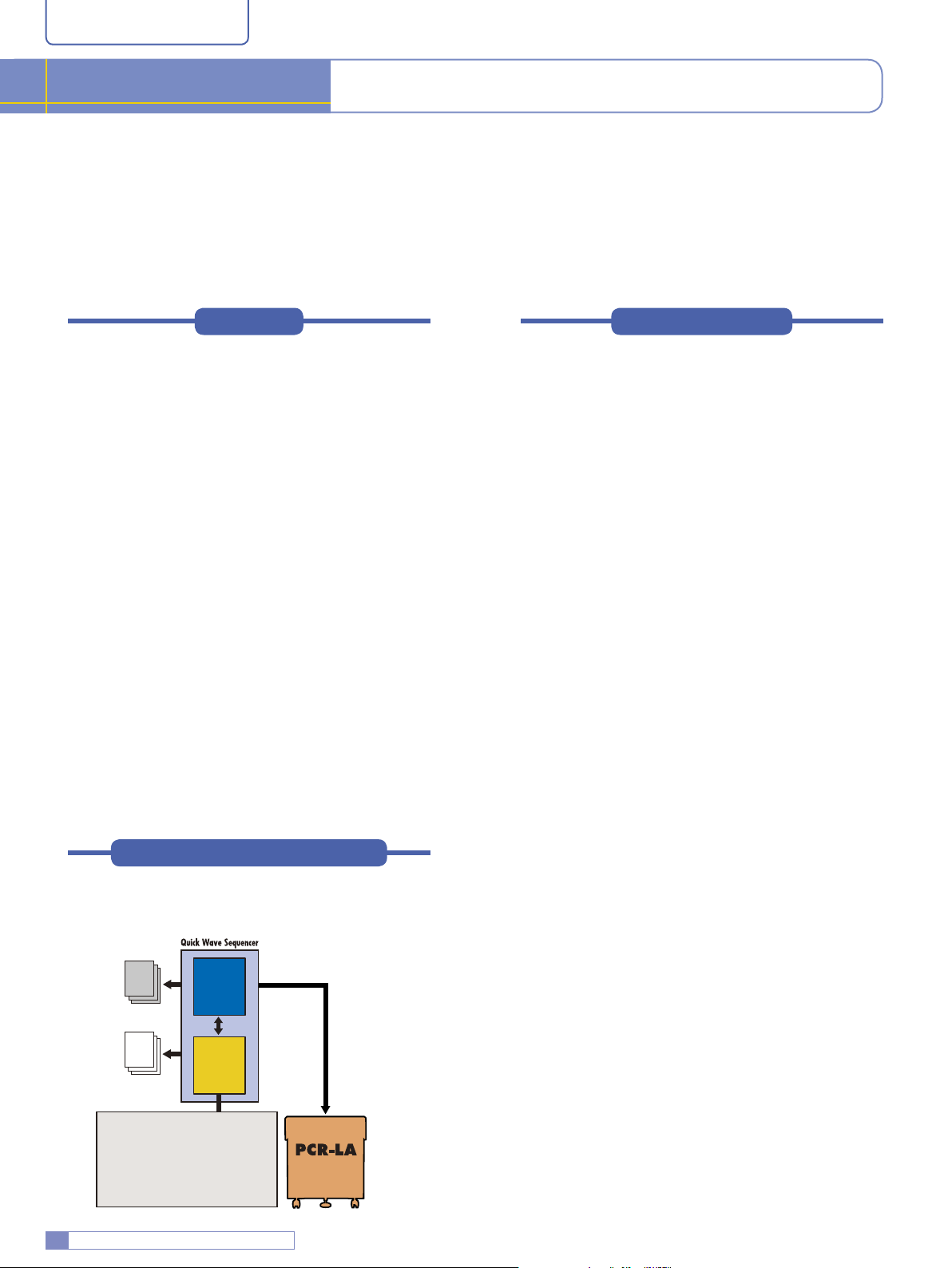

The “Quick Wave Sequencer [model name: SD04-PCR-L(E)]”
arbitrary waveform creation software is available as an option.
This is a parameter setting and data editing support tool for
special waveform output, user-defined waveform output, and
sequence operation functions.
In addition, the optional software SD003-PCR-LA "Quick
Im muni ty Se quen c er" i s als o availa ble for Power Li ne
Disturbance Immunity testing.
It can be applied for the latest standards testing as well as
for part of preliminary testing.
* For details of the software, see pages 18 to 20.
Quick Wave Sequencer Quick Immunity Sequencer
[SD04-PCR-L(E)] [SD003-PCR-LA]
Simplified Measurement of Harmonics Current
Japanese electrical and electronic equipment manufacturers
lead the world in terms of anti-harmonics measures. With a
variety of EMI-proof products already on the d ome stic
mar ke t , ther e is an in c r e a sin g tr e n d to sim p l i f y t h e
measurement of harmonics currents and identify where antiharmonics measures should be applied.
The P C R - L A Se r i e s sy s t e m sup p o r t s the sim p l i f ied
measurement of the 1st to 39th harmonic currents with the
optiona l remo t e con t r o l l e r (RC04 - P C R - LA). This is
extremely convenient for performing preliminary tests.
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
10
Dedicated
driver
Dedicated
driver
Dedicated
driver
Single-phase/three-phase output extension kit*
OT01-PCR6000LA/3
Dedicated output cab
le
Dedicated
signal cable
Dedicated
signal cab
le
Dedicated output cable
Dedicated output cable
PCR2000LA PCR2000LAPCR2000LA
* The output extension kit (option) includes all the components necessary to implement this system configuration,
including dedicated drivers, output cables, and signal cables.
Single-phase/single-phase, three-wire 4 kV output extension kit*
OT01-PCR4000LA/2
Dedicated driver
Dedicated dr
iver
Dedicated output cable
Dedicated signal cable
Dedicated output cable
PCR2000LA PCR2000LA
* The output extension kit (option) includes all the components necessary to implement this system configuration,
including dedicated drivers, output cables, and signal cables.
* Single-phase, three-wire output drivers (option) are provided in pairs, with a dedicated signal cable included.
Single-phase, three-wire output driver
2P03-PCR-LA
PCR2000LA PCR2000LA
Single-phase, three-wire output driver
2P03-PCR-LA
Dedicated signal cable
System Upgrades
A range of system configurations can be implemented using the relevant options.
Example of a Single-Phase, Three-Wire System
Example of a Single-Phase/Single-Phase, Three-Wire Switchable System
Example of a Single-Phase/Three-Phase Switchable System
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
11

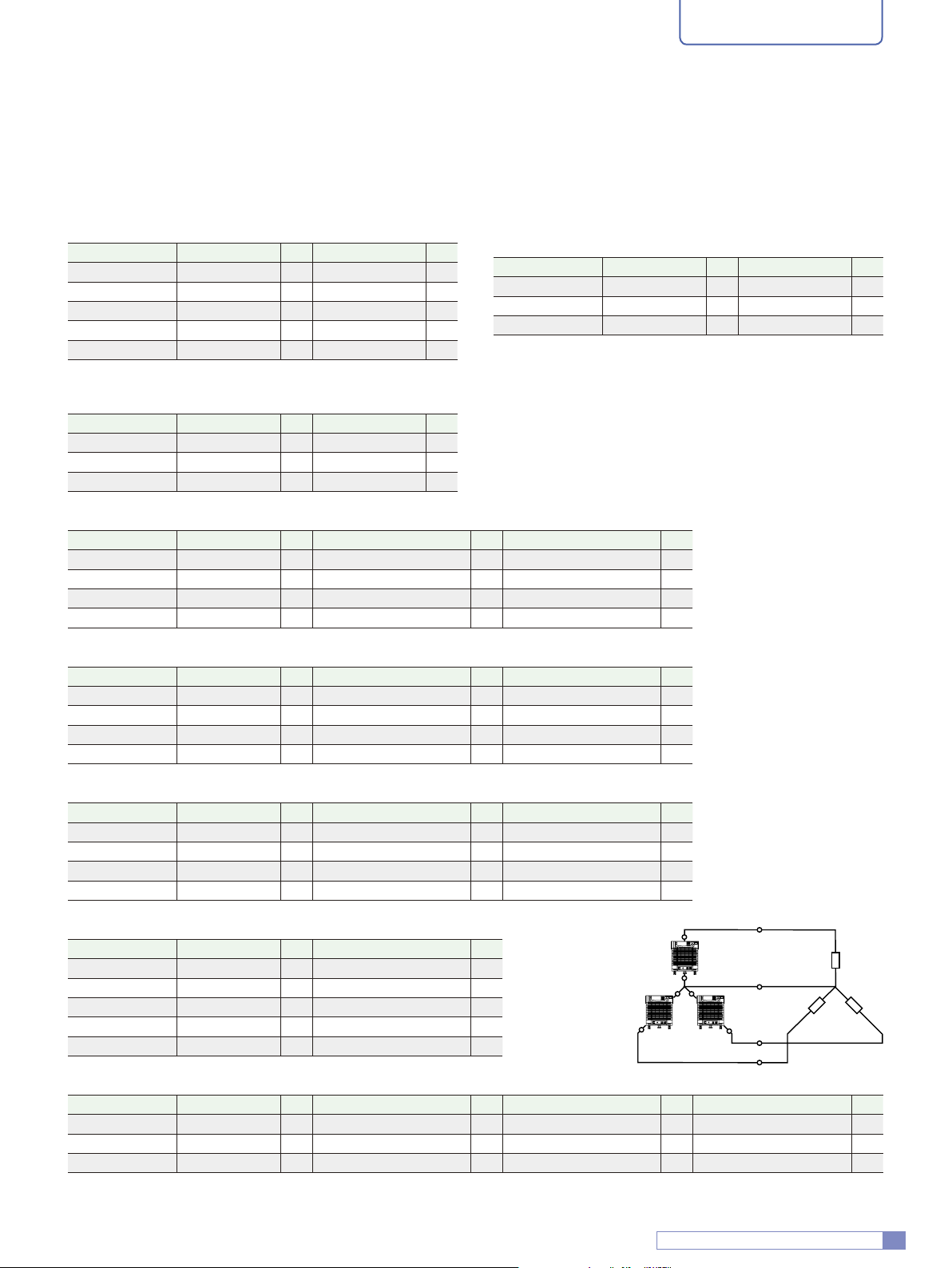

The PCR-LA Series system can be upgraded and applied to wide range of system implementations by using the available options (see pages 16 and 17).
In addition to the system examples described below, even more system configurations can be implemented by combining the options differently. For
details, contact our sales department.
●
Parallel extended operation system using PCR2000LA
Capacity Main Unit Qty
Parallel Operation Driver (Master)
Qty Parallel Operation Driver (Slave) Qty
Single-phase 4 kVA PCR2000LA 2 PD03M-PCR-LA 1 PD03S-PCR-LA 1
Single-phase 6 kVA PCR2000LA 3 PD03M-PCR-LA 1 PD03S-PCR-LA 2
Single-phase 8 kVA PCR2000LA 4 PD03M-PCR-LA 1 PD03S-PCR-LA 3
Single-phase 10 kVA PCR2000LA 5 PD03M-PCR-LA 1 PD03S-PCR-LA 4
●
Parallel extended operation system using PCR4000LA
Capacity Main Unit Qty
Parallel Operation Driver (Master)
Qty Parallel Operation Driver (Slave) Qty
Single-phase 8 kVA PCR4000LA 2 PD03M-PCR-LA 1 PD03S-PCR-LA 1
Single-phase 12 kVA PCR4000LA 3 PD03M-PCR-LA 1 PD03S-PCR-LA 2
Single-phase 16 kVA PCR4000LA 4 PD03M-PCR-LA 1 PD03S-PCR-LA 3
Single-phase 20 kVA PCR4000LA 5 PD03M-PCR-LA 1 PD03S-PCR-LA 4
●
Parallel extended operation system using PCR4000LA
Capacity Main Unit Qty
Parallel Operation Driver (Master)
Qty Parallel Operation Driver (Slave) Qty
Single-phase 12 kVA PCR6000LA 2 PD03M-PCR-LA 1 PD03S-PCR-LA 1
Single-phase 18 kVA PCR6000LA 3 PD03M-PCR-LA 1 PD03S-PCR-LA 2
Single-phase 24 kVA PCR6000LA 4 PD03M-PCR-LA 1 PD03S-PCR-LA 3
Single-phase 30 kVA PCR6000LA 5 PD03M-PCR-LA 1 PD03S-PCR-LA 4
●
Three-phase extended operation system
Capacity Main Unit Qty Three-Phase Output Driver Qty
Three-phase 1.5 kVA PCR500LA 3 3P03-PCR-LA 1
Three-phase 3 kVA PCR1000LA 3 3P03-PCR-LA 1
Three-phase 6 kVA PCR2000LA 3 3P03-PCR-LA 1
Three-phase 12 kVA PCR4000LA 3 3P03-PCR-LA 1
Three-phase 18 kVA PCR6000LA 3 3P03-PCR-LA 1
●
Parallel extended operation system using three phases
* Three-phase operation is possible with each phase operating in parallel.
Capacity Main Unit Qty Three-Phase Output Driver Qty
Parallel Operation Driver (Master)
Qty Parallel Operation Driver (Slave) Qty
Three-phase 24 kVA PCR4000LA 6 3P03-PCR-LA 1 PD03M-PCR-LA 3 PD03S-PCR-LA 3
Three-phase 36 kVA PCR6000LA 6 3P03-PCR-LA 1 PD03M-PCR-LA 3 PD03S-PCR-LA 3
Three-phase 54 kVA PCR6000LA 9 3P03-PCR-LA 1 PD03M-PCR-LA 3 PD03S-PCR-LA 6
●
Example of system configuration with the single-phase/three-phase
output extension kit
Capacity Main Unit Qty Option Qty
6kVA PCR2000LA 3 OT01-PCR6000LA/3 1
12kVA PCR4000LA 3 OT01-PCR12000LA/3 1
18kVA PCR6000LA 3 OT01-PCR18000LA/3 1
●
Example of system configuration with the single-phase/single-phase,
three-wire output extension kit
Capacity Main Unit Qty Option Qty
4kVA PCR2000LA 2 OT01-PCR4000LA/2 1
8kVA PCR4000LA 2 OT01-PCR8000LA/2 1
12kVA PCR6000LA 2 OT01-PCR12000LA/2 1
●
Example of a single-phase, three-wire system configuration
Capacity Main Unit Qty Option Qty
1kVA PCR500LA 2 2P03-PCR-LA 1
2kVA PCR1000LA 2 2P03-PCR-LA 1
4VA PCR2000LA 2 2P03-PCR-LA 1
8kVA PCR4000LA 2 2P03-PCR-LA 1
12kVA PCR6000LA 2 2P03-PCR-LA 1
Load
Phase U
Phase V
Phase W
U (R)
V (S)
W (T)
L
L
L
N
N
N
N
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
12
PCR500LA (500VA)
(1)
Remote controller interface:
Con nec t or for the opt i ona l rem ote con t rol l er
(RC03-PCR-LA or RC04-PCR-LA) cable
(2)
RS-232C
Terminal for connecting the RS-232C cable (9-pin
cross cable)
(3)
Display & operation panel
The large-size color vacuum fluorescent display
(V FD) scr e en pro vid e s a cle ar, e asy - to- rea d
display. Operations are performed by using the
function keys, numeri cal keypad, or jog/shuttle
wheel. Panel angle is adjustable.
(4)
Air intake
Air intake for forced air cooling of the equipment.
Air filters are built-in.
(5)
POWER
Power switch of the power supply
(T hos e model s r ate d a t 4 kVA or mor e use a
breaker-type switch.)
(6)
OUTPUT
Output connector
(Ma xim u m p ermi s sib le vo l tag e is 125 V, a nd
maximum permissible current is 10A.)
(7)
OUTPUT
Output terminal board
(8)
INPUT
Input connector (P CR500LA only). All models
other than the PCR500LA use an input ter minal
board. Input power supply voltage of 85 to 250 V.
(170 to 250 V for those models rated at 6 kVA or
more.)
(9)
INPUT VOLTAGE SELECTOR
Us ed to sel ect the vol tag e ran ge of the input
power supply voltage (PCR500LA, PCR1000LA,
PCR2000LA, and PCR4000LA).
(10)
Exhaust port
Exhaust port for forced air cooling
(11)
BNC connectors
Used for trigger signal output, status signal output,
and peak clear signal input for peak hold current
measurement.
* Ava ilable only when the re leva nt options are
installed.
(12)
Slots
These slots are p rov ided to acc ommod ate the
optional interfaces and drivers.
* The PCR2000LA, PCR4000LA, and PCR6000LA
have additional connectors on their back panel for
centrally controlled parallel operation.
PCR500LA PCR1000LA PCR2000LA PCR4000LA PCR6000LA
(5)
(6)
(1)
(10)
(7) (8)(9)
(11) (12)
Panel Description
Simple and easy-to-use layout
Panel Description
(2)
(3) (4)
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
13
Item/Model PCR500LA PCR1000LA PCR2000LA PCR4000LA PCR6000LA
Input ratings (AC RMS values)
Voltage (input voltage range 100 V/200 V) (*1) 85 V to 132 V/170 Vto 250 V 170 V to 250 V
Number of phases, single-phase frequency 47 Hz to 63 Hz
Apparent power Approx. 1 kVA Approx. 2 kVA Approx. 4 kVA Approx. 8 kVA Approx. 12 kVA
Power factor (*2) 0.95 (typical value)
Current (input voltage range 100 V/200 V) 12 A/6 A or less 24 A/12 A or less 48 A/24 A or less 96 A/48 A or less 72 A or less
Output ratings - AC mode (AC RMS values)
Voltage (output voltage range 100 V/200 V) (*3) 1 V to 150 V/2 V to 300 V
Voltage setting accuracy (output voltage range 100 V/200 V)
(*16) ±(0.3% of the set value + 0.6 V)
Maximum current (*4) 5 A/2.5 A 10 A/5 A 20 A/10 A 40 A/20 A 60 A/30 A
Number of phases Single phase
Power capacity 500 VA 1 kVA 2 kVA 4 kVA 6 kVA
Maximum peak current (*5) Four times the maximum current (RMS value)
Load power factor 0 to 1 (advanced or delayed phase) (*4)
Frequency 1 Hz to 999.9 Hz (*4,6)
Output ratings - DC mode
Voltage (output voltage range 100 V/200 V) (*3) 1.4V to 212V/2.8V to 424V
Voltage setting accuracy (output voltage range 100 V/200 V)
(*17) ±(0.05% of the set value + 0.05 V/0.1 V)
Maximum current (*4) 2.5 A/1.25 A 5 A/2.5 A 10 A/5 A 20 A/10 A 30 A/15 A
Maximum momentary current (*18) Four times the maximum current (RMS value)
Power capacity 250 W 500 W 1 kW 2 kW 3 kW
Output voltage stability
Input voltage variation (with respect to changes in the rated range)
Within ±0.1%
Output current variation (with respect to 0% to 100% changes in the rating)
Within ±0.1 V/±0.2 V (output voltage range 100 V/200 V) (*7)
Output frequency
variation
AC mode (40 to 999.9 Hz) Within ±0.3% (*8)
AC-S mode (40 to 999.9 Hz) Within ±1% (*8)
Ripple noise: DC mode (5 Hz to 1 MHz components) 0.1 Vrms or less 0.15 Vrms or less 0.2 Vrms or less 0.3 Vrms or less 0.4 Vrms or less
Ambient temperature variation (with respect to changes in the rated range)
100 ppm/˚C (typical value) (*9)
Output frequency stability, waveform distortion, response speed, and efficiency
Output frequency stability (with respect to changes in all rated ranges)
Within ±5 × 10–5; Setting accuracy: Within ±5 × 10
–4
Output voltage waveform distortion (*10) 0.3% or less
Output voltage response speed (*11) 30 µs (typical value)
Efficiency (*2) 50% or more
Indicators [vacuum fluorescent display (VFD) indications]
Voltmeter (*12, 14) Resolution RMS display mode ±0.1V
PEAK and AVE display mode 0.2 V (0 V to ±212 V)/0.3V (±212 V to ±424 V)
Accuracy RMS and AVE display mode Within ±(1% of rdg + 2 digits) (10 V to 424 V at room temperature)
PEAK display mode Within ±(2% of rdg + 2 digits) (10 V to 424 V at room temperature)
Ammeter (*12, 14) Resolution RMS display mode 0.01 A 0.01 A 0.01 A 0.1 A 0.1 A
PEAK and AVE display mode 0.02 A 0.02 A 0.02 A 0.2 A 0.2 A
Accuracy RMS and AVE display mode
Within ±(1% of rdg + 2 digits) (5% of the rated maximum current to the rated maximum current at room temperature)
PEAK display mode
Within ±(2% of rdg + 4 digits) (5% of the rated maximum current to the rated maximum current at room temperature)
Power meter (*15) Resolution 0.1 W/1 W
Accuracy
Within ±(1% of rdg + 3 digits) (10% of the rated power capacity to the rated power capacity, load power factor of 1, at room temperature)
Frequency meter
(*13)
Resolution 0.01 Hz/0.1 Hz
Insulation resistance, withstand voltage, circuit method, operating ambient temperature and humidity
Insulation resistance (input to cabinet, output to cabinet, and input to output)
30 MΩ or more at 500 VDC or 10 MΩ or more at 500 VDC
Withstand voltage (input to cabinet, output to cabinet, and input to output)
1.5 kV AC for 1 minute
Circuit method Linear amplifier system
Operating ambient temperature and humidity 0 ˚C to +50 ˚C/20% to 80%RH (no condensation)
I/O terminal board connection screws and accessories
Input terminal board connection screws (Inlet) M6
Output terminal board connection screws M4 M6
Accessories Input power cable - Type Dedicated cable 3-core cabtire cable 3 single-sore cables
(Conductor sectional area/length) Wire diameter
2 mm2/3 m with a 3-pin plug
5.5 mm2/3 m 8 mm2/3 m 22 mm2/3 m 22 mm2/3 m
Cable clamper — 1 set
Cable clamper fixing screws — M3 1 pc./M4 2 pcs. M3 2 pcs./M4 2 pcs. M3 4 pcs./M4 2 pcs.
Operation manual 1 copy
Weight seal 1 sheet
*1 The input voltage range - 100 V or 200 V - is switch-selectable.
*2 When the output voltage range is 100 V or 200 V, the output current is the rated value, the load
power factor is 1, and the output frequency is 40 to 999.9 Hz
*3 The output voltage range - 100 or 200 V - can be selected using a switch on the front panel.
The resolution is 0.1 V.
*4 When the output voltage is 1 to 100 V/2 to 200 V and the load power factor is 0.8 to 1 (AC/AC-S
mode)
When the output voltage is 100 to 150 V/200 to 300 V (AC/AC-S mode) or 100 to 212 V/200 to
424 V (DC mode), the output current is reduced based on the output voltage. When the load
power factor is 0 to 0.8, the output current is reduced based on the load power factor (AC/AC-S
mode). When the output frequency is 1 to 40 Hz, the output current is reduced based on the
output frequency (AC/AC-S mode).
*5 With respect to a capacitor input-type rectifier load. (Note that the peak current is limited based
on the RMS value of the rated output current.)
*6 Resolution: 1) 0.01 Hz (1.00 to 100.0 Hz); 2) 0.1 Hz (100.0 to 999.9 Hz)
*7 When the output voltage is 80 to 150 V/160 to 300 V and the load power factor is 1. The value
is obtained from the output terminal board.
*8 When the output voltage is 80 to 150 V/160 to 300 V and the load power factor is 1. This output
voltage variation is measured with 200 Hz as the reference.
*9 When the output voltage range is 100 V or 200 V and the output current is 0 A
*10 When the output voltage is 80 to 150 V/160 to 300 V and the load power factor is 1
*11 With respect to changes from an output current of 0 A to the rating and vice versa when the
output voltage range is 100 V or 200 V and the load power factor is 1
*12 RMS values are displayed for waveforms having a crest factor of 3 or less.
*13 The set output frequency value (frequency of the internal reference voltage) is displayed.
*14 When the output frequency is 40 to 999.9 Hz
*15 When the output frequency is 45 to 65 Hz
*16 When the output frequency is 45 to 65 Hz with no load at room temperature
*17 With no load at room temperature
*18 Limited based on the RMS value of the rated output current.
Specifications
Five models
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
14
Item/Model PCR500LA PCR1000LA PCR2000LA PCR4000LA PCR6000LA
Comliant standards
Electromagnetic compatibility (EMC) * Conforms to the requirements of the following directive and standard.
EMC Directive 89/336/EEC
EN61326:1997/A2:2001
Emissions: Class A
Immunity: Minimum immunity test requirements -
Conforms to the following standards.
EN61000-3-2:2000
EN61000-3-3:1995/A:2001
- -
Safety * Conforms to the requirements of the following directive and standard.
Low Voltage Directive 73/23/EEC
EN61010-1:2001
Class I
Pollution degree 2
-
* Applicable only to those models with the CE marking. Contact us for more detailed information.
* The output voltage rate represents the percentage of the voltage when the output voltage of 100 V/200 V is assumed to be 100% (when the output
voltage range is 100 V or 200 V).
* The output current rate represents the percentage of the current when the maximum rated output current is assumed to be 100%.
From Figures 1 and 3, the rated output current is the product of the two output current rates. The output current rate shown in Figure 4 takes
precedence when it is smaller than the product of the two output current rates (AC mode only).
AC mode
Output voltage rate [%]
100
80
60
40
20
0
0 20 40 60 8
0 100 120 140 150
Output current rate [%]
DC mode
Output voltage rate [%]
Output current rate [%]
100
80
60
40
20
0
0 40 8
0 120 160 220200
Load power factor
100
80
60
40
20
0
1 0.8 0.6 0.4 0.2 0
Output current rate [%]
Output frequency
Output current rate [%]
100
80
60
40
20
0
1 10 20 30 40 5
0 999.9
■
Specifications for analog interface EX03-PCR-LA
The following specifications pertain to the overall performance of the analog interface attached to the PCR-LA Series system’s main unit. Other specifications
are the same as those for the PCR-LA Series system.
Input
External signal input voltage range Nominal value: 0 to ±2.12 Vpeak (0 to 1.5 Vrms sine wave) when the voltage amplification rate is set to
100/200 (100 V/200 V range)
Maximum permissible error: ±5 Vpeak
External signal input frequency range DC/1 Hz to 1 kHz sine wave (distortion rate of 10% or less)/1 Hz to 100 Hz square wave (within the external
signal input voltage range)
External signal input impedance 10 kΩ ±10% (unbalanced)
Output (PCR-LA Series system’s output)
Maximum rated output frequency 999.9 Hz (basic frequency for which all harmonic distortion rates are 10% or less)
Voltage amplification rate 100 V range: 100 ±10% 200 V range: 200 ±10% Permissible range: ±20% (or more) of 100 or 200
Frequency response DC: Up to 5 kHz (–3 dB) with 200 Hz as the reference (when a sine wave of 0.5 Vrms or less is input)
Output voltage distortion rate Main unit’s specification + 0.5% or less (when a sine wave of 0.1% or less is input)
Output voltage rise/fall time Main unit’s specification + 50 µs (typical value) (when the input voltage changes from 0 V to 2 V or vice versa)
Output voltage temperature coefficient Main unit’s specification + 200 ppm/˚C (typical value)
General specifications
Insulation resistance 30 MΩ or more at 500 VDC (external signal terminal to cabinet, external signal terminal to input, and external
signal terminal to output)
Withstand voltage 500 VAC for 1 minute (external signal terminal to cabinet, external signal terminal to input, and external signal
terminal to output)
Voltmeter 3-digit display, main unit’s specification + 3% (typical value), with only peak values displayed
Ammeter 3-digit display, main unit’s specification + 5% (typical value), with only peak values displayed
Frequency meter 3-digit display without the measurement function (only set values are displayed)
■

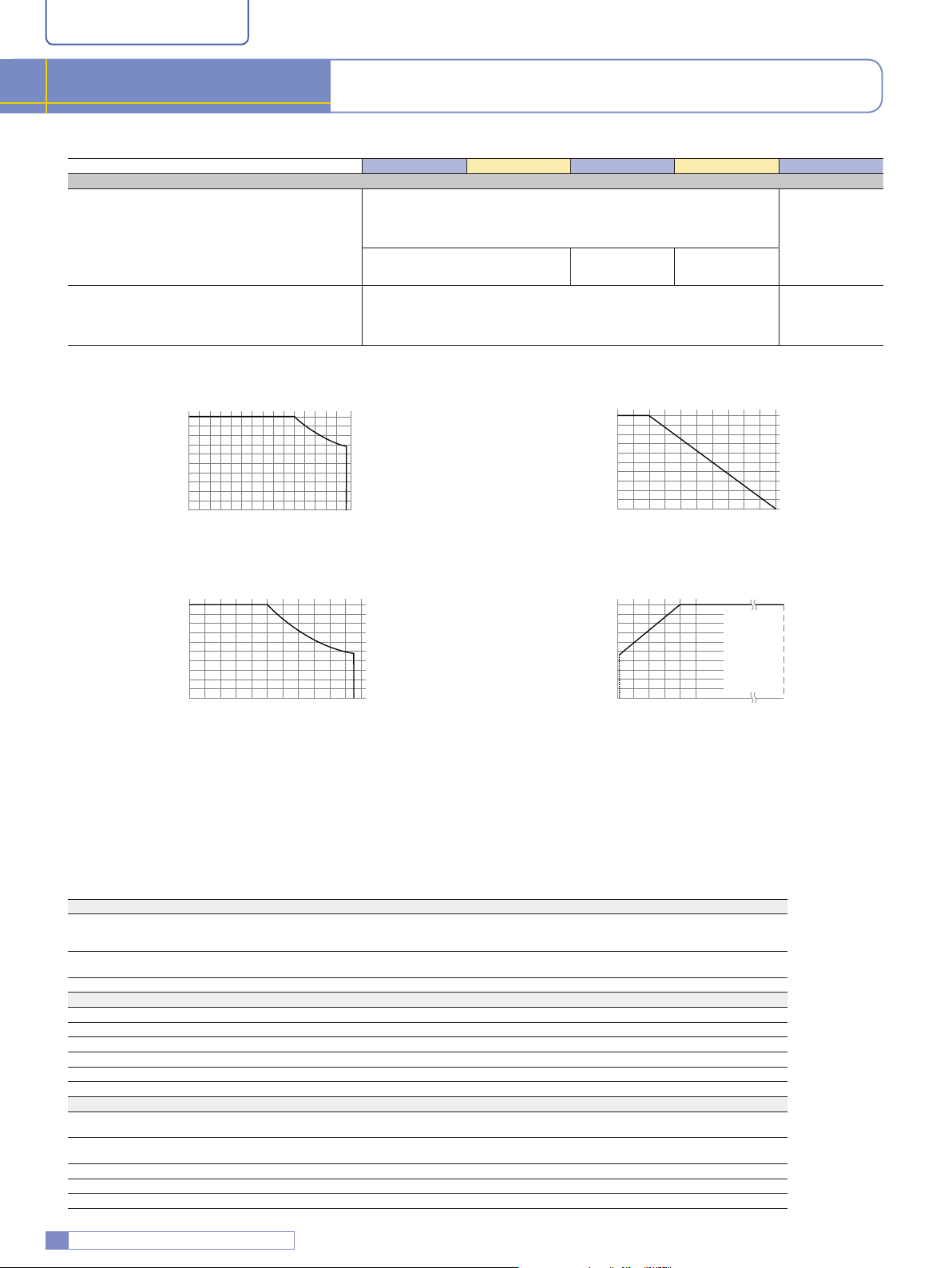

Load power factor - rated output current characteristics
Figure 3
■
Output voltage rate - rated output current characteristics
Figure 1
■
Output frequency - rated output current characteristics
Figure 4Figure 2
Specifications
Five models
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
15
MAX455
430
484
MAX545
PCR2000LA
MAX455
430
839
MAX920
PCR4000LA
MAX455
430
1105
MAX1190
PCR6000LA
MAX455
430
217
MAX245
PCR500LA
MAX455
430
PCR1000LA
351
MAX415
PCR500LA/1000LA/2000LA
550
MAX595
MAX40
PCR4000LA/6000LA
550
MAX605
MAX40
Bracket
KRB19
Bracket
KRB11
Bracket
KRB8
354
8937 102 7
5121
488
14613337.5133.5
84
3
16514616514637.5
Bracket
KRB5
462
482
221
133.
537.5
462
482
462
482
462
482
399
100
24.
5
10
0
15
0
10
0
499
15015024.5
150
849
200
200
200
24.5
460
480
249
20
024.5
460
480
460
480
460
480
Bracket
KRB250
Bracket
KRB400
Bracket
KRB500
Bracket
KRB850
For metric-type racks (JIS)
KRB250
(for PCR500LA)
KRB400
(for PCR1000LA)
KRB500
(for PCR2000LA)
KRB850
(for PCR4000LA)
For inch-type racks (EIA)
KRB5
(for PCR500LA)
KRB8
(for PCR1000LA)
KRB11
(for PCR2000LA)
KRB19
(for PCR4000LA)
External Dimensions
Rack Mount Brackets
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
16
■
Remote Controller
RC03-PCR-LA (simple type)
Th i s rem o t e co n t rolle r ena bles
power line abnormality simulations
in add i t i o n to volt a g e sett i n g ,
f r e q u e n c y s e t t i n g , a n d
voltage/frequency display functions.
Cable length: Approx. 2 m
* The setting range of parameter s an d
items have restriction in part Please refer
to pag e 8 " Pow e r Li n e Ab nor mali ty
Simulation" for details.
RC04-PCR-LA (multifunctional type)
Th i s r e m o t e controller le t s y o u
perform the same operations as are
possible from the operation panel of
the PCR-LA Serie s sy ste m, a nd
greatly expands the PCR-LA Series
system’s functionality. Cable length:
Approx. 2 m
Functions enabled by this option
Power line simulation
Sequence operation
Harmonics current analysis
Special waveform output
Output impedance setting
Power factor, VA, and peak hold current measurement
Output on/off phase setting
AC + DC mode
Memory function expansion
Regulation adjustment
■
Interface
IB03-PCR-LA (for GPIB)
EX03-PCR-LA (for external signal input)
EX 0 3 -P C R -L A am p l if i e s th e
po wer o f an a l og s i gnals inp u t
from an external source and can
be used as the power amplifier
for the PCR-LA Series system.
■
Parallel Operation Driver
PD03M-PCR-LA (parallel operation for master)
PD03S-PCR-LA (parallel operation for slave)
Up to five systems of the same
model can be operated in parallel
an d und e r cen t raliz e d con t rol
through the use of PCR2000LA,
PCR4000LA, or PCR6000LA.
[Main accessories of PD03S-PCR-LA]
Power signal cable for PCR2000LA (0.3 m)
Power signal cable for PCR4000LA and
PCR6000LA (0.3 m)
Drive signal cable (0.6 m)
IB03-PCR-LA EX03-PCR-LA
■
Three-Phase Output Driver
3P03-PCR-LA
Three PCR-LA Series systems of
t h e s a m e m o d e l c a n b e
connected in a star topology to
implement three-ph ase outpu t
operation.
[Main accessories]
Drive signal cable × 2 (0.6 m)
■
Single-phase, three-wire Output Driver
2P03-PCR-LA
This opt ion allows the PCR-LA
Ser ies system to be used as a
single-phase, three-wire power
supply.
[Main accessories]
Drive signal cable (0.6 m)
■
Parallel Terminal
PT01-PCR-LA (for PCR2000LA)
PT02-PCR-LA (for PCR4000LA and PCR6000LA)
The parallel terminal is connected
to the back panel of the master
unit. Up to three PCR-LA Series
sy s t e ms can b e conn e c t e d in
pa ral l el t o ret r ieve t he o u tput .
The ter minal combines multiple
wires into a single bundle. Note
that the parallel operation driver
is not included.
▲
When two PT01-PCR-LA terminals are connected
●
Device drivers
The following device drivers (freeware)
can be downloaded from our website
(www.kikusui.co.jp).
• Device driver for VisualBasic (ActiveX)
• Device driver for LabVIEW
• Device driver for LabWindows/CVI
Options
A full range of options to support a wide range of PCR-LA Series system applications
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
17
*1 The size of the OT01-PCR4000LA/2 is 5.5 mm2.
The size of OT01-PCR8000LA/2 and OT01-PCR12000LA/2 is 14 mm2.
*2 T he c ab l e for the OT0 1-P C R80 0 0LA / 2 and OT0 1-P C R12 0 00L A /2 i s of
6-pole-to-6-pole type.
Other accessories include signal cable bands and the operation manual.
●
Accessories
Product Name Qty Length Remark
Power cable
*
1
6 2.5 m Size: 5.5 mm2 or 14 mm
2 *1
Power cable 1 1 2 m For master J1 (4 poles to 6 poles)
Power cable 2 2 2 m For J4 (6 poles to 6 poles)
Power cable 3
*
3
1 0.3 m For J3 and J1 (4 poles to 4 poles)
Power cable 4 1 2 m For sensing
(10 poles to 2 crimp terminals)
Power cable 5 1 2.3 m With connector for parallel
operation master (26 poles)
Dedicated parallel
operation driver
2 — One driver for master and one
driver for slave (with fixing screws)
Drive signal cable 1 0.7 m 26 poles
Dedicated single-phase,
three-wire output driver
2 — One phase-U card and one
phase-V card (with fixing screws)
Drive signal cable 1 0.7 m 34 poles 0.7 m
■
Single-phase/single-phase, three-wire output extension kit
The kit includes all the accessories needed to implement the system configuration.
NOTICE Users of PCR-L Series systems
The PCR-LA Series is not compatible with previous PCR-L Series products. It is therefore impossible to operate a PCR-LA Series system in parallel with a PCR-L Series system, or to
include any PCR-L Series products when upgrading your system configuration as described on page 10. The options cannot be used with PCR-L Series systems, with a few exceptions.
For more information, please contact local distributor.
OT01-PCR8000LA/2 (8 kVA)
OT01-PCR12000LA/2 (12 kVA)
OT01-PCR4000LA/2 (4 kVA)
■
Single-phase/three-phase output extension kit
The kit includes all the accessories needed to implement the system configuration.
OT01-PCR12000LA/3 (12kVA)
OT01-PCR18000LA/3 (18kVA)
OT01-PCR6000LA/3 (6kVA)
*1 The size of the OT01-PCR6000LA/3 is 5.5 mm2.
The size of OT01-PCR12000LA/3 and OT01-PCR18000LA/3 is 14 mm2.
*2 The cable for the OT01 -P C R1 200 0LA /3 and OT01- PCR 180 00 L A/ 3 is of
6-pole-to-6-pole type.
Other accessories include signal cable bands and the operation manual.
●
Accessories
Product Name Qty Length Remark
Power cable
*
1
9 2.5 m Size: 5.5 mm2 or 14 mm
2 *1
Power cable 1 1 2 m For master J1 (4 poles to 6 poles)
Power cable 2 3 2 m For J4 (6 poles to 6 poles)
Power cable 3
*
3
2 0.3 m For J3 and J1 (4 poles to 4 poles)
Power cable 4 1 2 m For sensing
(10 poles to 2 crimp terminals)
Power cable 5 1 2.3 m With connector for parallel
operation master (26 poles)
Dedicated parallel
operation driver
3 —
One driver for master and two drivers
for slaves (with fixing screws)
Drive signal cable 2 0.7 m 26 poles
Dedicated single-phase,
three-wire output driver
3 —
One phase-U card, one phase-V card,
and one phase-W card (with fixing screws)
Drive signal cable 2 0.7 m 34 poles
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
18
Transfer, execution, and output control
of sequences and waveforms
■ Sine waveform
■ Harmonic composite waveform
■ Peak-clipped waveform
■ User-defined waveform
• Tr iangle waveform
• Square waveform
• Easy Power Waveformer
(Pseudo-waveform captured using a digital oscilloscope)
[Examples waveform sources]
UPS, commercial power line, generator, etc.
Sequence
Builder
Wave Bank
Server
(waveform
creation)
Series
Editing and
creation of
sequence dat
a
Storage of data
(in electronic files)
Printout
• Sequence data
• Waveform outline
(image)
Sequence Builder
A sequence is a function that performs a specific action, such
as changing the AC output voltage, frequency, or waveform, or
outputting a trigger signal, at a predetermined point in time
(step). T h e PCR-LA Ser i e s syste m is provided wi t h a
sequence function. To enable the PCR-LA Series system to
use a sequence, however, change points (steps) must be
specified/ edited and then transferred to th e system to be
controlled . Seq u e n c e Bui l d e r doe s this for you. T his
application has several useful functions including sequence
wizards that automatically generate test data based on entered
parameters and a function for printing out sequence data.
Basically, the sequence wizard performs simulations based
on specified sequence steps. For simulations involving an
instantaneous power failure, voltage fluctuation, or abrupt
phase shift in the single-phase output, however, all you need
to do is enter the relevant para meters, a fter wh ich the
sequence wizard automatically creates the ideal sequence
for the test.
Any or all of the following items can be set for each step. Up
to 100 steps can be specified.
Step items to be edited
Time ....................................... Set the duration of the step.
• S e tt ing rang e 0.0 01 s ec ond s to 999 hou rs 5 9
seconds 59.999 seconds
•
Minimum increment 0.001 seconds (resolution: 1 ms)
Voltage ................................... Set the voltage (Vrms) to be output in the step. This
voltage setting is held until the next step begins.
• Setting range 0.0 to 305.0 Vrms
• Minimum increment 0.1 Vrms
* For a three-phase output, set a phase voltage. The
voltage is changed simultaneously with respect to the
time axis.
Voltage ramp .........................Set this item when you want the [Voltage] specified in
the previous step to gradually change to the [Voltage]
specified in this step, over the specified [Time].
Frequency .............................. Set the frequency (Hz) to be output in this step. This
frequency setting is held until the next step begins.
• Setting range 1.00 to 999.9 Hz
• M ini mum in c re men t 1. 00 to 99. 99 H z (se tti ng
resolution: 0.01)
100.0 to 999.0 Hz (setting resolution: 0.1)
* For a three-phase output, the frequency is changed
simultaneously with respect to the time axis.
Frequency ramp ..................... Set this item when you want the [Frequency] specified
in th e p r ev iou s s t e p to gra d ua lly cha n ge to the
[Frequenc y] specified in thi s step, over the spec ified
[Time].
Wave bank ............................. From the Wave Bank Server, select the waveform to be
used in this step.
• Setting range No. 0 to No. 13
No. 0 is dedicated to a sine waveform, while Nos. 1 to
13 are the Wave Bank Server’s current wavefor ms.
Output .................................... Indicates whether to supply power.
Trigger ................................... Set this item when you want to output a trigger signal
from the BNC co nnect or on th e ba ck pan el of th e
PCR- LA Serie s sys tem when this step is execute d.
This signal can be used as a trigger for an oscilloscope
or the like.
Waveform synchronization .... Set this item when you want this step to be executed
after the next zero crossing of the output voltage.
Software Quick Wave Sequencer SD04-PCR-L(E)
Implements highly flexible simulation test environments through the use of a waveform bank and the
sequence operation functions of the PCR-LA Series.
Arbitrary waveform creation software Quick Wave Sequencer [model name: SD04-PCR-L(E)] allows you to perform AC power line simulations by exploiting the
functions of the PCR-LA Series system. This lets you create any desired power conditions, including abnormal power feed statuses that rarely occur with general
commercial power lines, and ideal power feed statuses.
Options
Software that enables a full range of AC power line simulations
Features
Power line abnormality simulations
Th e sy s t e m su p p or t s th e fo l l o w i n g AC po w e r l i n e
abnormality simulations:
Instantaneou s powe r fa i l u r e test/voltage fluc t u a t i o n
test/abrupt phase shift test
*
1
/output of harmonic composite
waveforms/output of oscilloscope-captured waveforms from
the PCR-LA Series system
*
2
*1 Intended exclusively for single-phase PCR-LA Series systems.
*2 Not suppor ted for si ng le-phase, three-wire syst em (featuri ng a
single-p hase, three-w ire ou tput driver) or a three-pha se syste m
(featuring a three-phase output driver).
Supports the se tti ng of individual in ter-w ire phase
differences for a three-phase system
With a three-phase system, differences can be set between
individual phases, and sequence control (for changing the
voltage and frequency, etc.) can be exerted over either all
the phases or one of the three phases (U, V, or W).
Easy reproduction of simulation tests
The created test data can be saved as a configuration file,
making it easy to perfor m the same test again at a later
date. It is also possible to transfer the configuration file via
e-mail or a commercial BBS and reproduce the same test
on a PCR-LA Series system at a remote location.
Test summary print-out
A summary of the created test data can be printed out for
checking.
Software Operation Concept
Quick Wave Sequencer [model name: SD04-PCR-L(E)]
consists of two applications - Sequence Builder and Wave
Bank Server - which run in conjunction with each other.
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
19
Recommended Operation Environment for SD04-PCR-L(E)
Computer, OS, and printer
IBM PC/AT-compatible machine/i486DX/66 MHz or better/16 MB of
more of RAM/20 MB or more of free hard disk space/SVGA or better
display adapter and monitor/Microsoft mouse or compatible pointing
device/CD-ROM drive/Microsoft Windows 95, 98, NT 4.0, 2000, or
XP/printer compatible with Microsoft Windows
GPIB card
GPIB card made by N a t i o n a l I n s t r uments Cor p. o r Agilent
Technologies, Inc.
GPIB driver
GPIB driver compatible with the GPIB card being used
(NI: NI488-2M software; Agilent: Agilent I/O Library)
VISA library
NI-VISA 2.6 or later or Agilent VISA 2.0 or later
GPIB cable
Ca ble wit h 24- p in c onne c tors com p lian t wit h AN I S/I E E E s t d
488.1-1987
Power supply (AC power supply) and other equipment
Single-phase system: PCR-LA Series
Single-phase, three-wire system: PCR-LA Series + single-phase,
three-wire output driver
Three-phase system: PCR-LA Series + three-phase output driver
(This application requires that the ROM version of th e PCR-LA
Series system be 2.04 or later.)
IB03-PCR-LA (GPIB interface card for PCR-LA)
Device under test (Must be compatible with the PCR-LA Series
system.)
Note: Check that the Na tional Instruments GPIB card is compa tible with the OS
being used. Also, if your PC is running Windows NT 4.0, the system will fail to
operate correctly unless Windows NT ServicePack3 or later, or equivalent, is
installed.
Wave Bank Server
The PCR-LA Series system stores
the shapes of the waveforms used
as output references in an internal
memor y called the “wave bank.”
There a re 15 wave banks, from
No. 0 t o No. 14. B a nk No. 0 is
de d i c ated to a sin e wavefo r m ,
while bank Nos. 1 to 13 can be
ed i t e d by t h e user. T h e Wave
Bank Server is used to edit these
stored waveforms. The waveforms generated by the Wave
Bank Server (wave bank Nos. 0 to 13) can be printed as
simplified waveform images. Bank No. 14 is used as a data
area by this application.
Types of waveforms
Sine waveform ....................... This is an ordinary AC, or sine, waveform.
Harmonic composite waveform
.......
T h e ge ne ra te d wa ve fo rm c o n ta in s ha rm on ic
components. The output level and phase, from the 1st to
50th orders, can be set for each harmonic component.
• The output level and phase can be set for each order.
• Output level: 1% to 100% (in steps of 1%)
(Assuming the output level of the set voltage of the
basic waveform to be 100%)
• Phase: 0˚ to 359˚ (in steps of 1˚)
Peak-clipped wavefor m .......... Specif ying the de gree of waveform distortion causes
the Wave Bank Ser ver to generate a sine waveform
with a clipped peak. If you enter a numerical value (in
steps of 0.01), a peak-clipped wave form is created
according to the specified value.
•
Peak-clipped value in single-phase output: 1.10 to 1.40
• Peak-clipped value in single-phase, three-wire output:
1.25 to 1.40
•
Peak-clipped value in three-phase output: 1.25 to 1.40
User-defined waveform .......... The sam plin g wavefor ms can be input to a PCR -LA
Ser ies system (for sin gle -ph ase outp ut) or PCR -LT
Series system from an external source via the GPIB
interface. Using this function, the Wave Bank Server
ca n sup por t s ev e ra l typ es of wave fo rms . It c an
generate triangle waveforms, square waveforms, and
oscilloscope -c ap tu re d wavef or ms bas ed on mi no r
categories called “applets.”
Types of applets
Triangle ..................................
This applet creates triangle waveforms and lets you specify
the duty ratio of the waveform (position of the peak).
*
1
Square ...................................
This applet creates square waveforms and lets you specify
the duty ratio of the positive and negative portions.
*
2
Easy Power Waveformer·
Waveformer ...........................
Th is f un cti on c ap tur es w av efo r ms usi n g a d igi tal
oscilloscope and lets you reproduce them as user-defined
waveforms. It allows you to acquire the actual waveform
of a co mme rc ial power line, signal generato r, power
generator, UPS, or other equipment and then have the
PCR-LA Series system output that waveform. Captured
waveforms can also be saved to a file.
*
3
*1
The waveform resolution is calculated by multiplying 4096 point s on the voltage axis by
1024 points on the time axis, regardless of the frequency. The actual output depends on
the performance of the PCR-LA Series system being used, however. It cannot be used with
PCR-LA Series systems or three-phase systems (those using a three-phase output driver).
*2 If the duty ratio is disturbed, a DC component is superimposed on the plus or minus side,
in proportion to the degree of imbalance between the positive and negative portions. If
the output contains a DC component, only half of the PCR-LA Series system’s power
can be guaranteed.
*3 When an oscilloscope is to be used to capture waveforms from a commercial power line
or other power source, the oscilloscope must be isolated from the commercial power line
or other power source.
(Left)
Wizard for abrupt phase shift
simulation in single-phase output
(Middle) Wizard for instantaneous
power failure simulation
(Right) Wizard for voltage fluctuation
simulation
(Left, top) Harmonic composite waveform
(Left, bottom) Peak-clipped waveform
(Right, top) Triangle
(Right, middle) Square
(Right, bottom) Easy Power Waveformer
PCR-LA SERIES
AC POWER SUPPLY PCR-LA SERIES
20
Printed in Japan Issue:Sep.2004 2004093KELEC11
■
All products contained in this catalogue are equipment and devices that are premised on use under the supervision of qualified personnel, and are not designed or produced for home-use or
use by general consumers.
■
Specifications, design and so forth are subject to change without prior notice to improve the quality.
■
Product names and pr ices are subject to change and
production may be discontinued when necessar y.
■
Product names, company names and brand names contained in this catalogue represent the respective registered trade name or trade
mark.
■
Colors, textures and so forth of photographs shown in this catalogue may differ from actual products due to a limited fidelity in printing.
■
Although every effort has been made to
provide the information as accurate as possible for this catalogue, certain details have unavoidably been omitted due to limitations in space.
■
If you find any misprints or errors in this catalogue,
it would be appreciated if you would inform us. ■Please contact our distributors to confirm specifications, price, accessories or anything that may be unclear when placing an order or concluding
a purchasing agreement.
●
Distributor:
1-1-3,HIGASHIYAMATA,TSUZUKI-KU,YOKOHAMA, 224-0023, JAPAN
TEL:(045)593-7570, Fax:(045)593-7571
Internet:http://www.kikusui.co.jp/
KIKUSUI ELECTRONICS CORP.
Power Line Disturbance Immunity Testing Software
SD003-PCR-LA
Supporting the latest IEC61000-4* standards!
*
Supports standard compliance testing for IEC61000-4-11, 4-13, 4-14, 4-27, 4-28, and 4-29, as well as preliminary testing.
Power line disturbance immunity testing software "Quick Immunity Sequencer" (model name: SD003-PCR-LA) is an application software for Immunity testing
standard (IEC61000-4 Series) of EMC standard which complies to Power Line Disturbance Immunity testing, a suite of international specifications concerning power
line disturbances. Not only can it be used for compliance testing based on the latest standards and for some types of preliminar y testing, but the software can also
be employed for advance checking in development phases and for immunity margin tests, because it allows extended testing conditions to be set as needed.
☛
Please refer to the brochure for details.
Features
Options
Settings for complicated compliance tests can be made with ease!
Recycled Paper
●
Supports standard compliance testing for IEC61000-4-11, 4-13,
4-14, 4-27, 4-28, and 4-29, as well as preliminary testing.
●
Allows parameters to be set to out-of-spec values (for margin tests).
●
Su p ports s ingl e - an d thr ee-p h ase o pera t ion s as well as D C
operations.
●
Graphics-based screen design that makes the software easy to
operate.
●
Pr ev iew funct ion per m its outpu t waveforms to be c hec ke d in
advance.
●
Sequ enc e c hai n f unc tion s tream lin es the testi ng proce ss (10
sequences max.).
●
Export function exports test conditions and results (in text format).
●
This trigger function i s t o stable for the obse r vati on of out pu t
waveform.
●
Pause function can be used when checking or replacing the supplied
device.
●
It can be set either Japanese/English automatically depend upon
OS of PC.
[Operation environment] Windows XP / 2000 / Me / 98SE
Choose
a standard.
Set the
testing
conditions.
Waveform
preview
Test result
Loading...
