Device Description Multi radio connection MFA
Multi radio connection MFA
Radio converter for the integration of line-dependent
continuous small servo drives in wireless
transferable signal chains. With integrated switching
power supply.
Contents
Notes on the device description
Safety Instructions
Qualified specialists
Contents subject to change
Issue date: 11/22/2004
Kieback & Peter GmbH & Co KG
Tempelhofer Weg 50, D-12347 Berlin
Telephone +49 (0) 30 / 600 95-0
Telefax +49 (0) 30 / 600 95 164
E-Mail: info@kieback-peter.de
http://www.kieback-peter.de
Application Page 3
Type Page 3
Technical data Page 3
Assembly Page 4
Installation Page 6
Connection Page 6
Addressing Page 6
Initial operation Page 8
Page 2
Page 2
Page 2
Technical data sheet 1.15-10.002-01-en
Multi radio connection MFA Device Description
Notes on the device description
The description contains instructions on using and assembling the Multi Radio Controller MFA.
In case of questions which cannot be clarified with this device description, please refer to the supplier or
manufacturer for further information.
The indicated installation instructions/regulations are valid in the Federal Republic of Germany.
When using the I/O components in other countries, the builder or operator of the plant is responsible for
compliance with the respective national regulations.
The operating staff is to be instructed in accordance with the description of the technical data sheet.
Safety Instructions
The currently valid worker’s occupational health regulations and regulations for the prevention of industrial
accidents must be observed when assembling and using the modules.
Any work concerning the installation or initial operation of the modules shall be exclusively carried out by qualified
specialists, see paragraph “Qualified specialists”.
Every person utilizing the devices shall have read and understood the descriptions in the technical data sheet.
Meaning of the symbols in the technical data sheet:
Warning of dangerous electrical voltage
Danger
Warning
Note
Danger
Warning
Note
General warning, strictly observe this notice
Further notice to observe
means mortal danger, severe bodily injuries or serious material damage in case of
non-observance.
means danger of bodily injuries or material damage in case of non-observance.
indicates an information which is particularly stressed.
Qualified specialists
Qualified specialists for the purposes set out in this technical data sheet are persons who are familiar with the descri bed
devices and possess a qu alification for th eir respectiv e occupation.
These are for instance:
•
Authorization to connect the devices according to the VDE rules and local Electricity Board regulations, as
well as the authorization to switch the devices on and off taking the in-house regulations into account.
•
Knowledge of the regulations for prevention of accidents.
• Knowledge of the utilization of the devices within the plant system.
•
etc.
Page 2 / 8
Technical data sheet 1.15-10.002-01-en
Device Description Multi radio connection MFA
Application
The Multi-Radio Connection MFA provides the indirect activation of wireless
control of conventional, mains-driven continuous small servo drives. Within the
signal chain the MFA works as a radio converter.
In radio networks it represents the interface between wireless sign al paths and
line-dependent activation.
The voltage supply of the MFA is an integrated switching power supply unit
which permits the power supply on the secondary side for a maximum of two
continuous small servo drives of the types M25Y or M15Y-S2.
MFA
Type
MFA Multi-radio connection as a radio converter for the indirect wireless activation of up to two
wire-connected continuous small servo drives.
With integrated switching power supply 230 V AC/ 24 V DC.
Technical data
Primary mains 230 V AC ± 10%/ 12 VA
Secondary mains 24 V AC ± 15%/ 7 VA
Received frequency 868.35 MHz
Analog output 0..10 V DC / 5 mA
Degree of enclosure
protection
Housing Plastic housing,
Display 1 multi-colored LED to display
- active reception of a radiotelegram (green)
- passive reception (green; blinking short)
- Error (red)
Weight
Assembly Wall mounted/assembly in flush-mounted box

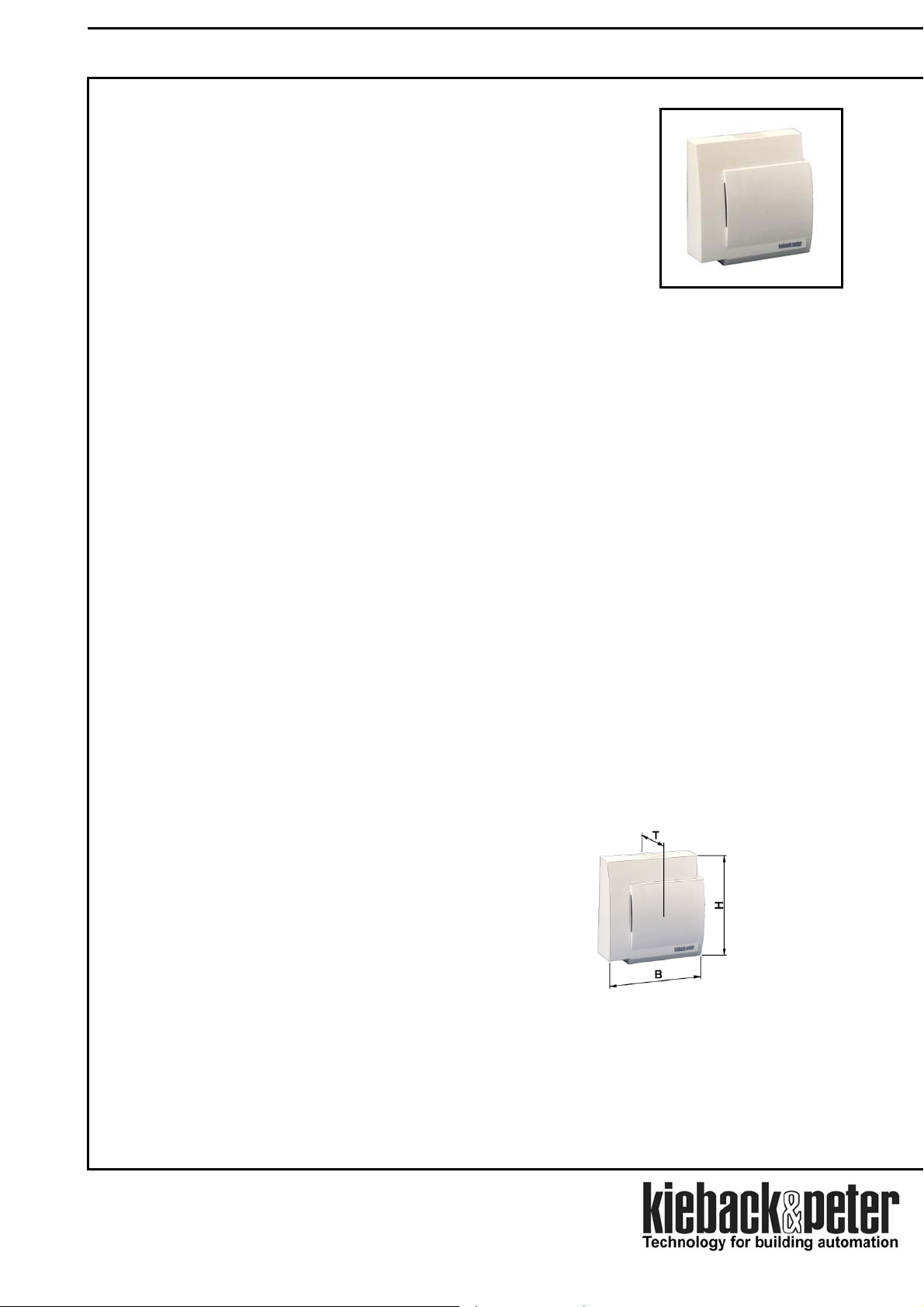

Dimensions W x H x D (mm) 82.5 x 82.5 x 27.7
0.12 kg
IP30
Hood, color RAL9010 (pure white)
0.0.50 °C Ambient temperature
Page 3 / 8
Technical data sheet 1.15-10.002-01-en
Multi radio connection MFA Device Description
Assembly
General installation notes
Devices communicating via radio can not always be assembled at arbitrary locations, as wirel ess data
transmission is more or less strongly influenced by the constructional and spatial conditions.
Prior to installation and assembly, therefore, the building structures must be analyzed and a series of
measurements must be carried out to determine the specific ranges inside the building. A corresponding Kieback
& Peter service and diagnosis tool is provided for this purpose.
To establish an operational and functionally secure communication path, the following aspects must be taken into
account prior to and during planning:
• Natural and constructional influences limit the transmission ranges that can be realized. Building materials and
screening elements (e.g., installation shafts, fire doors, switching cabinet doors, etc.) must already be taken
into account during the planning phase.
High humidity increases the natural signal attenuation.
Warning
Note
• Observe the minimum distances to potential sources of interference
- min. 0.5 m to high-frequency interference sources (e.g., microwaves, transformers, computers...)
- min. 3 m to transmitters of other function systems (e.g., wireless telephones, headphones...)
- min 0.1 m to metal and door frames
• Minimize effective wall thicknesses, i.e. make wall passage of radio signals as vertical as possible.

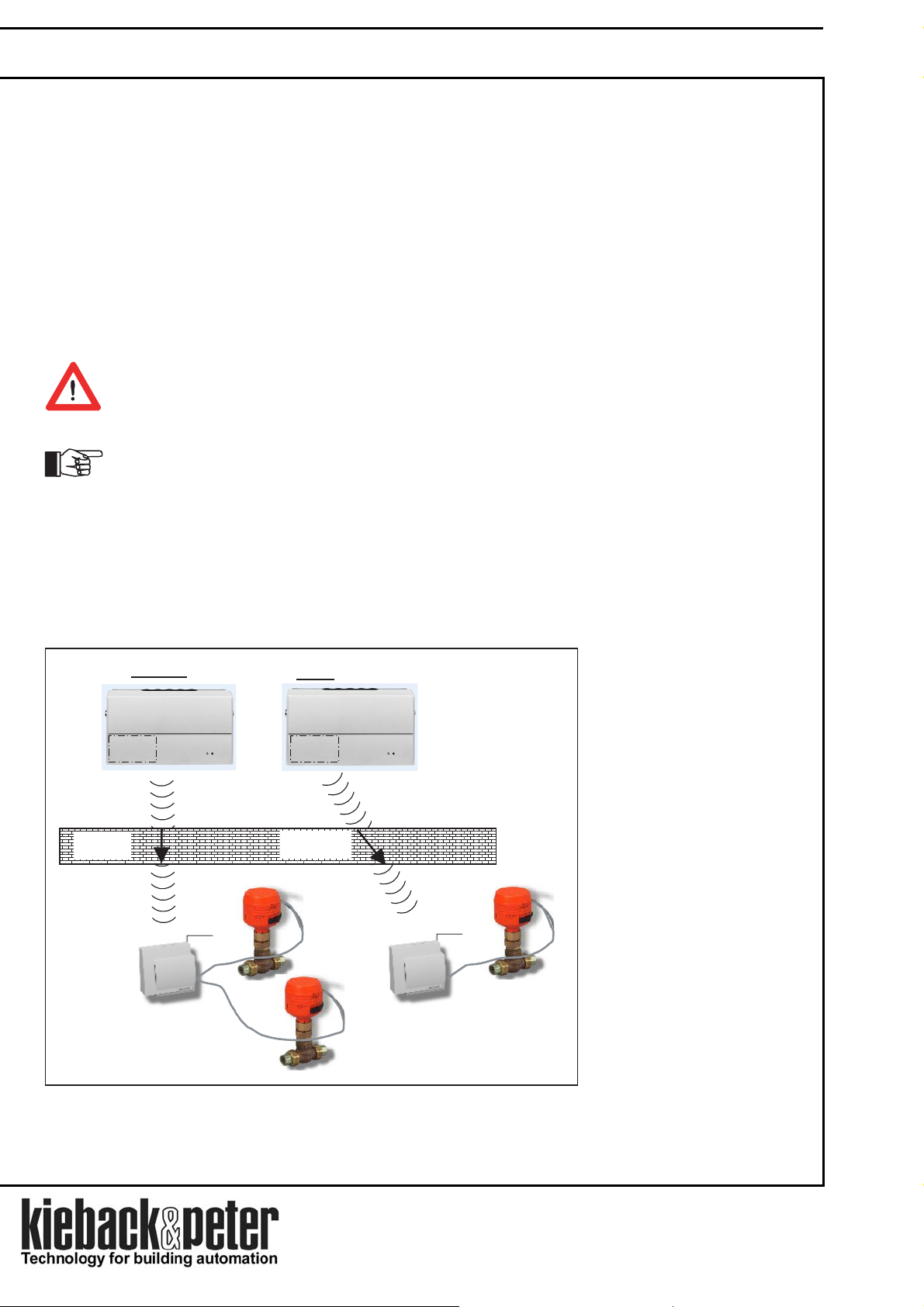

Recommendation: Plan the radio paths horizontally, on one level with max. 30 m distance
between transmitting and receiving components.
correct
FCS
30cm
230 V
MFA
• Do not choose the installation site in the radio shadow of screening building parts/volumes Î no direct
reception possible.
• In the fringe range of reliability, slightly change the position of transmitter/receiver if required
(to reduce heterodyne radio waves).
false
FCS
>30cm
230 V
MFA
Page 4 / 8
Technical data sheet 1.15-10.002-01-en
Device Description Multi radio connection MFA

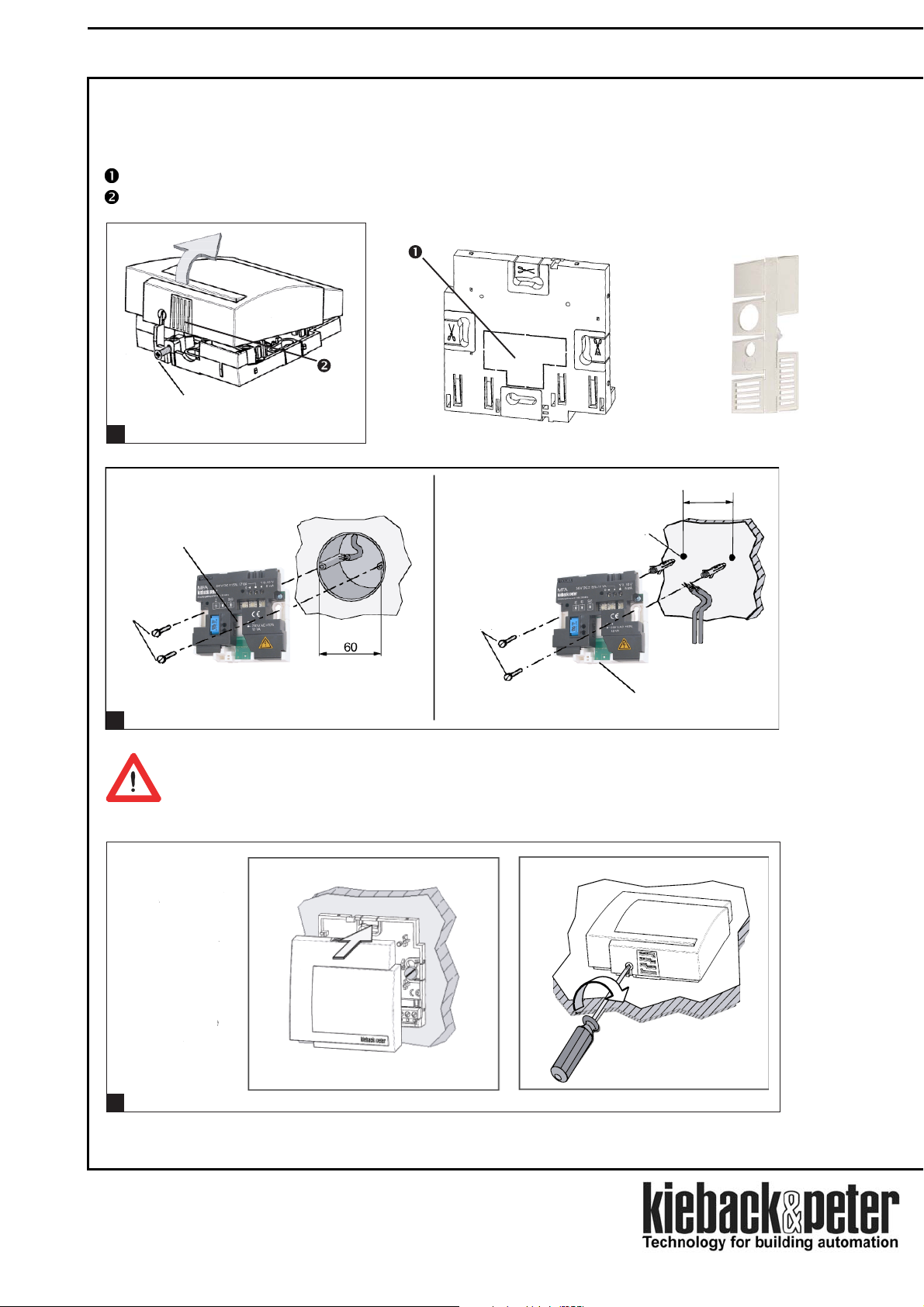

The Room Module can be mounted in the wall or in a flush-mounted box.
For connection, the room temperature probe has perforated bases and hood parts which can be broken off
depending on the cable entry.
1-
Cable inlet for assembly with flush-mounted box
Cable inlet for surface-mounted installation, application of the hood for wall mounting
Release safety screw and
take off hood
Hood inserts as extra item
60
Cable inlet from
the back (breakout)
M3 x 20
2-
M3,5 x 45
60
5mm
Cable inlet
from below
After the housing lead-through of the cable, provide a traction relief.
Warning
Wire MFA
according
to terminal
diagram.
Attach
hood and
tighten
securing
screw .
3-
Page 5 / 8
Technical data sheet 1.15-10.002-01-en
Multi radio connection MFA Device Description
Installation
Warning supply voltage 230 V for MFA multi-radio connection!
Electrical installation of the device connection may only be performed by qualified expert
Danger
personnel (e.g. electricians)!
In this context, the regulations of the VDE (Association of German Electrotechnical Engineers) as well as the local
regulations are to be observed.

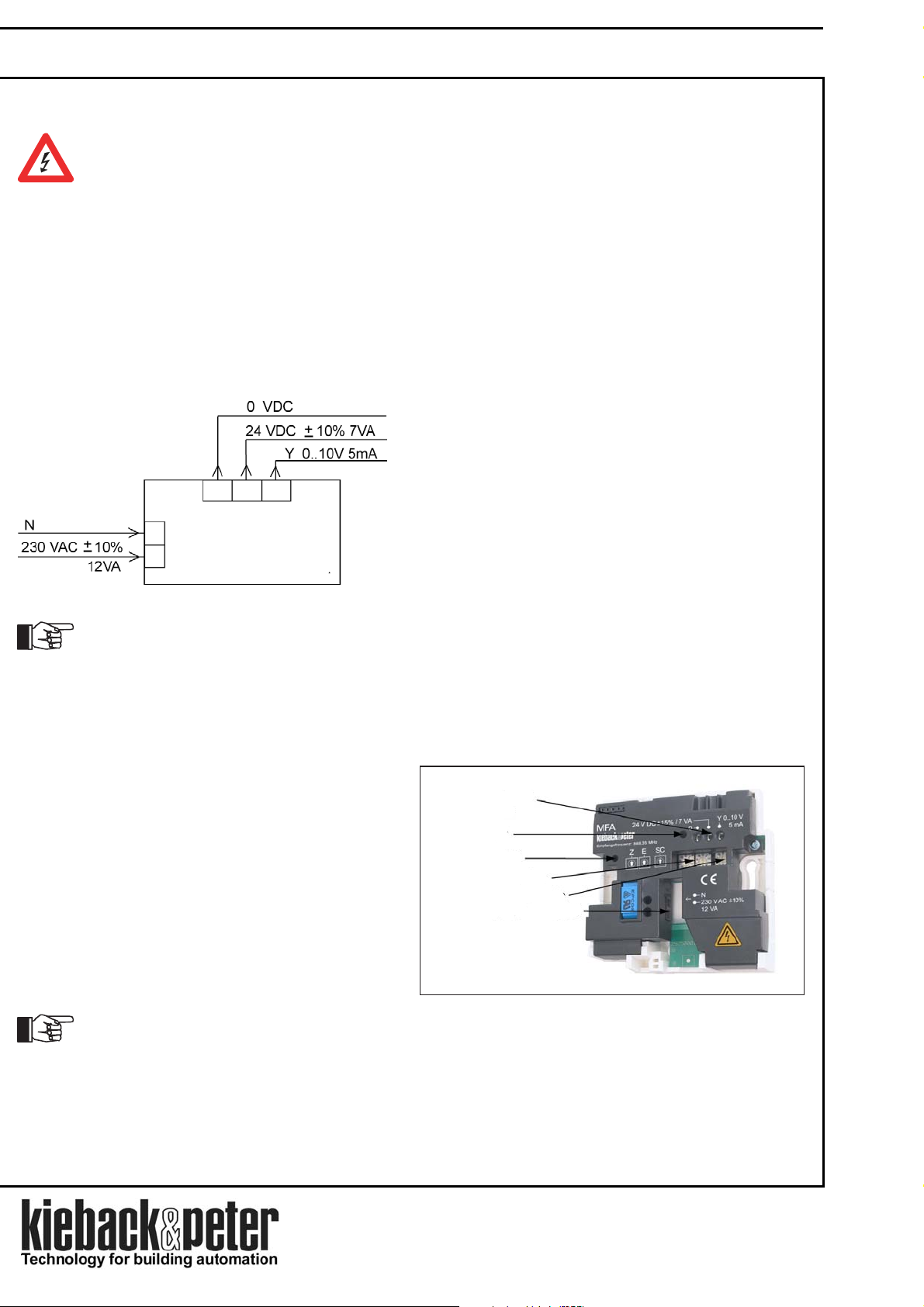

The devices shall be connected according to the terminal connection diagram or the applicable appliance
connection scheme.
Connection
MFA
Use only small servo drives with DC power supply.
Note
Addressing
In the housing, the MFA has 3 rotary switches for
setting the system code and the device address.
By means of the 3-digit address code, radio paths
can be established with theoretically up to 999
participants.
The address code at the FCE must match the setting of the corresponding transmitting module (e.g.
Note
TC12) so that an unambiguous allocation between transmitter and receiver of the radio path is
determined.
Terminals small
servo drives
Service key
multi-colored LED
2x address rotary switch
Rotary switch system code
Terminals 230 V AC
Page 6 / 8
Technical data sheet 1.15-10.002-01-en
Device Description Multi radio connection MFA

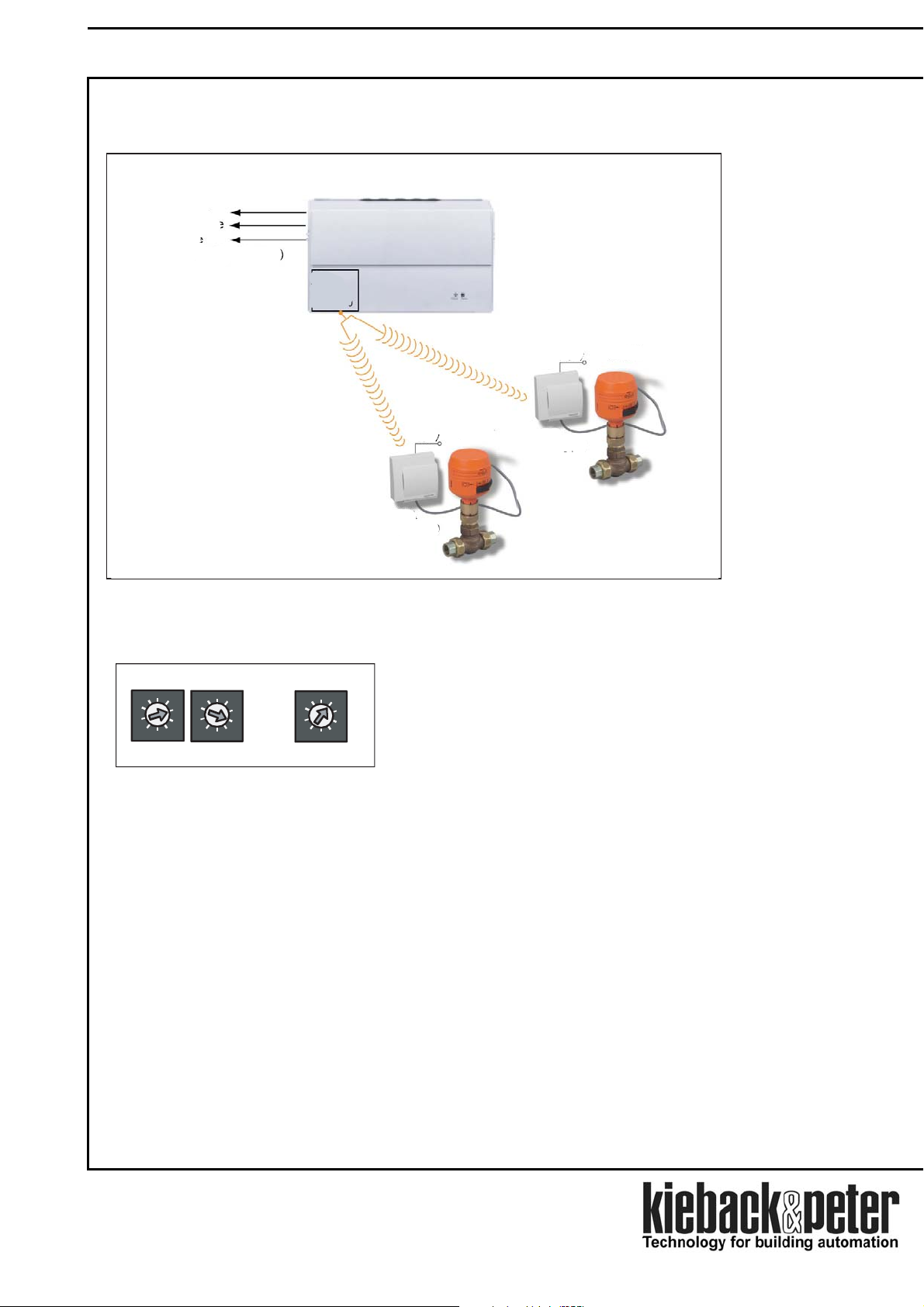

On principle, a Radio Control Transmitting Module FCS can be effective on more than one wirelessly driven field
device.
Linedependent
signals
(up to 8 signal chains)
MFC
FCS
0..10 V
Adr.01-0
M25Y
230V
MFA
Adr. 01-0
M25Y
230V
MFA
Adr. 01-0
Setting the address code
Device address
0
9
8
7
6
5
x10
0
1
9
2
3
4
1
8
7
4
6
5
x1
2
3
System code
0
1
9
2
8
3
7
4
6
5
The 3-digit address code consists of a 1-digit system code and a 2-digit
device address
Example for address 23-1:
Device address 23
System code 1
− Via the system code, participants of a radio network can be grouped according to different criteria, e.g. floor.
− The device address differentiates the network participants within one system code.
Page 7 / 8
Technical data sheet 1.15-10.002-01-en
Multi radio connection MFA Device Description
Initial operation
LED displays
off MFA receives no radio telegrams
green short blinking passive operating mode; module receives radio telegrams of other
green long blinking
(LED approx 1 s
red permanent light error mode:
Output signal 30 % (security position servo drive)
Warning
Description of initial operation
1. Before switching on the mains, check the correct assembly and electric connection.
Initial operation may be performed only by qualified expert personnel!
Note
Warning
Note
Note
Function
LED
The error blinking of the LED continues as long as the
state causing the error remains
on)
transmission paths
active service mode; module receives radio telegrams of the
assigned transmitters (FCS)
− Failure of the radio communication
Specific settings and functions of the MFC are described in this device description. Additional ly to
this notice, the device documentation MFC and FCS are to be noted.
Set the address code
The same address code must be set at the assigned transmitting modules a s well.
The device is delivered with the setting “000”.
Training with the MFA and the corresponding field device takes place automatically with the first regularly
received radio telegram.
Please observe possibly delayed data transmission due to the transmission interval of a radio path!
Radio communication in the 868 MHz frequency band is not maintained perm anently, but is subject
to a legally determined relationship between transmission period and transmission pause ("duty
cycle").
When the radio communication is interrupted, the connected drives are set in a security position.
The valves are then opened to 30%.
The reception of a valid radio telegram resets this function.
The red error LED at the FCE turns off.
Page 8 / 8
