Kicker Solo-Baric L7-Series, Solo-Baric S8L7, Solo-Baric S10L7, Solo-Baric S12L7, Solo-Baric S15L7 Technical Manual

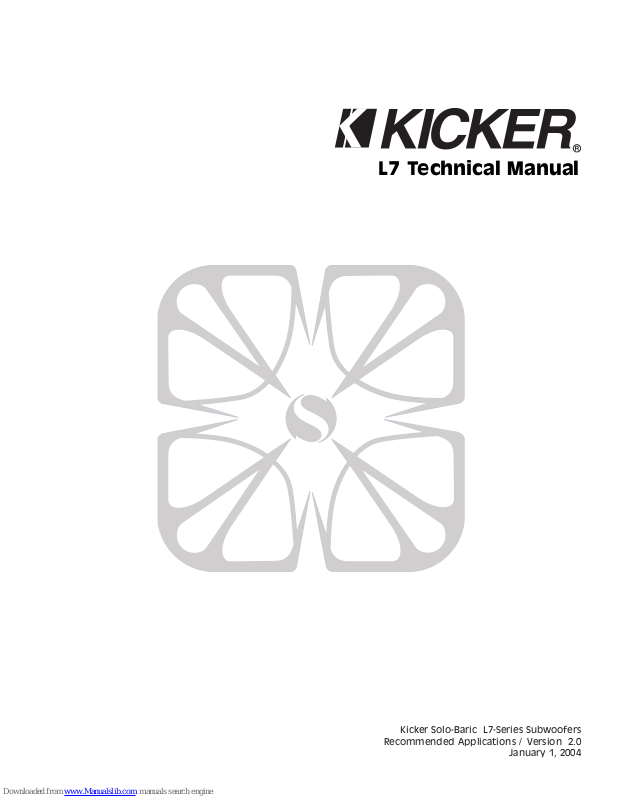

L7 Technical Manual

Kicker Solo-Baric L7-Series Subwoofers

Recommended Applications / Version 2.0

January 1, 2004

Features

— Mica Filled Polypropylene with a Titanium Deposit Coated Cone An Ultra High Performance look that
makes the Solo-Baric® L7 truly a statement piece. The cone gives you deeper and stronger bass at higher listening
levels with less distortion due to less tendency to flex. Because, when a woofer cone flexes, there is a loss of out­put. This loss of output translates into less bass.

—

—

Re-engineered rear cone brace In order to keep up with the demands on the cone at extreme listening

levels, the rear brace has been re-designed and strengthened to reduce the cone flex. The brace works in conjunc­tion with the other components of the cone, to insure that cone flex does not decrease the output of the woofer.

— Massive Surround Radius High SPL=VMAX=Cone area + Xmax + surround radius. What does this mean?
According to Dr. Koneairea, the Vmax of the driver takes into account the cone area as well as the Xmax of the
driver. To increase the Xmax - the distance the cone can move in one direction - the surround must be large
enough to handle the demands. Taking this into consideration, the new Solo-Baric L7 surround has been increased
to handle the massive power needed for high SPL.

— One Piece Front and Rear Gaskets Instead of using the cork gaskets, which can separate, the new L7’s have
a one-piece gasket on both the front and rear of the mounting flange. It is more durable and ergonomically pleas­ing to the eye. The previous cork gaskets could tear off if you were transplanting the speaker into another box, or
they could stay adhered to the old box causing you to order another gasket. These problems are eliminated with
the new rubber gaskets. They not only look better, but also function better by eliminating the chance for air
leaks.(provided the box is built correctly!) We still recommend if you are carpeting the box, to cut away any carpet
that is under the woofer mounting flange to insure a tight seal.

— SSD (Spun Spoke Design) The basket not only looks impressive, but it is extremely functional. This cast alu­minum basket provides a solid foundation for the motor assembly insuring that all the parts work together in har­mony and prevent shifting or misalignment. Without a solid foundation, the speaker’s various parts could shift
under extreme excursion causing premature failure and add unwanted noise to the music. If misaligned, the voice
coilcould rub the inner wall of the motor structure and thus exposing the bare windings, which would cause speak­er failure. The same thing happens if the coil former rubs the pole-piece. The damaged former exposes the wind­ings causing speaker failure. When other speakers are pushed to their limits they tend to make noises that add col­oration to the music. When you’’re LIVIN’LOUD you only want to hear the music the artist intended you to hear, not
a bunch of unwanted ringing.

— Perimeter Venting Without the perimeter venting along the side of the speaker, hot air would be trapped in
with the voice coil. This will cause the structure to heat up quicker and cause power compression, which results in
decreased output, as well as shorter speaker life. Perimeter venting causes a vortex cooling effect around the coil
which exchanges the hot air around the voice coil for cooler air outside the speaker. It also releases pressure from
under the spider to allow the speaker to work in a more linear fashion. All of this translates into cooler operating
temperatures which will allow the speaker to sound and perform better.

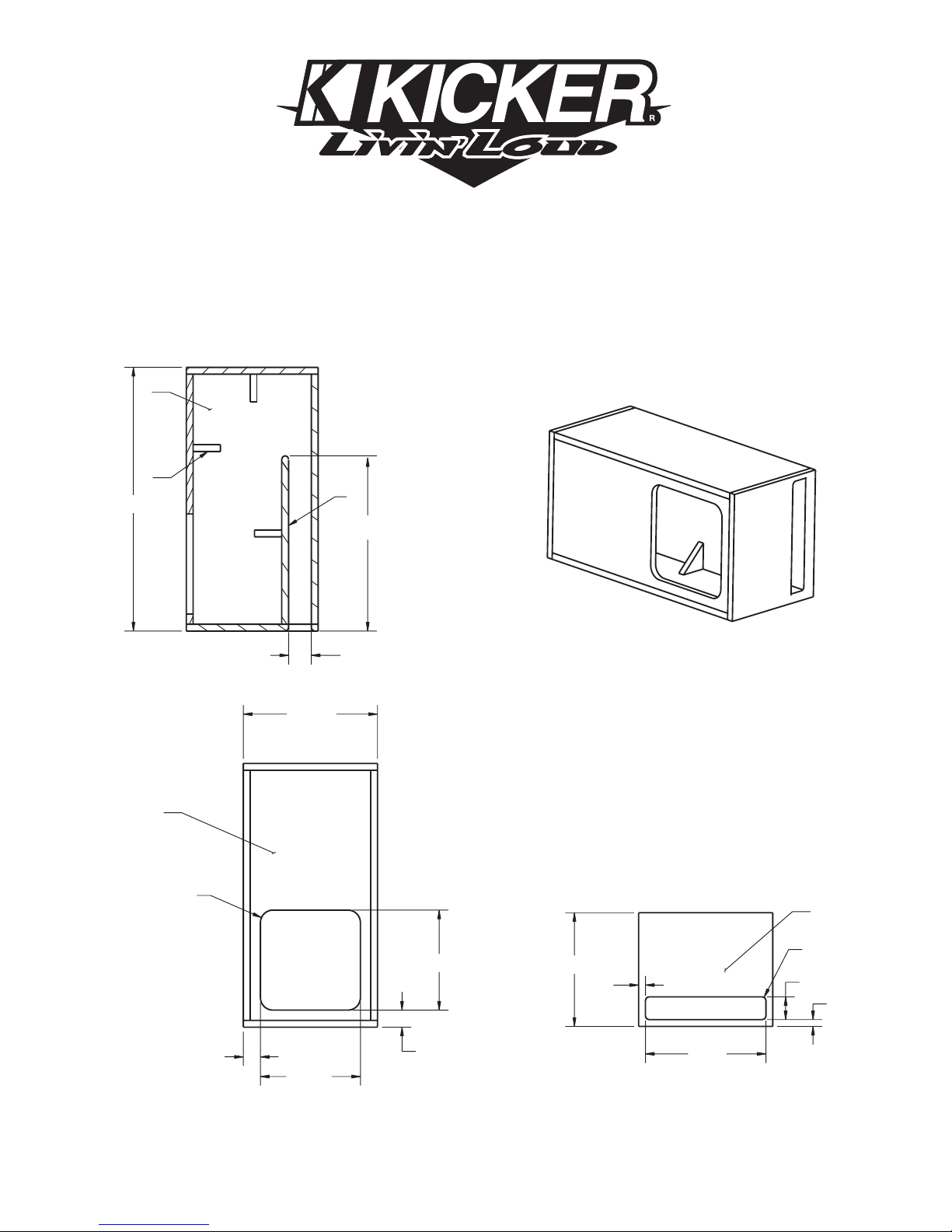

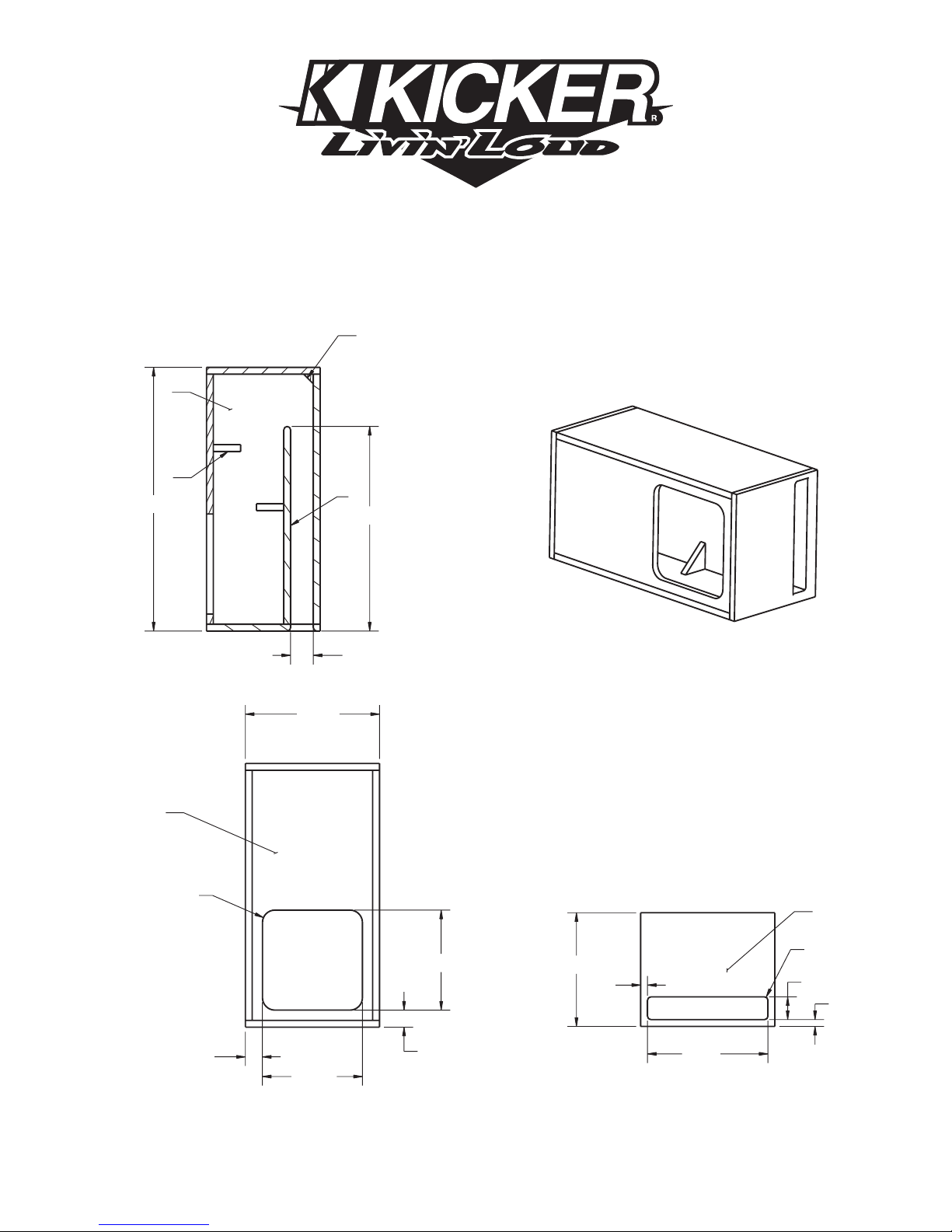

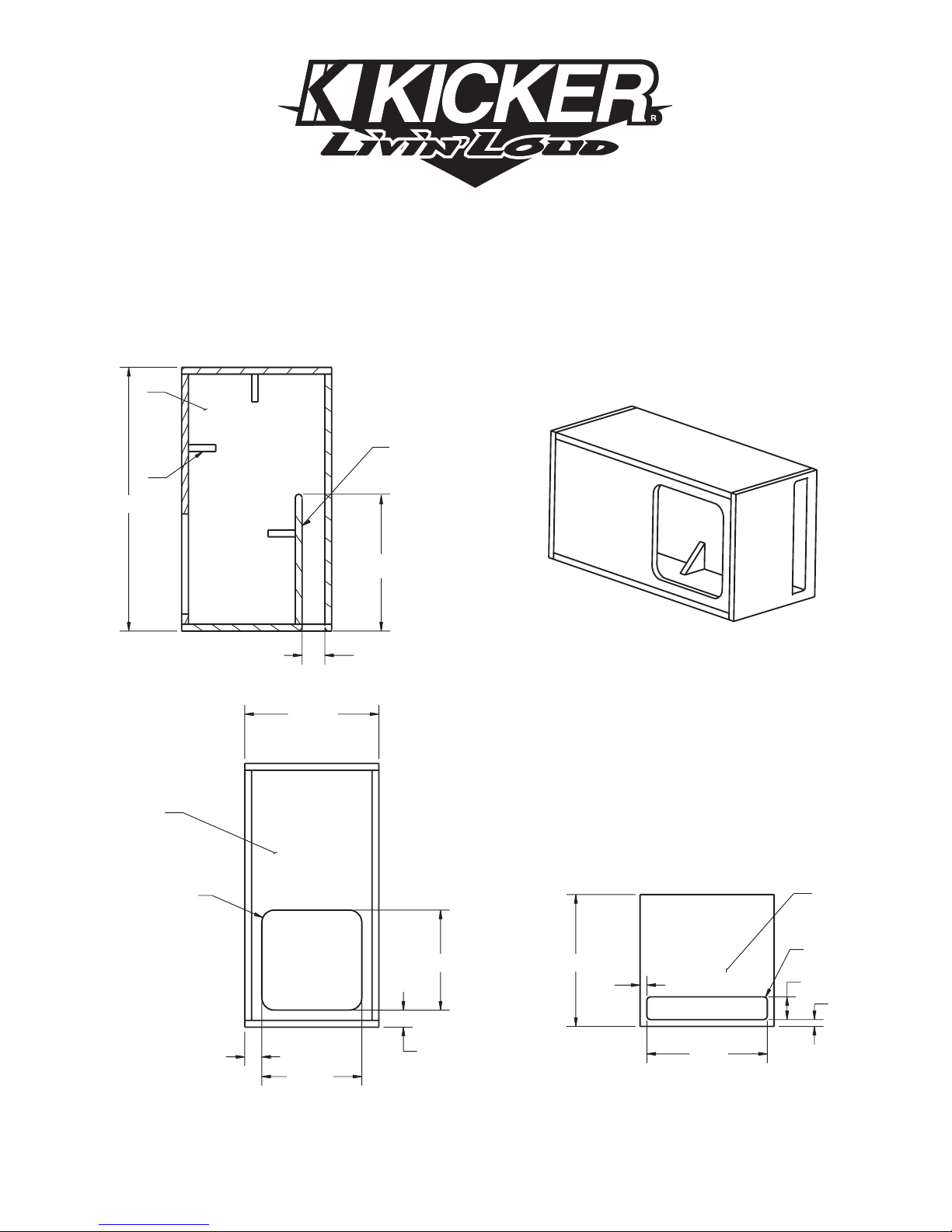

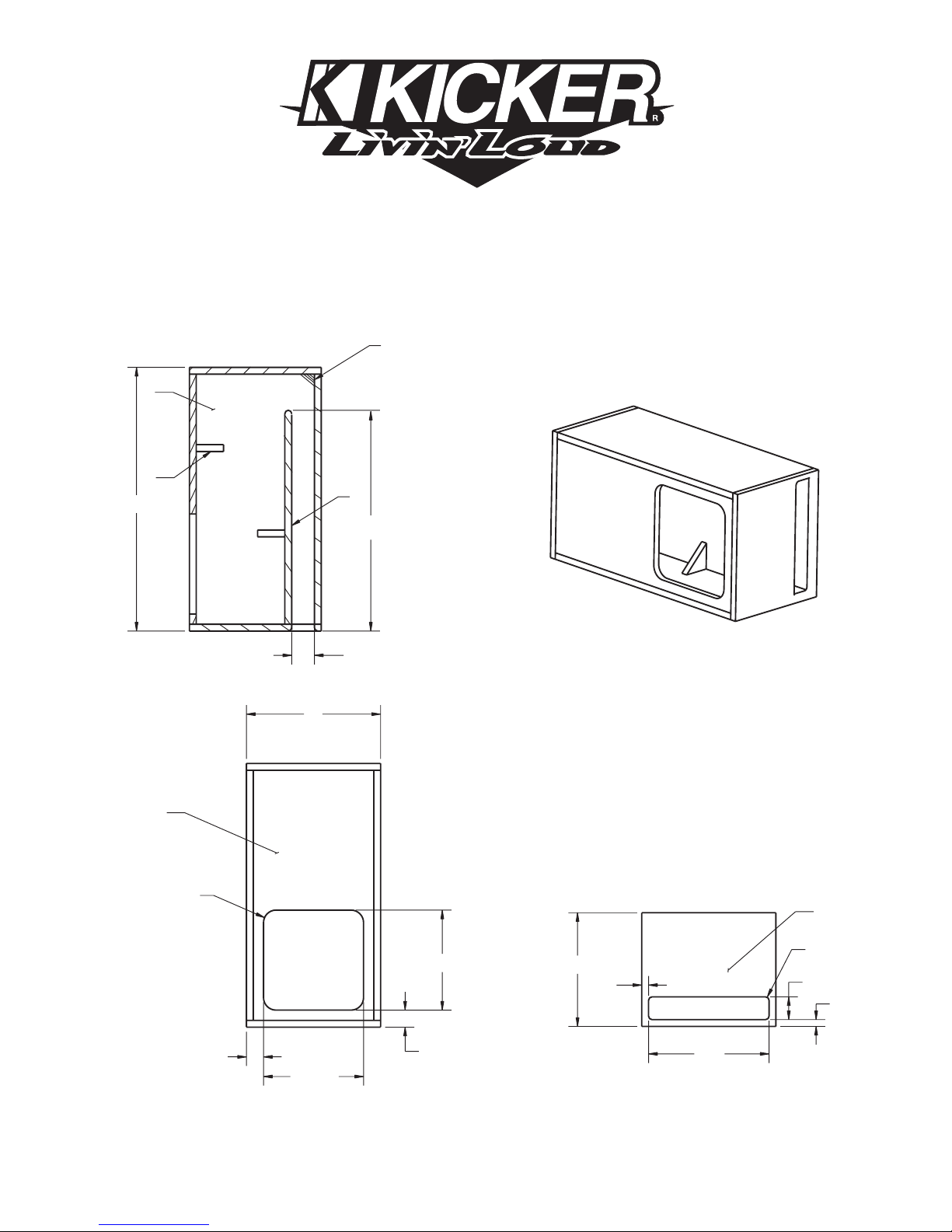

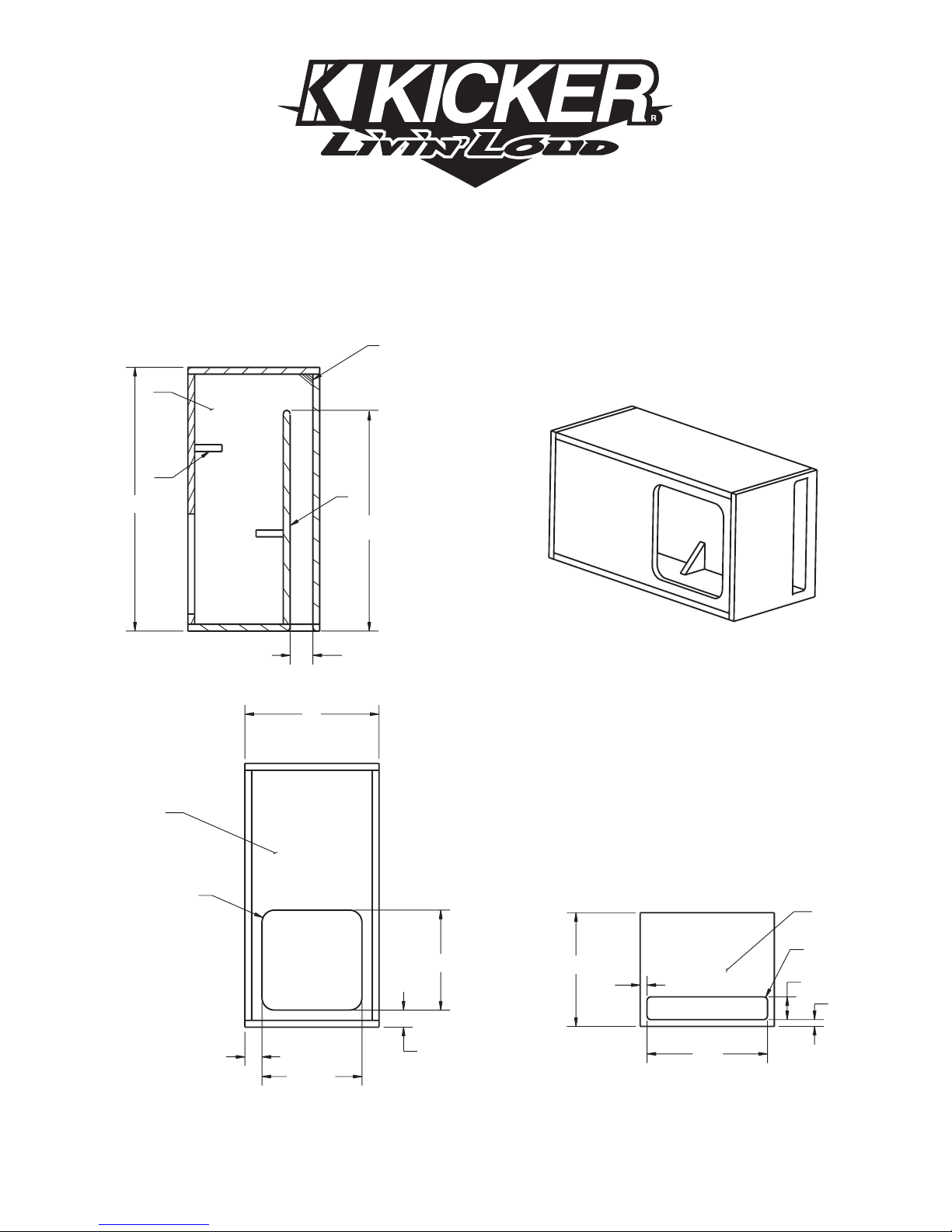

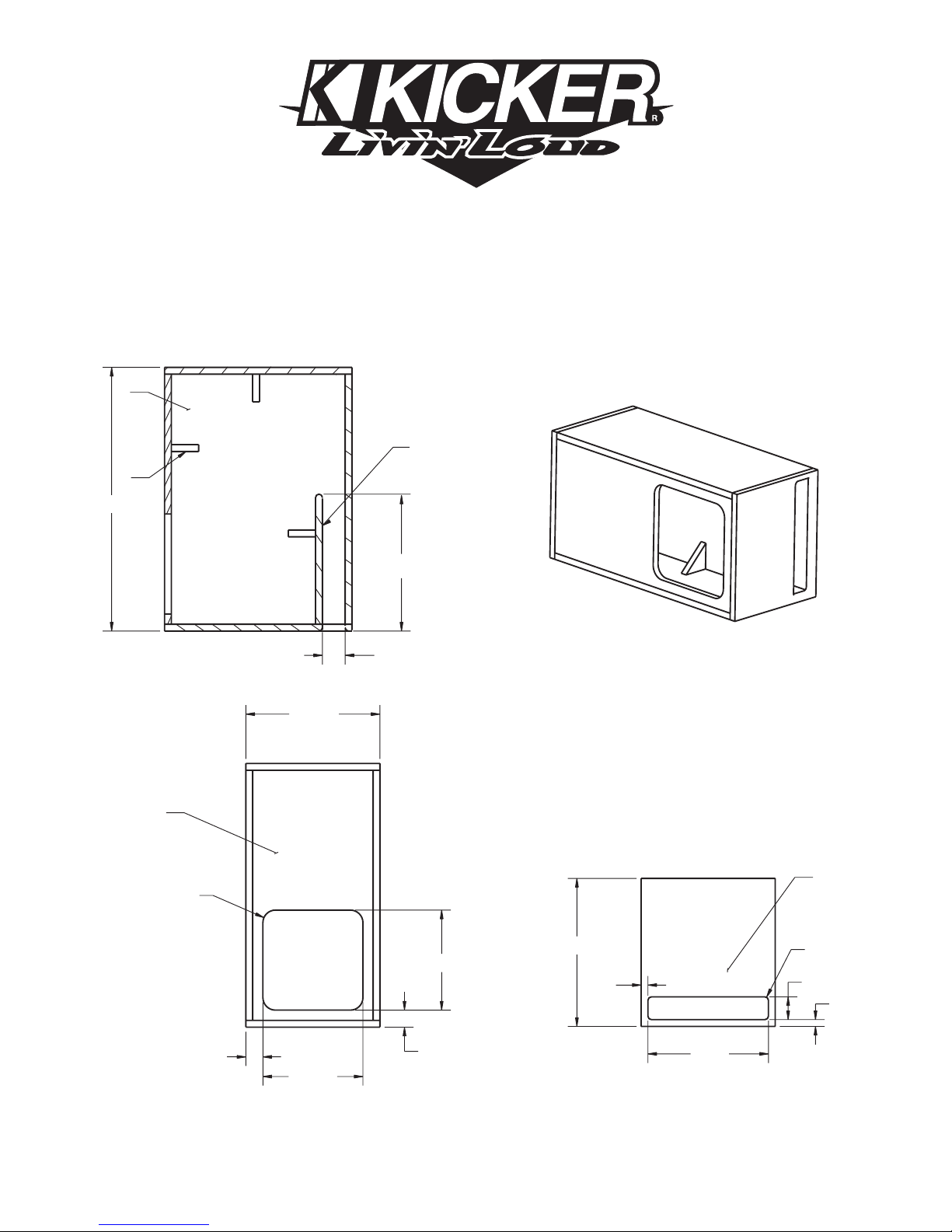

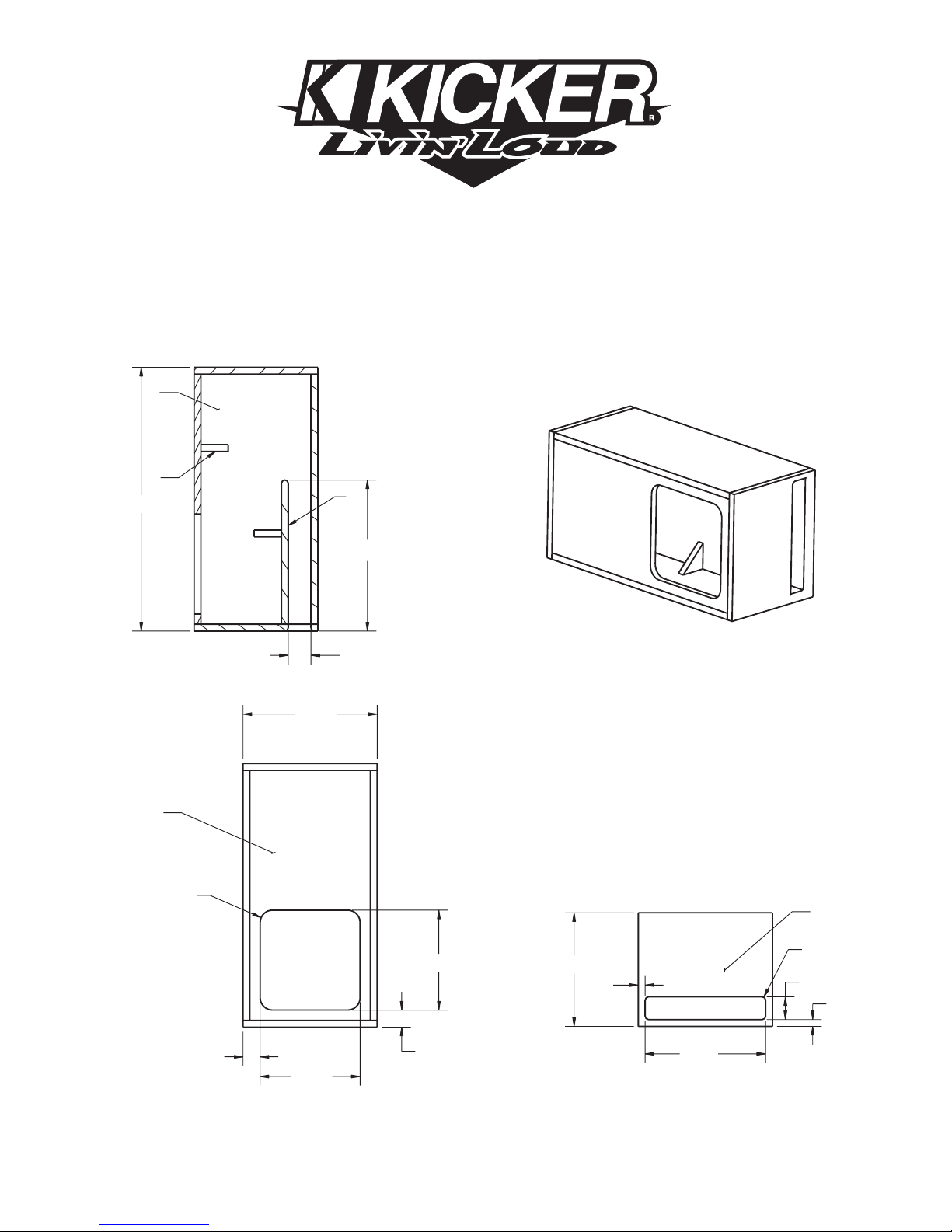

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 2

FEATURES cont.

ä

— Blackened One Piece Uniplate

11.

.

Provides enhanced heat transfer for cool operation and maximum power handling. The heat is transferred

from the pole piece to the back plate, effectively acting like a radiator in an engine. This lowers the operating
temperature of the voice coil. Note:The increase in temperature increases the impedance of the
speaker. This results in lower output and is referred to as Power Compression.

22.

.

Reduces non-linear magnetic fields around the voice coil gap for superior cone motion control. The
extended pole assures the voice coil is always in the magnetic field when moving peak to peak. When the speaker
reaches it’s Xmax, the voice coil is still in the gap between the pole piece and magnet structure due to its extended
pole-piece.

33.

.

Releases pressure under ISD for freer cone motion and enhanced low frequency response. Air trapped
under the ISD is forced out though the pole-piece to allow the cone to move freely. Heat and pressure build up
under the ISD and need to be released to allow the speaker to function properly.

— High-Temp Kapton® Voice Coil Former Heat is the primary enemy to the life of a speaker, which is one of
the reasons we use Kapton® voice coil formers. Kapton® is a man-made product that is light, durable and
heat-resistant. The Kapton® former acts as an insulator to keep the heat of the voice coil from breaking down the
adhesive that connects the voice coil to the cone. During high excursion and prolonged exposure to heat, the
Kapton® former holds its shape and does not expand or contract. As a bonus, Kapton® is also a very quiet material
and during operation, does not discolor the music by adding unwanted sound.

ä

with Vented Hyper-Extended Pole

ää)

— ISD (Inverted Structural Dome

)

Kicker was one of the first companies to switch to the Inverted Structural
Dome. We have designed a cone with a groove for the ISD to lock into, further adding strength to structure. When
a cone reaches it’s peak it wants to buckle because it’s momentum keeps it moving out. The ISD provides
structural support for the cone to resist buckling. NOTE: When the cone buckles, the output of the woofer
decreases. Therefore, the ISD is not just a cosmetic thing, it is an integral part of the woofer to maintain it’s
maximum performance.

— Stitched Surround A signature of KICKER woofers has always been the stitched surround. It prevents the
surround from separating from the cone at high excursions. When the woofer is moving back and forth it puts a
lot of strain on the adhesive that is holding the surround to the cone and often causes the two to separate.
Stitching the surround to the cone eliminates this from happening.

If stitching were inexpensive, everybody would

do it!

—

—

Dual Ultra-Length Voice Coils A speaker can obtain extreme Xmax only when the voice coil is long enough

and can sustain the stress. Dual voice coils give the installer the option of several different wiring configurations
compatible with any amplifier.

In addition, the S15L7 has Dual spiders to help control the massive structure!

— Sleeved High-Power Tinsel Lead Wires Resist lead breakage and power robbing resistance losses under
demanding conditions. When a speaker is being pushed to it’s limits there is a lot of strain being put on the leads,
especially on high performance woofers like the Solo-Baric® L7. Sleeving tinsel leads help strengthen them to resist
breakage.

—

—

Spring-Loaded Nickel Plated Terminals On a High Performance speaker like the Solo-Baric® L7, you would

expect nothing less than a High Performance terminal. They allow the installer to use the maximum gauge wire to
minimize power losses for the ultimate Ground Poundin’ system.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 3

ISD (Inverted Structural Dome)

increases cone's resistance to

flex under pressure.

Mica-Loaded Polypropylene

with a Aluminium Deposit coating

Ultra High performance look with superior

internal damping which means ultra-fast

transient response and super-low distortion.

Tou gh, flexible surround With

long-throw, positive-roll design

controls extreme cone excursions

and is highly tear resistant. Ribbed

corners ensure linear cone motion.

Patent Pending

NEW!

One-Piece extended Pole, invented by Stillwater Designs,

creates a broad, symmetrical magnetic field for superior

power handling, precise voice coil control, and minimal

deep bass distortion.

Rubberized Outer Cover Protects

massive magnet structure

from chipping or breaking.

Perimeter vents Create a vortex

cooling effect around the voice coil.

Durable resin-impregnated

poly-cotton spider provides

precise coil alignment and

critical cone motion control.

Venting In the pole piece

eliminates noise and distortion

caused by huge amounts of airflow

created by extreme cone excursion.

One Piece Front Beauty Ring and Separate

one Piece Rear Gasket Provides enhanced cosmetics

while providing a superior seal.

ABS(Auxiliary Bracing Structure)

Adds rigidity to the outer edge of

the cone to further reduce cone flex

Deep bumped back plate Lets voice coil

reach maximum excursion without bottoming-out.

New!

Rear Cone Brace Provide

structural support for the cone.

Multi-layer voice coil and Kapton®

former Create superior magnetic

field and effectively dissipate heat.

Spring-Loaded nickel plated terminals

For solid connections with large gauge

speaker wire.

Cast Aluminium Basket

featuring low profile/open

design provides a solid

anti-resonant foundation for

the motor assembly.

Patented Enhanced BAM

(Basket and Motor) Assembly

Sleeved High-Power Tinsel Lead Wires

To resist lead breakage and power-robbing

resistance.

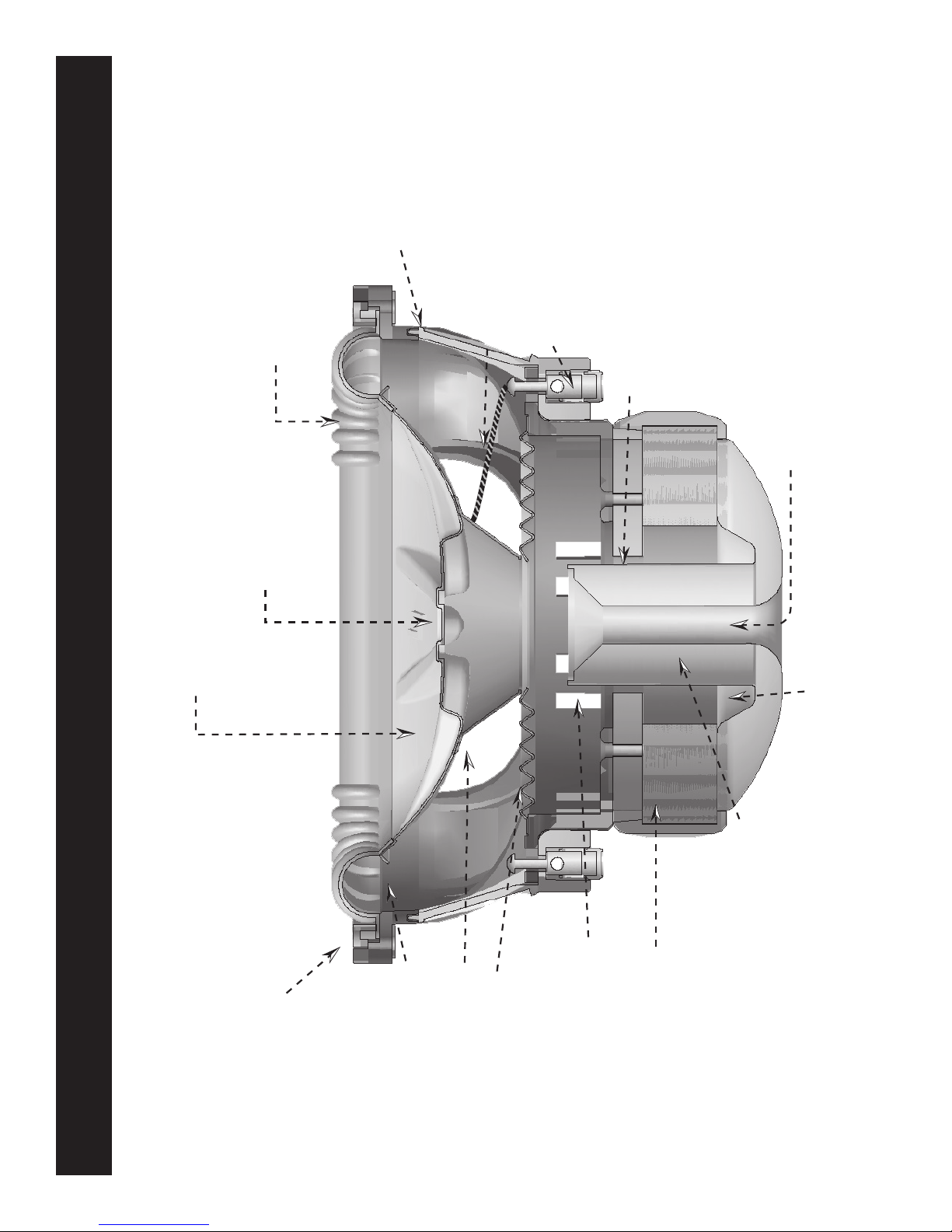

L7 Cutaway View

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications
Page 4

Thank you for your support of Kicker products, and especially our Solo-Baric® L7 (patent pending) square

subwoofers. The SL7s are truly unique products in a world of round subwoofers. Our technical and R&D staffs have
designed some extreme enclosures beyond the small sealed boxes Solo-Barics are famous for. They have
unleashed the awesome capabilities of the L7s.

In this paper we will explore some applications for the Solo-Baric® L7 complete with box drawings and cut sheets

plus some important information regarding the break-in period for this ground-breaking speaker.

Important Break-In Information

Due to the complex nature of the Solo-Baric® L7s they require a little extra time to break-in. Especially in sealed

enclosures, break-in is a must in order for woofers to produce optimum low bass response. Due to the high
performance suspension system incorporated in the Solo-Barics they are very stiff “out of the box”. Approximately
two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. The “broken-in“
sub will exhibit stronger bass performance, smoother response, and greater low bass extension.

For those of you with more sophisticated audio equipment, the Solo-Barics can be broken-in on the test bench

overnight with the following procedure.

Solo-Baric Freeair Break-in Procedure

1. Connect the speaker to a power amp of about fifty watts or more. The speaker should not be mounted in any
enclosure - just freeair.

Please make sure it will not walk off the bench while it is playing!

2. Connect an audio generator to the input of the power amp, and adjust the generator to approximately 45Hz for
the S8L7, 35 Hz for the S10L7, 30 Hz for the S12L7, and 20 Hz for the S15L7.

3. Now adjust the gain on the amplifier and generator so that the cone is moving to Xmax. This can be determined
visually by looking at the “blur depth” of the logo on the ISD. A close approximation will do. On the S8L7 this will be
about 3/4”, on the S10L7 about 1”, on the S12L7 about 1”, and on the S15L7 about 1 1/4”.

NOTE: Keep in mind that as the speaker is used under normal conditions the break-in will continue, so if you don’t
have time for the complete break-in period the speaker will still break-in itself under normal usage.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 5

Sealed Enclosure Applications

The Kicker Solo-Baric® SL7 woofers are designed to give more output than an equivalent round speaker. The SL7

is amazing when used in the recommended sealed boxes. These sealed enclosure SQ recommendations will give
the smoothest response with the most energy at really low frequencies, around 20 to 30 Hz.

The recommended

CCoommppaacctt

sealed boxes are in line with our traditional Solo-Baric enclosures. They have the
highest power handling capability of all our recommended enclosure designs. They deliver massive amounts of
high impact bass and can be driven with punishing levels of amplifier power.

One of the benefits of the L7-Series high performance suspension system is that the Solo-Barics can operate in
larger sealed enclosures for ultra sound quality (SQ) applications without significantly sacrificing their power
handling. This extra bass extension and smoothness can be obtained by simply using a larger sealed enclosure. The
box can be “sized up” all the way to a .707 Qtc. enclosure, which has a very flat response, with greatly extended
sub bass.

Solo-Baric® L7 series woofers also perform well in any sealed enclosure between the

CCoommppaacct

t

and

sizes. These

SSQQ
systems will exhibit some benefits of both (high impact and low extension) generally sounding more like the box to
which they are most closely sized.

Recommended Enclosures

- Moderate Efficiency -

Model Compact SQ (.707 alignment)

(Minimum enclosure Volume) (Maximum enclosure Volume)

S8L7 .33 cu.ft. Power Handling = 450W .75 cu.ft. Power Handling =450W

9.34 l 21.24 l

S10L7 .66 cu.ft. Power Handling = 600W 1.0 cu.ft. Power Handling =600W

18.69 l 28.32 l

S12L7 .88 cu.ft. Power Handling = 750W 2.0 cu.ft. Power Handling = 750W

24.92 l 56.64 l

S15L7 1.5 cu.ft. Power Handling = 1000W 6.0 cu.ft. Power Handling = 1000W

42.48 l 69.92 l

NOTE: All sealed boxes should be 50% filled with loose polyfil. Allow about two weeks break-in time for the Solo­Barics to reach optimum low bass performance.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 6

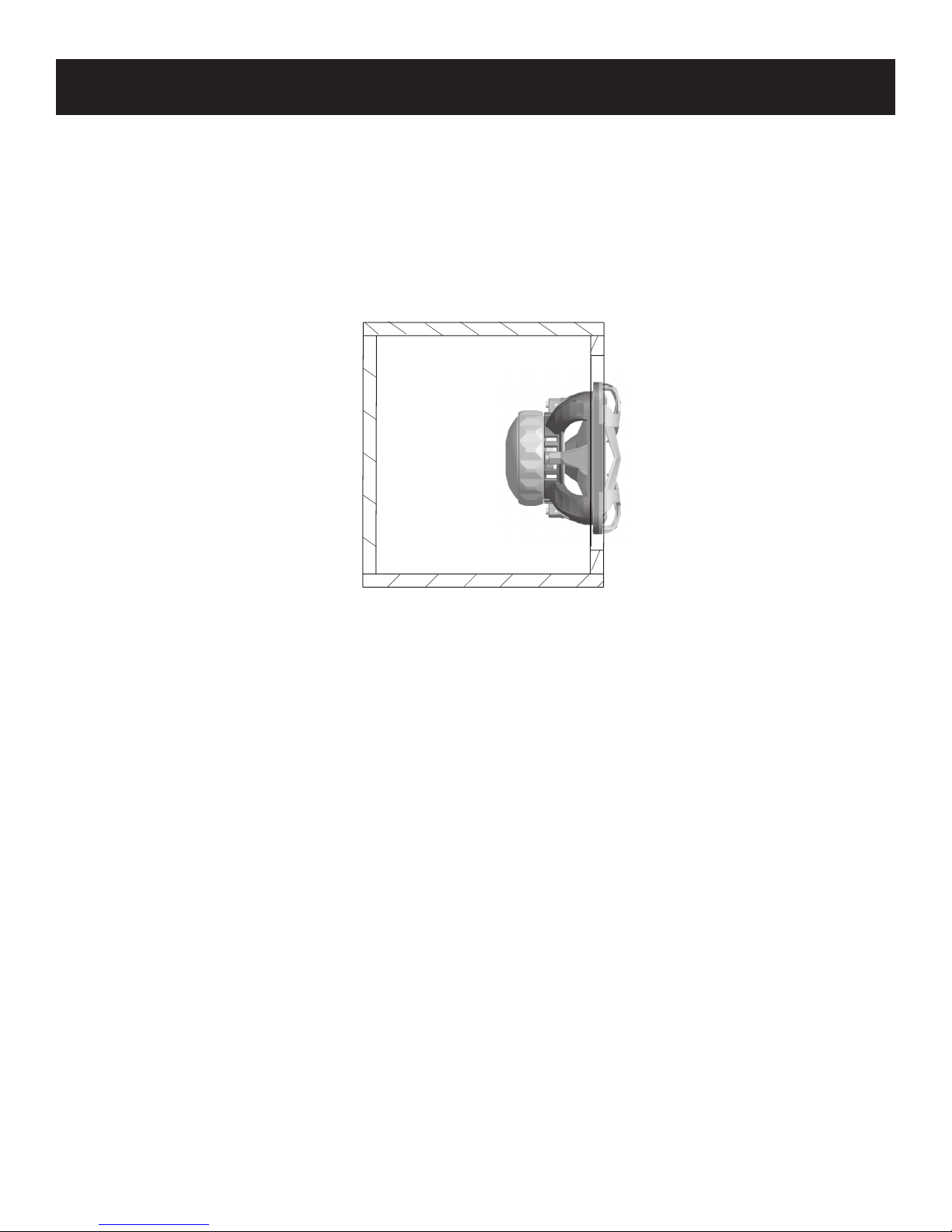

Characteristics of Sealed Enclosures

The most basic and simple of all speaker enclosures is the sealed box or acoustic suspension design.

The acoustic suspension design has several advantages; it is easy to build, easy to tune and offers high power
handling, tight response and extended low end output. Acoustic suspension enclosures roll off at 12 dB
per/octave. Cone motion is better controlled at all frequencies because of the constant pressure on the back side
of the cone, which enables you to run more power to the woofer. They are called acoustic suspension enclosures
because the air inside the box acts like a viscous brake to control the woofer. That is why the box
tight. If there are any air leaks in the enclosure, the woofer cannot function properly.

Note: Grill shown on diagram is
optional please see your Kicker
dealer for purchase.

mmuusst

be sealed

t

PPrroos

s

1 - High power handling capability
2 - Extended low frequency response and smooth rolloff (12 dB/octave).
3 - Excellent transient response.
4 - Tolerant of minor enclosure size variations.
5 - Easiest enclosure to build.

CCoonns

s

1 - Not as efficient as other designs.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 7

C

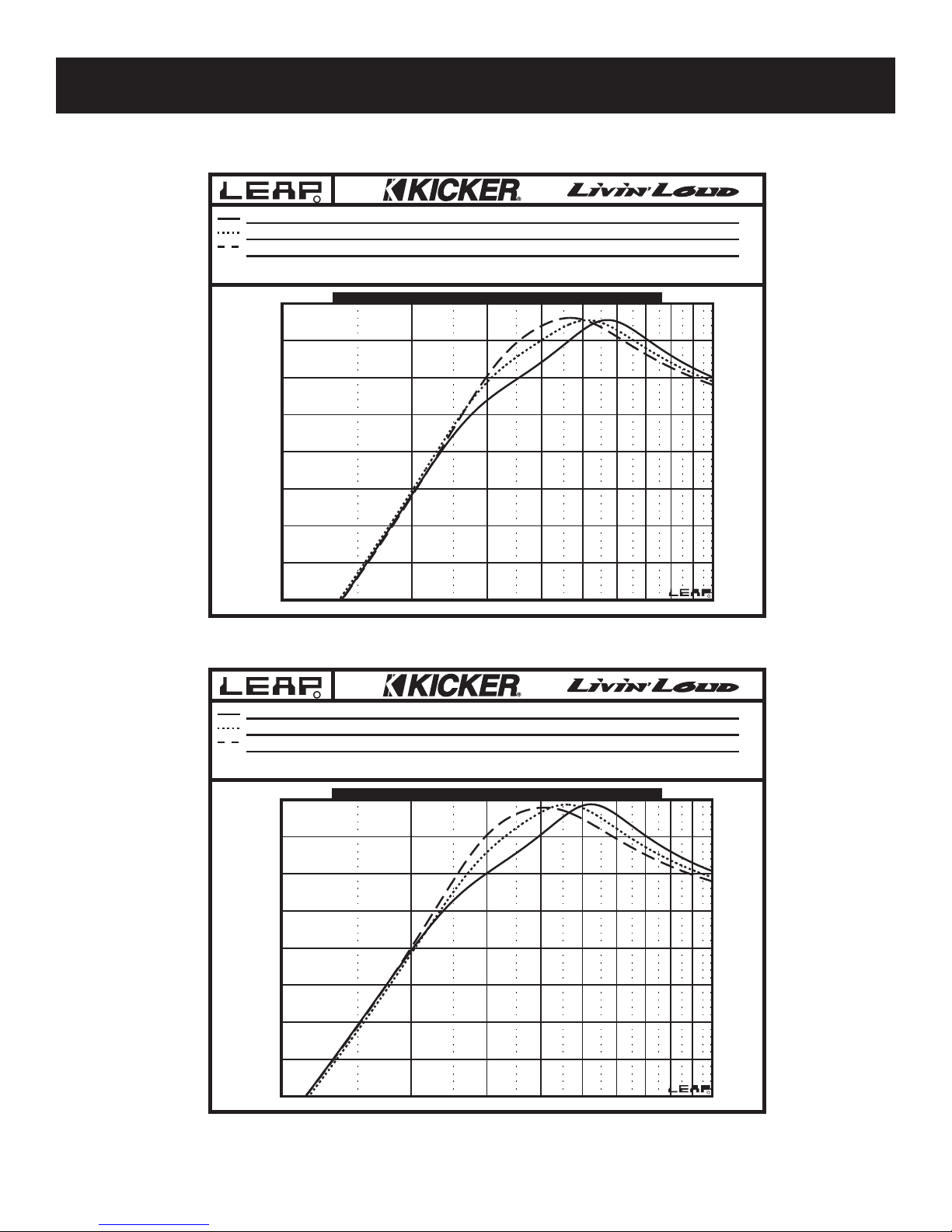

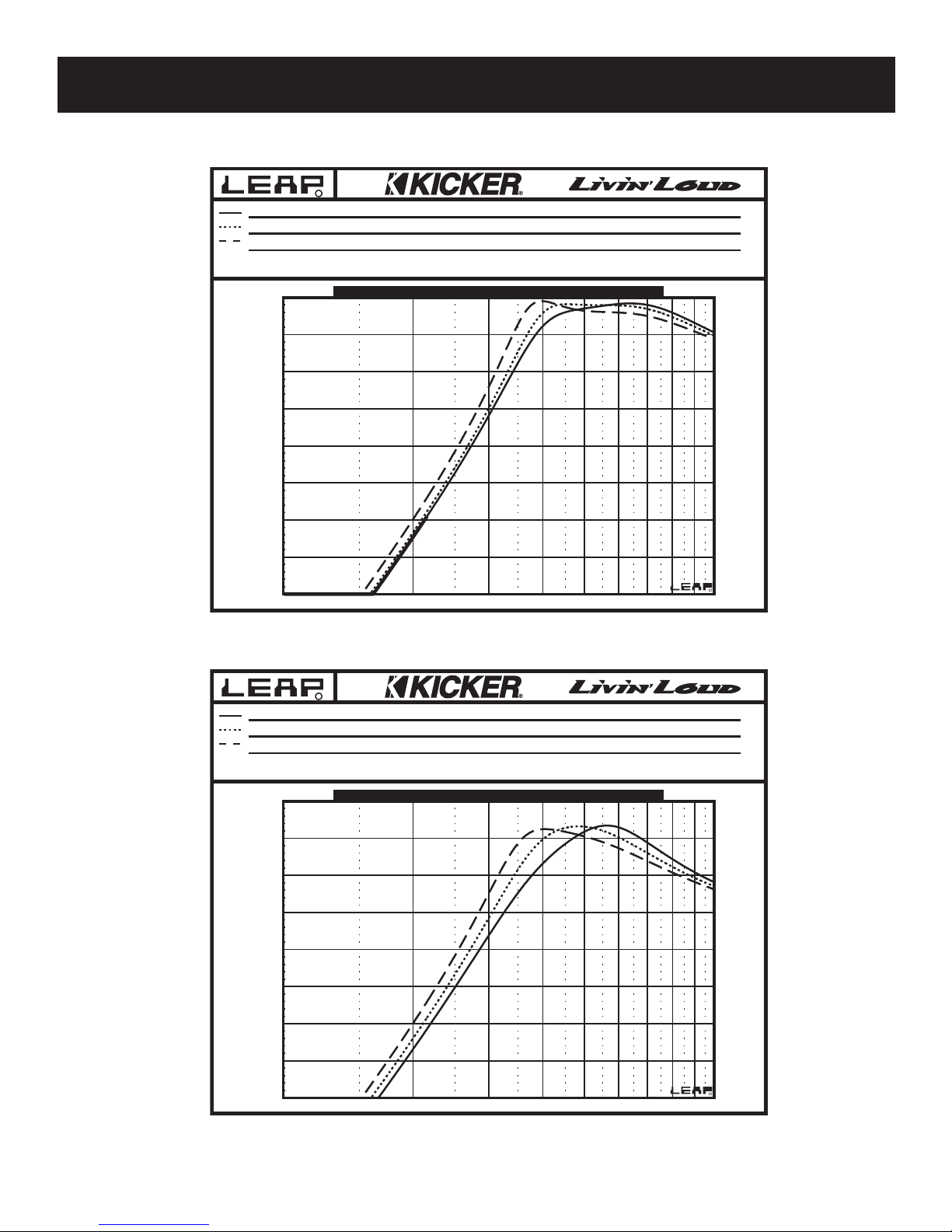

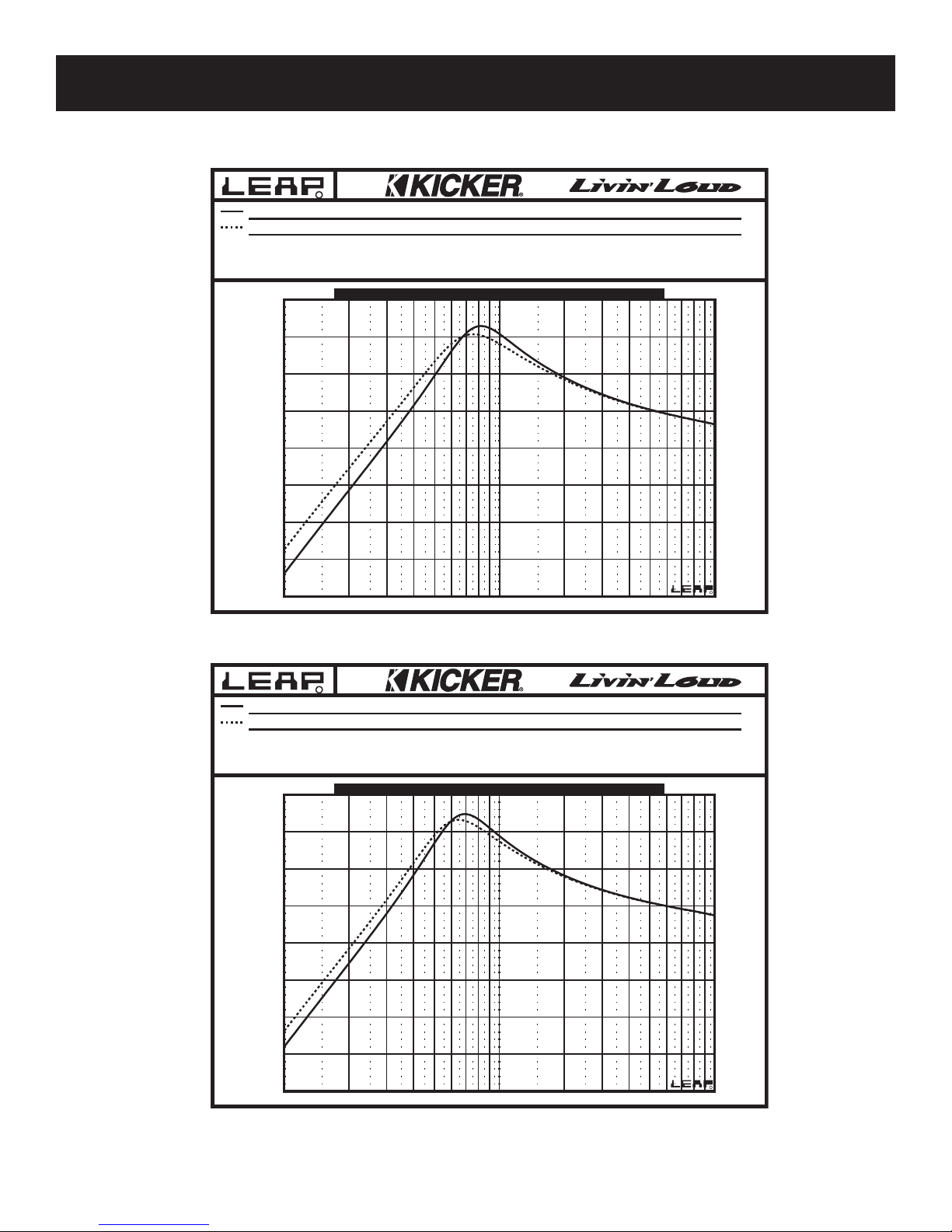

S8L7 Compact Enclosure Response Curve
S8L7 SQ Enclosure Response Curve

10 Frequency 50 100 Hz 500 1K

C

Graph 1 > Acoustic On Axis Response: SPL, Phase dB

90

85

80

75

70

65

60

55

50

C

S10L7 Compact Enclosure Response Curve
S10L7 SQ Enclosure Response Curve

10 Frequency 50 100 Hz 500 1K

C

Graph 1 > Acoustic On Axis Response: SPL, Phase dB

90

85

80

75

70

65

60

55

50

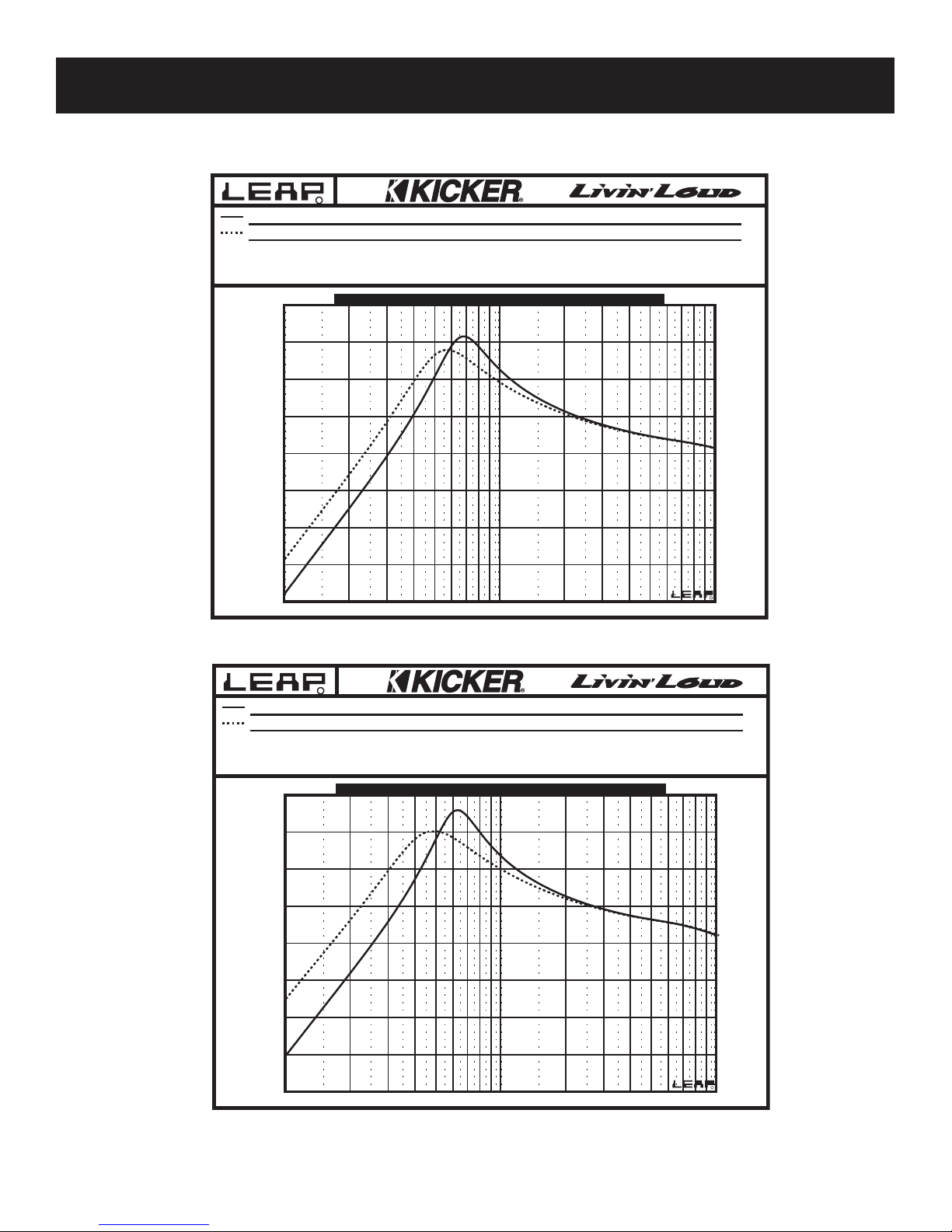

Sealed Box Response Curves

S8L7 .33cu.ft./.75cu.ft.

S10L7 .66cu.ft./1.0cu.ft.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications
Page 8

C

S12L7 Compact Enclosure Response Curve
S12L7 SQ Enclosure Response Curve

10 Frequency 50 100 Hz 500 1K

C

Graph 1 > Acoustic On Axis Response: SPL, Phase dB

95

90

85

80

75

70

65

60

55

C

S15L7 Compact Enclosure Response Curve
S15L7 SQ Enclosure Response Curve

10 Frequency 50 100 Hz 500 1K

C

Graph 1 > Acoustic On Axis Response: SPL, Phase dB

95

90

85

80

75

70

65

60

55

Sealed Box Response Curves

S12L7 .88cu.ft./2.0cu.ft.

S15L7 1.5cu.ft./6.0cu.ft.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications
Page 9

Ported/Vented Enclosure Applications

Ported Solo-Barics incorporate massive slot loaded ports with ultra low air velocity for ground pounding street
bass that will make your hair stand on end (if you have any left)! These are the enclosures of choice for outrageous
street bass and high performance SPL contests.

The following chart shows three recommended ported enclosures for each Solo-Baric driver.

Compact has increased bass efficiency over a sealed enclosure, yet can still fit in tighter applications.
It is the smallest design that will work well for each woofer. Although it is the smallest ported enclosure the output
from 30 to 80 HZ will be considerably higher than that of a sealed box. This smallest vented design is for places
where you can only give up the room normally taken up by two L7s in the normal small sealed boxes. The two
other ported designs have proportionately more output in this region.

Street Bass is a medium sized enclosure that will kick out bass that can be heard for blocks away. And it does
go LOW!

Finally, SPL / Deep Bass is a large enclosure that has it all. It is high efficiency and will deliver the output needed
to win SPL contests, yet low frequencies go all the way down to the basement - with power that will shake the
foundations! We’re talking truly awesome.

If space is not at a premium and you want to get the most from your Solo-Baric® L7, try one of these designs.
You won’t be disappointed. Note: You must add the port volume to the volume of the box! See the

cut sheets.

Recommended Ported Enclosure

– High Efficiency –

Model Compact Street Bass SPL / Deep Bass

SS88LL7

7

.66 cu.ft. + port, .8 cu.ft. + port; 1.0 cu.ft. + port;

1.5x9.5" port, 19.25" long 1.75x9.5" port, 19.75" long 2x9.5" port, 21.25" long
Power Handling = 300W Power Handling = 325W Power Handling = 325W

SS1100LL7

7

1.25 cu.ft. + port; 1.75 cu.ft. + port 2.25 cu.ft. +port;

2.5x11.25" port, 19.75" long 2.75x11.25", port 17.75" long 3x11.25" port, 18" long

Power Handling = 500W Power Handling = 525W Power Handling = 550W

SS1122LL7

7

1.75 cu.ft. + port; 2.5 cu.ft. + port; 3.25 cu.ft. + port;

2.5x13.25" port, 22.5" long 2.5x13.25" port, 16.5" long 3x13.25" port, 14.5" long
Power Handling = 750W Power Handling = 750W Power Handling = 750W

SS1155LL77

3.0 cu.ft. + port; 4.5 cu.ft. + port; 6.0 cu.ft. + port;

2.5x16.25" port, 19.5" long 3x16.25" port, 14.75" long 3.5X16.25"port, 13.75"long
Power Handling = 1000W Power Handling = 1000W Power Handling =1000W

NOTE: The use of a subsonic filter is necessary to insure the life of the
woofer in a ported enclosure

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 10

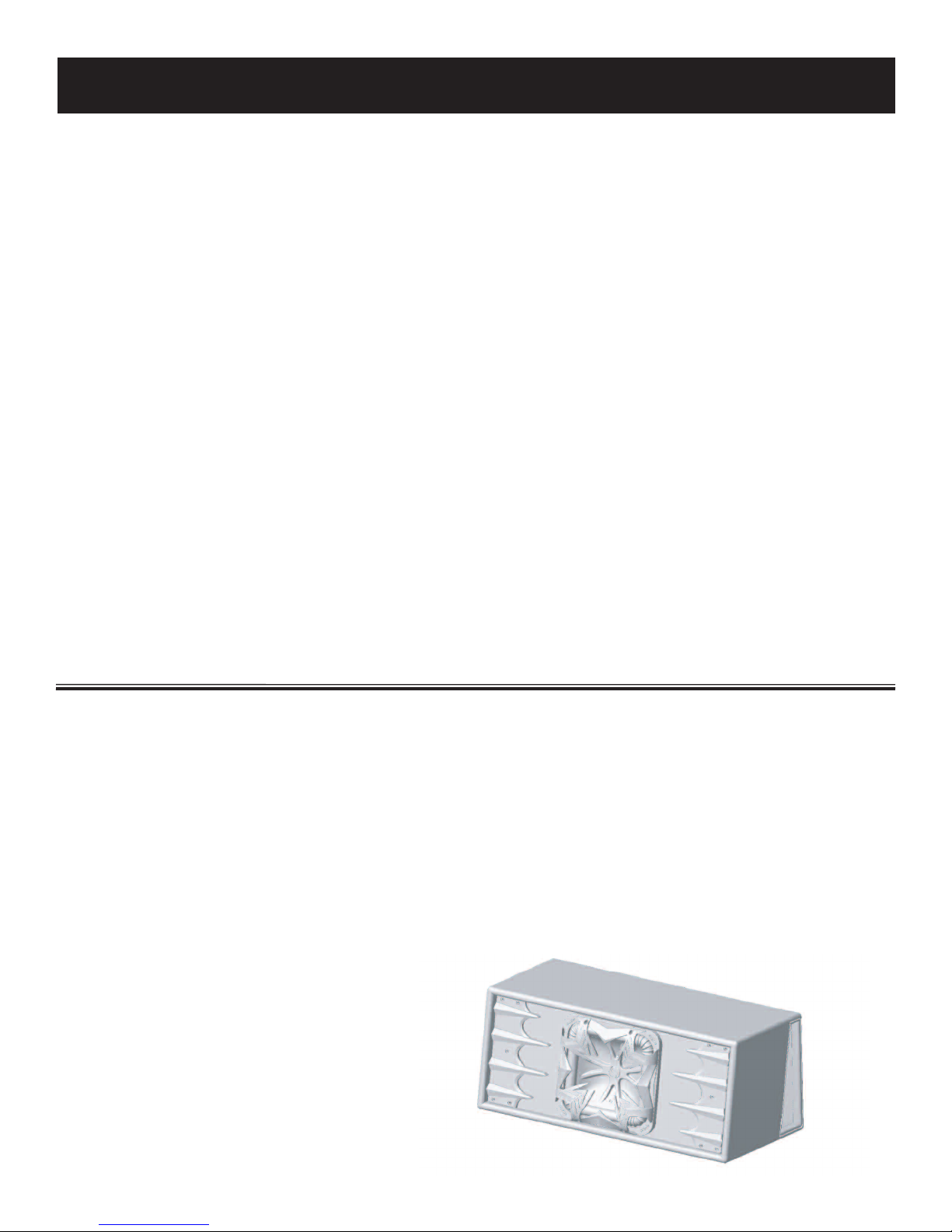

Characteristics of Vented Enclosures

A vented enclosure is not much more complex than a sealed box. It consists, basically, of a box with a hole in
it. However, despite its simple design, vented boxes are considerably harder to get good performance from
than sealed boxes - although many times the extra effort can be worth it.

The vent in the enclosure interacts with the volume of air in the cabinet and the driver to help increase
output and reduce cone excursion at and around the tuning frequency. In fact, at box tuning, almost all the
bass is produced by the vent - NOT the woofer.

The trick in building a vented box is to get the right size enclosure and the right size vent. You can’t be to far
off on either of these factors or your speaker’s performance will suffer. In particular, using a too-small box or a
too-high vent tuning frequency can eliminate bass instead of increasing it. Porting a sealed box that is too
small usually does nothing to improve frequency response. The vents placement within the enclosure is also
important. You must leave at least the equivalent of the vents diameter between the vent and any inside wall.
For example, you would not place a vent with a 3” diameter within 3” of any wall. The same is true for clearance
between the vent opening and the bottom of the enclosure.

PPrroos

s

1 - Reduced cone excursion and reduced distortion around vent tuning.
2 - Increased output capabilities around vent tuning.
3 - Vented boxes give you that extra “Bump” that is preferred in certain types of music.

CCoonns

s

1 - Total loss of cone control below vent tuning, which can result in high distortion and driver mechanical
failure.
2 - Midrange sound coming from inside the box through the vent can produce unpleasant sound coloration.
3 - Vented enclosures are more sensitive to changes such as temperature, humidity and driver fatigue.
4 - Enclosure design is more complex and the enclosure itself must be more solidly constructed because
internal pressure at frequencies around vent tuning can be nearly twice as high as a sealed enclosure.
5 - Vented enclosures usually don’t sound as fast as sealed boxes because the resonant effects of the vent
tuning which is always slightly out of phase with the driver’s output.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 11

C

S8L7 Compact Enclosure Response Curve
S8L7 Street Bass Response Curve
S8L7 SPL/Deep Bass Enclosure Response Curve

10 Frequency Hz 20 30 40 50 60 70 80 100

C

Graph 1 > Acoustic On Axis Response: SPL, Phase dB

90

85

80

75

70

65

60

55

50

C

S10L7 Compact Enclosure Response Curve
S10L7 Street Bass Response Curve
S10L7 SPL/Deep Bass Enclosure Response Curve

10 Frequency Hz 20 30 40 50 60 70 80 100

C

Graph 1 > Acoustic On Axis Response: SPL, Phase dB

95

90

85

80

75

70

65

60

55

Vented Box Response Curves

S8L7 .66cu.ft./.80cu.ft./1.0cu.ft.

S10L7 1.25cu.ft./1.75cu.ft./2.25cu.ft.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications
Page 12

C

S12L7 Compact Enclosure Response Curve
S12L7 Street Bass Response Curve
S12L7 SPL/Deep Bass Enclosure Response Curve

10 Frequency Hz 20 30 40 50 60 70 80 100

C

Graph 1 > Acoustic On Axis Response: SPL, Phase dB

95

90

85

80

75

70

65

60

55

C

S15L7 Compact Enclosure Response Curve
S15L7 Street Bass Response Curve
S15L7 SPL/Deep Bass Enclosure Response Curve

10 Frequency Hz 20 30 40 50 60 70 80 100

C

Graph 1 > Acoustic On Axis Response: SPL, Phase dB

95

90

85

80

75

70

65

60

55

Vented Box Response Curves

S12L7 1.75cu.ft./2.5cu.ft./3.25cu.ft.

S15L7 3.0cu.ft./4.5cu.ft./6.0cu.ft.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications
Page 13

At Least 4 "

Hatchback
OR
Trunk

X

X

X

Chicken Wire or
Expanded Metal

50 % filled
with Polyfil

Chicken Wire or
Expanded Metal

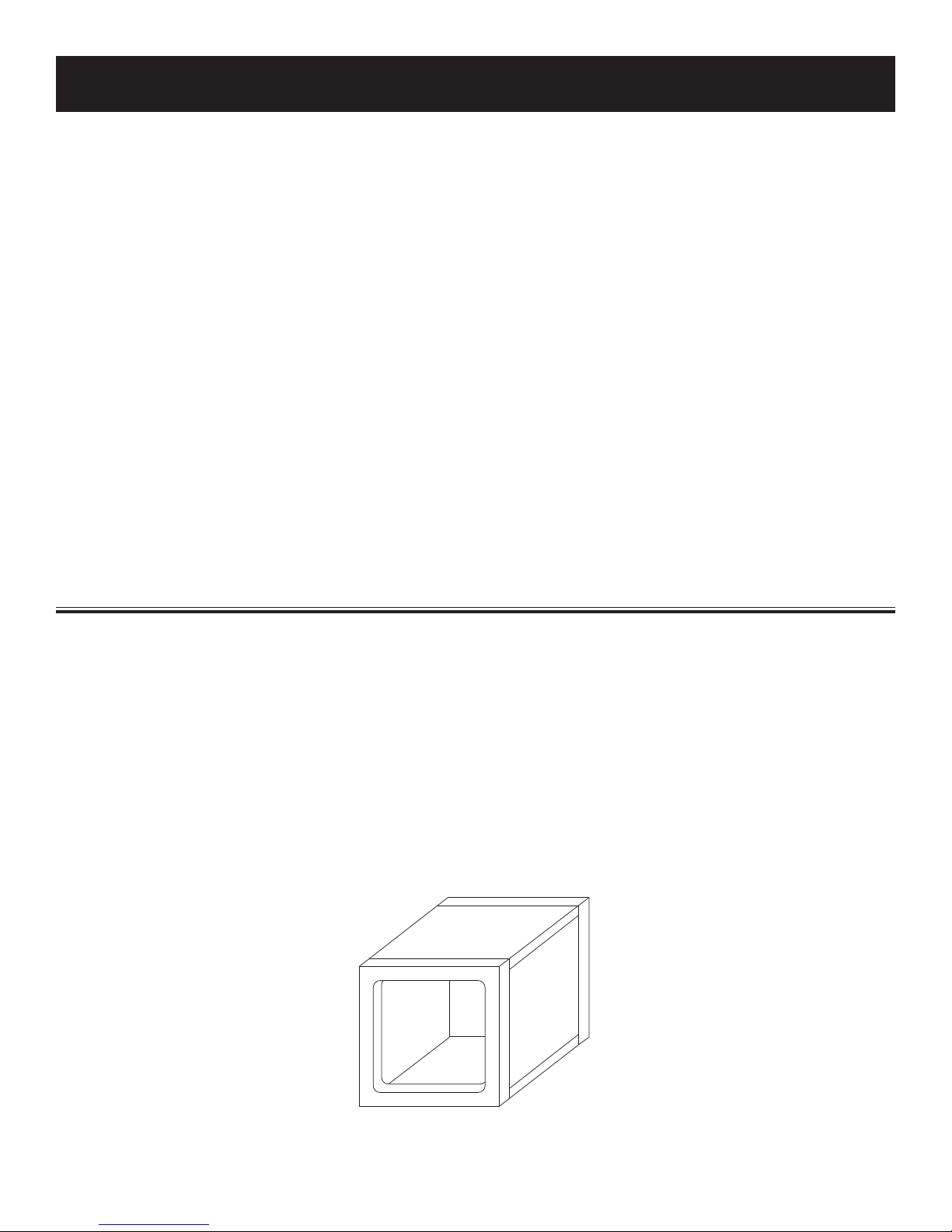

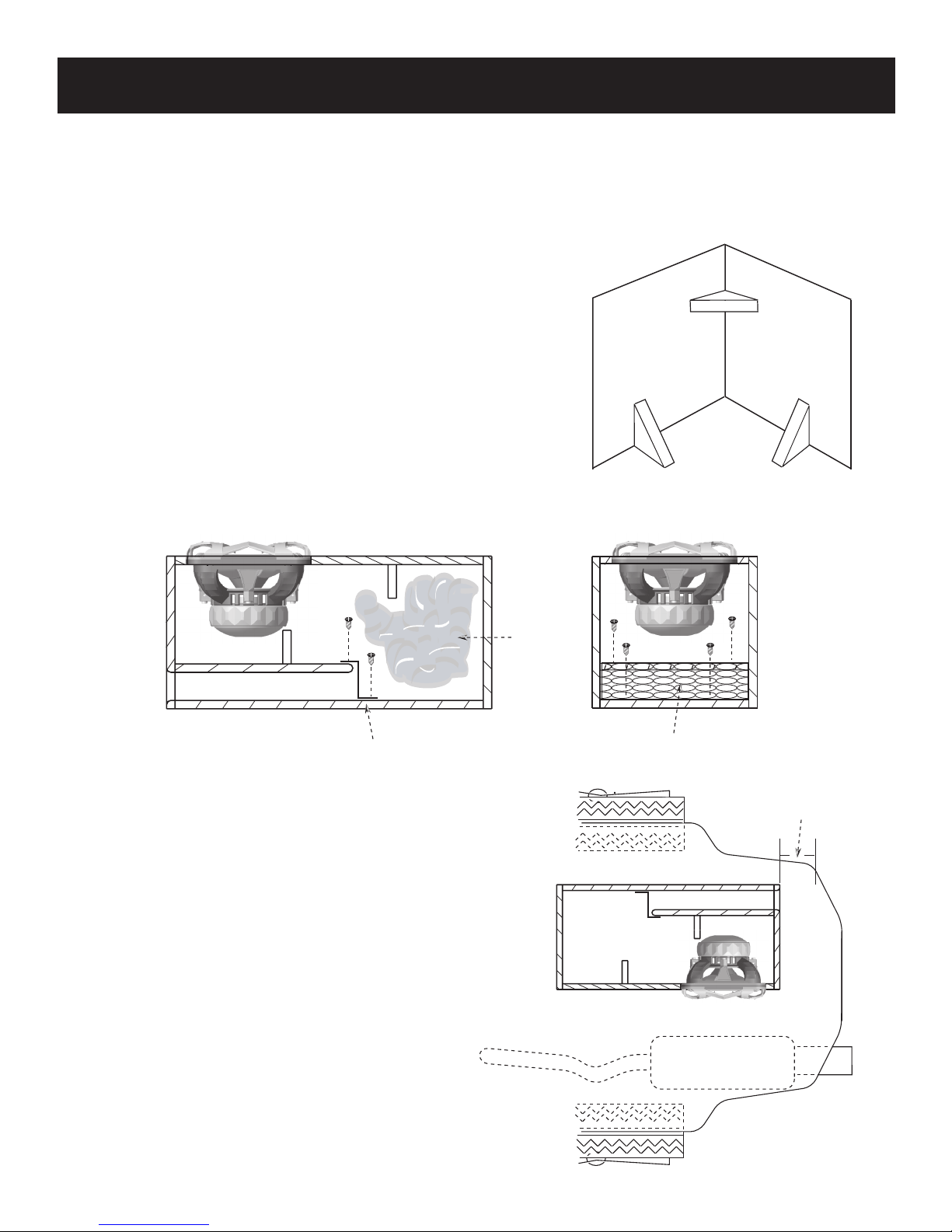

Box Building & Mounting Hints

All the cubic feet numbers given in the supplied charts include the displacement of the woofer. For the
ported boxes the displacement of the port must be added to the final design. It will be impractical to use
round ports for these designs. The rectangular port information given will yield the best results.

Always use 3/4” or thicker MDF and make sure all the joints are
secure and well sealed. The peak pressure in a ported box can
exceed that of a sealed enclosure. All of these designs need some
internal bracing. Be sure to add 2”x2” to 3”x3” triangle braces
between each of the larger unsupported panels. Kicker
recommends using a good grade of wood glue and silicone sealer
for an airtight box.

Note:If you prefer an ultra-smooth bass response, you should
loosely fill your ported Solo-Baric Enclosure with polyfil. If you do
so, the entrance to the port (inside the box) must be covered with
hardware cloth, chicken wire, or expanded metal to prevent the
polyfil from being blown out through the port. Use of polyfil will
slightly decrease efficiency, but will deepen and extend low bass
response.

Do not install a ported box with the port against a
solid surface. The port opening must remain
unobstructed. Use the smallest dimension of the
rectangular port as the minimum amount of space
required between the port and any surface to insure
unrestricted airflow.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 14

45°
Wedge

Round Over
Inner Corner

Front

Top

Box Building & Mounting Hints

20"

3"

L 2

L 1

3"

10"

10"

3"

Fig. 1 Fig. 2

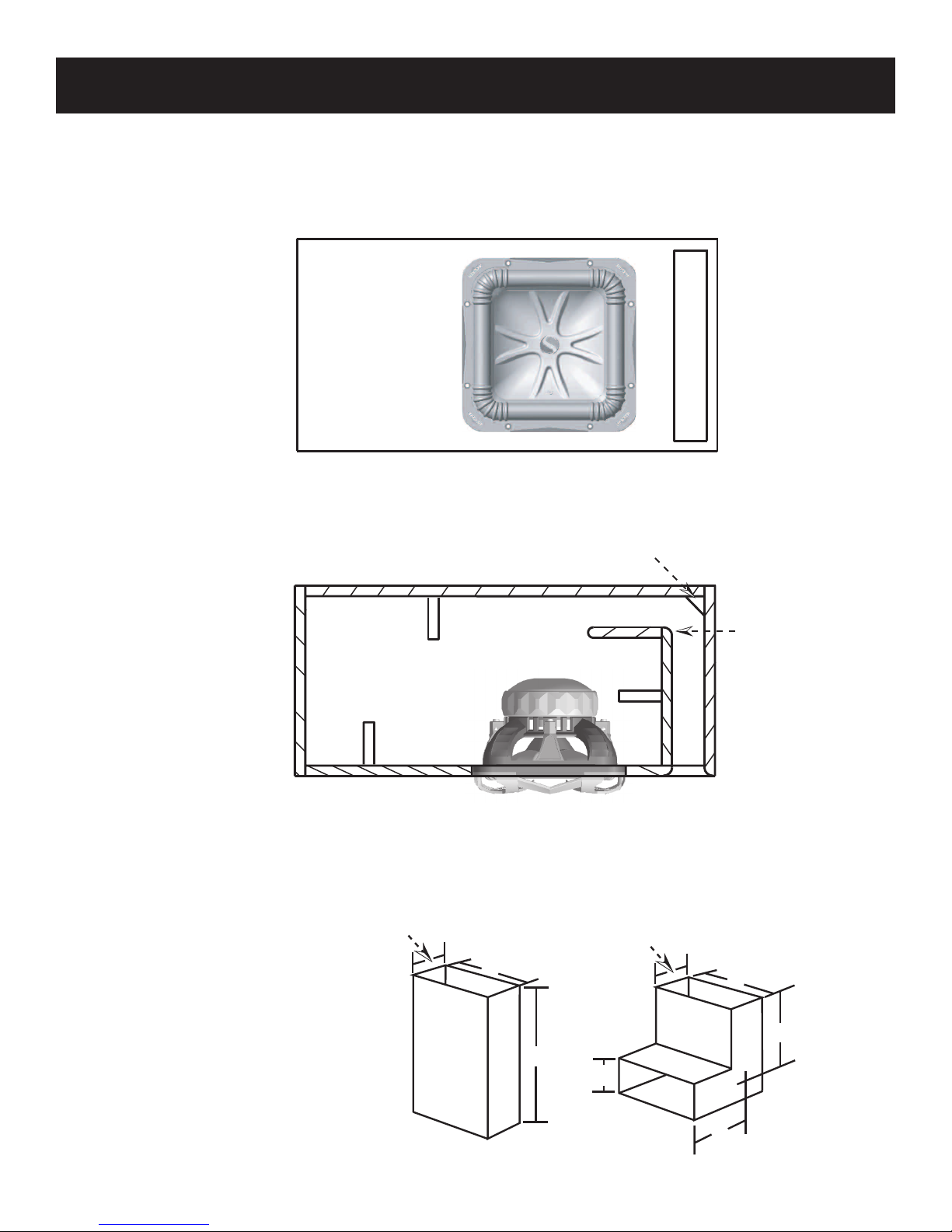

If you would like to use a vented enclosure, but the box designs we provide you with (in this manual) do not fit
because of width or depth, the designs can be modified. The shape of the enclosure is not vital, but
The volume, of the design you choose, must stay the same. The following diagrams provide you with some help to
insure your enclosure is built correctly.

TThhee VVoolluummee IIss.

.

IIff yyoouu aarree ggooiinngg ttoo bbeenndd tthhee ppoorrtt aatt 9900°°yyoouu wwiillll nneeeedd ttoo aadddd 11//22 ooff tthhee ppoorrttss hheeiigghhtt ttoo tthhee lleennggtthh!! SSeeee BBeellooww.

Example:
(Fig. 1)

H

H

port = 3”

W

W

port = 10”

L

port = 20”

L

(Fig. 2)

H

Since

1.5”( 1/2 of
means that

port is 3” you need to add

H

H

H

port) to

1 +

L

L

L

L

port. This

2 = 21.5”

L

L

L

L

Always measure
the center to get an accurate
measurement!

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 15

1 and

L

L

2 down

Remember:

.

SideTop

SideTop

Box Building & Mounting Hints

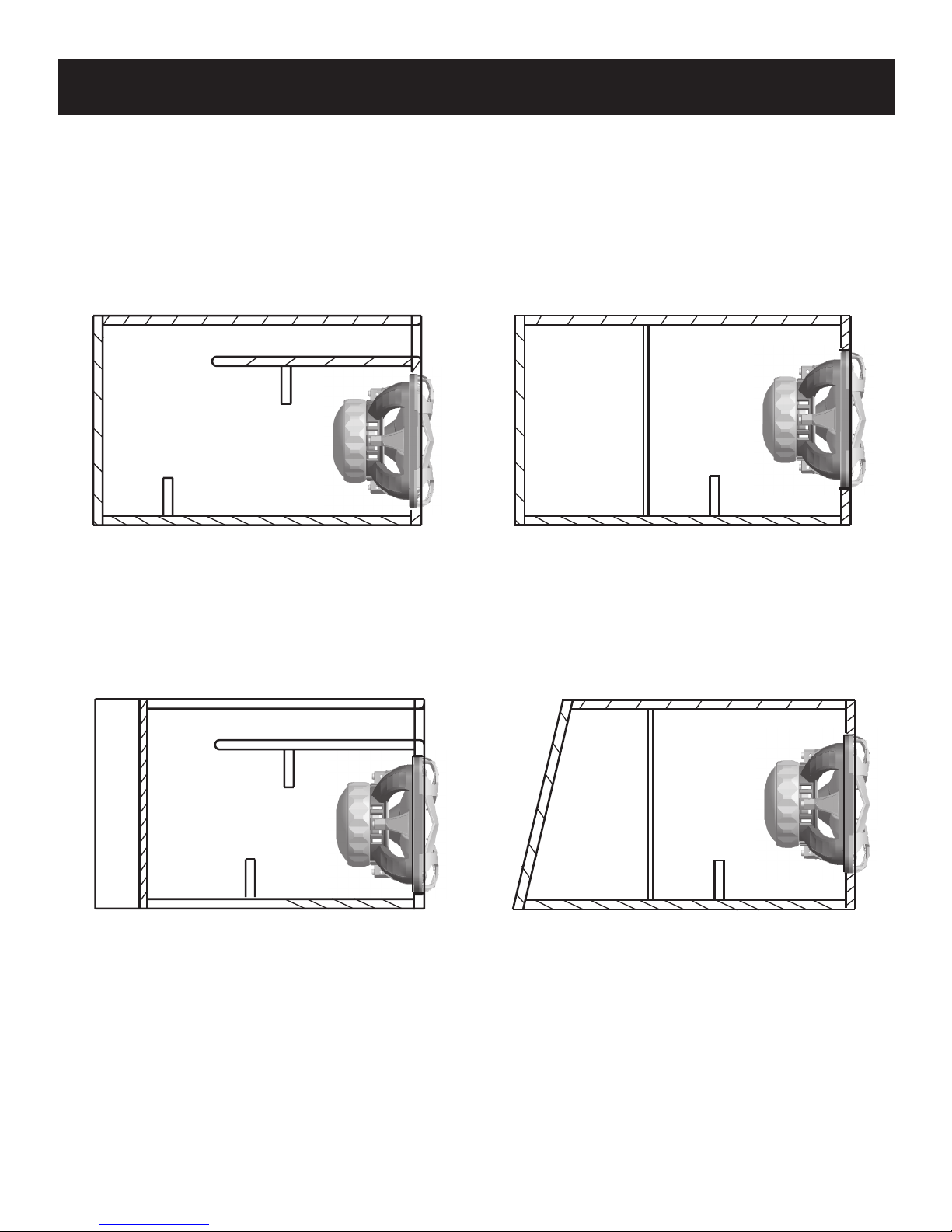

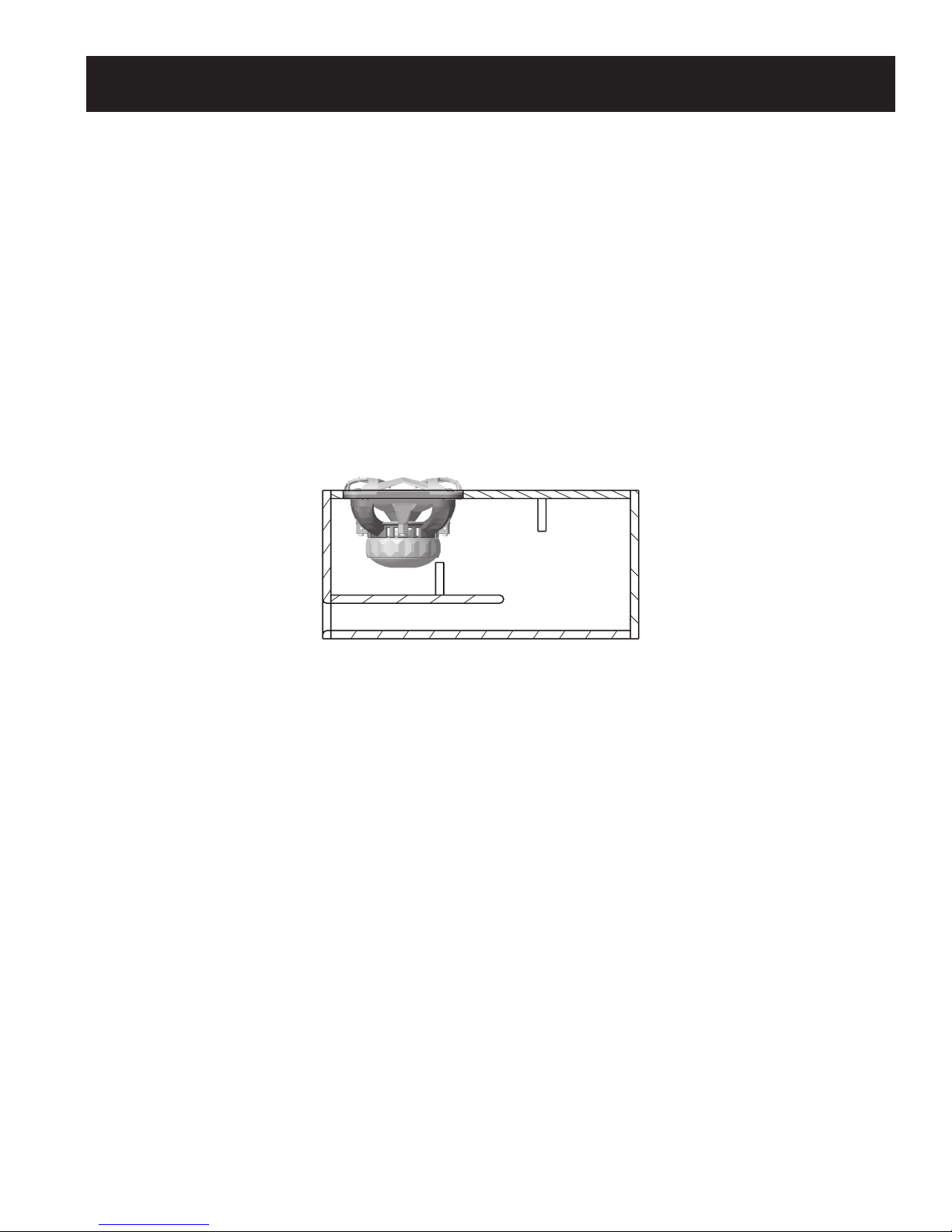

Here are a couple more examples of the different shape enclosures you can build. The woofer can be
mounted on the same side as the port or the back side of the enclosure can be slanted to fit up against your back
seat.. On the cut sheets we provide, change the dimensions to accommodate the woofer and the vent on the
same side. Make sure the internal volume does not change!

OR

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 16

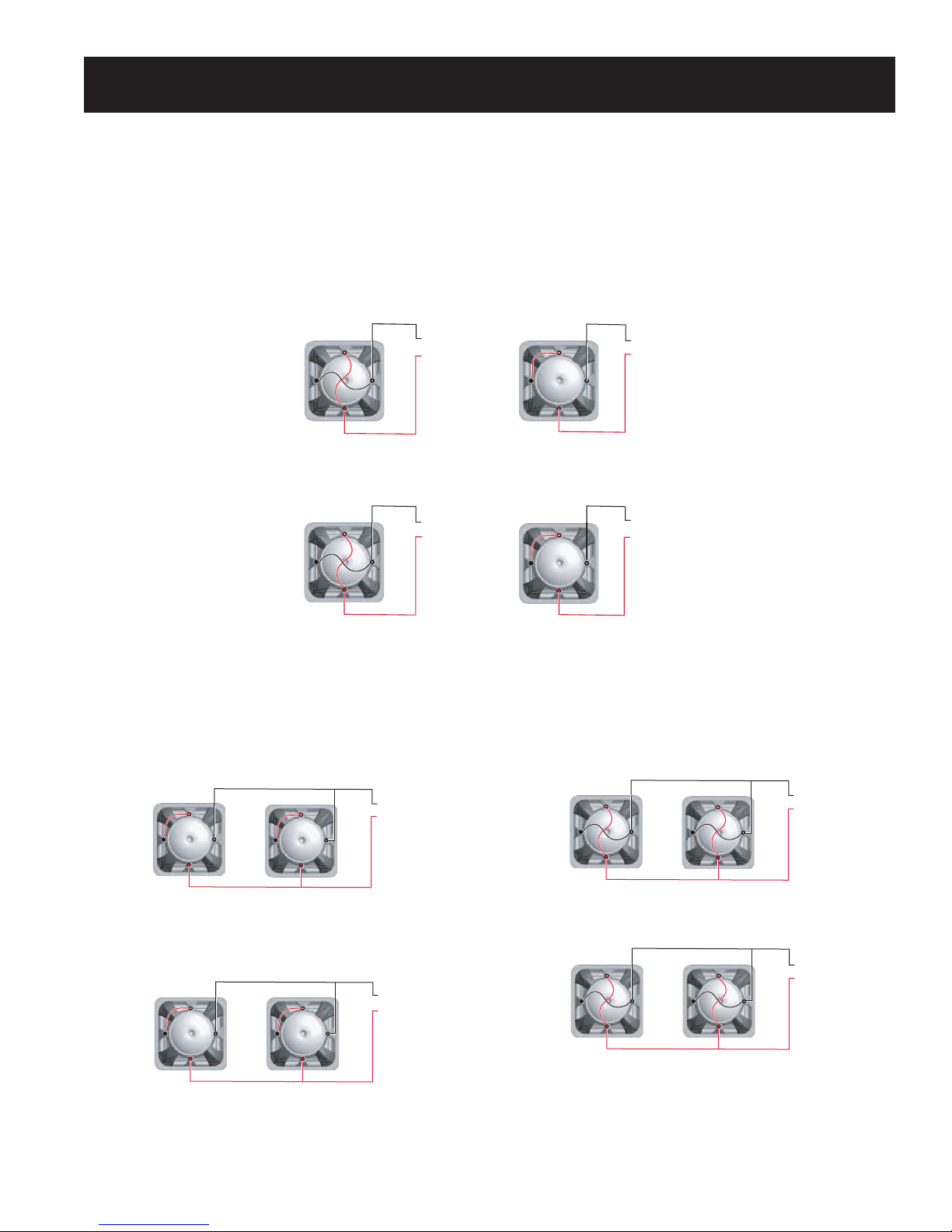

Wiring Options

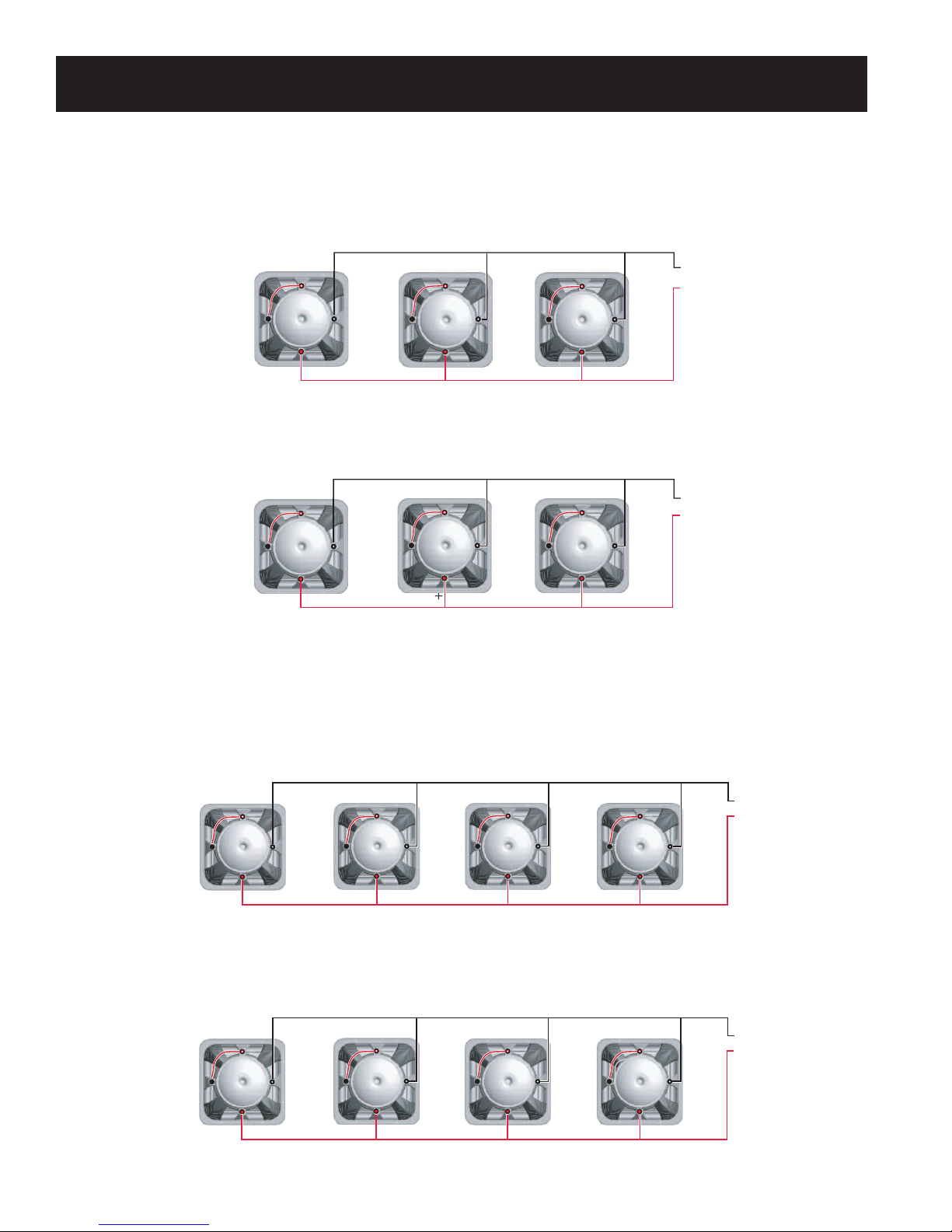

SERIES VOICE COILS / WOOFERS WIRED IN PARALLEL

Using Dual 2 Ohm Voice Coils

4 4 = 2 OHM

Using Dual 4 Ohm Voice Coils

8 8 = 4 OHM

To
Amplifier

+

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

To
Amplifier

+

-

+

Red +

Black

-

Black/
white
dot

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

Red/white dot

Using Dual 2 Ohm Voice Coils

To
Amplifier

+

-

Using Dual 4 Ohm Voice Coils

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

To
Amplifier

+

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

PARALLELED VOICE COILS / WOOFERS WIRED IN PARALLEL

1 1 = .5 OHM

2 2 = 1 OHM

+

-

1 Ohm

Parallel

Red/white dot

+

Black

-

Red +

Black/
white
dot

-

To
Amplifier

Single Woofer

Using Dual 2 Ohm Voice Coils

4 Ohm

Series

Red/white dot

+

To
Amplifier

+

-

Black/
white
dot

-

Red +

Black

-

Using Dual 4 Ohm Voice Coils

2 Ohm

Parallel

To
Amplifier

-

Red/white dot

Red +

Black

-

Black/
white
dot

+

+

-

8 Ohm

Series

To
Amplifier

+

-

Red/white dot

Red

+

Black

-

Black/
white
dot

+

-

The following diagrams are the most popular wiring configurations when using Dual voice coil woofers. They
show a typical single channel wiring scheme. Check the amplifier’s owners manual for minimum impedance
the amplifier will handle before hooking up the speakers. Remember: 4 Ohm mono is equivalent to 2 Ohm
stereo.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 17

SERIES VOICE COILS / WOOFERS WIRED IN PARALLEL

Using Dual 2 Ohm Voice Coils

4 4 4 = 1.33 OHM

Using Dual 4 Ohm Voice Coils

8 8 8 = 2.66 OHM

To
Amplifier

+

-

Red /white dot

+

Red +

Black

-

Red /white dot

+

Red +

Black

-

Red /white dot

+

Red +

Black/
white
dot

-

Black/
white
dot

-

Black/
white
dot

-

Black

-

To
Amplifier

+

-

Red /white dot

+

Red +

Black

-

Black/
white
dot

-

Red /white dot

+

Red

Black

-

Black/
white
dot

-

Red /white dot

+

Red +

Black

-

Black/
white
dot

-

SERIES VOICE COILS / WOOFERS WIRED IN PARALLEL

Using Dual 2 Ohm Voice Coils

4 4 4 4 = 1 OHM

Using Dual 4 Ohm Voice Coils

8 8 8 8 = 2 OHM

To
Amplifier

+

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

To
Amplifier

+

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

Red/white dot

+

Red +

Black

-

Black/
white
dot

-

Wiring Options cont.

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications
Page 18

POWER HANDLING:

300W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 250W

.66 cf, Fb=48Hz
.16 cf = Port Vol.

S8L7-BOX-VENTED-066

Side View

B

F

D

22

19-1/4

1-1/2

Front View

11

C

R 27/32

7-19/32

1-11/16

7-19/32

1-11/16

A

9-5/8

3/4

R3/8

1-1/2

3/4

9-1/2

Cut List: 3/4" MDF

(2) 11" x 9 5/8" Top & Bottom(A)

(2) 20 1/2" x 9 5/8" Sides(B)

(2) 20-1/2" x 9 1/2" Front & Back(C)

(1) 18 1/2" x 9 1/2" Port(D)

(1) 1 1/2" x 9 1/2" Corner Fillet(E)

(4) 2" x 2" Gusset(F)

E

.84

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 19

POWER HANDLING:

325W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 250W

.80 cf, Fb=45Hz
.19 cf = Port Vol.

S8L7-BOX-VENTED-080

Side View

B

F

D

23-1/2

19-3/4

1-3/4

Front View

11

C

7-19/32

1-11/16

7-19/32

1-11/16

A

10-5/8

3/4

R3/8

1-3/4

3/4

9-1/2

Cut List: 3/4" MDF

(2) 11" x 10 5/8" Top & Bottom(A)

(2) 22" x 10 5/8" Sides(B)

(2) 22" x 9 1/2" Front & Back(C)

(1) 19" x 9 1/2" Port(D)

(1) 1 1/2" x 9 1/2" Corner Fillet(E)

(4) 2" x 2" Gusset(F)

E

R 27/32

.84

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 20

POWER HANDLING:

325W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 250W

1.0 cf, Fb=42Hz
.23 cf = Port Vol.

S8L7-BOX-VENTED-10

Side View

B

F

D

25

21-1/4

2

Front View

11

C

7-19/32

1-11/16

7-19/32

1-11/16

A

12

3/4

R3/8

2

3/4

9-1/2

Cut List: 3/4" MDF

(2) 11" x 12" Top & Bottom(A)

(2) 23 1/2" x 12" Sides(B)

(2) 23 1/2" x 9 1/2" Front & Back(C)

(1) 20 1/2" x 9 1/2" Port(D)

(1) 1 1/2" x 9 1/2" Corner Fillet(E)

(4) 2" x 2" Gusset(F)

E

R 27/32

.84

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 21

POWER HANDLING:

500W with 25HZ Subsonic Filter
set at 24db/Octave.
Without subsonic filter 300W

1.25 cf, Fb=45Hz
.32 cf = Port Vol.

S10L7-BOX-VENTED-125

Side View

E

B

F

D

25

19-3/4

2-1/2

Front View

12-3/4

C

R 11/16

9-15/32

1-21/32

9-15/32

1-21/32

A

13

3/4

R3/8

2-1/2

3/4

11-1/4

Cut List: 3/4" MDF

(2) 12 3/4" x 13" Top & Bottom(A)

(2) 23 1/2" x 13" Sides(B)

(2) 23 1/2" x 11 1/4" Front & Back(C)

(1) 19" x 11 1/4" Port(D)

(1) 1 1/2" x 11 1/4" Corner Fillet(E)

(4) 2" x 2" Gusset(F)

.63

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 22

POWER HANDLING:

525W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 350W

1.75 cf, Fb=42Hz
.32 cf = Port Vol.

S10L7-BOX-VENTED-175

Side View

B

E

D

27

17-3/4

2-3/4

Front View

12-3/4

C

9-15/32

1-21/32

9-15/32

1-21/32

A

15

3/4

R3/8

2-3/4

3/4

11-1/4

Cut List: 3/4" MDF

(2) 12 3/4" x 15" Top & Bottom(A)

(2) 25 1/2" x 15" Sides(B)

(2) 25 1/2" x 11 1/4" Front & Back(C)

(1) 17" x 11 1/4" Port(D)

(4) 2" x 2" Gusset(E)

R 11/16

.63

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 23

POWER HANDLING:

550W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 350W

2.25 cf, Fb=38Hz
.35 cf = Port Vol.

S10L7-BOX-VENTED-225

Side View

B

E

D

29

18

3

Front View

12-3/4

C

9-15/32

1-21/32

9-15/32

1-21/32

A

16-1/2

3/4

R3/8

3

3/4

11-1/4

Cut List: 3/4" MDF

(2) 12 3/4" x 16 1/2" Top & Bottom(A)

(2) 27 1/2" x 16 1/2" Sides(B)

(2) 27 1/2" x 11 1/4" Front & Back(C)

(1) 17 1/4" x 11 1/4" Port(D)

(4) 2" x 2" Gusset(E)

R 11/16

.63

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 24

POWER HANDLING:

750W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 400W

1.75 cf, Fb=40Hz
.43 cf = Port Vol.

S12L7-BOX-VENTED-175

Side View

E

B

F

D

29

22-1/2

2-1/2

Front View

14-3/4

C

R 13/16

11-5/32

1-25/32

11-5/32

1-25/32

A

12-1/2

3/4

R3/8

2-1/2

3/4

13-1/4

Cut List: 3/4" MDF

(2) 14 3/4" x 12 1/2" Top & Bottom(A)

(2) 27 1/2" x 12 1/2" Sides(B)

(2) 27 1/2" x 13 1/4" Front & Back(C)

(1) 21 3/4" x 13 1/4" Port(D)

(1) 1 1/2" x 13 1/4" Corner Fillet(E)

(4) 3" x 3" Gusset(F)

.81

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications
Page 25

POWER HANDLING:

600W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 420W

2.50 cf, Fb=38Hz
.32 cf = Port Vol.

S12L7-BOX-VENTED-250

Side View

B

E

D

30

16-1/2

2-1/2

Front View

14-3/4

C

R 13/16

11-5/32

1-25/32

11-5/32

1-25/32

A

14-3/4

3/4

R3/8

2-1/2

3/4

13-1/4

Cut List: 3/4" MDF

(2) 14 3/4" x 14 3/4" Top & Bottom(A)

(2) 28 1/2" x 14 3/4" Sides(B)

(2) 28 1/2" x 13 1/4" Front & Back(C)

(1) 15 3/4" x 13 1/4" Port(D)

(4) 3" x 3" Gusset(E)

.81

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 26

POWER HANDLING:

750W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 400W

3.25 cf, Fb=37Hz
.33 cf = Port Vol.

S12L7-BOX-VENTED-325

Side View

B

E

D

32

14-1/2

3

Front View

14-3/4

C

R 13/16

11-5/32

1-25/32

11-5/32

1-25/32

A

17-1/8

3/4

R3/8

3

3/4

13-1/4

Cut List: 3/4" MDF

(2) 14 3/4" x 17-1/8" Top & Bottom(A)

(2) 30 1/2" x 17-1/8" Sides(B)

(2) 30-1/2" x 13 1/4" Front & Back(C)

(1) 13 3/4" x 13 1/4" Port(D)

(4) 3" x 3" Gusset(E)

.81

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 27

POWER HANDLING:

1000W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 1000W

3.00 cf, Fb=35Hz
.46 cf = Port Vol.

S15L7-BOX-VENTED-300

Side View

B

E

D

32

19-1/2

2-1/2

Front View

17-3/4

C

R 1-1/8

14-1/16

1-27/32

14-1/16

1-27/32

A

14-1/4

3/4

R3/8

2-1/2

3/4

16-1/4

Cut List: 3/4" MDF

(2) 17 3/4" x 14 1/4" Top & Bottom(A)

(2) 30 1/2" x 14 1/4" Sides(B)

(2) 30 1/2" x 16 1/4" Front & Back(C)

(1) 18 3/4" x 16 1/4" Port(D)

(4) 3" x 3" Gusset(E)

1.15

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 28

POWER HANDLING:

1000W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 1000W

4.50 cf, Fb=33Hz
.42 cf = Port Vol.

S15L7-BOX-VENTED-450

Side View

B

E

D

32

14-3/4

3

Front View

17-3/4

C

R 1-1/8

14-1/16

14-1/16

A

19

3/4

R3/8

3

3/4

16-1/4

Cut List: 3/4" MDF

(2) 17 3/4" x 19" Top & Bottom(A)

(2) 30 1/2" x 19" Sides(B)

(2) 30 1/2" x 16 1/4" Front & Back(C)

(1) 14" x 16 1/4" Port(D)

(6) 3" x 3" Gusset(E)

1-27/32

1-27/32

1.15

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 29

POWER HANDLING:

1000W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 1000W

6.00 cf, Fb=30Hz
.45cf = Port Vol.

S15L7-BOX-VENTED-600

Side View

B

E

D

32

13-3/4

3-1/2

Front View

17-3/4

C

R 1-1/8

14-1/16

14-1/16

A

24-1/4

3/4

R3/8

3-1/2

3/4

16-1/4

Cut List: 3/4" MDF

(2) 17 3/4" x 24 1/4" Top & Bottom(A)

(2) 30 1/2" x 24 1/4" Sides(B)

(2) 30 1/2" x 16 1/4" Front & Back(C)

(1) 13" x 16 1/4" Port(D)

(6) 3" x 3" Gusset(E)

1-27/32

1-27/32

1.15

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 30

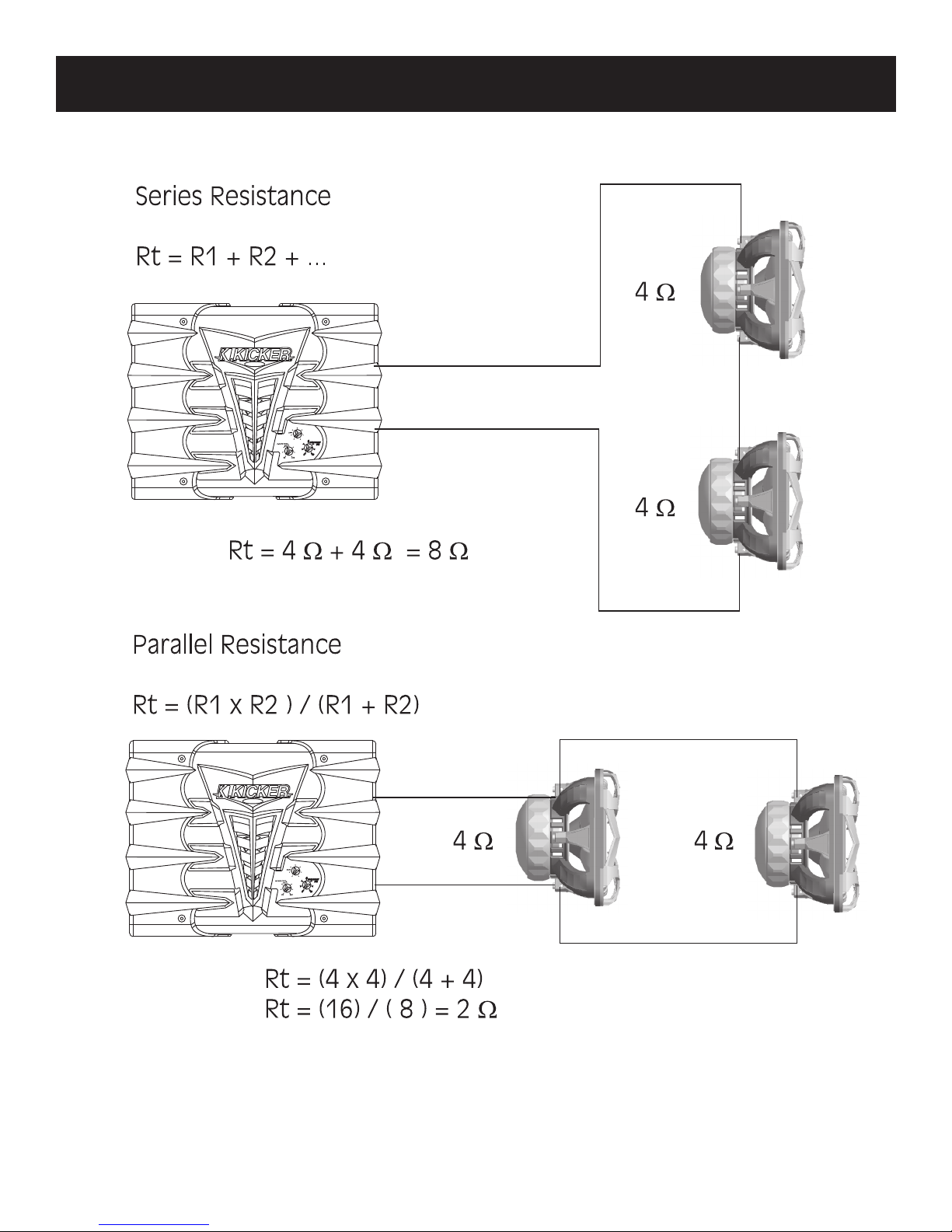

Resistance Formulas

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 31

Thiele/Small Parameters

Model S15L74 S12L74 S10L74 S8L74

Nominal Impedance 8 8 8 8

(Coils in series)

SPL 1W/1M 88.8 86.6 85.6 84.9
Displacement, cc 4530 2475 1830 980
Displacement, CuIn 276.5 151.0 111.8 59.8
Mounting Depth 8-3/16 6-13/16 6-3/8 4-15/16
Revc 6.92 7.93 7.81 6.15
VC Inductance, mH 7.34 6.51 6.45 4.83
Sd, SqM 0.1056 0.0645 0.0439 0.0273
BL 25.493 21.568 21.713 17.739
Vas, Liters 213.232 71.234 36.851 15.553
Vas, CuFt 7.53 2.52 1.30 0.55
Mms, gms 357.6 208.9 165.5 116.1
Fs 22.9 31.7 33.7 38.5
Qms 11.652 10.857 10.655 8.923
Qes 0.549 0.709 0.581 0.549
Qts 0.524 0.666 0.551 0.517
Pmax, watts 1000 750 600 450

Xmax, mm 16.25 13.20 13.20 10.70

Model S15L72 S12L72 S10L72 S8L72

Nominal Impedance 4 4 4 4

(Coils in series)

SPL 1W/1M 88.5 87.4 85.7 84.5
Displacement, cc 4530 2475 1830 980
Displacement, CuIn 276.5 151.0 111.8 59.8
Mounting Depth 8-3/16 6-13/16 6-3/8 4-15/16
Revc 3.57 3.62 3.64 3.33
VC Inductance, mH 4.75 3.88 3.91 3.18
Sd, SqM 0.1056 0.0645 0.0439 0.0273
BL 19.348 16.353 16.328 14.066
Vas, Liters 129.559 68.755 35.071 14.762
Vas, CuFt 4.58 2.43 1.24 0.52
Mms, gms 384.1 223.1 186.9 125.9
Fs 22.6 31.2 32.5 38.0
Qms 12.452 10.319 10.675 9.262
Qes 0.519 0.593 0.521 0.506
Qts 0.498 0.561 0.497 0.479
Pmax, watts 1000 750 600 450

Xmax, mm 16.25 13.20 13.20 10.70

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 32

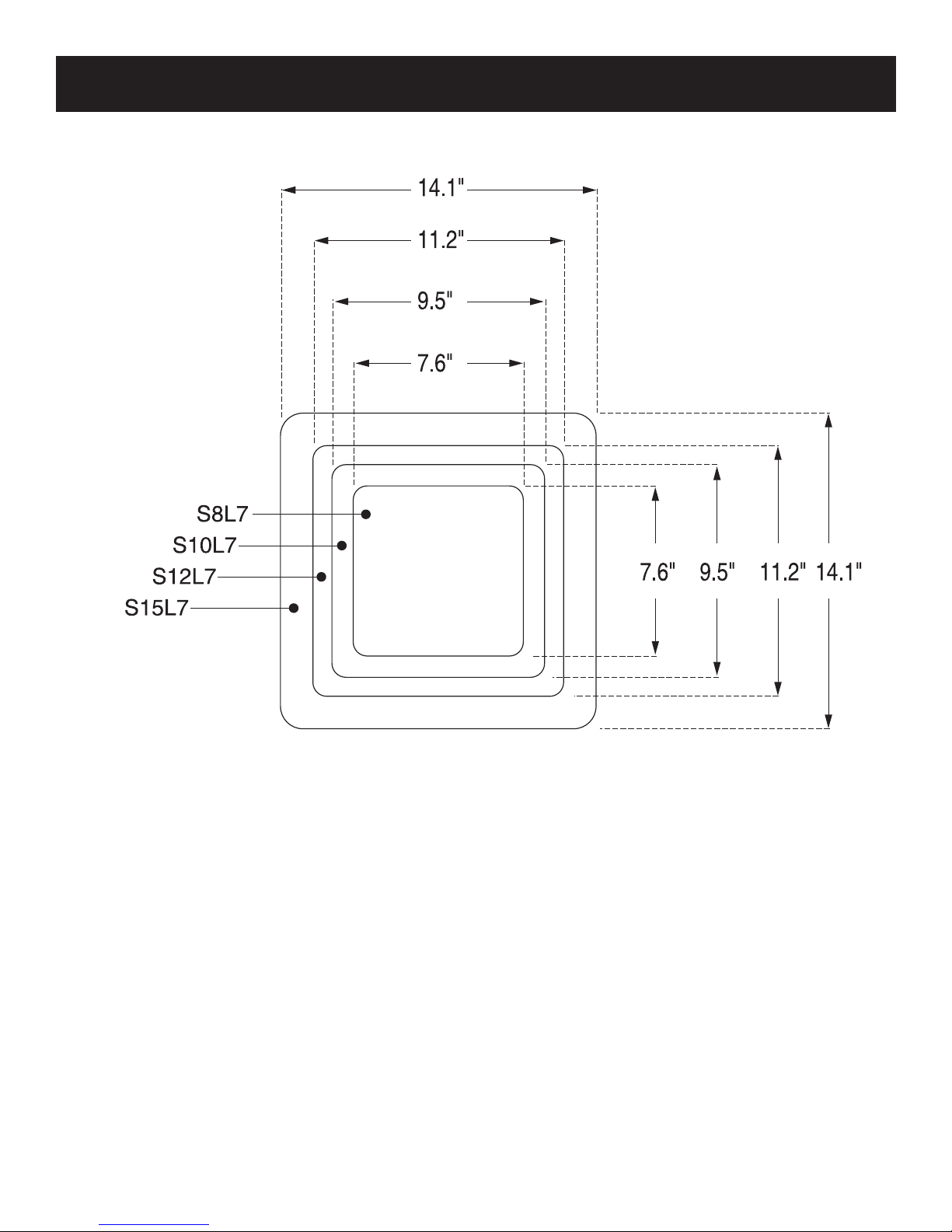

Mounting Hole Cutouts

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 33

Notes

Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications

Page 34

ACOUSTICS LIMITED WARRANTY

Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of THREE
(3) MONTHS from date of original purchase with receipt. When purchased from a Authorized KICKER Dealer it is warranted for
ONE (1) YEAR from date of original purchase with receipt. In all cases you

necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, Kicker
will repair or replace (at its discretion) the defective merchandise with equivalent merchandise at no charge. Warranty replace­ments may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent prod­ucts.

This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the
original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided
herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to
this product thereafter. Some states do not allow limitations on implied warranties, therefore these exclusions may not apply to
you.

This warranty gives you specific legal rights; however you may have other rights that vary from state to state.
WWHHAATT TTOO DDOO IIFF YYOOUU NNEEEEDD WWAARRRRAANNTTYY OORR SSEERRVVIICCE

Defective merchandise should be returned to your local Authorized Stillwater Designs (Kicker) Dealer for warranty. Assistance in
locating an Authorized Dealer can be obtained by writing or calling Stillwater Designs direct. You can confirm that a dealer is
authorized by asking to see a current authorized dealer window decal.

If it becomes necessary for you to return defective merchandise directly to Stillwater Designs (Kicker), call the Kicker Customer
Service Department at [phone] for a Return Authorization (RMA) number. Package all defective items in the original con­tainer or in a package that will prevent shipping damage, and return to

E

mmuusstt hhaavve

the

oorriiggiinnaall rreecceeiippt

e

! Should service be

t

SSttiillllwwaatteerr DDeessiiggnnss,, 55002211 NNoorrtthh PPeerrkkiinnss RRooaadd,, SSttiillllwwaatteerr,, OOKK 774400775

The RMA number must be clearly marked on the outside of the package. Return only defective components. Return of entire
cabinets, system packs, pairs, etc. increases your return freight charges. Non-defective items received will be returned freight
collect.

Include a dated
Warranty expiration on items without proof-of-purchase will be determined from type of sale and the manufacturing date
code. Freight must be prepaid; items received freight collect will be refused.

Failure to follow these steps may void your warranty. Any questions can be directed to the Kicker Customer Service
Department at [phone].

pprrooooff--ooff--ppuurrcchhaasse

stating the Customer name, Dealer name, product purchased and date of purchase.

e

5

WHAT IS NOT COVERED ?

This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover:

• Damage due to improper installation.

• Subsequent damage to other components.

• Damage caused by exposure to moisture, excessive heat,

chemical cleaners, and/or UV radiation.

• Damage through negligence, misuse, accident or abuse.

Repeated returns for the same damage may be considered
abuse.

• Any cost or expense related to the removal or reinstallation

of product.

• Speakers damaged due to amplifier clipping or distortion.

• Items previously repaired or modified by any unauthorized
repair facility.

• Return shipping on non-defective items.

• Products with tampered or missing barcode labels.

• Products returned without a Return Authorization (RMA)
number.

• Freight Damage.

• The cost of shipping product to Kicker.

• Service performed by anyone other than Kicker.

• Speaker with any foreign caulk used for gasket material.

HOW LONG WILL IT TAKE ?

Kicker strives to maintain a goal of 24-hour service for all acoustics (woofers, mids, tweets, etc.) returns. Delays may be

incurred if lack of replacement inventory or parts is encountered.

INTERNATIONAL WARRANTY

Contact your International Kicker dealer or distributor concerning specific procedures for your country’s warranty policies.

P.O. Box 459 • Stillwater, Oklahoma 74076 • U.S.A. • 405 624-8510

KICKER drivers are capable of producing sound levels that can permanently
damage your hearing! Turning up a system to a level that has audible distortion is more
damaging to your ears than listening to an undistorted system at the same volume level. The
threshold of pain is always an indicator that the sound level is too loud and may permanently

WARNING:

damage your hearing.
PPlleeaassee uussee ccoommmmoonn sseennssee wwhheenn ccoonnttrroolllliinngg vvoolluummee!

!

January 2004

P.O. Box 459 – Stillwater, Oklahoma 74076 – U.S.A. – 405 624-8510
or www.Kicker.com
