Page 1
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
June 13, 2002
Comp Woofer
Technical Manual
Page 2
Features
y Hemispherical Polymineral Cone with Inverted Structural Dome™ (ISD) Means high rigidity under
pressure for accurate linear control, low enclosure pressure loss to reduce "pump-down", high internal dampening,
and excellent sunlight, pollution and moisture resistance
y WARG (Wrap ARound Gasket) Instead of using cork gaskets, which can separate, the Comp Woofers have a one
piece gasket that wraps around the front and back of the mounting flange. It is more durable and ergonomically
pleasing to the eye. We learned from other previous models the cork gaskets could tear off or if you were transplanting the speaker into another box, they could stay adhered to the old box causing you to order a replacement.
These problems are eliminated with the new rubber gaskets. They not only look better, but also function better by
eliminating the chance for air leaks.(provided the box is built correctly!) We still recommend if you are carpeting the
box, to cut away any carpet that is under the woofer mounting flange.
y SSD (Spun Spoke Design) The basket not only looks impressive, but it is extremely functional. This stamped
steel basket provides a solid foundation for the motor assembly insuring that all the parts work together in harmony and prevent shifting or misalignment. Without a solid foundation, the speaker’s various parts could shift under
extreme excursion causing premature failure and add unwanted noise to the music. If misaligned, the voice coil
could rub the inner wall of the motor structure and thus exposing the bare windings, which would cause speaker
failure. The same thing happens if the coil former rubs the pole-piece. The damaged former exposes the windings
causing speaker failure. When other speakers are pushed to their limits they tend to make noises that add coloration to the music. When you’re LIVIN’LOUD you only want here the music the artist intended you to hear, not a
bunch of unwanted ringing.
y Perimeter Venting Without the perimeter venting along the side of the speaker, hot air would be trapped in
with the voice coil. This will cause the structure to heat up quicker and cause power compression, which results in
decreased output, as well as shorter speaker life. Perimeter venting causes a vortex cooling effect around the coil
which exchanges the hot air around the voice coil for cooler air outside the speaker. It also releases pressure from
under the spider to allow the speaker to work in a more linear fashion. All of this translates into cooler operating
temperatures which will allow the speaker to sound and perform better.
y Blackened One Piece Uniplatewith Vented Hyper-Extended Pole
1.
Provides enhanced heat transfer for cool operation and maximum power handling. The heat is transferred
from the pole piece to the back plate, effectively acting like a radiator in an engine. This lowers the operating temperature of the voice coil. Note:The increase in temperature increases the impedance of the speak-
er. This results in lower output and is referred to as Power Compression.
2.
Reduces non-linear magnetic fields around the voice coil gap for superior cone motion control. The
extended pole assures the voice coil is always in the magnetic field when moving peak to peak. When the speaker
reaches it’s Xmax, the voice coil is still in the gap between the pole piece and magnet structure due to its extended
pole-piece.
3.
Releases pressure under ISD for freer cone motion and enhanced low frequency response. Air trapped
under the ISD is forced out though the pole-piece to allow the cone to move freely. Heat and pressure build up
under the ISD and need to be released to allow the speaker to function properly.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 2
Page 3
y High-Temp Kapton® Voice Coil Former Heat is the primary enemy to the life of a speaker, which is one of
the reasons we use Kapton® voice coil formers. Kapton® is a man-made product that is light, durable and heatresistant. The Kapton® former acts as an insulator to keep the heat of the voice coil from breaking down the adhesive that connects the voice coil to the cone. During high excursion and prolonged exposure to heat, the Kapton®
former holds it’s shape and does not expand or contract. As a bonus, Kapton® is also a very quiet material during
operation and does not discolor the music by adding unwanted sound
y ISD (Inverted Structural Dome
))
Kicker was one of the first companies to switch to the Inverted Structural
Dome. We have designed a cone with a groove for the ISD to lock into, further adding strength to the structure.
When a cone reaches it’s peak it wants to buckle because it’s momentum keeps it moving out. The ISD provides
structural support for the cone to resist buckling. NOTE: When the cone buckles, the output of the woofer
decreases. Therefore, the ISD is not just a cosmetic thing, it is an integral part of the woofer to maintain it’s maximum performance.
y Stitched Surround A signature of KICKER woofers has always been the stitched surround. It prevents the sur-
round from separating from the cone at high excursions. When the woofer is moving back and forth it puts a lot
of strain on the adhesive that is holding the surround to the cone and often causes the two to separate. Stitching
the surround to the cone eliminates this from happening.
If stitching were inexpensive, everybody would do it!
y
Long-Throw Voice Coils A speaker can obtain extreme Xmax only when the voice coil is long enough and can
sustain the stress.
y High-Power Lead Wires Resist lead breakage and power robbing resistance losses under demanding condi-
tions. When a speaker is being pushed to it’s limits there is a lot of strain being put on the leads. Sleeving tinsel
leads help strengthen them to resist breakage.
y Versatile Mounting Capabilities The Comp woofers have the unique capability of being mounted in a
Sealed box, Ported box or on a Baffle mounted Free-air. This allows the Comp woofer to be one of the most popular speakers in the industry.
Features cont.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 3
Page 4
Patented
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 4
Comp Cutaway View
Signature Feature
Stitched Surround It prevents the surround
from separating from the cone at high excursions
ISD (Inverted Structural Dome)
increases cone's resistance to
flex under pressure.
SSD (Spun Spoke Design)
Enhances the cosmetics
and provides a solid anti-
resonant foundation for
the motor assembly.
High-Power Lead Wires
To resist lead breakage and power-robbing
resistance.
Long-Throw Voice Coil on
a Kapton Former For enormous
cone excursion capabilities.
Vented pole piece
Eliminates noise and distortion
caused by huge amounts of airflow
created by extreme cone excursion.
Hemispherical polymineral Cone with
inverted Structural Dome(ISD) Means high
rigidity under pressure for accurate linear control,
high internal damping, UV, pollution, and moisture resistance.
WARG (Wrap ARound Gasket) Provides
greater durability and resistance to separation
while providing a superior seal.
Perimeter vents Create a vortex
cooling effect around the voice coil.
One-Piece extended Pole, invented by Stillwater Designs,
creates a broad, symmetrical magnetic field for superior
power handling, precise voice coil control, and minimal
deep bass distortion.
Page 5
Thank you for your support of KICKER products. Once you have had a chance to see and experience the capabilities of the new KICKER Comp subwoofers, we believe that you will be as excited as we are about these modestly
priced masterpieces! The Comps truly set a new standard for bass performance in this category.
This latest revision of our KICKER Comp Subwoofers Recommended Applications/Enclosures Technical Update
brings together all of our Kicker Comp woofers into one manual.
The enclosure recommendations in this paper supercede any other previously published recommendations.
Especially when used in sealed enclosures, the new KICKER Comps will achieve maximum bass performance after
they have been broken in.
Approximately one to two weeks of daily playing will allow the suspension to soften, and reach its optimum equilibrium. This time period may vary depending on the amount of play time, volume level, and type of music you listen to. More play time, with medium volume levels and more bass content, will break in the subwoofer most
quickly. The broken-in sub will exhibit stronger bass performance, smoother response, and greater low bass extension.
For those of you with more sophisticated audio equipment, the Comp woofers can be broken-in on the test
bench overnight with the following procedure.
KICKER Comp Freeair Break-in Procedure
1. Connect the speaker to a power amp of about fifty watts or more. The speaker should not be mounted in any
enclosure - just freeair.
Please make sure it will not walk off the bench while it is playing!
2. Connect an audio generator to the input of the power amp, and adjust the generator to approximately 37Hz for
the C8, 32 Hz for the C10, 28 Hz for the C12, and 17 Hz for the C15.
3. Now adjust the gain on the amplifier and generator so that the cone is moving to Xmax. This can be determined
visually by looking at the “blur depth” of the logo on the ISD. A close approximation will do. On the C8 this will be
about 3/4”, on the C10 about 3/4”, on the C12 about 7/8”, and on the C15 about 1”.
NOTE: Keep in mind that as the speaker is used under normal conditions the break-in will continue, so if you don’t
have time for the complete break-in period the speaker will still break-in itself under normal usage.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 5
Page 6
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 6
Sealed Enclosure Applications
The KICKER Comp woofers are real performers in sealed enclosures, producing the tight, defined, and accurate
bass response you would expect from a KICKER. They will operate in larger sealed enclosures for ultra sound quality
(SQ) applications without significantly sacrificing their power handling. This extra bass extension and smoothness
can be obtained by simply using a larger sealed enclosure. The box can be “sized up” all the way to the maximum
SQ enclosure, which has a very flat response, with greatly extended sub bass. These sealed enclosure SQ recommendations will give the smoothest response with the most energy at really low frequencies, around 20 to 30 Hz.
The recommended Compact sealed boxes are in line with our traditional Comp enclosures. They deliver massive
amounts of high impact bass. And small size means they can fit just about anywhere.
These versatile subwoofers are equally at home in a small Compact enclosure as they are in the larger SQ enclo-
sures. As the sealed enclosure volume is increased, the response begins to shift from high impact bass to a
smoother and more extended low bass response. Some of the impact is diminished, but the deep bass is actually
enhanced.
Recommended Enclosures
- Moderate Efficiency -
Model
Compact SQ
C8 .50 cu.ft. Power Handling = 100W 1.2 cu.ft. Power Handling =100W
14.16l 33.98l
C10 1.0 cu.ft. Power Handling = 125W 2.4 cu.ft. Power Handling =125W
28.32 l 67.97l
C12 1.25 cu.ft. Power Handling = 150W 3.5 cu.ft. Power Handling =150W
35.40 l 99.12 l
C15 2.25 cu.ft. Power Handling = 250W 5.00 cu.ft. Power Handling = 250W
63.72 l 141.60l
NOTE: All sealed boxes should be 50% filled with loose polyfil. Allow about two weeks break-in time for the Comp woofers to
reach optimum low bass performance.
Page 7
Characteristics of Sealed Enclosures
The most basic and simple of all speaker enclosures is the sealed box or acoustic suspension design.
The acoustic suspension design has several advantages; it is easy to build, easy to tune and offers high power
handling, tight response and extended low end output. Acoustic suspension enclosures produce lower bass
because they roll off at 12 dB per/octave. Cone motion is better controlled at all frequencies because of the constant pressure on the back side of the cone. This enables you to run more power to the woofer. They are called
acoustic suspension enclosures because the air inside the box acts like a viscous brake to control the woofer. That
is why the box needs to be sealed tight. If there are any air leaks the woofer cannot function properly because
there is very little force being exerted back on the woofer.
P
ros
1 - High power handling capability
2 - Extended low frequency response and smooth roll off (12 dB/octave).
3 - Excellent transient response.
4 - Tolerant of minor enclosure size variations.
5 - Easiest enclosure to build.
Cons
1 - Not as efficient as other designs.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 7
Page 8
Sealed Box Response Curves
C8 .50cu.ft./1.2cu.ft.
C10 1.0cu.ft./2.4cu.ft.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 8
C
C8 Compact Enclosure Response Curve
C8 SQ Enclosure Response Curve
90
85
80
75
70
65
60
55
50
10 Frequency 50 100 Hz 500 1K
Graph 1 > Acoustic On Axis Response: SPL, Phase dB
C
C10 Compact Enclosure Response Curve
C10 SQ Enclosure Response Curve
C
90
85
80
75
70
65
60
55
50
Graph 1 > Acoustic On Axis Response: SPL, Phase dB
C
10 Frequency 50 100 Hz 500 1K
Page 9
C12 1.25cu.ft./3.5cu.ft.
Sealed Box Response Curves
C15 2.25cu.ft./5.0cu.ft.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 9
C
C12 Compact Enclosure Response Curve
C12 SQ Enclosure Response Curve
95
90
85
80
75
70
65
60
55
10 Frequency 50 100 Hz 500 1K
Graph 1 > Acoustic On Axis Response: SPL, Phase dB
C
C15 Compact Enclosure Response Curve
C15 SQ Enclosure Response Curve
C
95
90
85
80
75
70
65
60
55
Graph 1 > Acoustic On Axis Response: SPL, Phase dB
C
10 Frequency 50 100 Hz 500 1K
Page 10

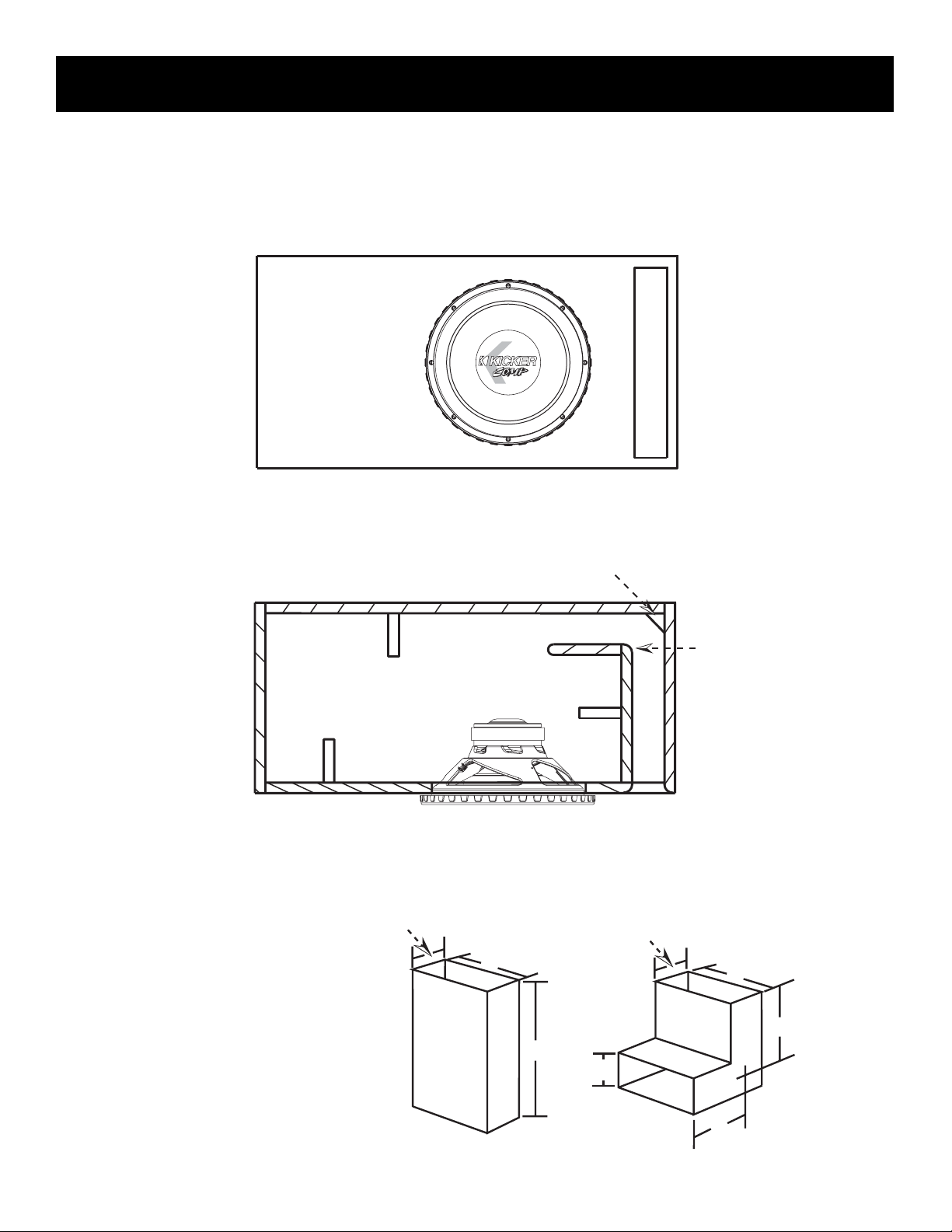

Ported/Vented Enclosure Applications
Ported Comp drivers incorporate massive slot loaded ports with ultra low air velocity for ground pounding street
bass that will make your hair stand on end (if you have any left)! These are the enclosures of choice for outrageous
street bass and SPL contests.
The following chart shows three recommended ported enclosures for each Comp driver.
Compact has increased bass efficiency over a sealed enclosure, yet can still fit in tighter applications. It is the
smallest design that will work well for each woofer. Although it is the smallest ported enclosure the output from 30
to 80 HZ will be considerably higher than that of a sealed box. This smallest vented design is for places where you
can only give up the room normally taken up by two Comps in the normal small sealed boxes. The two other ported designs have proportionately more output in this region.
Street Bass is a medium sized enclosure that will kick out bass that can be heard for blocks away. And it does
go LOW!
Finally, SPL / Deep Bass is a large enclosure that has it all. It is high efficiency and will deliver the output needed
to win SPL contests, yet low frequencies go all the way down to the basement - with power that will shake the
foundations! We’re talking truly awesome.
If space is not at a premium and you want to get the most from your Comp driver, try one of these designs. You
won’t be disappointed. Note: You must add the port volume to the volume of the box! See the cut
sheets.
Recommended Ported Enclosure
– High Efficiency –
Model Compact Street Bass SPL / Deep Bass
C8 .66 cu.ft. + port, 1.0 cu.ft. + port; 1.2 cu.ft. + port;
1.5x8" port, 18" long 1.5x8" port, 13.75" long 1.5x8" port, 12.25" long
Power Handling = 55W Power Handling = 55W Power Handling = 55W
C10 1.25 cu.ft. + port; 1.5 cu.ft. + port 1.75 cu.ft. +port;
1.5x10.5" port, 14.5" long 1.5x10.5", port 13.25" long 1.5x10.5" port, 13.25" long
Power Handling = 125W Power Handling = 125W Power Handling = 125W
C12 1.75 cu.ft. + port; 2.0 cu.ft. + port; 2.25 cu.ft. + port;
2.0x12.5" port, 16" long 2.0x12.5" port, 13.5" long 2.0x12.5" port, 16.375" long
Power Handling = 150W Power Handling = 150W Power Handling = 150W
C15 3.0 cu.ft. + port; 3.5 cu.ft. + port; 4.0 cu.ft. + port;
2.75x15.5" port, 17" long 3x15.5" port, 16.5" long 3X15.5"port, 16.25"long
Power Handling = 250W Power Handling = 250W Power Handling =250W
NOTE: The use of a subsonic filter is necessary to insure the life of the woofer in a ported enclosure.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 10
Page 11
Characteristics of Vented Enclosures
A vented enclosure is not much more complex than a sealed box. It consists, basically, of a box with a hole in it.
However, despite its simple design, vented boxes are considerably harder to get good performance from than
sealed boxes - although many times the extra effort can be worth it.
The vent in the enclosure interacts with the volume of air in the cabinet and the driver to help increase output
and reduce cone excursion at and around the tuning frequency. In fact, at box tuning, almost all the bass is produced by the vent - NOT the woofer.
The trick in building a vented box is to get the right size enclosure and with the right size vent. You can’t be too
far off on either of these factors or your speaker’s performance will suffer. In particular, using a too-small box or a
too-high vent tuning frequency can eliminate bass instead of increasing it. Porting a sealed box that is too small
usually does nothing to improve frequency response. The vent placement within the enclosure is also important.
You must leave at least the equivalent of the vent’s diameter between the vent and any inside wall. For example,
you would not place a vent with a -3” diameter within 3” of any wall. The same is true for clearance between the
vent opening and the bottom of the enclosure.
Pros
1 - Reduced cone excursion and reduced distortion around vent tuning.
2 - Increased output capabilities around vent tuning.
3 - Vented boxes give you that extra “Bump” that is preferred in certain types of music.
Cons
1 - Total loss of cone control below vent tuning, which can result in high distortion and driver mechanical failure.
2 - Midrange sound coming from inside the box through the vent can produce unpleasant sound coloration.
3 - Vented enclosures are more sensitive to changes such as temperature, humidity and driver fatigue.
4 - Enclosure design is more complex and the enclosure itself must be more solidly constructed because internal
pressure at frequencies around vent tuning can be nearly twice as high as a sealed enclosure.
5 - Vented enclosures usually don’t sound as fast as sealed boxes because of the resonant effects of the vent tuning, which is always slightly out of phase with the driver’s output.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 11
Page 12
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 12
C8 .8cu.ft./1.0cu.ft./1.2cu.ft.
Vented Box Response Curves
C10 1.25cu.ft./1.5cu.ft./1.75cu.ft.
C
C8 Compact Enclosure Response Curve
C8 Street Bass Response Curve
C8 SPL/Deep Bass Enclosure Response Curve
Graph 1 > Acoustic On Axis Response: SPL, Phase dB
90
85
80
75
70
65
60
55
10 Frequency 50 100 Hz 500 1K
C
C10 Compact Enclosure Response Curve
C10 Street Bass Response Curve
C10 SPL/Deep Bass Enclosure Response Curve
95
90
85
80
75
70
Graph 1 > Acoustic On Axis Response: SPL, Phase dB
C
65
60
55
10 Frequency 50 100 Hz 500 1K
C
Page 13
Vented Box Response Curves
C15 3.0cu.ft./3.5cu.ft./4.0cu.ft.
C12 1.75cu.ft./2.0cu.ft./2.25cu.ft.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 13
C
C12 Compact Enclosure Response Curve
C12 Street Bass Response Curve
C12 SPL/Deep Bass Enclosure Response Curve
100
95
90
85
80
75
70
65
60
10 Frequency 50 100 Hz 500 1K
Graph 1 > Acoustic On Axis Response: SPL, Phase dB
C
C15 Compact Enclosure Response Curve
C15 Street Bass Response Curve
C15 SPL/Deep Bass Enclosure Response Curve
C
100
95
90
85
80
75
70
65
60
Graph 1 > Acoustic On Axis Response: SPL, Phase dB
C
10 Frequency 50 100 Hz 500 1K
Page 14
All the cubic feet numbers given in the supplied charts include the displacement of the woofer. For the ported
boxes the displacement of the port must be added to the final design. It will be impractical to use round ports for
these designs. The rectangular port information given will yield the best results.
Always use 3/4” or thicker MDF and make sure all the joints are secure and well sealed. The peak pressure in a
ported box can exceed that of a sealed enclosure. All of these
designs need some internal bracing. Be sure to add 2”x2” to 3”x3”
triangle braces between each of the larger unsupported panels.
Kicker recommends using a good grade of wood glue and silicone
sealer for an airtight box.
Note:If you prefer an ultra-smooth bass response, you should
loosely fill your ported Comp Enclosure with polyfil. If you do so,
the entrance to the port (inside the box) must be covered with
hardware cloth, chicken wire, or expanded metal to prevent the
polyfil from being blown out through the port. Use of polyfil will
slightly decrease efficiency, but will deepen and extend low bass
response.
Do not install a ported box with the port against a solid surface. The port opening must remain unobstructed. Use the
smallest dimension of the rectangular port as the minimum
amount of space required between the port and any surface
to insure unrestricted airflow.
Box Building & Mounting Hints
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 14
X
X
X
Chicken Wire or
Expanded Metal
50 % filled
with Polyfil
Chicken Wire or
Expanded Metal
At Least 4 "
Hatchback
OR
Trunk
Page 15
Box Building & Mounting Hints
If you would like to use a vented enclosure, but the box designs we provide you with (in this manual) do not fit
because of width or depth the designs can be modified. The shape of the enclosure is not vital, but The Volume
Is
.
The volume, of the design you choose, must stay the same. The following diagrams provide you with some help
to insure your enclosure is built correctly.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 15
Remember:
If you are going to bend the port at 90° you will need to add 1/2 of the ports height to the length! See Below.
Example:
(Fig. 1)
H
port = 3”
W
port = 10”
L
port
= 20”
(Fig. 2)
Since
H
port
is 3” you need to add
1.5”( 1/2 of
H
port
) to
L
port
. This
means that
L
¹ + L² = 21.5”
Always measure
L
¹ and L² down
the center to get an accurate
measurement!
Front
45°
Wedge
Round Over
Inner Corner
Top
3"
Fig. 1 Fig. 2
3"
10"
10"
L 2
20"
3"
L 1
Page 16
Here are a couple more examples of the different shape enclosures you can build. The woofer can be mounted
on the same side as the port or the back side of the enclosure can be slanted to fit up against your back seat.. On
the cut sheets we provide, change the dimensions to accommodate the woofer and the vent on the same side.
Make sure the internal volume does not change!
Box Building & Mounting Hints
OR
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 16
SideTop
SideTop
Page 17

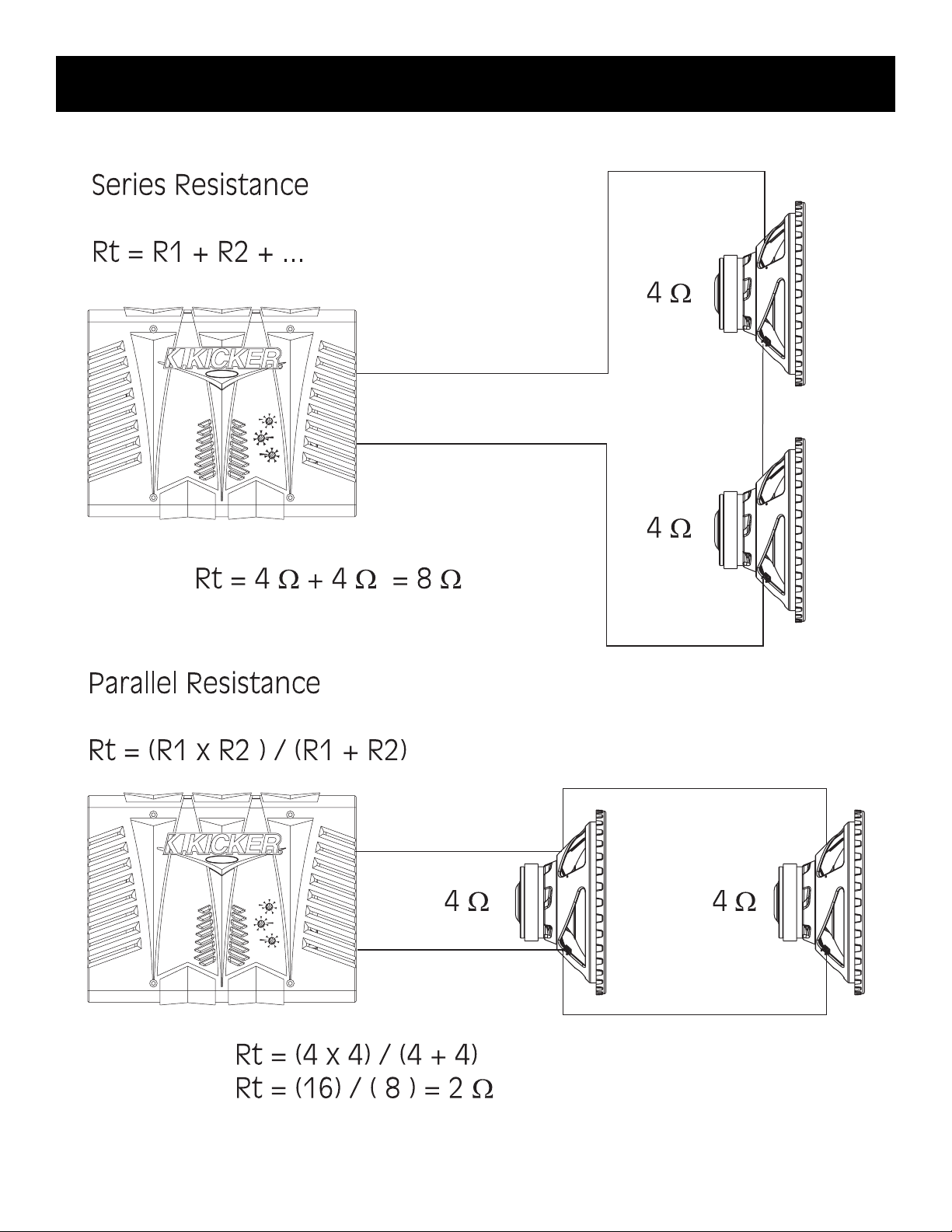

Wiring Options
The following diagrams are the most popular wiring configurations. They show a typical single channel wiring
scheme. Check the amplifier’s owners manual for minimum impedance the amplifier will handle before hooking up
the speakers. Remember: 4 Ohm mono is equivalent to 2 Ohm stereo.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 17
SINGLE WOOFER WIRING
-
Black -
Red +
To
+
Amplifier
WOOFERS WIRED IN PARALLEL
4 4 = 2 OHM
Black - Black -
Red +
Red +
WOOFERS WIRED IN SERIES
4 4 = 8 OHM
Black - Black -
Red +
Red +
To
-
+
Amplifier
To
+
Amplifier
WOOFERS WIRED IN PARALLEL
8 8 = 4 OHM
Red +
Red +
WOOFERS WIRED IN SERIES
8 8 = 16 OHM
Black - Black -
Red +
Red +
To
-
+
Amplifier
To
+
Amplifier
Page 18
Wiring Options cont.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 18
WOOFERS WIRED IN PARALLEL
Using 8 Ohm Woofers
8 8 8 = 2.66 OHM
Black - Black -
Red + Red +
Red +
Black -
To
-
+
Amplifier
Using 4 Ohm Woofers
4 4 4 = 1.33 OHM
Black - Black -
Red + Red +Red +
WOOFERS WIRED IN PARALLEL
Black -
To
-
+
Amplifier
8 8 8 8 = 2 OHM
Black - Black -
Red + Red +
4 4 4 4 = 1 OHM
Black - Black -
Red + Red +Red +
Using 8 Ohm Woofers
Black -
Red +
Red +
Using 4 Ohm Woofers
Black -
Red +
Black -
Black -
To
-
+
Amplifier
To
-
+
Amplifier
Page 19
21-3/4
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 19
.80 cf, Fb=44Hz
.18 cf = Port Vol.
Comp8-BOX-VENTED-080
Side View
B
E
F
D
POWER HANDLING:
55W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 30W
18
Front View
1-1/2
Cut List: 3/4" MDF
9 1/2
C
6-7/8
∅
4-13/16
4-13/16
12-1/4
(2) 12 1/4" x 9 1/2" Top & Bottom(A)
(2) 12 1/4" x 20 1/4" Sides(B)
(2) 8" x 20 1/4" Front & Back(C)
(1) 8" x 17 1/4" Port(D)
(4) 2" x 2" Gusset(E)
(1) 1 x 1 Corner Filet (F)
A
R 3/8
3/4
1-1/2
3/4
8
Page 20
1.00 cf, Fb=44Hz
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 20
.14 cf = Port Vol.
Comp8-BOX-VENTED-100
Side View
B
E
POWER HANDLING:
55W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 35W
21-3/4
Front View
D
13-3/4
1-1/2
Cut List: 3/4" MDF
9 1/2
C
(2) 13 3/4" x 9 1/2" Top & Bottom(A)
(2) 13 3/4" x 20 1/4" Sides(B)
(2) 8" x 20 1/4" Front & Back(C)
(1) 8" x 13" Port(D)
(4) 2" x 2" Gusset(E)
4-13/16
∅
4-13/16
6-7/8
A
13-3/4
R 3/8
3/4
1-1/2
3/4
8
Page 21

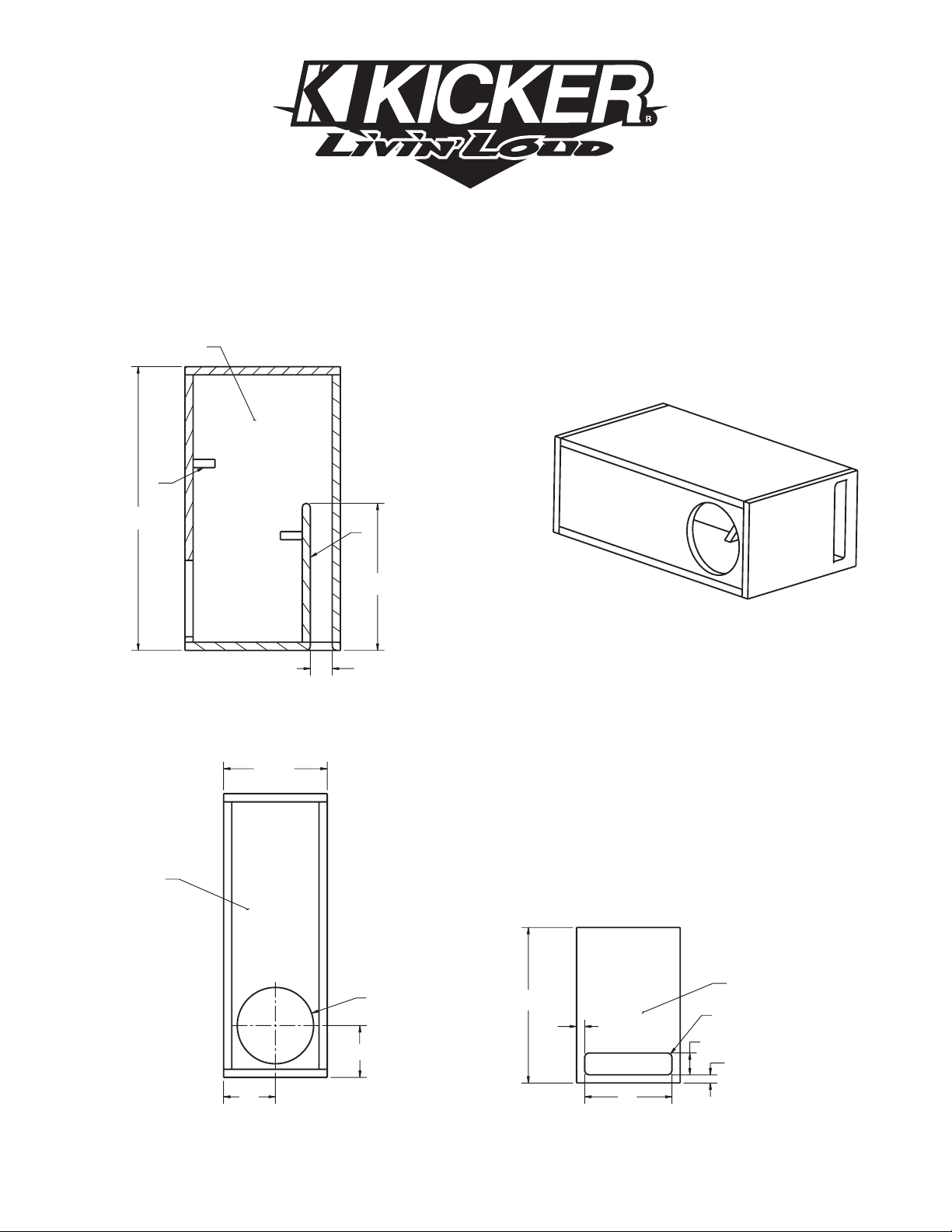

1.20 cf, Fb=42Hz
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 21
.12 cf = Port Vol.
Comp8-BOX-VENTED-120
Side View
B
E
POWER HANDLING:
55W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 35W
21-1/2
Front View
D
12-1/4
1-1/2
Cut List: 3/4" MDF
9 1/2
C
(2) 15 3/4" x 9 1/2" Top & Bottom(A)
(2) 15 3/4" x 20" Sides(B)
(2) 8" x 20" Front & Back(C)
(1) 8" x 11 1/2" Port(D)
(4) 2" x 2" Gusset(E)
4-13/16
∅
4-13/16
6-7/8
A
15-3/4
R 3/8
3/4
1-1/2
3/4
8
Page 22
1.25 cf, Fb=42Hz
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 22
.19 cf = Port Vol.
C10-BOX-VENTED-125
Side View
B
F
24-1/4
POWER HANDLING:
125W with 25HZ Subsonic Filter
set at 24db/Octave.
Without subsonic filter 50W
D
14-1/2
1-1/2
Side View
C
6
12
Cut List: 3/4" MDF
(2) 11 3/4" x 12" Top & Bottom(A)
(2) 11 3/4" x 22 3/4" Sides(B)
(2) 10 1/2" x 22 3/4" Front & Back(C)
(1) 10 1/2" x 13 3/4" Port(D)
(4) 2" x 2" Gusset(E)
-9-5/32
∅
11-3/4
6
3/4
10-1/2
A
R3/8
1-1/2
3/4
Page 23
1.50 cf, Fb=42Hz
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 23
.17 cf = Port Vol.
C10-BOX-VENTED-150
Side View
B
F
28-1/4
POWER HANDLING:
125W with 25HZ Subsonic Filter
set at 24db/Octave.
Without subsonic filter 50W
D
13-1/4
1-1/2
Side View
C
6
12
Cut List: 3/4" MDF
(2) 11 3/4" x 12" Top & Bottom(A)
(2) 11 3/4" x 26 3/4" Sides(B)
(2) 10 1/2" x 26 3/4" Front & Back(C)
(1) 10 1/2" x 12 1/2" Port(D)
(4) 2" x 2" Gusset(E)
-9-5/32
∅
11-3/4
6
3/4
10-1/2
A
R3/8
1-1/2
3/4
Page 24
1.75 cf, Fb=40Hz
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 24
.15 cf = Port Vol.
C10-BOX-VENTED-175
Side View
B
F
29-1/4
POWER HANDLING:
125W with 25HZ Subsonic Filter
set at 24db/Octave.
Without subsonic filter 50W
D
13-1/4
1-1/2
Side View
C
6
12
Cut List: 3/4" MDF
(2) 12 3/4" x 12" Top & Bottom(A)
(2) 12 3/4" x 27 3/4" Sides(B)
(2) 10 1/2" x 27 3/4" Front & Back(C)
(1) 10 1/2" x 11" Port(D)
(4) 2" x 2" Gusset(E)
-9-5/32
∅
12-3/4
6
3/4
10-1/2
A
R3/8
1-1/2
3/4
Page 25
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 25
1.75 cf, Fb=40Hz
.30 cf = Port Vol.
C12-BOX-VENTED-175
Side View
B
F
28
POWER HANDLING:
150W with 25HZ Subsonic Filter
set at 24db/Octave.
Without subsonic filter 75W
D
16
2
Side View
C
7
12
Cut List: 3/4" MDF
(2) 12 1/4" x 14" Top & Bottom(A)
(2) 12 1/4" x 26 1/2" Sides(B)
(2) 12 1/2" x 26 1/2" Front & Back(C)
(1) 12 1/2" x 15 1/4" Port(D)
(4) 2" x 2" Gusset(E)
-10-7/8
∅
12-1/4
7
3/4
12-1/2
A
R3/8
2
3/4
Page 26
2.00 cf, Fb=40Hz
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 26
.30 cf = Port Vol.
C12-BOX-VENTED-200
Side View
B
F
26
POWER HANDLING:
150W with 25HZ Subsonic Filter
set at 24db/Octave.
Without subsonic filter 75W
D
13-1/2
2
Side View
C
7
14
Cut List: 3/4" MDF
(2) 14 1/4" x 14" Top & Bottom(A)
(2) 14 1/4" x 24 1/2" Sides(B)
(2) 12 1/2" x 24 1/2" Front & Back(C)
(1) 12 1/2" x 12 3/4" Port(D)
(4) 2" x 2" Gusset(E)
-10-7/8
∅
14-1/4
7
3/4
12-1/2
A
R3/8
2
3/4
Page 27
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 27
2.25 cf, Fb=38Hz
.31 cf = Port Vol.
27-3/8
C12-BOX-VENTED-225
Side View
B
F
POWER HANDLING:
150W with 25HZ Subsonic Filter
set at 24db/Octave.
Without subsonic filter 100W
D
16-3/8
2
Side View
C
7
14
Cut List: 3/4" MDF
(2) 14 1/4" x 14" Top & Bottom(A)
(2) 14 1/4" x 25 7/8" Sides(B)
(2) 12 1/2" x 25 7/8" Front & Back(C)
(1) 12 1/2" x 15 5/8" Port(D)
(4) 2" x 2" Gusset(E)
A
-10-7/8
∅
14-1/4
7
3/4
12-1/2
R3/8
2
3/4
Page 28
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 28
3.00 cf, Fb=42Hz
.51 cf = Port Vol.
E
29-1/2
C15-BOX-VENTED-300
Side View
B
POWER HANDLING:
250W with 25HZ Subsonic Filter
set at 24db/Octave.
Without subsonic filter 250W
D
17
2-3/4
Side View
C
8-1/2
17
∅
8-1/2
-13-11/16
Cut List: 3/4" MDF
(2) 17" x 17" Top & Bottom(A)
(2) 17" x 28" Sides(B)
(2) 15 1/2" x 28" Front & Back(C)
(1) 15 1/2" x 16 1/4" Port(D)
(4) 2" x 2" Gusset(E)
17
3/4
15-1/2
A
R3/8
2-3/4
3/4
Page 29
3.50 cf, Fb=40Hz
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 29
.53 cf = Port Vol.
28-3/4
C15-BOX-VENTED350
Side View
B
E
POWER HANDLING:
250W with 25HZ Subsonic Filter
set at 24db/Octave.
Without subsonic filter 250W
D
16-1/2
3
Side View
C
8-1/2
17
∅
8-1/2
-13-11/16
Cut List: 3/4" MDF
(2) 18" x 17" Top & Bottom(A)
(2) 18" x 27 1/4" Sides(B)
(2) 15 1/2" x 27 1/4" Front & Back(C)
(1) 15 1/2" x 15 3/4" Port(D)
(4) 2" x 2" Gusset(E)
18
3/4
15-1/2
A
R3/8
3
3/4
Page 30
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 30
4.00 cf, Fb=38Hz
.52 cf = Port Vol.
29-1/2
C15-BOX-VENTED400
Side View
B
E
POWER HANDLING:
250W with 25HZ Subsonic Filter
set at 24db/Octave.
Without subsonic filter 250W
D
16-1/4
3
Side View
C
8-1/2
17
∅
8-1/2
-13-11/16
Cut List: 3/4" MDF
(2) 19 3/4" x 17" Top & Bottom(A)
(2) 19 3/4" x 28" Sides(B)
(2) 15 1/2" x 28" Front & Back(C)
(1) 15 1/2" x 15 1/2" Port(D)
(4) 2" x 2" Gusset(E)
19-3/4
3/4
15-1/2
A
R3/8
3
3/4
Page 31
Resistance Formulas
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 31
5
6 9 12
BASS
BOOST
(dB)
3
15
0
18
GAIN
0 11
X-OVER
FREQ. (Hz)
50 200
6 9 12
BASS
BOOST
(dB)
3
0
18
GAIN
0 11
X-OVER
FREQ. (Hz)
50 200
5
15
Page 32
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 32
Thiele/Small Parameters
Model C158 C128 C108 C88
Nominal Impedance 8 8 8 8
SPL 1W/1M 88.8 88.5 87.5 84.5
Displacement, cc 3260 1720 980 620.0
Displacement, CuIn 198.7 104.9 60.0 38.0
Mounting Depth 7-1/8 5-1/2 4-9/16 3-13/16
Revc 6.75 7.413 7.195 4.09
VC Inductance, mH 5.56 3.89 4.27 3.11
Sd, SqM 0.0856 0.0532 0.037 0.0206
BL 20.39 14.9 13.48 9.08
Vas, Liters 301.46 127.53 62.46 21.99
Vas, CuFt 10.64 4.5 2.2 0.75
Mms, gms 234.42 100.17 74.05 49.55
Fs 18.7 27.3 31.8 36.8
Qms 12.745 12.167 11.088 10.179
Qes 0.462 0.593 0.601 0.578
Qts 0.446 0.565 0.570 0.547
Pmax, watts 250 150 125 100
Xmax, mm 13.0 7.5 7.5 7.5
Model C154 C124 C104 C84
Nominal Impedance 4 4 4 4
SPL 1W/1M 89.2 88.6 87.7 84.5
Displacement, cc 3260 1718 983 620.0
Displacement, CuIn 198.7 104.89 60.0 38.0
Mounting Depth 7-1/8 5-1/2 4-9/16 3-13/16
Revc 3.30 3.79 3.645 4.09
VC Inductance, mH 3.25 2.83 2.7 2.80
Sd, SqM 0.0856 0.0532 0.0370 0.0206
BL 15.84 11.69 10.17 9.08
Vas, Liters 301.03 133.27 59.48 21.99
Vas, CuFt 10.6 4.71 2.10 0.75
Mms, gms 254.86 107.37 75.808 49.55
Fs 18.5 25.8 32.2 36.8
Qms 13.136 11.298 10.534 10.179
Qes 0.390 0.499 0.555 0.578
Qts 0.379 0.478 0.527 0.547
Pmax, watts 250 150 125 100
Xmax, mm 13.0 7.5 7.5 7.5
Page 33
Mounting Hole Cutouts
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 33
13-11/16
10-7/8
9-5/32
6-7/8
C12
C15
C8
C10
Page 34
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 34
Notes
Page 35
• Install slips (screwdriver holes)
• Damage caused by exposure to water
and/or excessive heat.
• Damage through negligence, misuse, or
accident.
• Items physically damaged due to abuse.
• Freight damage.
• The cost of shipping product to Stillwater
Designs Service.
HOW LONG WILL IT TAKE?
Stillwater Designs maintains a goal of 24-hour service for all returns. Delays may be incurred if lack of replacement inventory
or parts is encountered.
INTERNATIONAL WARRANTY
Contact your International Stillwater Designs dealer or distributor concerning specific
procedures for your country’s warranty policies.
P.O. Box 459 • Stillwater, Oklahoma 74076 • U.S.A. • 405 624-8510
• Items previously repaired by any
unauthorized repair facility.
• Items returned from unauthorized
individuals or dealers.
• Return shipping on non-defective items.
• Speakers damaged due to amplifier
clipping or distortion.
• Speakers with silicon caulk used for gasket
material.
KICKER drivers are capable of producing sound levels that can permanently
damage your hearing! Turning up a system to a level that has audible distortion is more damaging to your ears than listening to an undistorted system at the same volume level. The threshold of pain is always an indicator that the sound level is too loud and may permanently damage
your hearing.
Pleaase use common sense when controlling volume!!
WARNING:
SPEAKER SYSTEMS LIMITED WARRANTY
Stillwater Designs warrants this product to be free from defects in material and workmanship under normal use for a period
of one (1) year from date of original purchase from an Authorized Kicker Dealer, unless this product is labeled
“B Stock”, in which case it is warranted for ninety (90) days from date of purchase. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, Stillwater Designs will replace or
repair (at its discretion) the defective merchandise with equivalent merchandise at no charge. Warranty replacements on “BStock” may have cosmetic scratches and blemishes. Discontinued products may be replaced with equivalent products.
This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the
original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided
herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to
this product thereafter. Some states do not allow limitations on implied warranties, therefore these exclusions may not apply to
you.
This warranty gives you specific legal rights; however you may have other rights that vary from state to state.
WHAT TO DO IF YOU NEED WARRANTY OR SERVICE
Defective merchandise must be returned to your local Authorized Stillwater Designs (Kicker) Dealer for warranty. Assistance in
locating an Authorized Dealer can be obtained by writing or calling Stillwater Designs direct. You can confirm that a dealer is
authorized by asking to see a current authorized dealer window decal.
If it becomes necessary for you to return defective merchandise, call the Kicker Customer Service Department at (405)6248510 for a Return Authorization (RA) number. Package all defective items in the original container or in a package that will prevent shipping damage, and return to
Stillwater Designs, 5021 North Perkins Road, Stillwater, OK 74075
The RA number must be clearly marked on the outside of the package. Return only defective components. Return of entire
cabinets, system packs, pairs, etc. increases your return freight charges. Non-defective items received will be returned freight
collect.
Include a dated proof-of-purchase from an Authorized Dealer. Warranty expiration on items returned without proof-ofpurchase will be determined from the manufacturing date code. Coverage may be invalidated if this date is greater than 18
months previous to the date item is sent in. Freight must be prepaid; items received freight collect will be refused.
Failure to follow these steps may void your warranty. Any questions can be directed to the Kicker Customer Service
Department at (405)624-8510.
WHAT IS NOT COVERED?
This warranty is valid only if the product is used for the purpose for which it was designed.
It does not cover:
June 2002
Page 36
P.O. Box 459 x Stillwater, Oklahoma 74076 x U.S.A. x 405 624-8510
or www.Kicker.com
Loading...
