Page 1
13L DC
COMPRESSOR
CENTRE
CONSOLE FRIDGE
KAF-13CF
Page 2
Thank You For Purchasing A
KickAss® Fridge / Freezer
Features:
Easy to operate thermostat control
Reliable refrigeration system with Secop compressor
Efficient electronic technology, low energy consumption
DC-voltage system (DC 12-24 Volt)
Integrated cup holders and side opening lid
Sized for console installation
Please ensure all safety and operational instructions are read carefully to get the
maximum benefit from your new fridge.
IMPORTANT SAFETY SYMBOLS
Warning! - Safety Directive
Failure to observe this directive could lead to serious injury.
Caution! - Safety Directive
Failure to observe this directive could lead to injury or damage to the
appliance.
Note! - Important Information
Failure to observe this note may lead to damage to the appliance or
impede performance.
1
Page 3
2
Page 4
PRODUCT FEATURES
Compressor cooling vent
Power input sockets
Thermostat control knob
Cup holder
Side Opening Lid
SPECIFICATIONS
SKU
Size
Storage
Voltage
Weight
Thermostat
Power Input
Cooling Performance
BATTERY PROTECTION
Battery Level
Low
Medium
High
Cut-Out Comp. Off Cut-Out Comp. Off Cut-Out Comp. Off Cut-Out Comp. Off
9.6V
11.1V
11.8V
KAF-13CF
535L X 220W X360H(mm)
13 Liters
DC 12/24V
10kg
Mechanical
35W±5
Quick cooling system, freezing to -18℃at maximum
12V DC 24V DC
10.6V
12.1V
12.8V
3
21.3V
22.3V
24.3V
22.7V
23.7V
25.7V
Page 5
INSTALLATION
1. Place the fridge in a suitable place in the vehicle.
2. Insert the DC power cable into the fridge.
3. Carefully run the DC power cable to the cigarette socket in the vehicle or battery box and plug in.
4. Ensure the socket is powered via ACC or IGN of the vehicle or turn on the battery box.
5. Turn the control knob to the desired temperature and fridge will turn on.
TEMPERATURE ADJUSTMENT SETTINGS
1. Power On /Off and temperature control is by the thermostat control knob on the
front of the unit.
2. Use only 12/24V DC power, the compressor system is controlled and protected
by an electronic device.
4. Adjust the temperature of the fridge by the knob.
5. Twist the knob to “off ”, to turn the fridge off.
6. Twist the knob to 10 and the refrigerator will begin to cool to the refrigeration
temp of 10℃.
7. Twist the knob to -18 to super refrigeration mode, the lowest refrigeration
Operation temp. is -18℃.
OFF
4
Page 6

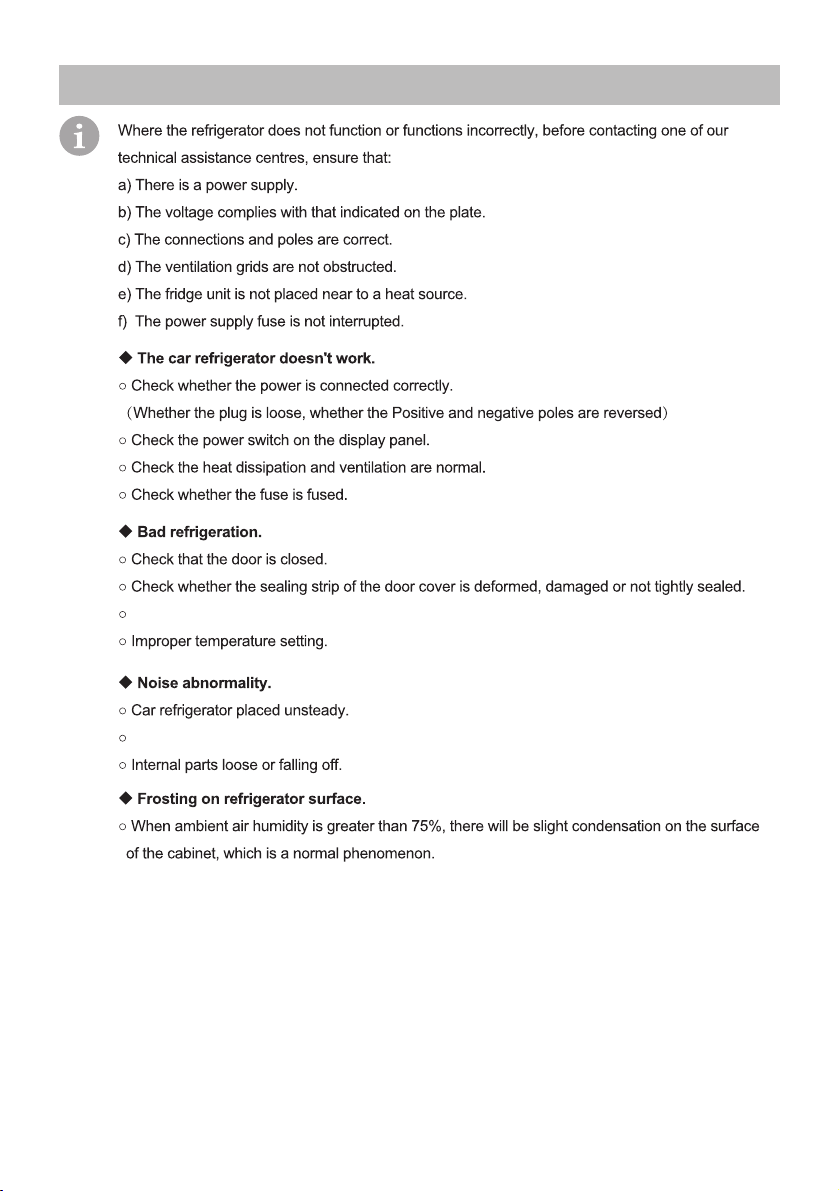

TROUBLESHOOTING
Check for poor ventilation and heat dissipation.
Touching a wall or other objects.
5
Page 7
THANK YOU FOR CHOOSING
KickAss® is committed to providing you with the
most up to date product information. As printed
material is harder to update we have created an online
user guide portal including videos, user guides and
product tips so you can view or download the latest
product information at any time. This also helps to save
our environment which we are committed to just as
much as we are committed to our customer service.
ONLINE USER GUIDES
To get started with this product, please visit
USERGUIDES.KICKASS.COM.AU
and search for your SKU code
SCAN QR CODE
Page 8
WARRANTY INFORMATION
This KickAss product comes with a 3 year warranty on the
whole unit, for your peace of mind. In the unlikely event this
product fails when used according to our user guide, we will
either repair or replace it. For full warranty terms and
conditions on this product, please see the user guide at:
userguides.kickass.com.au
Customer Support
For any technical or warranty enquires
please visit our customer service
portal at:
warranty.kickass.com.au
AUSTRALIAN DIRECT PRODUCT QUALITY
This product is warranted for 3 years from the date of purchase. In Australia, our
goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
Warranty does not cover products that have not been used in accordance with
the KickAss® user guide or are outside the warranty terms and conditions.
QUESTIONS AND COMMENTS
Please visit us at kickass.com.au or email us at [email protected]
